CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive configuration app is available for Apple® and Android® Protocol, with easy-to-use system set-up, user administration, downloadable audit trail, and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The controller supports low and clone resistant high-frequency credentials, and various card reader Wiegand protocols; 26, 30, 34, and 37-bit. Card readers encryptions that use Wiegand protocols such as HID Prox(R), HID iClass(R), MiFare(R), and DESFire(R) can be wired to the controller.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
|
|
|
| CV-TXM-2 Two Button Fob |
|
|
|
| MProx-BLE : 5 Things You Need to Know |
|
|
|
| MProx-BLE System Overview |
|
|
|
|
|
CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive configuration app is available for Apple® and Android® Protocol, with easy-to-use system set-up, user administration, downloadable audit trail, and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The controller supports low and clone resistant high-frequency credentials, and various card reader Wiegand protocols; 26, 30, 34, and 37-bit. Card readers encryptions that use Wiegand protocols such as HID Prox(R), HID iClass(R), MiFare(R), and DESFire(R) can be wired to the controller.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications. |
|
|
|
|
| CV-TXM-2 Two Button Fob |
|
|
|
|
| MProx-BLE : 5 Things You Need to Know |
|
|
|
|
| MProx-BLE System Overview |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
No PC required. Programmed via smartphone Bluetooth(R) App
-
2,000 User Capacity
-
Built-in Bluetooth® mobile credentials option
-
Wiegand Reader protocol – 26, 30, 34 and 37 bits
-
Common Alarm Relay – Trigger remote devices
-
Anti-pass back – Higher level of security
-
Sensor Input – For door position switch or vehicle loop detector
-
Form C relays – Fail-safe or Fail-secure electric locks
-
Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
-
Encrypted rolling code and protected AES128 transmission of transmitters
-
Operator Security Levels – 5, configurable
-
3 year warranty
| Voltage: |
12 VDC
|
| Current Draw: |
< 100 mA
|
| Contact Rating: |
1A @ 12V AC/DC
|
| Users: |
2000
|
| Reader Inputs: |
2
|
| Reader Outputs: |
2
|
| Reader Input Types: |
Wiegand 26, 30, 34, 37 Bit
|
| Receiver Frequency: |
433 Mhz.
|
| DIN Rail Mount: |
Yes
|
| Temperature Range: |
-4°F to 131°F (-20°C to +55°C)
|
| Relay Output Types: |
Timed 1 - 180 seconds, Momentary, bi-stable / latch
|
| CV-603 Dimensions: |
4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
|
| CX-TXM-2 Dimensions: |
2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)
|
5 Things you NEED to knowMProx-BLE
Smartphone Setup GuideMProx-BLE
Installer GuideMProx-BLE
Add System Credential GuideMProx-BLE
MProx-BLE System OverviewPresented by Kenneth Chong
Descripción general del sistema MProx-BLE - EspañolPresentado por Kenneth Chong
|
|
|
CONTROLLERS
 click to expand section
|
|
Net Cost
|
|

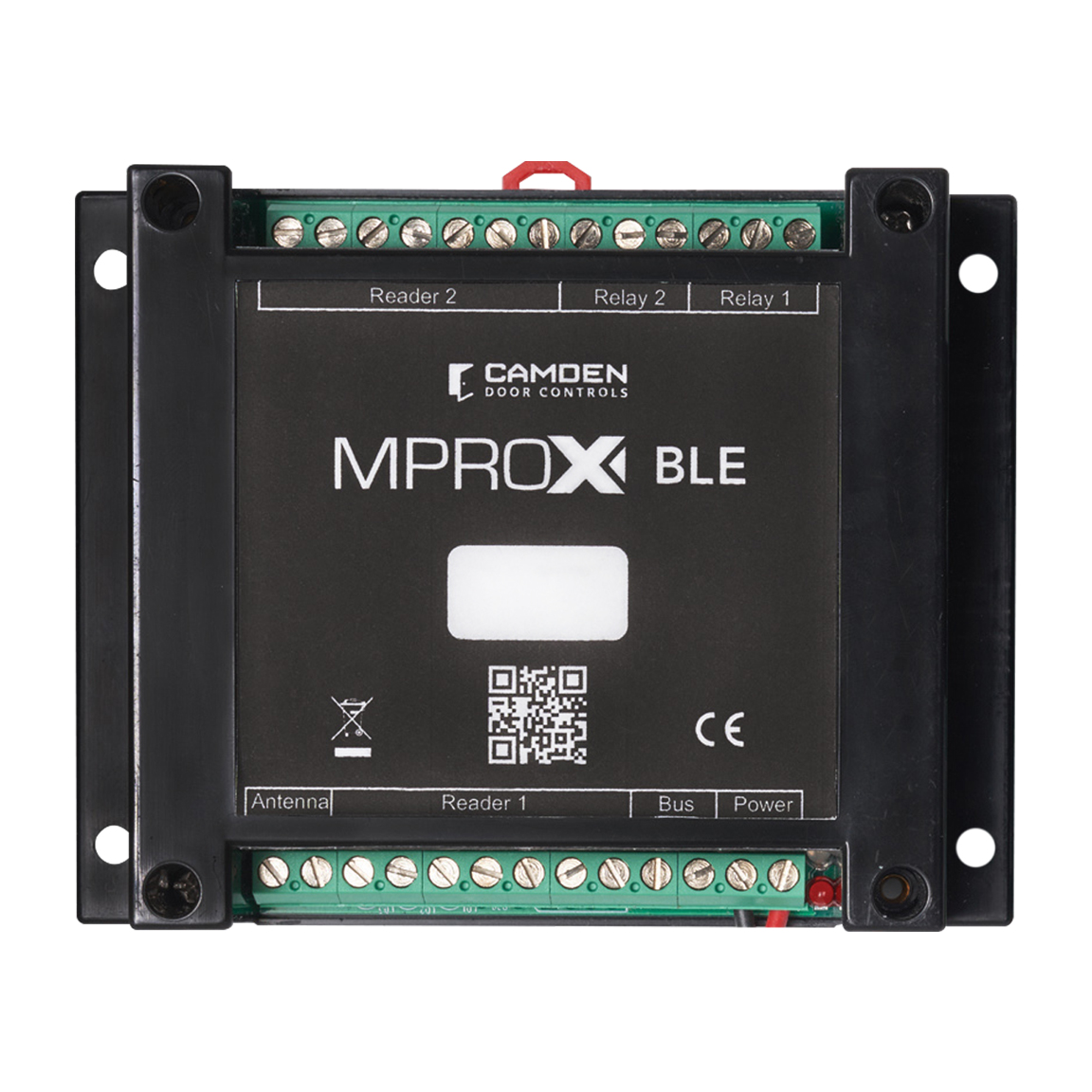

CV-603
2 Door MProx-BLE controller with 433 Mhz. receiver
EDI DATA, APPROVALS
|
|
2 Door MProx-BLE controller with 433 Mhz. receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5""L x 3.5""W x 4.5""H
Weight: 0.45lbs.
UPC:670454209146
Country of Origin:France
|
|

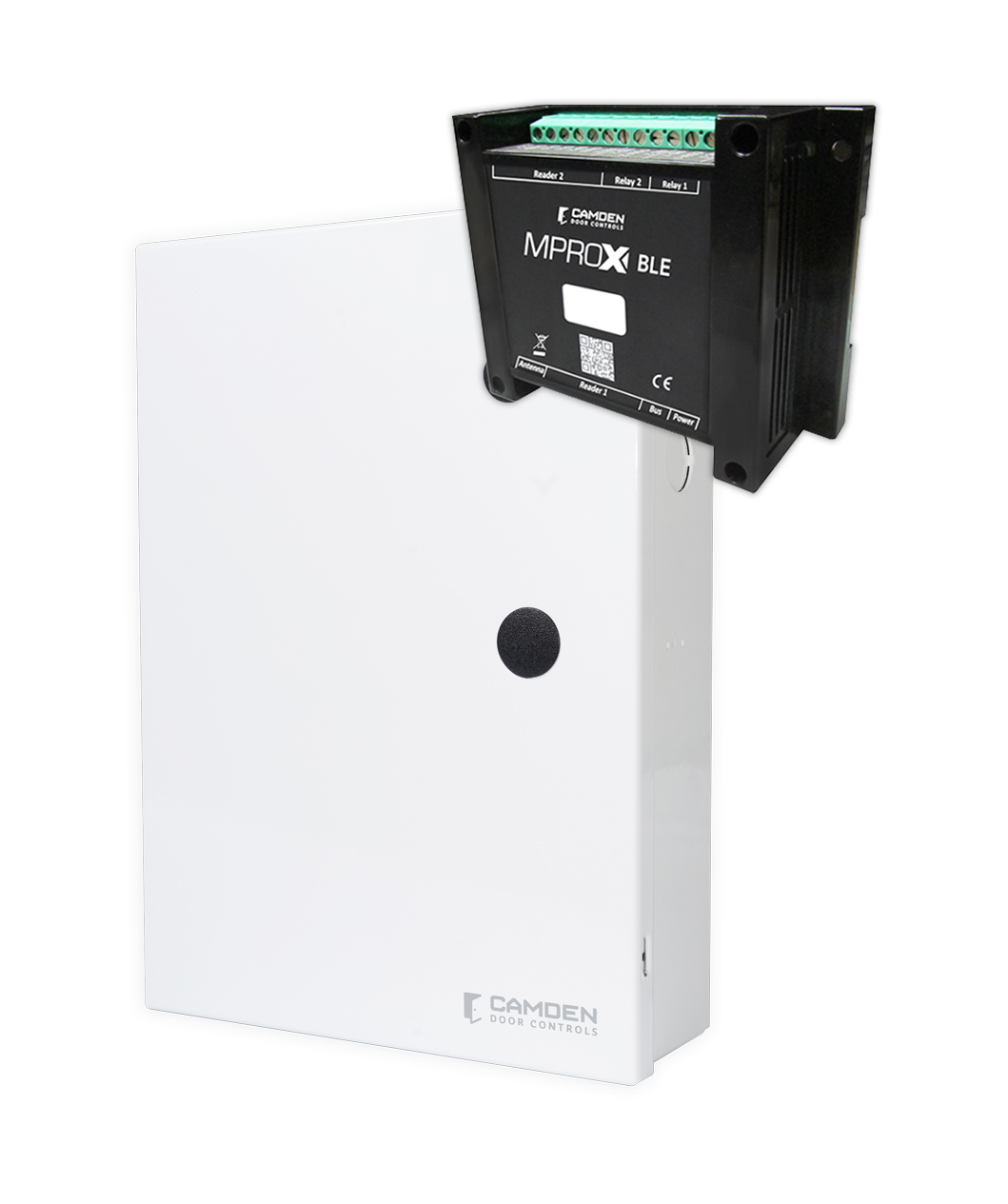

CV-603PS
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14"L x 12"W x 4"H
Weight: 4lbs.
UPC:670454209160
Country of Origin:Canada
|
| |
|
EXTENSION ANTENNA
click to expand section
|
|
Net Cost
|
|

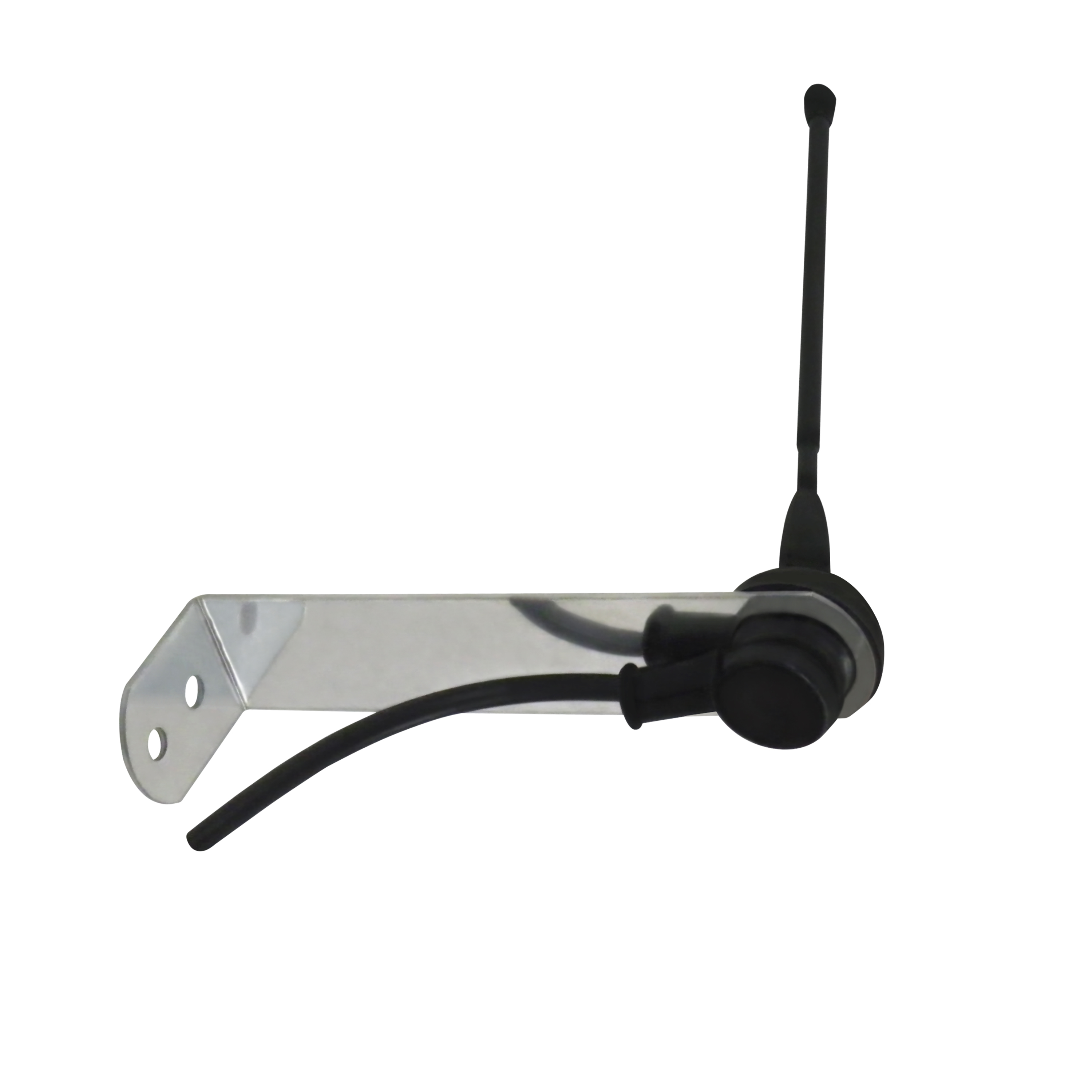

CV-603EA
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
EDI DATA, APPROVALS
|
|
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.9"L x 1.2"W x "H
Weight: 220glbs.
UPC:670454210784
Country of Origin:France
|
| |
|
CONTROLLER & READER KIT
click to expand section
|
|
Net Cost
|
|

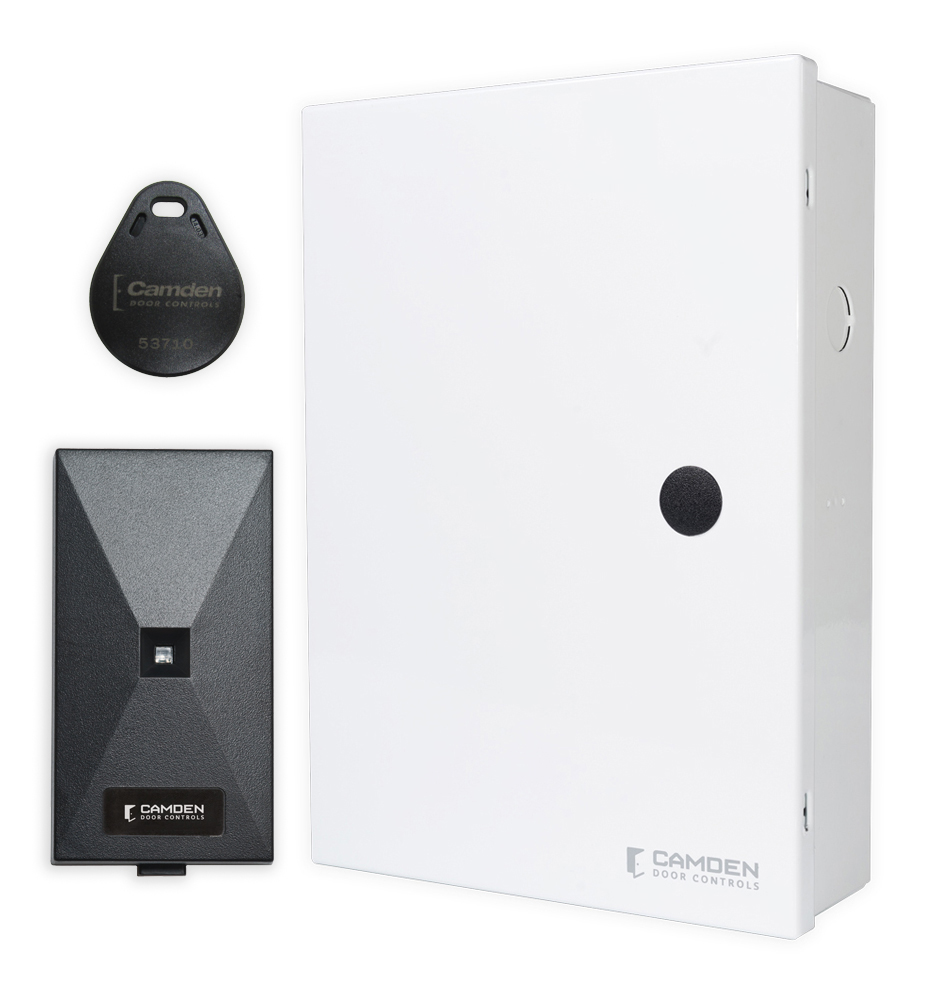

CV-603PS-K1
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14"L x 12"W x 4"H
Weight: 4.35lbs.
UPC:670454209184
Country of Origin:Canada
|
| |
|
WIRELESS KEY FOB
click to expand section
|
|
Net Cost
|
|

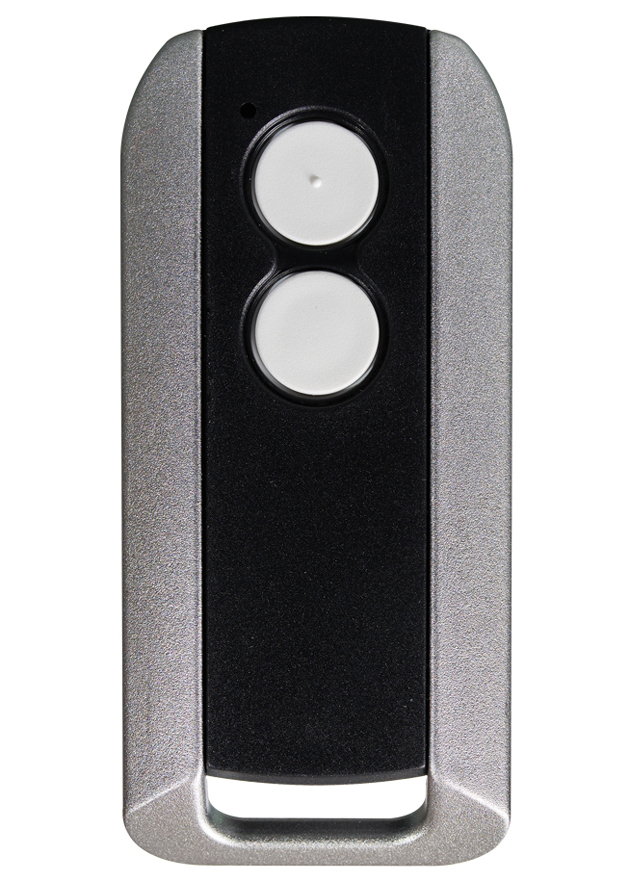

CV-TXM-2
2 Button, 433 Mhz. key fob for MProx-BLE Controller
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fob for MProx-BLE Controller
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.0"L x 2.75"W x 0.50"H
Weight: 1.0lbs.
UPC:670454209191
Country of Origin:France
|
|
CV-TXM-2B
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6.0"L x 4.0"W x 3.0"H
Weight: 0.05lbs.
UPC:670454209917
Country of Origin:France
|
| |
|
PROTOCOL READERS & CREDENTIALS
click to expand section
|
|
Net Cost
|
|
CV-603VR10
10 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
10 Virtual Remote Licence Key
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212979
Country of Origin:Canada
|
|
|
CV-603VR50
50 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
50 Virtual Remote Licence Key
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212986
Country of Origin:Canada
|
|
CV-7400
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
EDI DATA, APPROVALS
|
|
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: lbs.
UPC:670454156723
Country of Origin:USA
|
|
CV-7600
MIFARE Reader with BLE for Smartphone Credentials
EDI DATA, APPROVALS
|
|
MIFARE Reader with BLE for Smartphone Credentials
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 3"H
Weight: .55lbs.
UPC:670454203519
Country of Origin:USA
|
| |
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
CV-7400 Options
click to expand section
|
|
Net Cost
|
|
|
CV-CSA
AWID format prox. cards, clam shell style, package of 10
EDI DATA, APPROVALS
|
|
AWID format prox. cards, clam shell style, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140135
Country of Origin:USA
|
|

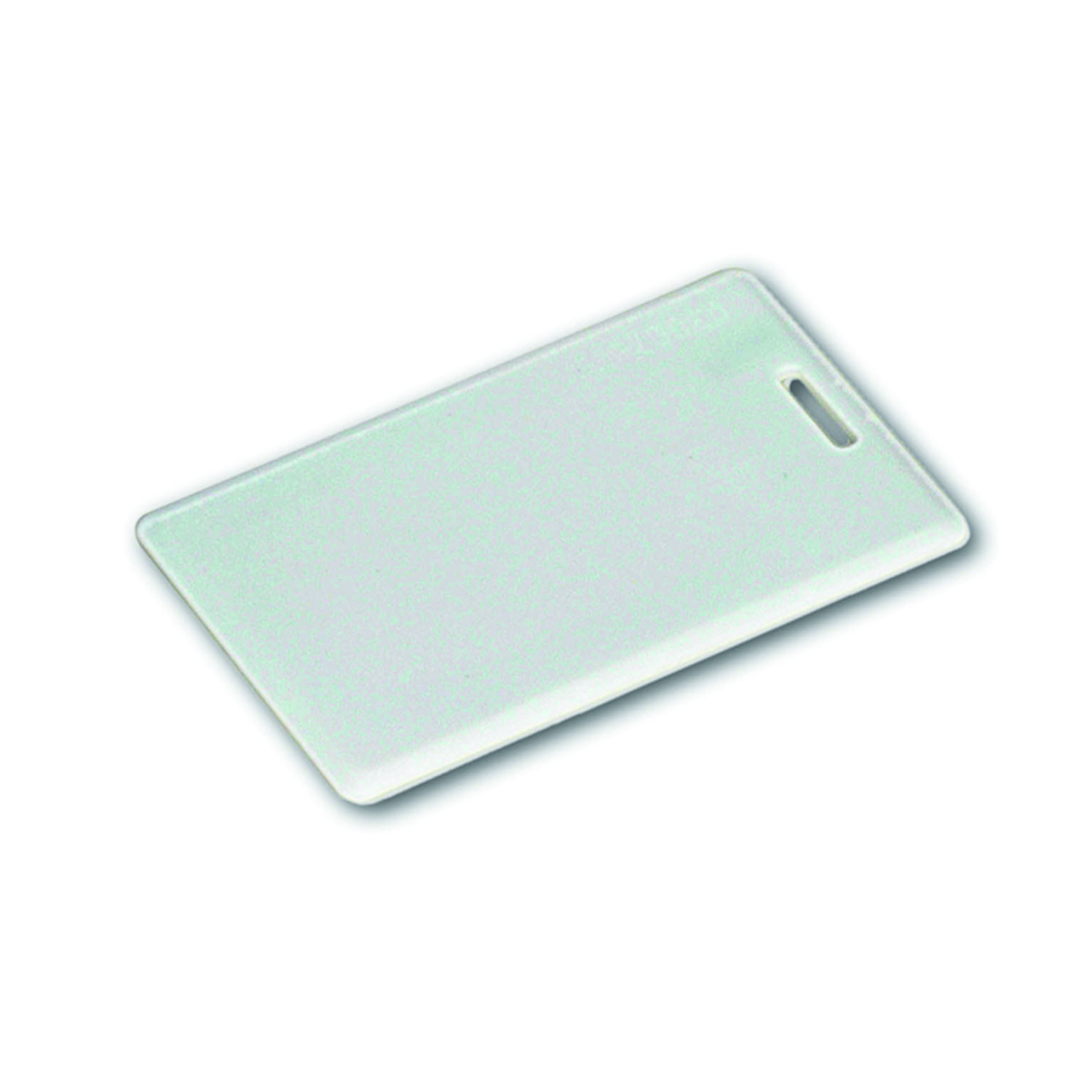

CV-CSH
HID Format clam shell prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152985
Country of Origin:USA
|
|
|
CV-ISA
AWID format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
AWID format ISO prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182333
Country of Origin:USA
|
|
|
CV-ISH
HID Format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182326
Country of Origin:USA
|
|
CV-KTA
AWID format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
AWID format prox. key tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140197
Country of Origin:USA
|
|

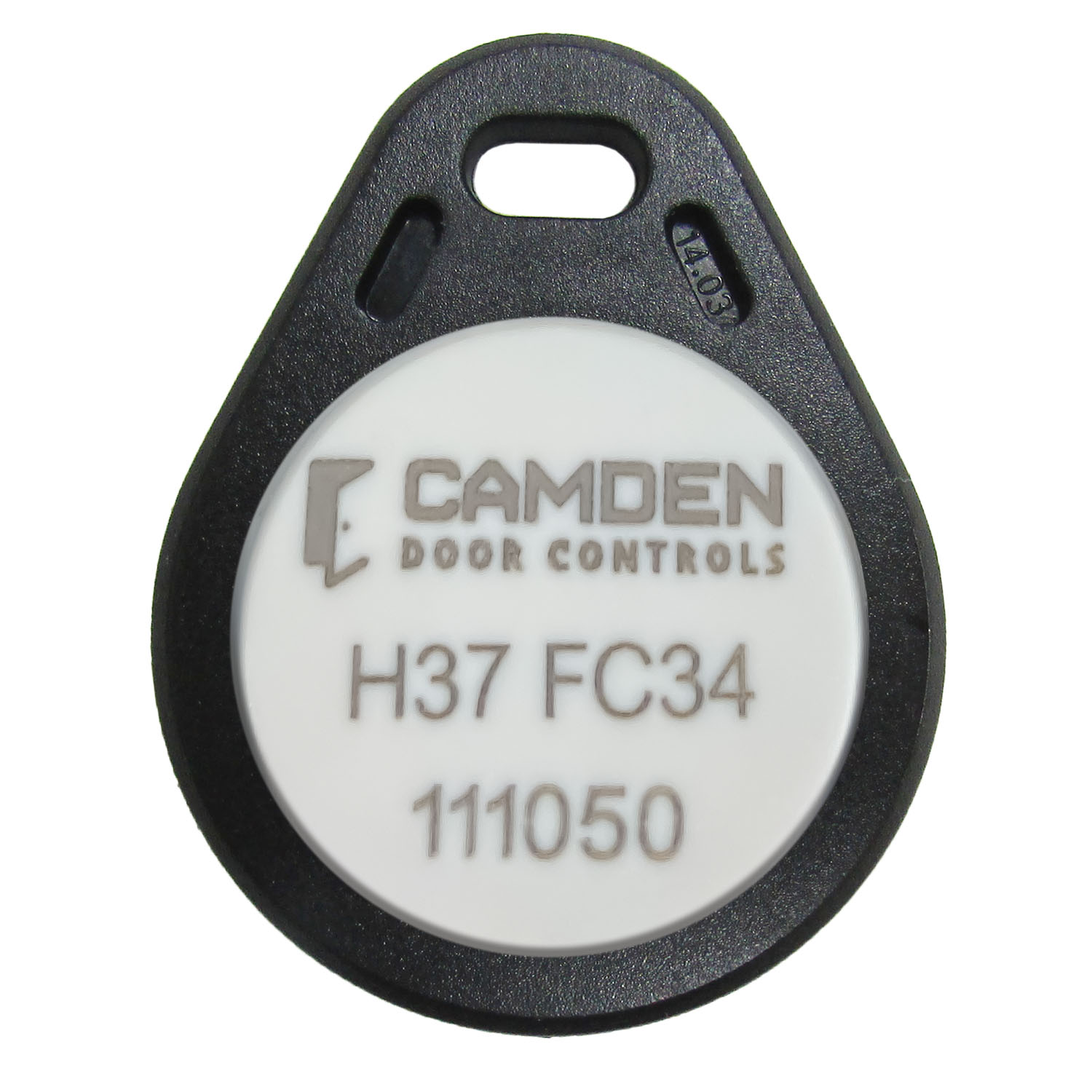

CV-KTH
HID Format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
HID Format prox. key tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152749
Country of Origin:USA
|
| |
|
