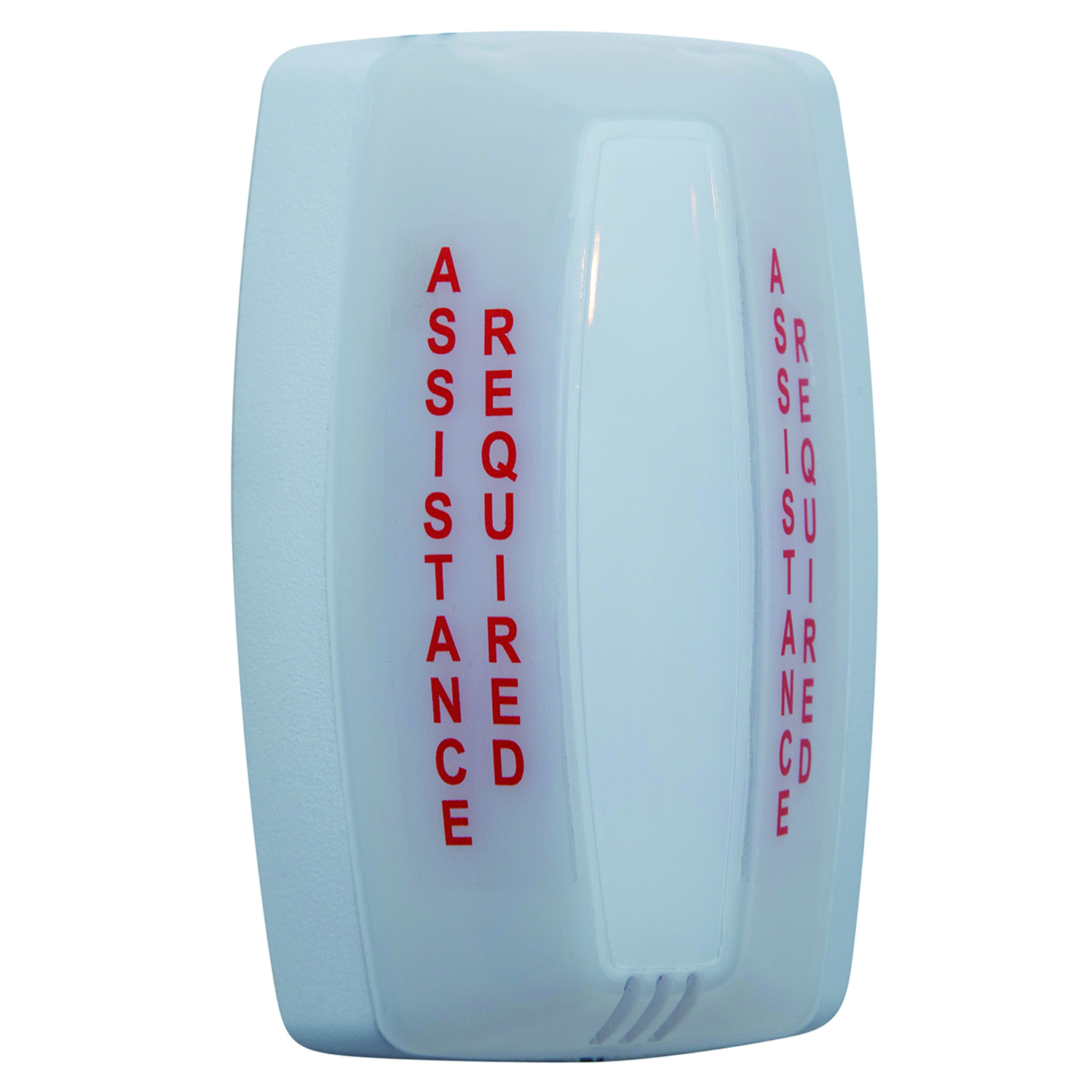

CM-AF140 Series single gang LED dome lights, with adjustable sounder, provides critical messaging to building occupants. The weather and vandal resistant signal device is designed to provide a highly attractive and unobtrusive appearance in any application, while also meeting the latest requirements of the Ontario Building Code for emergency notification in universal restrooms. The dome light lens has 'Assistance Required' text, in red. French and bilingual language text is available.

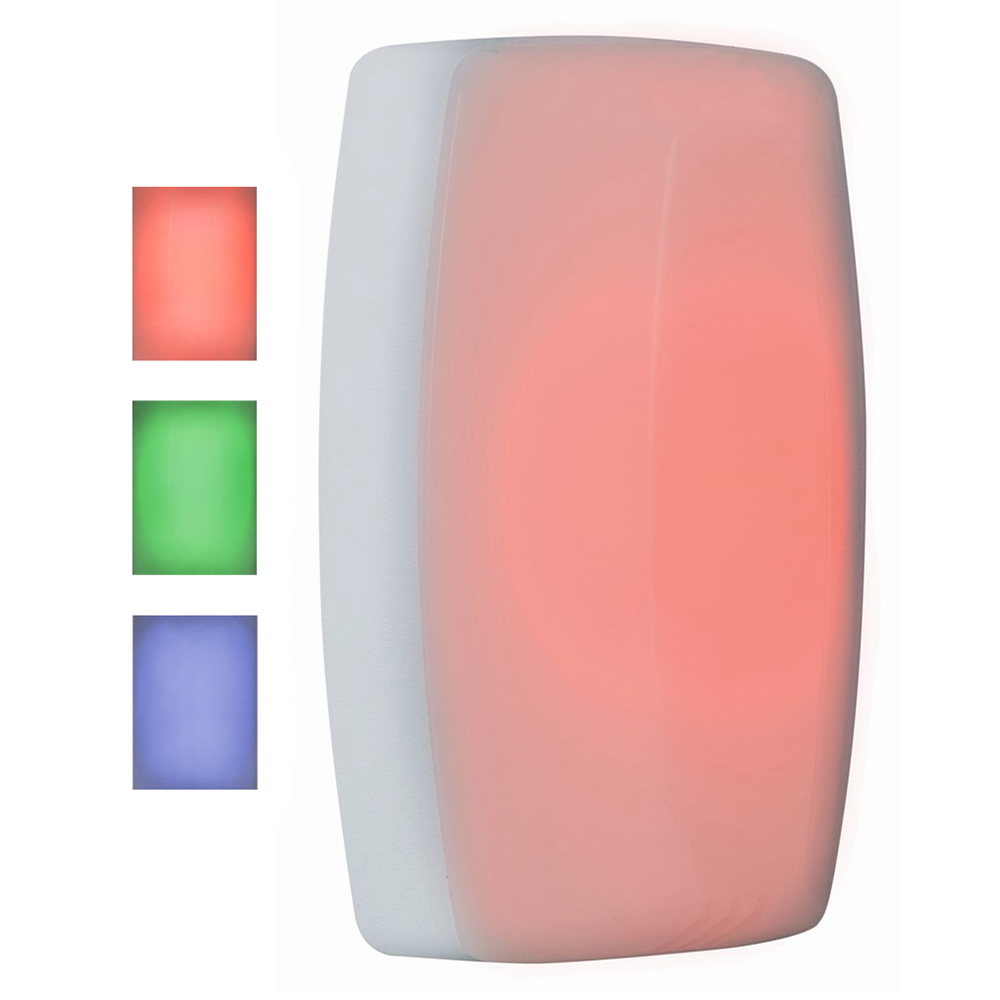

NEW CM-AF142SO RED/GREEN/BLUE MULTI-COLOR DOME LIGHT WITH SOUNDER NOW IN STOCK!
|
|
|
| CM-AF142SOMulti-Color LED DomeLight w/ Sounder |
|
|
|
|
CM-AF140 Series single gang LED dome lights, with adjustable sounder, provides critical messaging to building occupants. The weather and vandal resistant signal device is designed to provide a highly attractive and unobtrusive appearance in any application, while also meeting the latest requirements of the Ontario Building Code for emergency notification in universal restrooms. The dome light lens has 'Assistance Required' text, in red. French and bilingual language text is available.
NEW CM-AF142SO RED/GREEN/BLUE MULTI-COLOR DOME LIGHT WITH SOUNDER NOW IN STOCK! |
|
|
|
|
|
|
| CM-AF142SOMulti-Color LED DomeLight w/ Sounder |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Compact and elegant one gang design
-
Impact resistant polycarbonate
-
Weather resistant, rubber gasket included
-

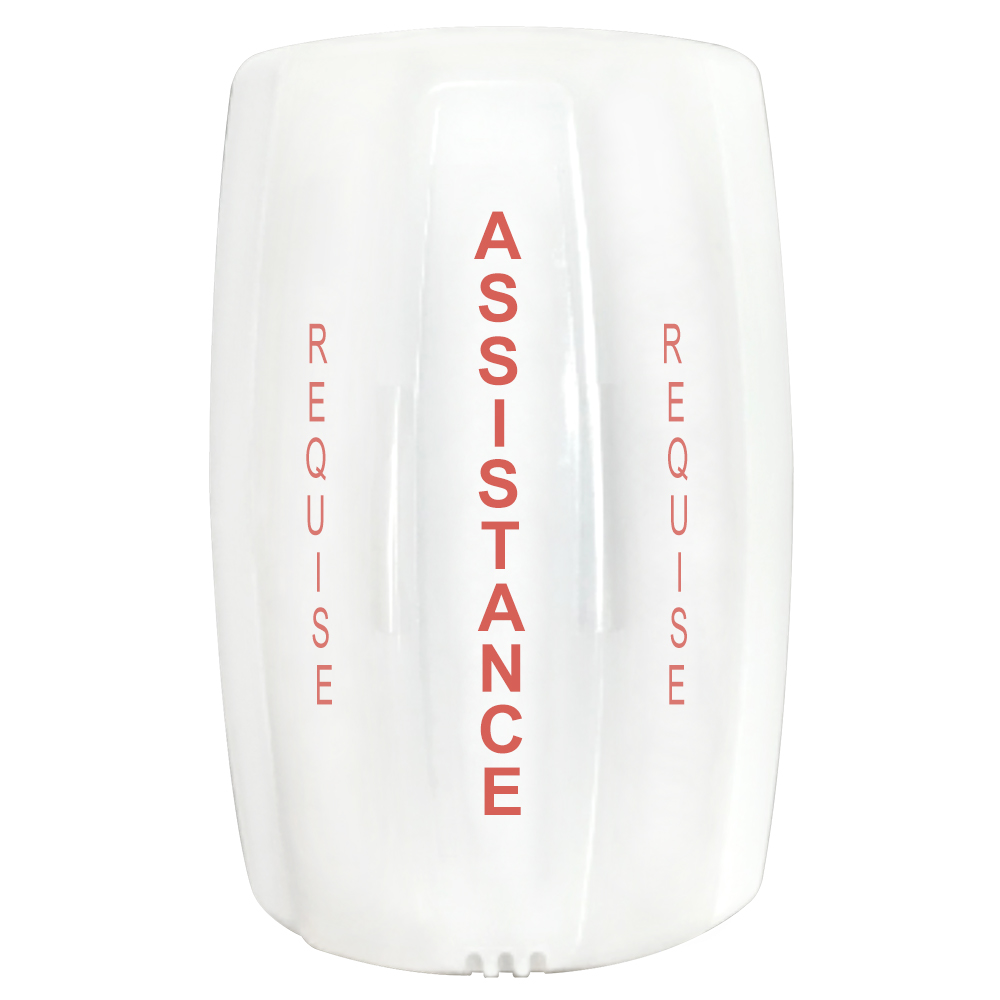

'Assistance Required' text, red. English, French & bilingual available
-
Adjustable 93db sounder
-
Super bright LEDs for high visibility even in daylight
-
Low current draw
-
3 year warranty
| Mounting: |
In-wall single gang electrical box, optional trim ring included in parts kit
|
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
|
CM-AF141SO:
|
60 mA (max)
|
|
CM-AF142SO:
|
70mA, (max) 1 Color
130mA (max) Multi-color
|
| |
| Temp Range: |
32°F - 176°F (0°C - 80°C)
|
| Sounder: |
Adjustable, 93 db @ 1 meter
|
| Dimensions: |
4-1/2"H x 3"W x 2"D (114mm x 76.2mm x 51mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CM-AF141SO
Single Gang LED Dome Light, w/ Sounder. Add suffix 'F' for French, suffix 'FE' for bilingual
EDI DATA, APPROVALS
|
|
Single Gang LED Dome Light, w/ Sounder. Add suffix 'F' for French, suffix 'FE' for bilingual
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: 0.35lbs.
UPC:670454186812
|
|
CM-AF142SO
Single Gang Multi-Color LED Dome Light w/ Sounder Selectable Red, Green, Blue or White. Selectable continuous or flashing LED.
EDI DATA, APPROVALS
|
|
Single Gang Multi-Color LED Dome Light w/ Sounder Selectable Red, Green, Blue or White. Selectable continuous or flashing LED.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 3"H
Weight: 0.35lbs.
UPC:670454201379
|
| |
|
