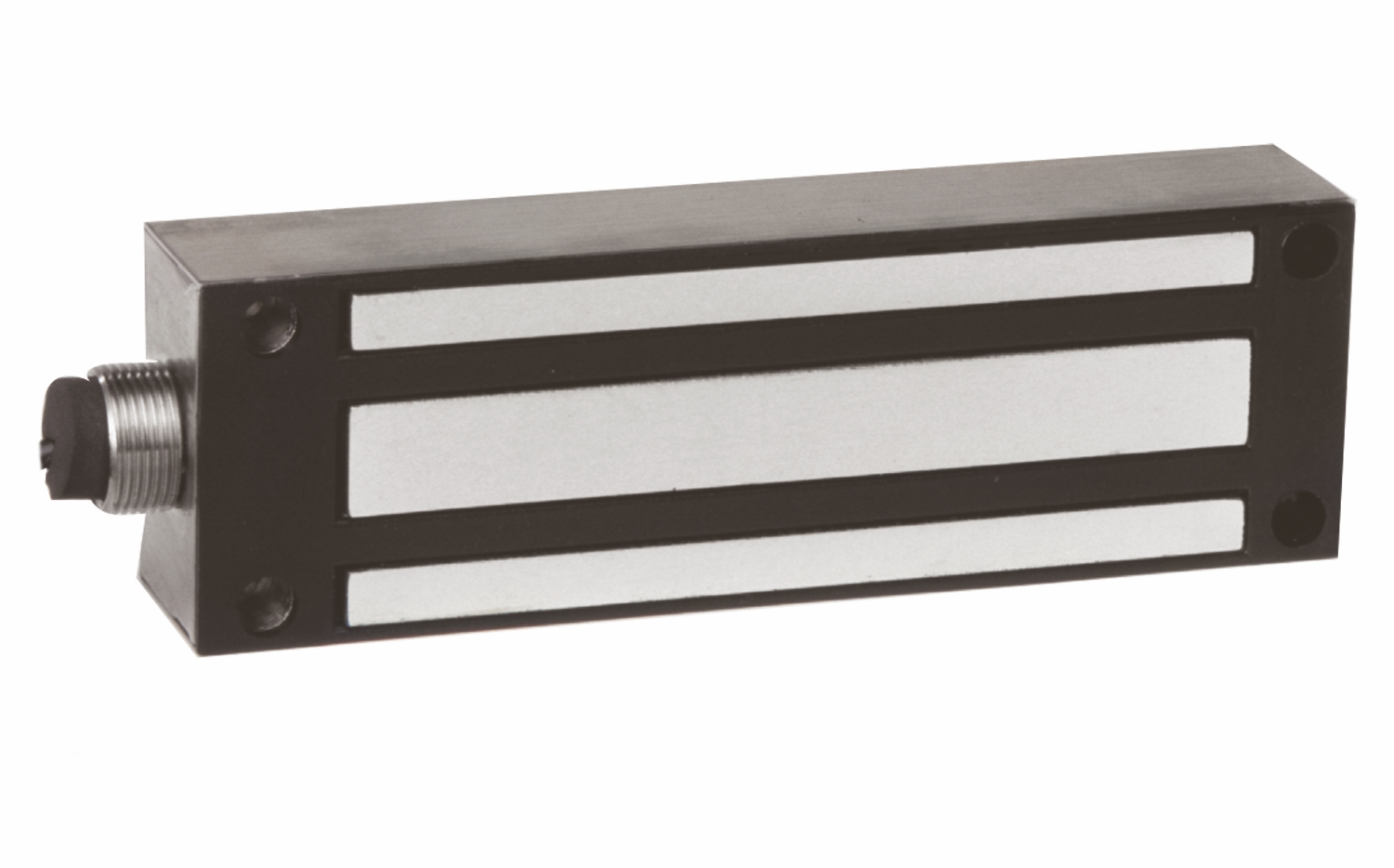

Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects.
|
|
|
Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects. |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1,200 Lb. holding force
-
Compatible with all access/egress systems
-
Field selectable 12/24 VDC operation
-
Conduit fitting for weather resistant installation
-
Built-in lock sensor and relay
-
Lifetime warranty
| Voltage: |
12/24 VDC
|
| Current Draw: |
500 mA @ 12 VDC
250 mA @ 24 VDC
|
| Temp Range: |
5°F to 122°F (-15°C to 50°C)
|
| Contact Rating: |
Bond Sensor: 1 A @ 30 VDC
|
| Dimensions: |
8" x 2-1/2" x 1-5/8"
(203mm x 63mm x 41.5mm)
|
|
Cross Reference Guides
|
| Magnetic Lock Cross Reference |
pdf |
0.13 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| CX-94S-12LS_Spec Sheet |
pdf |
0.25 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CX-94S-12LS_Manual_R1 |
pdf |
0.44 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CX-94S-12LS |
jpeg |
0.96 |
DOWNLOAD
OPEN
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-94S-12LS
1200 Lb. Surface mount gate lock - with lock sensor and relay
EDI DATA, APPROVALS
|
|
1200 Lb. Surface mount gate lock - with lock sensor and relay
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.54lbs.
UPC:670454150448
|
| |
|
new option
|
CX-PS Series Power Supplies
Camden's CX-PS Series Power Supplies are UL listed and designed to interface with fire panels, enabling power to be cut to the magnetic lock in the event of a fire, thereby ensuring safe and unobstructed egress.
|
|
|
