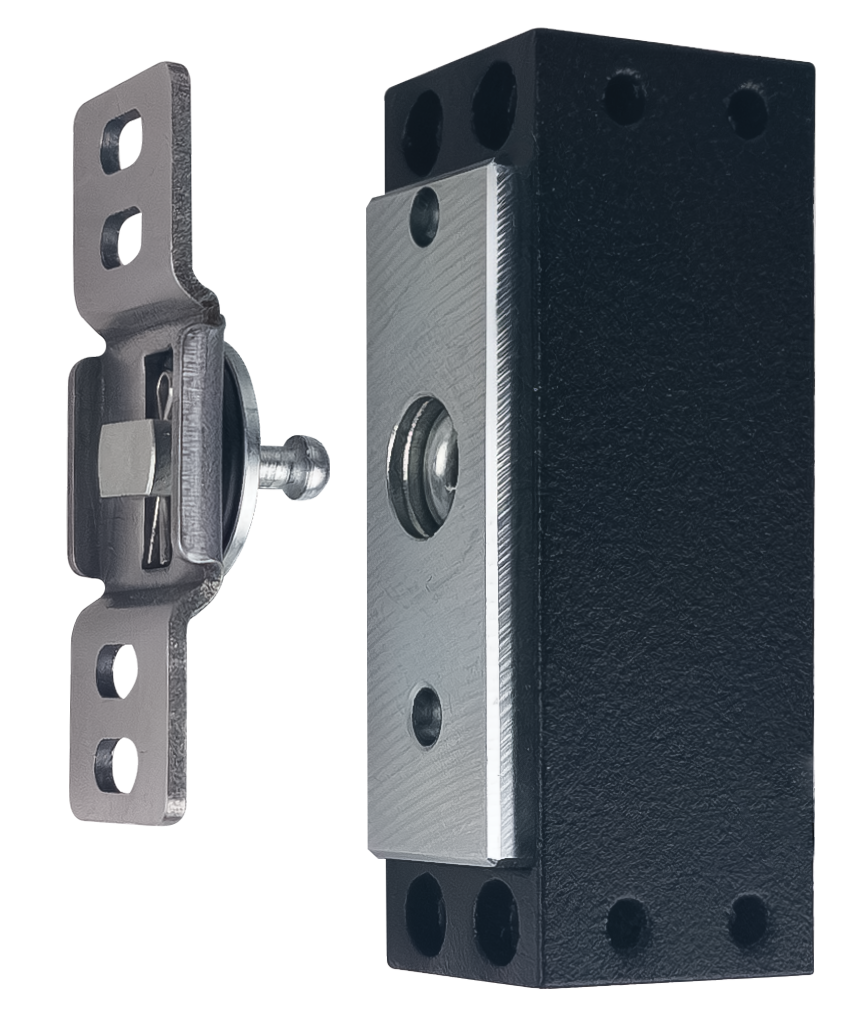

Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters. This 12V or 24V magnetically operated lock has a holding force of 440 lbs. (200 kg) and is water-resistant, making it ideal for humid environments, including inside fridges and freezers.
|
|
|

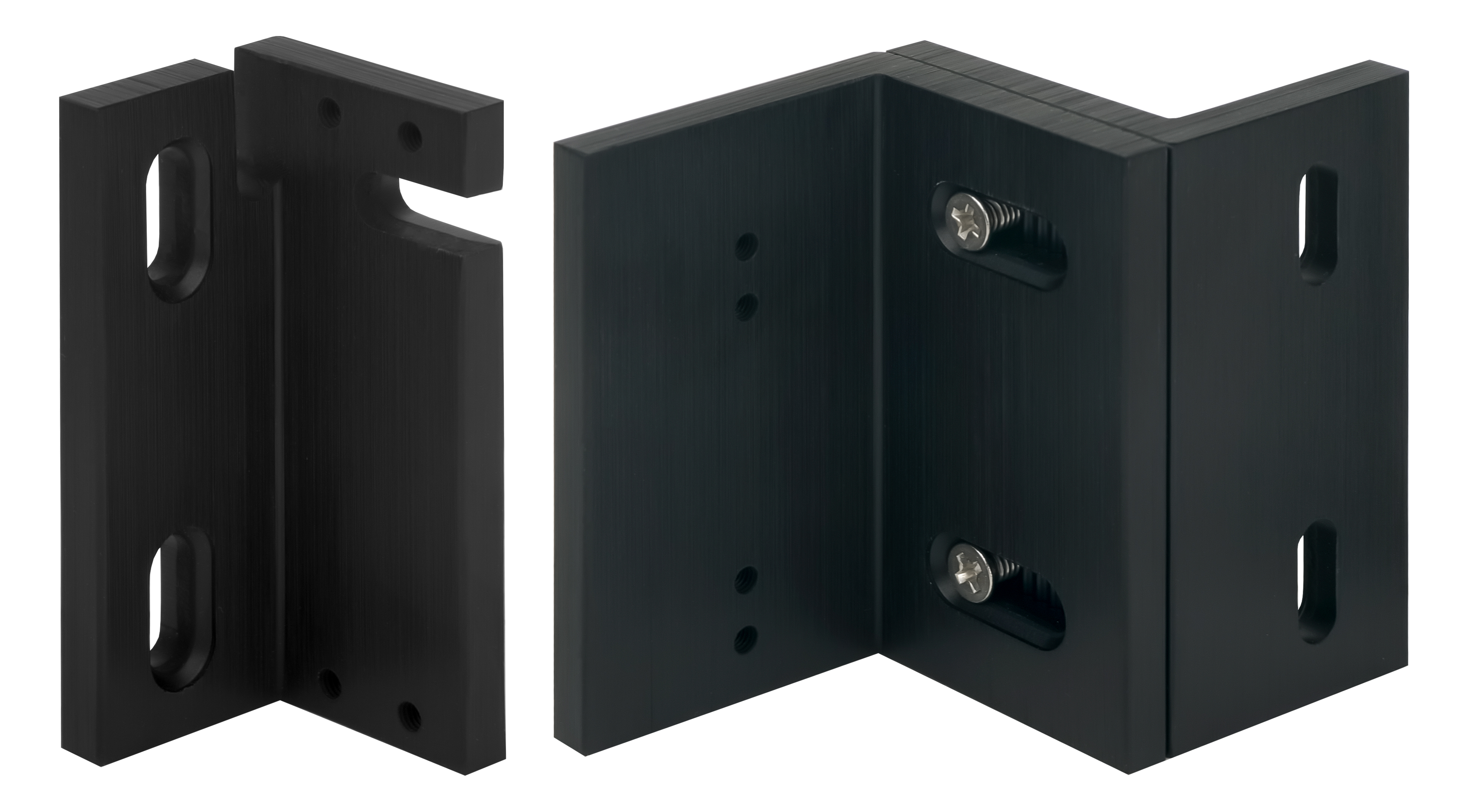

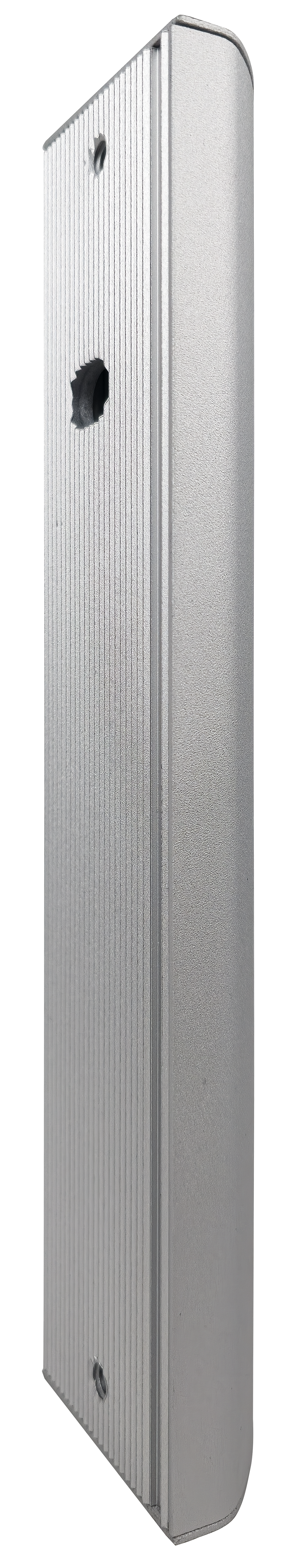

| CX-CL-LZBRK L&Z Brackets |
|
|
|
Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters. This 12V or 24V magnetically operated lock has a holding force of 440 lbs. (200 kg) and is water-resistant, making it ideal for humid environments, including inside fridges and freezers. |
|
|
|
|
|
|
| CX-CL-LZBRK L&Z Brackets |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
CX-EPD0009:
-
Front or side mounting for use with swing or sliding doors and drawers
-
Armature plate adjusts to door alignment
-
Water resistant for indoor and outdoor use
-
Ultra-compact design
-
440 lbs. (200 kg) holding force
-
5 lbs. (2.3 kg) preload
-
3 year warranty
-
CX-CL-LZBRK:
High-Quality Camden accessory designed for CX-EPD0009 magnetic cabinet lock
| Power Input: |
12 / 24 VDC
|
| Current Draw: |
60mA @ 12VDC, 110mA @ 24VDC
|
| Endurance: |
250,000 Cycles
|
| Static Strength: |
440 lbs. (200 kg) Holding Force
|
| Preload: |
5 lbs. (2.3 kg)
|
| Temperature Rating: |
-4°F to 140°F (-20°C to 60°C)
|
| Operation Mode: |
Fail-Safe
|
| Installation Options: |
Front Mount, Side Mount
|
| Dimensions*: |
2-1/2"H x 27/32"W x 1-1/4"D (64mm x 21.5mm x 31.6mm)
*Dimensions are of assembled product
|
|
High Resolution Images
|
| CX-CL-LZBRK |
jpeg |
2.02 |
DOWNLOAD
OPEN
|
| CX-EPD0009 |
png |
0.87 |
DOWNLOAD
OPEN
|
|
Application Guides
|
| 3.3.1.1 Cabinet Locking System: Retail Refrigeration Unit |
pdf |
0.93 |
DOWNLOAD
OPEN
|
| 3.3.1.1_Cabinet Locking System_Retail Refrigeration Unit_Spanish |
pdf |
0.94 |
DOWNLOAD
OPEN
|
| 3.3.1.1_Cabinet Locking System_Retail Refrigeration Unit_FR. |
pdf |
0.95 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CX-EPD0009_L&Z Bracket Manual |
pdf |
1.25 |
DOWNLOAD
OPEN
|
| CX-EPD0009_L&Z Bracket Manual_FR |
pdf |
1.25 |
DOWNLOAD
OPEN
|
| CX-EPD0009 Manual ENG |
pdf |
1.13 |
DOWNLOAD
OPEN
|
| CX-EPD0009 Manual FR |
pdf |
1.04 |
DOWNLOAD
OPEN
|
|
Addendum
|
| CDN CX-EPD0009 Series Addendum 2024 |
pdf |
0.26 |
DOWNLOAD
OPEN
|
| US CX-EPD0009 Series Addendum 2024 |
pdf |
0.26 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| CX-EPD0009 Spec Sheet |
pdf |
2.17 |
DOWNLOAD
OPEN
|
| CX-EPD0009 Spec Sheet FR |
pdf |
2.20 |
DOWNLOAD
OPEN
|
| CX-EPD0009 Spec Sheet SP |
pdf |
2.27 |
DOWNLOAD
OPEN
|
|
Reference Guides
|
| Camden Cabinet Lock Solutions |
pdf |
4.08 |
DOWNLOAD
OPEN
|
|
|
|
Magnetic Cabinet Lock
 click to expand section
|
|
Net Cost
|
|
CX-EPD0009
Magnetic Cabinet Lock
EDI DATA, APPROVALS
|
|
Magnetic Cabinet Lock
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 1.5lbs.
UPC:670454220080
|
| |
|
L&Z Bracket
click to expand section
|
|
Net Cost
|
|
CX-CL-LZBRK
L&Z Bracket for use with CX-EPD0009 Magnetic Cabinet Lock
EDI DATA, APPROVALS
|
|
L&Z Bracket for use with CX-EPD0009 Magnetic Cabinet Lock
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.75"H
Weight: 1.6lbs.
|
| |
|
