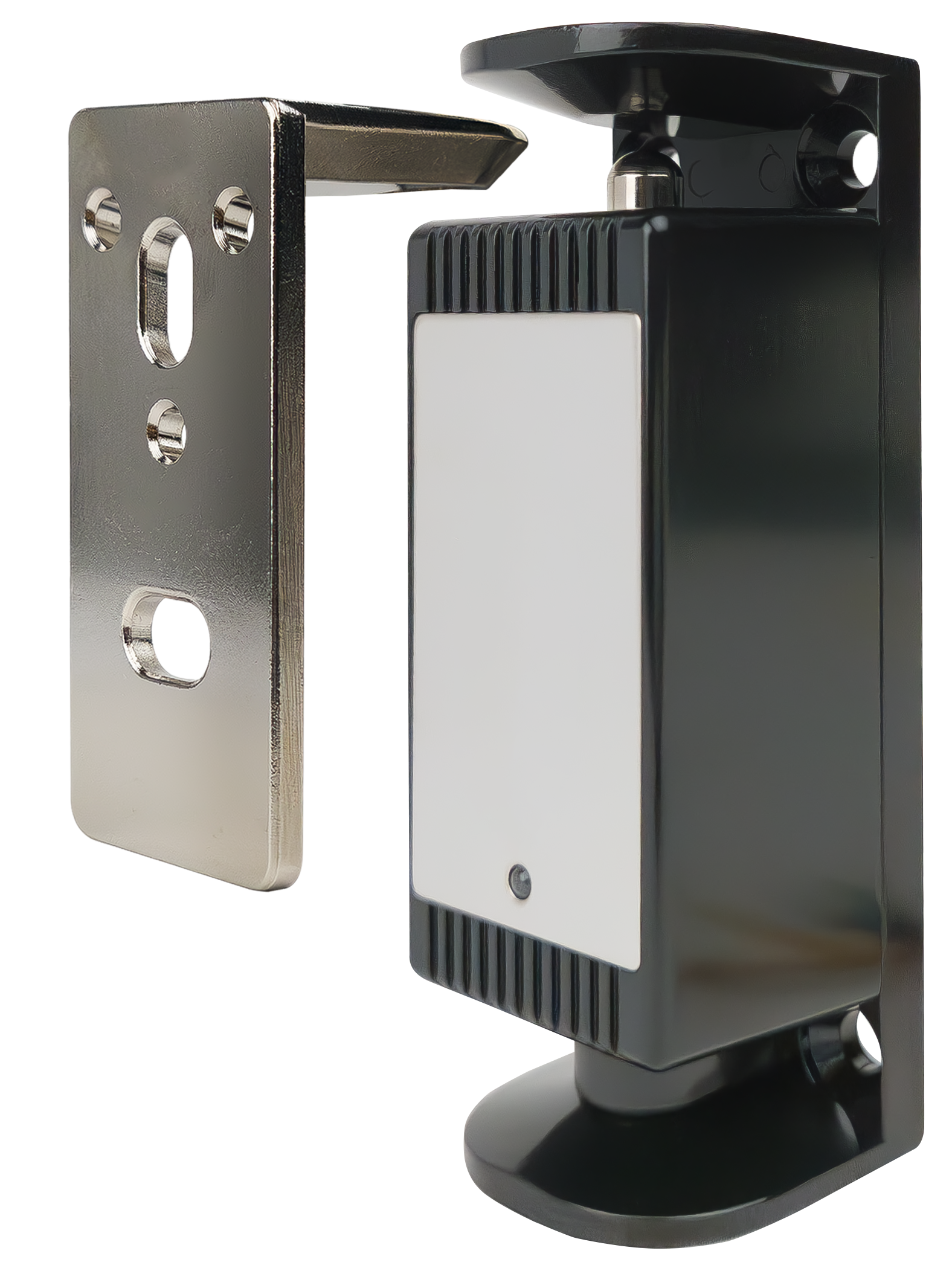

Camden's CX-ED0010 Electromechanical Cabinet Lock represents an evolution in secure locking systems, designed for a broad range of enclosures that use swinging doors, drawers, and sliding doors. This lock supports both 12V and 24V power supplies and introduces the flexibility of operating in either field selectable fail-safe or fail-secure modes.
The CX-ED0010 accommodates diverse security needs in places such as computer cabinets, lockers, retail display counters, and medical and cannabis dispensaries. Its inclusion of door and lock status sensors further enhances its functionality, providing real-time security status.
|
|
|
Camden's CX-ED0010 Electromechanical Cabinet Lock represents an evolution in secure locking systems, designed for a broad range of enclosures that use swinging doors, drawers, and sliding doors. This lock supports both 12V and 24V power supplies and introduces the flexibility of operating in either field selectable fail-safe or fail-secure modes.
The CX-ED0010 accommodates diverse security needs in places such as computer cabinets, lockers, retail display counters, and medical and cannabis dispensaries. Its inclusion of door and lock status sensors further enhances its functionality, providing real-time security status.
|
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Front mounting for use with office drawers, display cabinets, etc.
-
Field selectable fail-safe or fail secure operation
-
440 lbs. (200kg) holding force
-
Strike plate adjusts to door alignment
-
Door and lock status sensors
Power Input: |
12 / 24 VDC
|
Current Draw: |
280mA @ 12VDC, 140mA @ 24VDC
|
Door Status Sensor: |
200mA @ 30VDC (Max) Form 'C'
|
Lock Status Sensor: |
1A @ 30V DC (Max)
|
Endurance: |
250,000 Cycles
|
Static Strength: |
440 lbs. (200 kg) Holding Force
|
Temperature Rating: |
-4°F to 140°F (-20°C to 60°C)
|
Operation Mode: |
Field Selectable Fail-Safe or Fail-Secure
|
Installation Options: |
Front Mount
|
Dimensions: |
LOCK BODY: 3-5/16"H x 1-3/16"W x 1-1/8"D (84mm x 30mm x 28mm) STRIKE PLATE: 2-1/2"H x 27/32"W x 1-1/4"D (64mm x 21.5mm x 31.6mm)
|
Spec Sheets
|
CX-ED0010 Spec Sheet |
pdf |
2.35 |
DOWNLOAD
OPEN
|
CX-ED0010 Spec Sheet FR |
pdf |
2.37 |
DOWNLOAD
OPEN
|
CX-ED0010 Spec Sheet SP |
pdf |
3.98 |
DOWNLOAD
OPEN
|
Addendum
|
CDN CX-ED0010 Addendum 2024 |
pdf |
0.18 |
DOWNLOAD
OPEN
|
US CX-ED0010 Addendum 2024 |
pdf |
0.18 |
DOWNLOAD
OPEN
|
High Resolution Images
|
CX-ED0010 |
png |
2.64 |
DOWNLOAD
OPEN
|
Installation Manuals
|
CX-ED0010_Electromechanical Cabinet Lock_Manual |
pdf |
1.70 |
DOWNLOAD
OPEN
|
CX-ED0010_Electromechanical Cabinet Lock_Manual_FR |
pdf |
1.71 |
DOWNLOAD
OPEN
|
Reference Guides
|
Camden Cabinet Lock Solutions |
pdf |
4.08 |
DOWNLOAD
OPEN
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED0010
Electromechanical Cabinet Lock
EDI DATA, APPROVALS
|
|
Electromechanical Cabinet Lock
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 1.5lbs.
UPC:670454222206
|
|
|
