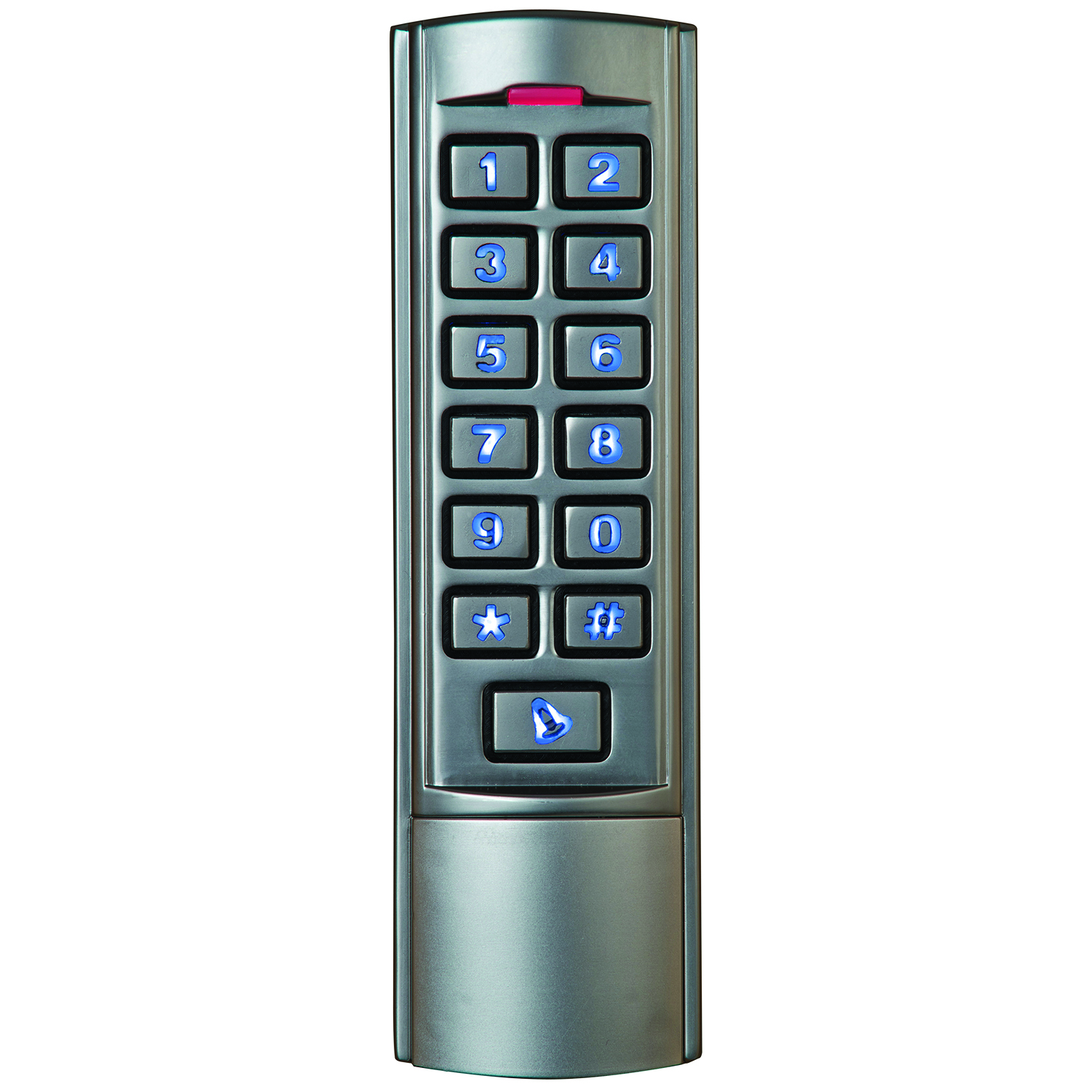

CV-110SPK Slim Line Prox. Reader and Keypad
|
|
Camden CV-110SPK is a slim-line single door multifunction standalone keypad that supports up to 2000 users with a Card, 4 digit PIN, or a Card + PIN option. The electronics are fully potted so the unit is waterproof and conforms to IP68. The built-in prox. card reader supports 125KHZ EM cards. The CV-110SPK offers a 26 bit Wiegand input and output allows the unit to also operate as a dual credential (prox. reader and keypad) access control system device.
|
|
|
| Camden Keypad Product Line |
|
| CV-110SPK Slim Line Prox. Reader and Keypad |
CV-110SPK Slim Line Prox. Reader and Keypad
|
|
Camden CV-110SPK is a slim-line single door multifunction standalone keypad that supports up to 2000 users with a Card, 4 digit PIN, or a Card + PIN option. The electronics are fully potted so the unit is waterproof and conforms to IP68. The built-in prox. card reader supports 125KHZ EM cards. The CV-110SPK offers a 26 bit Wiegand input and output allows the unit to also operate as a dual credential (prox. reader and keypad) access control system device.
|
|
|
|
|
|
|
| Camden Keypad Product Line |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Up to 2,000 users - cards or tags
-
Backlit Keys
-
Zinc Alloy electroplated anti-vandal construction
-
Weatherproof, IP68 rating
-
Fully programming from keypad
-
Adjustable door output time, alarm time, door open time
-
Low power consumption
-
Anti-tampler, built-in light dependent resistor
-
Look output short circuit protection
-
8 bit burst (keypad), 26 bit (reader) Wiegand output, for integration with access control systems
-
3 year warranty
| Voltage: |
12 VDC
|
| Users: |
2,000
|
| Reader Format: |
EM Format
|
| Current Draw: |
60 mA
|
| Contact Type: |
(1) Form 'C'
|
| Contact Rating: |
3 A @ 30 VDC
|
| Alarm Output: |
20 mA
|
| Protection: |
IP68 Rated
|
| Door Delay Time: |
0 to 99 Seconds
|
| Alarm Time: |
0 to 3 minutes
|
| Wiegand Interface: |
8 bit burst for PIN codes
26 bit for cards
|
| Temp Range: |
-49°F to 140°F
(-45°C to 60°C)
|
| Dimensions: |
5-7/8”H x 1-3/4”W x 1”D
(150mm x 44mm x 25mm)
|
Camden Keypad Product Line
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CV-110SPK
Slim-line stand alone prox. reader & keypad, 1 relay, 2,000 users
EDI DATA, APPROVALS
|
|
Slim-line stand alone prox. reader & keypad, 1 relay, 2,000 users
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9"L x 3.5"W x 2.5"H
Weight: 1.2lbs.
UPC:670454181282
|
| |
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
|
CV-CSE
EM Format ISO Prox. Card, Package of 10
EDI DATA, APPROVALS
|
|
EM Format ISO Prox. Card, Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180407
|
|
|
CV-CSE-B
EM Format ISO Prox. Card, package of 100
EDI DATA, APPROVALS
|
|
EM Format ISO Prox. Card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180414
|
|

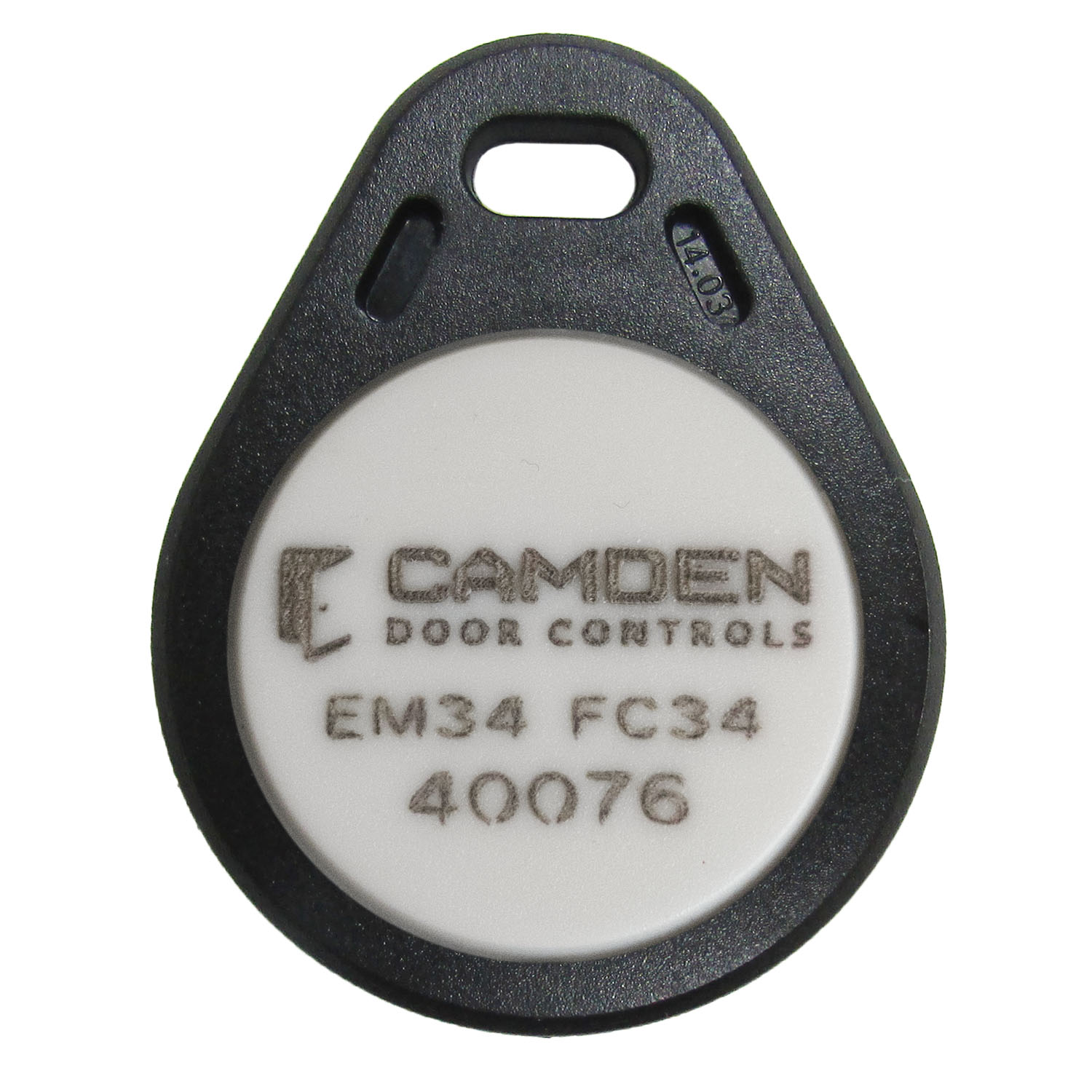

CV-KTE
EM Format Prox. Tag, package of 25
EDI DATA, APPROVALS
|
|
EM Format Prox. Tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180414
|
| |
|
