CM-7000 Series push/exit switches are vandal resistant, designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang or narrow widths. Optional duranodic (US 40) finish also available. CM-7000 Series Recessed Buttons are specially designed to limit accidental activation (not suitable for ADA applications) and to provide protection from vandalism.
|
|
CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
CM-7000 Series push/exit switches are vandal resistant, designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang or narrow widths. Optional duranodic (US 40) finish also available. CM-7000 Series Recessed Buttons are specially designed to limit accidental activation (not suitable for ADA applications) and to provide protection from vandalism.
|
|
|
|
CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1" diameter recessed button
-
Mounted on heavy 1/4" thick aluminum plate
-
Indoor or outdoor applications
-
Spring return operation
-
3 year warranty
Voltage: |
12/24 VDC
|
Contact Type: |
CM-7000,
CM-7100:
|
N/O SPST
|
CM-7010,
CM-7110:
|
N/C SPST
|
CM-7020,
CM-7120:
|
N/O&N/C DPST
|
CM-7085,
CM-7185:
|
N/O&N/C DPST Form 'Z' Pneumatic Timer
|
|
Contact Rating: |
6 A @ 30 VDC
|
Switch Type: |
Momentary
|
Dimensions: |
CM-7000 Series:
|
4-1/2" x 2-3/4" x 2-1/4" (114mm x 70mm x 57mm)
|
CM-7100 Series:
|
4-1/2" x 1-3/4" x 2-1/4" (114mm x 44mm x 57mm)
|
|
Std. Finish: |
Brushed Aluminum
|
|
MODELS
|
Click to configure switch model
|
|
|
|
WIZARD
|
SELECT MODEL |
![](/pipelines/resource/1022_4VBQ2GTMBX5XD259NN5X.png) |
|
|
|
WIZARD
|
SELECT MODEL |
![](/pipelines/resource/1022_4VBQ2GTMBX5XD259NN5X.png) |
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|

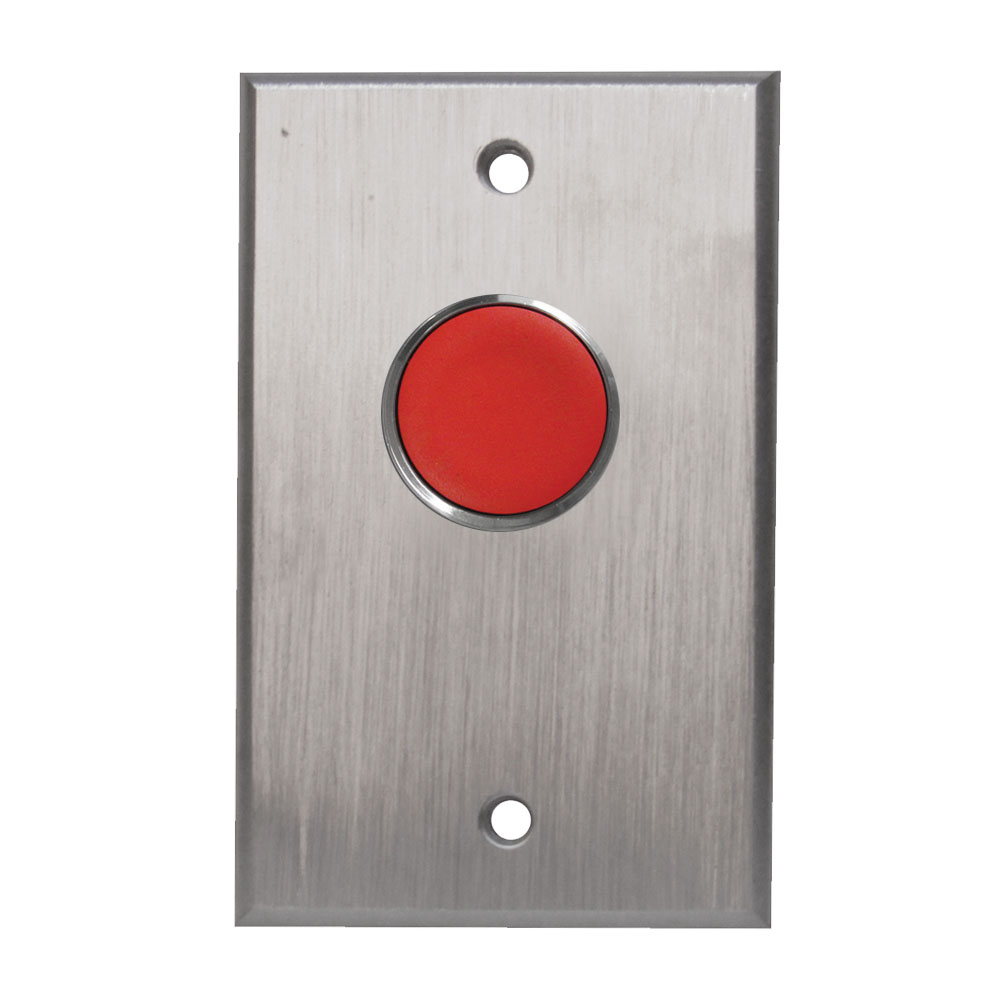

CM-7000
Spring Return N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return N/O, Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454128768
|
|
CM-7010
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454128843
|
|
CM-7020
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.61lbs.
UPC:670454128942
|
|
CM-7085
Spring Return, DPST 1-60 SEC Pneumatic Time Delay, (Requires 1-3/4" deep box)
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 SEC Pneumatic Time Delay, (Requires 1-3/4" deep box)
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.7lbs.
UPC:670454129048
|
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-7110
Spring Return, N/C, Momentary.
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454129222
|
|
CM-7100
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454129123
|
|
CM-7120
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454129314
|
|

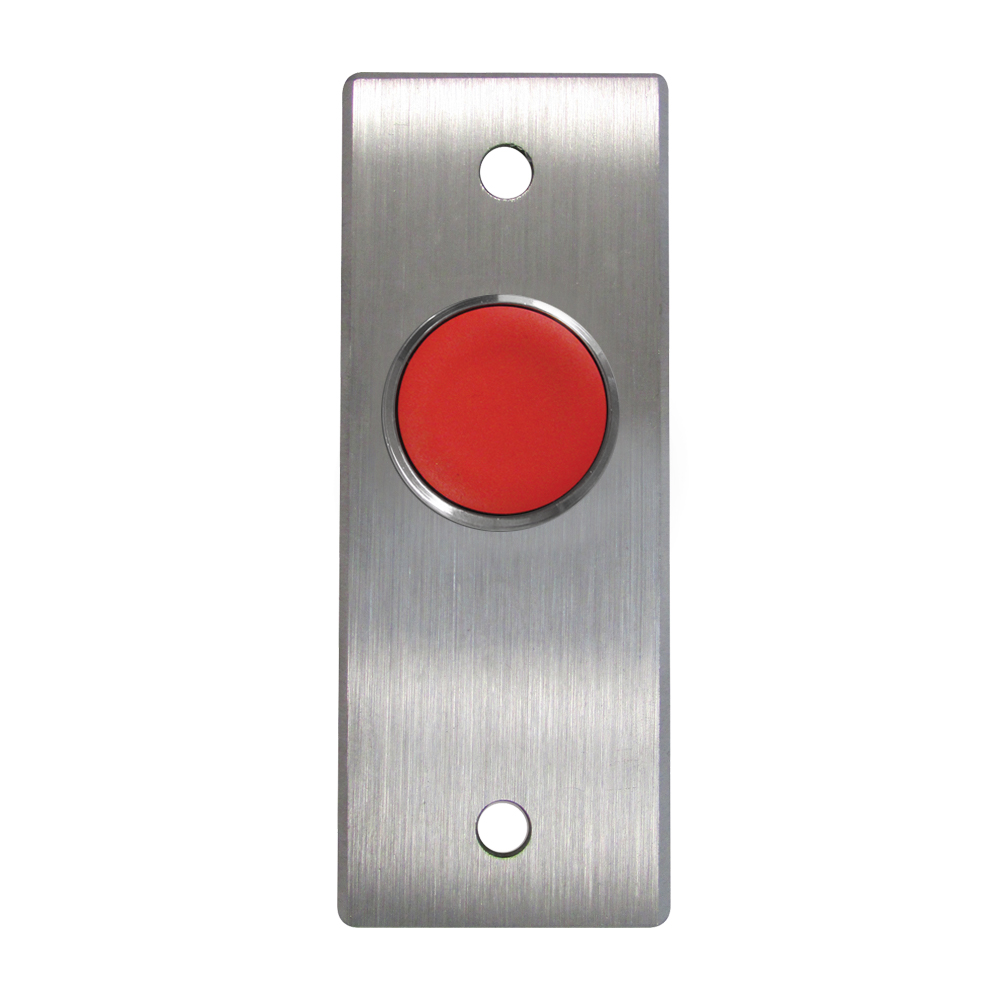

CM-7185
Spring Return, DPST 1-60 sec Pneumatic Time Delay, (Requires 1-3/4" deep box)
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay, (Requires 1-3/4" deep box)
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.65lbs.
UPC:670454129390
|
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
WIZARD
|
SELECT OPTIONS |
![](/pipelines/resource/1022_4VBQ2GTMBX5XD259NN5X.png) |
|
|
|
WIZARD
|
SELECT BUTTON COLOR
|
![](/pipelines/resource/1022_4VBQ2GTMBX5XD259NN5X.png) |
|
|
|
WIZARD
|
SELECT MODEL ABOVE |
![](/pipelines/resource/1028_A02ZJK1RZWWWZ70LEWEG.png) |
|
|
|
WIZARD
|
SELECT OPTIONS |
![](/pipelines/resource/1022_4VBQ2GTMBX5XD259NN5X.png) |
|
|
|
![Button Color Options](/pipelines/resource/1029_G98YJPYGPAPHUG82UBID.png) |
BUTTON COLOR OPTIONS |
![Button Graphic Options](/pipelines/resource/1030_5N4M7W41VFWKV6PQFMPX.png) |
BUTTON GRAPHIC OPTIONS |
![Faceplate Graphic Options](/pipelines/resource/1031_NMVDMZX6F9MCEOYD6N1X.png) |
FACEPLATE GRAPHIC OPTIONS |
![Faceplate Options](/pipelines/resource/1032_D4KKOTHOPCXW0LR6WC4X.png) |
FACEPLATE OPTIONS |
|
Button Color Options: |
|
Net Cost |
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
Button Engraved Graphic Options |
|
Net Cost |
|
CM-xxxE
Add E to product # for 'EXIT' engraved (in white)
|
Add E to product # for 'EXIT' engraved (in white)
|
|
|
|
CM-xxxS
Add S to product # for SORTIE engraved (in white)
|
Add S to product # for SORTIE engraved (in white)
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA engraved (in white)
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
Faceplate Graphic Options |
|
Net Cost |
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT'
|
Add /7 to model # for 'PUSH TO EXIT'
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black
|
Add /8 to model # for 'PUSH TO LOCK', black
|
|
|
Faceplate Finishes |
|
Net Cost |
|
CM-xxx-BZ
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
![Mounting Boxes & Accessories](/pipelines/resource/1036_5JRIFSSKMYI7J1VQ98EQ.png) |
MOUNTING BOXES & ACCESSORIES |
|
Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 7100 series switches
|
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 7100 series switches
|
|
|
Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 7000 Series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 7000 Series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 7000 Series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 7000 Series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 7000 Series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 7000 Series switches
|
|
|
Mounting Boxes & Accessories: Single Gang (Deep) |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-7085 requires minimum 2" deep box
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-7085 requires minimum 2" deep box
|
|
|
|
|
