Mechanical Vandal Resistant Push/Exit Switch
|
|
CM-9000 and CM-9100 series push/exit buttons are all-metal construction and will withstand extreme attacks of all types. The buttons are countersunk in a heavy duty 1/4" thick brushed aluminum faceplate and available in single gang (2-3/4") or narrow stile (1-3/4") widths. Available with optional US40 (duranodic) finish.

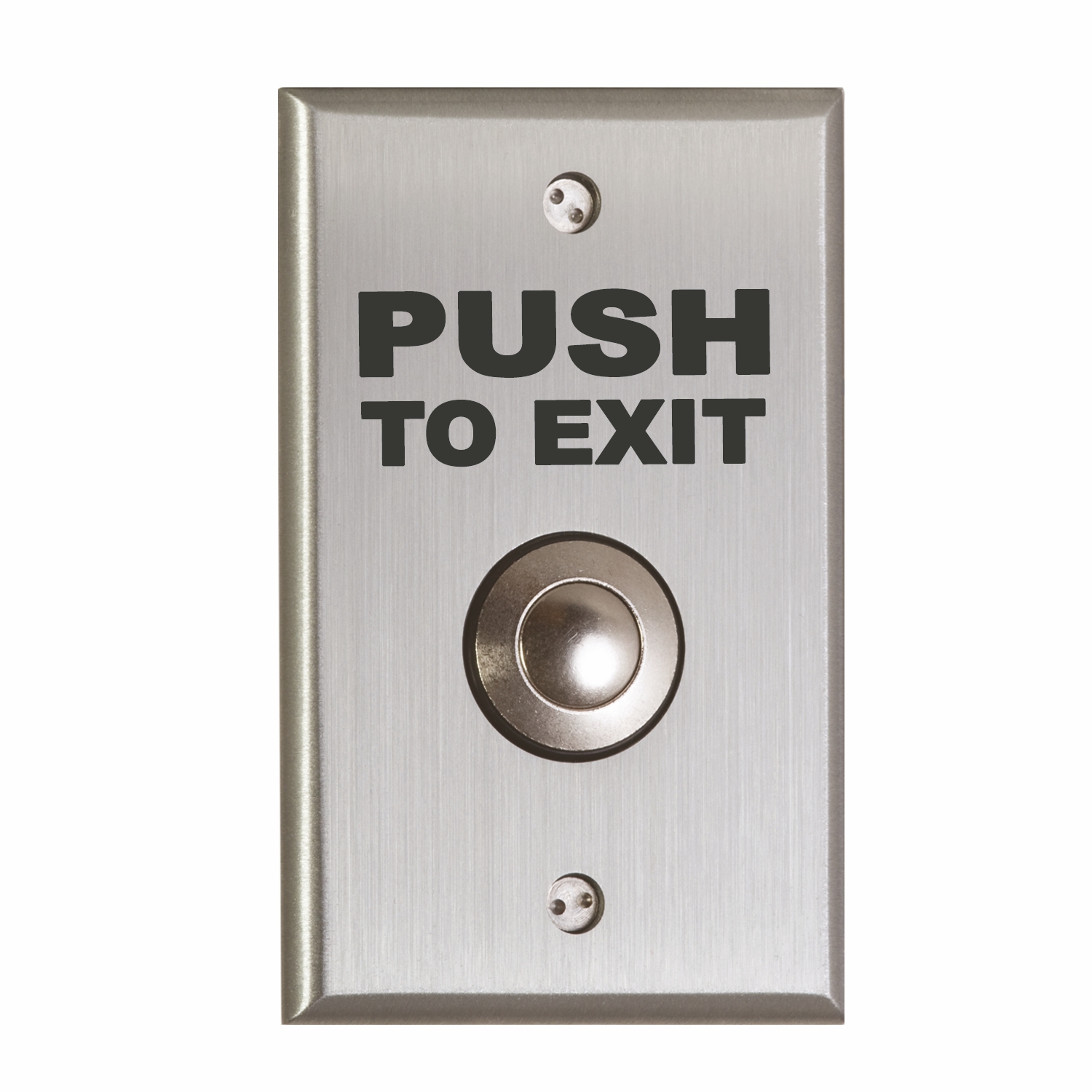

*CM-9000 product image shown
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-10
|
CM-9080/7-7224
|
|
|
TS-11
|
CM-9180/7-7224
|
|
|
TS-12
|
CM-9080/7-7224
|
|
|
TS-12302
|
CM-9080, CM-xxx/7
|
|
|
| Mechanical Vandal Resistant Push/Exit Switch |
Mechanical Vandal Resistant Push/Exit Switch
|
CM-9000 and CM-9100 series push/exit buttons are all-metal construction and will withstand extreme attacks of all types. The buttons are countersunk in a heavy duty 1/4" thick brushed aluminum faceplate and available in single gang (2-3/4") or narrow stile (1-3/4") widths. Available with optional US40 (duranodic) finish.
*CM-9000 product image shown |
|
|
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-10
|
CM-9080/7-7224
|
|
|
TS-11
|
CM-9180/7-7224
|
|
|
TS-12
|
CM-9080/7-7224
|
|
|
TS-12302
|
CM-9080, CM-xxx/7
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Steel button will withstand extreme attacks of all types
-
Button is countersunk in heavy 1/4" thick aluminum plate
-
Indoor or outdoor applications
-
Color coded 18 AWG leads, with spade connectors
-
Lifetime Warranty
| Voltage: |
12/24 VDC
|
| Contact Type: |
|
CM-9080,
CM-9180:
|
DPDT Momentary
|
|
CM-9090,
CM-9190:
|
DPDT Maintained
|
| |
| Contact Rating: |
6 A @ 30 VDC
|
| Dimensions: |
|
CM-9000 Series:
|
4-1/2" x 2-3/4" x 1-1/8"
(114mm x 70mm x 28mm)
|
|
CM-9100 Series:
|
4-1/2" x 1-3/4" x 1-1/8"
(114mm x 44mm x 28mm)
|
| |
| Std. Finish: |
Brushed Aluminum
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-9080
DPDT MOMENTARY
EDI DATA, APPROVALS
|
|
DPDT MOMENTARY
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454130235
|
|
CM-9080PTE
DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available for this model.
EDI DATA, APPROVALS
|
|
DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available for this model.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454163455
|
|
|
CM-9090
DPDT MAINTAINED
EDI DATA, APPROVALS
|
|
DPDT MAINTAINED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454130259
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-9180
DPDT MOMENTARY
EDI DATA, APPROVALS
|
|
DPDT MOMENTARY
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.48lbs.
UPC:670454130266
|
|

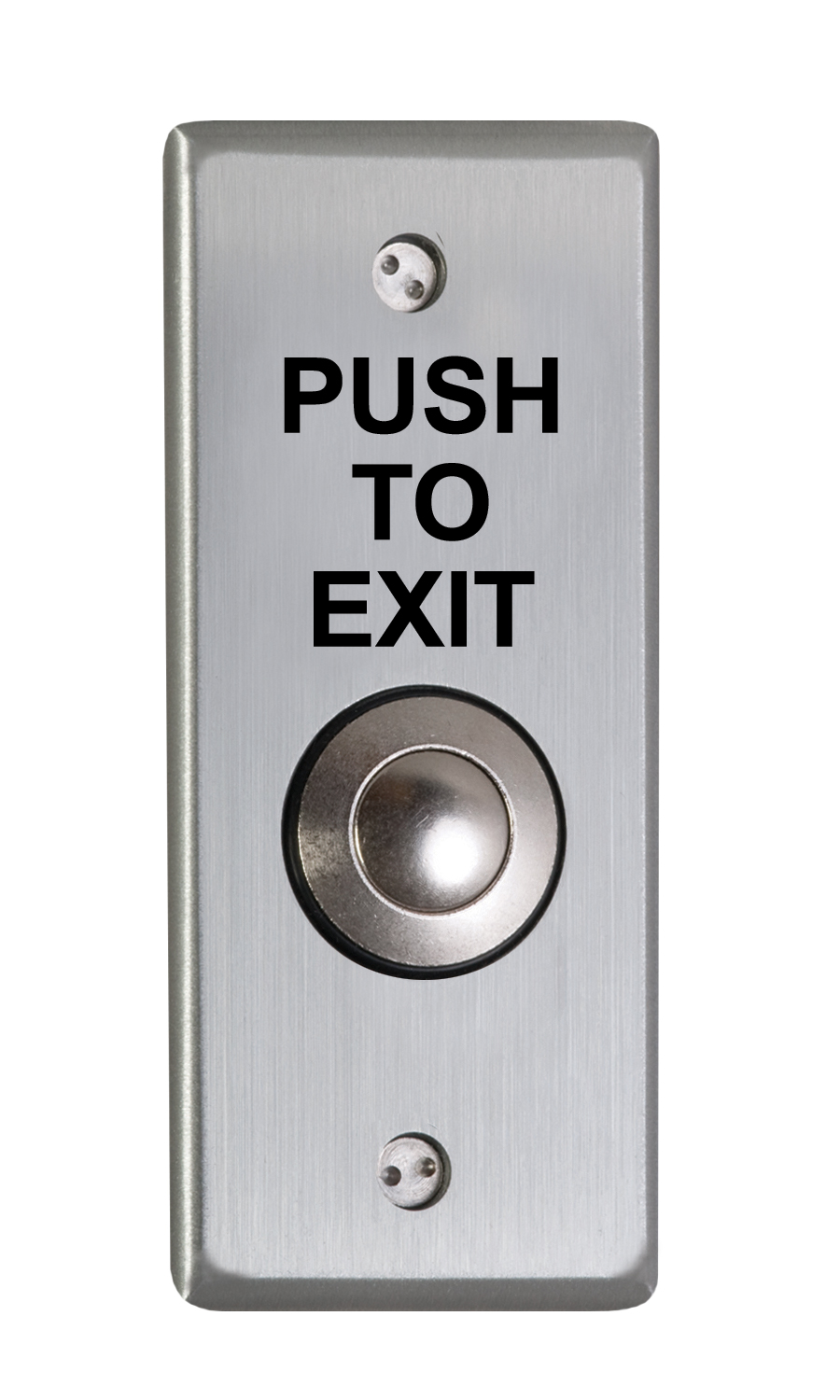

CM-9180PTE
DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available.
EDI DATA, APPROVALS
|
|
DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.48lbs.
UPC:670454165442
|
|
|
CM-9190
DPDT MAINTAINED
EDI DATA, APPROVALS
|
|
DPDT MAINTAINED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.45lbs.
UPC:670454130297
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| FACEPLATE OPTIONS |
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/2
Add /2 to model # for 'WHEELCHAIR' symbol, black
|
Add /2 to model # for 'WHEELCHAIR' symbol, black
|
|
|
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT', black text
|
Add /7 to model # for 'PUSH TO EXIT', black text
|
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black
|
Add /8 to model # for 'PUSH TO LOCK', black
|
|
|
|
|
CM-xxx/E
Add 'E' to model # for 'EXIT', black
|
Add 'E' to model # for 'EXIT', black
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN) NOT AVAILABLE WITH FACEPLATE GRAPHIC OPTIONS
|
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN) NOT AVAILABLE WITH FACEPLATE GRAPHIC OPTIONS
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Narrow/Jamb boxes for 9100 series switches
|
Surface Box, Standard Depth Narrow/Jamb boxes for 9100 series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 9000 Series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 9000 Series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9000 Series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9000 Series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 9000 Series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 9000 Series switches
|
|
|
|
|
|
