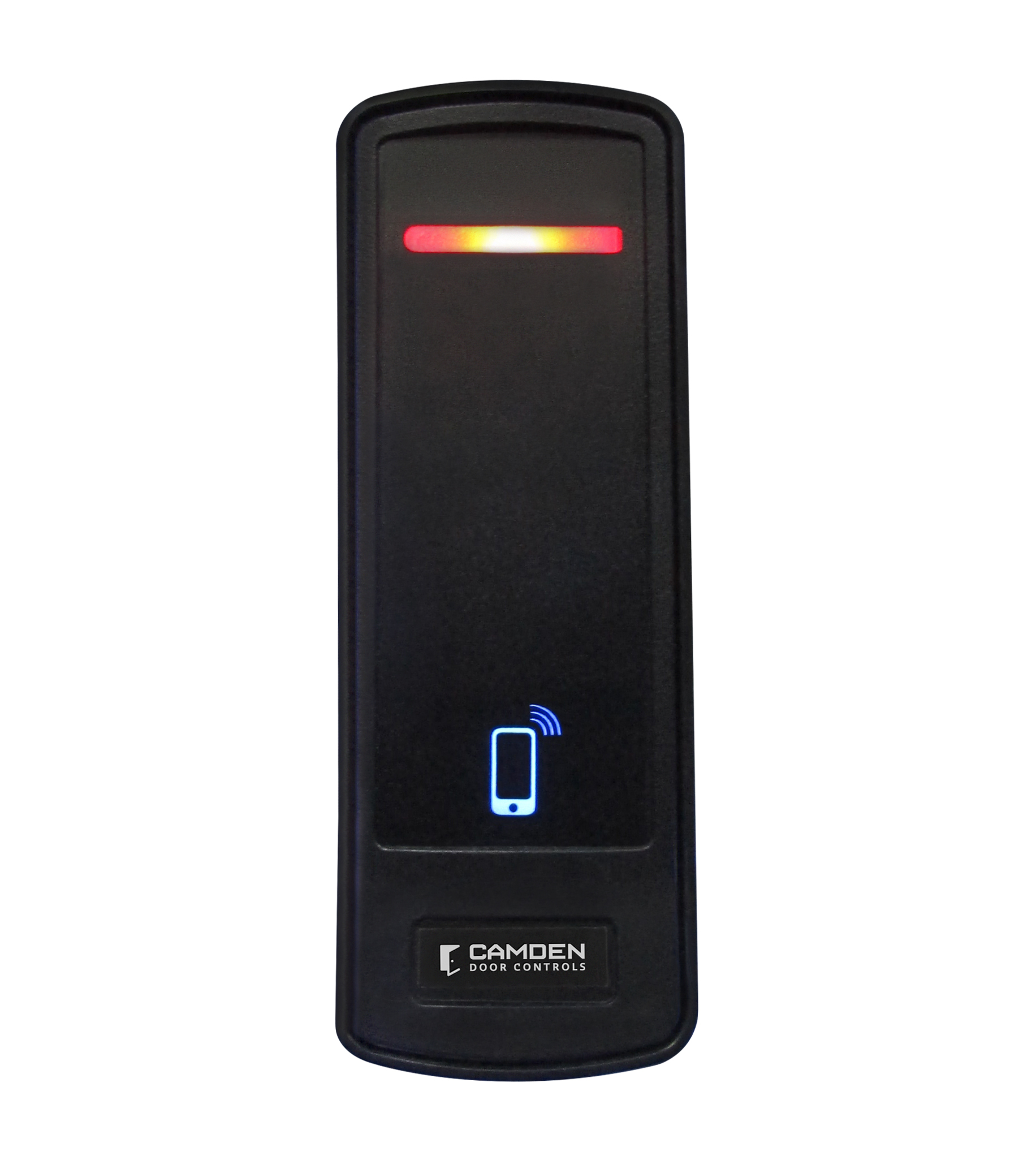

CV-7600 Series card readers are a more secure alternative to standard proximity credentials that can be easily cloned. They support MIFARE DESFire EV1 technology & EV2 encryption credentials, making them virtually clone-proof and highly secure. CV-7600 mobile-ready readers combine Bluetooth Low Energy (BLE) and contactless smart card technologies and can be used with any access control systems with either Wiegand or bi-directional OSDP* (special order). An easily downloaded app instantly turns any Android™ or Apple iOS™ smartphone into the user's mobile access credential - with no subscription fee! CV-7600 readers have a field configurable reception range from one to thirty feet and are backed by Camden's no-hassle three-year warranty.
*Revision 8 or newer includes technology support for touchless activation-enabled Conekt Mobile Access Credentials.
|
|
Part of Our Touchless Wave Product Family |
|
|
CV-7600 Series card readers are a more secure alternative to standard proximity credentials that can be easily cloned. They support MIFARE DESFire EV1 technology & EV2 encryption credentials, making them virtually clone-proof and highly secure. CV-7600 mobile-ready readers combine Bluetooth Low Energy (BLE) and contactless smart card technologies and can be used with any access control systems with either Wiegand or bi-directional OSDP* (special order). An easily downloaded app instantly turns any Android™ or Apple iOS™ smartphone into the user's mobile access credential - with no subscription fee! CV-7600 readers have a field configurable reception range from one to thirty feet and are backed by Camden's no-hassle three-year warranty.
*Revision 8 or newer includes technology support for touchless activation-enabled Conekt Mobile Access Credentials.
|
|
|
|
Part of Our Touchless Wave Product Family |
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
A range of Bluetooth readers, 1 to up to 30 feet read range
-
Compatible with all access control systems
-
Smartphone App, Android™ and Apple iOS™ compatible
-
MIFARE DESFire EV1 & EV2 smart card/tag compatible, prevents cloning
-
26-bit Wiegand, ABA Track II magnetic strike (clock & data) and ODSP interface (special order)
-
IP67 water resistant
-
Narrow (jamb) width with option for single gang mounting plate, included
-
3 year warranty
Voltage: |
8 - 14 VDC
|
Current Draw: |
40 mA typical @ 12VDC 195 mA peak
|
Frequency: |
13.56 MHz (contactless smartcard) 2.4 GHz (BLE)
|
Cabling: |
24 AWG minimum, multi-conductor stranded with foil shield
|
Interface: |
Wiegand (26-bit formats), ABA Track II magnetic strike (clock & data) or OSDP
|
Operating Temp: |
-40°F to 149°F (-40°C to 65°C)
|
LED Control: |
Blue, Red, Green, Amber and Off
|
Read Range: |
Cards/Tags: Up to 1.5" (38mm) Mobile: CV-7600 - 1 ft (30cm) to 30 ft (9 am) field adjustable
|
Audio Tone: |
Beeper included
|
Protection: |
IP67
|
Dimensions: |
Mullion: 1-3/4" W x 4-3/4" H x 1-3/16" D (44mm x 119mm x 30mm)
Single Gang: 3" W x 5-1/8" H x 1-3/16" D (76mm x 130mm x 30mm)
|
Spec Sheets
|
CV-7600 Series Spec Sheet |
pdf |
1.58 |
DOWNLOAD
OPEN
|
Installation Manuals
|
CV-7600-BLE_Manual_v3_FR |
pdf |
0.54 |
DOWNLOAD
OPEN
|
CV-7600 Series_Manual_R3 |
pdf |
0.53 |
DOWNLOAD
OPEN
|
Technical Guide
|
Access Control Credentials, Cards & Key Tags |
pdf |
0.25 |
DOWNLOAD
OPEN
|
Access Control Technical Guide |
pdf |
0.61 |
DOWNLOAD
OPEN
|
Cross Reference Guides
|
CV-7600 App and Credential Set-up |
pdf |
1.48 |
DOWNLOAD
OPEN
|
High Resolution Images
|
CV-7600 Series |
jpeg |
0.70 |
DOWNLOAD
OPEN
|
Touchless WaveProduct Line Overview
|
|
Reader
click to expand section
|
|
Net Cost
|
|
CV-7600
MIFARE Reader with BLE for Smartphone Credentials
EDI DATA, APPROVALS
|
|
MIFARE Reader with BLE for Smartphone Credentials
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6"L x 4"W x 3"H
Weight: 0.55lbs.
UPC:670454203519
|
|
Credentials
click to expand section
|
|
Net Cost
|
|
CV-MBT
Smartphone BLE Mobile Credentials, pkg. of 10
EDI DATA, APPROVALS
|
|
Smartphone BLE Mobile Credentials, pkg. of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6"L x 4"W x 3"H
Weight: lbs.
UPC:670454203809
|
|
CV-MCS
MIFARE DESFire EV2 Encrypted Clam Shell Cards, pkg. of 10
EDI DATA, APPROVALS
|
|
MIFARE DESFire EV2 Encrypted Clam Shell Cards, pkg. of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6"L x 4"W x 3"H
Weight: lbs.
UPC:670454203816
|
|
CV-MIS
MIFARE DESFire EV2 Encrypted ISO-style cards, 10 pk
EDI DATA, APPROVALS
|
|
MIFARE DESFire EV2 Encrypted ISO-style cards, 10 pk
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6""L x 4""W x 3""H
Weight: lbs.
UPC:670454219060
|
|
CV-MKT
MIFARE DESFire EV2 Encrypted Key fob, 2K memory, pkg. of 10
EDI DATA, APPROVALS
|
|
MIFARE DESFire EV2 Encrypted Key fob, 2K memory, pkg. of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6""L x 4""W x 3""H
Weight: lbs.
UPC:670454203823
|
|
|
