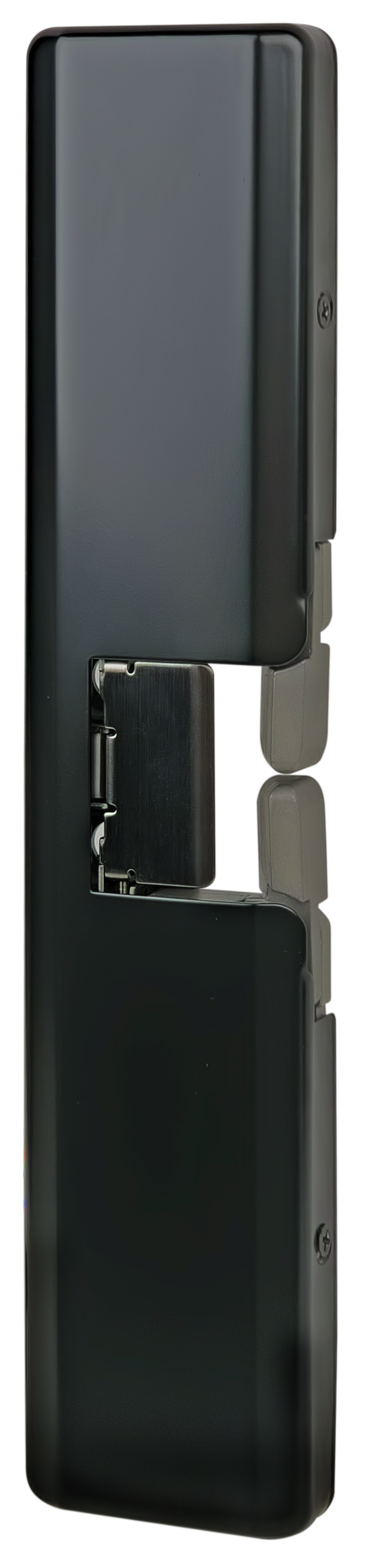

CX-EPD1299L-BK Angled View
|
|
The CX-EPD1299L Series Grade 1 RIM Strike with Preload offers 'Universal' design that delivers unsurpassed application flexibility, with a UL security listing and free latch monitoring. The patented design of this new 1/2" RIM strike enables it to operate with up to 15 pounds of preload pressure for superior performance under the most demanding conditions. This industry-leading strike design is registered under U.S. Patent 10,988,959. For added flexibility, 1/8" and 1/4" spacer plates are included with the strike, as well as a convenient metal mounting jig. And, like all Camden strikes, the CX-EPD1299L is backed by Camden's exclusive five-year, no-hassle product warranty.
COMING SOON!
|
CX-EPD1299L-BK Angled View
|
The CX-EPD1299L Series Grade 1 RIM Strike with Preload offers 'Universal' design that delivers unsurpassed application flexibility, with a UL security listing and free latch monitoring. The patented design of this new 1/2" RIM strike enables it to operate with up to 15 pounds of preload pressure for superior performance under the most demanding conditions. This industry-leading strike design is registered under U.S. Patent 10,988,959. For added flexibility, 1/8" and 1/4" spacer plates are included with the strike, as well as a convenient metal mounting jig. And, like all Camden strikes, the CX-EPD1299L is backed by Camden's exclusive five-year, no-hassle product warranty.
COMING SOON! |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
‘Universal’ design, UL Security listed
-
1/2" latch projection
-
Up to 15 lbs of preload pressure on strike keepers
-
Spacer plates included: 1/8" and 1/4"
-
Latch monitor included
-
Plug-in latch bolt monitor assembly included
-
Available in stainless steel and unique all-black finish
-
Non-handed, left or right
-
5 year warranty
| Latch Projection: |
1/2” or 3/4" with 1/8” or 1/4” Spacer Plates
|
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
560mA @12V DC
280mA @24V DC
|
| Static Strength: |
1,500 lbs. (UL Verified)
|
| Dynamic Strength: |
70 ft-lbs.
|
| Preload: |
15 lbs.
|
| Endurance: |
1,000,000 Cycles (Factory Tested)
500,000 Cycles (UL Verified)
|
| Operation: |
AC Buzz, DC Silent
|
| Mode: |
Field Selectable Fail Safe or Fail Secure
|
| Duty: |
Continuous
|
| Latch Monitor: |
SPDT, 100mA @ 24V DC, Resistive
|
| Dimensions: |
9-3/16”H x 1-7/8”W x 9/16”D
(233.2mm x 48.1mm x 14mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

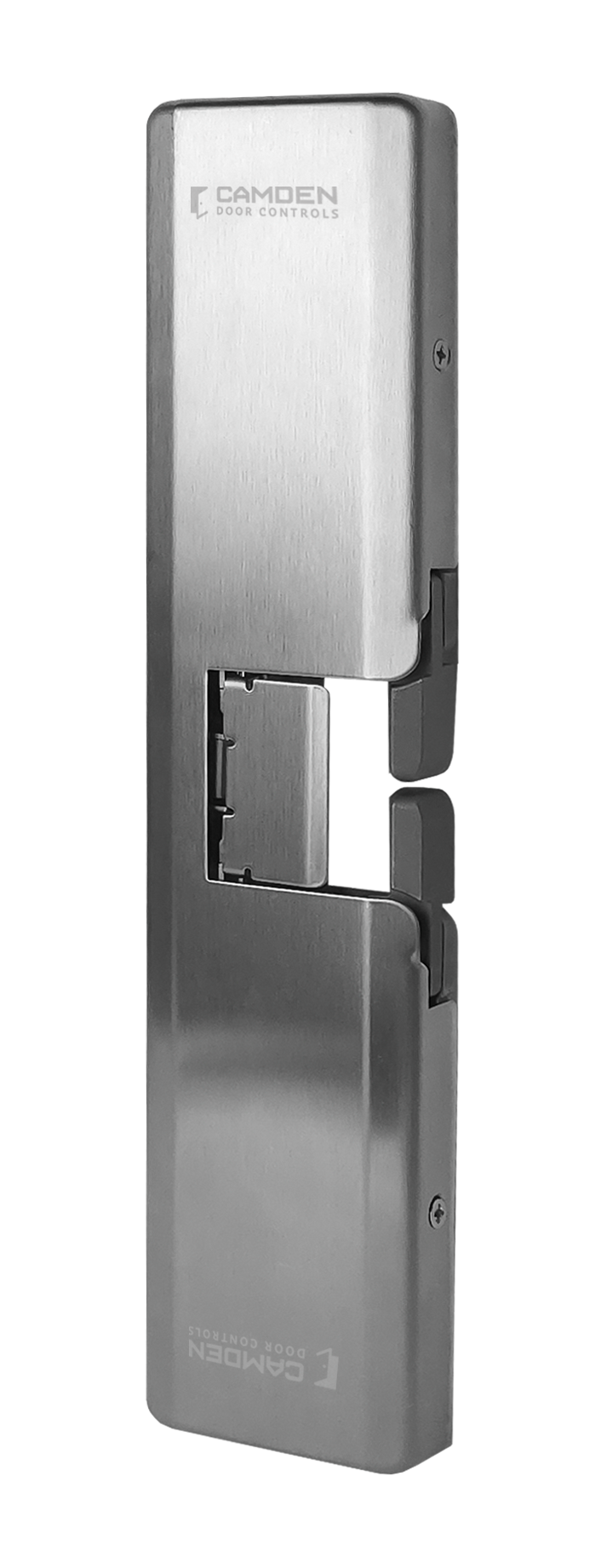

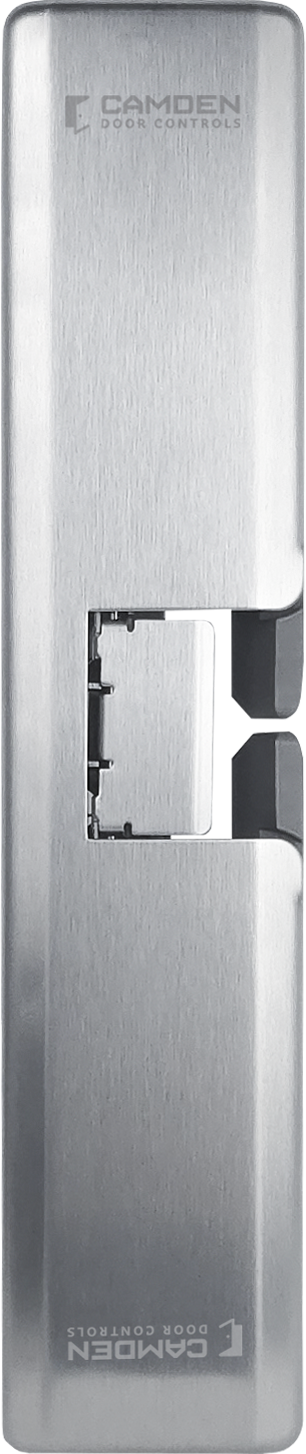

CX-EPD1299L
1/2" Surface mount Grade 1 RIM strike with preload, brushed aluminum finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
EDI DATA, APPROVALS
|
|
1/2" Surface mount Grade 1 RIM strike with preload, brushed aluminum finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 5lbs.
UPC:670454223371
Country of Origin:Taiwan
|
|

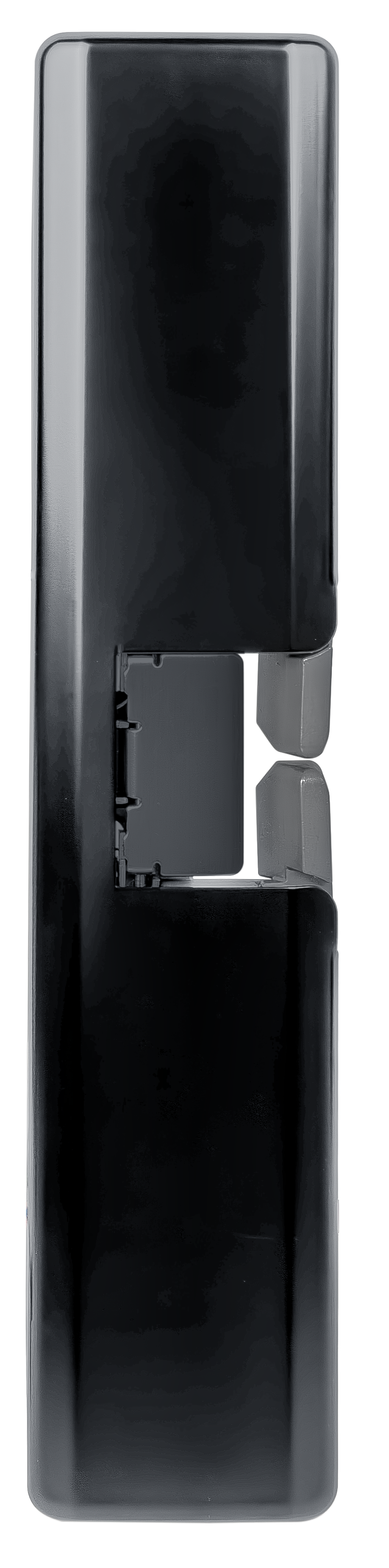

CX-EPD1299L-BK
1/2" Surface mount Grade 1 RIM strike with preload, all-black finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
EDI DATA, APPROVALS
|
|
1/2" Surface mount Grade 1 RIM strike with preload, all-black finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 5lbs.
UPC:670454223388
Country of Origin:Taiwan
|
| |
Spacer Plates
click to expand section
|
|
Net Cost
|
|

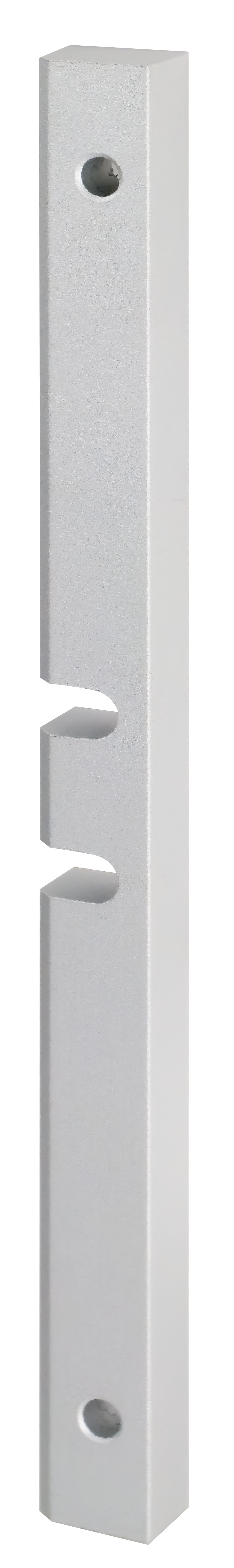

60-35E013
1/8" Spacer Plate for CX-EPD1299L Electric Strike
EDI DATA, APPROVALS
|
|
1/8" Spacer Plate for CX-EPD1299L Electric Strike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
|

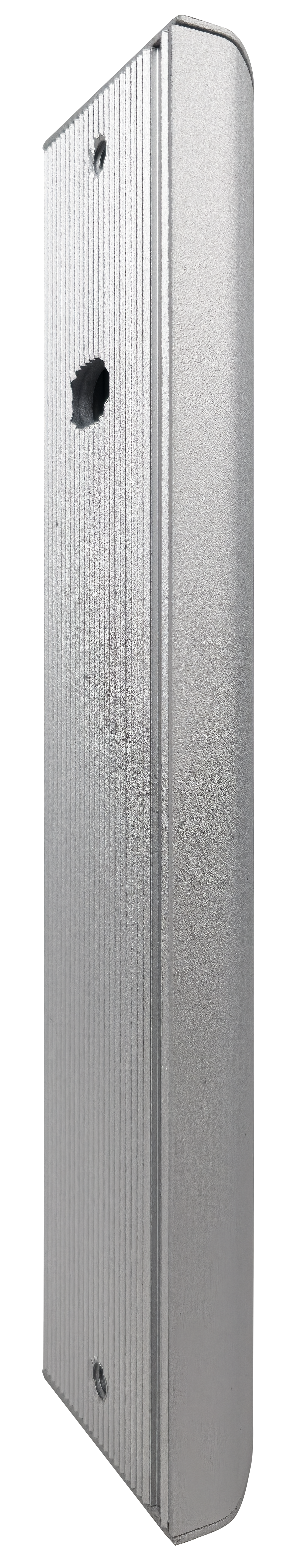

60-35E015
CX-EPD1299L 1/4" Spacer Plate for CX-EPD1299L Electric Strike
EDI DATA, APPROVALS
|
|
CX-EPD1299L 1/4" Spacer Plate for CX-EPD1299L Electric Strike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
| |
|
