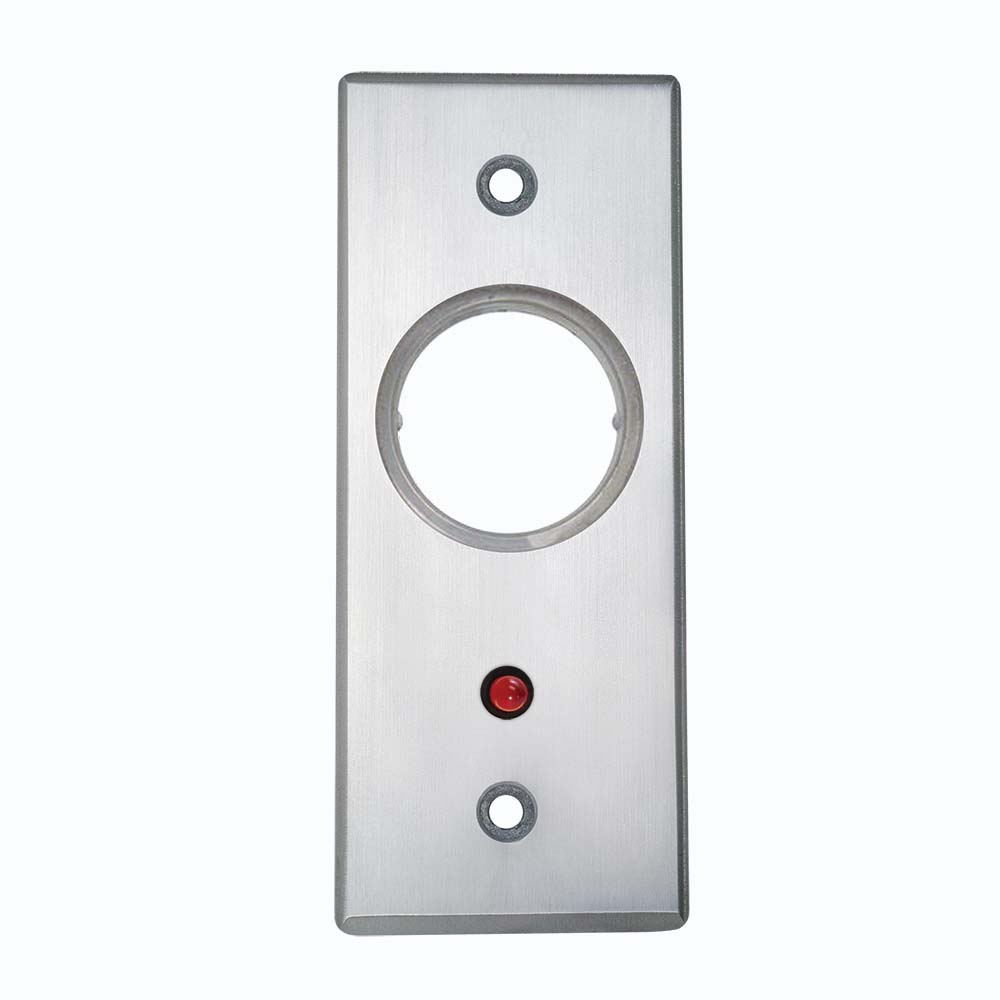

CM-2000
Narrow Key Switch
Cast Aluminum |
CM-2000
Narrow Key Switch
Cast Aluminum
|
|
Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .
Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Options/Finishes for the complete cylinder listing.
|
|
|
| CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
CM-2000
Narrow Key Switch
Cast Aluminum |
CM-2000
Narrow Key Switch
Cast Aluminum
|
Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .
Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Options/Finishes for the complete cylinder listing. |
|
|
|
|
|
|
| CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Indoor or outdoor flush applications
-
Accepts standard mortise cylinders (1" - 1-1/4")
-
Mullion style - only 1-3/4" wide
-
Heavy duty 1/4" thick aluminum plate
-
1 piece die cast construction
-
Locators prevent cylinder from spinning
-
Cylinder sits flush to faceplate
-
Tamper proof screws and driver provided
-
No set screw required
-
Provision for 2 internal switches
-
Heat shrink protective sleeve over contacts
| Voltage: |
12/24V AC/DC
|
| Contact Rating: |
6 A @ 30 VDC
|
| Switch Life: |
100,000 cycles
|
| Temp Range: |
32°F to 85°F (0°C to +85°C)
|
| Std. Finish: |
Brushed Aluminum
|
| Dimensions: |
|

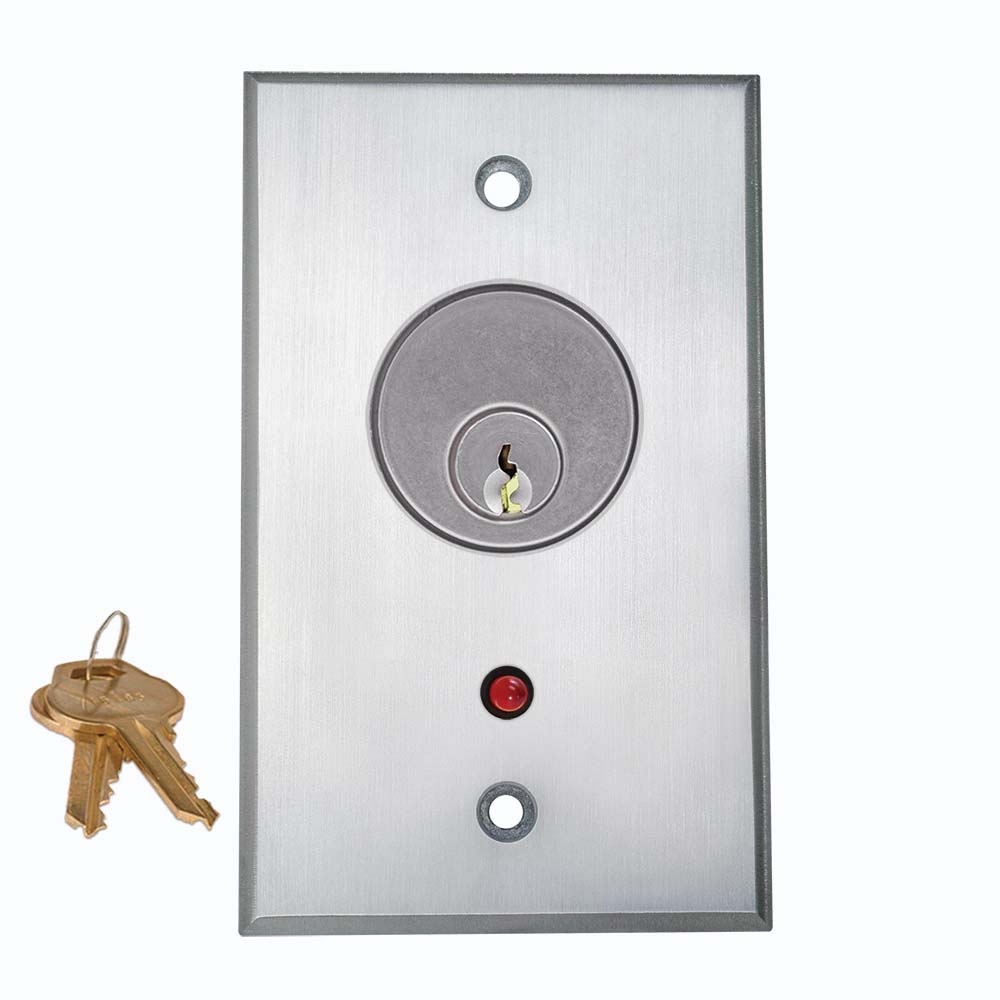

Single Gang Faceplate:
|
4-1/2" x 2-3/4" x 1-1/2"
(114mm x 70mm x 42mm)
|
|
Narrow Faceplate:
|
4-1/2" x 1-3/4" x 1-1/2"
(114mm x 44m x 42mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
 click to expand section
|
|
Net Cost
|
|
CM-1100
Key Switch, SPST Momentary N/O
EDI DATA, APPROVALS
|
|
Key Switch, SPST Momentary N/O
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.47lbs.
UPC:670454120618
|
|
CM-1105
Key Switch, SPST Momentary N/C CM-1105
EDI DATA, APPROVALS
|
|
Key Switch, SPST Momentary N/C CM-1105
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120779
|
|
|
CM-1110
Key Switch, SPST Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPST Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120793
|
|
|
CM-1120
Key Switch, SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Key Switch, SPDT N/O & N/C Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120809
|
|
|
CM-1130
Key Switch, SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPDT N/O & N/C Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120830
|
|
|
CM-1150
Key Switch (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch (2) SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.51lbs.
UPC:670454120892
|
|
CM-1160
Key Switch (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch (2) SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.51lbs.
UPC:670454120908
|
|
|
CM-1170
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPDT (1) Momentary & (1) Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120915
|
|
|
CM-1180
Key Switch, DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120939
|
|
|
CM-1182
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454196583
|
|
|
CM-1190
Key Switch, DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454120960
|
|
|
CM-1192
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.49lbs.
UPC:670454186522
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-2000
Key Switch, SPST Momentary, N/O
EDI DATA, APPROVALS
|
|
Key Switch, SPST Momentary, N/O
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454121677
|
|
|
CM-2005
Key Switch, SPST Momentary, N/C
EDI DATA, APPROVALS
|
|
Key Switch, SPST Momentary, N/C
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454121882
|
|
|
CM-2010
Key Switch, SPST Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPST Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454121974
|
|
|
CM-2020
Key Switch, SPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454121981
|
|
|
CM-2030
Key Switch, SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454122018
|
|
|
CM-2050
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.41lbs.
UPC:670454122032
|
|
|
CM-2060
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.41lbs.
UPC:670454122049
|
|
|
CM-2070
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA, APPROVALS
|
|
Key Switch, SPDT (1) Momentary & (1) Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454122056
|
|
|
CM-2080
Key Switch, DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454122063
|
|
|
CM-2082
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454194725
|
|
|
CM-2090
Key Switch, DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454122087
|
|
|
CM-2092
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.39lbs.
UPC:670454187451
|
| |
|
Heavy Duty Contacts (Sold Separately)
click to expand section
|
|
Net Cost
|
|
CM-1000/31
SPST momentary contact switch, N/O, 15 A @ 30 VDC
EDI DATA, APPROVALS
|
|
SPST momentary contact switch, N/O, 15 A @ 30 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670456204088
|
|
|
CM-1000/37
SPST maintained contact switch, 15 A @ 30 VDC
EDI DATA, APPROVALS
|
|
SPST maintained contact switch, 15 A @ 30 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670456204118
|
| |
|
Mortise Cylinders (Sold Separately)
click to expand section
|
|
Net Cost
|
|
CM-CYL60-KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA, APPROVALS
|
|
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120243
|
|
CM-CYL60-KD
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
EDI DATA, APPROVALS
|
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120250
|
|
CM-307
Mortise cylinder housing for Best(tm) style IC core
EDI DATA, APPROVALS
|
|
Mortise cylinder housing for Best(tm) style IC core
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454156280
|
|
CM-308
Best(tm) style IC core, keyed different
EDI DATA, APPROVALS
|
|
Best(tm) style IC core, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454157966
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| HEAVY DUTY CONTACT OPTIONS |
 |
| MORTISE CYLINDERS |
 |
| FACEPLATE OPTIONS |
 |
| LED OPTIONS |
|
| Heavy Duty Contact Options |
|
Net Cost |
|
-1000/31
SPST momentary contact switch, N/O, 15 A @ 30 VDC
|
SPST momentary contact switch, N/O, 15 A @ 30 VDC
|
|
|
|
|
-1000/37
SPST maintained contact switch, 15 A @ 30 VDC
|
SPST maintained contact switch, 15 A @ 30 VDC
|
|
|
| Mortise Cylinder Options |
|
Net Cost |
|
-60KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
|
|
|
-60KD
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
|
|
|
-307
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
|
|
|
-309
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
|
|
| LED Options |
|
Net Cost |
|
-7012
Red 12V LED mounted on faceplate
|
Red 12V LED mounted on faceplate
|
|
|
|
|
-70122
(2) Red 12V LED mounted on faceplate
|
(2) Red 12V LED mounted on faceplate
|
|
|
|
|
-7024
Red 24V LED mounted on faceplate
|
Red 24V LED mounted on faceplate
|
|
|
|
|
-70242
(2) Red 24V LED mounted on faceplate
|
(2) Red 24V LED mounted on faceplate
|
|
|
|
|
-7112
Green 12V LED mounted on faceplate
|
Green 12V LED mounted on faceplate
|
|
|
|
|
-71122
(2) Green 12V LED mounted on faceplate
|
(2) Green 12V LED mounted on faceplate
|
|
|
|
|
-7124
Green 24V LED mounted on faceplate
|
Green 24V LED mounted on faceplate
|
|
|
|
|
-71242
(2) Green 24V LED mounted on faceplate
|
(2) Green 24V LED mounted on faceplate
|
|
|
|
|
-7212
Red and Green 12V LEDs mounted on faceplate
|
Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
-72122
(2) Red and Green 12V LEDs mounted on faceplate
|
(2) Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
-7224
Red and Green 24V LEDs mounted on faceplate
|
Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
-72242
(2) Red and Green 24V LEDs mounted on faceplate
|
(2) Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
-7412
Amber 12V LED mounted on faceplate
|
Amber 12V LED mounted on faceplate
|
|
|
|
|
-74122
(2) Amber 12V LED mounted on faceplate
|
(2) Amber 12V LED mounted on faceplate
|
|
|
|
|
-7424
Amber 24V LED mounted on faceplate
|
Amber 24V LED mounted on faceplate
|
|
|
|
|
-74242
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-7612
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-76122
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-7624
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-76242
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall CM-1100
|
Surface Box, Standard Depth. Double wall CM-1100
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum CM-1100
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum CM-1100
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover CM-1100
|
Vandal and weather resistant clear lift cover CM-1100
|
|
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. CM-2000
|
Surface Box, Deep - For wireless. CM-2000
|
|
|
|
COMPATIBLE MOUNTING POSTS
|
|
|
Click to expand section
|
|
 |
| SWITCH BOLLARDS (POSTS) |
|
| Switch Bollards (Posts): Dark Bronze |
|
Net Cost |
|
|
CM-42-CSU-BRZ
42" Tall, No switch prep, 6" x 6" dark bronze finish CM-1100
|
42" Tall, No switch prep, 6" x 6" dark bronze finish CM-1100
|
|
|
|
CM-42-BSU-BRZ
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish CM-1100
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish CM-1100
|
|
|
|
|
CM-48-BSU-BRZ
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish CM-1100
|
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish CM-1100
|
|
|
| Switch Bollards (Posts): Mill Finish |
|
Net Cost |
|
|
CM-42-CSU-MIL
42" Tall, No switch prep, 6" x 6" mill finish CM-1100
|
42" Tall, No switch prep, 6" x 6" mill finish CM-1100
|
|
|
|
|
CM-42-BSU-MIL
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish CM-1100
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish CM-1100
|
|
|
|
|
CM-48-BSU-MIL
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish CM-1100
|
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish CM-1100
|
|
|
|
|
|
