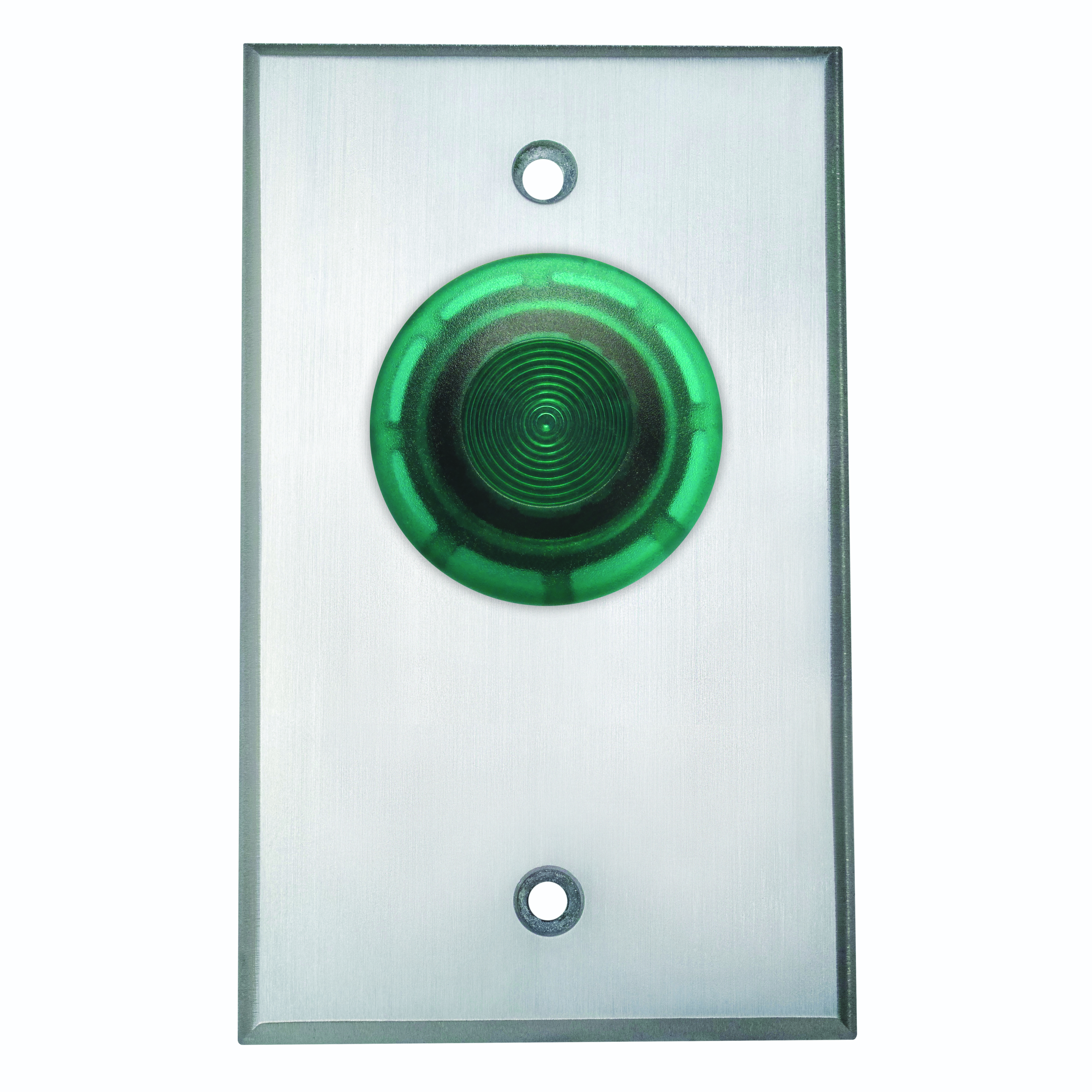

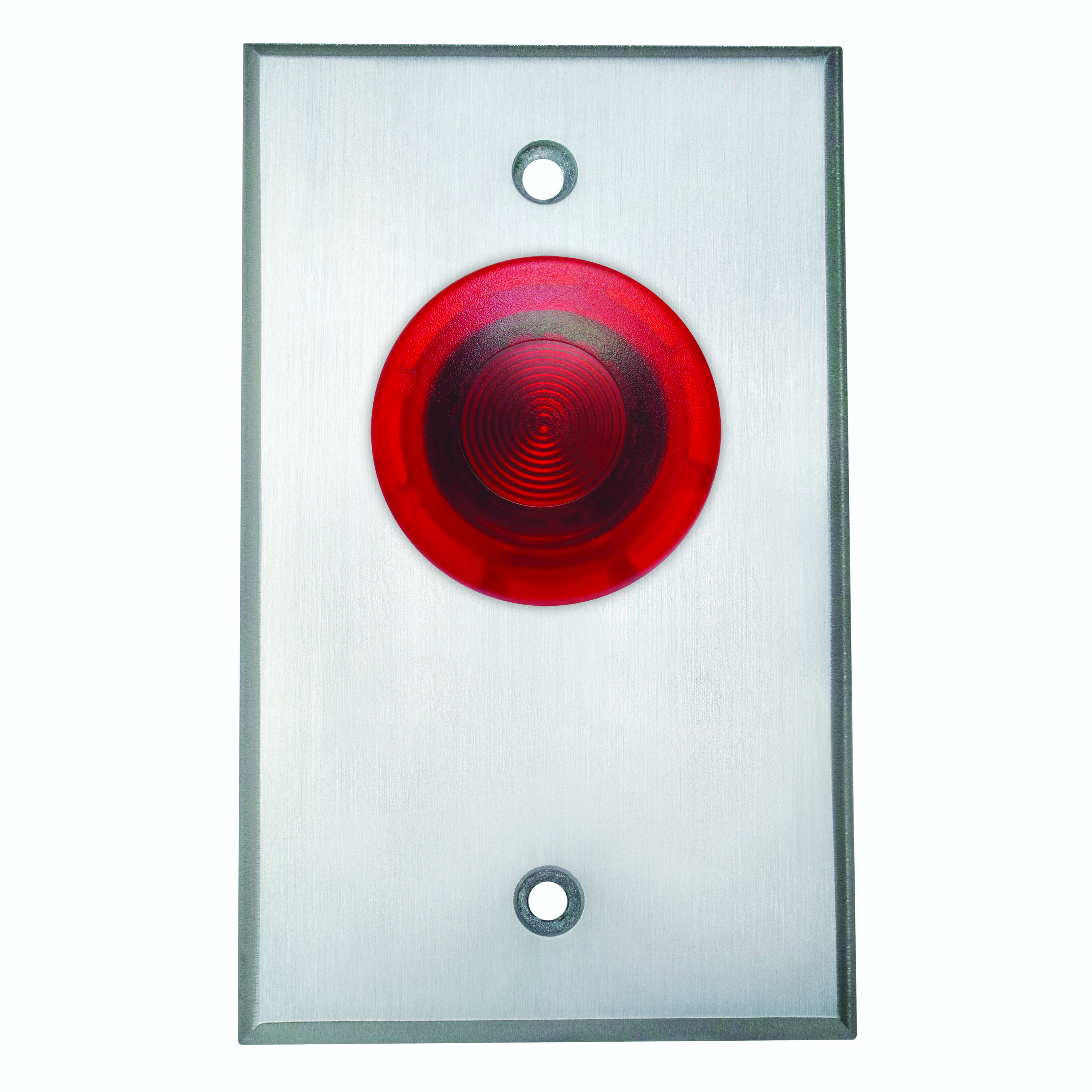

CM-3000R, Single Gang Illuminated Mushroom Pushbutton
|
|
CM-3000 Series mushroom push buttons are heavy duty push-buttons designed for industrial and commercial applications. Buttons are 1-5/8" (40mm) in diameter and are available in red or green. Bright LED illumination with long service life.
|
|
|

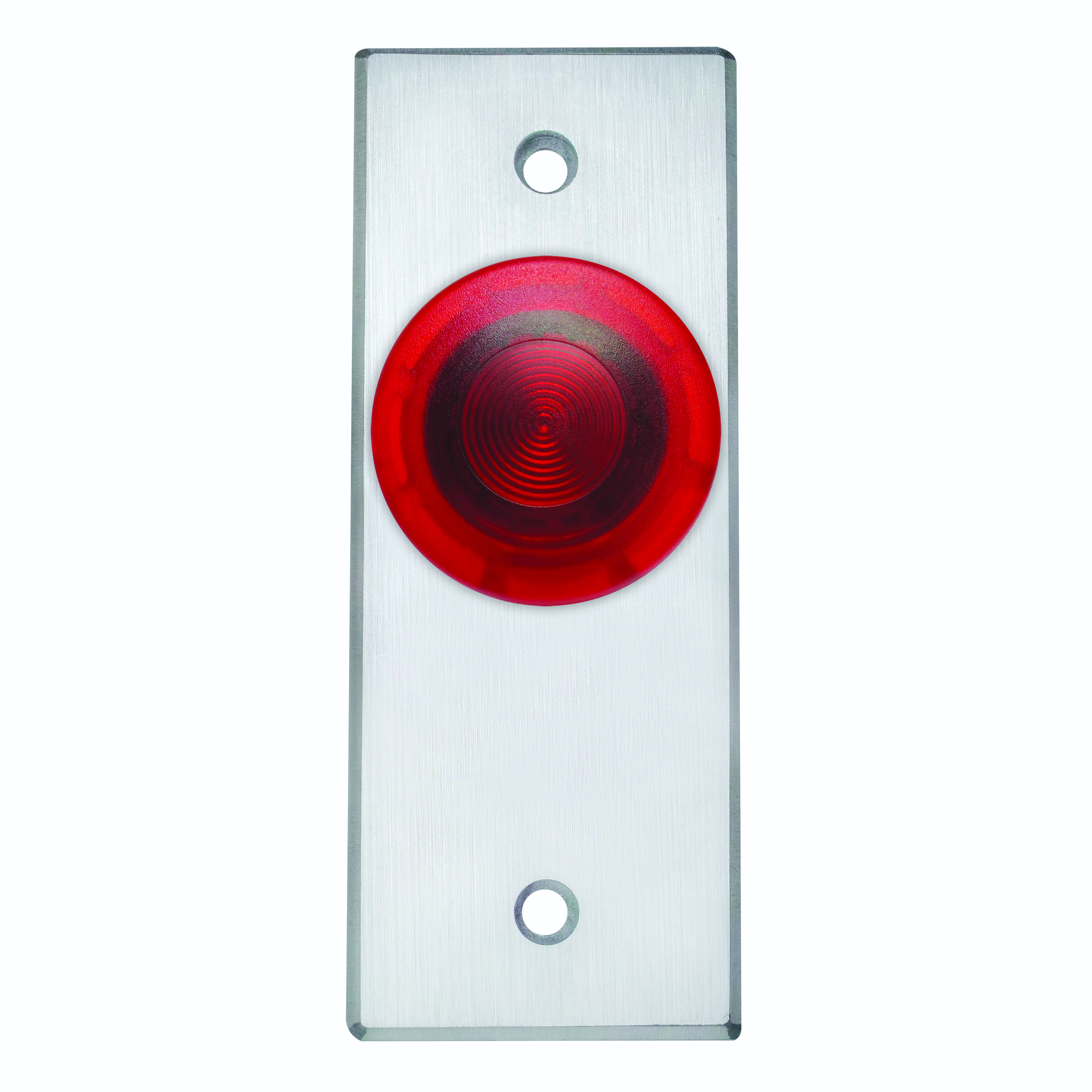

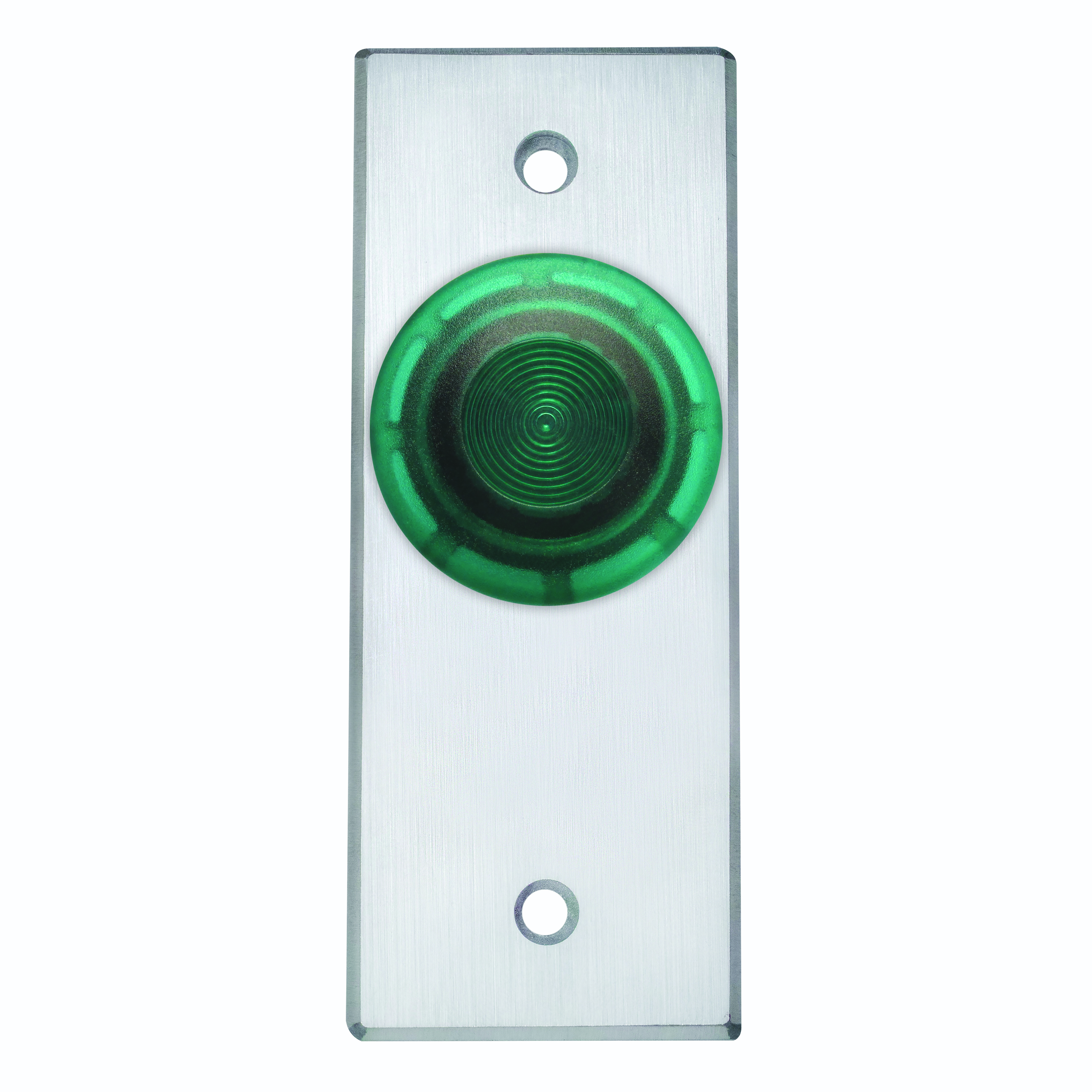

| CM-3100R Narrow Illuminated Mushroom Pushbutton |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-56R
|
CM-3000, CM-xxxR
|
|
Securitron
|
PB
|
CM-3000GE-7024
|
|
|
PBA
|
CM-3030GE-7024
|
|
|
| CM-3000R, Single Gang Illuminated Mushroom Pushbutton |
CM-3000R, Single Gang Illuminated Mushroom Pushbutton
|
CM-3000 Series mushroom push buttons are heavy duty push-buttons designed for industrial and commercial applications. Buttons are 1-5/8" (40mm) in diameter and are available in red or green. Bright LED illumination with long service life.
|
|
|
|
|
|
|
| CM-3100R Narrow Illuminated Mushroom Pushbutton |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-56R
|
CM-3000, CM-xxxR
|
|
Securitron
|
PB
|
CM-3000GE-7024
|
|
|
PBA
|
CM-3030GE-7024
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Large 1-5/8" (40mm) illuminated buttons
-
1/4" thick cast aluminum faceplate
-
Super-bright LED illumination
-
Indoor/outdoor applications
-
3 year warranty
| Voltage: |
12/24 VDC
|
| Contact Rating: |
6 A @ 30 VDC
|
| Std. Finish: |
Brushed Aluminum
|
| Dimensions: |
|
CM-3000:
|
4-1/2" x 2-3/8" x 2-7/8"
(114mm x 70mm x 72mm)
|
|
CM-3100:
|
4-1/2" x 1-3/4" x 2-7/8"
(114mm x 44mm x 72mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-3000
Spring Return Button, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
|
|
CM-3010
Spring Return Button, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
|
|
CM-3020
Spring Return Button, N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/O & N/C Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
|
|
CM-3030
Push/Pull Button, N/O, Maintained
EDI DATA, APPROVALS
|
|
Push/Pull Button, N/O, Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
|
|
CM-3040
Push/Pull Button, N/C, Maintained
EDI DATA, APPROVALS
|
|
Push/Pull Button, N/C, Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
|
|
CM-3050
Push/Pull, N/O & N/C, Maintained
EDI DATA, APPROVALS
|
|
Push/Pull, N/O & N/C, Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.65lbs.
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-3100
Spring Return Button, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
|
|
|
CM-3110
Spring Return Button, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.6lbs.
|
|
|
CM-3120
Spring Return Button, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return Button, N/O & N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.6lbs.
|
|
|
CM-3130
Push/Pull Button, N/O, Maintained, 12V
EDI DATA, APPROVALS
|
|
Push/Pull Button, N/O, Maintained, 12V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.6lbs.
|
|
|
CM-3140
Push/Pull Button, N/C, Maintained, 12V
EDI DATA, APPROVALS
|
|
Push/Pull Button, N/C, Maintained, 12V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.6lbs.
|
|
|
CM-3150
Push/Pull Button, N/O & N/C, Maintained, 12V
EDI DATA, APPROVALS
|
|
Push/Pull Button, N/O & N/C, Maintained, 12V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.6lbs.
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| BUTTON COLOR OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
 |
| FACEPLATE OPTIONS |
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/2
Add /2 to model # for 'WHEELCHAIR' symbol, black
|
Add /2 to model # for 'WHEELCHAIR' symbol, black
|
|
|
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black text
|
Add /3 to model # for 'PUSH TO OPEN', black text
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
|
|
|
|
CM-xxx/4
Add /4 to model # for 'WHEELCHAIR' symbol and 'PUSH TO OPEN', black text
|
Add /4 to model # for 'WHEELCHAIR' symbol and 'PUSH TO OPEN', black text
|
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT', black text
|
Add /7 to model # for 'PUSH TO EXIT', black text
|
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black text
|
Add /8 to model # for 'PUSH TO LOCK', black text
|
|
|
| Button Engraved Graphic Options |
|
Net Cost |
|
|
CM-xxxE
Add E to product # for 'EXIT' engraved (in white)
|
Add E to product # for 'EXIT' engraved (in white)
|
|
|
|
|
CM-xxxES
Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
|
|
|
|
CM-xxxS
Add S to product # for SORTIE engraved (in white)
|
Add S to product # for SORTIE engraved (in white)
|
|
|
|
|
CM-xxxESA
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
|
|
|
|
CM-xxxH
Add H to product # for wheelchair symbol engraved (in white)
|
Add H to product # for wheelchair symbol engraved (in white)
|
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA engraved (in white)
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duranotic) finish, (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish, (BHMA 710 / 313AN)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 3100 series switches
|
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 3100 series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer Single Gang boxes for 3000 series switches
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer Single Gang boxes for 3000 series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 3000 series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 3000 series switches
|
|
|
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 3000 series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 3000 series switches
|
|
|
|
|
CM-120G
Rubber gasket for any stainless steel single gang faceplate Single Gang boxes for 3000 series switches
|
Rubber gasket for any stainless steel single gang faceplate Single Gang boxes for 3000 series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 3000 series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 3000 series switches
|
|
|
|
|
|
