CM-SR Series wireless system includes a high security stand-alone wireless receiver with (2) Form 'A' relay outputs. The receiver features a rugged construction with a built-in antenna for mounting indoors or outdoors.
CM-SR Series wireless systems are designed to activate locking devices, such as magnetic locks and electric strikes, and automatic gate and door operators. Ideal for one or two door access control, in retail, commercial, and healthcare facilities. The rugged IP65 rated components are also perfect for gate or parking garage applications.
Ultra compact two button transmitters are built tough, with 100ft min. range (line of sight) and a system kit is available, complete with (1) receiver and (2) two button fobs.
|
|
|
CM-SR Series wireless system includes a high security stand-alone wireless receiver with (2) Form 'A' relay outputs. The receiver features a rugged construction with a built-in antenna for mounting indoors or outdoors.
CM-SR Series wireless systems are designed to activate locking devices, such as magnetic locks and electric strikes, and automatic gate and door operators. Ideal for one or two door access control, in retail, commercial, and healthcare facilities. The rugged IP65 rated components are also perfect for gate or parking garage applications.
Ultra compact two button transmitters are built tough, with 100ft min. range (line of sight) and a system kit is available, complete with (1) receiver and (2) two button fobs. |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
CM-SRX2
-
868Mhz. high security rolling code, with 19 trillion combinations
-
2-channel receiver
-
1st relay momentary, 2nd relay momentary or latching operation
-
30 transmitters (fobs) capacity
-
Easy transmitter enrollment
-
Built-in antenna
-
IP65 rated weather-resistant enclosure
CV-WTX2
-
Ultra compact fob transmitter
-
Rugged water-resistant construction
-
2-year battery life and low battery indication
| CM-SRX2 |
| Voltage: |
12/24V, AC/DC
|
| Frequency: |
868.35 Mhz.
|
| Current Draw: |
(Max) 80mA
|
| Relay: |
(2) SPST, normally open, 1st relay momentary, 2nd momentary or latching/bi-stable, 1A @ 30 VDC
|
| Operating Temp: |
-4°F to 185°F (-20°C to +85°C)
|
| Dimensions: |
2-1/2"W x 3-3/4"H x 2-1/4"D
(64mm x 95mm x 56mm)
|
| |
| CV-WTX2 |
| Voltage: |
3 VDC, CR2032 type battery
|
| Current Draw: |
12mA
|
| Operating Temp: |
-4°F to 185°F (-20°C to +85°C)
|
| Dimensions: |
1-3/16"W x 2-1/8"H x 3/8"D
(30mm x 57mm x 10mm)
|
| |
|
|
|
Receiver
 click to expand section
|
|
Net Cost
|
|

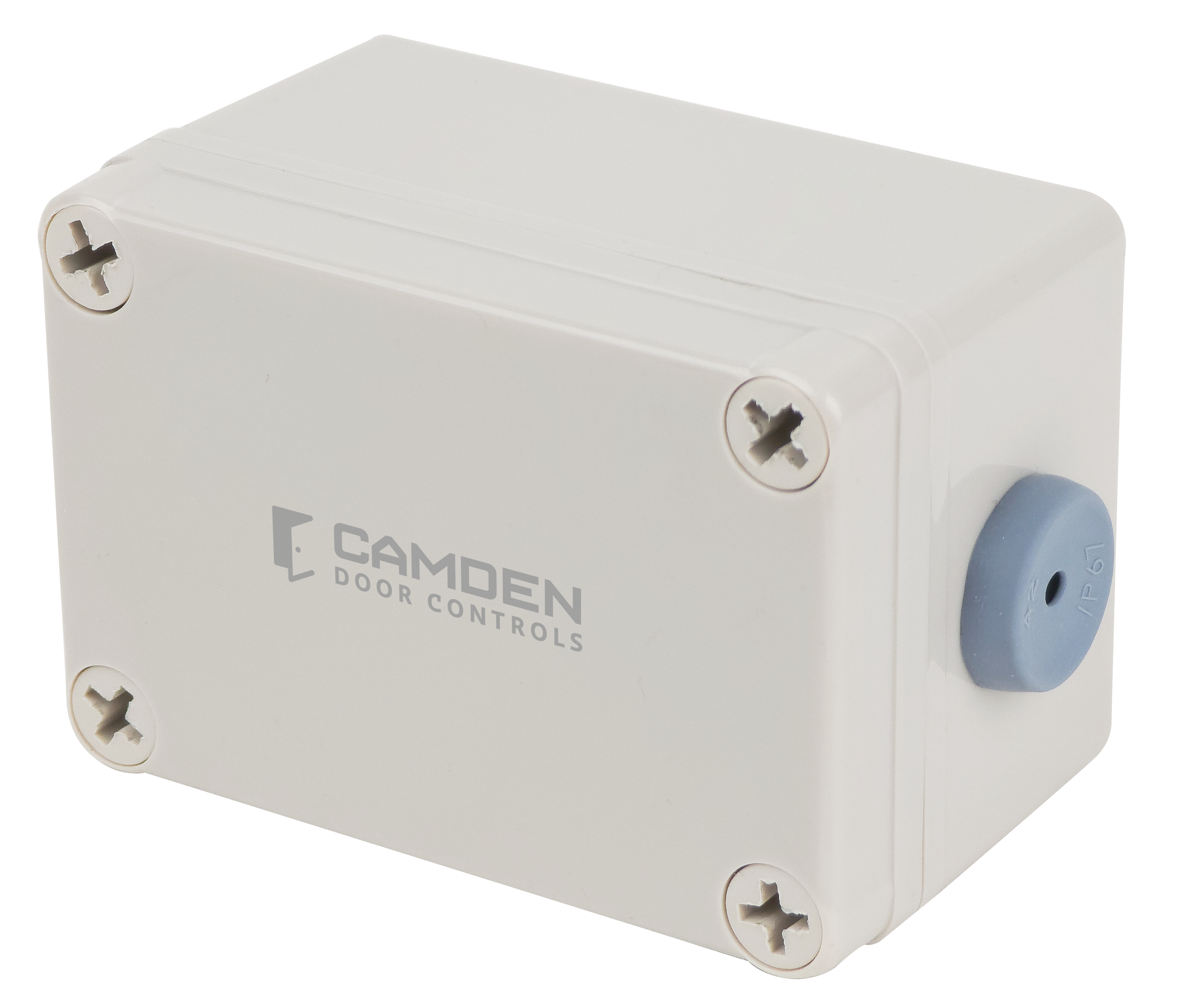

CM-SRX2
2 channel 868 Mhz. wireless relay receiver
EDI DATA, APPROVALS
|
|
2 channel 868 Mhz. wireless relay receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 7.5"L x 3.5"W x 1.75"H
Weight: .45lbs.
UPC:670454216564
|
| |
|
Transmitter
click to expand section
|
|
Net Cost
|
|

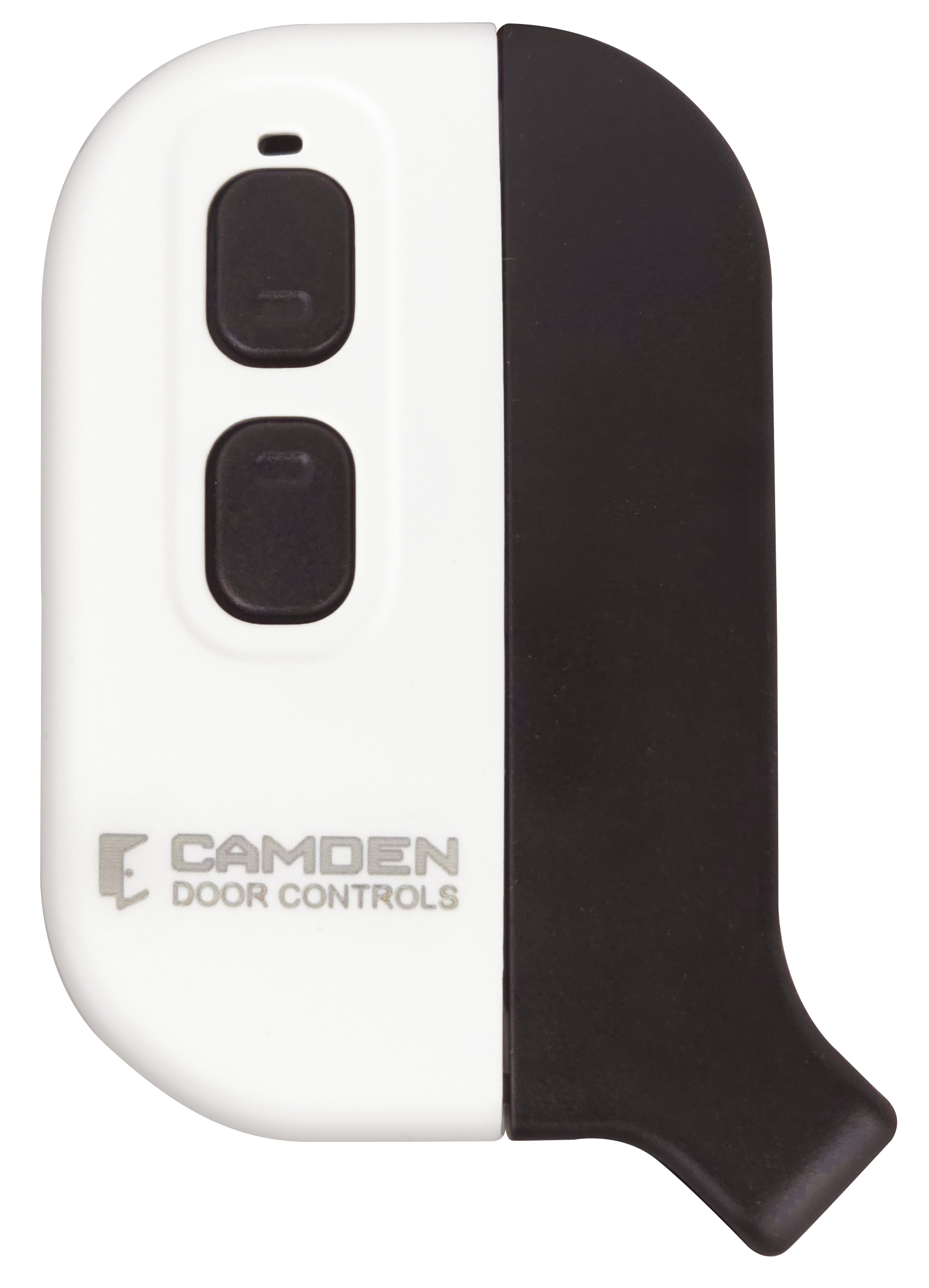

CV-WTX2
Ultra compact two button key fob
EDI DATA, APPROVALS
|
|
Ultra compact two button key fob
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: .05lbs.
UPC:670454216533
|
| |
|
new option
|
|
|
Kit
click to expand section
|
Description |
|
|
Net Cost
|
|

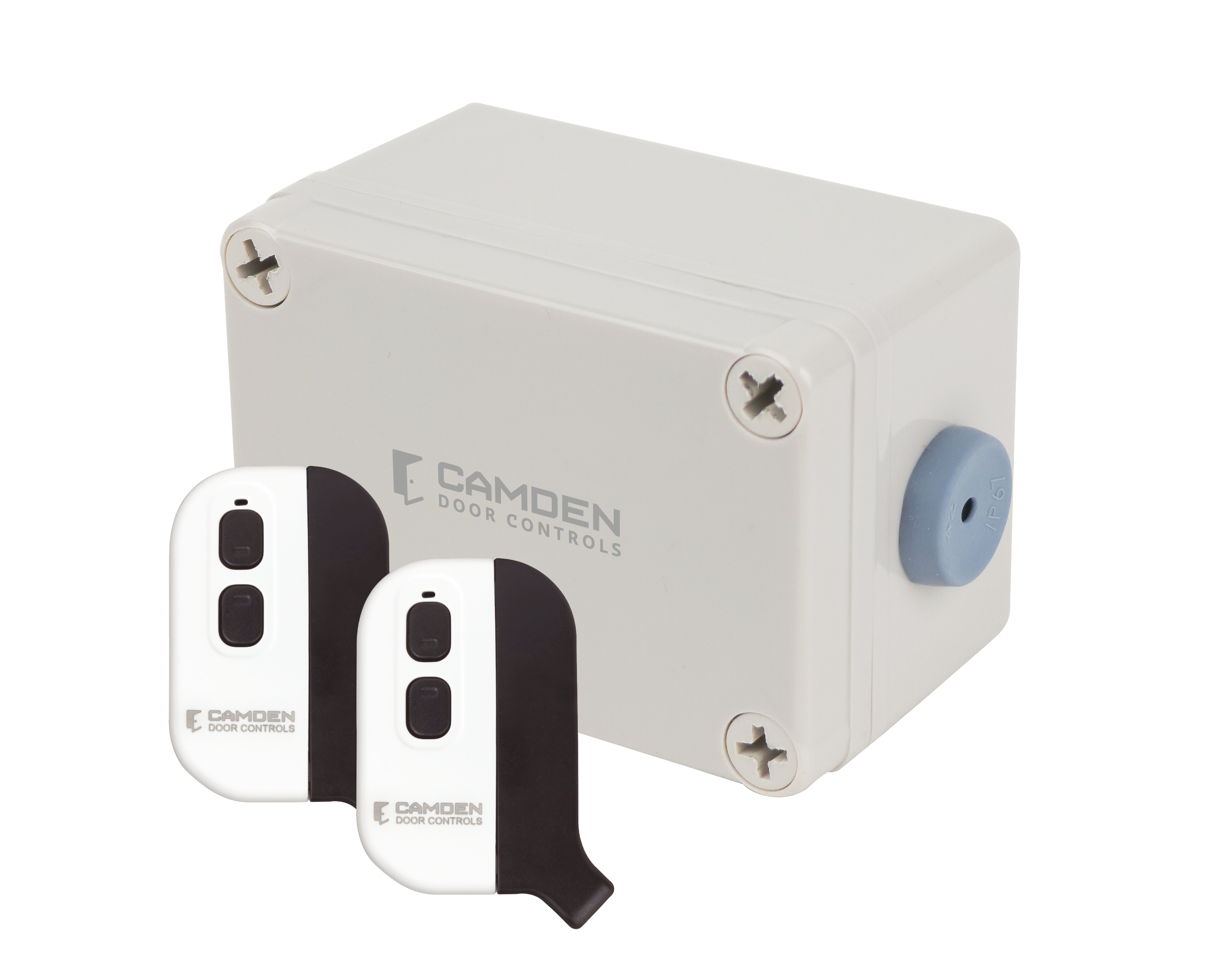

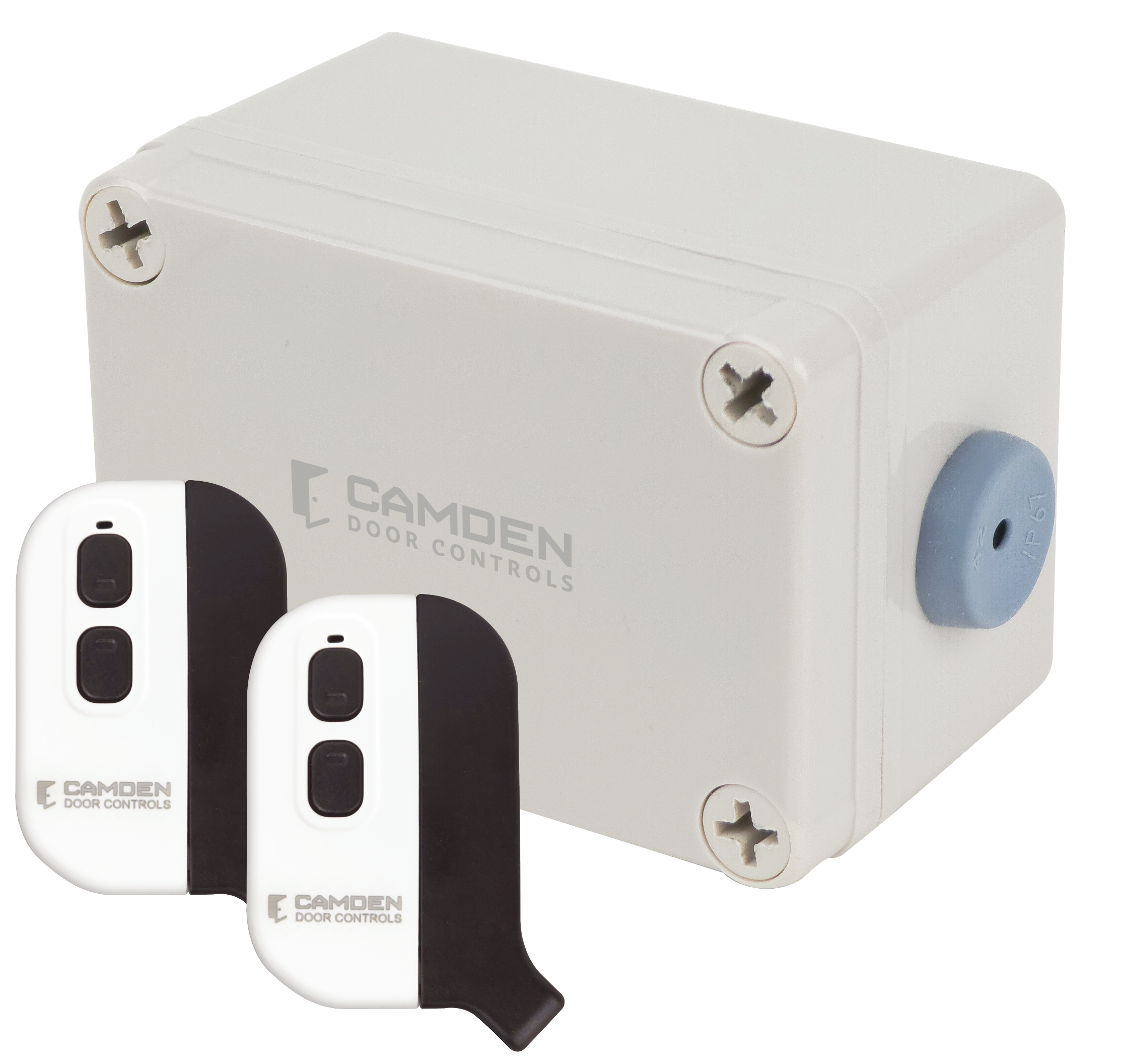

CM-SRFM2
EDI DATA, APPROVALS
|
|
CM-SRFM2
(1)
2 channel 868 Mhz. wireless relay receiver;
(2)
Ultra compact two button key fob.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 6"W x 4"H
Weight: .75lbs.
UPC:670454216557
|
| |
|
|
|
