| CX-247 V3 7 Day Programmable Timer |

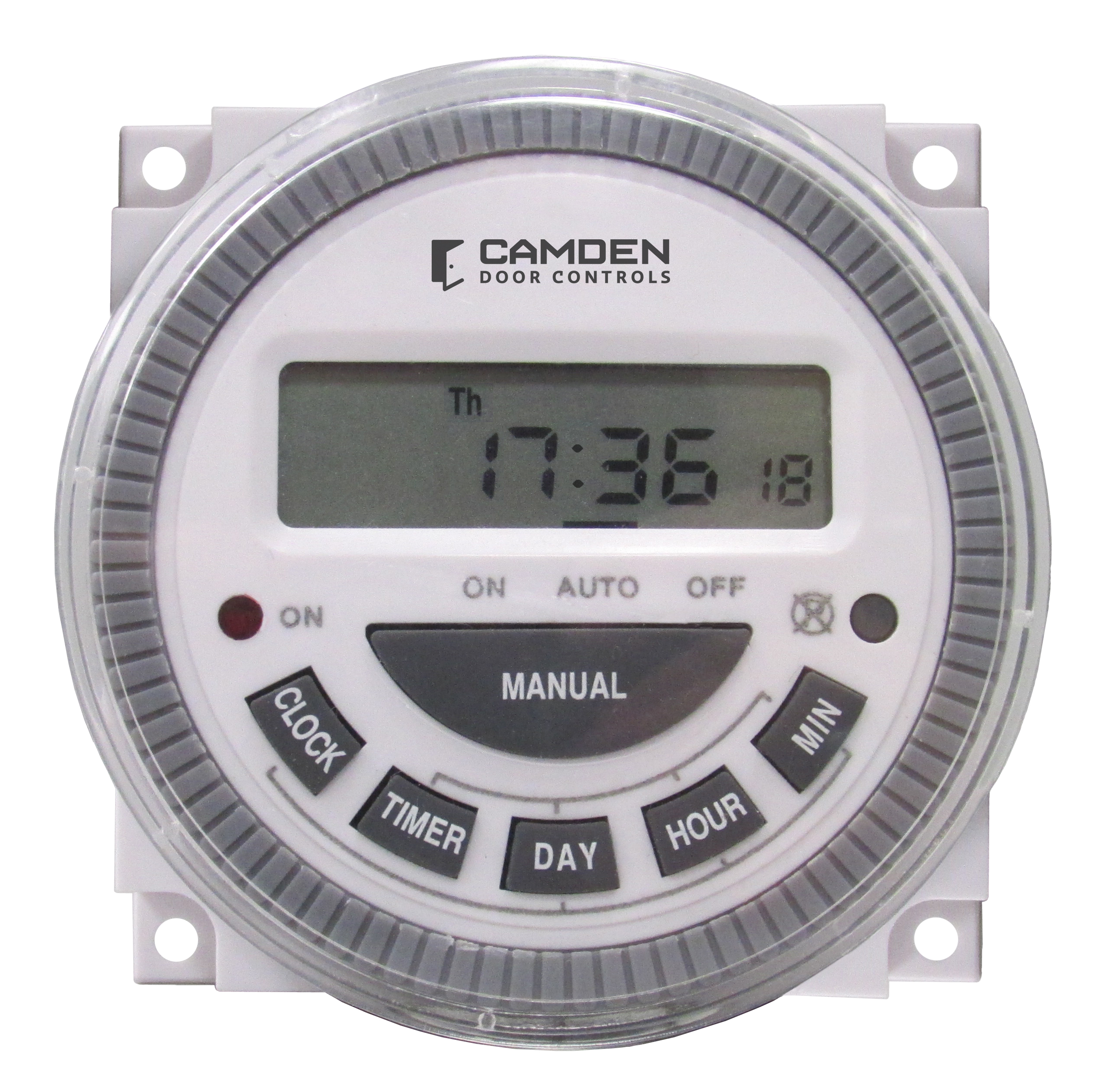

CX-247 V3 7 Day Programmable Timer
|
|
Camden's CX-247 is an affordable, compact and easy to program 7 day electronic timer that is designed for use in a wide range of control applications. The unit supports up to 16 'on/off' scheduled times per day and is available in 12 or 24 Volt models. Applications: Ideal for automatic enable/disable of door activation devices, lighting control, energy management and other general control applications.
|
| CX-247 V3 7 Day Programmable Timer |
CX-247 V3 7 Day Programmable Timer
|
Camden's CX-247 is an affordable, compact and easy to program 7 day electronic timer that is designed for use in a wide range of control applications. The unit supports up to 16 'on/off' scheduled times per day and is available in 12 or 24 Volt models. Applications: Ideal for automatic enable/disable of door activation devices, lighting control, energy management and other general control applications.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
15 daily or weekly schedules
-
Internal memory back-up
-
Easy to program/setup
-
Extremely compact size
-
12 and 24V AC/DC models
-
SPDT contacts rated 16 amps @ 30 VDC
-
Dimensions: 2-3/8" x 2-3/8" x 1-1/4"
-
3 year warranty
| Voltage: |
12V AC/DC or 24V AC/DC
|
| Current Draw: |
0.1 mA Idle, 10 mA Operating
|
| Response Time: |
0.3 Seconds
|
| Backup: |
Internal Permacell
|
| Programs: |
16
|
| Output: |
Form 'C' (SPDT)
|
| Contact Rating: |
16 A @ 30 VDC
|
| Electrical Life: |
250,000 @ Rated Capacity
|
| Dimensions: |
2-3/8" x 2-3/8" x 1-1/4"
(60mm x 60mm x 32mm)
|
CX-247 Programmable 7 Day Timer
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-247-12
7 day timer - 12 V
EDI DATA, APPROVALS
|
|
7 day timer - 12 V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.75"L x 2.75"W x 2.75"H
Weight: 0.22lbs.
UPC:670454150226
|
|

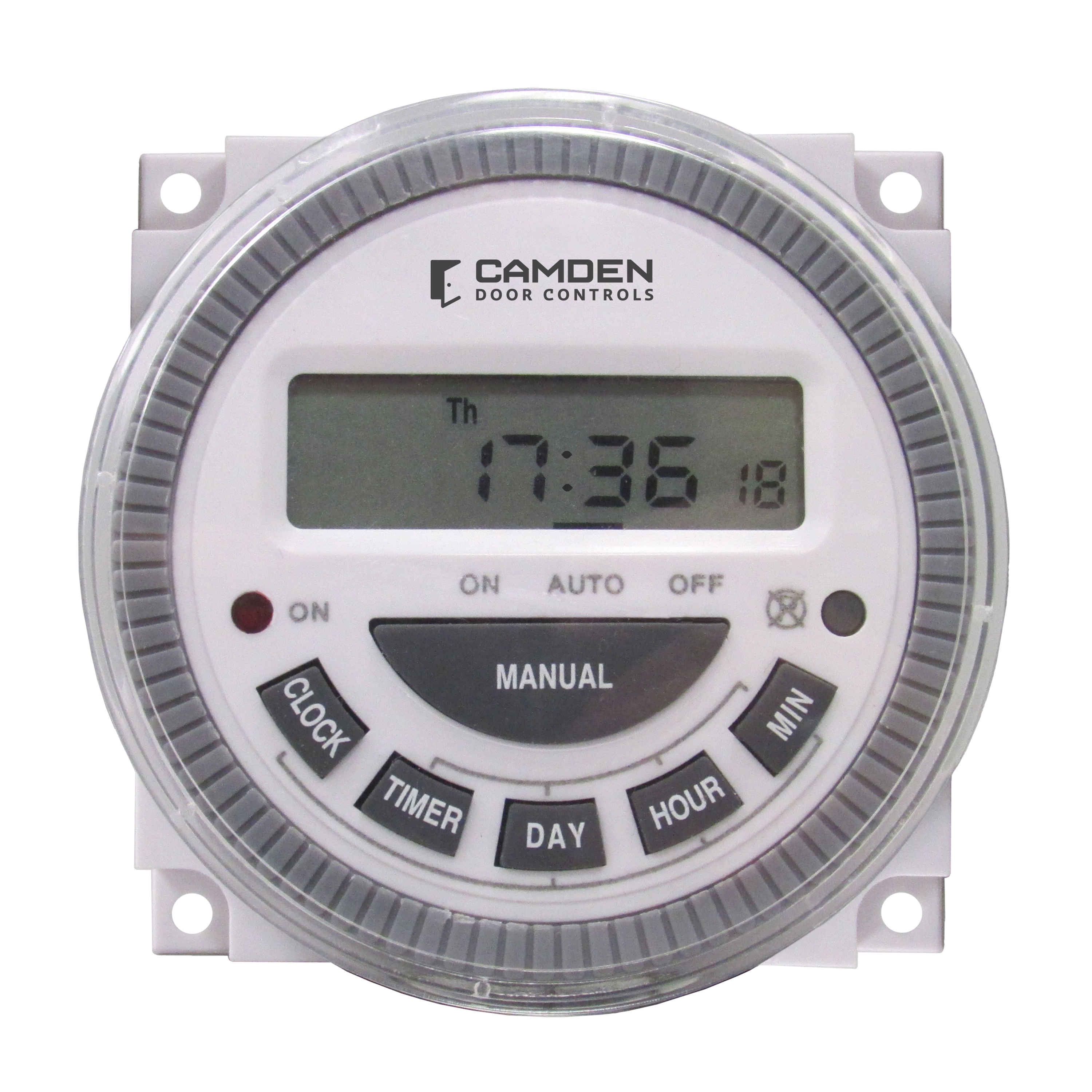

CX-247-24
7 day timer - 24 V
EDI DATA, APPROVALS
|
|
7 day timer - 24 V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.75"L x 2.75"W x 2.75"H
Weight: 0.22lbs.
UPC:670454150233
|
|
CX-247H-12
7 day timer with first-man-in function - 12 V
EDI DATA, APPROVALS
|
|
7 day timer with first-man-in function - 12 V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.54lbs.
UPC:670454155146
|
|
CX-247H-24
7 day timer with first-man-in function - 24 V
EDI DATA, APPROVALS
|
|
7 day timer with first-man-in function - 24 V
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.54lbs.
UPC:670454155108
|
| |
|
new option
|
|
