CM-AF500 Single GangLED Annunciator
|
|
CM-AF500 Series LED illuminated annunciators are designed to provide critical messages to building occupants. When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. Weatherproof and vandal resistant.
|
|
|
| CM-AF500 & 503 Labels |
|
| CM-AF500 Single GangLED Annunciator |
CM-AF500 Single GangLED Annunciator
|
CM-AF500 Series LED illuminated annunciators are designed to provide critical messages to building occupants. When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. Weatherproof and vandal resistant. |
|
|
|
|
|
|
| CM-AF500 & 503 Labels |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Custom messages (text, graphics and colors) available upon request
-
'Super bright' LEDs for high visability, even in daylight
-
Text/graphics are not legible when not illuminated
-
Vandal and weather resistant construction
-
Heavy guage stainless steel face plate
-
Low current draw
-
3 year warranty
Components
-
CM-AF501SO:
Adjustable 85dB sounder
-
CM-AF550R:
Double gang, red mushroom 'PUSH TO LOCK' button and 'LOCKED' LED annunciator
Included Labels
-
CM-AF500, CM-AF503:
(6) message insert labels included, English, French and Bilingual
-
CM-AF501SO:
(1) 'Assistance Required' label, English. French and Bilingual versions available.
-

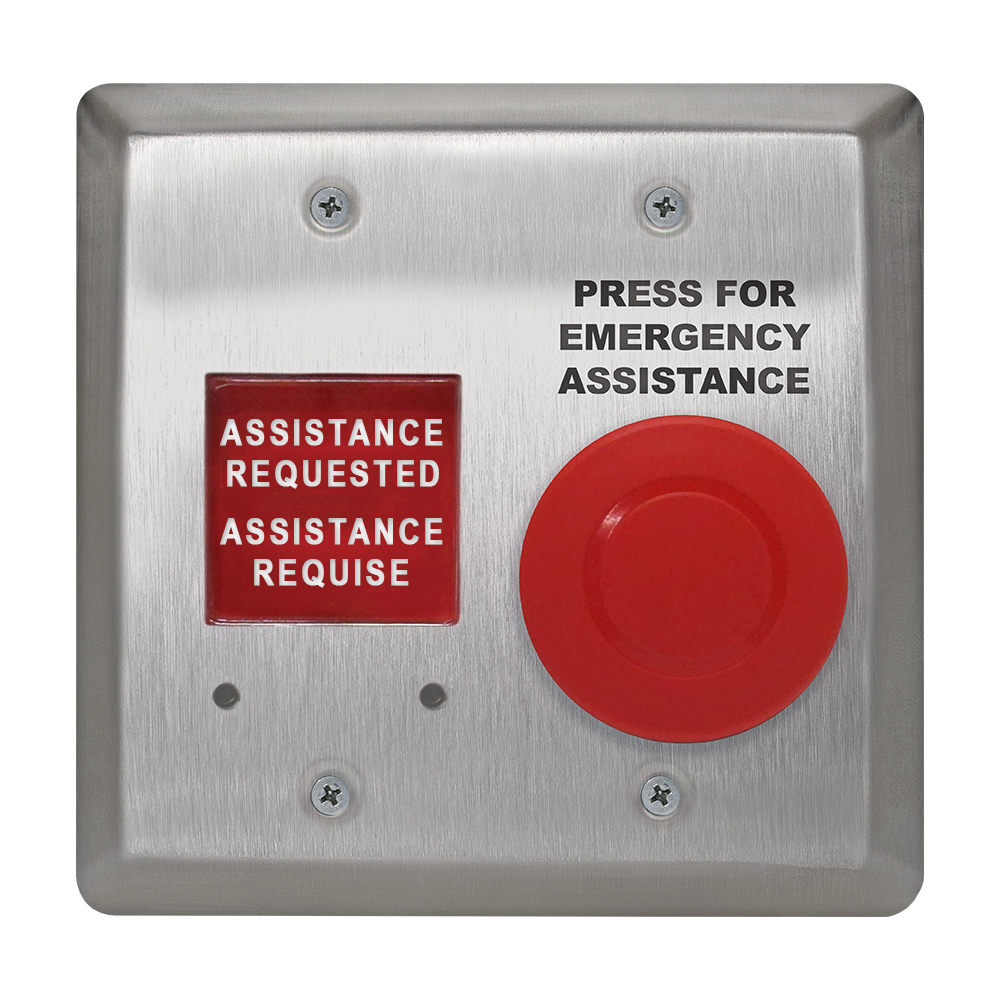

CM-AF540SO:
Double gang, red mushroom 'PRESS FOR EMERGENCY ASSISTANCE' button and 'ASSISTANCED REQUESTED' LED annunciator, with adjustable 85dB sounder
| Mounting: |
Standard single gang electrical box
|
| Voltage: |
12/30V AC/DC
|
| Construction: |
18 gauge stainless steel faceplate
|
| Std. Finish: |
US 32/C32D
|
| Temp Range: |
32°F - 176°F (0°C - 80°C)
|
| Sounder: |
|
CM-AF501SO,
CM-AF540SO:
|
Adjustable, 85 dB @ 10cm max.
|
| |
| Push Button: |
|
CM-AF540SO:
|
Maintained (Push/Pull), N/O & N/C, 6A @ 30 VDC
|
|
CM-AF550R:
|
Momentary (Spring Action) N/O, 6A @ 30 VDC
|
| |
| Current Draw: |
|
CM-AF500,
CM-AF550R:
|
30 – 50 mA
|
|
CM-AF501SO,
CM-AF540SO:
|
30 - 75 mA
|
| |
| Dimensions: |
|
CM-AF500,
CM-AF501SO:
|
2-3/4"W x 4-1/2"H x 9/16"D (70mm x 114mm x 15mm)
|
|
CM-AF503:
|
3"H x 5-9/10"W x 1/20"D (76mm x 127mm x 1mm)
|
|
CM-AF540SO,
CM-AF550R:
|
4-1/2"H x 4-1/2"W x 9/16"D (114mm x 114mm x 15mm)
|
| |
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

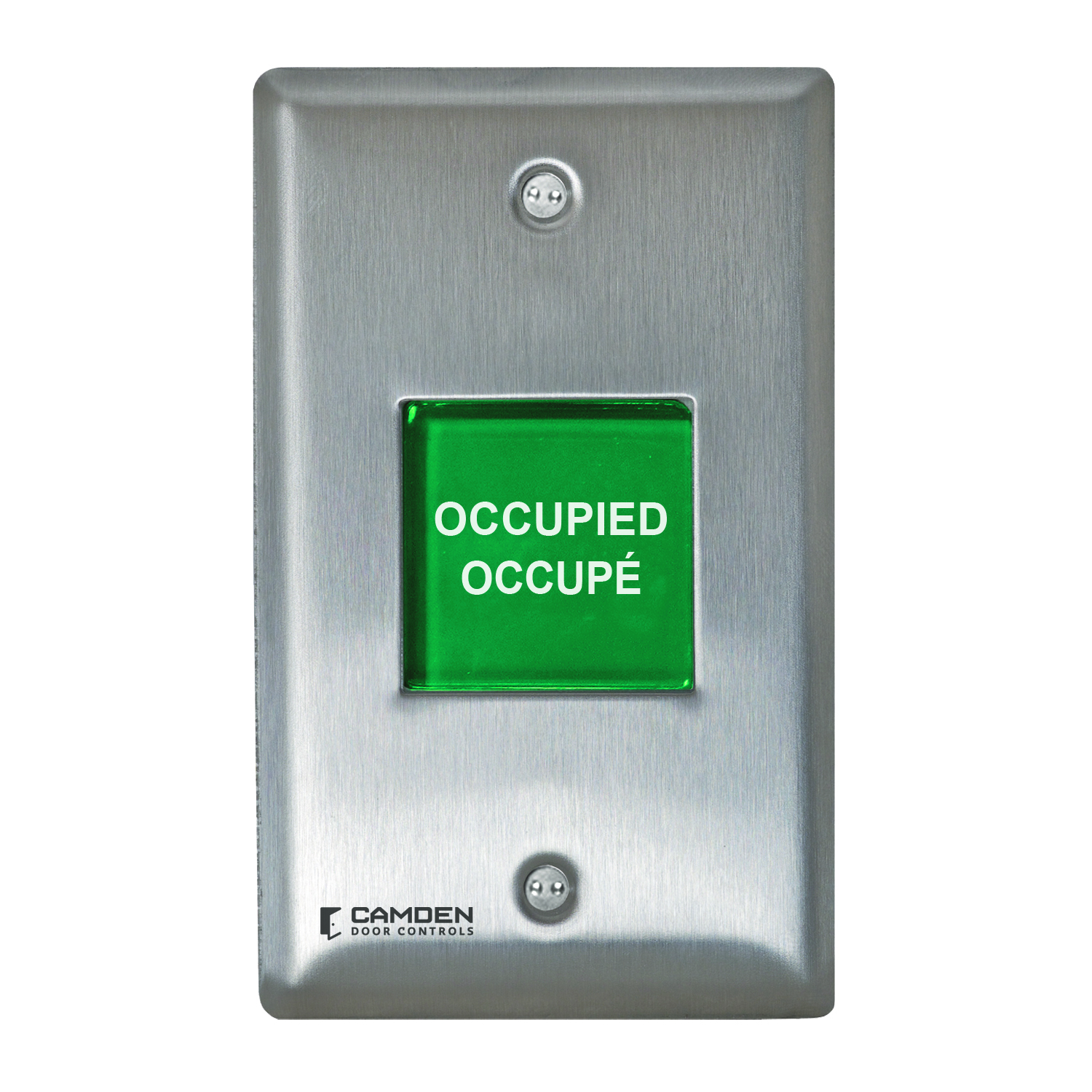

CM-AF500
Single Gang LED Illuminated Annunciator Labels include: 'Occupied/Occupe' (Red/Green), 'Occupied' (Red), 'Armed' (Red), 'Locked' (Red), 'Unlocked' (Green)
EDI DATA, APPROVALS
|
|
Single Gang LED Illuminated Annunciator Labels include: 'Occupied/Occupe' (Red/Green), 'Occupied' (Red), 'Armed' (Red), 'Locked' (Red), 'Unlocked' (Green)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 2.75"W x 2.5"H
Weight: 0.35lbs.
UPC:670454168726
|
|

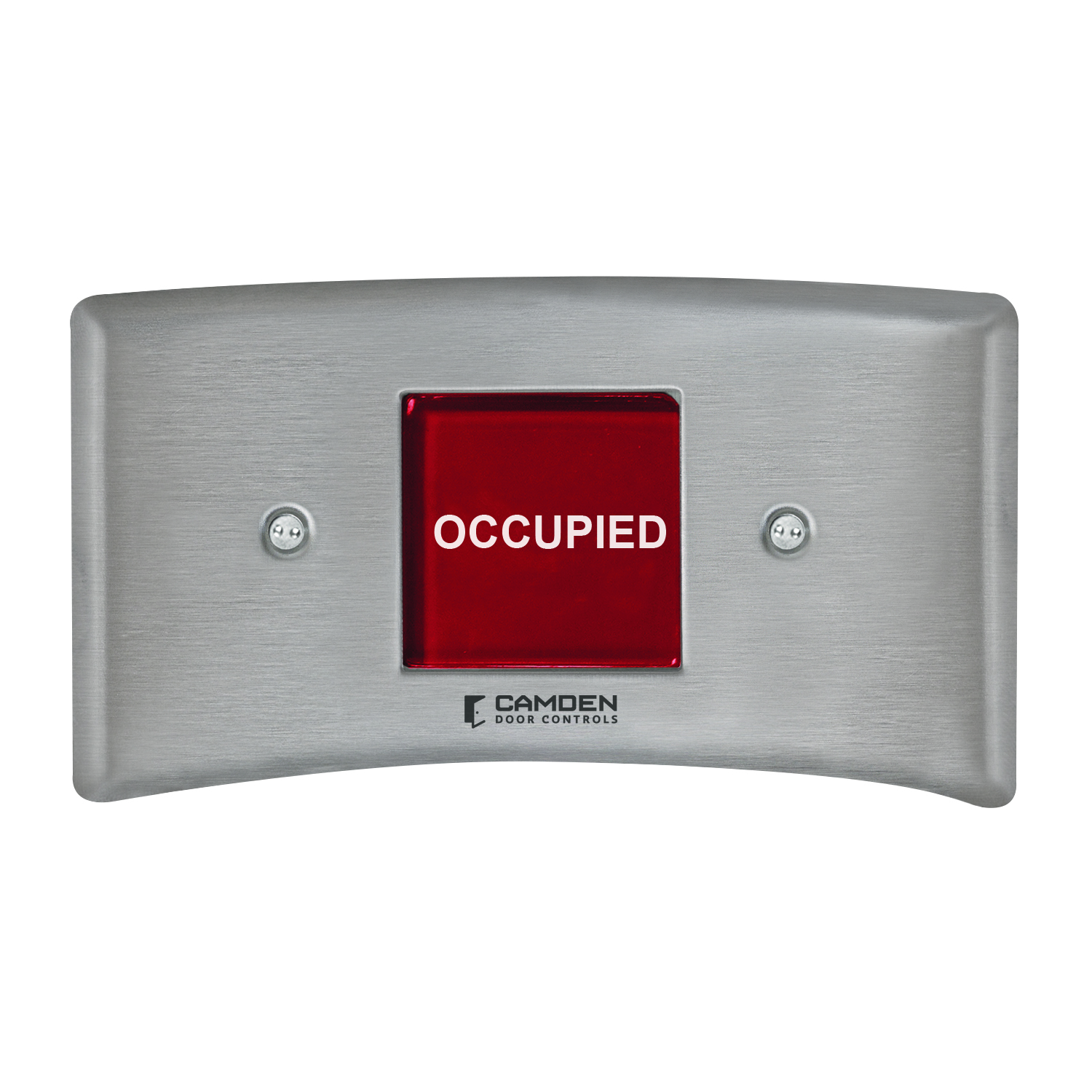

CM-AF503
Curved, Horizontal LED Illuminated Annunciator Labels include: 'Occupied/Occupe' (Red/Green), 'Occupied' (Red), 'Armed' (Red), 'Locked' (Red), 'Unlocked' (Green)
EDI DATA, APPROVALS
|
|
Curved, Horizontal LED Illuminated Annunciator Labels include: 'Occupied/Occupe' (Red/Green), 'Occupied' (Red), 'Armed' (Red), 'Locked' (Red), 'Unlocked' (Green)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.9"L x 5.9"W x 3"H
Weight: 0.35lbs.
UPC:670454207852
|
|

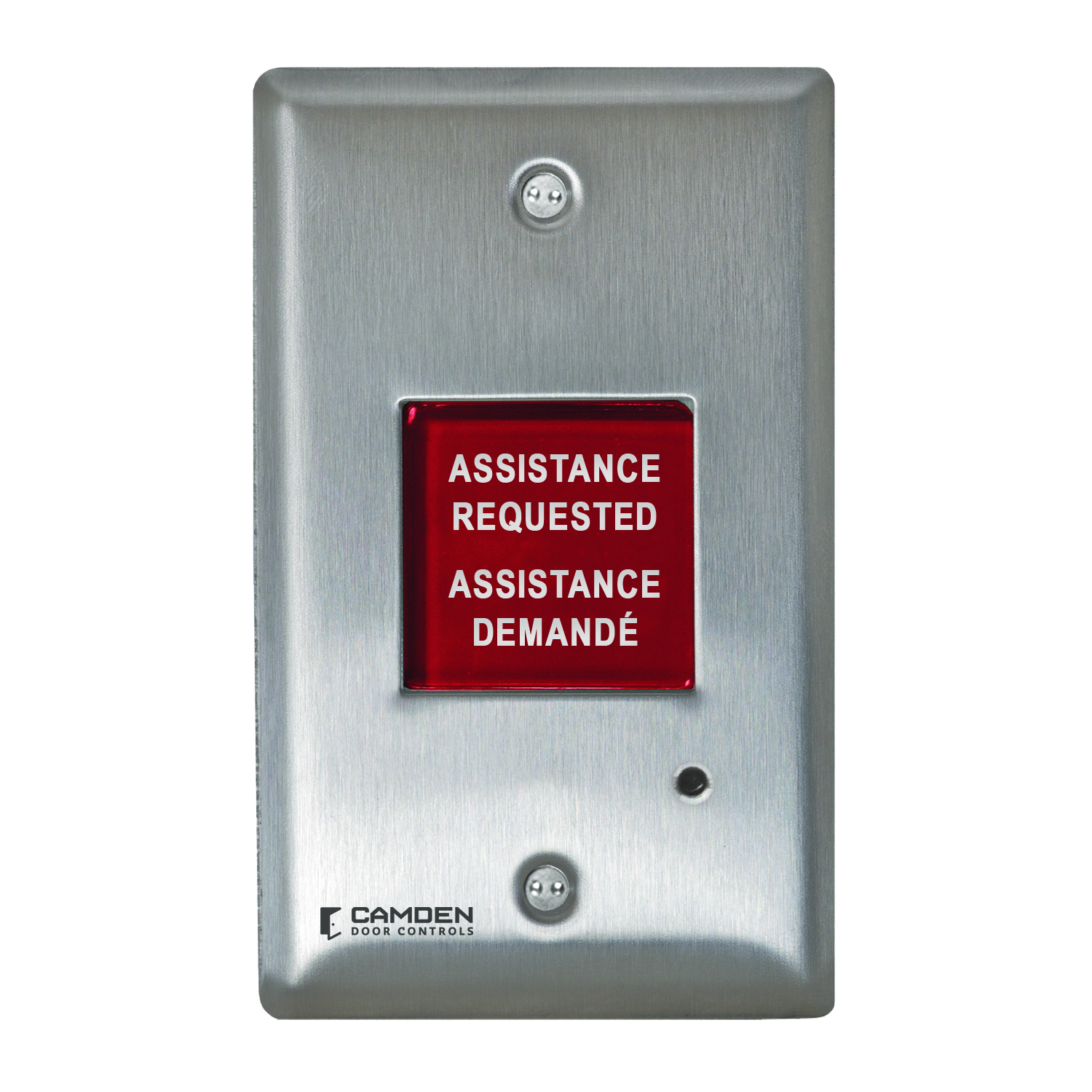

CM-AF501SO
Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'. Add suffix 'F' for French, suffix 'FE' for bilingual
EDI DATA, APPROVALS
|
|
Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'. Add suffix 'F' for French, suffix 'FE' for bilingual
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: 0.35lbs.
UPC:670454165206
|
|

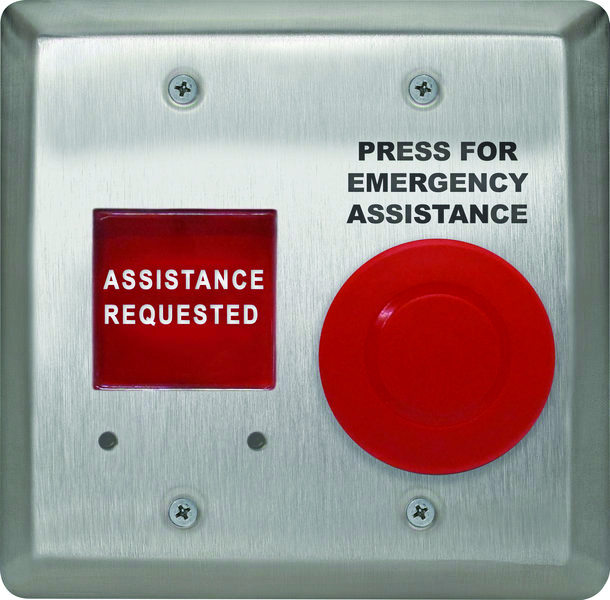

CM-AF540SO
Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested' Add suffix 'F' to model number for French language
EDI DATA, APPROVALS
|
|
Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested' Add suffix 'F' to model number for French language
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: lbs.
UPC:670454185396
|
|

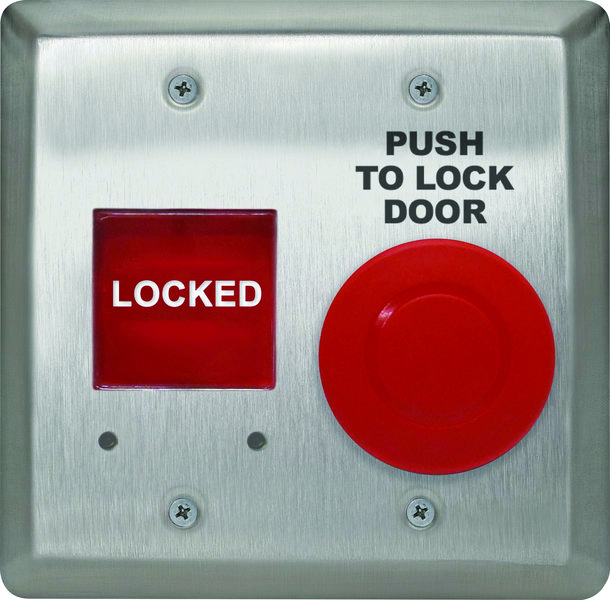

CM-AF550R
Double gang, mushroom push button, red, 'Push to Lock', w/ LED annunciator, 'Locked' Add suffix 'F' to model number for French language
EDI DATA, APPROVALS
|
|
Double gang, mushroom push button, red, 'Push to Lock', w/ LED annunciator, 'Locked' Add suffix 'F' to model number for French language
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: lbs.
UPC:670454187949
|
| |
|
new option
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
|
|
| |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
|
|
