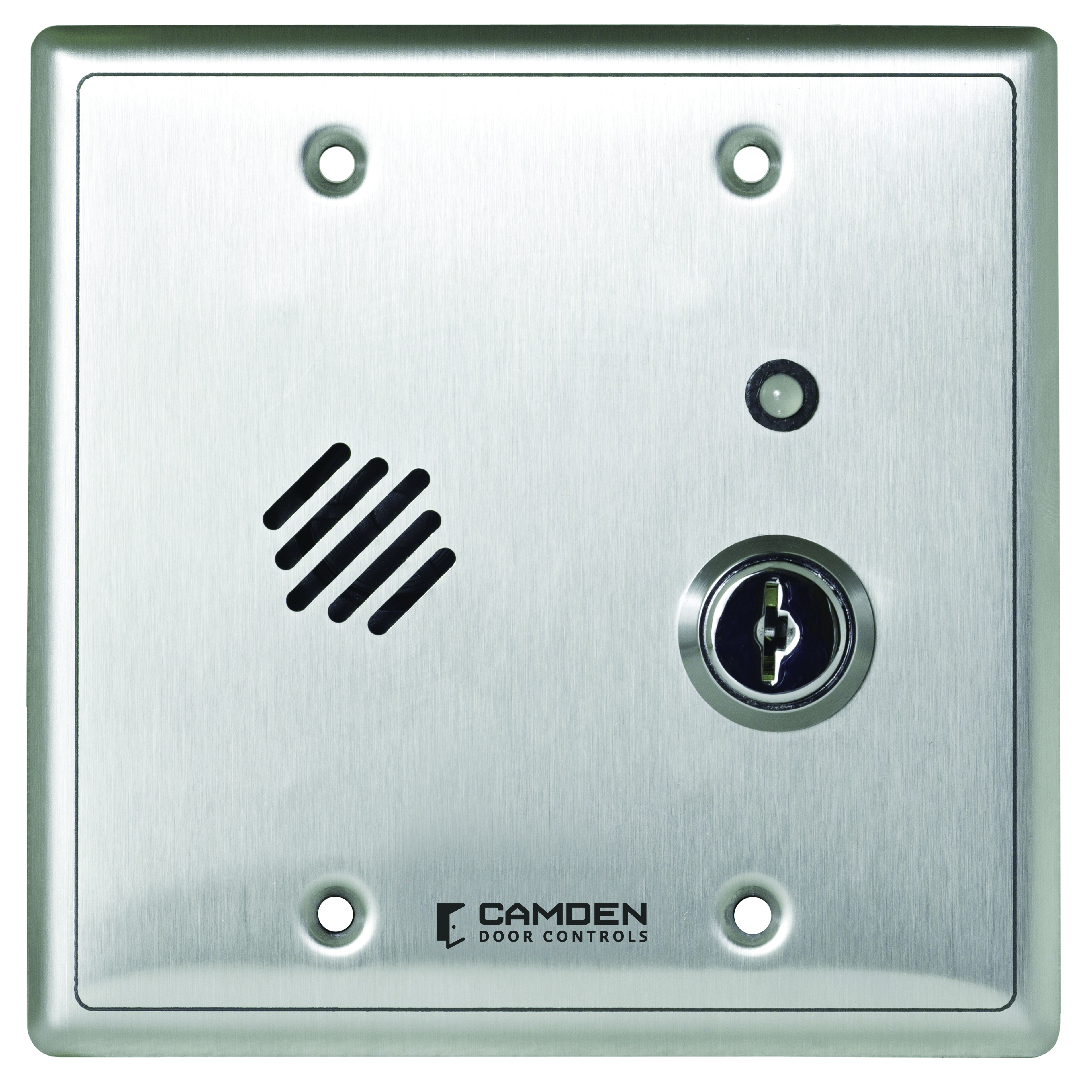

CX-DA-400 double gang door monitor alarm features a rugged stainless steel faceplate, 4 inputs, 5 outputs and has a range of adjustable time delay functions. It is designed to complement any access control system by providing prop/door held open and intrusion/door forced open detection, as well as local alarm and reset.
|
|
|
|
CX-DA-400 double gang door monitor alarm features a rugged stainless steel faceplate, 4 inputs, 5 outputs and has a range of adjustable time delay functions. It is designed to complement any access control system by providing prop/door held open and intrusion/door forced open detection, as well as local alarm and reset.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Stand alone operation or interface with access control system
-
Heavy duty stainless steel faceplate
-
12-24 VDC and AC/DC
-
Adjustable alarm timing and alarm delay
-
Selectable 'high' or 'low' level sounder
-
Reset/bypass key switch and remote input
-
Visual status indicator
-
Functions include shunt recycle, shunt delay, door supervision and intrusion detection
-
CX-DA401:
Includes tamper alarm
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
250 mA
|
| Input: |
N/O or N/C Alarm Shunt
N/C Door Contact
N/O Remote Reset/Bypass
Voltage Sense Shunt
|
| Output: |
N/O and N/C Door Contact Status
N/O and N/C Door Prop Alarm Status
N/O and N/C Intrusion/Tamper Alarm Status
N/O and N/C Bypass/Key switch Status
Remote LED
|
| Contact Rating: |
Form 'C', 1 Amp
|
| Time Delay: |
Auto Reset 0 sec. -5 min. /Manual
Alarm Delay 0 sec. – 5 min./Infinite
Silent Time 0 sec. – 90 min.
|
| Sounder: |
High - 103 dB @ 3 Ft.
Low - 96 dB @ 3 Ft.
|
| Dimensions: |
4-5/8"W x 4-5/8"H x 2-1/2"D (117mm x 117mm x 38mm)
|
|
Application Guides
|
| 2.1.1.1.A3 Retail Store, Back Door: w/ Local Door Alarm & Auto Door Operator |
pdf |
1.39 |
DOWNLOAD
OPEN
|
| 2.1.1.1.A3_Retail Store Back Door_Door Alarm_Spanish |
pdf |
1.41 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CX-DA400_Manual_FR |
pdf |
0.22 |
DOWNLOAD
OPEN
|
| CX-DA400_Manual |
pdf |
0.21 |
DOWNLOAD
OPEN
|
| CX-DA-400 Manual_R1 |
pdf |
2.70 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| CX-DA400_Spec Sheet |
pdf |
0.39 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CX-DA400 |
jpeg |
8.60 |
DOWNLOAD
OPEN
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-DA400
Door alarm, with relays, timers, reset key, double gang, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Door alarm, with relays, timers, reset key, double gang, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.36"L x 5.65"W x 5.75"H
Weight: 1lbs.
UPC:670454172983
|
|
|
CX-DA401
Door alarm, with relays, timers, reset key and tamper, double gang,12/24V AC/DC
EDI DATA, APPROVALS
|
|
Door alarm, with relays, timers, reset key and tamper, double gang,12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.36"L x 5.65"W x 5.75"H
Weight: 1lbs.
UPC:670454175601
|
| |
|
