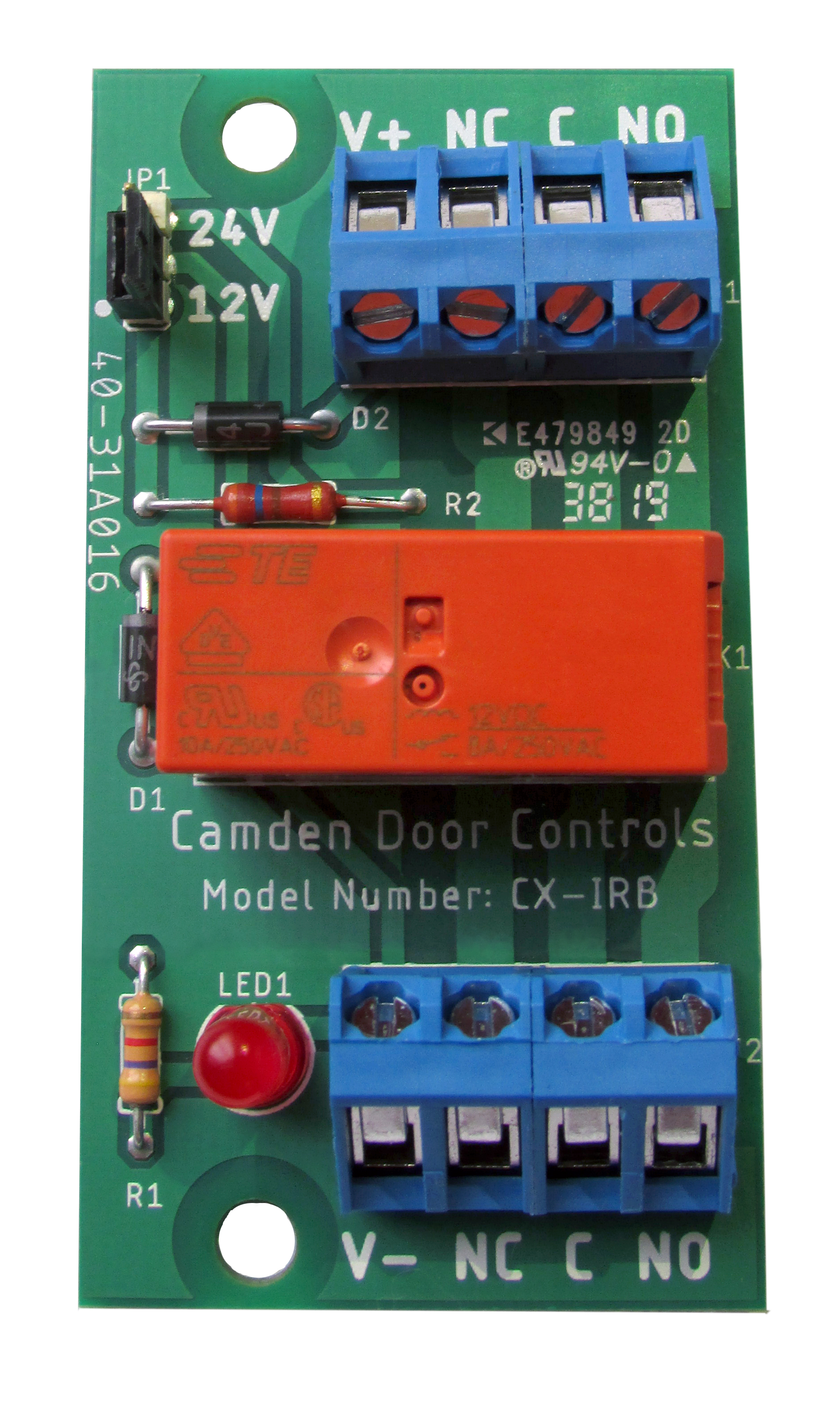

Camden's CX-IRB Isolation Relay Module provides a compact and economical solution for isolation of devices from electrical noise and induced voltages.
CX-IRB Isolation Relay Module is ideal for use in any low voltage system, including access control, telephone entry, and automatic doors.
This ultra-compact relay can be easily mounted anywhere (Velcro tape provided) and is backed by a full 3 year 'Camden Tough' warranty.
|
|
|
Camden's CX-IRB Isolation Relay Module provides a compact and economical solution for isolation of devices from electrical noise and induced voltages.
CX-IRB Isolation Relay Module is ideal for use in any low voltage system, including access control, telephone entry, and automatic doors.
|
|
This ultra-compact relay can be easily mounted anywhere (Velcro tape provided) and is backed by a full 3 year 'Camden Tough' warranty.
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Ultra Compact Design fits anywhere, including Automatic Door Operator or Power Supply Cabinets
-
Selectable 12/24V DC
-
Low Power Consumption
-
DPDT Relay Contacts, rated 8 Amps
-
LED Provides Relay Activation Status
-
Self-adhesive Velcro™ tape is provided for easy mounting
-
3 Year Warranty
| Voltage: |
12/24V DC
|
| Current Draw: |
40mA @ 12V/24 VDC
|
| Contact Rating: |
8 amps @ 30 VDC/120 VAC
|
| Contact Type: |
DPDT
|
| Status: |
Red LED (Activated when on)
|
| Temperature: |
-40°F to 158°F (-40°C to 70°C)
|
| Dimensions: |
3/4" H x 1 1/2" W x 2 3/4" L (20mm x 38mm x 70mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-IRB
Isolation Relay Module
EDI DATA, APPROVALS
|
|
Isolation Relay Module
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 4"W x 1"H
Weight: 0.08lbs.
UPC:670454201386
|
|
CX-IRB-6
Isolation Relay Module, Package of 6
EDI DATA, APPROVALS
|
|
Isolation Relay Module, Package of 6
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 4"W x 1"H
Weight: .5lbs.
UPC:670454201553
|
| |
|
