CX-PS150UL
-
Latching fire alarm tie-in with reset
-
12 or 24 VDC selectable 1.7 Amp output
-
12 or 24 VDC 200mA auxiliary output
-
AC and DC power and status indicators
-
Short circuit and terminal protection
-
Battery charger (500mA)
-
120 VAC power input
-
Metal enclosure accommodates (1) 4 Ah. battery (not included)
CX-PS300UL; CX-PS600UL
-
Latching fire alarm tie-in with reset
-
12 or 24 VDC selectable outputs
-
AC power and status indicators
-
Short circuit and terminal protection
-
Battery charger (1.5 Amp)
-
120/240 VAC power input
-
Low battery, battery disconnect, and battery charger trouble monitoring
-
Metal enclosure accommodates (2) 12Ah. batteries (not included)
-
CX-PS300UL:
(4) outputs, 3 Amp max
-
CX-PS600UL:
(8) outputs, 6 Amp max
| Output Power: |
|
CX-PS150UL:
|
(2) 1.7 Amps, 500mA Battery Charger
|
|
CX-PS300UL:
|
(4) 3 Amps, 1.5 Amp Battery Charger
|
|
CX-PS600UL:
|
(8) 6 Amps, 1.5 Amp Battery Charger
|
| |
| Output Protection: |
Short Circuit Protection
|
| Battery Charger Monitor: |
|
CX-PS300UL,
CX-PS600UL:
|
Battery Load Test Every 48 Hours
|
| |
| Voltage: |
|
CX-PS150UL:
|
120 VAC
|
|
CX-PS300UL,
CX-PS600UL:
|
120/240 VAC
|
| |
| Output Voltage: |
12/24 VDC
|
| Enclosure Accomodates: |
|
CX-PS150UL:
|
(1) 12 VDC / 4 Ah Battery
|
|
CX-PS300UL,
CX-PS600UL:
|
(2) 12 VDC / 12 Ah Batteries
|
| |
| Dimensions: |
|
CX-PS150UL:
|
9-1/8"H x 8"W x 3-1/2"D (231 x 204 x 89mm)
|
|
CX-PS300UL,
CX-PS600UL:
|
17-1/2"H x 13"W x 4-5/16"D (445 x 330 x 110mm)
|
| |
|
|
|
Power Supplies
 click to expand section
|
|
Net Cost
|
|

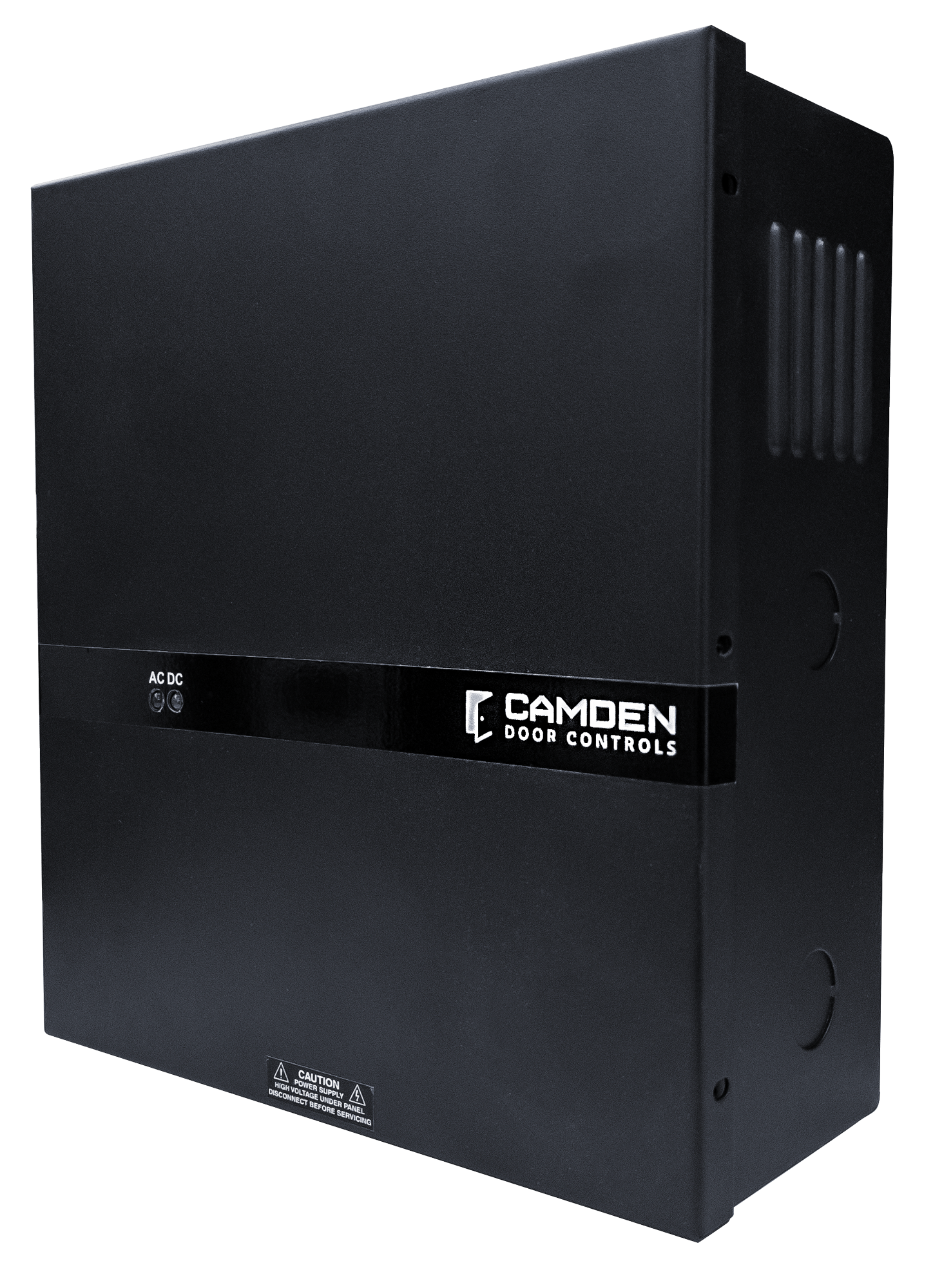

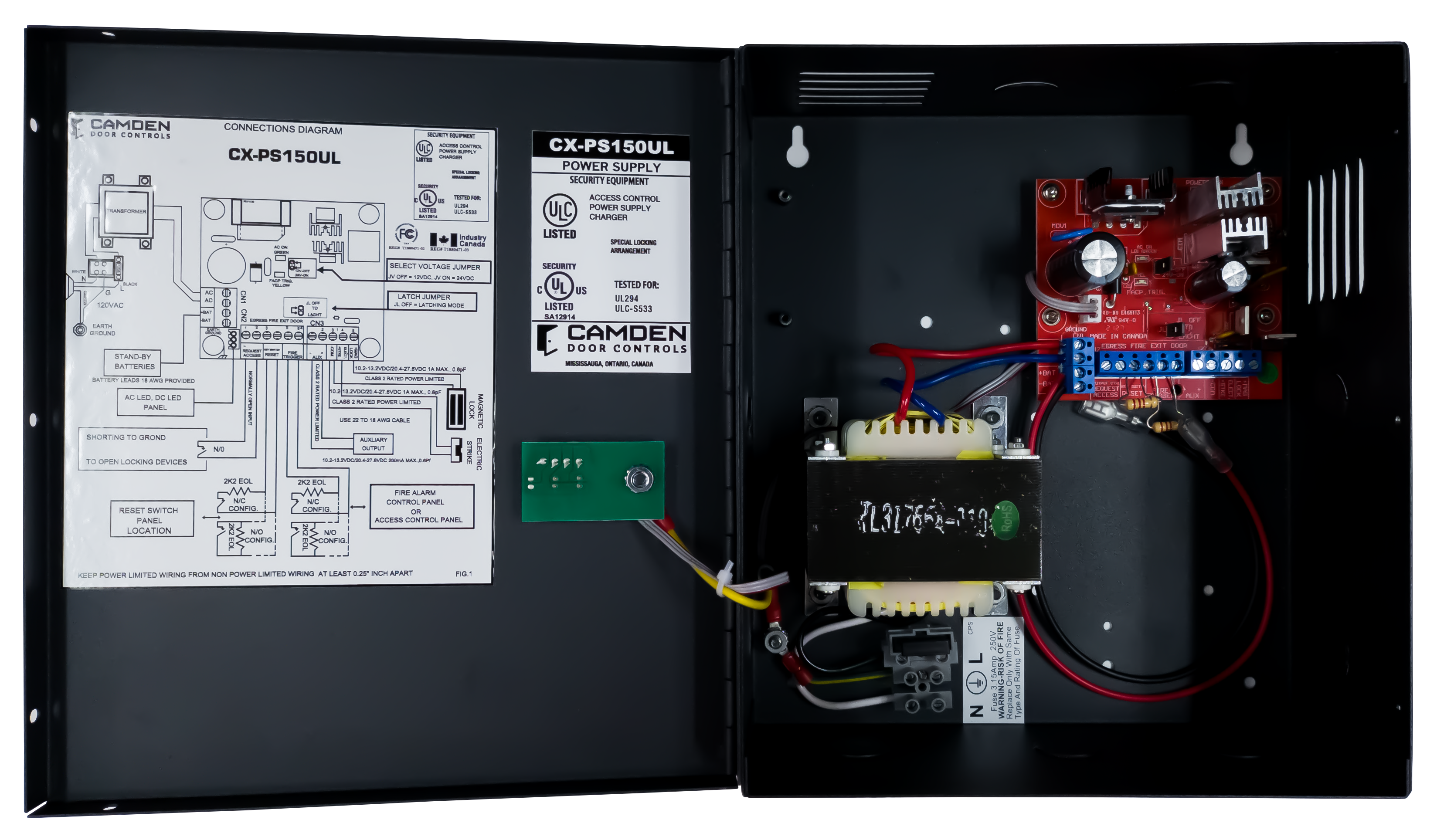

CX-PS150UL
1.7 Amp Power Supply with (2) Fused Outputs (2 Amp) 12/24VDC two outputs +300mA auxiliary output
EDI DATA, APPROVALS
|
|
1.7 Amp Power Supply with (2) Fused Outputs (2 Amp) 12/24VDC two outputs +300mA auxiliary output
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 8.75"W x 4"H
Weight: 7.75lbs.
UPC:670454215659
|
|

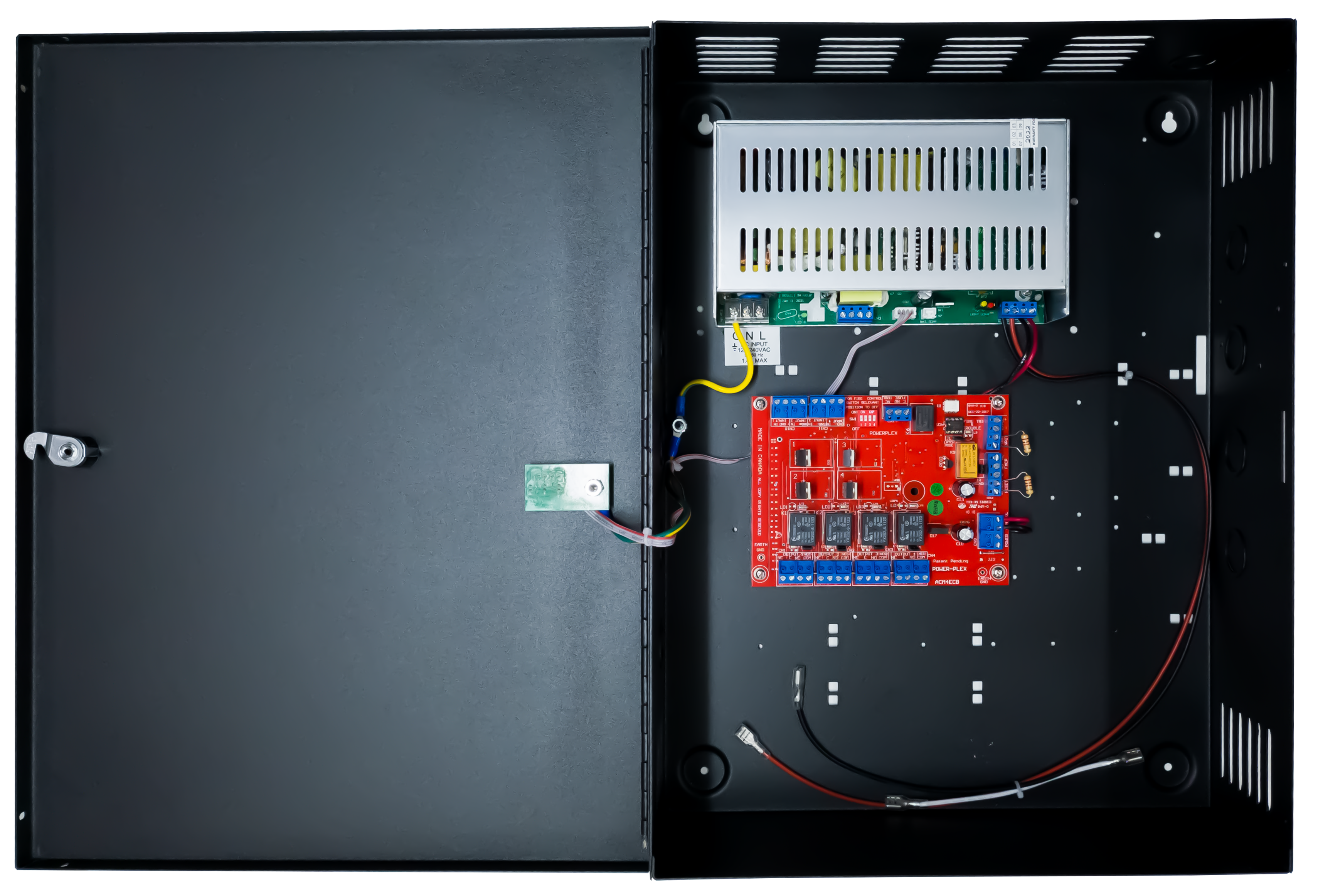

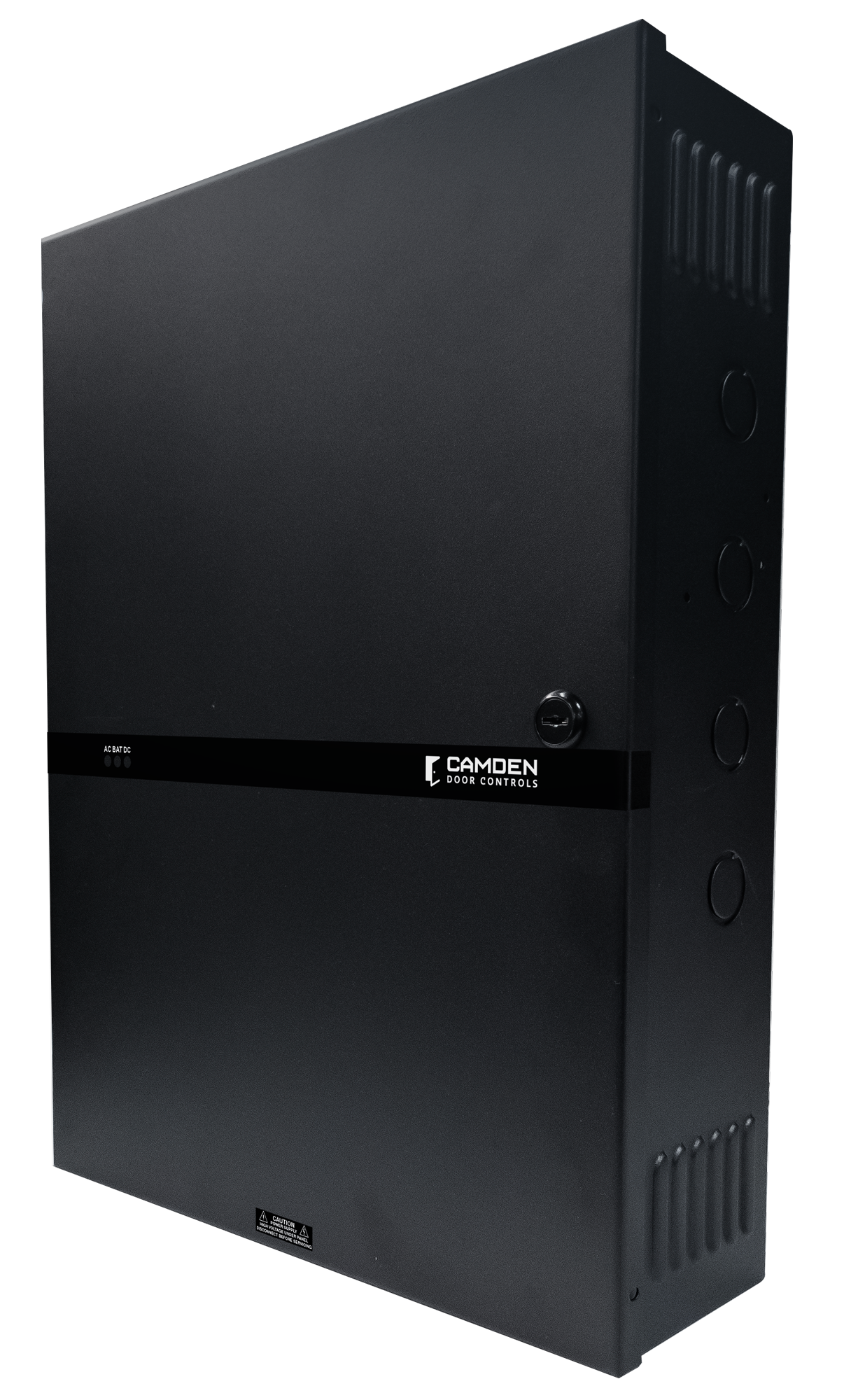

CX-PS300UL
3 Amp Power Supply with (4) Fused Outputs (2 Amp) 12/24 3 Amp max with 4 ECB output fused at 2A max
EDI DATA, APPROVALS
|
|
3 Amp Power Supply with (4) Fused Outputs (2 Amp) 12/24 3 Amp max with 4 ECB output fused at 2A max
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 19"L x 13.5"W x 4.75"H
Weight: 13.25lbs.
UPC:670454215666
|
|

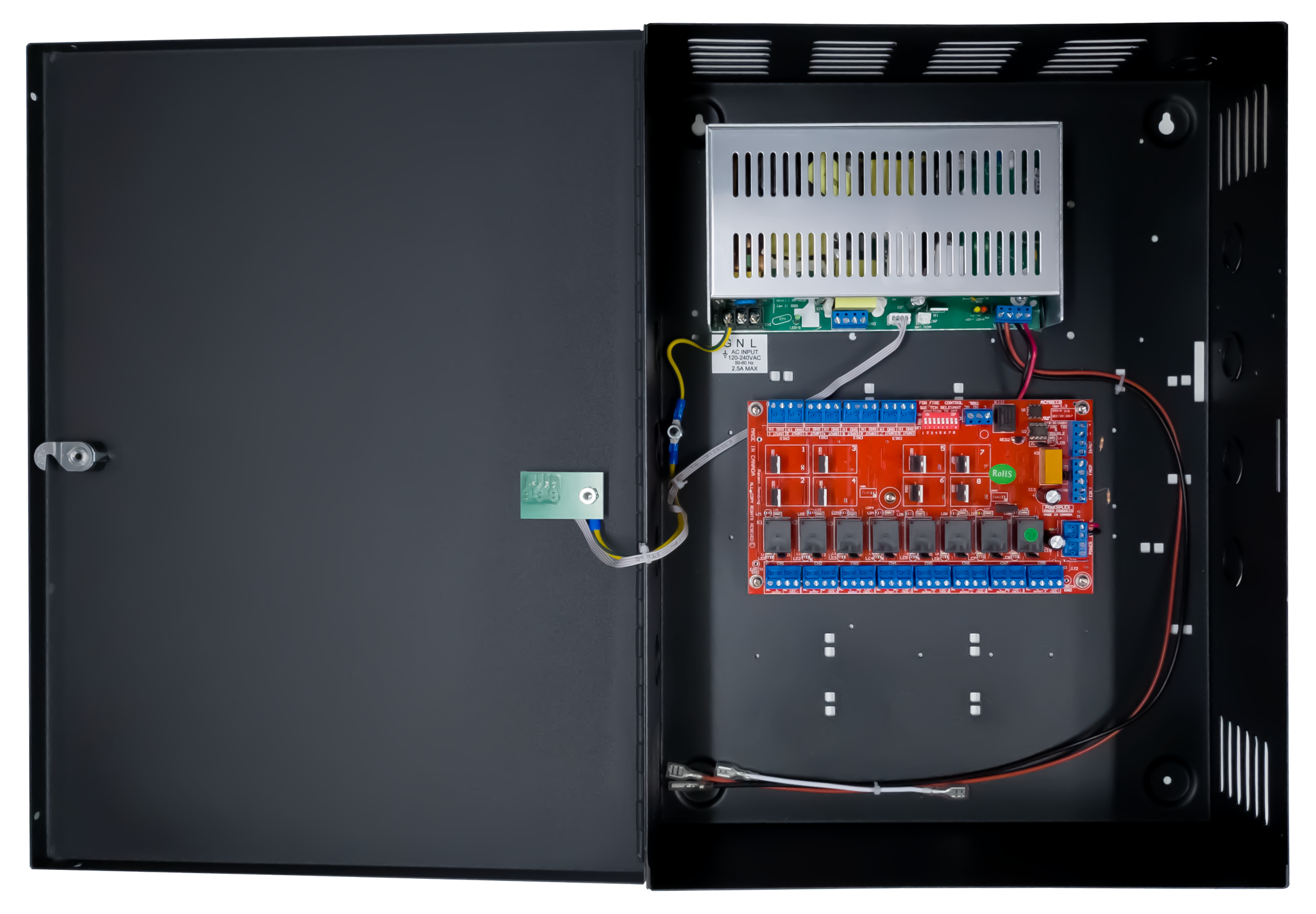

CX-PS600UL
6 Amp Power Supply with (8) Fused Outputs (2 Amp) 12/24 6 amp max with 8 ECB output fused at 2A max
EDI DATA, APPROVALS
|
|
6 Amp Power Supply with (8) Fused Outputs (2 Amp) 12/24 6 amp max with 8 ECB output fused at 2A max
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 19"L x 13.5"W x 4.75"H
Weight: 13.25lbs.
UPC:670454215673
|
| |
|
