CI-1KF Exterior Use - Key Switches Industrial
|
|
The CI-1KF series of key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets. They have 2 SPST momentary switches rated 3 A @ 240 VAC and a mortise cylinder with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters. BY SPECIAL ORDER ONLY. PLEASE CONTACT CUSTOMER SERVICE FOR FURTHER ASSISTANCE.
|
| CI-1KF Exterior Use - Key Switches Industrial |
CI-1KF Exterior Use - Key Switches Industrial
|
The CI-1KF series of key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets. They have 2 SPST momentary switches rated 3 A @ 240 VAC and a mortise cylinder with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters. BY SPECIAL ORDER ONLY. PLEASE CONTACT CUSTOMER SERVICE FOR FURTHER ASSISTANCE. |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Heavy duty die cast aluminum enclosure
-
NEMA 1 and NEMA 2 for interior use
-
Form 'A' and Form 'C' outputs available
-
High power outputs
18 A @ 125 VDC, 15 A @ 250 VDC
-
Tamper resistant
-
UL, CSA certified
| Contact Type: |
|
CI-1KS:
|
2 x N/O SPST
|
|
CI-1KFS:
|
2 x N/O SPST, 1 x N/C Momentary
|
| |
| Contact Rating: |
18 A @ 125 VDC, 15 A @ 250 VDC
|
| Enclosure: |
NEMA 1 and NEMA 2
|
| Dimensions: |
4-7/16" x 5" x 2-25/32"
(113mm x 127mm x 71mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

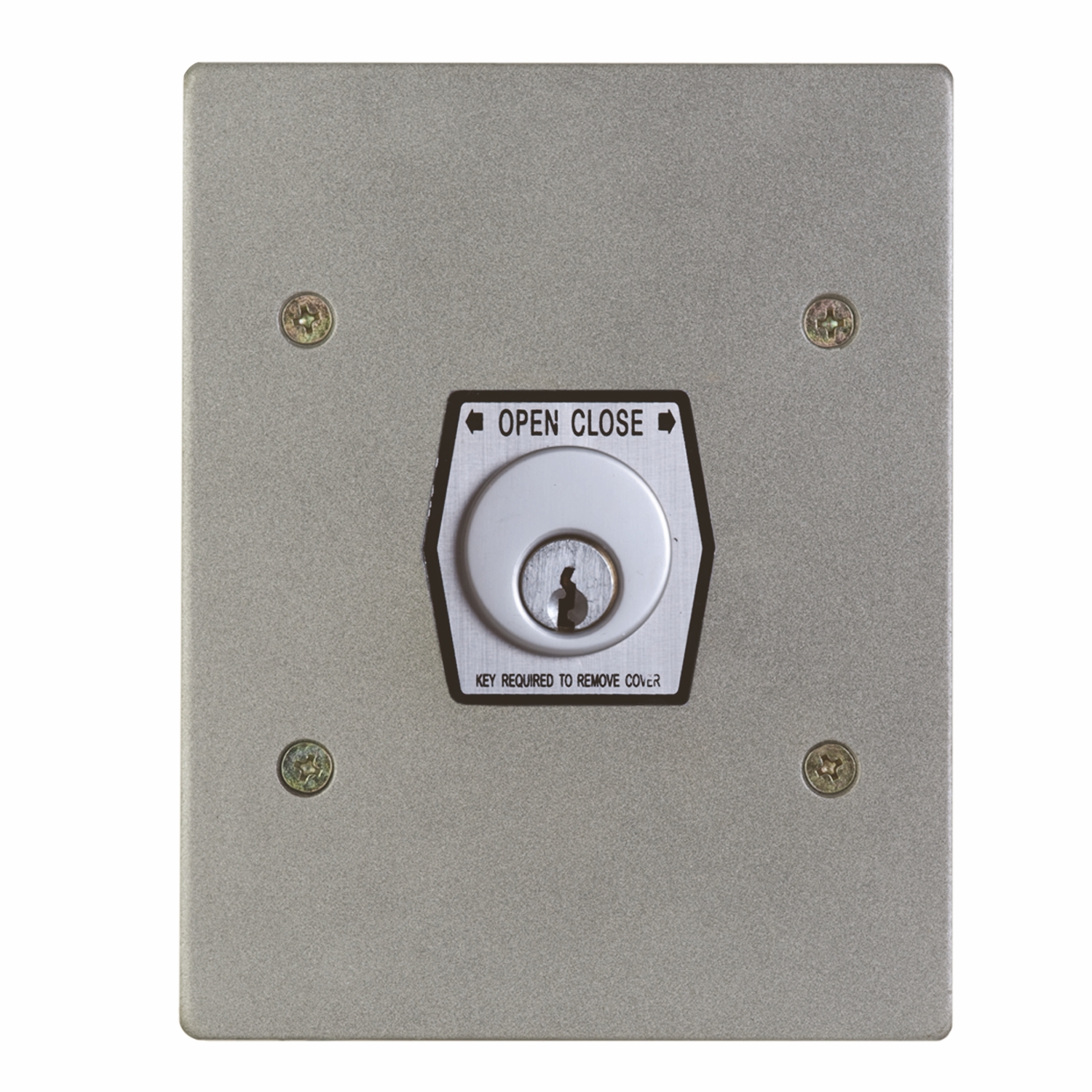

CI-1KF
Flush mount, NEMA 1 & 2
EDI DATA, APPROVALS
|
|
Flush mount, NEMA 1 & 2
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.5"L x 6.5"W x 4.25"H
Weight: 1.91lbs.
UPC:670454110015
|
|

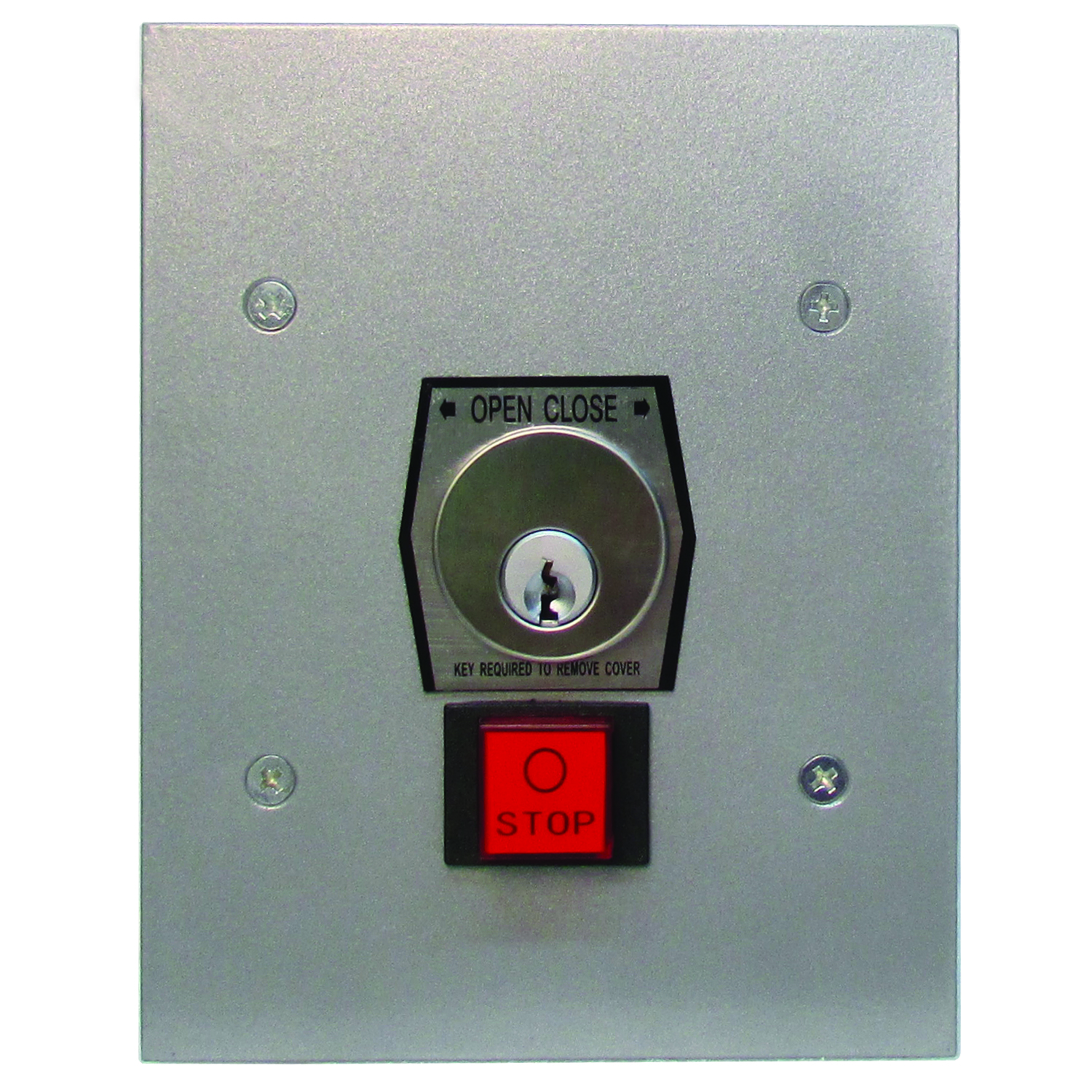

CI-1KFS
As above, with heavy duty stop button, NEMA 1 & 2
EDI DATA, APPROVALS
|
|
As above, with heavy duty stop button, NEMA 1 & 2
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.5"L x 6.5"W x 4.25"H
Weight: 1.91lbs.
UPC:670454110022
|
| |
|
