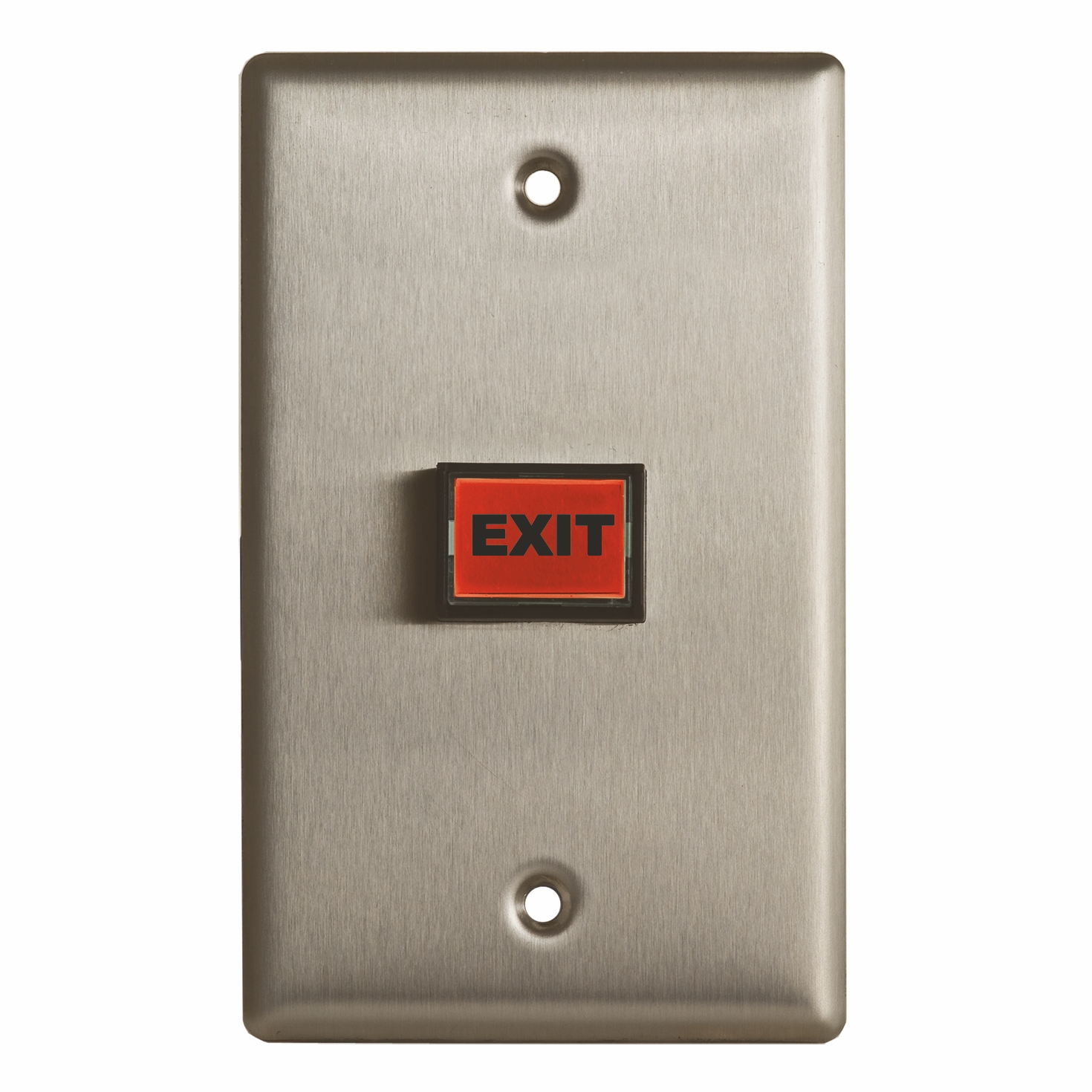

CM-300RE, Rectangular LED Illuminated Push/Exit Switch
|
|

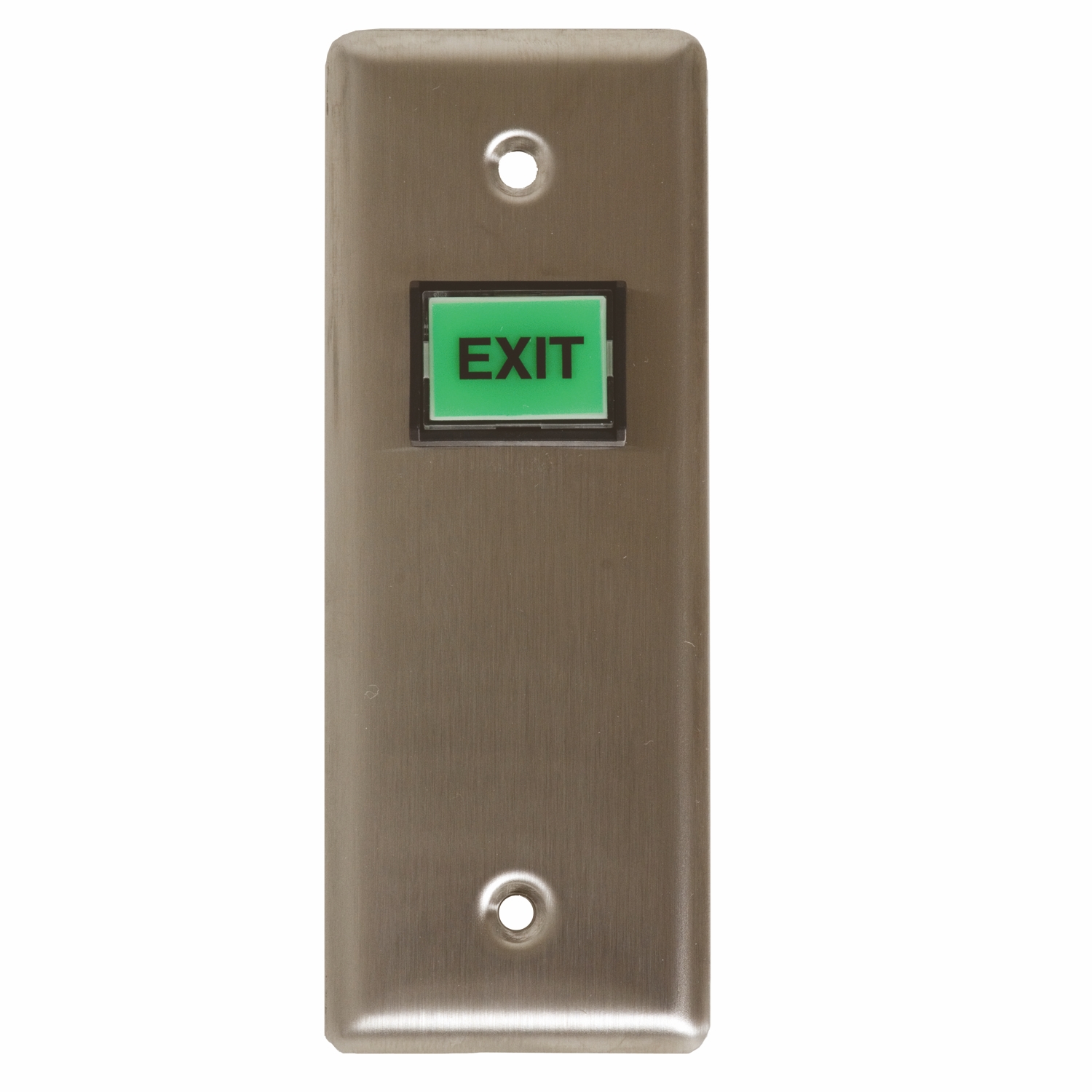

CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" x 7/8" and are available in red or green. They are supplied with a stainless steel faceplate in single gang or jamb (narrow) widths.
The CM-310EE model is supplied with a narrow style faceplate and an integrated 30 second timer with double break circuitry. As required by code, the double break circuit design ensures power to the mag lock will be interrupted by pressing the button should the timer or request to exit sensor malfunction.
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-6
|
CM-300GE-7224
|
|
|
TS-7
|
CM-300, CM-xxxE, CM-xxxG
|
|
|
TS-8
|
CM-310GE-7224
|
|
Dormakaba (RCI)
|
970-GMO05X28
|
CM-300, CM-xxxG
|
|
|
970-GMO08X28
|
CM-300, CM-xxxG
|
|
|
970-RMO05X28
|
CM-300, CM-xxxR
|
|
|
970-RMO08X28
|
CM-300, CM-xxxR
|
|
|
970N-GMO05X28
|
CM-310, CM-xxxG
|
|
|
970N-GMO08X28
|
CM-310, CM-xxxG
|
|
|
970N-RMO05X28
|
CM-310, CM-xxxR
|
|
|
970N-RMO08X28
|
CM-310, CM-xxxR
|
|
Securitron
|
EEB2N
|
CM-310, CM-xxxE, CM-xxxG
|
|
|
PB3
|
CM-300GE-7024
|
|
|
PB3E
|
CM-310, CM-xxxE, CM-xxxG
|
|
|
PB3N
|
CM-310GE-7024
|
|
|
| CM-300RE, Rectangular LED Illuminated Push/Exit Switch |
CM-300RE, Rectangular LED Illuminated Push/Exit Switch
|
CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" x 7/8" and are available in red or green. They are supplied with a stainless steel faceplate in single gang or jamb (narrow) widths.
The CM-310EE model is supplied with a narrow style faceplate and an integrated 30 second timer with double break circuitry. As required by code, the double break circuit design ensures power to the mag lock will be interrupted by pressing the button should the timer or request to exit sensor malfunction.
|
|
|
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-6
|
CM-300GE-7224
|
|
|
TS-7
|
CM-300, CM-xxxE, CM-xxxG
|
|
|
TS-8
|
CM-310GE-7224
|
|
Dormakaba (RCI)
|
970-GMO05X28
|
CM-300, CM-xxxG
|
|
|
970-GMO08X28
|
CM-300, CM-xxxG
|
|
|
970-RMO05X28
|
CM-300, CM-xxxR
|
|
|
970-RMO08X28
|
CM-300, CM-xxxR
|
|
|
970N-GMO05X28
|
CM-310, CM-xxxG
|
|
|
970N-GMO08X28
|
CM-310, CM-xxxG
|
|
|
970N-RMO05X28
|
CM-310, CM-xxxR
|
|
|
970N-RMO08X28
|
CM-310, CM-xxxR
|
|
Securitron
|
EEB2N
|
CM-310, CM-xxxE, CM-xxxG
|
|
|
PB3
|
CM-300GE-7024
|
|
|
PB3E
|
CM-310, CM-xxxE, CM-xxxG
|
|
|
PB3N
|
CM-310GE-7024
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Heavy-duty stainless steel face plate
-
1/2" x 3/4" illuminated button
-
12/ 24V LED bulb
-
3 year warranty
| Voltage: |
12/24 VDC
|
| Contact Type: |
SPDT Form 'C'
|
| Contact Rating: |
3 A @ 30 VDC
|
| Switch Type: |
Momentary
|
| Std. Finish: |
US/C 32D
|
| Dimensions: |
|
CM-300:
|
4-1/2" x 2-3/4" x 1-5/16" (114mm x 70mm x 33mm)
|
|
CM-310:
|
4-1/2" x 1-3/4" x 1-5/16" (114mm x 44mm x 33mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-300
Blank faceplate, SPDT Momentary (select button color option)
EDI DATA, APPROVALS
|
|
Blank faceplate, SPDT Momentary (select button color option)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
|
|

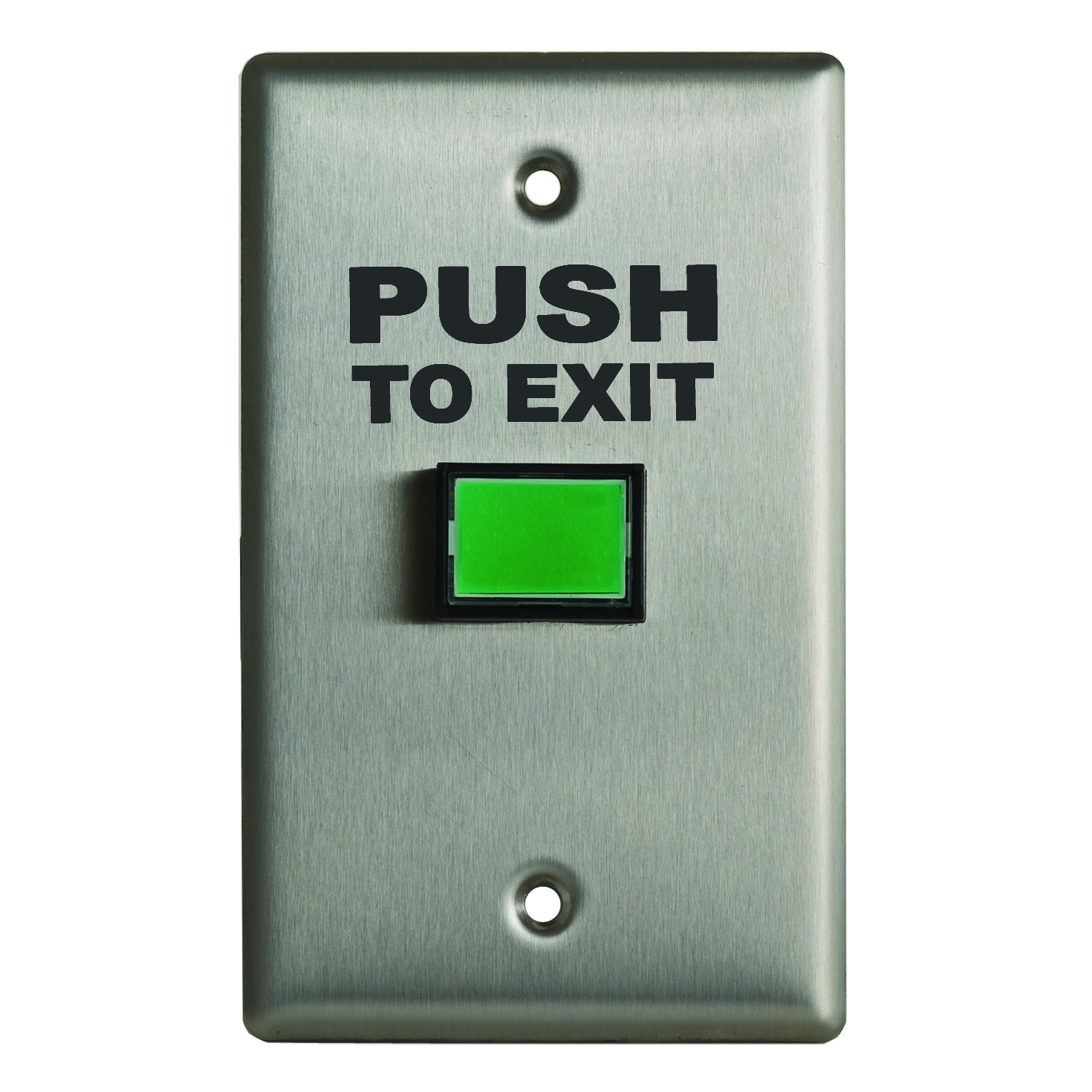

CM-300GPTE
Green button, 'PUSH TO EXIT' faceplate graphics, SPDT Momentary (No button or graphic options)
EDI DATA, APPROVALS
|
|
Green button, 'PUSH TO EXIT' faceplate graphics, SPDT Momentary (No button or graphic options)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
UPC:670454169273
|
|
CM-300RPTE
Red button, 'PUSH TO EXIT' faceplate graphics, SPDT Momentary (No button or graphic options)
EDI DATA, APPROVALS
|
|
Red button, 'PUSH TO EXIT' faceplate graphics, SPDT Momentary (No button or graphic options)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
UPC:670454167675
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-310
Blank narrow faceplate, SPDT Momentary (Select button color option)
EDI DATA, APPROVALS
|
|
Blank narrow faceplate, SPDT Momentary (Select button color option)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
|
|

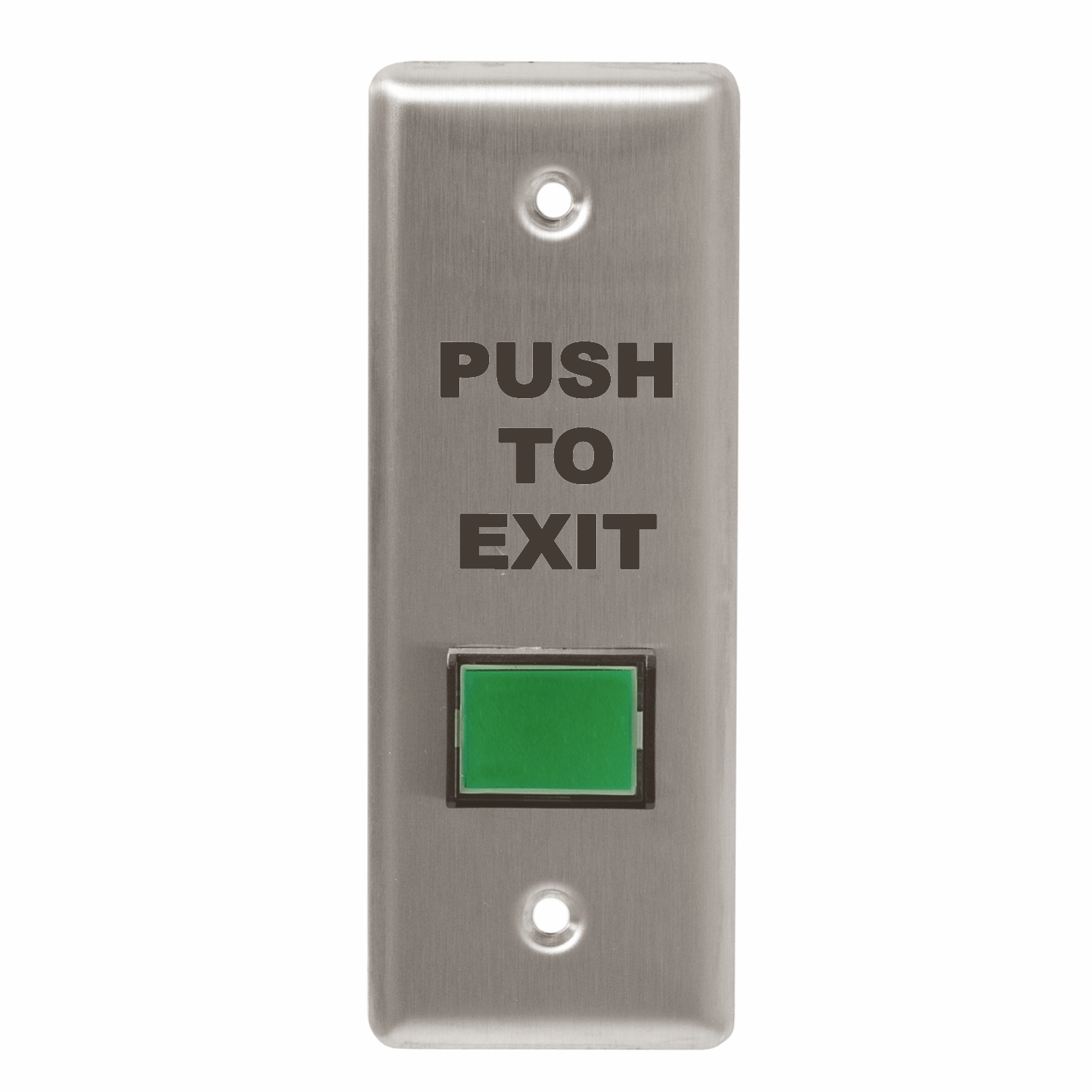

CM-310GPTE
Green button, 'PUSH TO EXIT' narrow faceplate graphics, SPDT Momentary (No button or graphic options)
EDI DATA, APPROVALS
|
|
Green button, 'PUSH TO EXIT' narrow faceplate graphics, SPDT Momentary (No button or graphic options)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
UPC:670454164162
|
|
CM-310RPTE
Red button, 'PUSH TO EXIT' narrow faceplate graphics, SPDT Momentary (No button or graphic options)
EDI DATA, APPROVALS
|
|
Red button, 'PUSH TO EXIT' narrow faceplate graphics, SPDT Momentary (No button or graphic options)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
UPC:670454164469
|
|
CM-310EE
Green button, 'PUSH TO EXIT' narrow faceplate graphics, built-in 30 second electronic timer. (No button or graphic options)
EDI DATA, APPROVALS
|
|
Green button, 'PUSH TO EXIT' narrow faceplate graphics, built-in 30 second electronic timer. (No button or graphic options)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.15lbs.
UPC:670454123893
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| BUTTON COLOR OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
| Button Graphic Options |
|
Net Cost |
|
|
CM-xxxS
Add S to product # for SORTIE, black text
|
Add S to product # for SORTIE, black text
|
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA, black text
|
Add SA to product # for SALIDA, black text
|
|
|
|
|
CM-xxxE
Add 'E' suffix to model # for 'Exit'
|
Add 'E' suffix to model # for 'Exit'
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black text
|
Add /3 to model # for 'PUSH TO OPEN', black text
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black text
|
Add /8 to model # for 'PUSH TO LOCK', black text
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Narrow/Jamb boxes for 310 series switches
|
Surface Box, Standard Depth Narrow/Jamb boxes for 310 series switches
|
|
|
| Mounting Boxes & Accessories: Narrow/Jamb (Deep) |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. CM-310EE requires a 2" deep box
|
Surface Box, Deep - For wireless. CM-310EE requires a 2" deep box
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 300 series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 300 series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 300 series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 300 series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 300 series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 300 series switches
|
|
|
|
|
|
