CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
|
|
CV-TXM-2 Two Button Wiegand Fob |
|
|
MProx-BLE : 5 Things You Need to Know |
|
|
MProx-BLE System Overview |
|
|
|
CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
|
|
|
CV-TXM-2 Two Button Wiegand Fob |
|
|
MProx-BLE : 5 Things You Need to Know |
|
|
MProx-BLE System Overview |
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
No PC required. Programmed via smartphone Bluetooth(R) App
-
2,000 User Capacity
-
Built-in Bluetooth® mobile credentials option
-
Wiegand Reader protocol – 26, 30, 34 and 37 bits
-
Common Alarm Relay – Trigger remote devices
-
Anti-pass back – Higher level of security
-
Sensor Input – For door position switch or vehicle loop detector
-
Form C relays – Fail-safe or Fail-secure electric locks
-
Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
-
Encrypted rolling code and protected AES128 transmission of transmitters
-
Operator Security Levels – 5, configurable
-
3 year warranty
Voltage: |
12 VDC
|
Current Draw: |
< 100 mA
|
Contact Rating: |
1A @ 12V AC/DC
|
Users: |
2000
|
Reader Inputs: |
2
|
Reader Outputs: |
2
|
Reader Input Types: |
Wiegand 26, 30, 34, 37 Bit
|
Receiver Frequency: |
433 Mhz.
|
DIN Rail Mount: |
Yes
|
Temperature Range: |
-4°F to 131°F (-20°C to +55°C)
|
Relay Output Types: |
Timed 1 - 180 seconds, Momentary, bi-stable / latch
|
CV-603 Dimensions: |
4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
|
CX-TXM-2 Dimensions: |
2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)
|
5 Things you NEED to knowMProx-BLE
Smartphone Setup GuideMProx-BLE
Installer GuideMProx-BLE
Add System Credential GuideMProx-BLE
MProx-BLE System OverviewPresented by Kenneth Chong
Descripción general del sistema MProx-BLE - EspañolPresentado por Kenneth Chong
|
|
CONTROLLERS
click to expand section
|
|
Net Cost
|
|

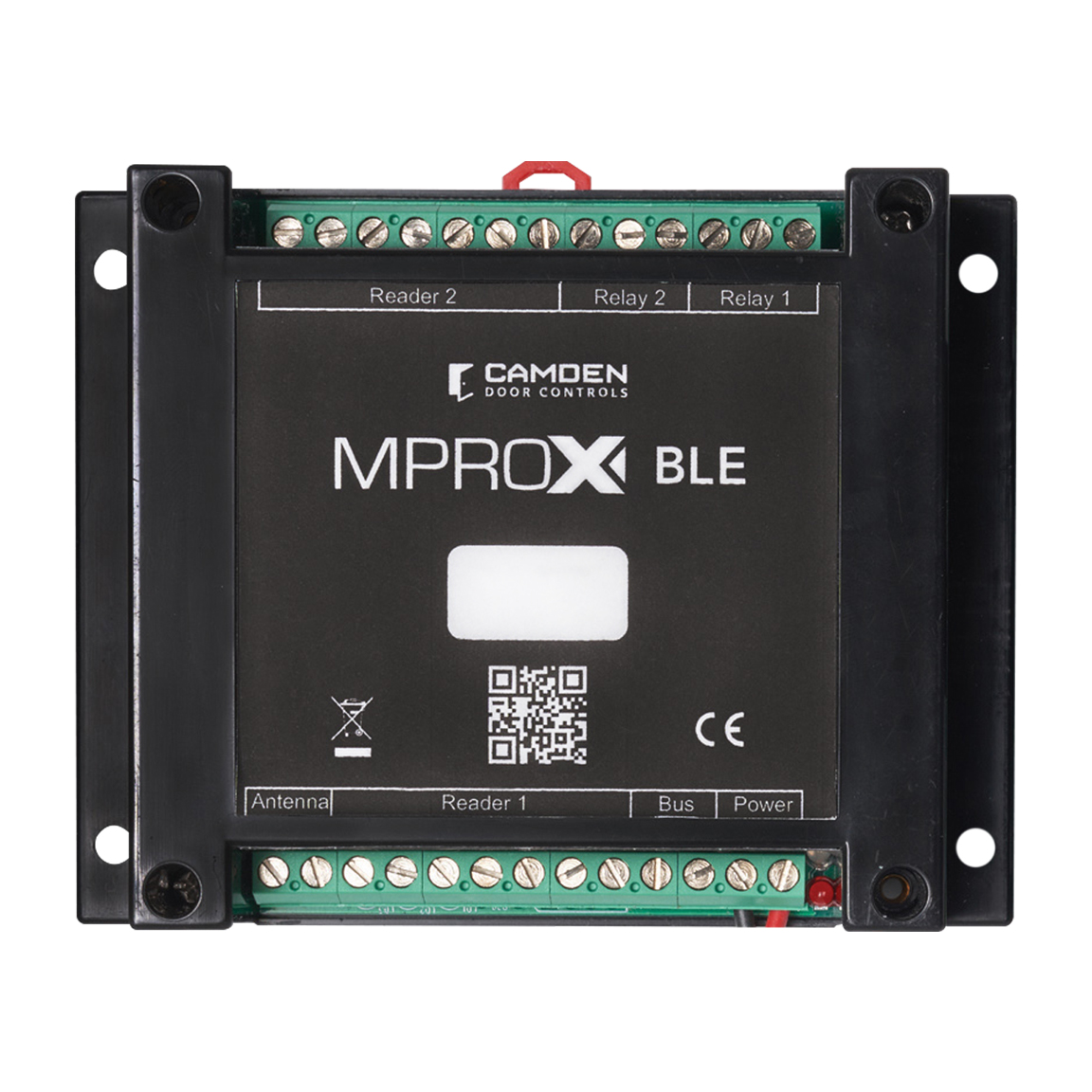

CV-603
2 Door MProx-BLE controller with 433 Mhz. receiver
EDI DATA, APPROVALS
|
|
2 Door MProx-BLE controller with 433 Mhz. receiver
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.5""L x 3.5""W x 4.5""H
Weight: 0.45lbs.
UPC:670454209146
|
|

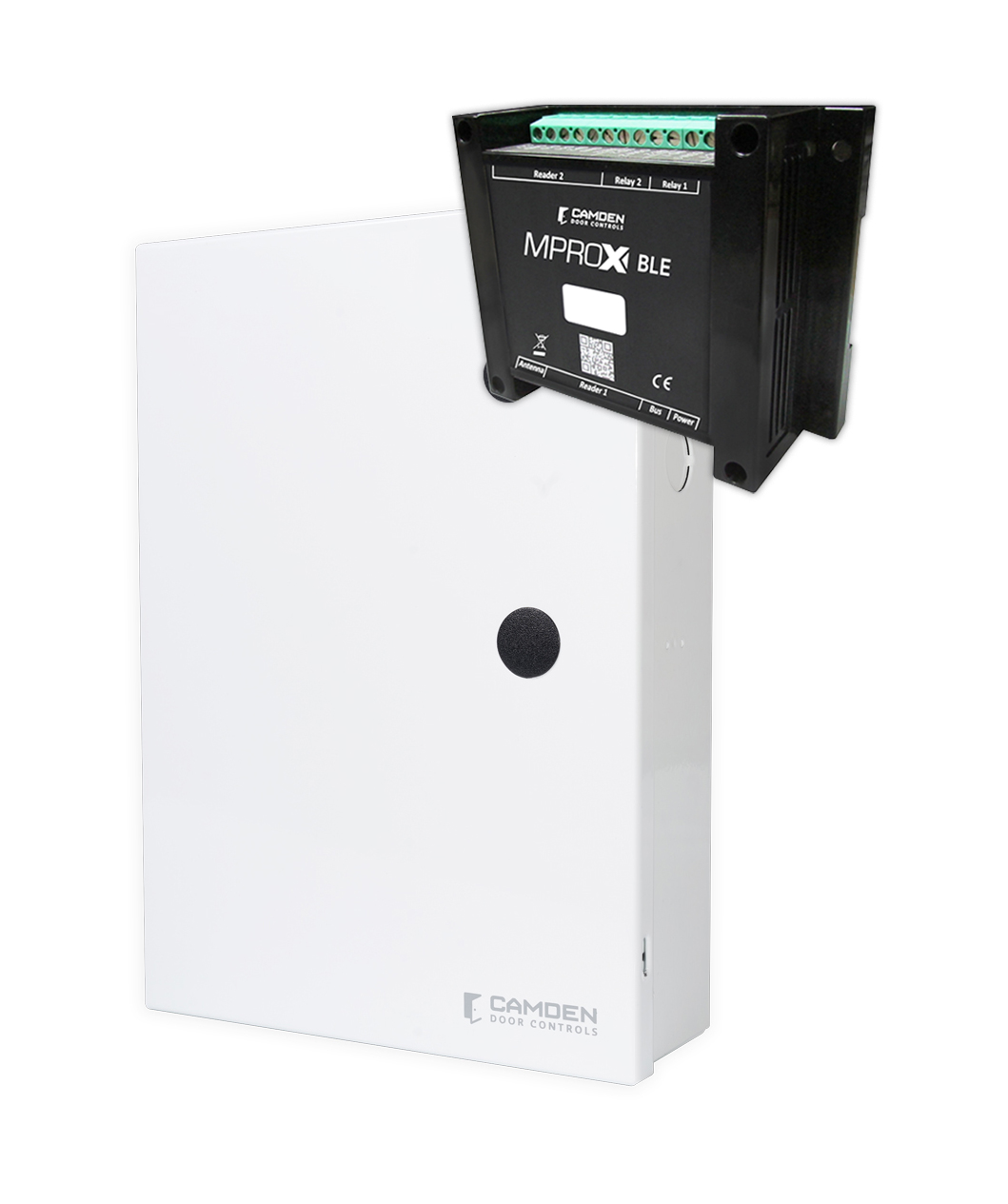

CV-603PS
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 14"L x 12"W x 4"H
Weight: 4lbs.
UPC:670454209160
|
|
EXTENSION ANTENNA
click to expand section
|
|
Net Cost
|
|

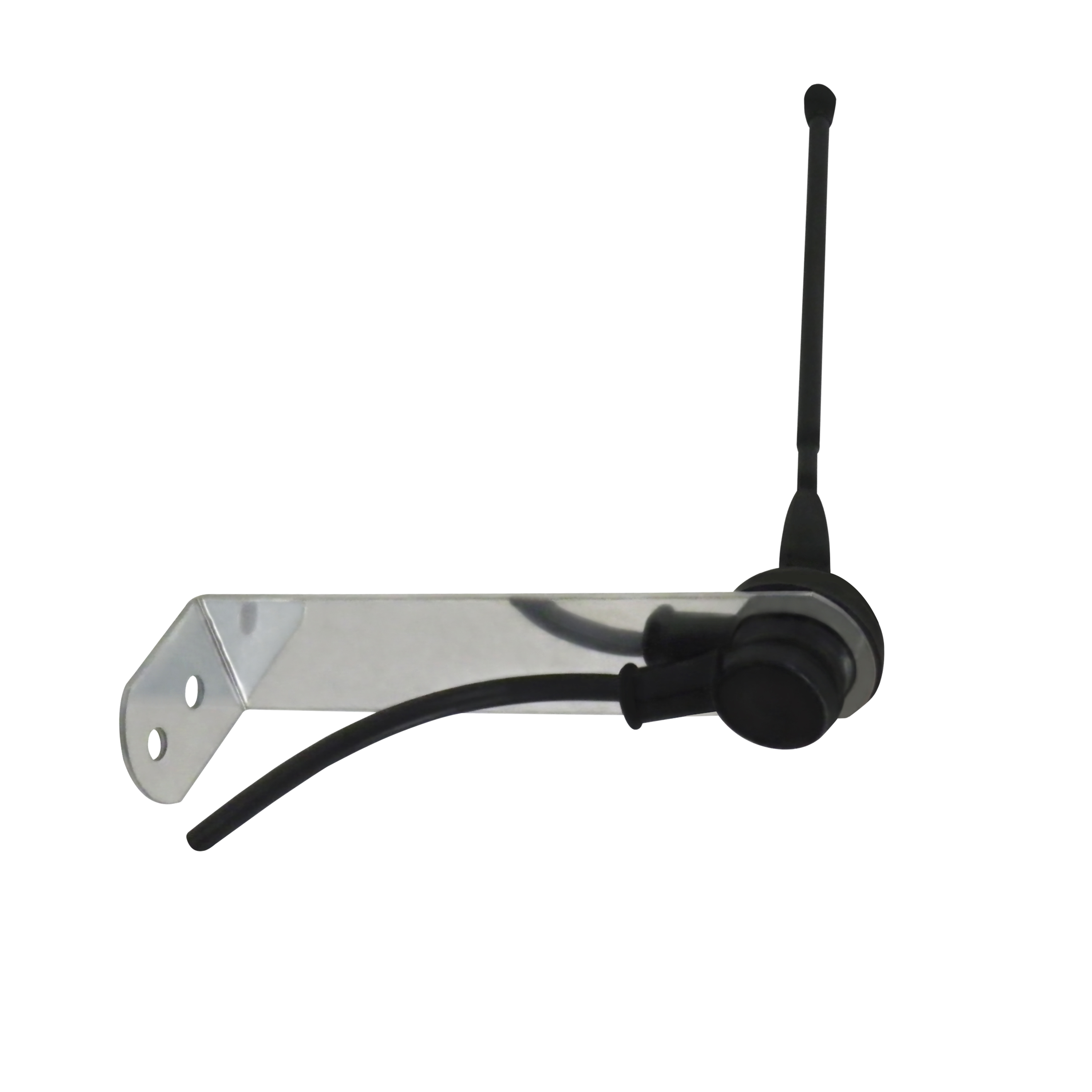

CV-603EA
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
EDI DATA, APPROVALS
|
|
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 5.9"L x 1.2"W x "H
Weight: 220glbs.
UPC:670454210784
|
|
CONTROLLER & READER KIT
click to expand section
|
|
Net Cost
|
|

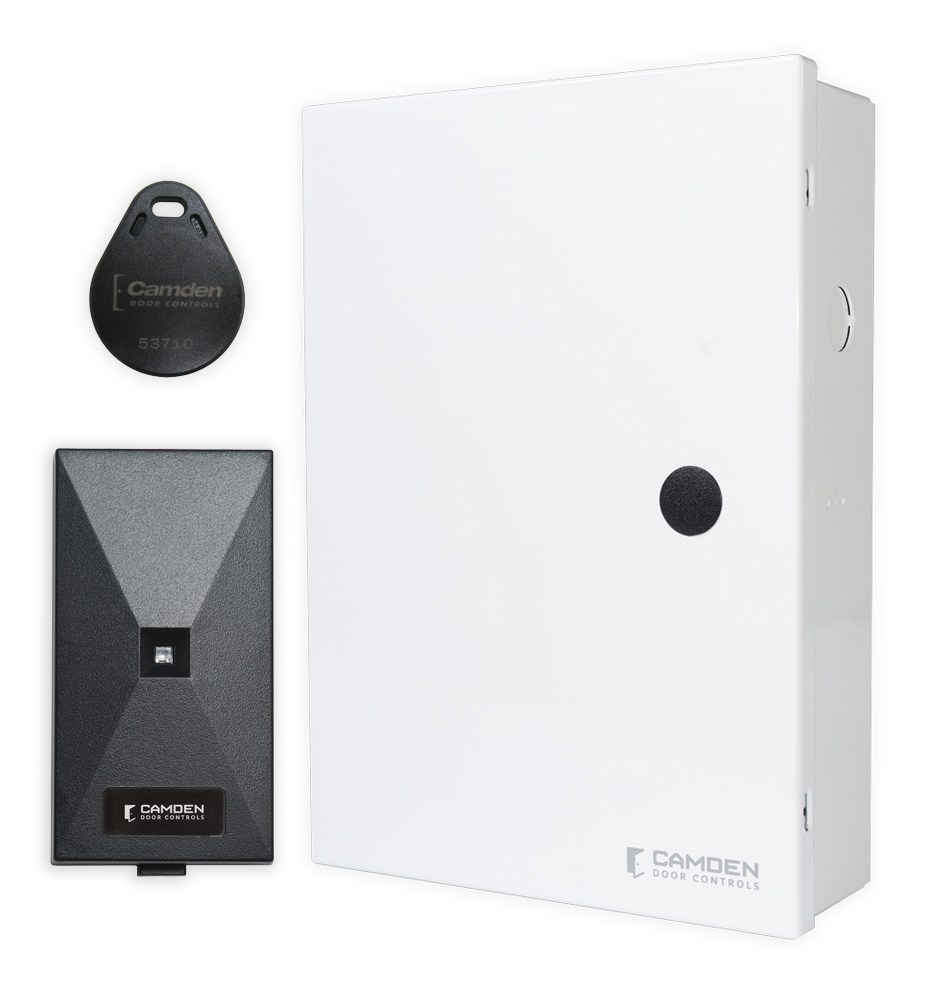

CV-603PS-K1
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 14"L x 12"W x 4"H
Weight: 4.35lbs.
UPC:670454209184
|
|
WIRELESS KEY FOB
click to expand section
|
|
Net Cost
|
|

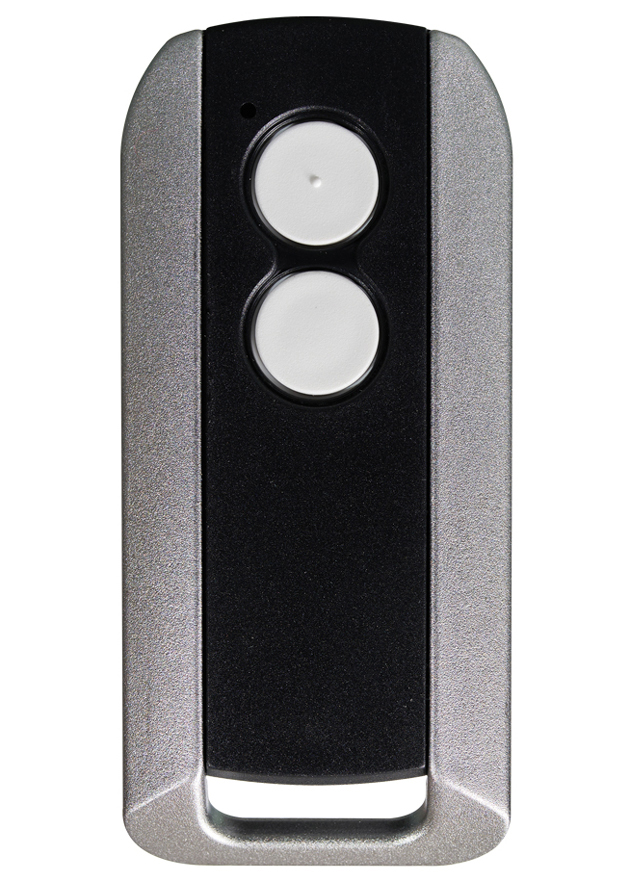

CV-TXM-2
2 Button, 433 Mhz. key fob for MProx-BLE Controller
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fob for MProx-BLE Controller
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.0"L x 2.75"W x 0.50"H
Weight: 1.0lbs.
UPC:670454209191
|
|

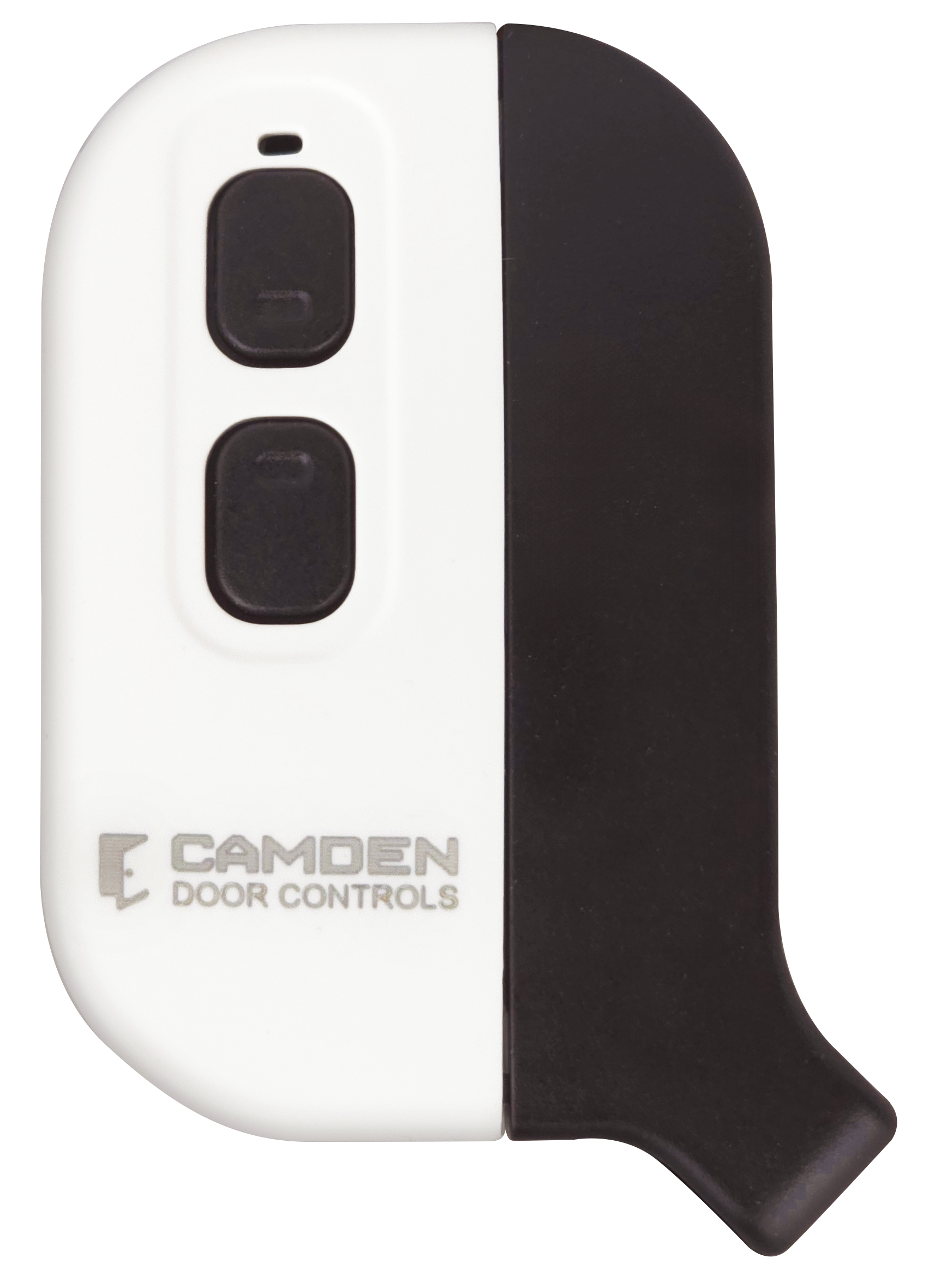

CV-TXM-2B
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6.0"L x 4.0"W x 3.0"H
Weight: 0.05lbs.
UPC:670454209917
|
|
PROTOCOL READERS & CREDENTIALS
click to expand section
|
|
Net Cost
|
|
CV-603VR10
10 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
10 Virtual Remote Licence Key
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212979
|
|
CV-603VR50
50 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
50 Virtual Remote Licence Key
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212986
|
|
CV-7400
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
EDI DATA, APPROVALS
|
|
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: lbs.
UPC:670454156723
|
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
CV-7400 Options
click to expand section
|
|
Net Cost
|
|

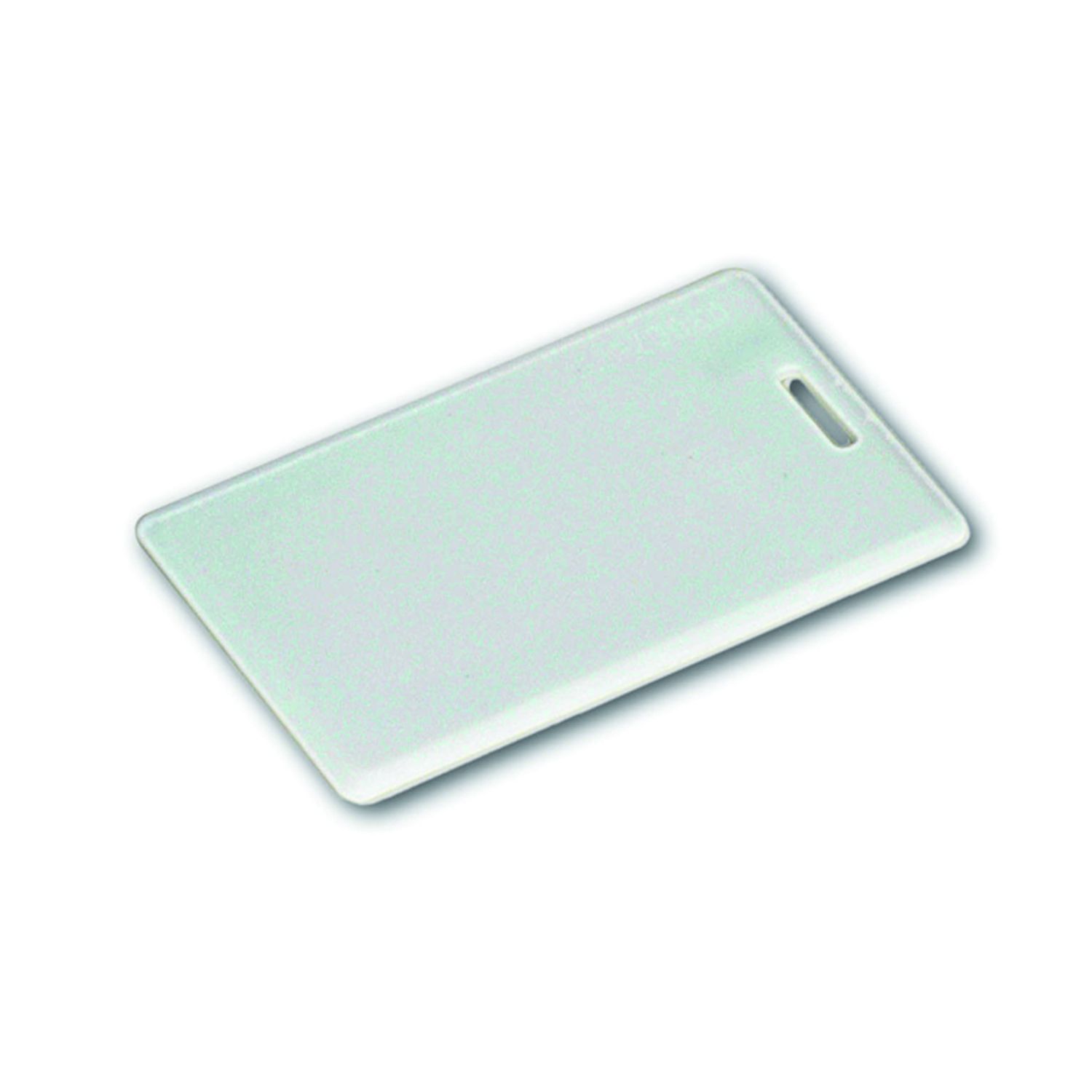

CV-CSA
AWID format prox. cards, clam shell style, package of 10
EDI DATA, APPROVALS
|
|
AWID format prox. cards, clam shell style, package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140135
|
|
CV-CSH
HID Format clam shell prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152985
|
|
CV-ISA
AWID format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
AWID format ISO prox. card, package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182333
|
|
CV-ISH
HID Format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182326
|
|
CV-KTA
AWID format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
AWID format prox. key tag, package of 25
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140197
|
|

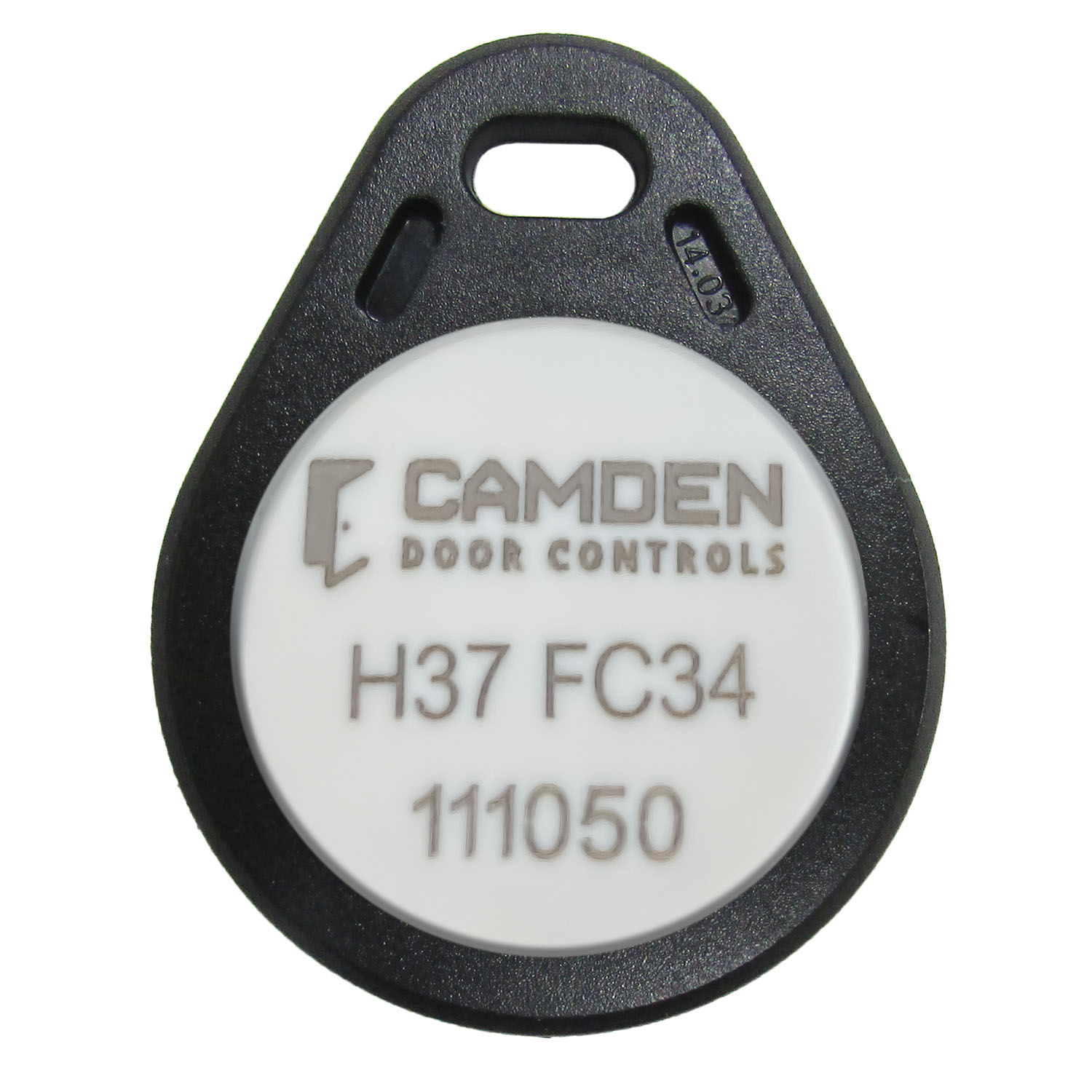

CV-KTH
HID Format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
HID Format prox. key tag, package of 25
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152749
|
|
|
