| CX-ED1379 Strike w/ ANSI Round Face Plate, Aluminum and Dark Bronze |
CX-ED1379 Strike w/ ANSI Round Face Plate, Aluminum and Dark Bronze
|
|
Camden CX-ED1309 Series grade 1 ANSI electric strikes feature 'universal' field selection of 12/24V, AC or DC and fail safe or fail secure operation. They are specifically designed for narrow stile aluminum door frames, typically used for store front retail doors.
CX-ED1309 electric strike body can be purchased with a separate ANSI square, ANSI round, hollow metal or wood door face plate, with either a brushed aluminum finish or dark bronze finish.

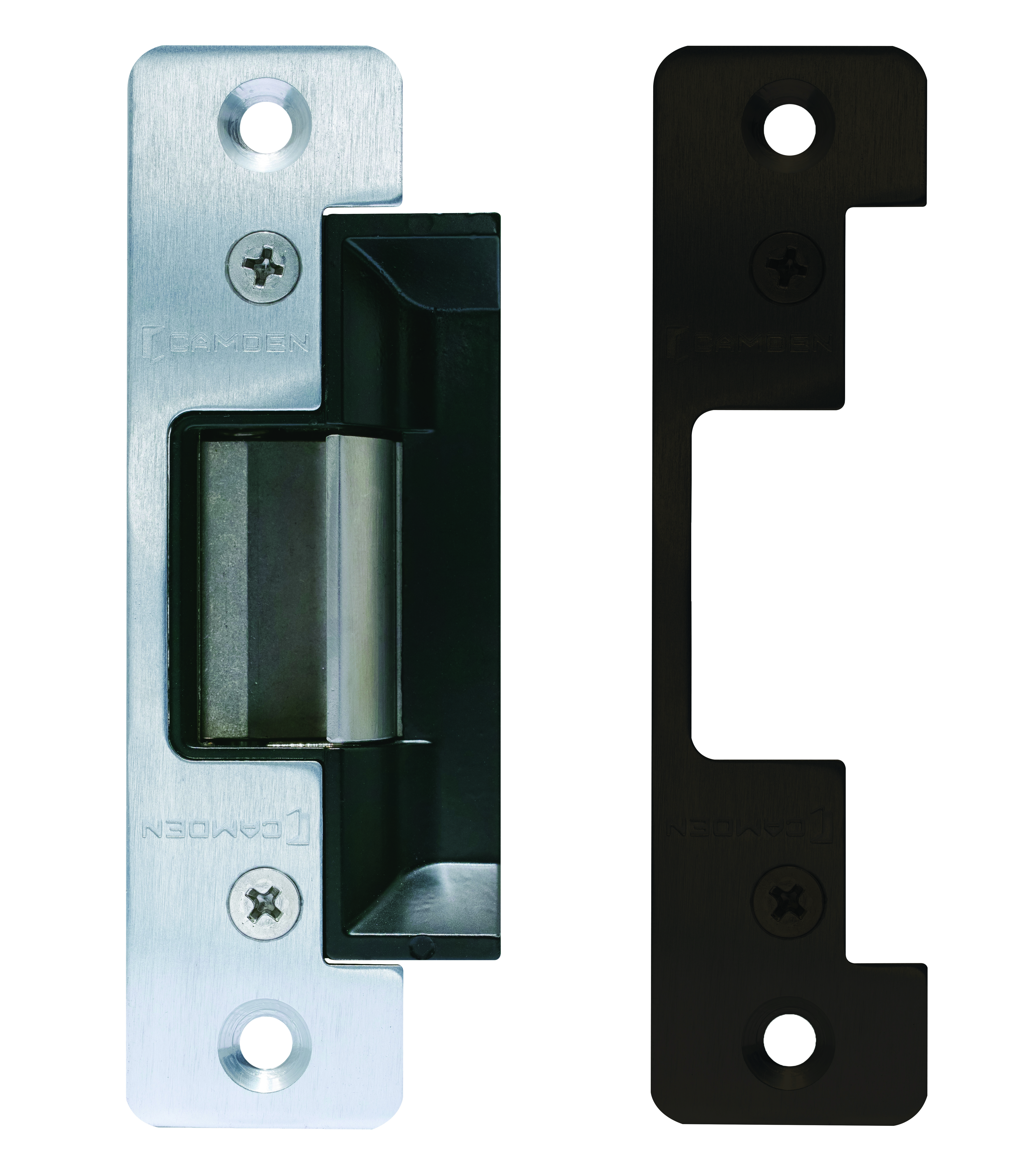

CX-ED1379 packages the strike body with (2) ANSI round face plates, one with brushed aluminum finish and one with dark bronze finish.
Aluminum and dark bronze radius face plates for ANSI and hollow metal doors now in stock!
|
|
|
Learn 5 Things About
the CX-ED1379 |
|
|
|

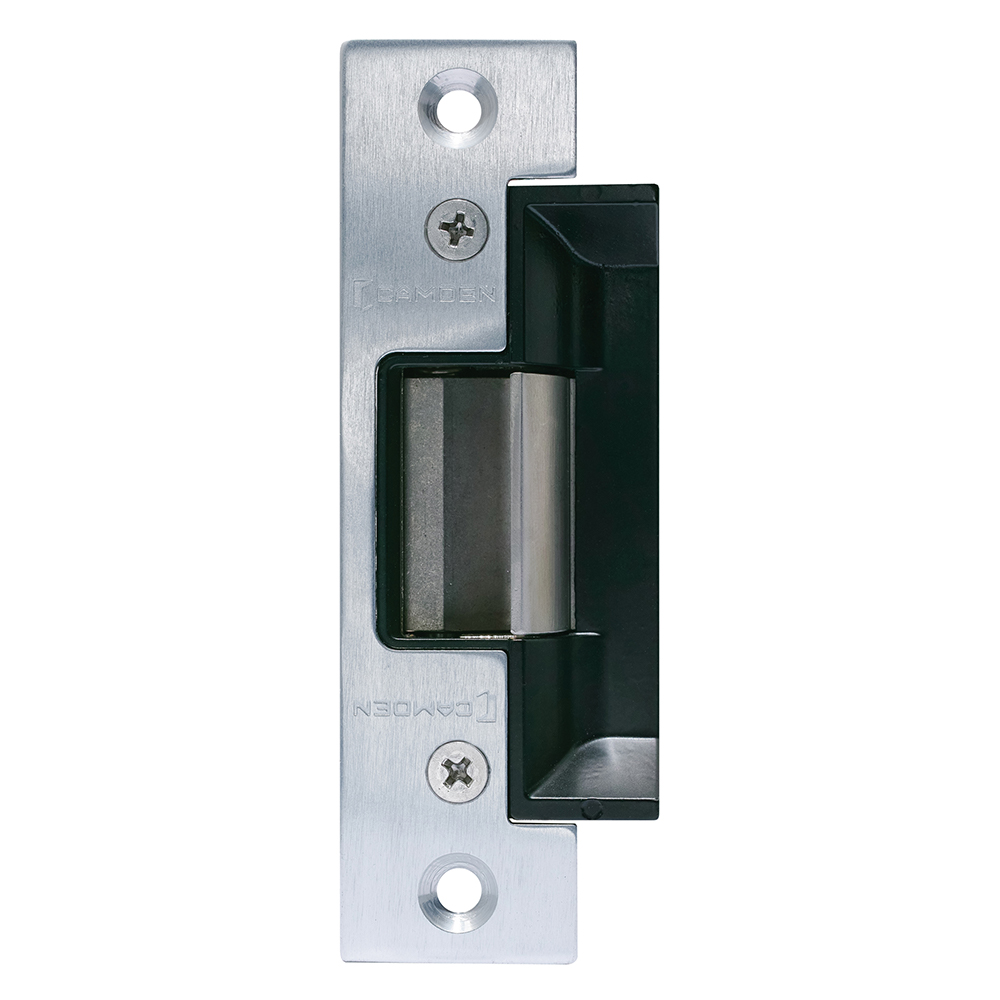

| CX-ED1309 Strike with CX-ESF-1 ANSI Square Faceplate |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
7100
|
CX-ED1379
|
|
|
| CX-ED1379 Strike w/ ANSI Round Face Plate, Aluminum and Dark Bronze |
CX-ED1379 Strike w/ ANSI Round Face Plate, Aluminum and Dark Bronze
|
Camden CX-ED1309 Series grade 1 ANSI electric strikes feature 'universal' field selection of 12/24V, AC or DC and fail safe or fail secure operation. They are specifically designed for narrow stile aluminum door frames, typically used for store front retail doors.
CX-ED1309 electric strike body can be purchased with a separate ANSI square, ANSI round, hollow metal or wood door face plate, with either a brushed aluminum finish or dark bronze finish.
CX-ED1379 packages the strike body with (2) ANSI round face plates, one with brushed aluminum finish and one with dark bronze finish.
Aluminum and dark bronze radius face plates for ANSI and hollow metal doors now in stock! |
|
|
|
|
|
|
Learn 5 Things About
the CX-ED1379 |
|
|
|
|
| CX-ED1309 Strike with CX-ESF-1 ANSI Square Faceplate |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
7100
|
CX-ED1379
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
For cylindrical locksets and spring latches
-
Selectable Fail Safe/Fail Secure
-
Selectable 12/24V, AC/DC
-
1/2” to 5/8” latch projection
-
Easy fit connectors
-
A range of aluminum and dark bronze face plates
-
5 year warranty
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
260mA @ 12V DC, 150mA @ 24V DC
|
| Face Plates: |
CX-ED1379: Brushed aluminum (BHMA 628) & Dark bronze (BHMA 710)
|
| Static Strength: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Endurance: |
1,000,000 Cycles (Factory Test), 250,000 Cycles (UL Verified)
|
| Operation: |
AC-Buzz, DC-Silent
|
| Duty: |
Continuous
|
| Dimensions (Body): |
4-7/8" H x 1-11/16" W x 1-5/8" D, (124mm x 43mm x 42mm)
|
|
Installation Manuals
|
| Strike Marking Template Manual |
pdf |
0.44 |
DOWNLOAD
OPEN
|
| CX-ED1309 Series_Manual_R3 |
pdf |
0.55 |
DOWNLOAD
OPEN
|
| CX-ED1309 Series_Manual_French_R3 |
pdf |
0.57 |
DOWNLOAD
OPEN
|
|
Cross Reference Guides
|
| Electric Strike Cross Reference Chart |
pdf |
0.31 |
DOWNLOAD
OPEN
|
| Electric Strike Cross Reference Chart (FR) |
pdf |
0.32 |
DOWNLOAD
OPEN
|
|
Reference Guides
|
| Lockset Compatibility Chart |
pdf |
0.19 |
DOWNLOAD
OPEN
|
| Electric Strike Selection Guide_R4 |
pdf |
6.54 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CX-STR-TMPKIT |
png |
1.23 |
DOWNLOAD
OPEN
|
| CX-ED1379 |
jpeg |
5.56 |
DOWNLOAD
OPEN
|
| CX-ED1309 |
jpeg |
0.22 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| CX-ED1309 Series_Spec Sheet_R2 |
pdf |
6.46 |
DOWNLOAD
OPEN
|
|
Support
|
| CX-ED1309 ESF1 & ESF2 Paper Template_DWG File |
octet-stream |
0.09 |
DOWNLOAD
OPEN
|
| CX-ED1309 ESF3 Paper Template_DWG File |
octet-stream |
0.09 |
DOWNLOAD
OPEN
|
| CX-ED1309 ESF4 Paper Template_DWG File |
octet-stream |
0.09 |
DOWNLOAD
OPEN
|
| CX-ED1309 ESF1 & ESF2 Template |
pdf |
0.07 |
DOWNLOAD
OPEN
|
| CX-ED1309 ESF3 Template |
pdf |
0.08 |
DOWNLOAD
OPEN
|
| CX-ED1309 ESF4 Template |
pdf |
0.08 |
DOWNLOAD
OPEN
|
|
Application Guides
|
| Door Entry System Interconnect_Wired |
pdf |
0.95 |
DOWNLOAD
OPEN
|
5 Things you NEED to knowCX-ED1379 Narrow Stile Strike
|
|
|
Electric Strike with Face Plate
click to expand section
|
|
Net Cost
|
|
CX-ED1379
Electric Strike with (1) CX-ESF-2 and (1) CX-ESF-2BZ ANSI round face plate
EDI DATA, APPROVALS
|
|
Electric Strike with (1) CX-ESF-2 and (1) CX-ESF-2BZ ANSI round face plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.78"H
Weight: 1.25lbs.
UPC:670454201713
|
| |
|
Electric Strike, Body Only
click to expand section
|
|
Net Cost
|
|
|
CX-ED1309
Electric Strike Body Only, Order Face Plate Separately
EDI DATA, APPROVALS
|
|
Electric Strike Body Only, Order Face Plate Separately
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.78"H
Weight: 0.85lbs.
UPC:670454201720
|
| |
|
Face Plates - Brushed Aluminum Finish (BHMA 628)
click to expand section
|
|
Net Cost
|
|
|
CX-ESF-1
ANSI Square Face Plate for CX-ED1309, brushed aluminum finish
EDI DATA, APPROVALS
|
|
ANSI Square Face Plate for CX-ED1309, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201737
|
|
|
CX-ESF-2
ANSI Round Face Plate for CX-ED1309, brushed aluminum finish
EDI DATA, APPROVALS
|
|
ANSI Round Face Plate for CX-ED1309, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201744
|
|
|
CX-ESF-2BR
Radius ANSI Round Face plate for CX-ED1309,, brushed aluminum finish
EDI DATA, APPROVALS
|
|
Radius ANSI Round Face plate for CX-ED1309,, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454202376
|
|
|
CX-ESF-3
Hollow Metal Frame Face Plate for CX-ED1309, brushed aluminum finish
EDI DATA, APPROVALS
|
|
Hollow Metal Frame Face Plate for CX-ED1309, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201751
|
|
|
CX-ESF-3BR
Radius Hollow Metal. Face plate for CX-ED1309,, brushed aluminum finish
EDI DATA, APPROVALS
|
|
Radius Hollow Metal. Face plate for CX-ED1309,, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454202383
|
|
|
CX-ESF-4
Wood Frame Face Plate for CX-ED1309, brushed aluminum finish
EDI DATA, APPROVALS
|
|
Wood Frame Face Plate for CX-ED1309, brushed aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201768
|
| |
|
Face Plates - Dark Bronze Finish
click to expand section
|
|
Net Cost
|
|
|
CX-ESF-1BZ
ANSI Square Face Plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
ANSI Square Face Plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201775
|
|
|
CX-ESF-2BZ
ANSI Round Face Plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
ANSI Round Face Plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201782
|
|
|
CX-ESF-2BR-BZ
Radius ANSI Round Face plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
Radius ANSI Round Face plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454202390
|
|
|
CX-ESF-3BZ
Hollow Metal Frame Face Plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
Hollow Metal Frame Face Plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201799
|
|
|
CX-ESF-3BR-BZ
Radius Hollow Metal. Face plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
Radius Hollow Metal. Face plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454202406
|
|
|
CX-ESF-4BZ
Wood Frame Face Plate for CX-ED1309, dark bronze finish
EDI DATA, APPROVALS
|
|
Wood Frame Face Plate for CX-ED1309, dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 0.25"H
Weight: 0.15lbs.
UPC:670454201805
|
| |
|
Marking Templates
click to expand section
|
|
Net Cost
|
|
CX-STR-TMPKIT

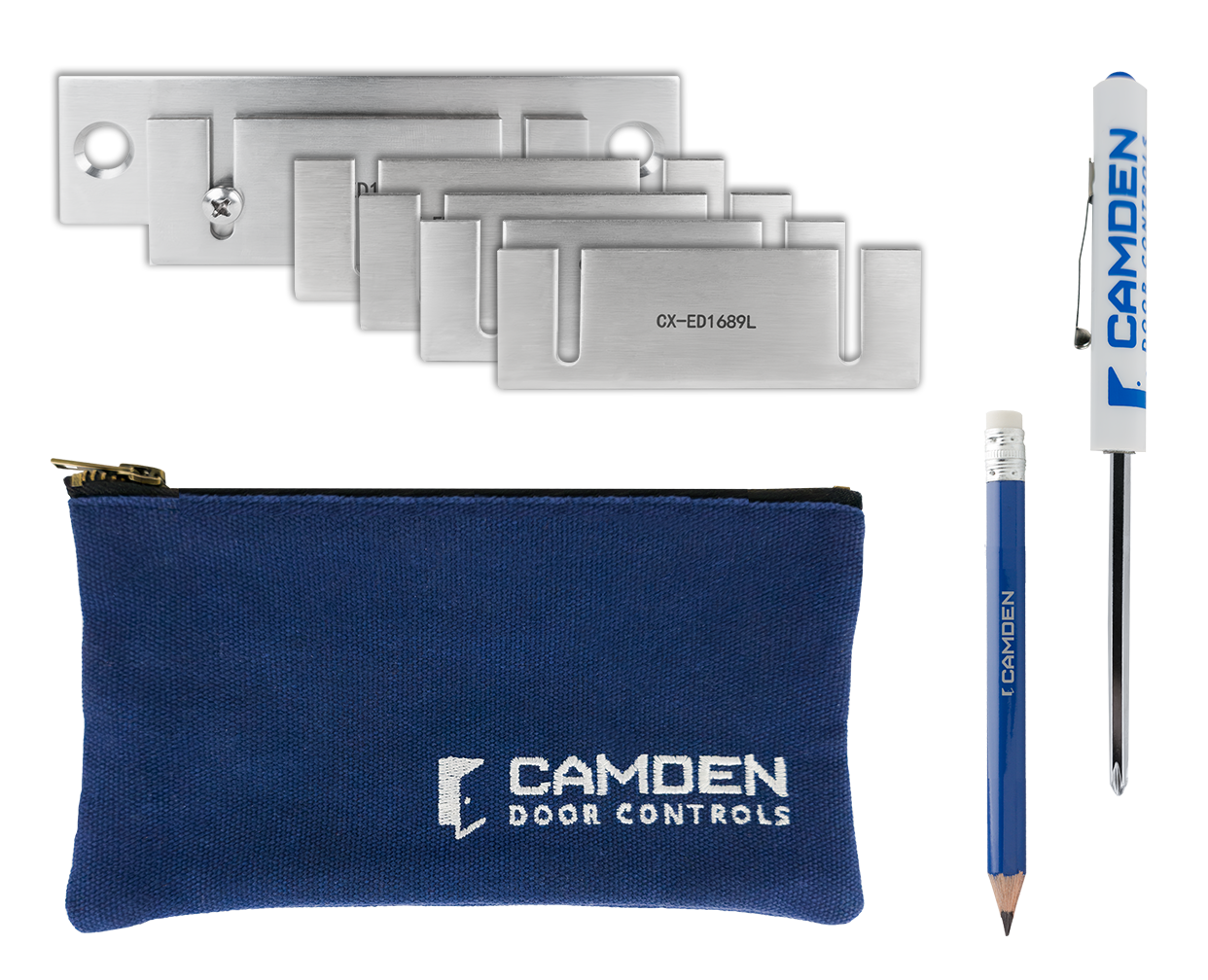

Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
|
| |
|
