EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.
Applications: Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications.
|
|
|
|
EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.
Applications: Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications. |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Microprocessor control
-
3 mode selector switch
-
5 adjustable timers, 1-30 seconds each
-
LEDs for visual confirmation
-
May be used on normally locked and normally unlocked restroom doors
-
12/24V AC/DC
-
Plug-In connectors facilitate wiring
-
SPDT contacts rated 3 amps @ 30 VDC
-
7 dry inputs
-
Use with fail-safe and fail-secure locks
-
Enclosed plastic case or mounted in metal enclosure
-
3 year warranty
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
150 mA Nominal, 500 mA Maximum
|
| Response Time: |
.3 Seconds
|
| Input: |
7 Dry Momentary Contacts and 1 Digital
|
| Output: |
5 x Form 'C' (SPDT), 1 Digital Output
|
| Contact Rating: |
3 A @ 30 VDC
|
| Electrical Life: |
500,000 Operations @ 1/2 rated Capacity
|
| Time Delay: |
5 Pots adjustable from 1-30 Seconds
|
| Dimensions: |
|
CX-EMF-2:
|
6-7/8"L x 2-7/8"W x 7/8"D
(173mm x 72mm x 22mm)
|
|
CX-EMF-2M,
CX-EMF-2ABM:
|
12"L x 7-1/2"W x 3-3/4"D
(305mm x 190mm x 95mm)
|
| |
| Mounting: |
|
CX-EMF-2:
|
Double Sided Foam Tape
|
|
CX-EMF-2M,
CX-EMF-2ABM:
|
4 x #8 Metal Screws
|
| |
| Enclosure: |
|
CX-EMF-2:
|
Gray Plastic Case
|
|
CX-EMF-2M,
CX-EMF-2ABM:
|
Beige Metal Cabinet
|
| |
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

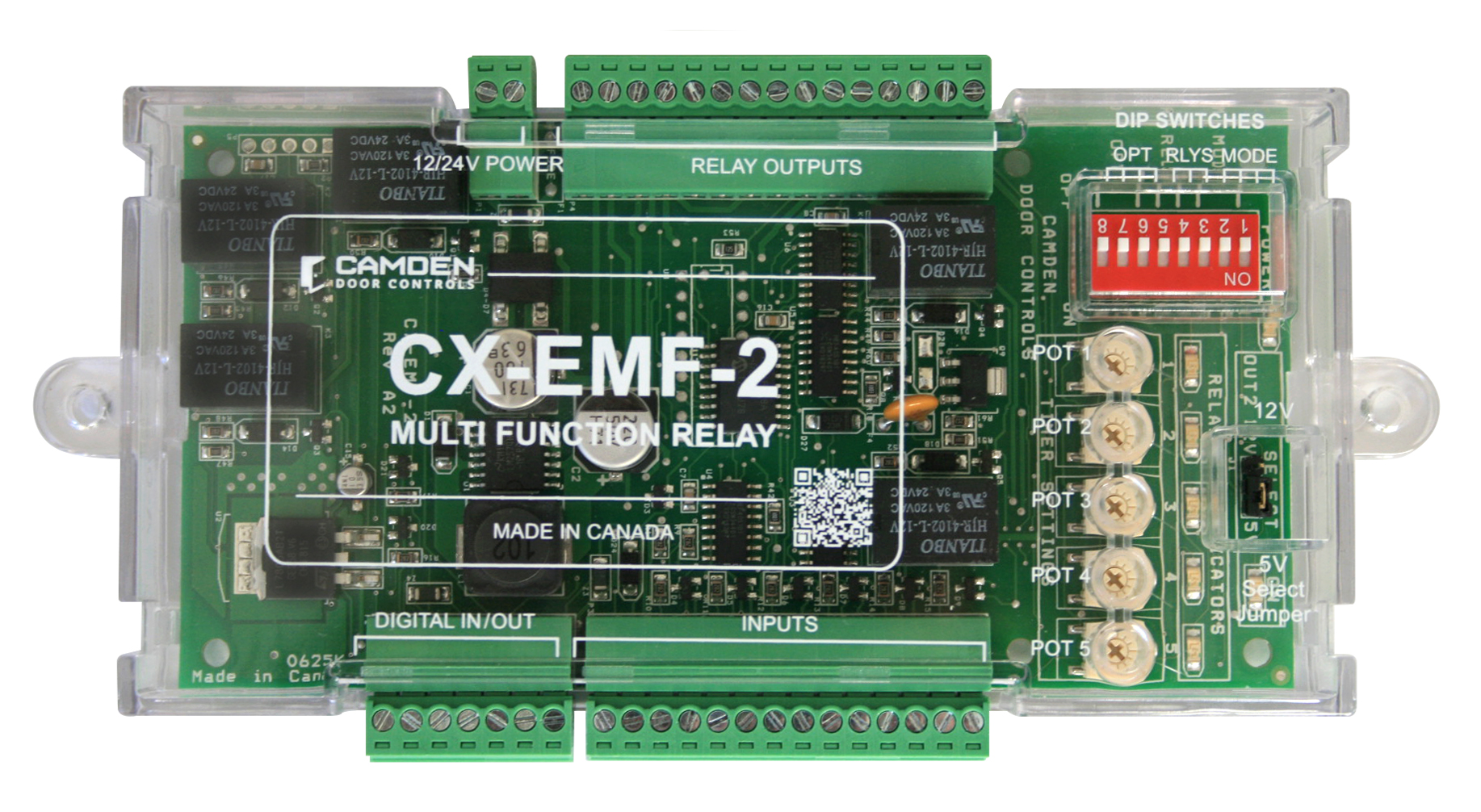

CX-EMF-2
Multi-function relay - Plastic enclosure
EDI DATA, APPROVALS
|
|
Multi-function relay - Plastic enclosure
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 7"W x 2"H
Weight: 0.63lbs.
UPC:670454161314
|
|

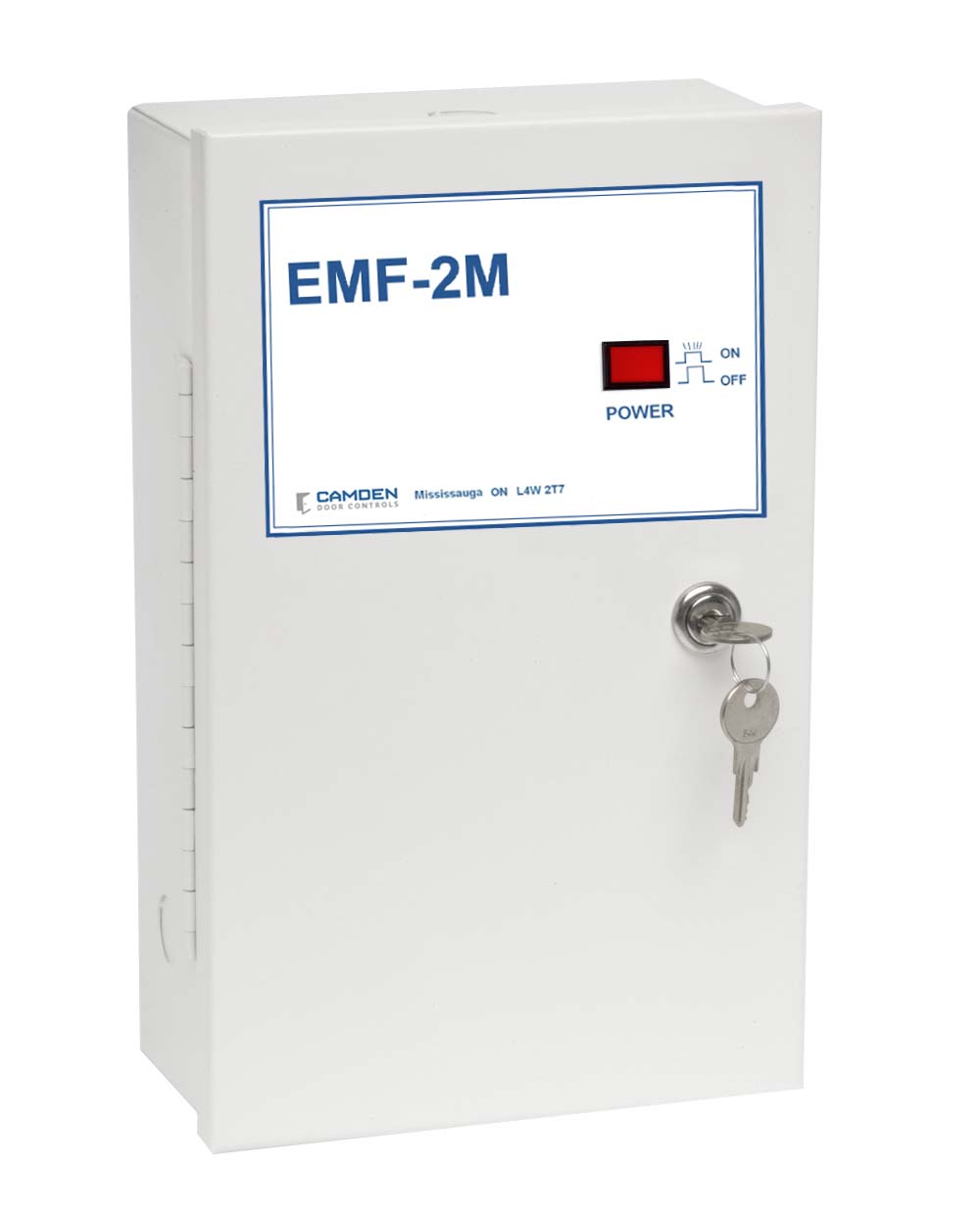

CX-EMF-2M
Multi-function relay - Metal cabinet, 1 control switch
EDI DATA, APPROVALS
|
|
Multi-function relay - Metal cabinet, 1 control switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 16"W x 6.5"H
Weight: 4.95lbs.
UPC:670454164902
|
|

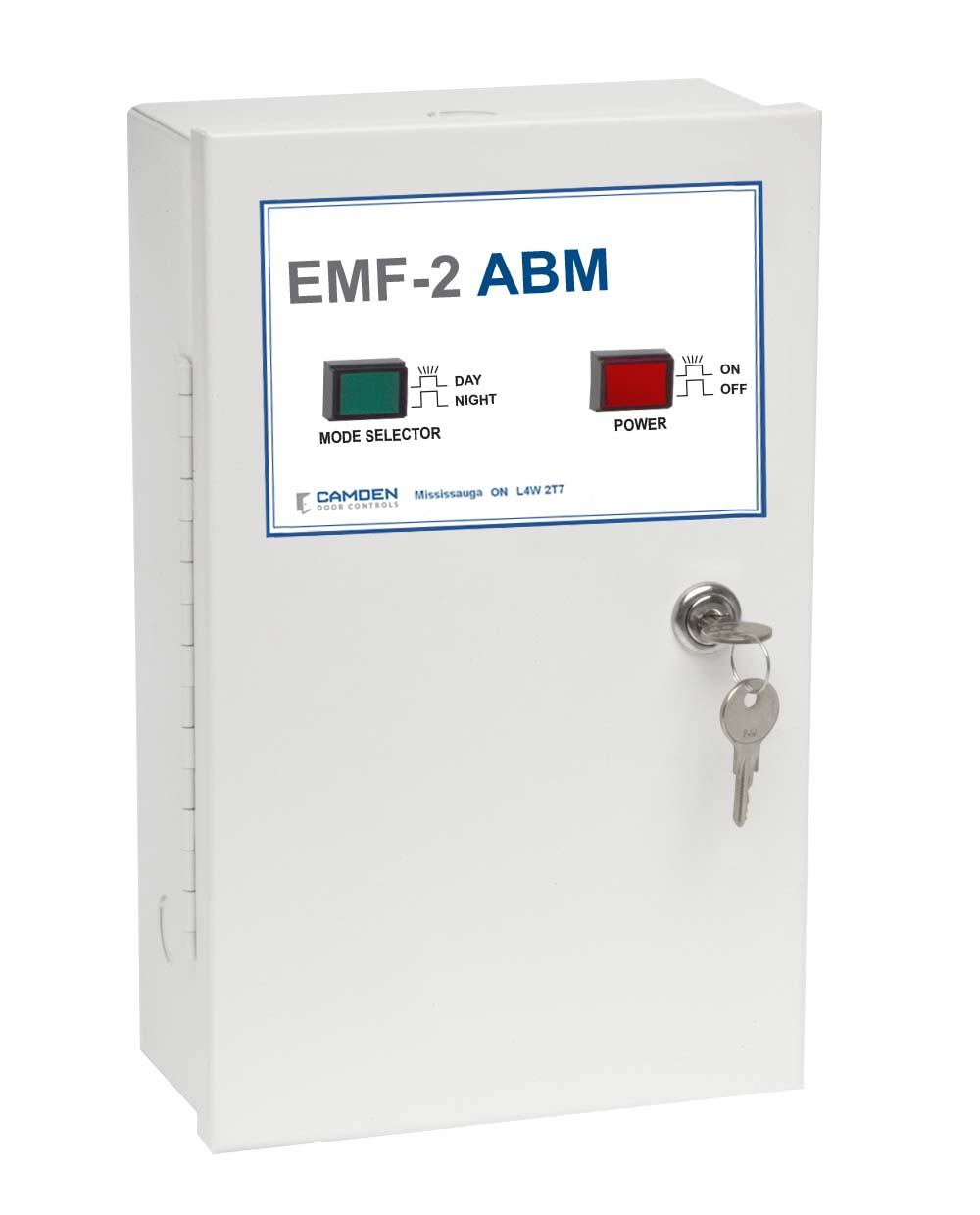

CX-EMF-2ABM
Multi-function relay - ABM metal cabinet, 2 control switches Same as CX-EXF-2M but configured for ABM vestibules
EDI DATA, APPROVALS
|
|
Multi-function relay - ABM metal cabinet, 2 control switches Same as CX-EXF-2M but configured for ABM vestibules
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 16"W x 6.5"H
Weight: 5lbs.
UPC:670454171900
|
|
CX-EMF-2PS
Door Control and 2 Amp. Power Supply Cabinet
EDI DATA, APPROVALS
|
|
Door Control and 2 Amp. Power Supply Cabinet
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
| |
|
