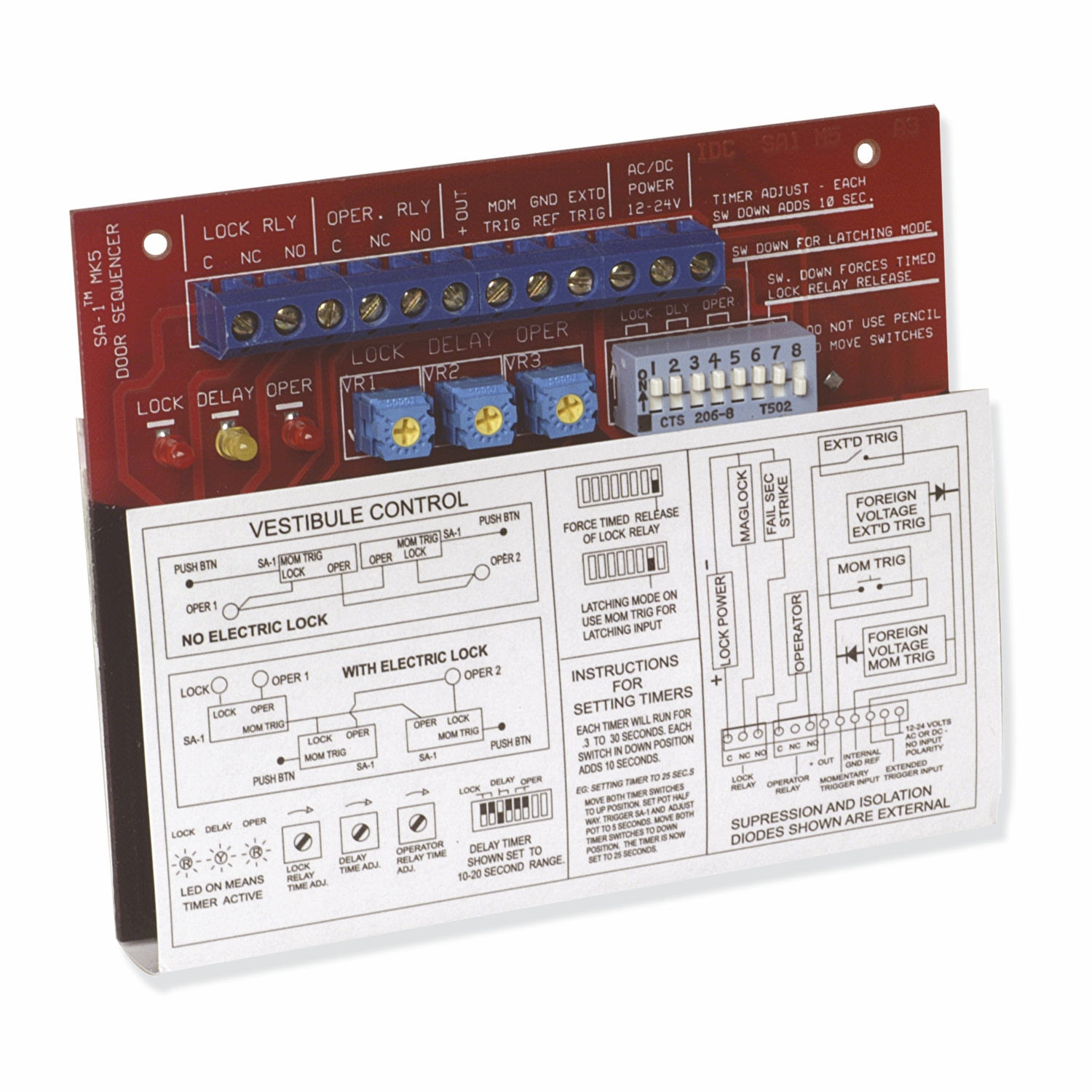

The economical CX-SA1 features a momentary or extended trigger, two relays and 3 timers. The CX-SA1 will properly sequence an operator and electric lock (any type) or two doors that form a vestibule and becomes a latching relay with the flick of a switch. Applications: Ideal for automatic doors systems that require a make/break relay, uni-directional door sequencing, or that require both momentary and maintained inputs. Provides latching output for connection to fire alarm (smoke EVAC) systems. Note: CX-SA1 replaces CX-1000/76, CX-1000/78 and CX-1000/79 door sequencers.
|
|
|
The economical CX-SA1 features a momentary or extended trigger, two relays and 3 timers. The CX-SA1 will properly sequence an operator and electric lock (any type) or two doors that form a vestibule and becomes a latching relay with the flick of a switch. Applications: Ideal for automatic doors systems that require a make/break relay, uni-directional door sequencing, or that require both momentary and maintained inputs. Provides latching output for connection to fire alarm (smoke EVAC) systems. Note: CX-SA1 replaces CX-1000/76, CX-1000/78 and CX-1000/79 door sequencers.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Sequence and release
-
Sequence and hold while voltage still applied
-
Sequence and hold till next trigger
-
Triggers for sequencing and hold open applications
-
Dry contact and/or hot trigger input on either trigger
-
Stuck momentary trigger leaves the extended trigger functioning
-
Noise filtering on the triggers to prevent false activations
-
2 relays for controlling external equipment
-
Visible indicators for status of timers and relays
-
3 year warranty
| Voltage: |
12-24V AC/DC
|
| Current Draw: |
18 mA Idle, 63 mA Operating @ 24 V
|
| Response Time: |
.3 Seconds
|
| Input: |
2 x N/O Wet or Dry Contacts
|
| Operation: |
One Shot, Maintained, or Latching
|
| Output: |
2 x Form 'C' (SPDT)
|
| Contact Rating: |
2 A @ 24 VDC
|
| Electrical Life: |
100,000 @ Rated Capacity
|
| Time Delay D.O.R. #1: |
0.5-30 Seconds
|
| Time Delay D.O.O. #2: |
0.5-30 Seconds
|
| Time Delay D.O.R. #2: |
0.5-30 Seconds
|
| Dimensions: |
3-1/2"L x 4"W x 2/3"H
(89mm x 102mm x 19mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-SA1
Switching Network
EDI DATA, APPROVALS
|
|
Switching Network
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9"L x 5"W x 0.5"H
Weight: 0.2lbs.
UPC:670454154262
|
| |
|
