Lazerpoint RF 915Mhz.Wireless System
|
|
Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.
|
|
|
| Part of Our Touchless Wave Product Family |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
BEA
|
10RD433
|
CM-RX-90
|
|
|
10RD433EH
|
CM-RX-90
|
|
|
10RD900
|
CM-RX-90
|
|
|
10TD433HH1
|
CM-TXLF-1
|
|
|
10TD433HH2
|
CM-TXLF-2
|
|
|
10TD433HH3
|
CM-TXLF-4
|
|
|
10TD433HH4
|
CM-TXLF-4
|
|
|
10TD433PB3V
|
CM-TX-9
|
|
|
10TD433PB9V
|
CM-TX-9
|
|
|
10TD900HH1
|
CM-TXLF-1
|
|
|
10TD900HH2
|
CM-TXLF-2
|
|
|
10TD900HH3
|
CM-TXLF-4
|
|
|
10TD900HH4
|
CM-TXLF-4
|
|
|
10TD900PB
|
CM-TX-9
|
|
Dormakaba (RCI)
|
9DRCR433EHT
|
CM-RX-90
|
|
|
9DRCR433VB
|
CM-RX-90
|
|
|
9RCT4331
|
CM-TXLF-1
|
|
|
9RCT4332
|
CM-TXLF-2
|
|
|
9RCT4333
|
CM-TXLF-4
|
|
|
9RCT4333V1
|
CM-TX-9
|
|
|
9RCT4334
|
CM-TXLF-4
|
|
|
9RCT4339V1
|
CM-TX-9
|
|
MS Sedco
|
CP/RX
|
CM-RX-90
|
|
|
CP/TX
|
CM-TX-9
|
|
|
S-TRX-HH
|
CM-TXLF-1
|
|
Wikk
|
1TRANSL300-1
|
CM-TXLF-1FB
|
|
|
1TRANSL310-1
|
CM-TXLF-1FB
|
|
|
1TRANSM300-1
|
CM-TXLF-1
|
|
|
1TRANSM310-1
|
CM-TXLF-1
|
|
|
2TRANSL300-2
|
CM-TXLF-2FB
|
|
|
2TRANSM300-2
|
CM-TXLF-2
|
|
|
RECEIVER2CHAN
|
CM-RX-90
|
|
|
SWTRAN300M
|
CM-TX-9
|
|
|
| Lazerpoint RF 915Mhz.Wireless System |
Lazerpoint RF 915Mhz.Wireless System
|
|
Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.
|
|
|
|
|
|
|
| Part of Our Touchless Wave Product Family |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
BEA
|
10RD433
|
CM-RX-90
|
|
|
10RD433EH
|
CM-RX-90
|
|
|
10RD900
|
CM-RX-90
|
|
|
10TD433HH1
|
CM-TXLF-1
|
|
|
10TD433HH2
|
CM-TXLF-2
|
|
|
10TD433HH3
|
CM-TXLF-4
|
|
|
10TD433HH4
|
CM-TXLF-4
|
|
|
10TD433PB3V
|
CM-TX-9
|
|
|
10TD433PB9V
|
CM-TX-9
|
|
|
10TD900HH1
|
CM-TXLF-1
|
|
|
10TD900HH2
|
CM-TXLF-2
|
|
|
10TD900HH3
|
CM-TXLF-4
|
|
|
10TD900HH4
|
CM-TXLF-4
|
|
|
10TD900PB
|
CM-TX-9
|
|
Dormakaba (RCI)
|
9DRCR433EHT
|
CM-RX-90
|
|
|
9DRCR433VB
|
CM-RX-90
|
|
|
9RCT4331
|
CM-TXLF-1
|
|
|
9RCT4332
|
CM-TXLF-2
|
|
|
9RCT4333
|
CM-TXLF-4
|
|
|
9RCT4333V1
|
CM-TX-9
|
|
|
9RCT4334
|
CM-TXLF-4
|
|
|
9RCT4339V1
|
CM-TX-9
|
|
MS Sedco
|
CP/RX
|
CM-RX-90
|
|
|
CP/TX
|
CM-TX-9
|
|
|
S-TRX-HH
|
CM-TXLF-1
|
|
Wikk
|
1TRANSL300-1
|
CM-TXLF-1FB
|
|
|
1TRANSL310-1
|
CM-TXLF-1FB
|
|
|
1TRANSM300-1
|
CM-TXLF-1
|
|
|
1TRANSM310-1
|
CM-TXLF-1
|
|
|
2TRANSL300-2
|
CM-TXLF-2FB
|
|
|
2TRANSM300-2
|
CM-TXLF-2
|
|
|
RECEIVER2CHAN
|
CM-RX-90
|
|
|
SWTRAN300M
|
CM-TX-9
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
LAZERPOINT RF™ battery-powered wireless door activation devices are compatible with all automatic door operators.
-
Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
-
3 year replacement warranty
Switch Transmitters
-

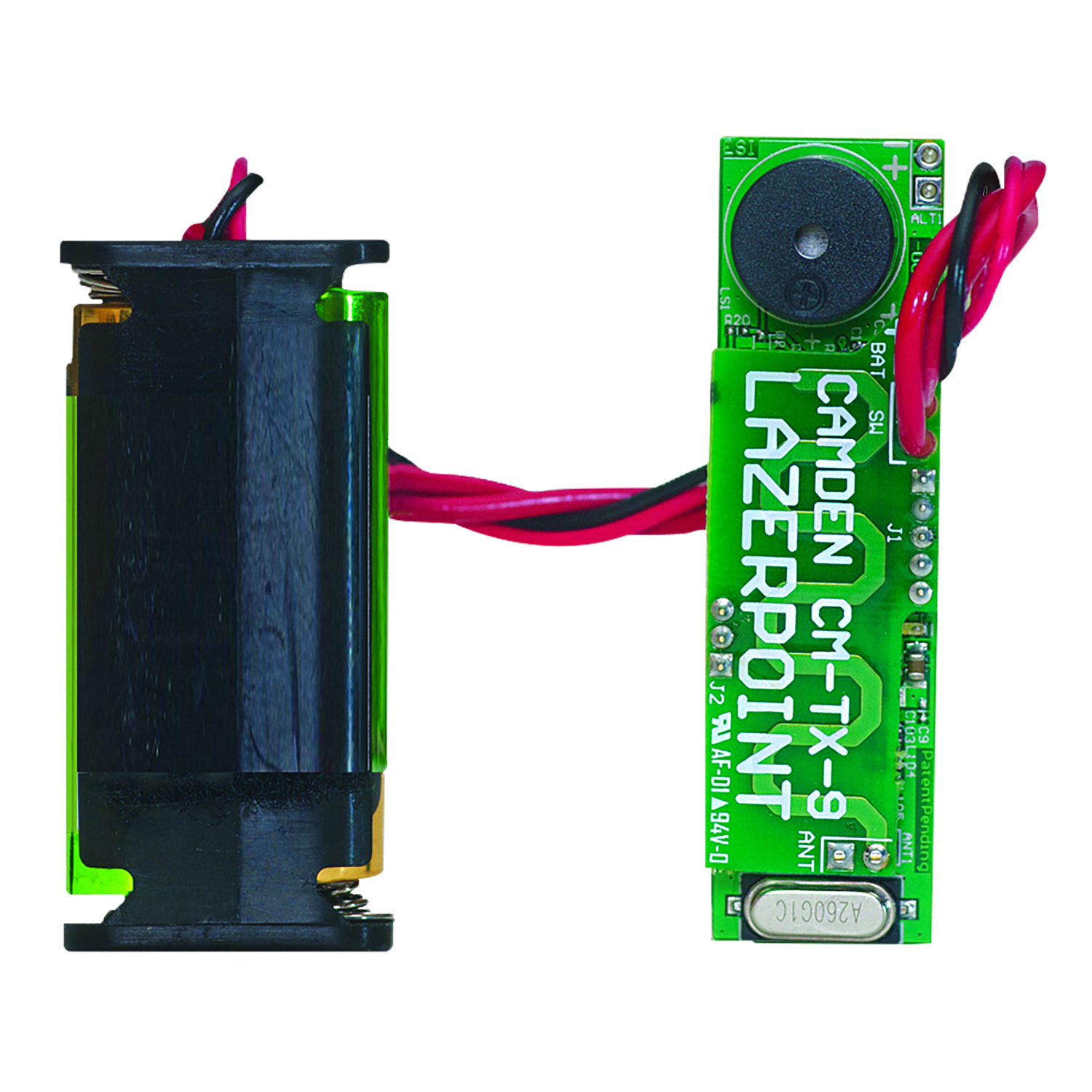

CM-TX-9:
-
Ultra-compact switch transmitter fits anywhere, including jamb box.
-
Multi-year battery life using inexpensive 'AAA' alkaline batteries
-
CM-TX99:
Low-cost plug-in PCB transmitter module to make CM-120 series digital keypad wireless.
Key FOB Transmitters
-
Compact, water-resistant design
-
Raised button Fob specifically designed for use by persons with a disability (ADA compliant)
-
Up to 250ft. range (open air)
Receivers
-
Ultra-compact receiver can be mounted in door operator cabinets.
-
'Push and Learn' transmitter enrollment and signal strength indicator.
-
Supports up to 40 Lazerpoint(tm) transmitters
-
CM-RX-90:
-
Advanced receiver, with 1 relay, features 3 relay modes (delay, non-delay & latching).
-
Lazerpoint(tm) and Kinetic(tm) compatible receiver, field selectable
-
CM-RX-91:
1 Relay with 3 operating modes
-
CM-RX-92:
Two-channel wireless with 2 relay outputs and 6 operating modes
CM-RFL Series Switch Kits
-
A complete wireless door activation kit includes everything you need for a complete installation.
| Wireless Frequency: |
905.25 / 915.25 / 925.25 MHz. Spread Spectrum
|
| Wireless Range: |
|
CM-TX-9,
CM-TX-99:
|
500ft (152m) open area
|
|
CM-TXLF Series:
|
250ft (76m) open area
|
| |
| Receiver Capacity: |
40 CM-TX Series Transmitters
|
| Codes: |
1 Million Unique (20 Bit) Codes
|
| Power/Voltage: |
|
Receivers:
|
12/24 V, AC/DC
|
|
CM-TX-9:
|
(2) AAA alkaline batteries (supplied)
(2) AAA Lithium batteries (option)
|
|
CM-TX-99:
|
Plug-in, power by device
|
|
CM-TXLF Series:
|
CR2032 Lithium battery
|
| |
| Battery Life: |
|
CM-TX-9:
|
500,000 cycles
|
|
CM-TXLF Series:
|
115,000 cycles
|
| |
| Status & Alarm Indicators: |
|
CM-TX-9,
CM-TXLF Series:
|
Transmission confirmation, low battery, battery test & stuck switch
|
|
Receivers:
|
Relay status, signal strength, erase mode & pot position
|
| |
| Output: |
|
CM-RX-90:
|
(1) SPDT relay, 3 modes
|
|
CM-RX-91:
|
(1) SPDT relay, 1 mode
|
|
CM-RX-92:
|
(2) SPDT relays, 6 modes
|
| |
| Contact Rating: |
3 Amps @ 30VDC
|
| Current Draw: |
|
CM-TX-9:
|
2 mA
|
|
CM-RX-90:
|
23mA - 43mA
|
| |
| Time Delay: |
|
CM-RX-90,
CM-RX-91:
|
1-30 seconds
|
|
CM-RX-92:
|
#1 D.O.R. 1-30 sec.
#2 D.O.O. 1-15 sec.
#2 D.O.R. 1-30 sec.
|
| |
| Temp Range: |
Alkaline: 32°F to 122°F (0°C to 50°C)
Lithium: -40°F to 122°F (-40°C to 50°C)
|
Touchless WaveProduct Line Overview
Wireless Door Activation - An Installers Guide
Programming the Lazerpoint™ CM-RX90v2 Single Relay Receiver
|
|
|
Switch Transmitters
click to expand section
|
|
Net Cost
|
|
CM-TX-9
Wall Switch Transmitter
EDI DATA, APPROVALS
|
|
Wall Switch Transmitter
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.16lbs.
UPC:670454161987
|
|

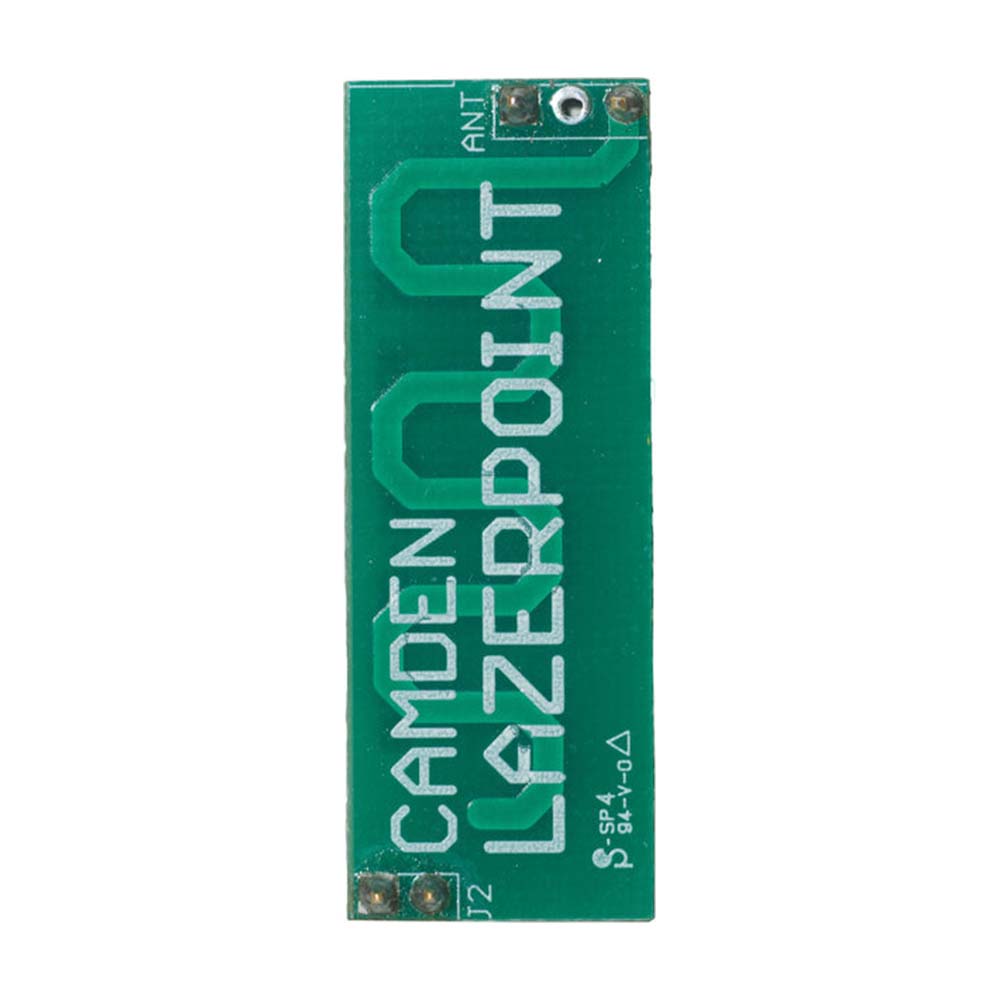

CM-TX-99
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
EDI DATA, APPROVALS
|
|
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454167996
|
|
CM-xxx-L2
Add 'L2' to CM-TX-9 model # for AAA lithium batteries in place of alkaline. Required for outdoor applications below 0C, -32F
EDI DATA, APPROVALS
|
|
Add 'L2' to CM-TX-9 model # for AAA lithium batteries in place of alkaline. Required for outdoor applications below 0C, -32F
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
| |
|
Key FOB Transmitters
click to expand section
|
|
Net Cost
|
|

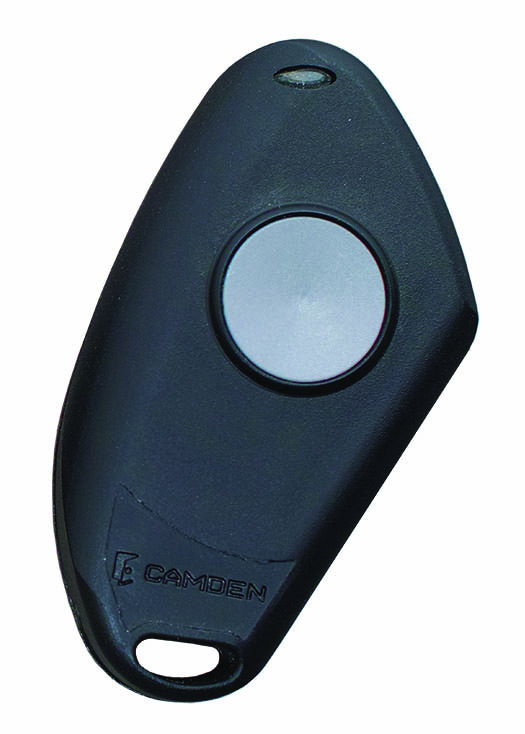

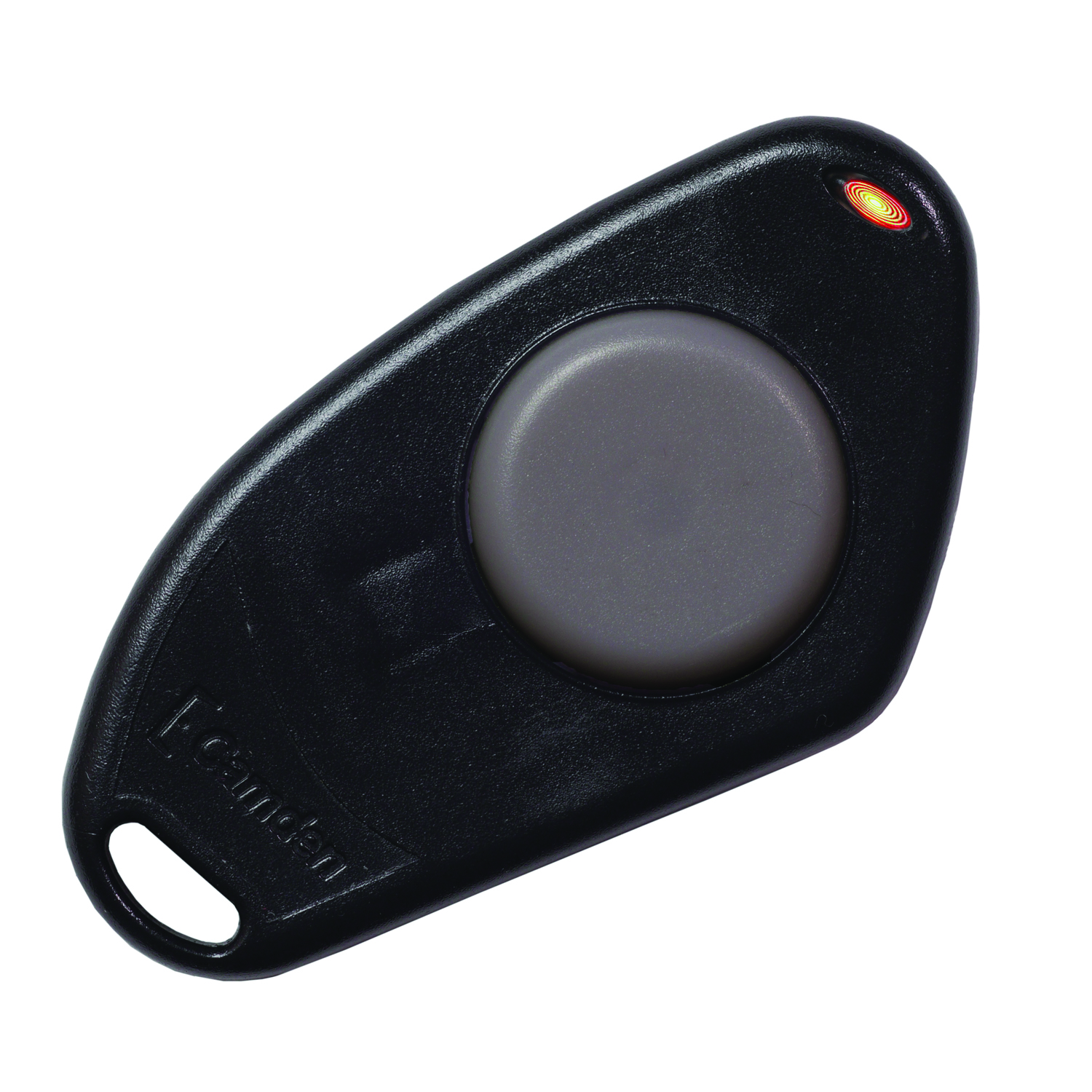

CM-TXLF-1
One button key FOB
EDI DATA, APPROVALS
|
|
One button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172921
|
|

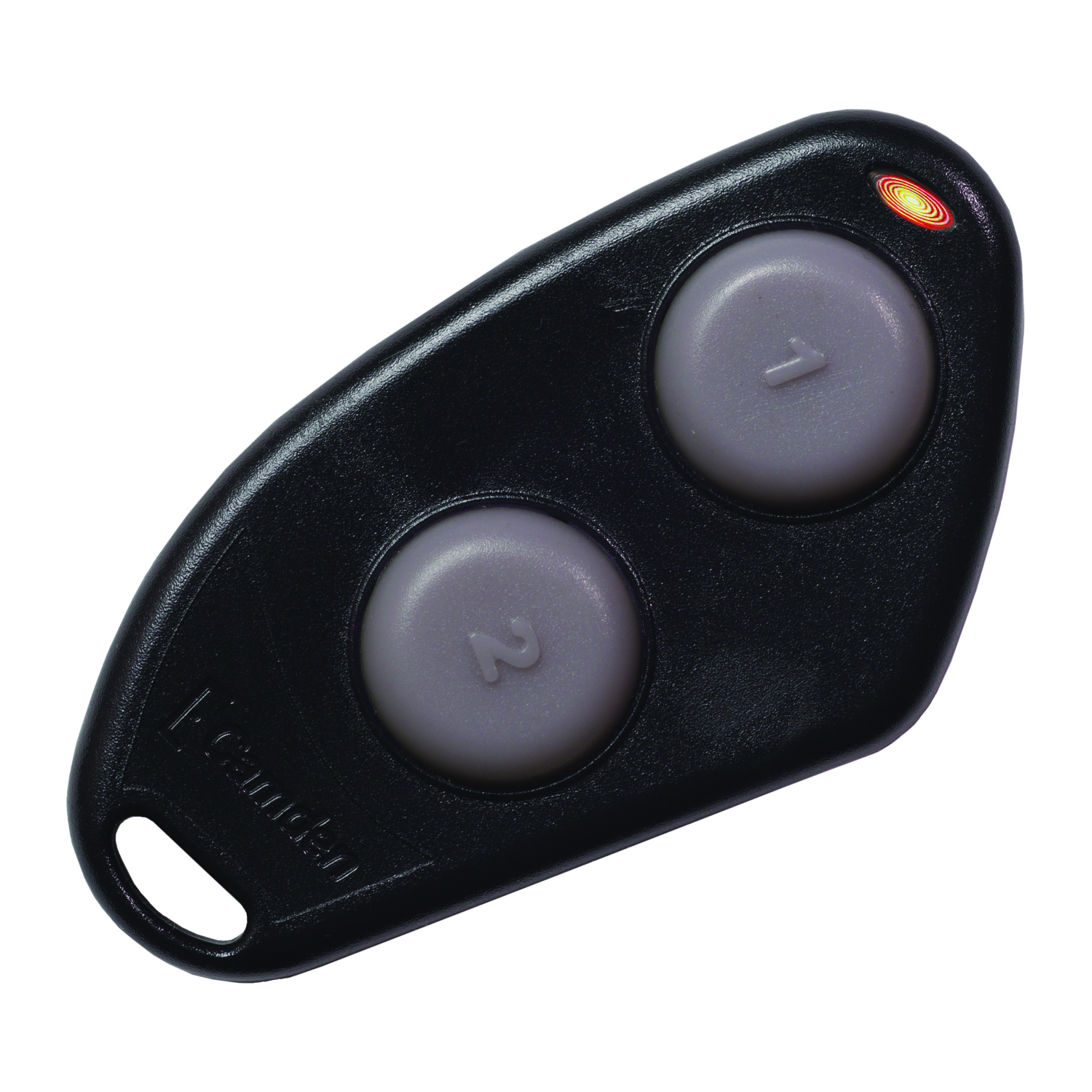

CM-TXLF-2
Two-button key FOB
EDI DATA, APPROVALS
|
|
Two-button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172938
|
|

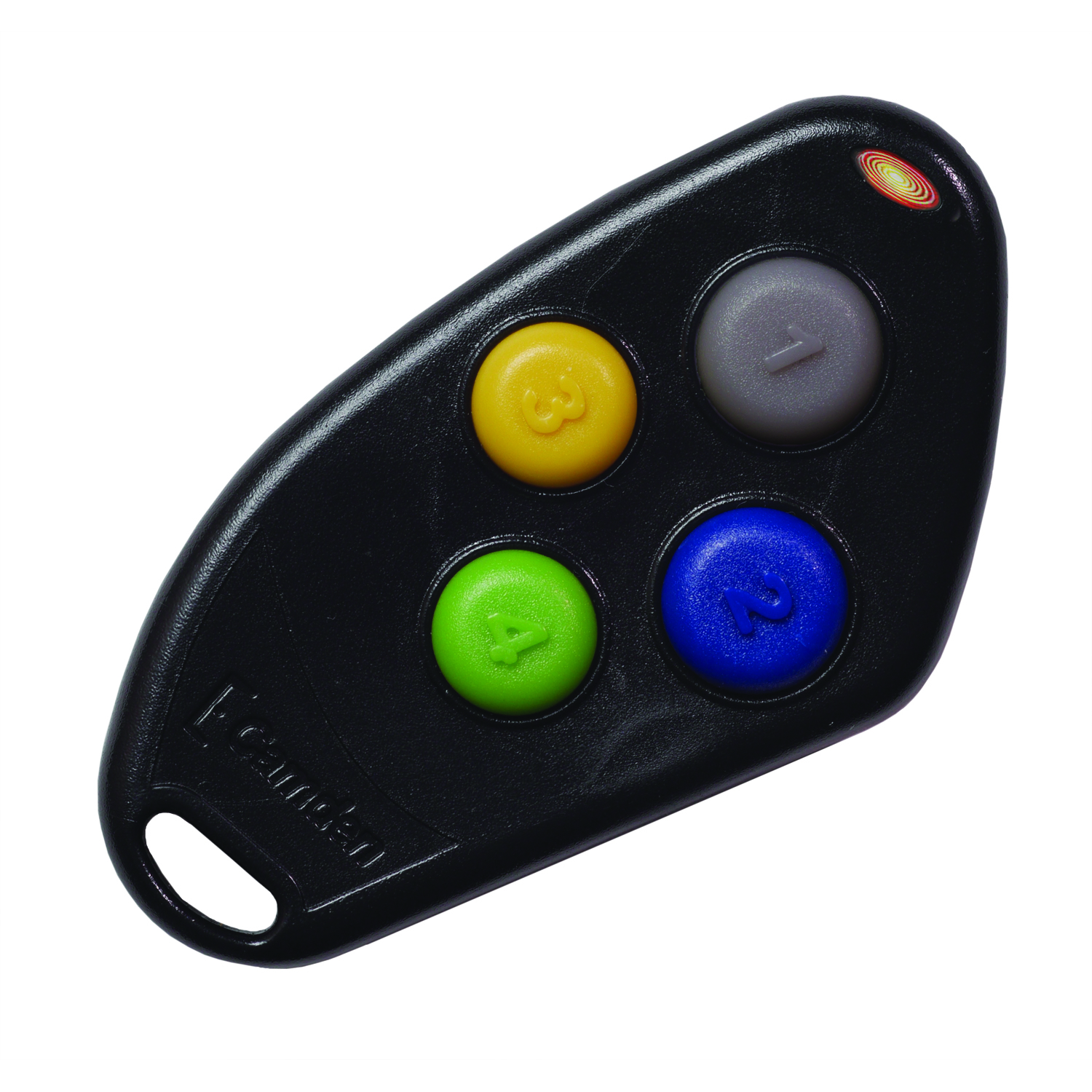

CM-TXLF-4
Four-button key FOB
EDI DATA, APPROVALS
|
|
Four-button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172945
|
|
CM-TXLF-1LP
One button recessed key FOB
EDI DATA, APPROVALS
|
|
One button recessed key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454195258
|
|

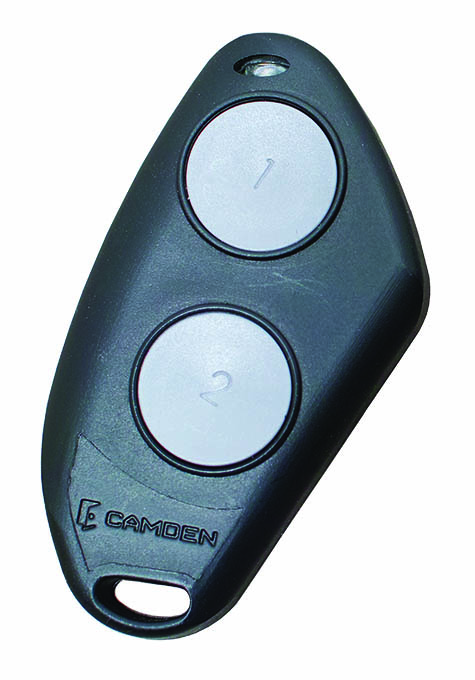

CM-TXLF-2LP
Two button recessed key FOB
EDI DATA, APPROVALS
|
|
Two button recessed key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454195265
|
|

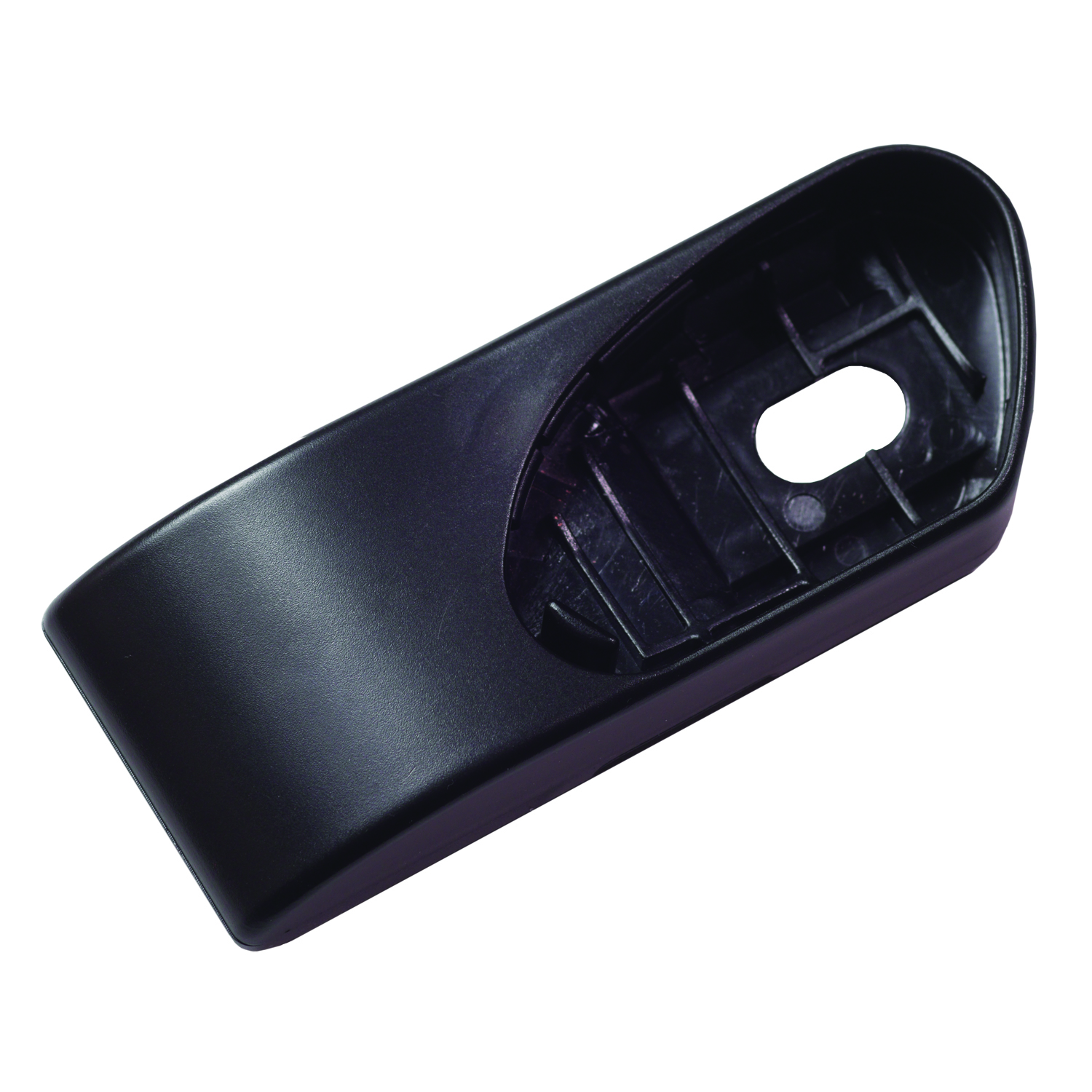

CM-TXLF-B
Key FOB base, for wall, belt/visor or wheelchair mounting
EDI DATA, APPROVALS
|
|
Key FOB base, for wall, belt/visor or wheelchair mounting
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454173218
|
| |
|
Receivers
click to expand section
|
|
Net Cost
|
|

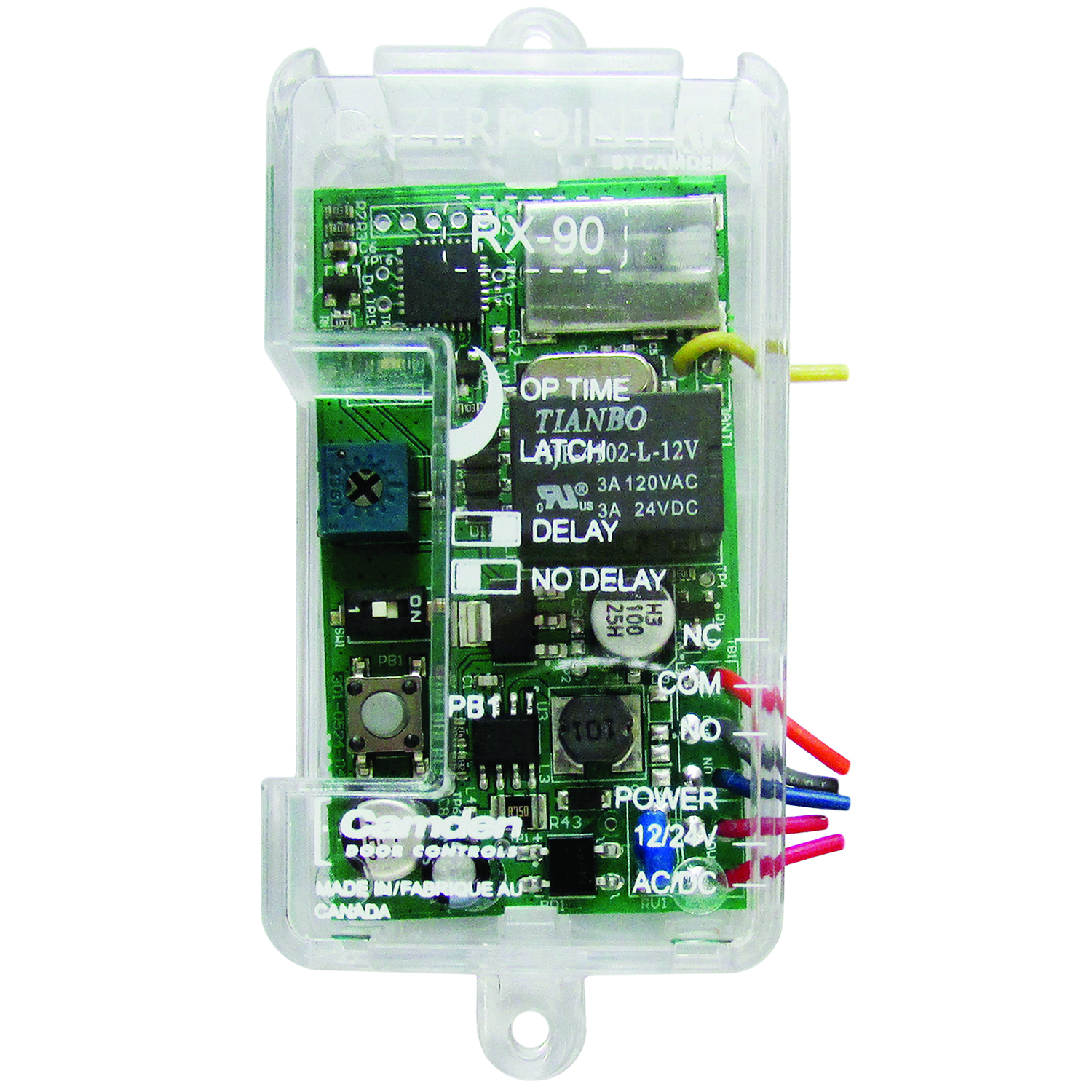

CM-RX-90
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
EDI DATA, APPROVALS
|
|
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.2lbs.
UPC:670454188847
|
|
CM-RX-91
Basic Single Relay Receiver
EDI DATA, APPROVALS
|
|
Basic Single Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.23lbs.
UPC:670454162656
|
|

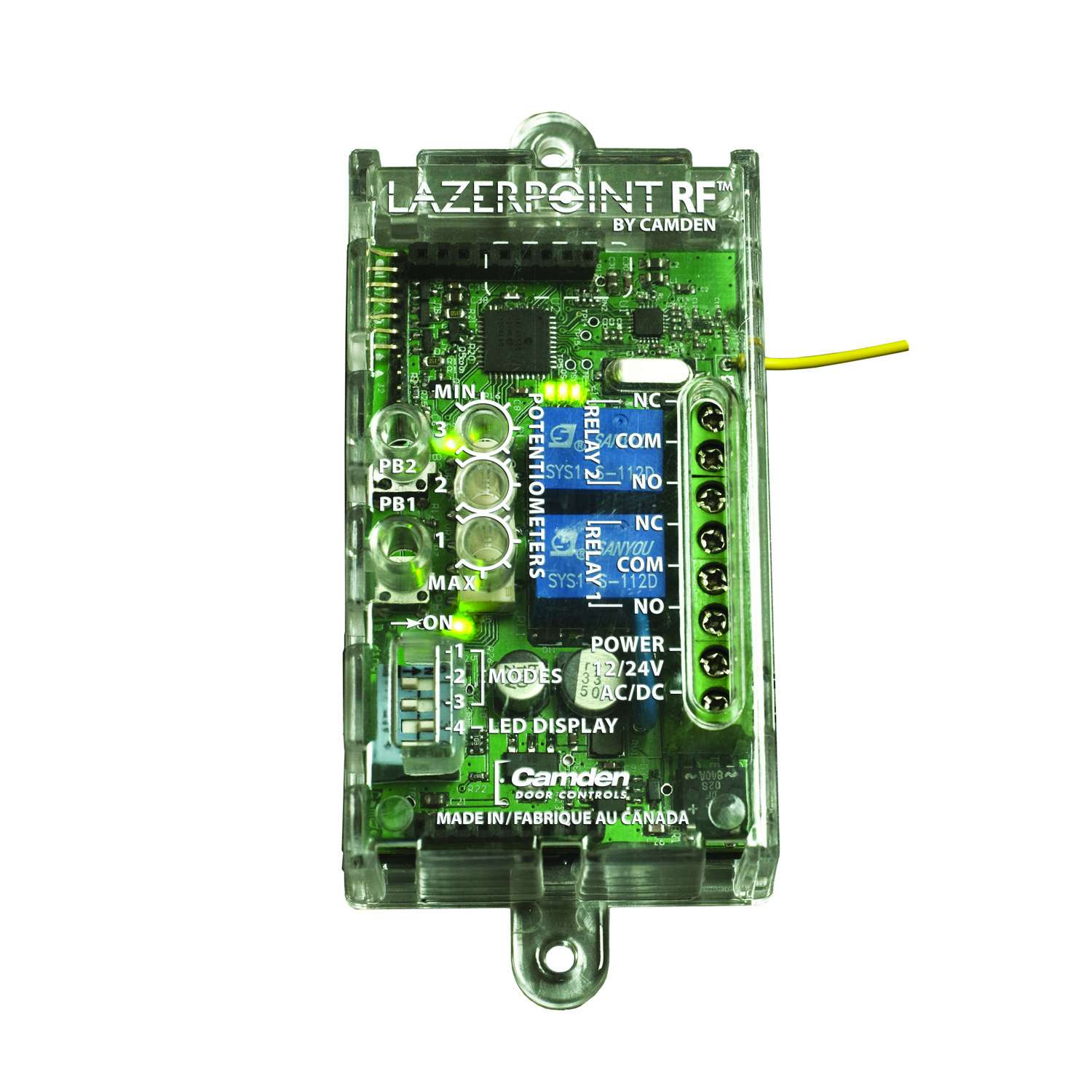

CM-RX-92
Full Function Dual Relay Receiver
EDI DATA, APPROVALS
|
|
Full Function Dual Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.27lbs.
UPC:670454161994
|
| |
|
new option
|
WIRELESS KITS W/ 1 RELAY RECEIVER
|
|
|

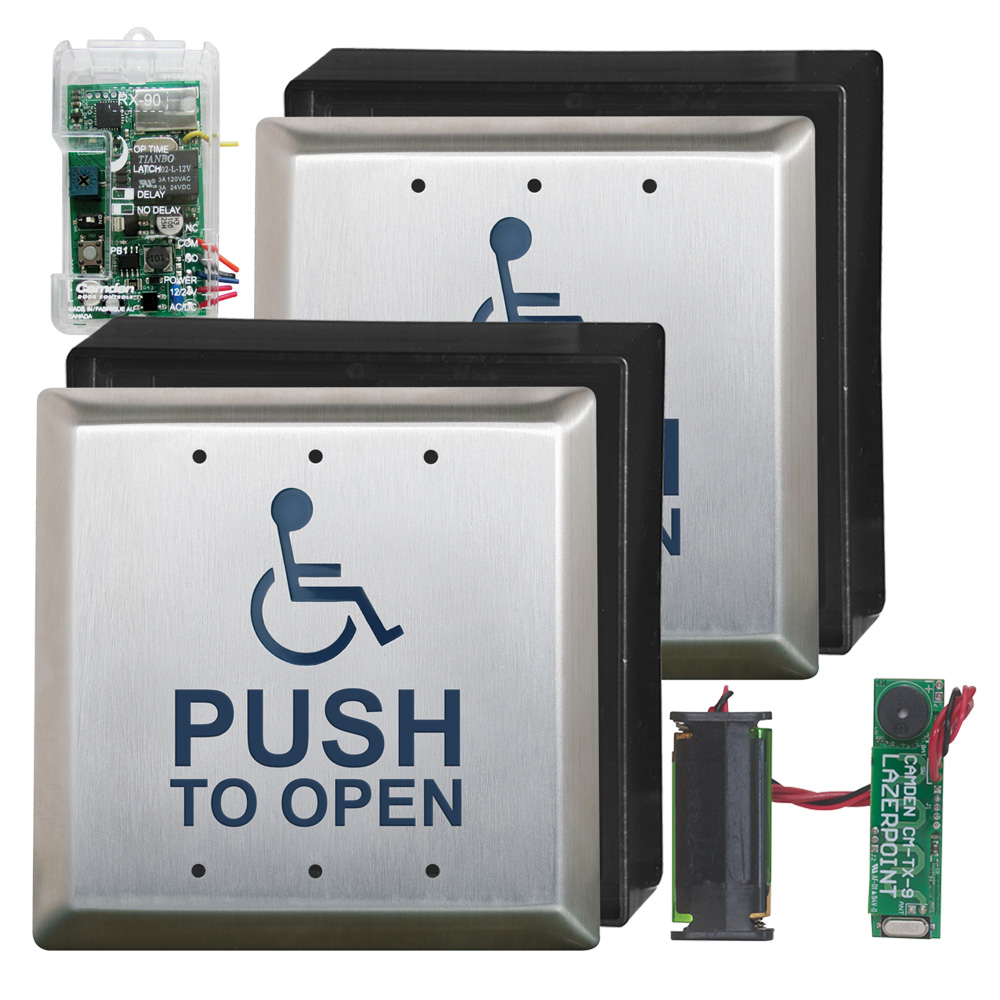

CM-25 Jamb Width Push Plate
click to expand section
|
|
Net Cost
|
|

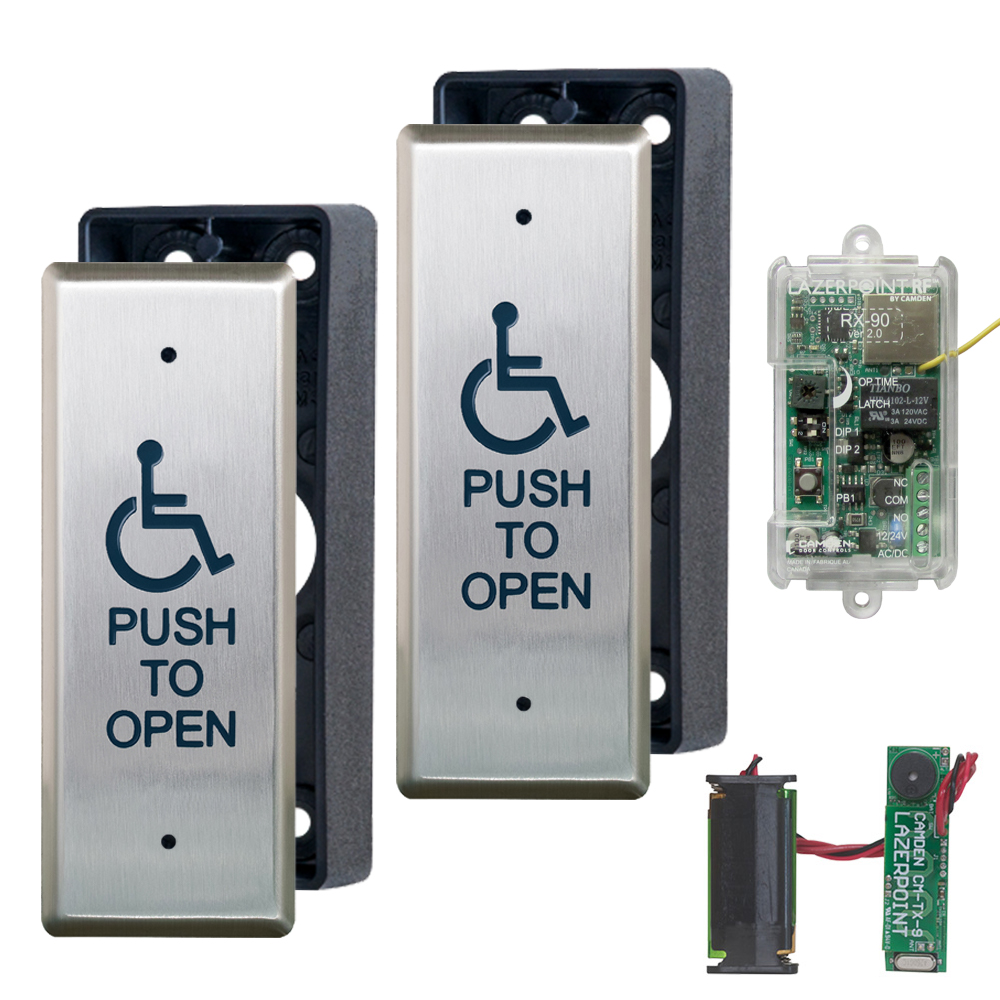

CM-RFL254-A
EDI DATA, APPROVALS
|
|
CM-RFL254-A
(2)
Narrow push plate switch, vertical mounting;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)

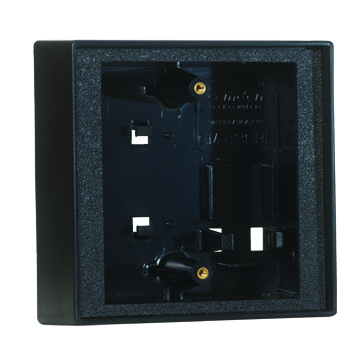

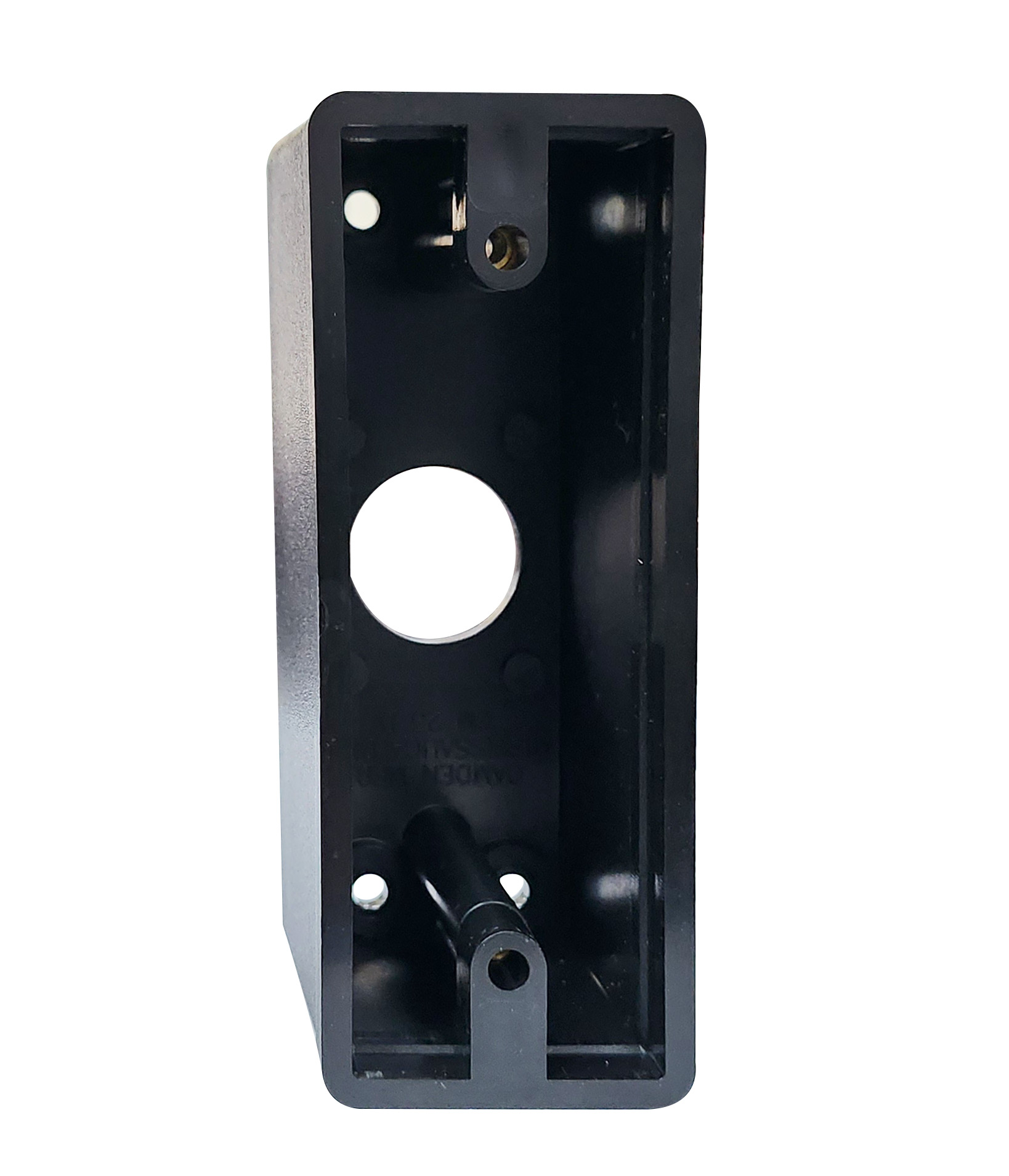

Surface Box, Deep - For wireless.;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 2.1lbs.
|
| |
|

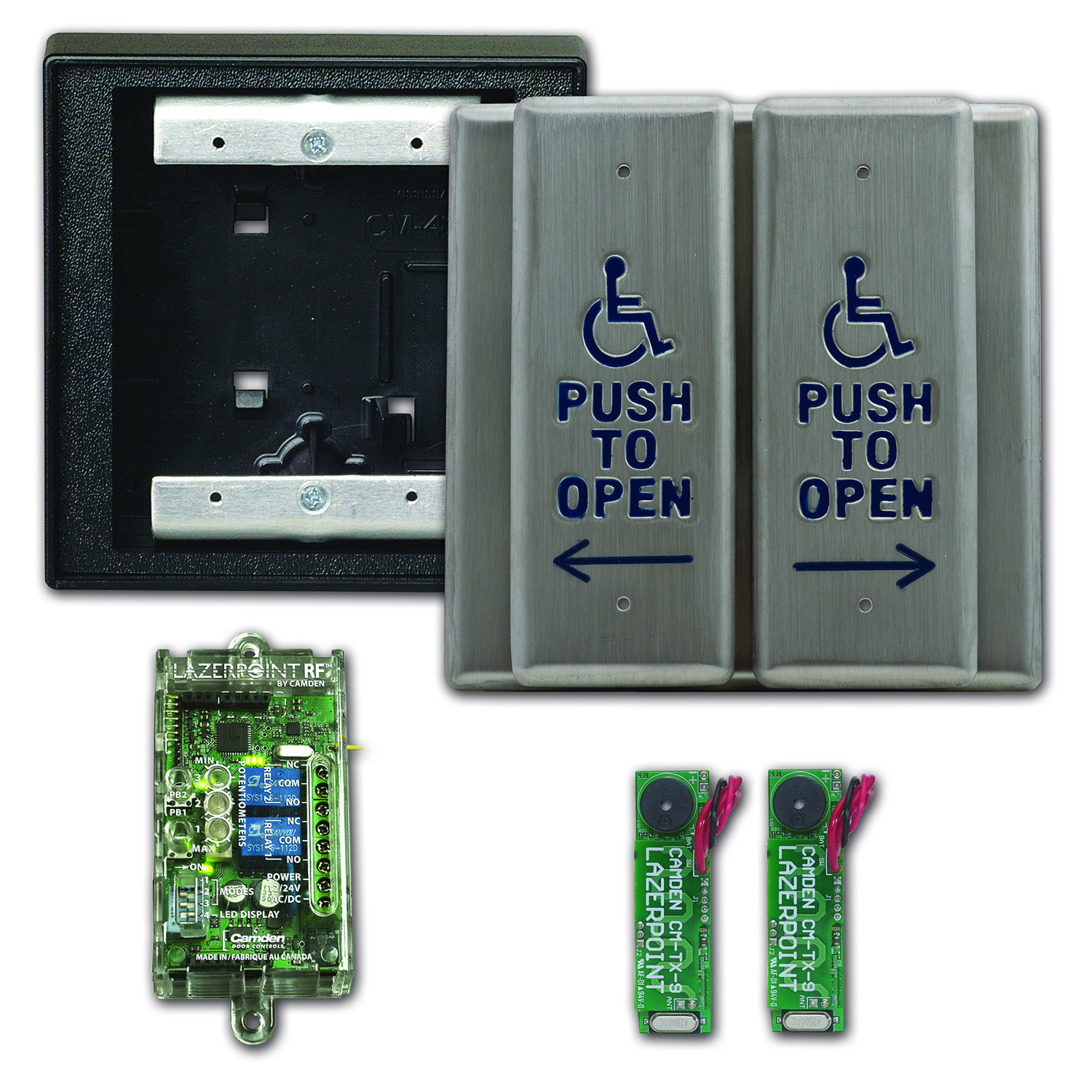

CM-35 Single Gang Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL352-A
EDI DATA, APPROVALS
|
|
CM-RFL352-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' symbol, blue graphic;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 2.1lbs.
UPC:670454210920
|
|
CM-RFL353-A
EDI DATA, APPROVALS
|
|
CM-RFL353-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'PUSH TO OPEN', black graphics;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
|
|
CM-RFL353F-A
EDI DATA, APPROVALS
|
|
CM-RFL353F-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'POUSSEZ POUR OUVRIR', black graphics;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
|
|
CM-RFL354-A
EDI DATA, APPROVALS
|
|
CM-RFL354-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
UPC:670454189455
|
|
CM-RFL354F-A
EDI DATA, APPROVALS
|
|
CM-RFL354F-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR';
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
UPC:670454189400
|
| |
|
CM-26CB Blue Jamb Width Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL26CB4-A
EDI DATA, APPROVALS
|
|
CM-RFL26CB4-A
(2)
Narrow Blue Push Plate Switch, White Graphics, Exposed Screws.;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Deep - For wireless.;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
UPC:670454189417
|
| |
|
CM-40 4 1/2" Round Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL404-47-A
EDI DATA, APPROVALS
|
|
CM-RFL404-47-A
(2)
4-1/2" Round Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface, Round, Standard Depth, provision for wireless. black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.0lbs.
UPC:670454189462
|
| |
|
CM-45 4 1/2" Square (Concealed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL454-LPA
EDI DATA, APPROVALS
|
|
CM-RFL454-LPA
(2)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454189196
|
| |
|

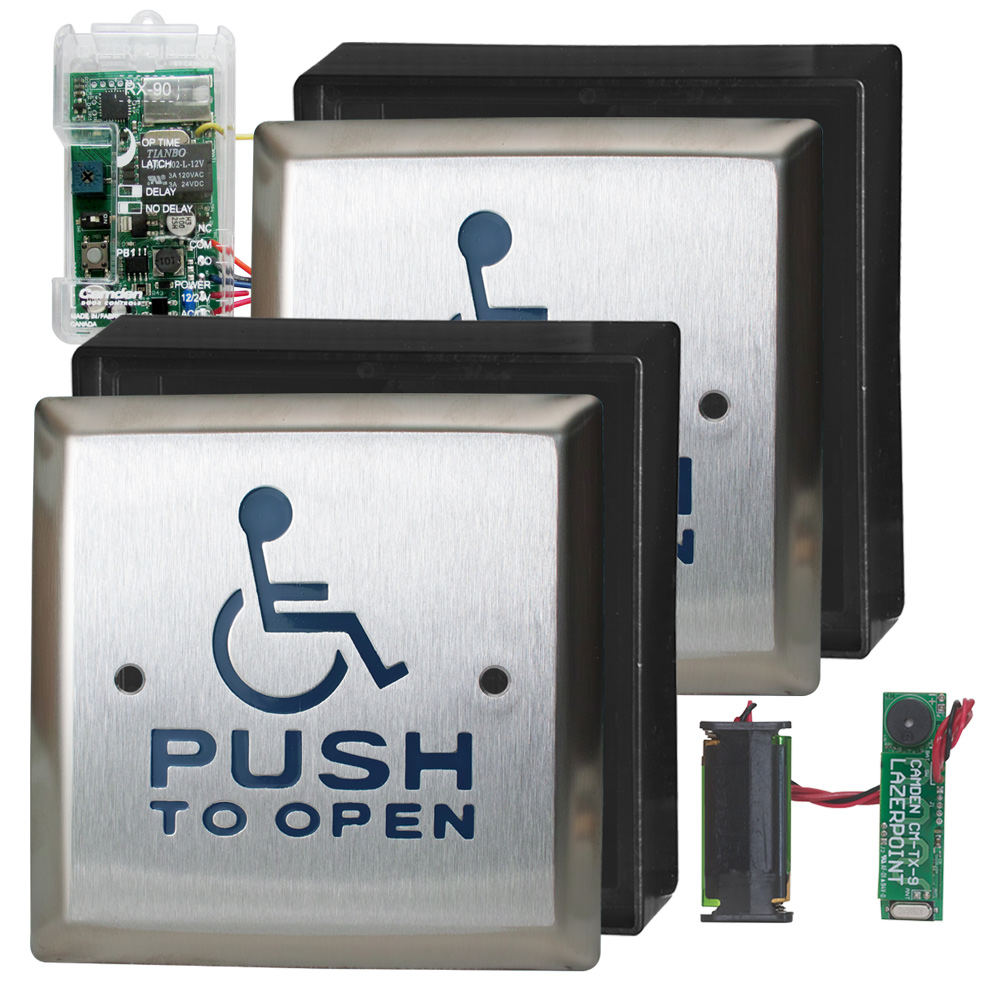

CM-46 4 1/2" Square (Exposed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL464-LPA
EDI DATA, APPROVALS
|
|
CM-RFL464-LPA
(2)
4-1/2" Square Push Plate Switch, Exposed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.2lbs.
UPC:670454189479
|
| |
|
CM-46CB Blue 4 1/2" Square (Exposed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL46CB4-LPA
EDI DATA, APPROVALS
|
|
CM-RFL46CB4-LPA
(2)
4-1/2” Square Blue Push Plate Switch, White Graphics, Exposed Screws.;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454189486
|
| |
|
CM-60 6" Round Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL604-69-A
EDI DATA, APPROVALS
|
|
CM-RFL604-69-A
(2)
6" Round Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface, Round Standard Depth, provision for wireless. black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 3.8lbs.
UPC:670454189493
|
| |
|
WIRELESS KITS W/ 2 RELAY RECEIVER
|
|
|
CM-2520 Vestibule Switch
click to expand section
|
|
Net Cost
|
|
CM-RFL25204-SD
EDI DATA, APPROVALS
|
|
CM-RFL25204-SD
(1)
Double Gang Vestibule Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
Full Function Dual Relay Receiver.
EDI DATA, APPROVALS
| 1x |
|
|
| 1x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454196651
|
| |
|
|
SWITCH KIT OPTIONS
|
|
|
Click to expand section
|
|
|
|
|
| Receivers |
|
Net Cost |
|
|
- B
Replace “A” suffix in kit model number with “B” suffix to order RX-91 receiver in place of RX-90 receiver
|
Replace “A” suffix in kit model number with “B” suffix to order RX-91 receiver in place of RX-90 receiver
|
|
|
|
|
- D
Replace “A” suffix in kit model number with “D” suffix to order RX-92 receiver in place of RX-90 receiver
|
Replace “A” suffix in kit model number with “D” suffix to order RX-92 receiver in place of RX-90 receiver
|
|
|
| Lithium Batteries (Kit) |
|
Net Cost |
|
|
-L3
(4) 'AAA' Lithium Batteries in place of alkaline Add suffix 'L3
|
(4) 'AAA' Lithium Batteries in place of alkaline Add suffix 'L3
|
|
|
| Architectural Finishes |
|
Net Cost |
|
|
-PB
Polished Brass Finish Add suffix 'PB' to any CM-40, 45 or 60 Series RFL Kit
|
Polished Brass Finish Add suffix 'PB' to any CM-40, 45 or 60 Series RFL Kit
|
|
|
|
|
-SB
Satin Brass Finish Add suffix 'SB' to any CM-40, 45 or 60 Series RFL Kit
|
Satin Brass Finish Add suffix 'SB' to any CM-40, 45 or 60 Series RFL Kit
|
|
|
|
|
-AB
Antique Brass Finish Add suffix '-AB to any CM-40, 45 or 60 Series kit
|
Antique Brass Finish Add suffix '-AB to any CM-40, 45 or 60 Series kit
|
|
|
|
|
-OB
Oil Rubbed Bronze Finish Add suffix '-OB to any CM-40, 45 or 60 Series kit
|
Oil Rubbed Bronze Finish Add suffix '-OB to any CM-40, 45 or 60 Series kit
|
|
|
| Water Tight Option |
|
Net Cost |
|
|
WT
(2) water tight switches Add suffix 'WT' to any CM-40, 45, 46 and 60 Series RFL Kit
|
(2) water tight switches Add suffix 'WT' to any CM-40, 45, 46 and 60 Series RFL Kit
|
|
|
| Vestibule Switch Options |
|
Net Cost |
|
|
-LV
Add suffix 'LV' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to to add (1) CM-RFL2520 Kit, with low profile surface box
|
Add suffix 'LV' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to to add (1) CM-RFL2520 Kit, with low profile surface box
|
|
|
|
|
-V
Add suffix 'V' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to add (1) CM-RFL2520 Kit, with std. depth surface box
|
Add suffix 'V' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to add (1) CM-RFL2520 Kit, with std. depth surface box
|
|
|
|
|
|
