20 Series pre load electric strikes offer the highest pre load rating, precision engineered quality and the most adjustability of any strike in the industry. 'Universal' operation include 12/24V AC/DC, selectable fail safe/fail secure, an adjustable keeper and latch monitoring.
|
|
|
20 Series pre load electric strikes offer the highest pre load rating, precision engineered quality and the most adjustability of any strike in the industry. 'Universal' operation include 12/24V AC/DC, selectable fail safe/fail secure, an adjustable keeper and latch monitoring.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
For cylindrical locksets
-
1/2" to 5/8" latch projection (Throw)
-
Pre load feature eliminates binding due to pressue against door latch
-
Standard body model with selection of 4 faceplates
-
Adjustable keeper, standard on all models
-
Latch monitoring, standard on all models
-
Dual voltage
-
Selectable fail safe/fail secure
-
5 year warranty
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
130 mA @ 12 VDC
200 mA @ 12 VAC
70 mA @ 24V AC/DC
|
| Static Strength: |
1,500 Lbs.
|
| Pre-Load (Fail Secure Only): |
20 Lbs.
|
| Endurance: |
500,000 Cycles
|
| Duty: |
Continuous
|
| Operation: |
Initial Buzz then Silent
|
| Latch Monitor: |
Standard
|
| Keeper: |
Adjustable
|
| Dimensions: |
4-1/8"H x 1-3/4"W x 1-1/2"D
(105mm x 44mm x 38mm)
|
|
Cross Reference Guides
|
| Electric Strike Cross Reference Chart_R2 |
pdf |
0.24 |
DOWNLOAD
OPEN
|
| Electric Strike Cross Reference Chart_R2_FR |
pdf |
0.23 |
DOWNLOAD
OPEN
|
| Electric Strike Selection Guide_R4 |
pdf |
6.54 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| Series 20_Spec Sheet R3 |
pdf |
0.65 |
DOWNLOAD
OPEN
|
|
Addendum
|
| CDN Series 20 Addendum 2024 |
pdf |
0.60 |
DOWNLOAD
OPEN
|
| US Series 20 Addendum 2024 |
pdf |
0.60 |
DOWNLOAD
OPEN
|
|
Promotion
|
| PreLoad Strikes_Presentation |
ms-powerpoint |
7.27 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CX-EPD-2000L_Manual_R2 |
pdf |
1.81 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|

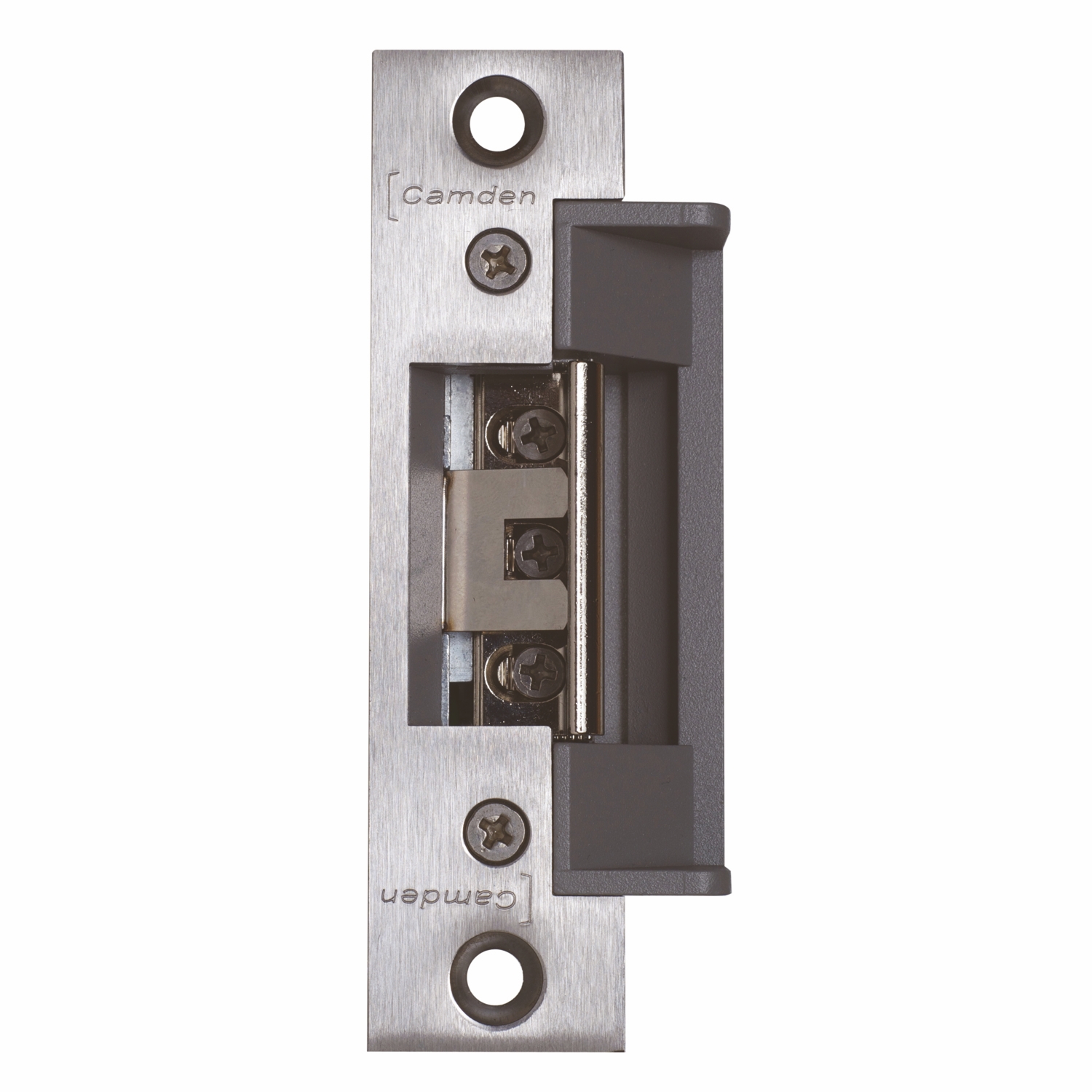

| CX-EPD2000 |
jpeg |
1.49 |
DOWNLOAD
OPEN
|

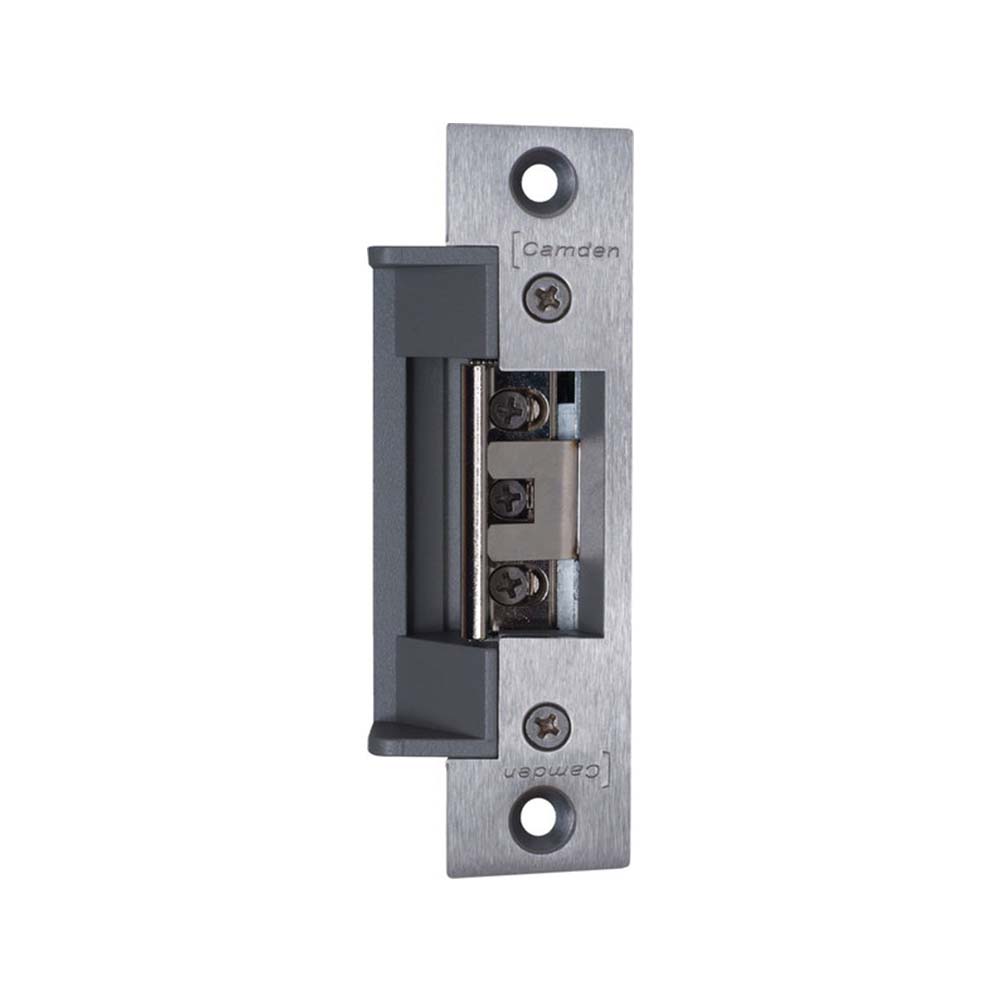

| CX-EPD-2010L |
jpeg |
0.03 |
DOWNLOAD
OPEN
|
|
|
|
Electric Strike Only
 click to expand section
|
|
Net Cost
|
|
|
CX-EPD-2000L
Standard body, No faceplate
EDI DATA, APPROVALS
|
|
Standard body, No faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.15lbs.
UPC:670454166333
|
| |
|
Electric Strike with Faceplate
click to expand section
|
|
Net Cost
|
|
CX-EPD-2010L
ANSI Square, 4-7/8" x 1-1/4"
EDI DATA, APPROVALS
|
|
ANSI Square, 4-7/8" x 1-1/4"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC:670454166845
|
|
|
CX-EPD-2020L
ANSI Round, 4-7/8" x 1-1/4"
EDI DATA, APPROVALS
|
|
ANSI Round, 4-7/8" x 1-1/4"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC:670454169372
|
|
|
CX-EPD-2030L
Hollow Metal Doors, 6-7/8" x 1-1/4"
EDI DATA, APPROVALS
|
|
Hollow Metal Doors, 6-7/8" x 1-1/4"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.35lbs.
UPC:670454167002
|
|
|
CX-EPD-2040L
Wood Door, 7-15/16" x 1-7/16"
EDI DATA, APPROVALS
|
|
Wood Door, 7-15/16" x 1-7/16"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.45lbs.
UPC:670454167323
|
| |
|
Faceplates
click to expand section
|
|
Net Cost
|
|
|
CX-ESP1
ANSI Square, 4 7/8" X 1 1/4"
EDI DATA, APPROVALS
|
|
ANSI Square, 4 7/8" X 1 1/4"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454158789
|
|
|
CX-ESP2
ANSI Round, 4 7/8" X 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
ANSI Round, 4 7/8" X 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454158796
|
|
|
CX-ESP3
Hollow Metal Door, 6 7/8" X 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
Hollow Metal Door, 6 7/8" X 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454158802
|
| |
|
