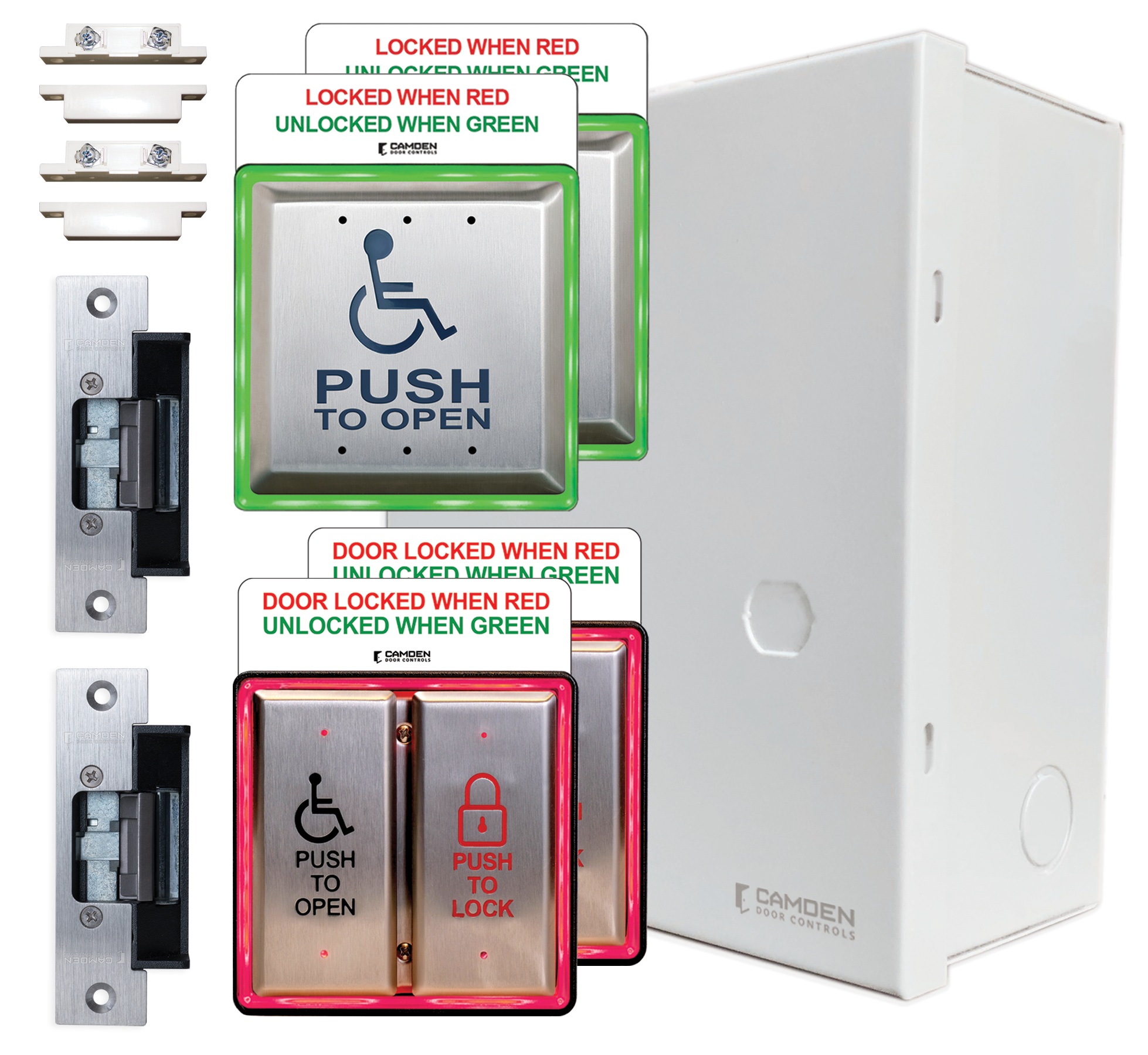

CX-WC Series Barrier Free Restroom Control Kits
Camden offers an industry-leading range of packages designed specifically for the control of automatic doors in restroom applications. These kits feature a number of innovative and exclusive products that are not available elsewhere, including the CM-AF500 single gang annunciator (providing 'OWL' signage that is not legible when unit is not lit) CX-33 advanced logic relay (providing exclusive operation modes for restroom control) and Aura™ illuminated push plate switches (that combine 'OWL' annunciation and door activation in one product).
Barrier Free Restroom Control Kits now include CX-33PS controller and 2 Amp. power supply cabinet and CX-ED2079 electric strikes - providing everything you need with one model number!
|
|
|
| Camden's Barrier-Free Restroom Controls & Emergency Call Systems |
|
|
|
|
|
|
CX-WC Series Barrier Free Restroom Control Kits
Camden offers an industry-leading range of packages designed specifically for the control of automatic doors in restroom applications. These kits feature a number of innovative and exclusive products that are not available elsewhere, including the CM-AF500 single gang annunciator (providing 'OWL' signage that is not legible when unit is not lit) CX-33 advanced logic relay (providing exclusive operation modes for restroom control) and Aura™ illuminated push plate switches (that combine 'OWL' annunciation and door activation in one product).
Barrier Free Restroom Control Kits now include CX-33PS controller and 2 Amp. power supply cabinet and CX-ED2079 electric strikes - providing everything you need with one model number!
|
|
|
|
|
| Camden's Barrier-Free Restroom Controls & Emergency Call Systems |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Complete system solution includes door control relay, door activation push plate switches, annunciation, door contact and electric strike.
-
ADA and OBC/NBC Building Code Compliant
-
3 year product warranty
| Current Draw: |
|
|
RESTROOM CONTROL KITS
(Control, activation and annunciation, not including electrified locking devices)
|
|
CX-WC11:
|
360 mA
|
|
CX-WC13:
|
540 mA
|
|
CX-WC14:
|
830 mA
|
|
CX-WC16:
|
460 mA
|
| |
| CX-MDA |
| Gap: |
15/16" (23mm)
|
| Contacts: |
Form A, Normally Open
|
| Connection: |
Screw Terminals
|
| Contact Ratings: |
0.5A @ 30 VDC
|
| Loop: |
Closed
|
| |
| CX-MDC |
| Gap: |
1" (25mm)
|
| Contacts: |
Form C
|
| Connection: |
Screw Terminals
|
| Contact Ratings: |
0.5A @ 30 VDC
|
| Loop: |
Closed
|
| |
| CX-MDH |
| Gap: |
1-1/16" (27mm)
|
| Contacts: |
Form A, Normally Open
|
| Connection: |
12" (305mm) 2 AWG Leads
|
| Contact Ratings: |
0.5A @ 30 VDC
|
| Loop: |
Closed
|
| |
|
High Resolution Images
|

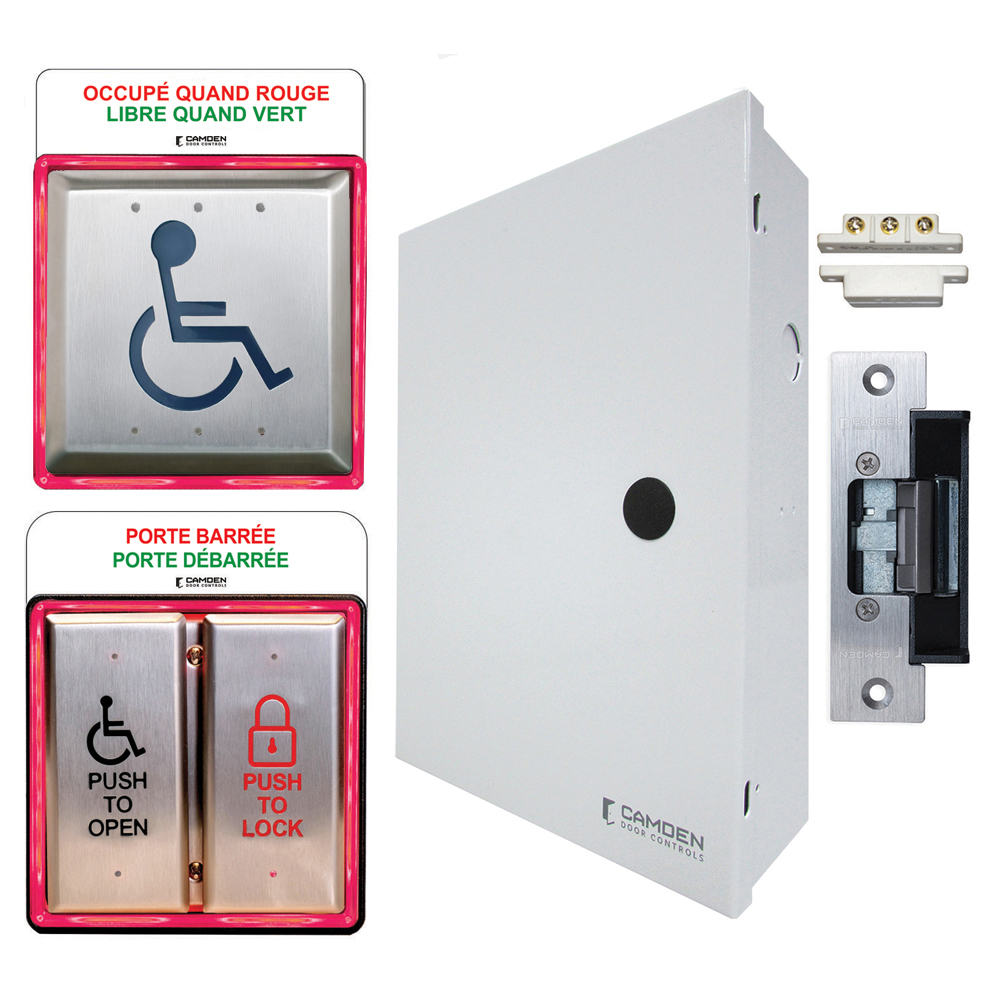

| CX-WC16-PSF |
jpeg |
1.32 |
DOWNLOAD
OPEN
|
| CX-WC11ASM-PS |
jpeg |
2.07 |
DOWNLOAD
OPEN
|
| CX-WC11AFM-PS |
jpeg |
2.03 |
DOWNLOAD
OPEN
|

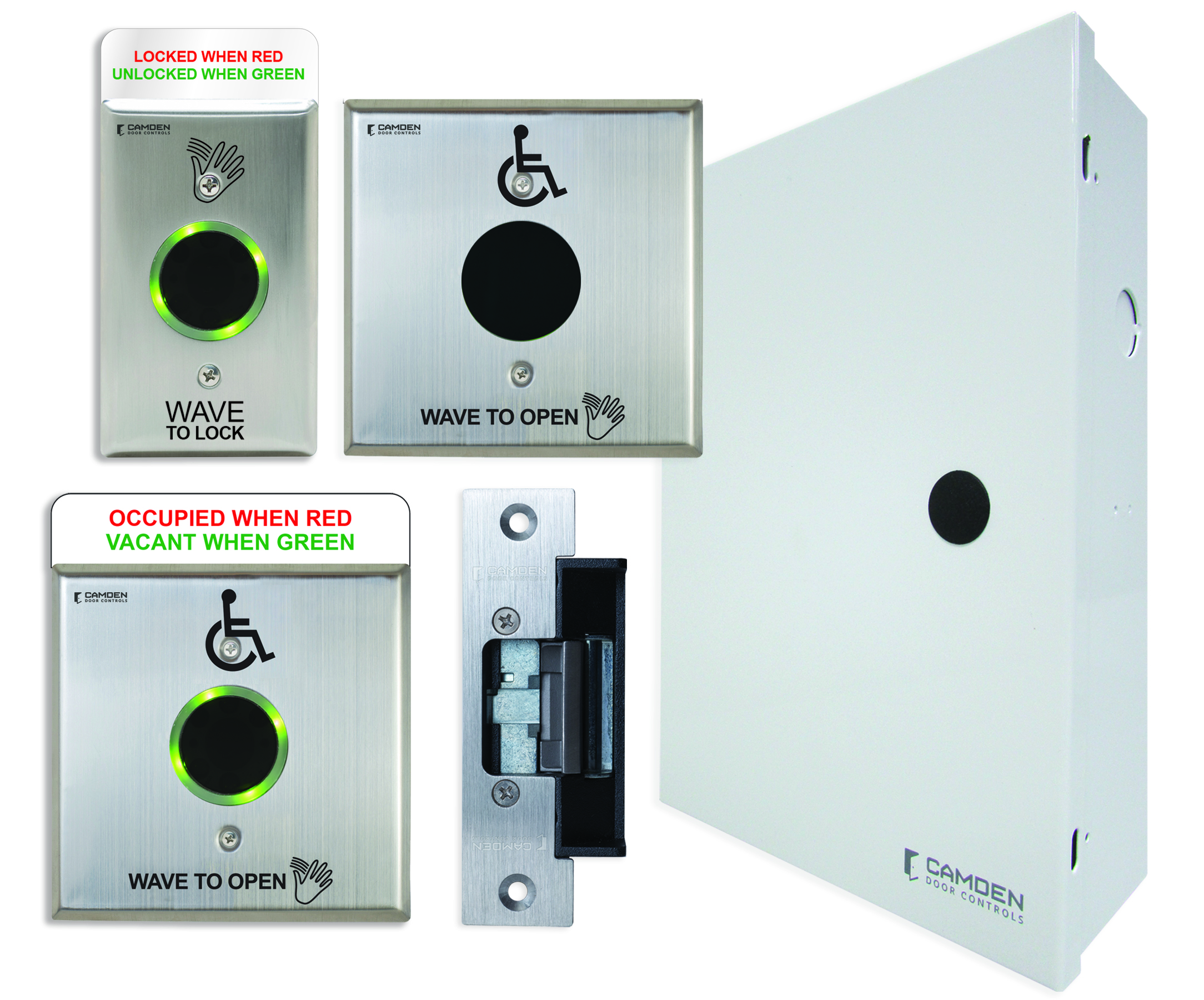

| CX-WC13AXSM-PS |
jpeg |
0.50 |
DOWNLOAD
OPEN
|

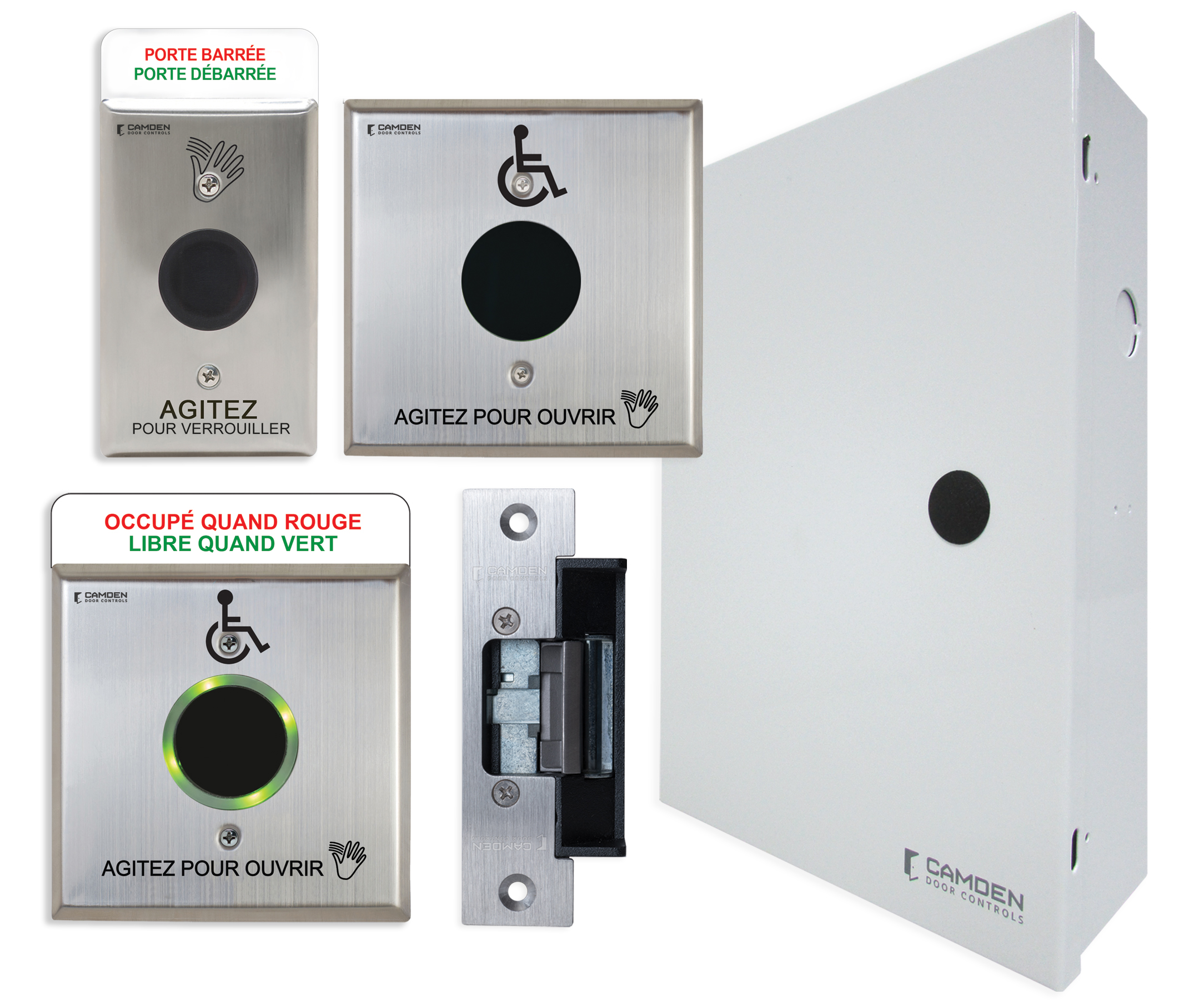

| CX-WC13AXFM-PS |
jpeg |
1.99 |
DOWNLOAD
OPEN
|
| CX-WC14AXSM-PS |
jpeg |
2.46 |
DOWNLOAD
OPEN
|
| CX-WC14AXFM-PS |
jpeg |
2.47 |
DOWNLOAD
OPEN
|
| CX-WC16-PS |
jpeg |
2.32 |
DOWNLOAD
OPEN
|

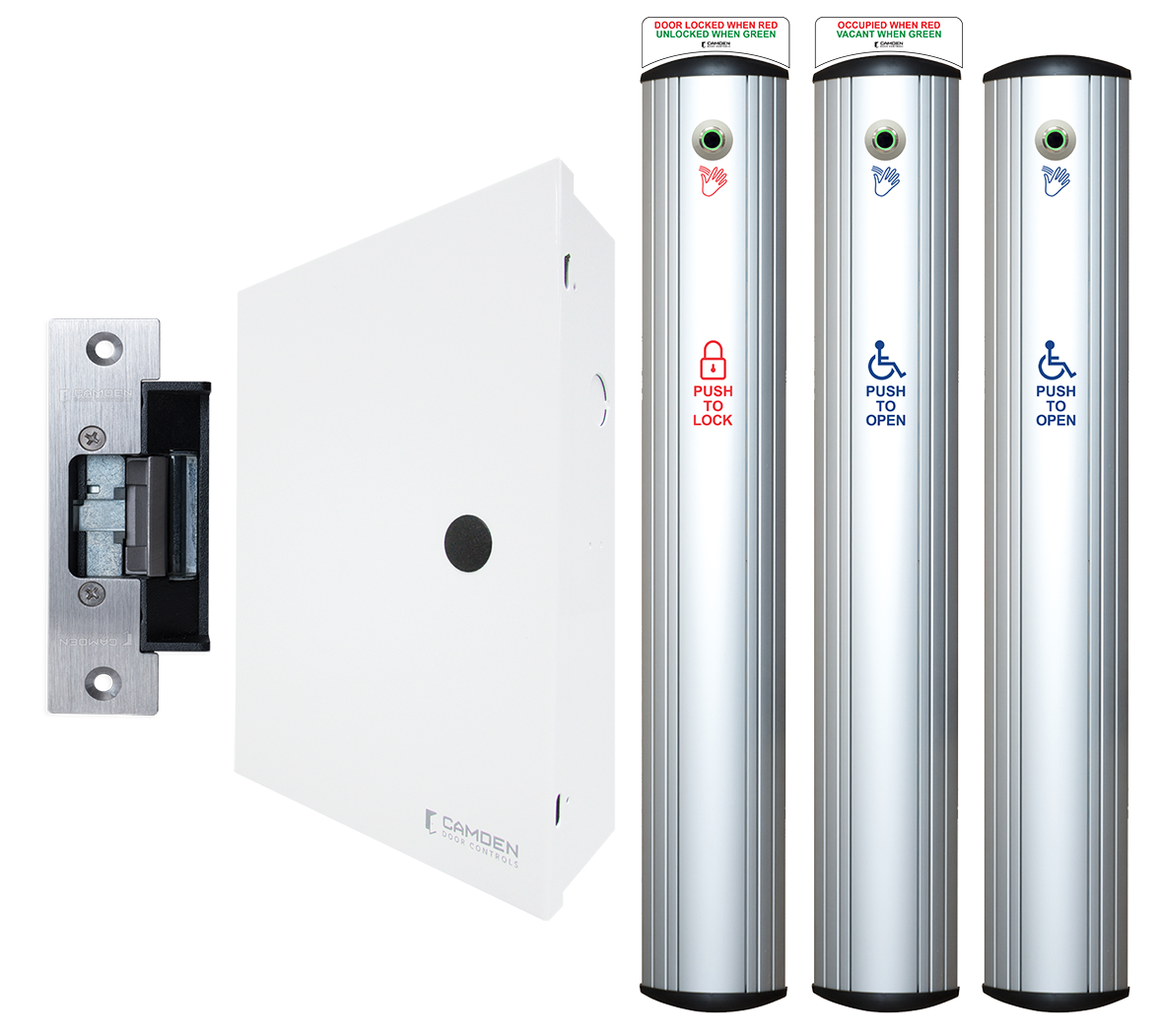

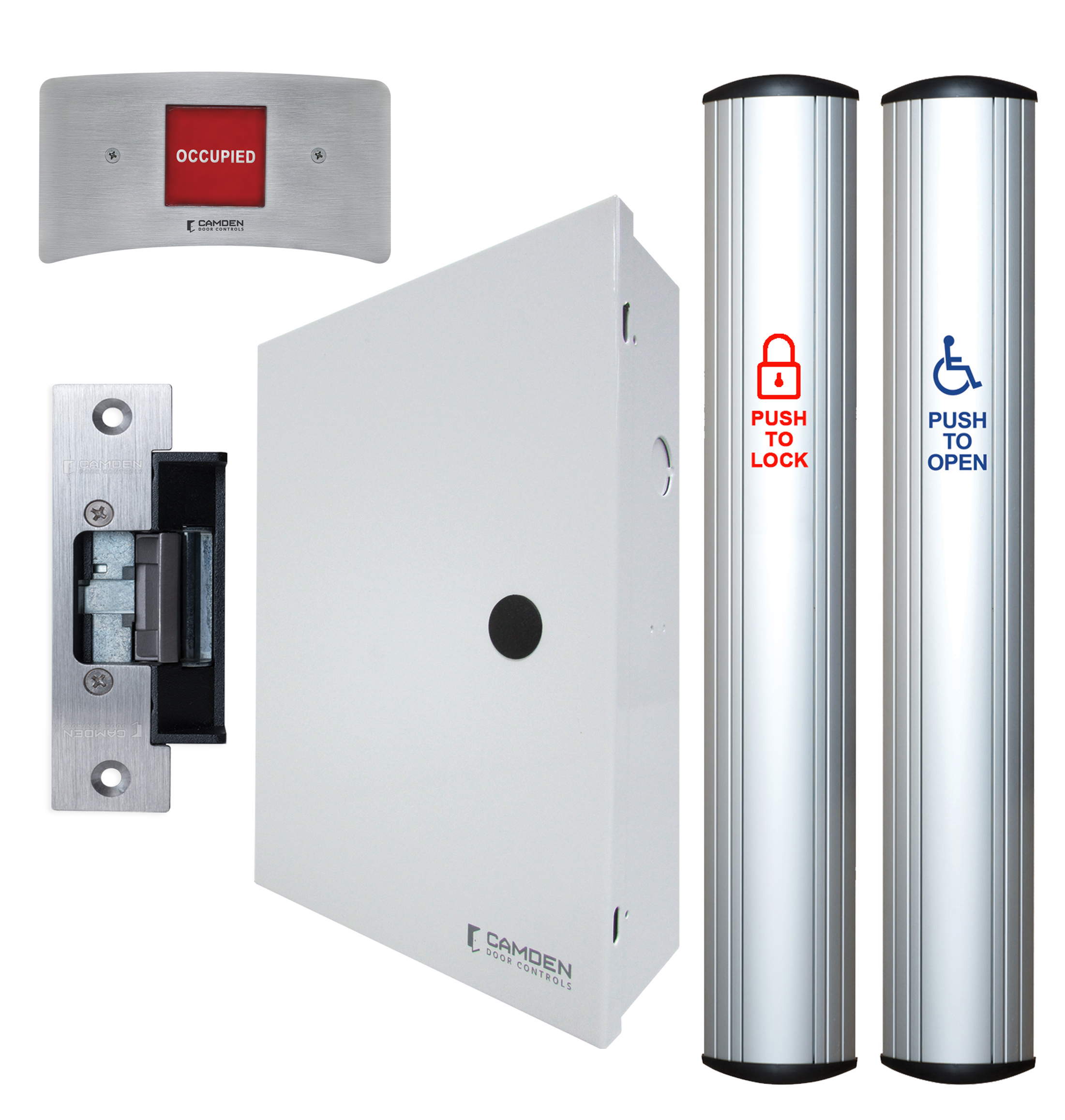

| CX-WC17-PS |
jpeg |
1.00 |
DOWNLOAD
OPEN
|
| CX-WC17VR-PS |
png |
0.95 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CX-MDH Magnetic Contact Installation Instructions |
pdf |
0.25 |
DOWNLOAD
OPEN
|
| CX-MDA_MDC Magnetic Contact Installation Instructions |
pdf |
0.77 |
DOWNLOAD
OPEN
|
| CX-MDH Magnetic Contact Installation Instructions_FR |
pdf |
0.77 |
DOWNLOAD
OPEN
|
| CX-MDA_MDC Magnetic Contact Installation Instructions_FR |
pdf |
0.26 |
DOWNLOAD
OPEN
|
| WC13 Series Restroom Controls Manual_FR (R3) |
pdf |
1.16 |
DOWNLOAD
OPEN
|
| WC13 Series Restroom Controls Manual (R2) |
pdf |
1.19 |
DOWNLOAD
OPEN
|
| WC11PS Restroom Controls Manual_Spread |
pdf |
0.83 |
DOWNLOAD
OPEN
|
| WC11PS Restroom Controls Manual_FR |
pdf |
0.94 |
DOWNLOAD
OPEN
|
| WC11PS Restroom Controls Manual |
pdf |
0.84 |
DOWNLOAD
OPEN
|
| WC13PS Restroom Controls Manual (V2) |
pdf |
0.93 |
DOWNLOAD
OPEN
|
| WC13PS Restroom Controls Manual_FR |
pdf |
1.03 |
DOWNLOAD
OPEN
|
| WC14PS Restroom Controls Manual (V2) |
pdf |
0.94 |
DOWNLOAD
OPEN
|
| WC14PS Restroom Controls Manual (V2)_FR |
pdf |
0.98 |
DOWNLOAD
OPEN
|
| WC16PS Restroom Controls Manual (V2) |
pdf |
0.96 |
DOWNLOAD
OPEN
|
| WC16PS Restroom Controls Manual_FR |
pdf |
1.04 |
DOWNLOAD
OPEN
|
| WC17PS Restroom Controls Manual_FR |
pdf |
0.89 |
DOWNLOAD
OPEN
|
| WC17PS Restroom Controls Manual |
pdf |
0.85 |
DOWNLOAD
OPEN
|
| WC17VR-PS Restroom Control Manual_FR |
pdf |
1.15 |
DOWNLOAD
OPEN
|
| WC17VR-PS Restroom Controls Manual |
pdf |
1.05 |
DOWNLOAD
OPEN
|
|
Application Guides
|
| 3.1.2.1.B Restroom Control_1 Door Restroom_Manual_Wireless |
pdf |
1.13 |
DOWNLOAD
OPEN
|
| 3.1.1.1 Single Door Restroom System: Wired, with Illuminated Activation Switches |
pdf |
1.04 |
DOWNLOAD
OPEN
|
| 3.1.1.1 Single Door Restroom System_Wired Illuminated Activation Switches_Spanish |
pdf |
1.08 |
DOWNLOAD
OPEN
|
| 3.1.1.1 Single Door Restroom System_Wired Illuminated Activation Switches_FR |
pdf |
1.03 |
DOWNLOAD
OPEN
|
| 2.1.3.1.B Access Control (Security)_Remote Door Release_Wired_Ref 2131B |
pdf |
1.44 |
DOWNLOAD
OPEN
|
|
Spec Sheets
|
| CX-WC Series Restroom Control_FR |
pdf |
2.68 |
DOWNLOAD
OPEN
|
| CX-WC Series Restroom Control Spec Sheet R4 |
pdf |
2.75 |
DOWNLOAD
OPEN
|
|
Cross Reference Guides
|
| Restroom Control_Design Guide_R8 |
pdf |
2.19 |
DOWNLOAD
OPEN
|
| Emergency Call_Design Guide_R5 |
pdf |
1.15 |
DOWNLOAD
OPEN
|
| OBC Compliant Push Plate Switches_Design Guide |
pdf |
0.90 |
DOWNLOAD
OPEN
|
Restroom (Privacy) Control Systems
Barrier-Free Restroom Controls & Emergency Call Systems
Camden Restroom Control & EM Call Systems - Espáñol
|
|
|
Barrier Free Components - Controllers
 click to expand section
|
|
Net Cost
|
|
CX-33PS
Advanced Logic Control Relay & Power Supply Cabinet
EDI DATA, APPROVALS
|
|
Advanced Logic Control Relay & Power Supply Cabinet
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 6"H
Weight: 6.45lbs.
UPC:670454202123
Country of Origin:Canada
|
|
CX-EMF-2
Multi-Function Relay Controller
EDI DATA, APPROVALS
|
|
Multi-Function Relay Controller
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 7"W x 2"H
Weight: lbs.
UPC:670454161314
|
| |
|
Barrier Free Components - Activation Devices
click to expand section
|
|
Net Cost
|
|
CM-45/4
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.25"L x 6.25"W x 6.25"H
Weight: 0.85lbs.
UPC:670454126658
|
|
CM-45/8B
4-1/2" Push Plate Switch, 'Push to Lock' Icon and text
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, 'Push to Lock' Icon and text
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.25"L x 6.25"W x 6.25"H
Weight: 0.85lbs.
UPC:670454198037
|
|
CM-2520/48
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock'
EDI DATA, APPROVALS
|
|
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock'
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 5.75"W x 3.25"H
Weight: lbs.
UPC:670454192578
|
|
CM-400R/8
1-5/8" Mushroom Push Button, 'Push to Lock' text
EDI DATA, APPROVALS
|
|
1-5/8" Mushroom Push Button, 'Push to Lock' text
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: lbs.
UPC:670454125187
|
| |
|
Barrier Free Components - Annunciation
click to expand section
|
|
Net Cost
|
|
CM-AF500
Single Gang LED 'Occupied When Lit' Indicator
EDI DATA, APPROVALS
|
|
Single Gang LED 'Occupied When Lit' Indicator
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 2.75"W x 2.50"H
Weight: lbs.
UPC:670454168726
|
| |
|
Barrier Free Components - Combined Activation & Annunciation
click to expand section
|
|
Net Cost
|
|
CM-AF550R

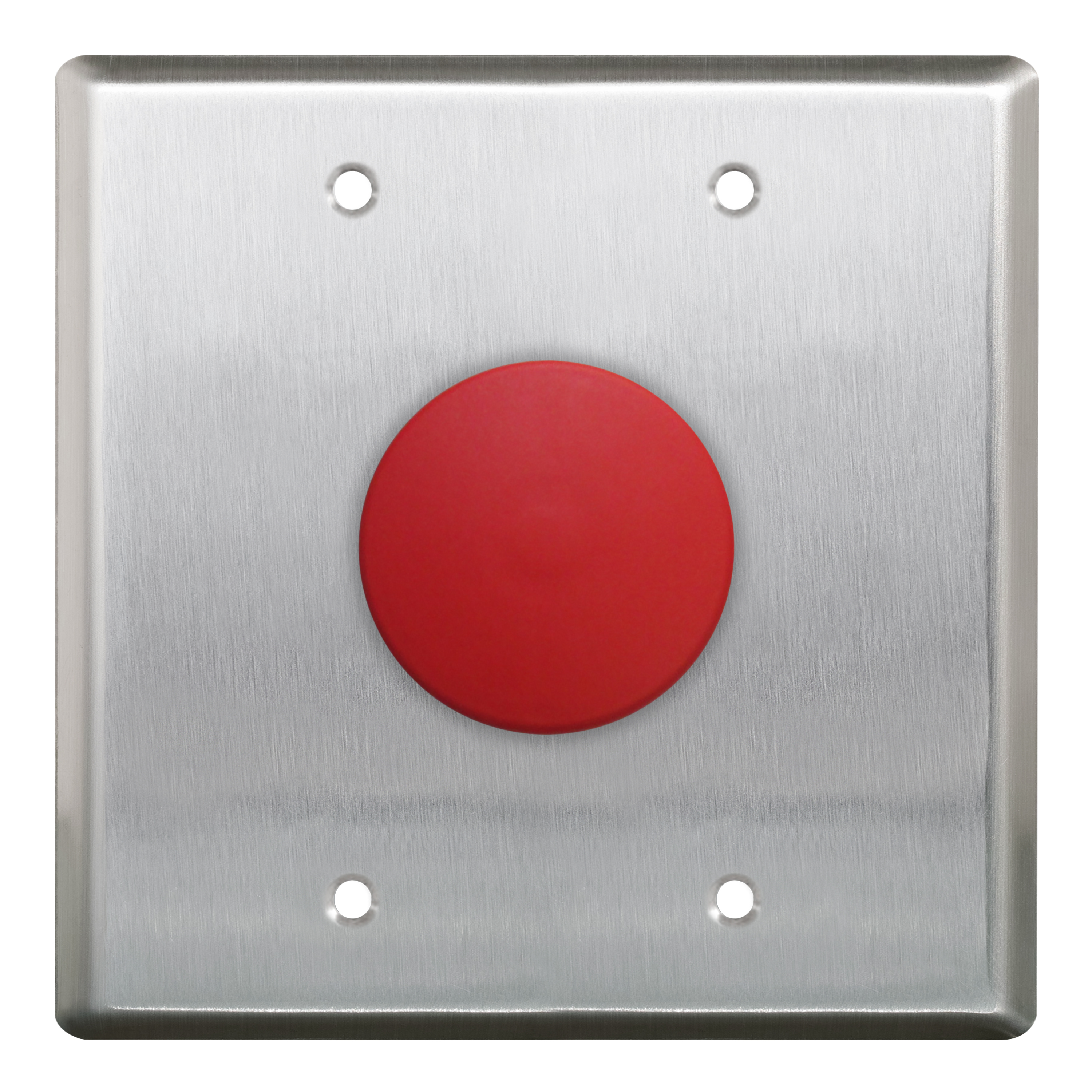

Double Gang Mushroom 'Push to Lock' & LED Annunciator
EDI DATA, APPROVALS
|
|
Double Gang Mushroom 'Push to Lock' & LED Annunciator
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: lbs.
UPC:670454187949
Country of Origin:Canada
|
|
CM-45/455SE1
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.25"L x 6.25"W x 6.25"H
Weight: lbs.
UPC:670454187475
|
|
CM-45/454SE1
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.25"L x 6.25"W x 6.25"H
Weight: lbs.
UPC:670454187529
|
|
CM-45/8B55SE1
4-1/2" Push Plate Switch, Icon & Push to Lock, with Flush AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, Icon & Push to Lock, with Flush AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 6"W x 4"H
Weight: lbs.
UPC:670454201980
|
|
CM-45/8B54SE1
4-1/2" Push Plate Switch, Icon & Push to Lock, with Surface AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
4-1/2" Push Plate Switch, Icon & Push to Lock, with Surface AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 6"W x 4"H
Weight: lbs.
UPC:670454199980
|
|
CM-2520/4855SE1
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 5.75"W x 3.25"H
Weight: lbs.
UPC:670454192547
Country of Origin:Canada
|
|
CM-2520/4854SE1
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign
EDI DATA, APPROVALS
|
|
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 5.75"W x 3.25"H
Weight: lbs.
UPC:670454192554
Country of Origin:Canada
|
| |
|
Magnetic Contacts
click to expand section
|
|
Net Cost
|
|
CX-MDA
Magnetic contact, surface, SPST, white 15/16" (23mm) gap
EDI DATA, APPROVALS
|
|
Magnetic contact, surface, SPST, white 15/16" (23mm) gap
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 3"W x 0.5"H
Weight: lbs.
UPC:670454184405
Country of Origin:USA
|
|
CX-MDC
Magnetic contact, surface, SPDT, white 1" (25mm) gap
EDI DATA, APPROVALS
|
|
Magnetic contact, surface, SPDT, white 1" (25mm) gap
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 3"W x 0.5"H
Weight: lbs.
UPC:670454151308
Country of Origin:USA
|
|
CX-MDH
Magnetic contact, recessed, SPST, white 1-1/16" (27mm) gap
EDI DATA, APPROVALS
|
|
Magnetic contact, recessed, SPST, white 1-1/16" (27mm) gap
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 3"W x 0.5"H
Weight: lbs.
UPC:670454184696
Country of Origin:USA
|
| |
|
new option
|
ALL RESTROOM CONTROL KITS
|
|
|
|
|
FEATURED RESTROOM CONTROL KITS
|
|
|
|
|
Basic Control Kits
click to expand section
|
|
Net Cost
|
|

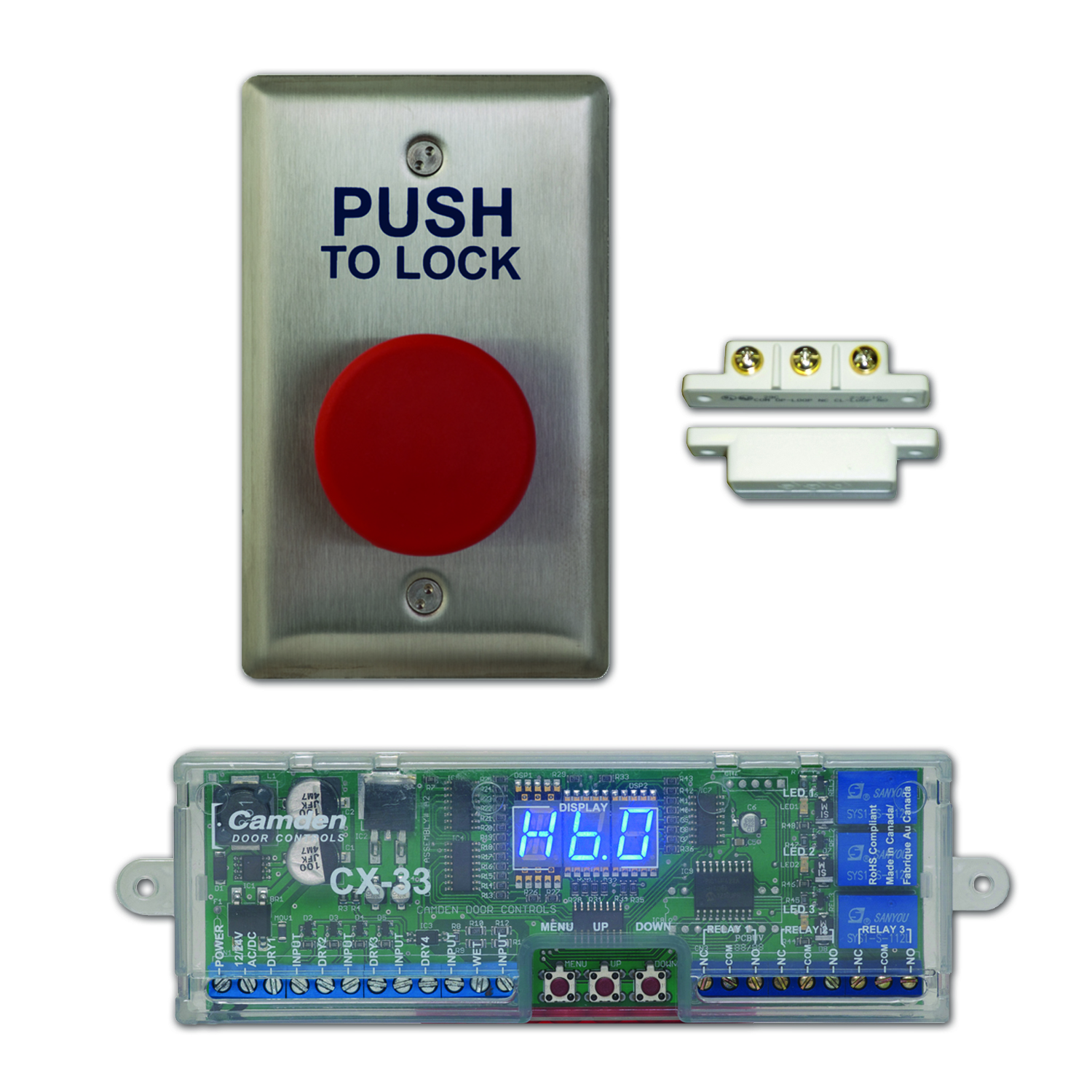

CX-WC10
Basic Pushbutton System Add suffix 'F' to model number for French language
EDI DATA, APPROVALS
|
|
CX-WC10
Basic Pushbutton System
(1)
Advanced Logic Relay;
(1)
Single Gang, N/O contacts;
Red button;
'PUSH TO LOCK', black text;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
|
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.25"L x 7.25"W x 5.5"H
Weight: 2.35lbs.
UPC:670454171009
|
|

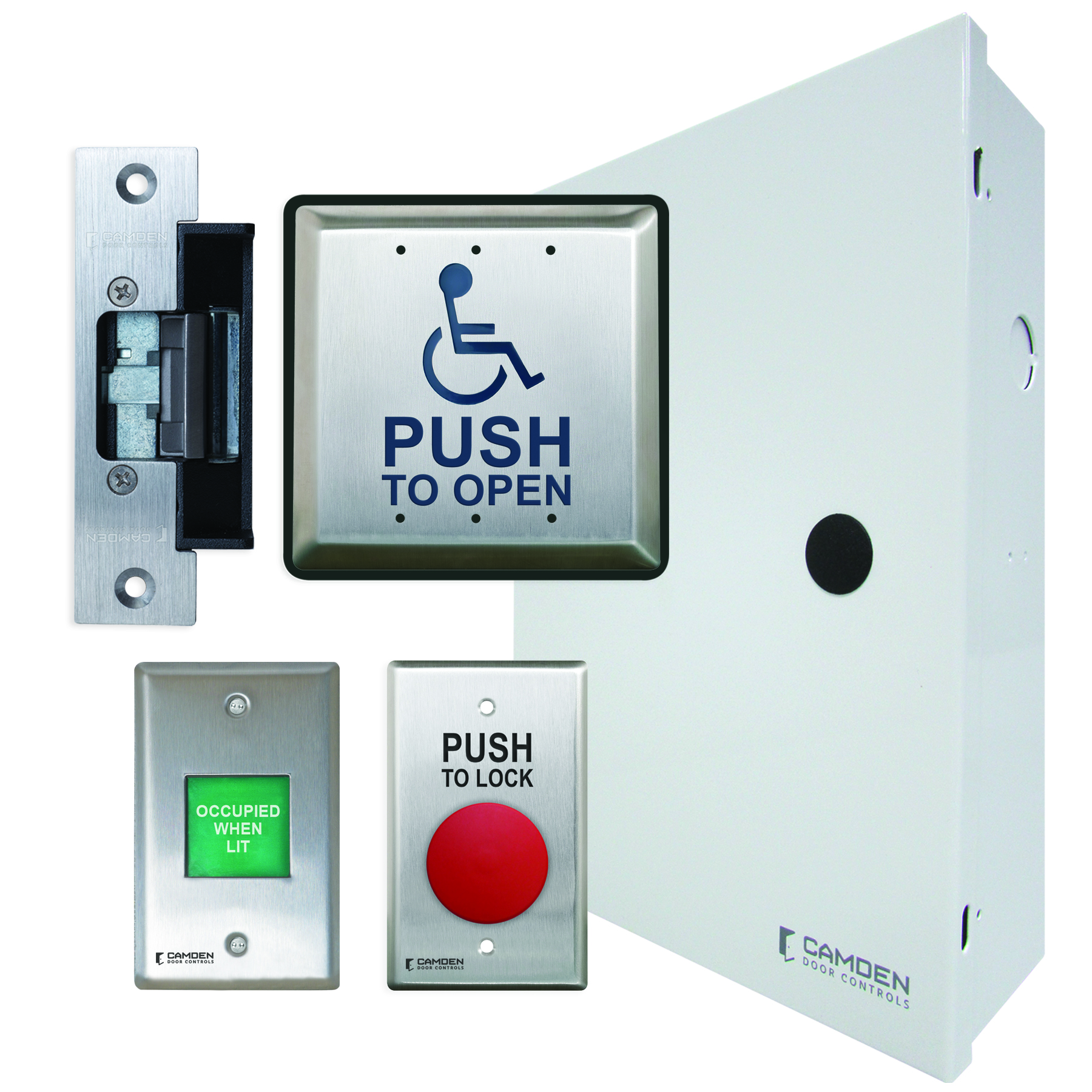

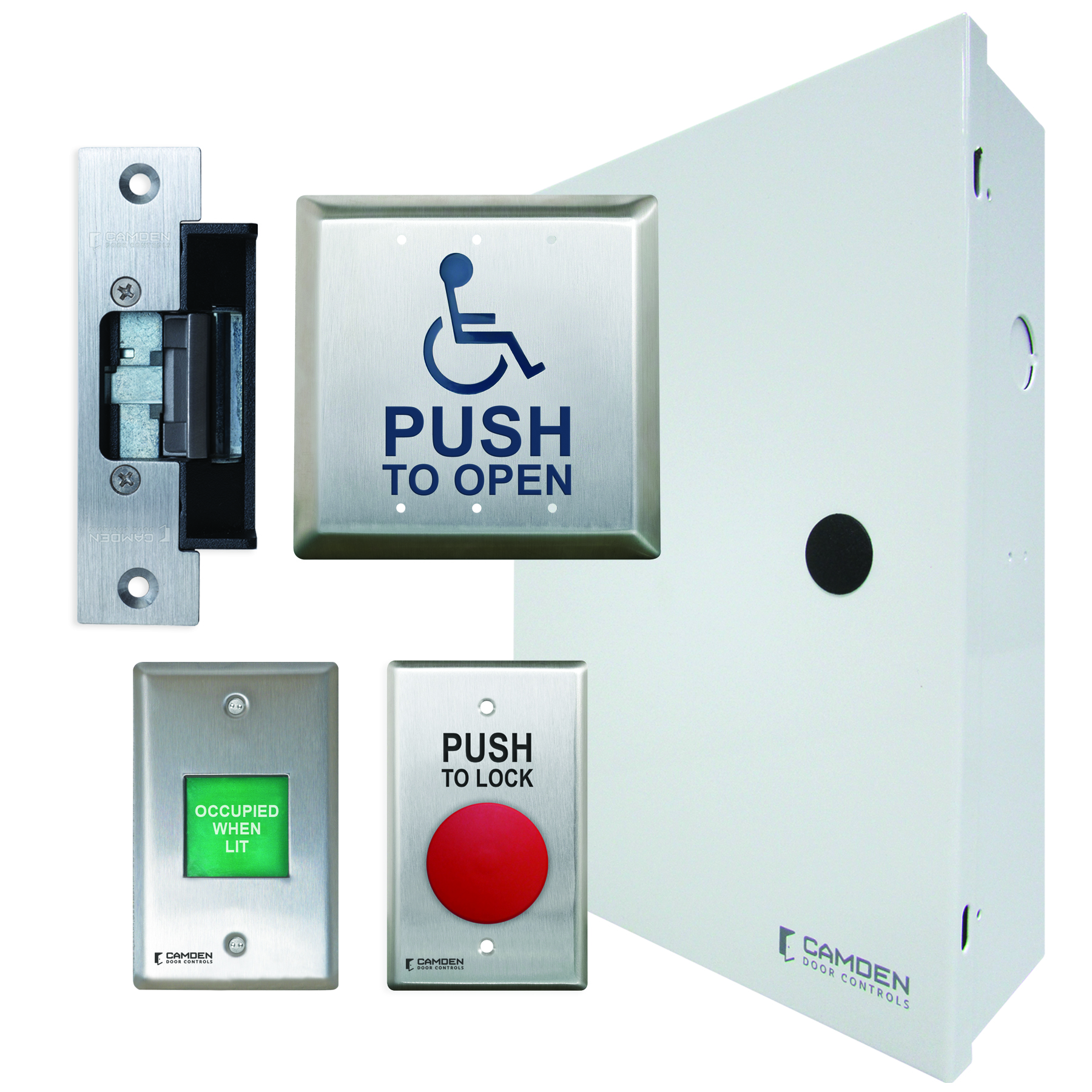

CX-WC11ASM-PS
Surface Mount Push Button & Annunciation System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|
CX-WC11ASM-PS
Surface Mount Push Button & Annunciation System
(1)
(60-40E032) Advanced Logic Control Relay & Power Supply Cabinet;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text;
(2)
Surface Box, Shallow depth, black polymer;
(1)
1-5/8" Mushroom Push Button, 'Push to Lock' text;
(1)
Single Gang LED 'Occupied When Lit' Indicator;
(2)
Surface Box, Standard Depth. Double wall;
(1)
Magnetic contact, surface, SPST, white;
(1)
'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
| 2x |
|
| 1x |
|
| 1x |
|
| 2x |
|
| 1x |
|
| 1x |
|
Manuals
Reference Guides
Kit Shot
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202147
|
|
CX-WC11AFM-PS
Flush Mount Push Button & Annunciation System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|
CX-WC11AFM-PS
Flush Mount Push Button & Annunciation System
(1)
(60-40E032) Advanced Logic Control Relay & Power Supply Cabinet;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text;
(1)
1-5/8" Mushroom Push Button, 'Push to Lock' text;
(1)
Single Gang LED 'Occupied When Lit' Indicator;
(1)
Magnetic contact, surface, SPST, white;
(1)
'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
Manuals
Kit Shot
Reference Guides
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202130
|
| |
|
Aura™ Illuminated Control Kits
click to expand section
|
|
Net Cost
|
|
CX-WC13AXFM-PS
Flush Mount Combo Illuminated Push Plate System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|

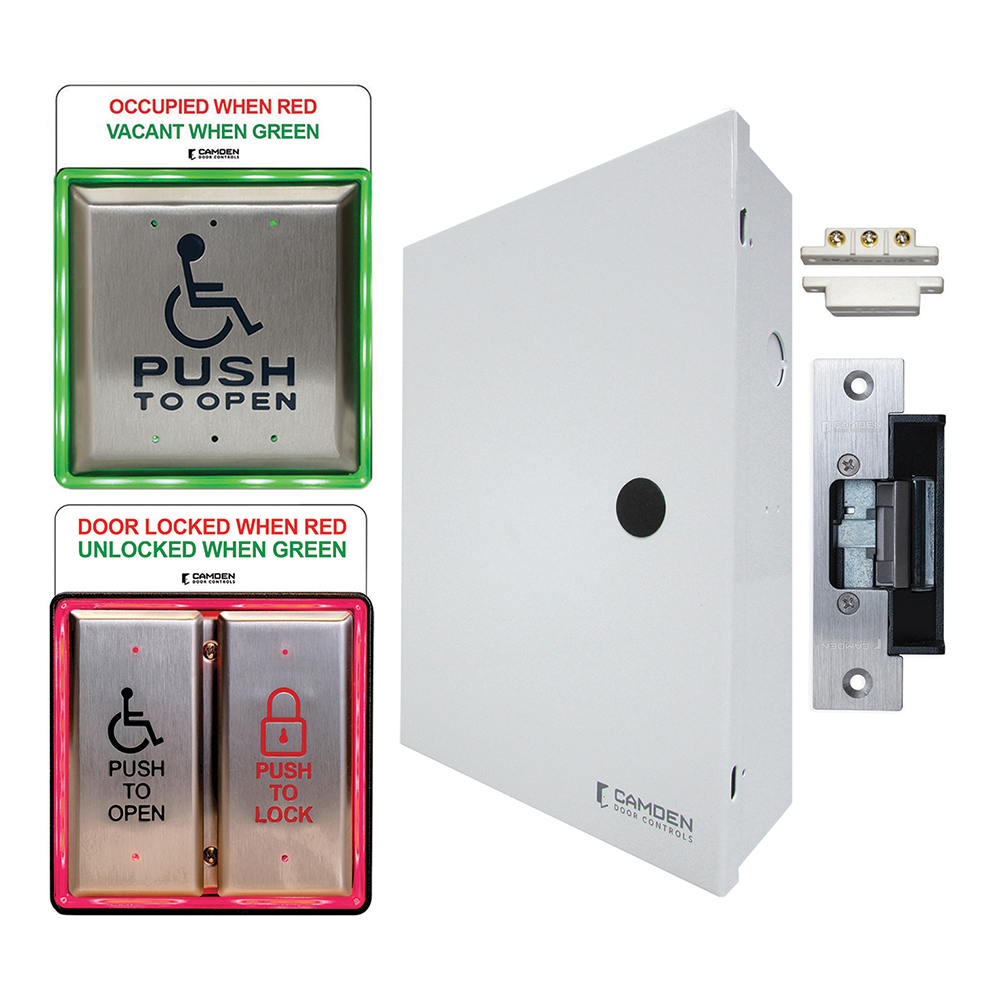

CX-WC13AXFM-PS
Flush Mount Combo Illuminated Push Plate System
(1)
(60-40E033) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
Reference Guides
Kit Shot
Manual
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202154
|
|

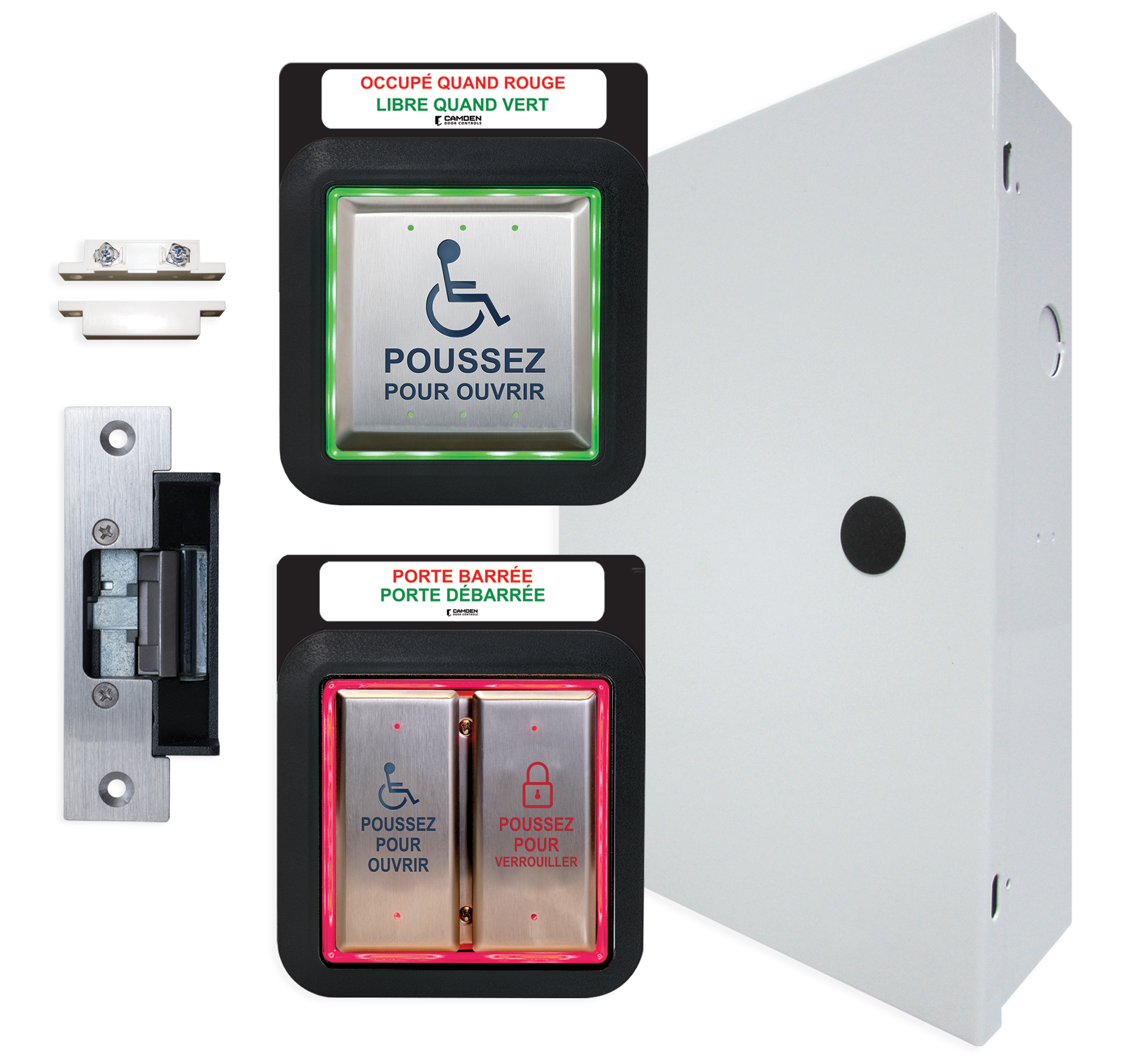

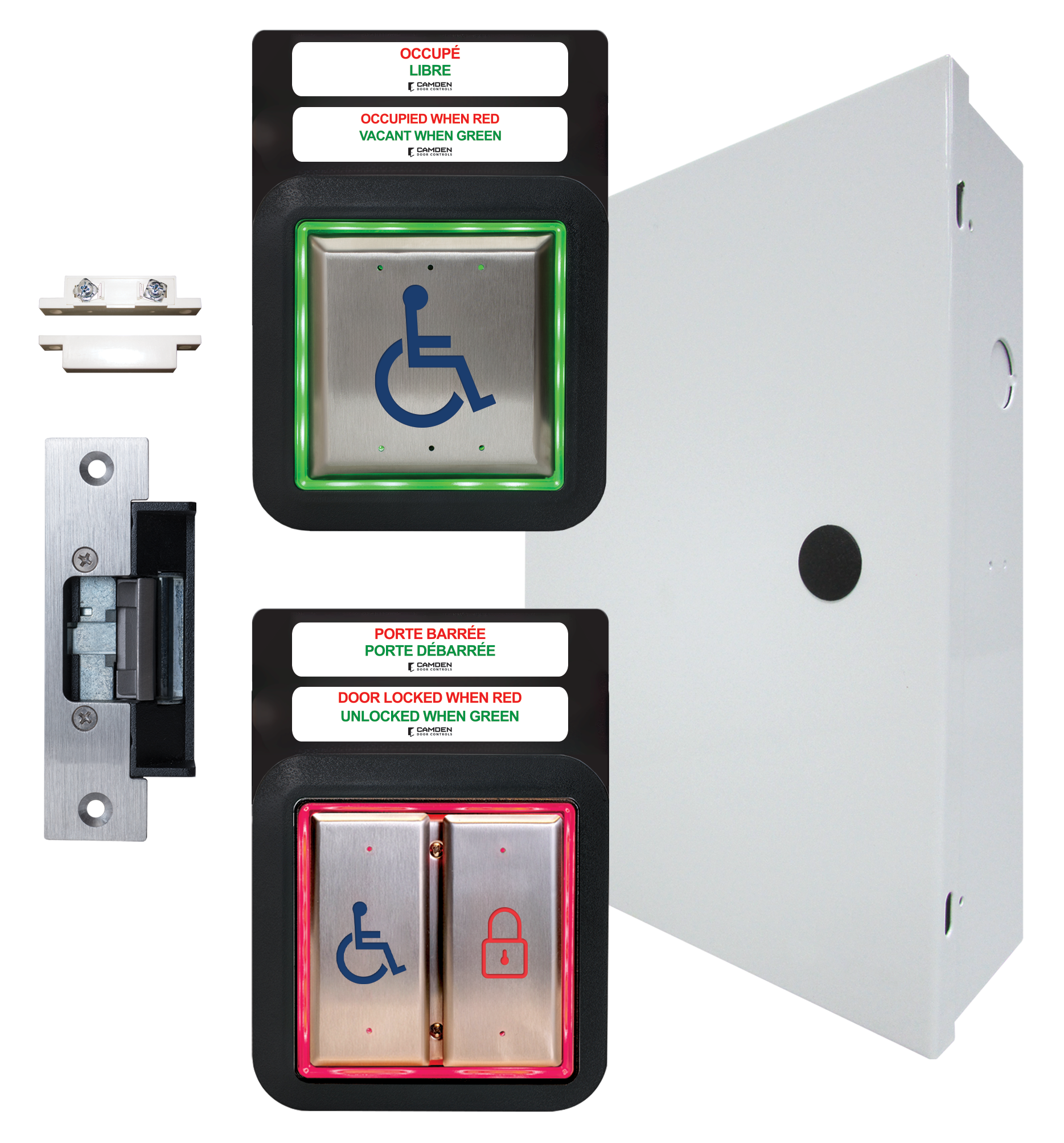

CX-WC13AXFM-PSF
Flush Mount Combo Illuminated Push Plate System FRENCH
EDI DATA, APPROVALS
|
|

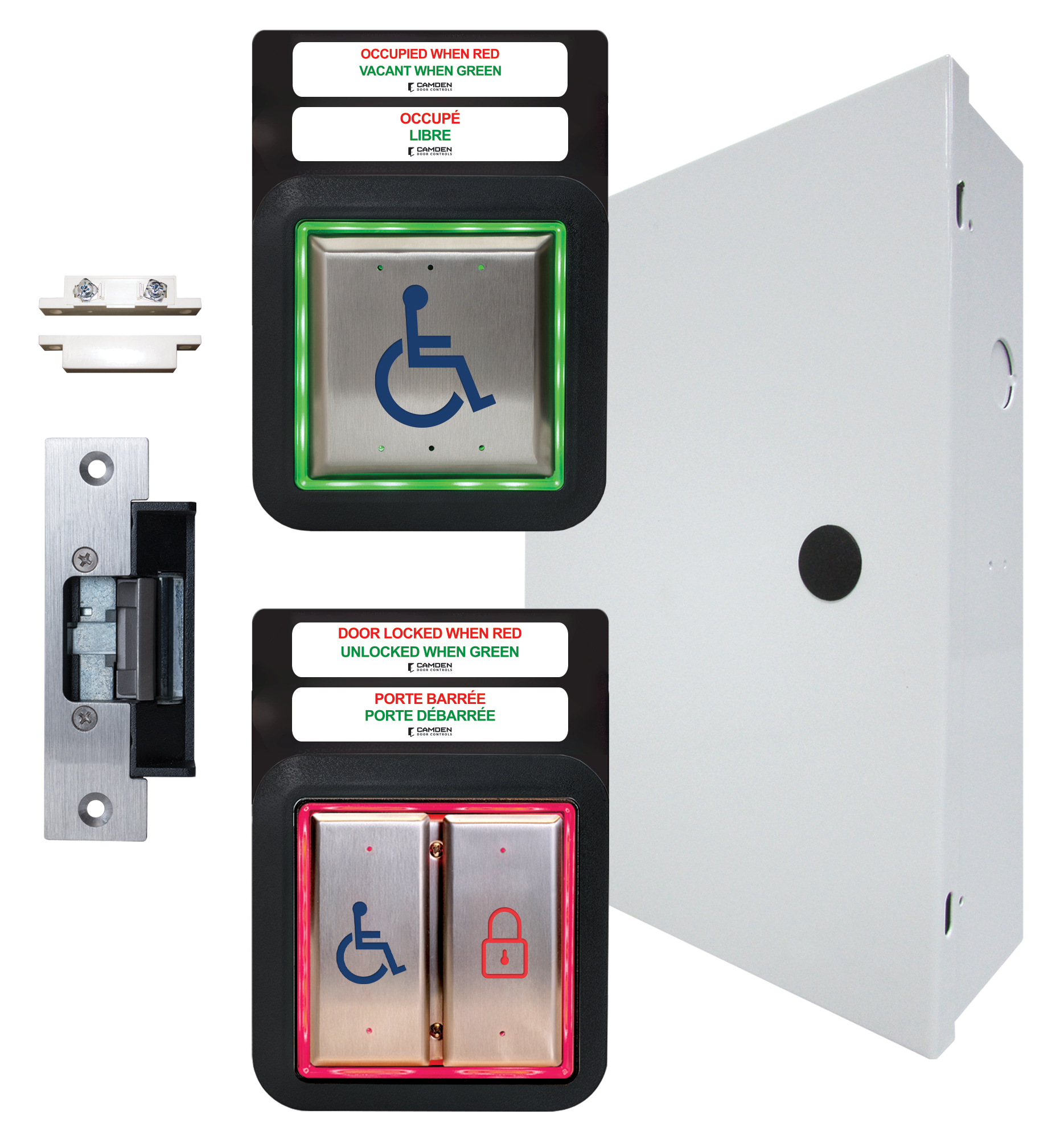

CX-WC13AXFM-PSF
Flush Mount Combo Illuminated Push Plate System FRENCH
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign FRENCH;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign FRENCH;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(1)
Magnetic contact, surface, SPST, white.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
|
|
CX-WC13AXFM-PSFE
Flush Mount Combo Illuminated Push Plate System FRENCH ENGLISH
EDI DATA, APPROVALS
|
|
CX-WC13AXFM-PSFE
Flush Mount Combo Illuminated Push Plate System FRENCH ENGLISH
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign - FRENCH ENGLISH;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(1)
Magnetic contact, surface, SPST, white.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
|
|

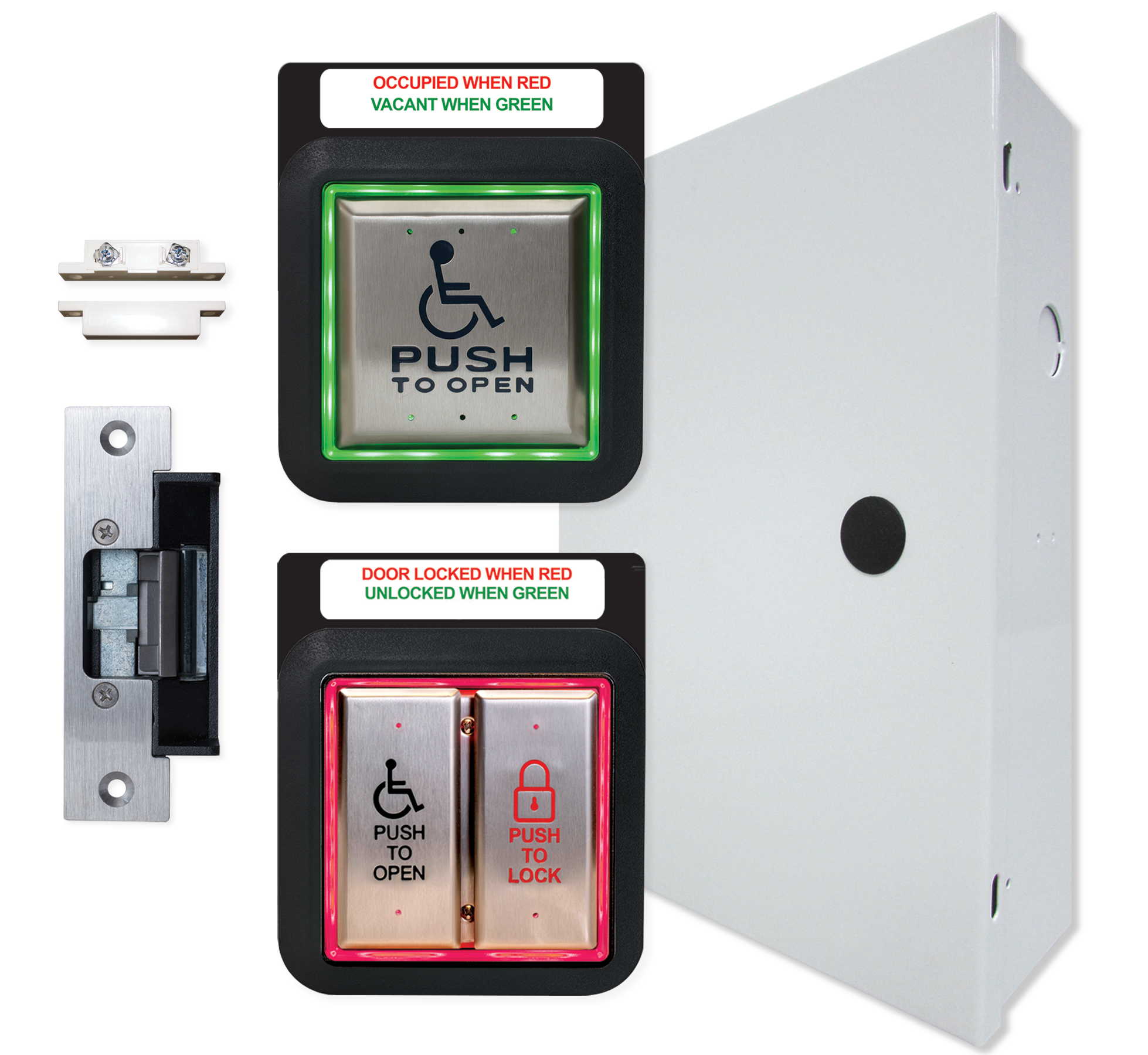

CX-WC13AXSM-PS
Surface Mount Combo Illuminated Push Plate System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|

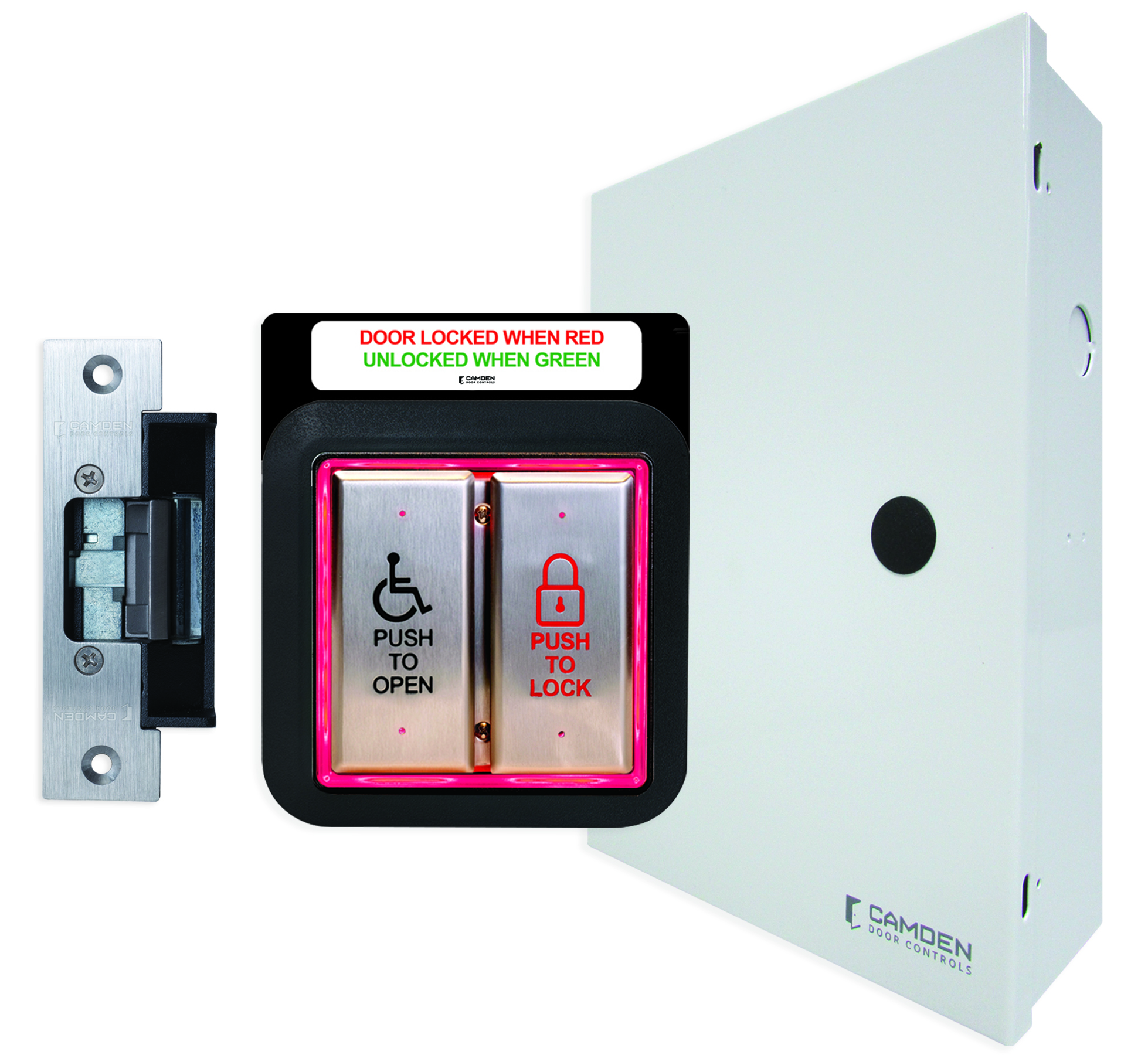

CX-WC13AXSM-PS
Surface Mount Combo Illuminated Push Plate System
(1)
(60-40E033) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
Reference Guides
Kit Shot
Manuals
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202161
|
|
|

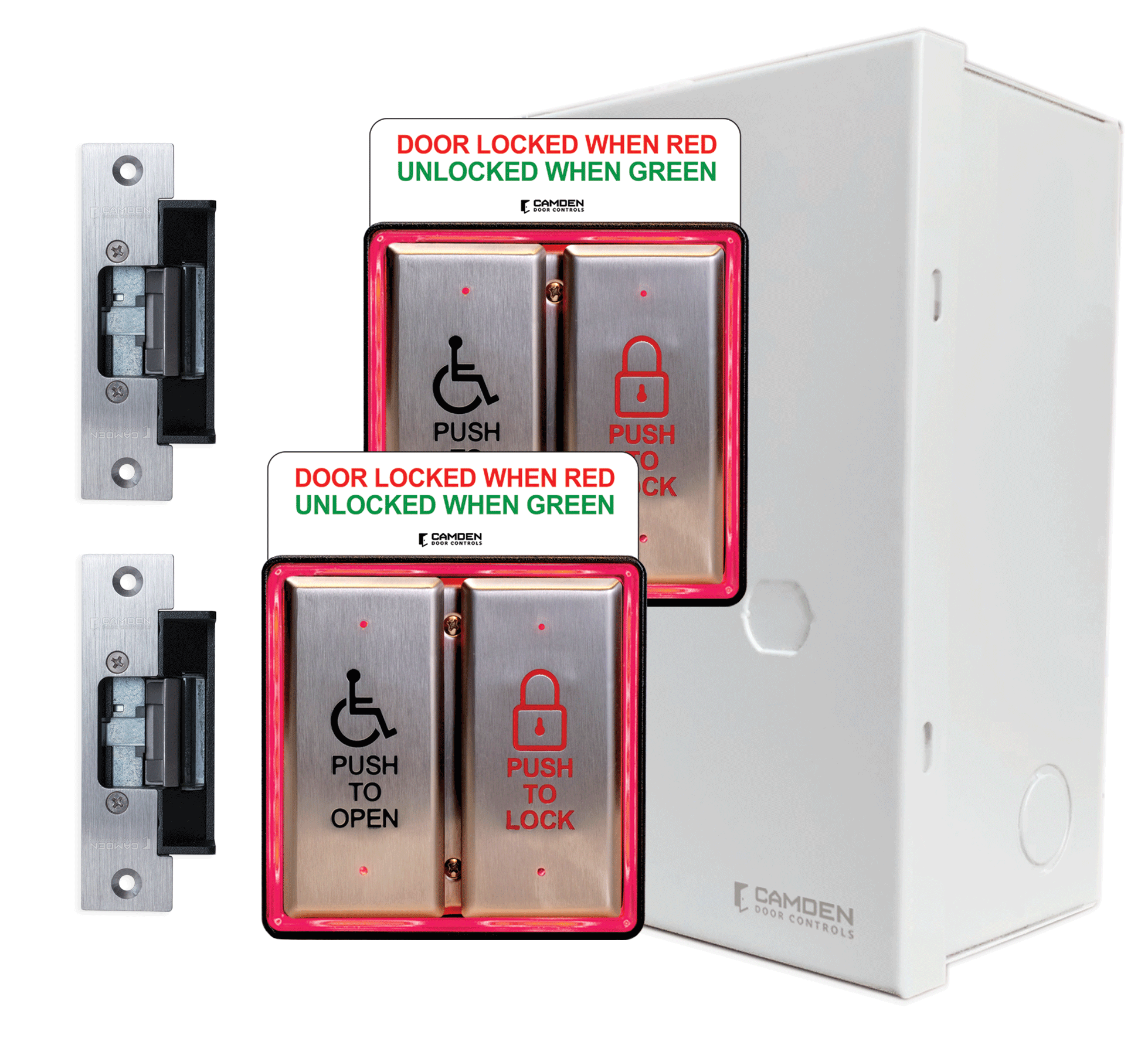

CX-WC14AXSM-PS
Surface Mount Two Door Restroom System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|

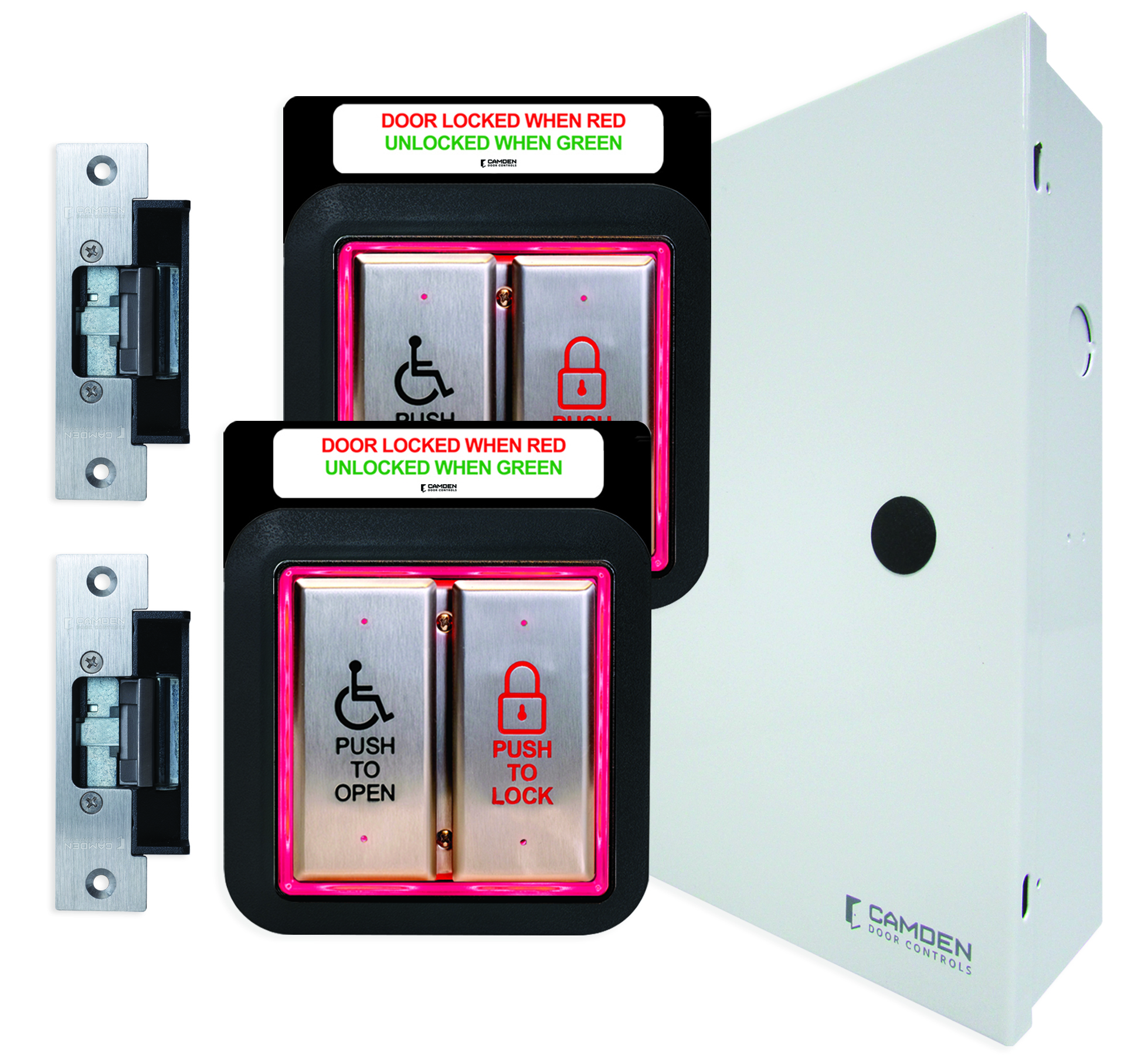

CX-WC14AXSM-PS
Surface Mount Two Door Restroom System
(1)
Door Control and 2 Amp. Power Supply Cabinet;
(2)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(2)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
| 2x |
|
| 2x |
|
| 2x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202185
|
|
|

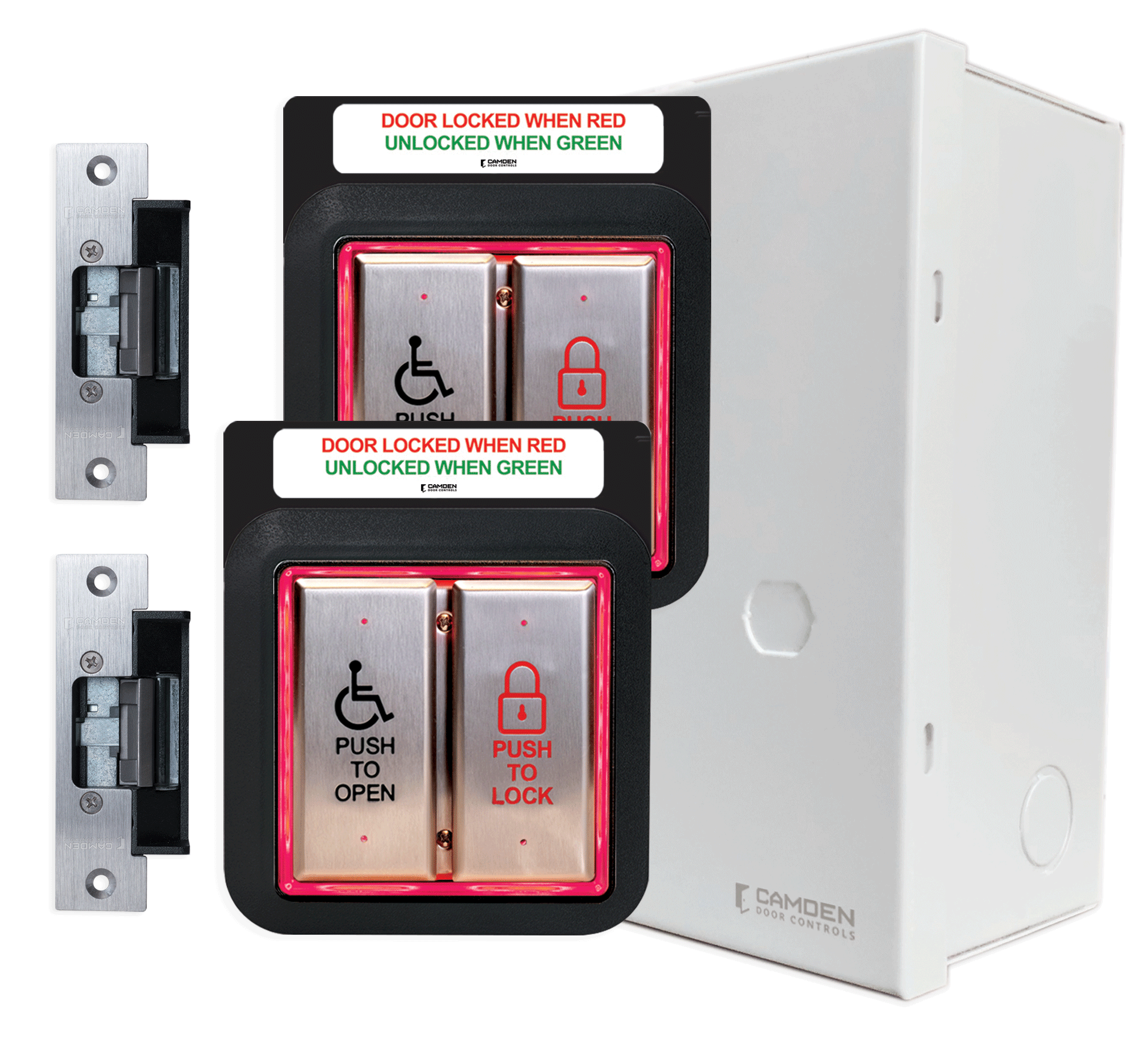

CX-WC14AXFM-PS
Flush Mount Two Door Restroom System Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|

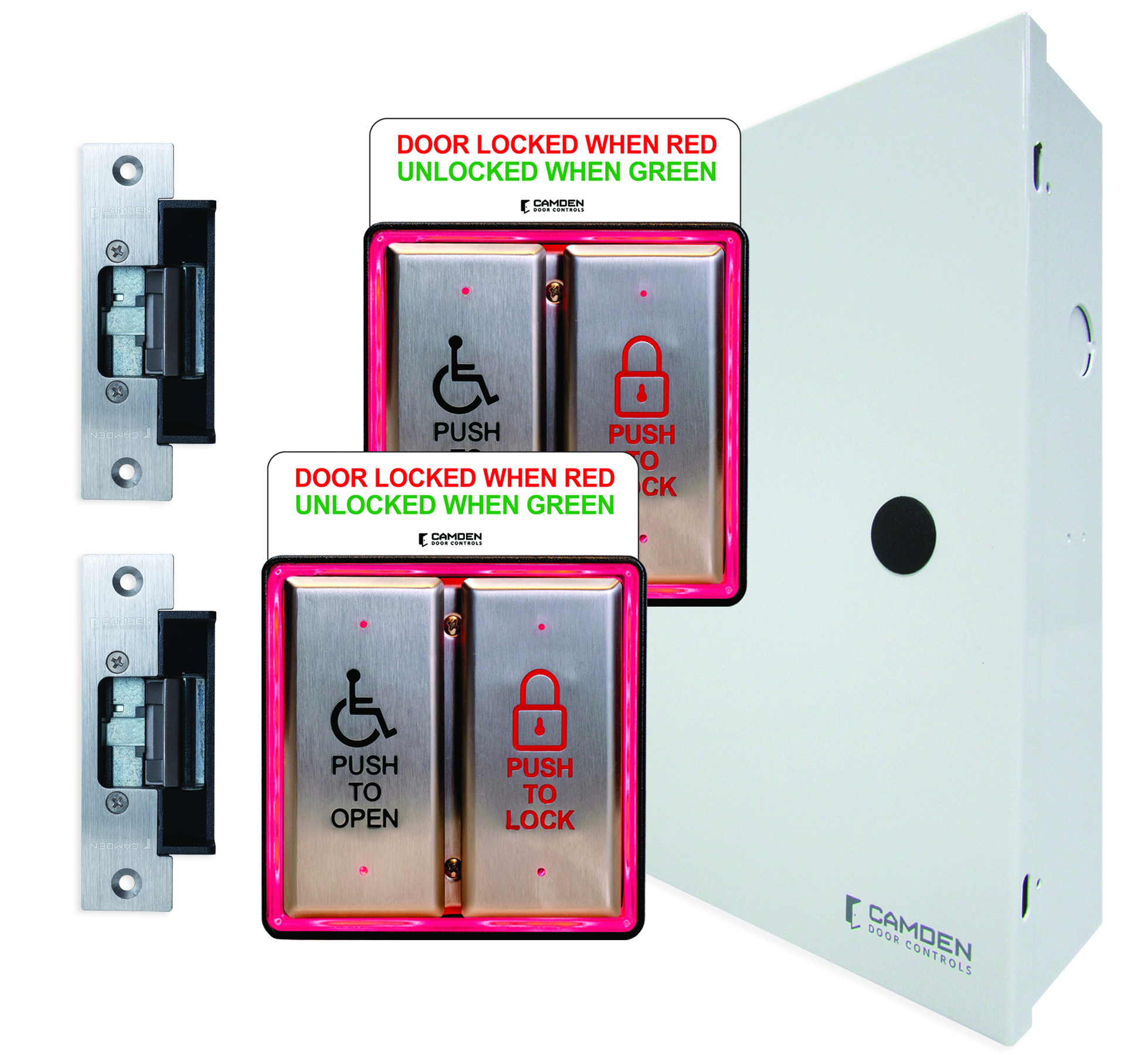

CX-WC14AXFM-PS
Flush Mount Two Door Restroom System
(1)
Door Control and 2 Amp. Power Supply Cabinet;
(2)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(2)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(2)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
| 2x |
|
| 2x |
|
| 2x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202178
|
| |
|
SureWave™ Illuminated Control Kits
click to expand section
|
|
Net Cost
|
|

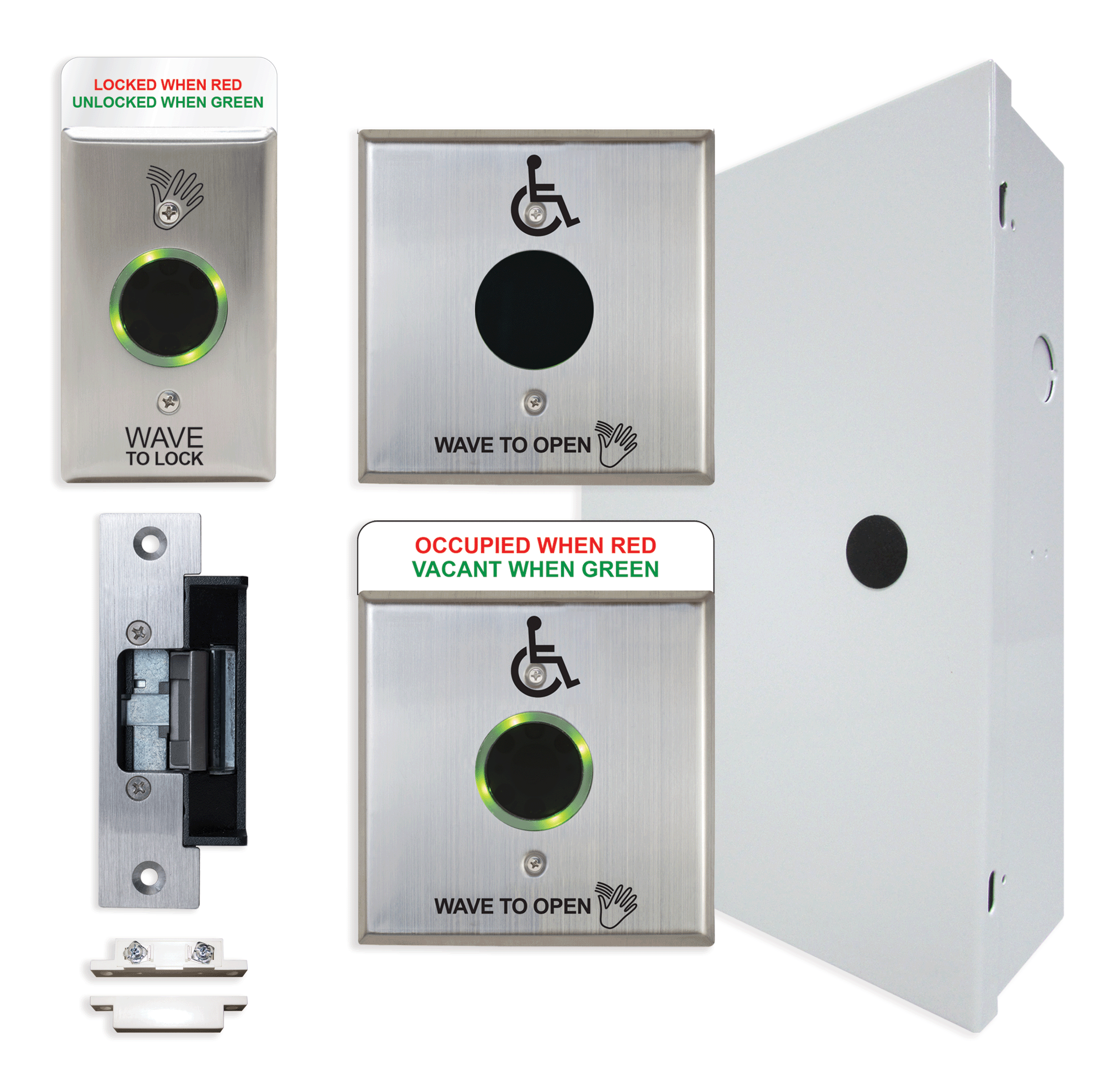

CX-WC16-PS
Touchless Switch Restroom Kit Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|
CX-WC16-PS
Touchless Switch Restroom Kit
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Wired touchless switch, 1 relay
'Wave to Lock' w/ stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired touchless switch, 1 relay, 'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination
'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired 'short range' touchless switch, 1 relay, 'Wave to Open' w/ stainless steel faceplate, non illiuminated
, 'Wave to Open' w/ stainless steel faceplate, non illiuminated;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
|
|
|
| 1x |
|
|
|
|
| 1x |
|
| 1x |
|
Reference Guides
Kit Shot
Manuals
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454202192
|
|

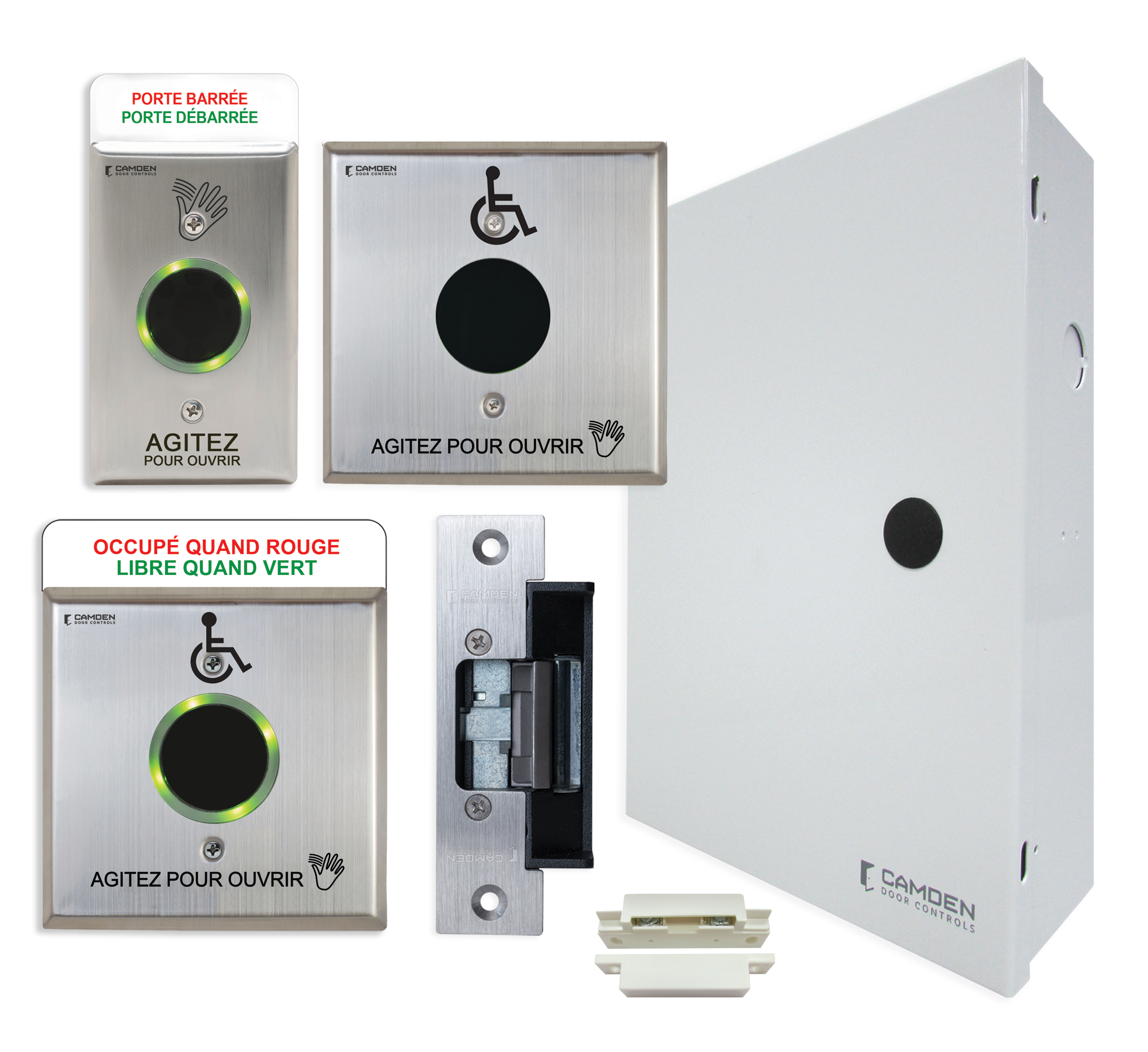

CX-WC16-PSF
Touchless Switch Restroom Kit FRENCH
EDI DATA, APPROVALS
|
|
CX-WC16-PSF
Touchless Switch Restroom Kit FRENCH
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
(1)
Wired touchless switch, 1 relay
/43F 'Agitez Pour Verrouiller' w/ stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination
/42F 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired 'short range' touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated
/42F 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
|
| 1x |
|
|
| 1x |
|
|
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
|
| |
|
Column™ Switch Restroom Control Kits
click to expand section
|
|
Net Cost
|
|
CX-WC17
Column(tm) Switch Restroom System
EDI DATA, APPROVALS
|
|

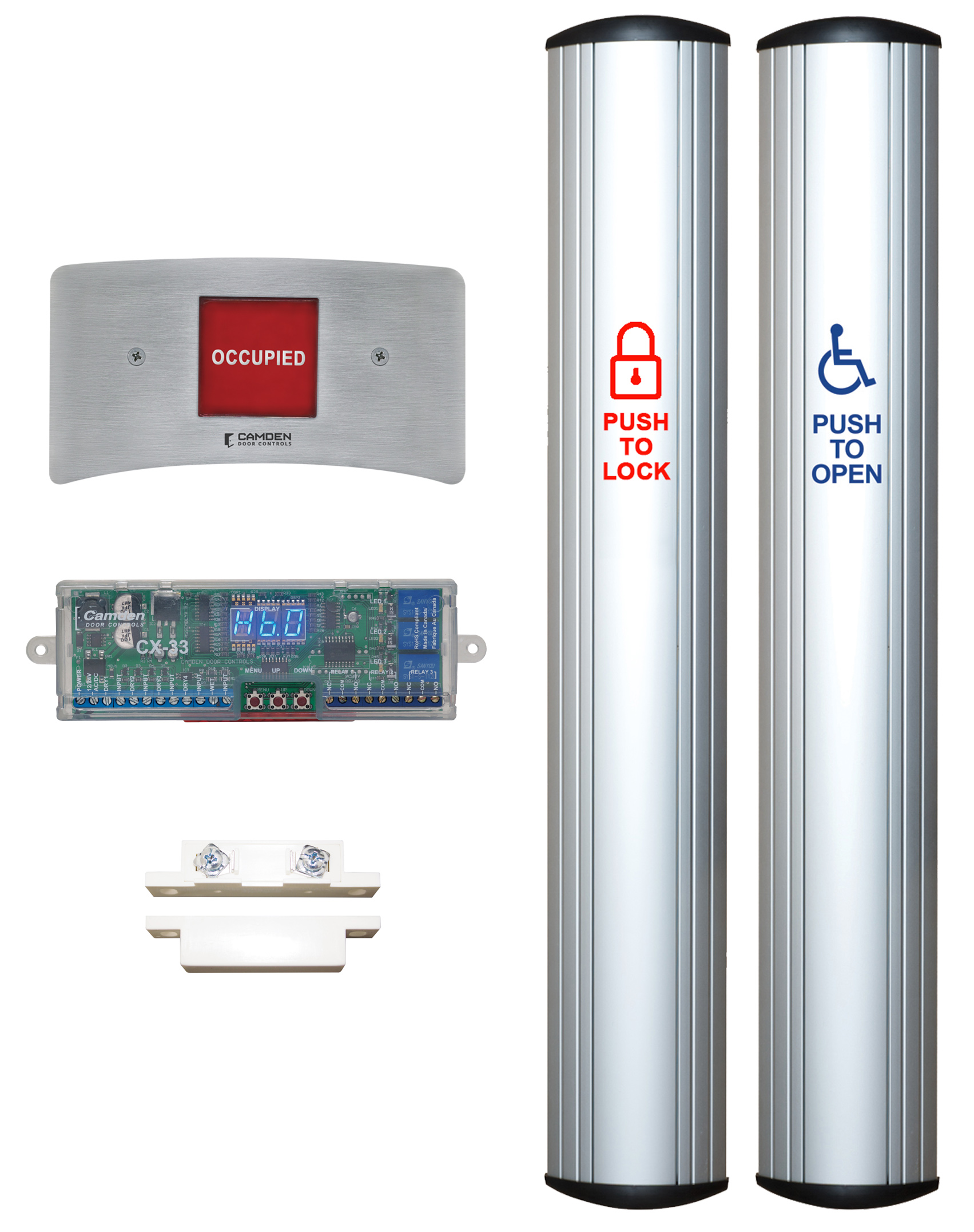

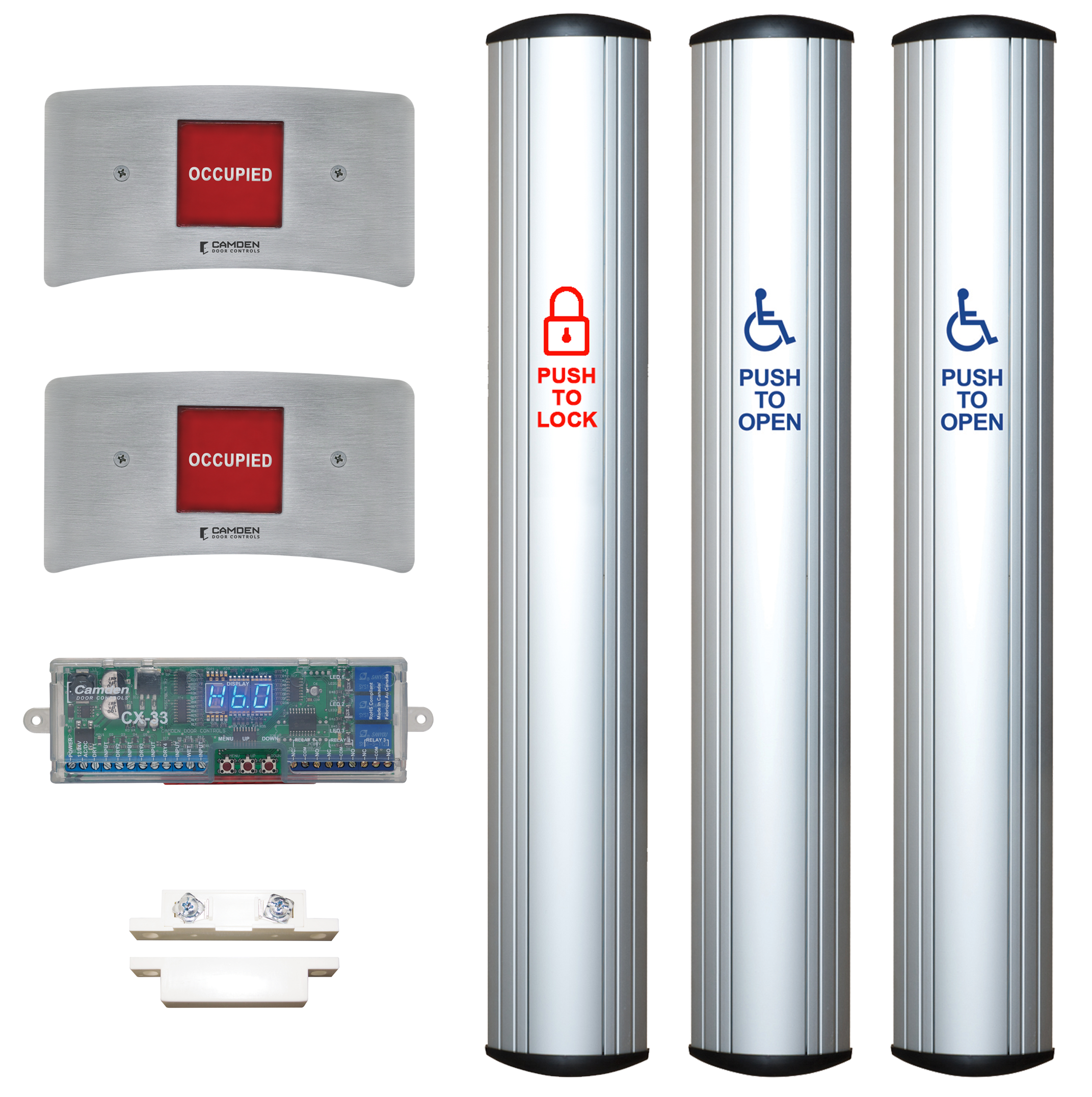

CX-WC17
Column(tm) Switch Restroom System
(1)
Advanced Logic Relay;
(1)
Magnetic contact, surface, SPST, white;
(2)
Curved, Horizontal LED Illuminated Annunciator
with 'Occupied' and 'Locked' Message Labels;
(2)
36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN';
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
36" Long Column™ push plate switch;
'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only..
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 2x |
|
| 2x |
|
|
| 1x |
|
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454173027
|
|

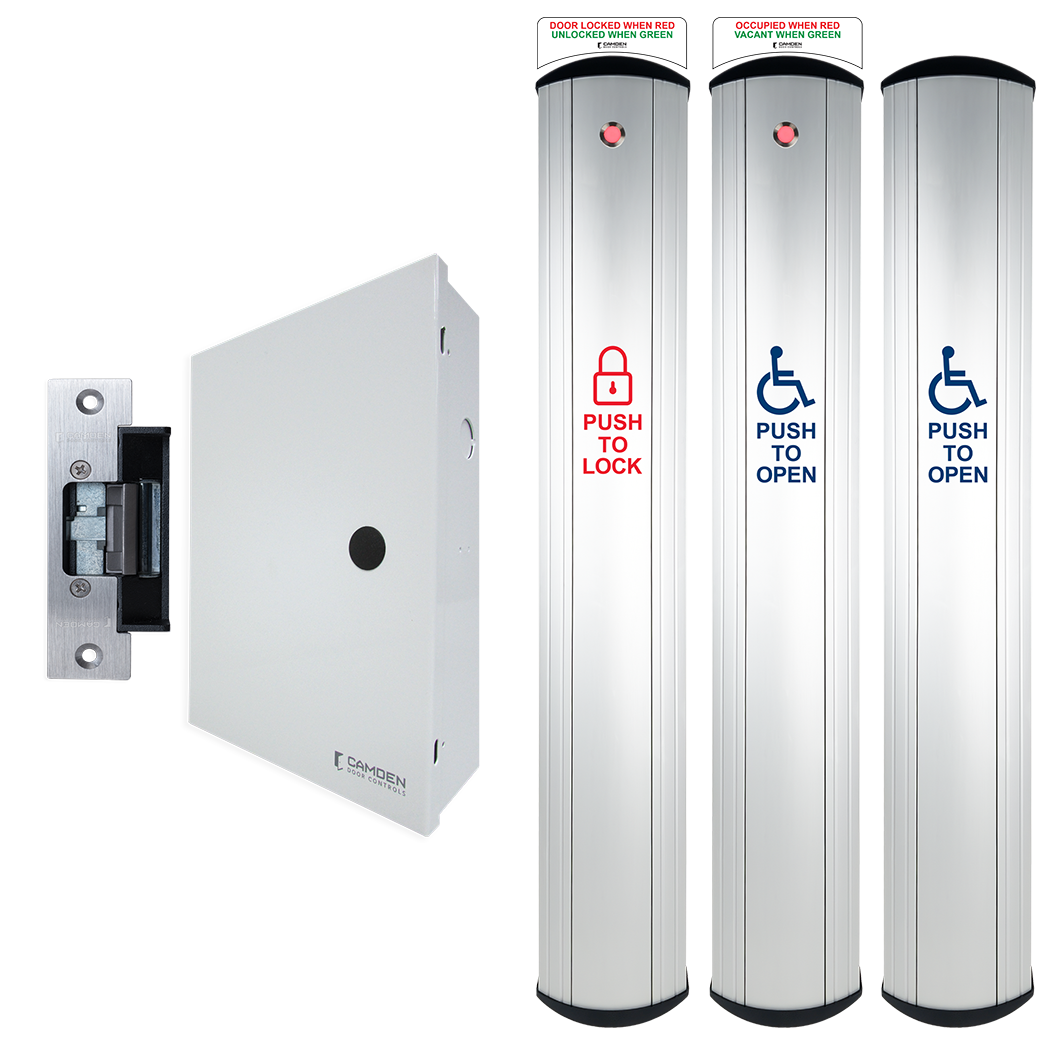

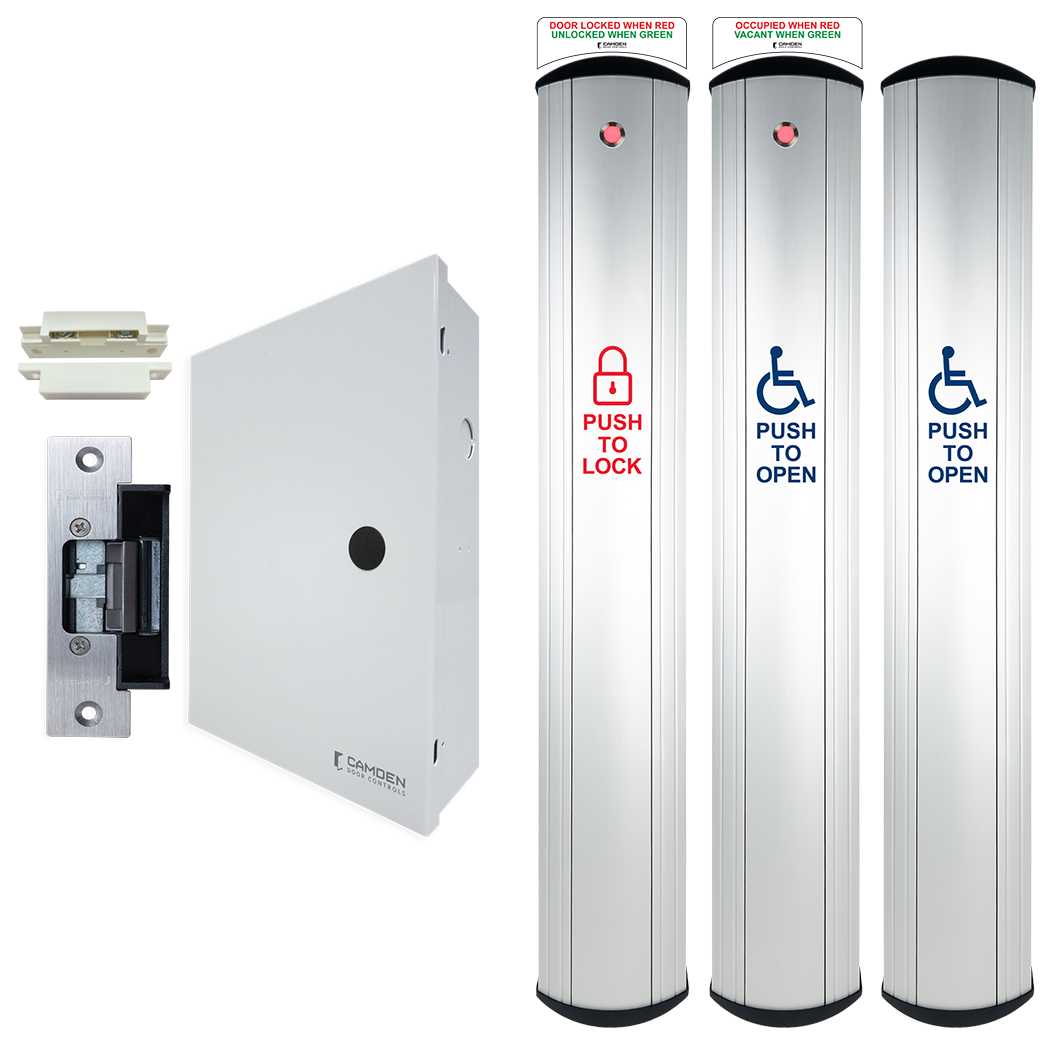

CX-WC17-PS
Column(tm) Switch Restroom Kit
EDI DATA, APPROVALS
|
|

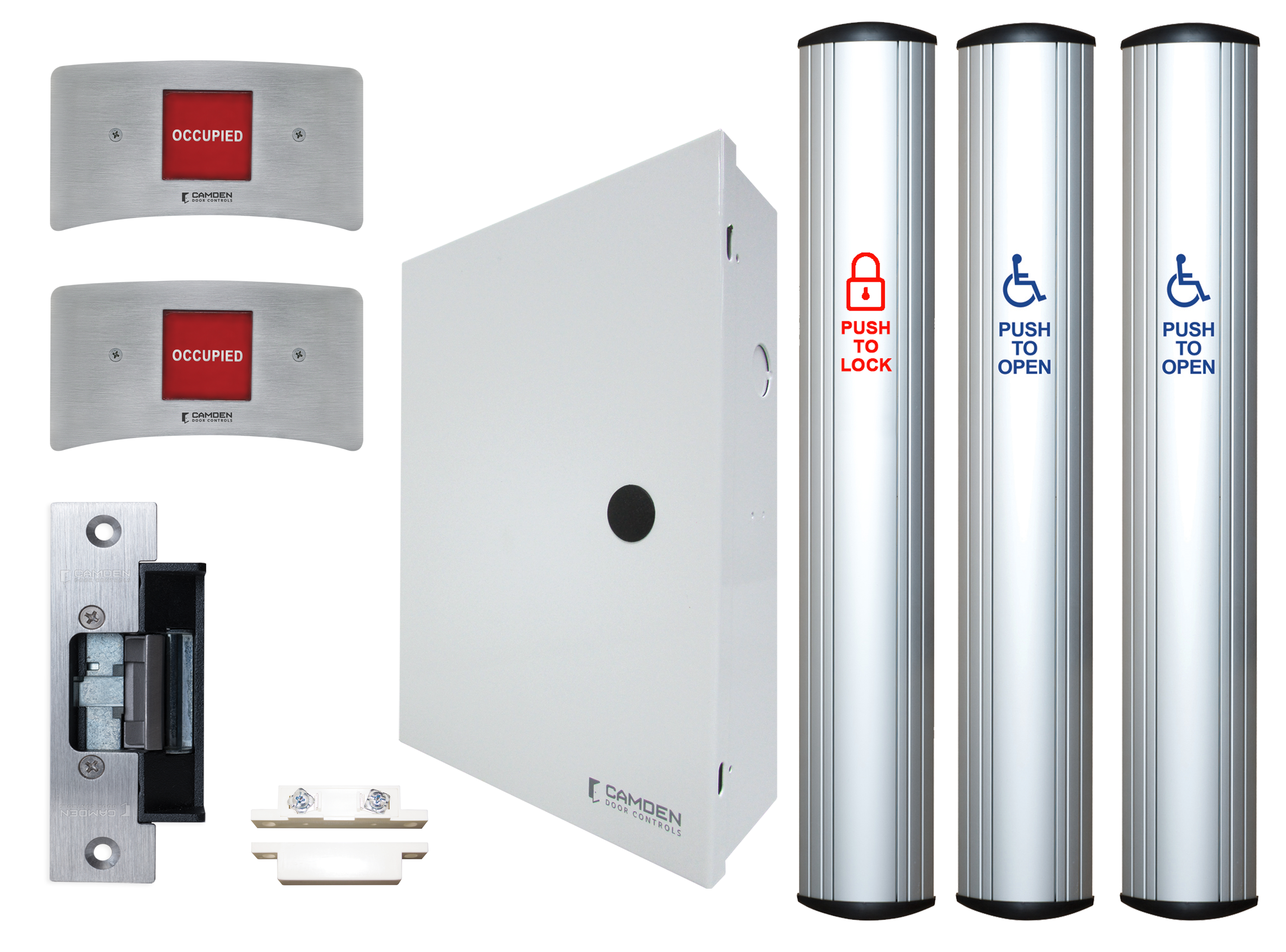

CX-WC17-PS
Column(tm) Switch Restroom Kit
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
(2)
36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN';
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
36" Long Column™ push plate switch;
'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only.;
(2)
Curved, Horizontal LED Illuminated Annunciator
with 'Occupied' and 'Locked' Message Labels.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 2x |
|
|
| 1x |
|
|
| 2x |
|
Kit Shot
Manuals
Reference Guides
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
UPC:670454207869
|
|

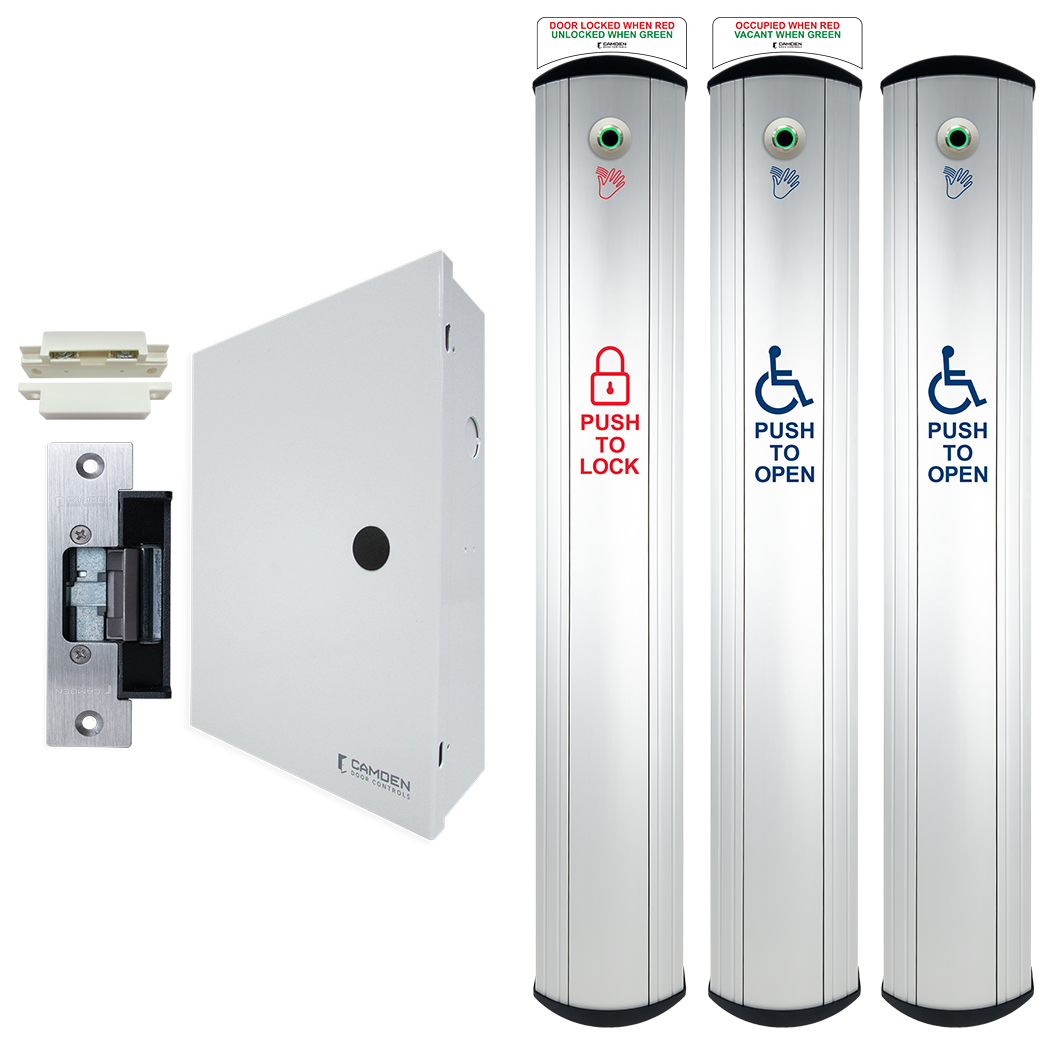

CX-WC17VR-PS
Column™ Switch Restroom System Kit with Power Supply & Hands-Free Sensor Add suffix 'F' to model number for French Language
EDI DATA, APPROVALS
|
|

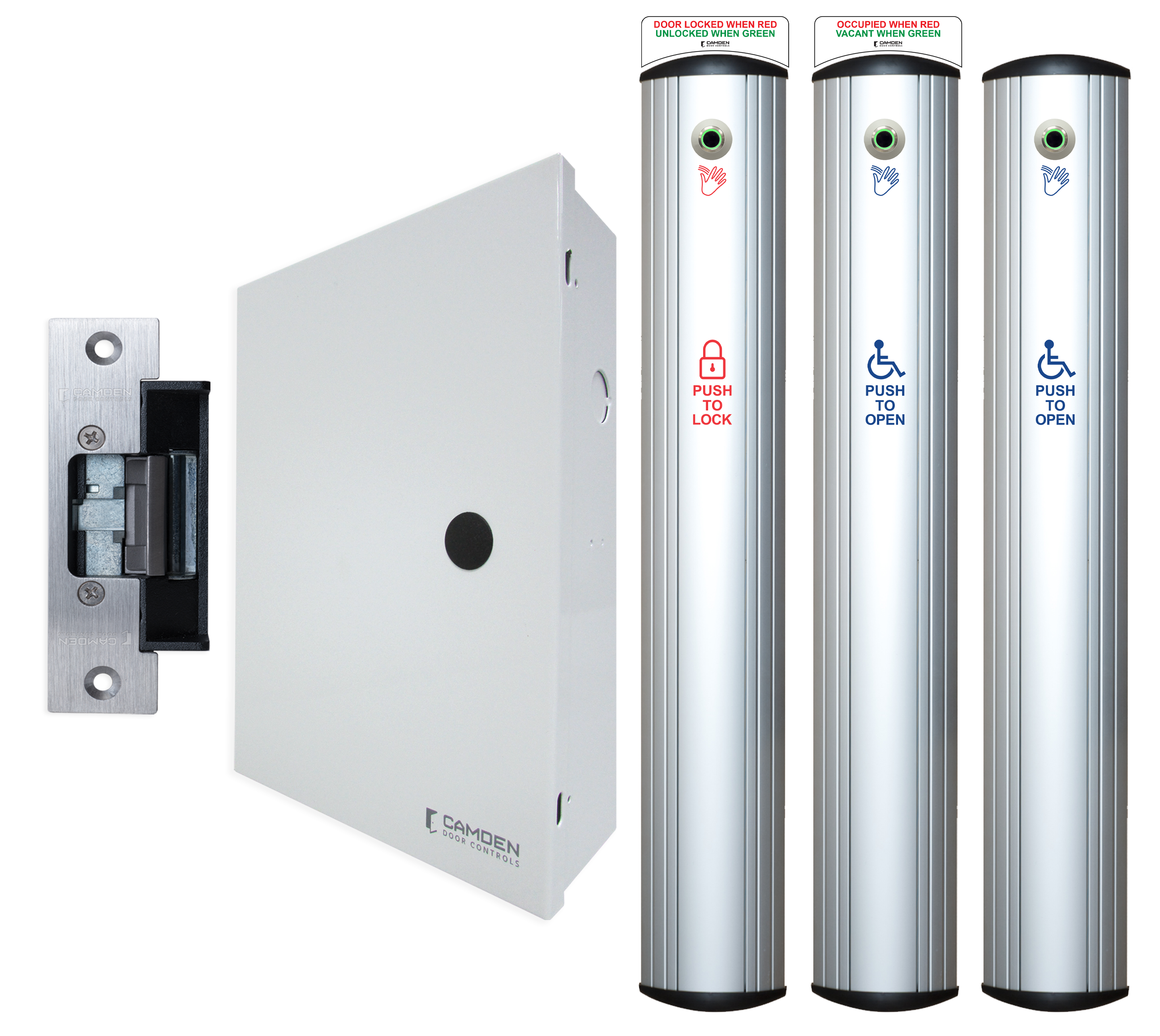

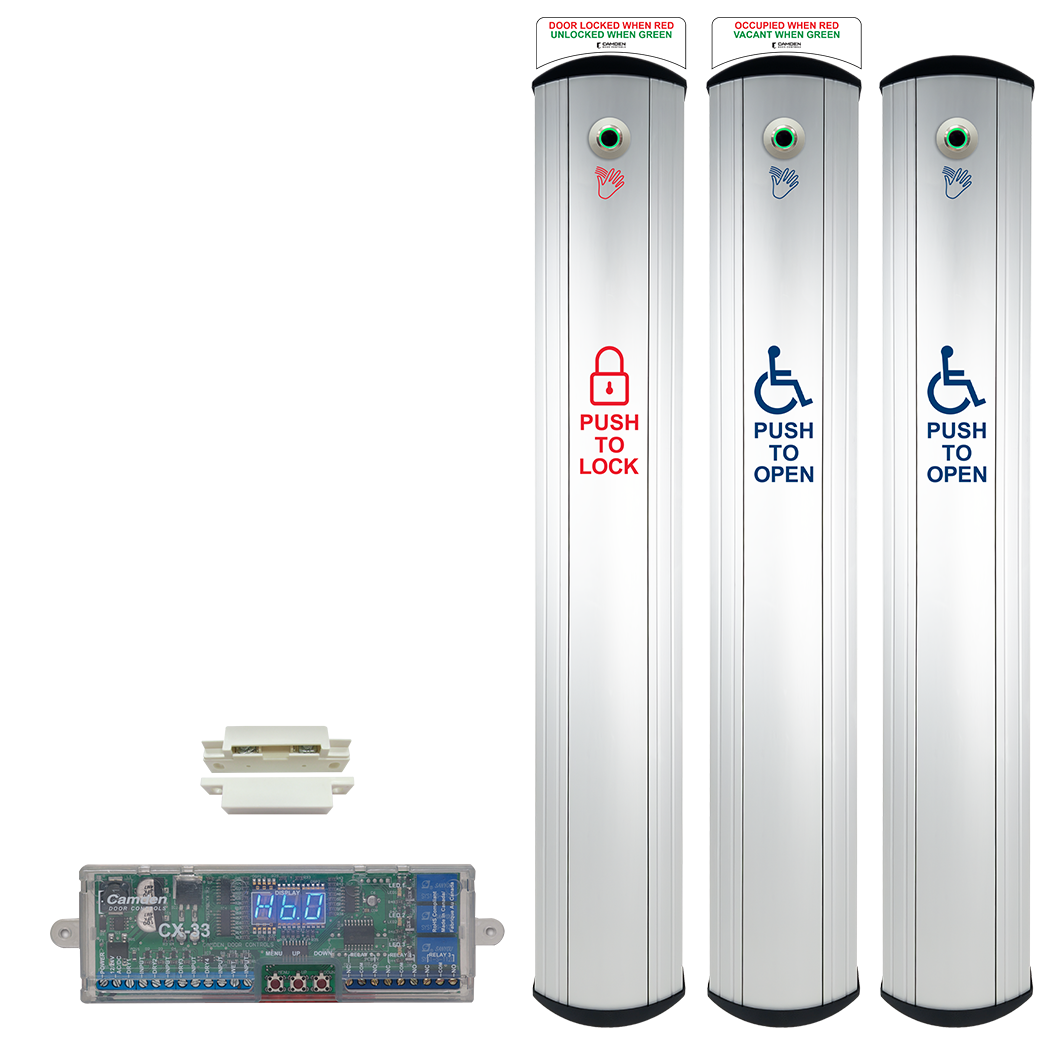

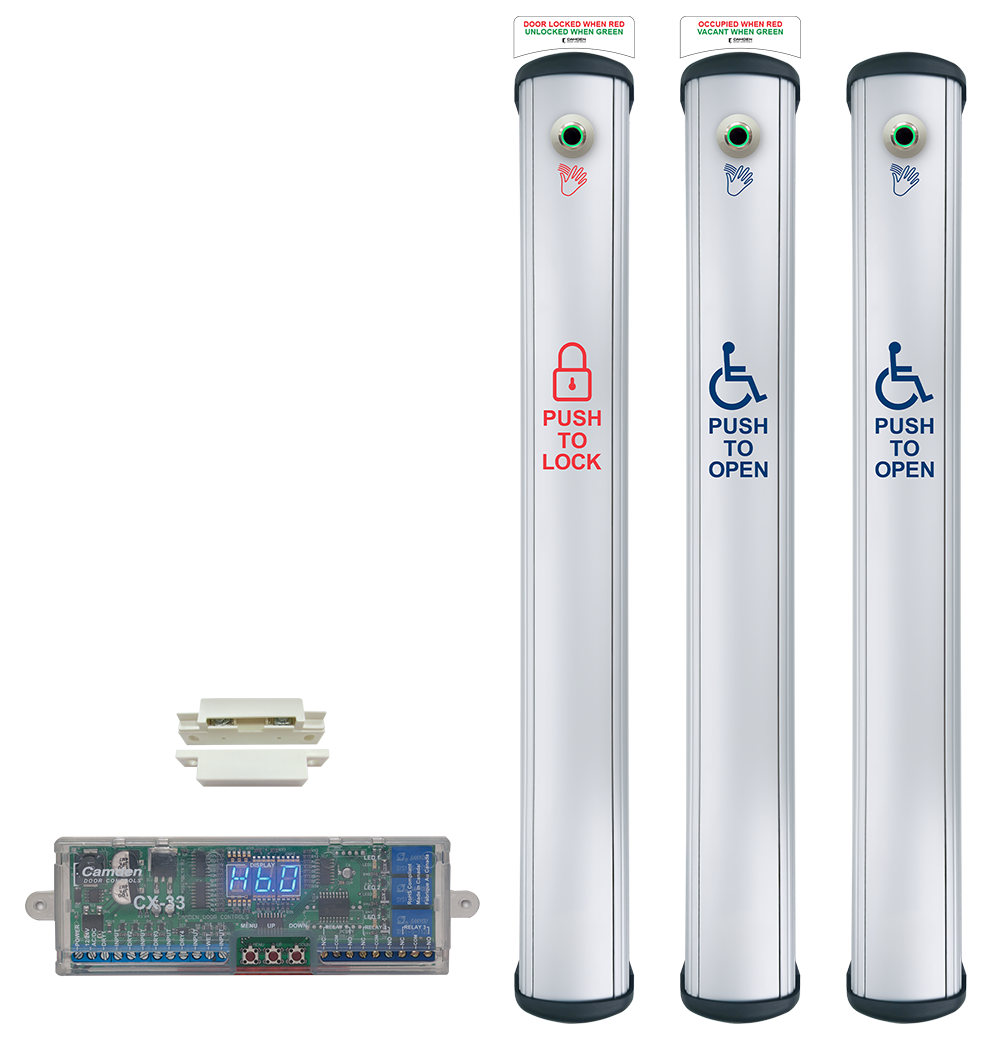

CX-WC17VR-PS
Column™ Switch Restroom System Kit with Power Supply & Hands-Free Sensor
(2)

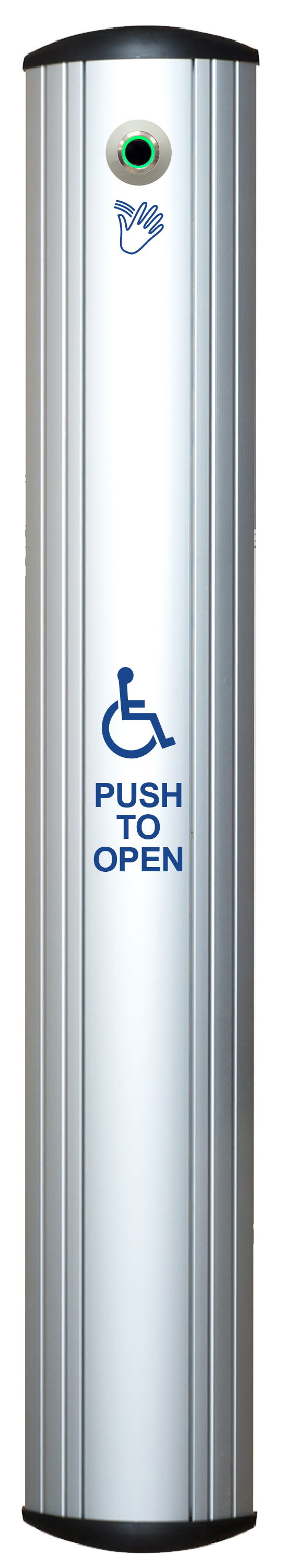

36" Hands-Free Column Switch with /4 Graphics;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
36" Hands-Free Column Switch with /8B Graphics;
'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only.;
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Grade 2 Electric Strike;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
EDI DATA, APPROVALS
| 2x |
|
|
| 1x |
|
|
| 1x |
|
| 1x |
|
| 1x |
|
Manuals
Kit Shot
Reference Guides
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 9"H
Weight: 9.75lbs.
|
| |
|
|
|
