Medium Duty Push/Exit Switch (Extended Button)
|
|

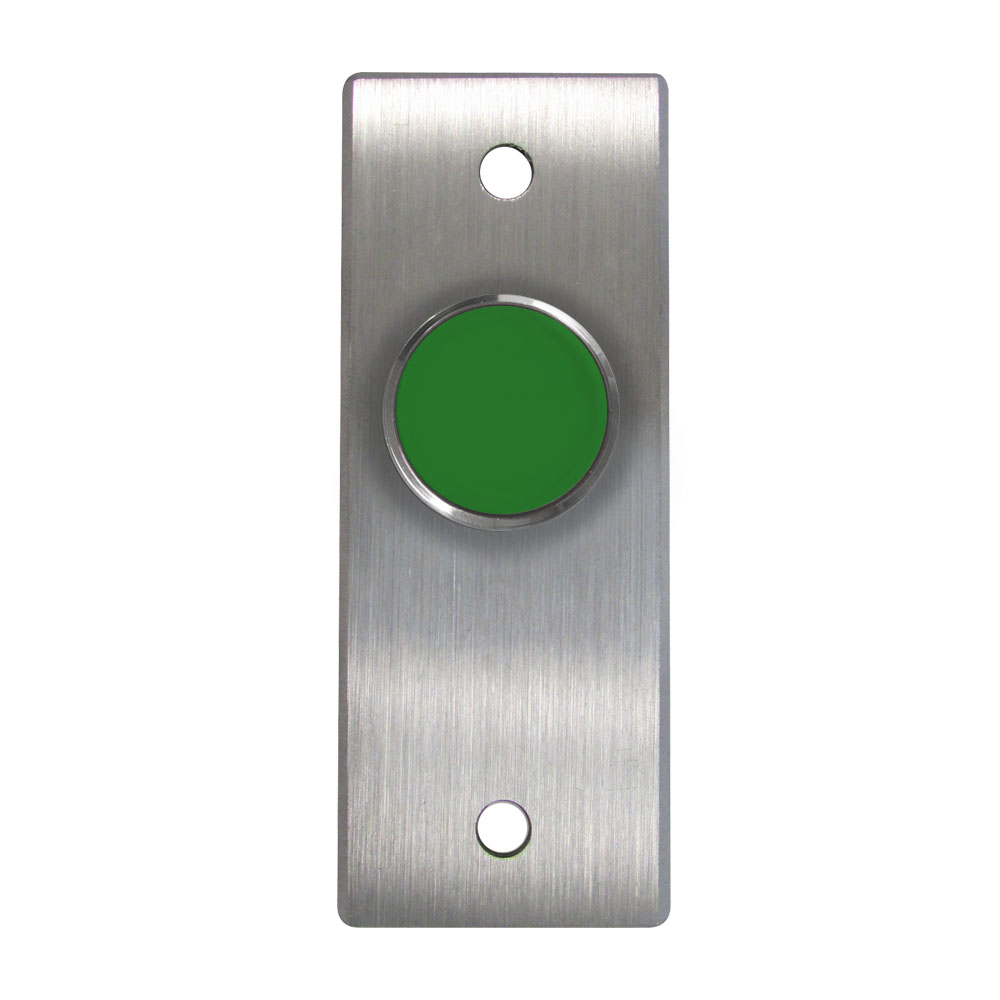

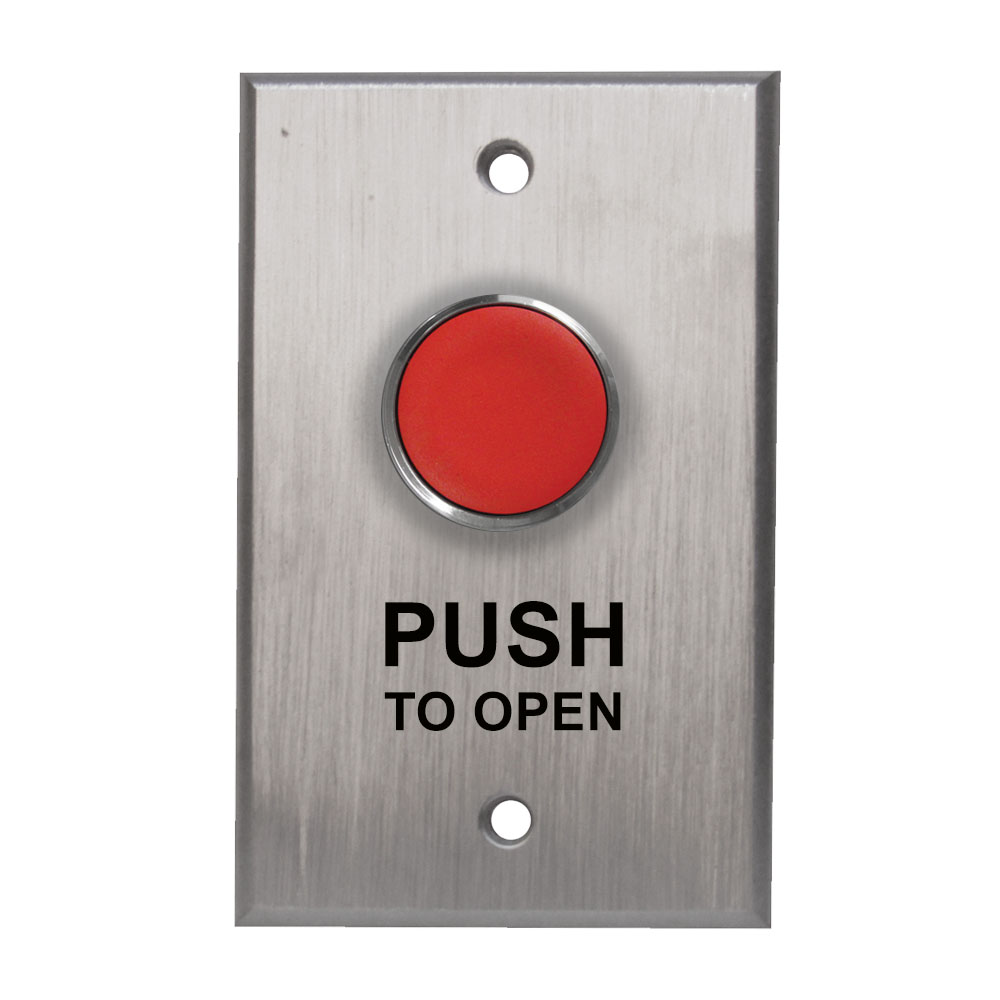

CM-8000 and CM-8100 Series push buttons are vandal resistant; designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang and narrow widths. *CM-8000R-H model shown
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
MS Sedco
|
425SS-RED
|
CM-8100, CM-xxxR
|
|
|
| Medium Duty Push/Exit Switch (Extended Button) |
Medium Duty Push/Exit Switch (Extended Button)
|
CM-8000 and CM-8100 Series push buttons are vandal resistant; designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang and narrow widths. *CM-8000R-H model shown |
|
|
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
MS Sedco
|
425SS-RED
|
CM-8100, CM-xxxR
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1 diameter extended button
-
Mounted on heavy 1/4" thick aluminum plate
-
Indoor or outdoor applications
-
Spring return operation
-
3 year warranty
| Contact Type: |
|
CM-8000,
CM-8100:
|
N/O SPST
|
|
CM-8010,
CM-8110:
|
N/C SPST
|
|
CM-8020,
CM-8120:
|
N/O & N/C DPST
|
|
CM-8085,
CM-8185:
|
N/O & N/C DPST Form 'Z', with Pneumatic Timer
|
| |
| Current Rating: |
6 A @ 30 VDC
|
| Switch Type: |
Momentary
|
| Dimensions: |
|
CM-8000,
CM-8010,
CM-8020,
CM-8085:
|
4-1/2" x 2-3/4" x 1-3/4"
(114mm x 74mm x 44mm)
|
|
CM-8100,
CM-8110,
CM-8120,
CM-8185:
|
4-1/2" x 1-3/4" x 1-3/4"
(114mm x 44mm x 44mm)
|
| |
| Std. Finish: |
Brushed Aluminum
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-8000
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454129635
|
|
|
CM-8010
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.5lbs.
UPC:670454129703
|
|
|
CM-8020
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.51lbs.
UPC:670454129765
|
|
|
CM-8085
Spring Return, DPST 1-60 SEC Pneumatic Time Delay, (Requires 1-3/4" deep box)
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 SEC Pneumatic Time Delay, (Requires 1-3/4" deep box)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.72lbs.
UPC:670454129826
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-8100
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.45lbs.
UPC:670454129901
|
|
|
CM-8110
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.45lbs.
UPC:670454129970
|
|
|
CM-8120
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.45lbs.
UPC:670454130037
|
|
|
CM-8185
Spring Return, DPST 1-60 sec Pneumatic Time Delay, (Requires 1-3/4" deep box)
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay, (Requires 1-3/4" deep box)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 4.75"H
Weight: 0.65lbs.
UPC:670454130105
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| BUTTON COLOR OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| FACEPLATE OPTIONS |
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
| Button Engraved Graphic Options |
|
Net Cost |
|
|
CM-xxxE
Add E to product # for 'EXIT' engraved (in white)
|
Add E to product # for 'EXIT' engraved (in white)
|
|
|
|
|
CM-xxxS
Add S to product # for SORTIE engraved (in white)
|
Add S to product # for SORTIE engraved (in white)
|
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA engraved (in white)
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/2
Add /2 to model # for 'WHEELCHAIR' symbol, blue
|
Add /2 to model # for 'WHEELCHAIR' symbol, blue
|
|
|
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
Add /3S to model # for 'PRESIONAR PARA ABRIR', black
|
|
|
|
|
CM-xxx/4
Add /4 to model # for 'WHEELCHAIR' symbol and 'PUSH TO OPEN', black text
|
Add /4 to model # for 'WHEELCHAIR' symbol and 'PUSH TO OPEN', black text
|
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT'
|
Add /7 to model # for 'PUSH TO EXIT'
|
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black
|
Add /8 to model # for 'PUSH TO LOCK', black
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 8100 series switches
|
Surface Box, Deep - For wireless. Narrow/Jamb boxes for 8100 series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 8000 Series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 8000 Series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 8000 Series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 8000 Series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 8000 Series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 8000 Series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang (Deep) |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-8085 requires minimum 2" deep box
|
