| CX-DE1200-N1Single Door Delayed Egress Maglock |

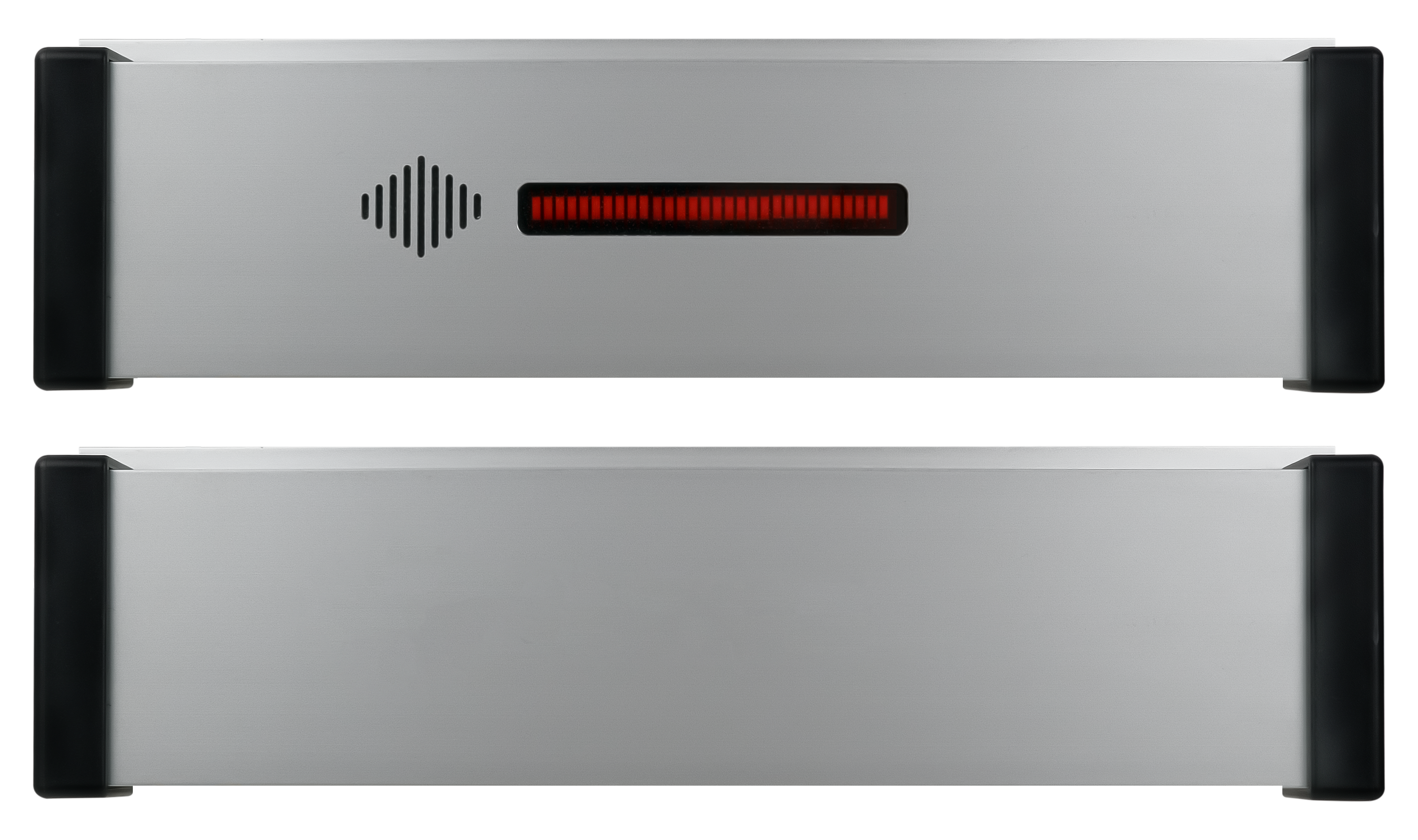

CX-DE1200-N1Single Door Delayed Egress Maglock
|
|
CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings. Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.
NEW ENHANCED AUDIO ON ALL CX-DE1200 DELAYED EGRESS MAGLOCKS - NOW OVER 75dB!
View our Retail and Healthcare (Assisted Living) Application Guides in our resources section below.
|
|
|
| CX-DE1220 Double Door Maglock (Single & Tandem) |
|
|
|
Accessories:
Remote Key Switches, Sounders & Speakers |
|
|
|
Included with
CX-DE1200/1220: 4 signs
with delay options |
|
| CX-DE1200-N1Single Door Delayed Egress Maglock |

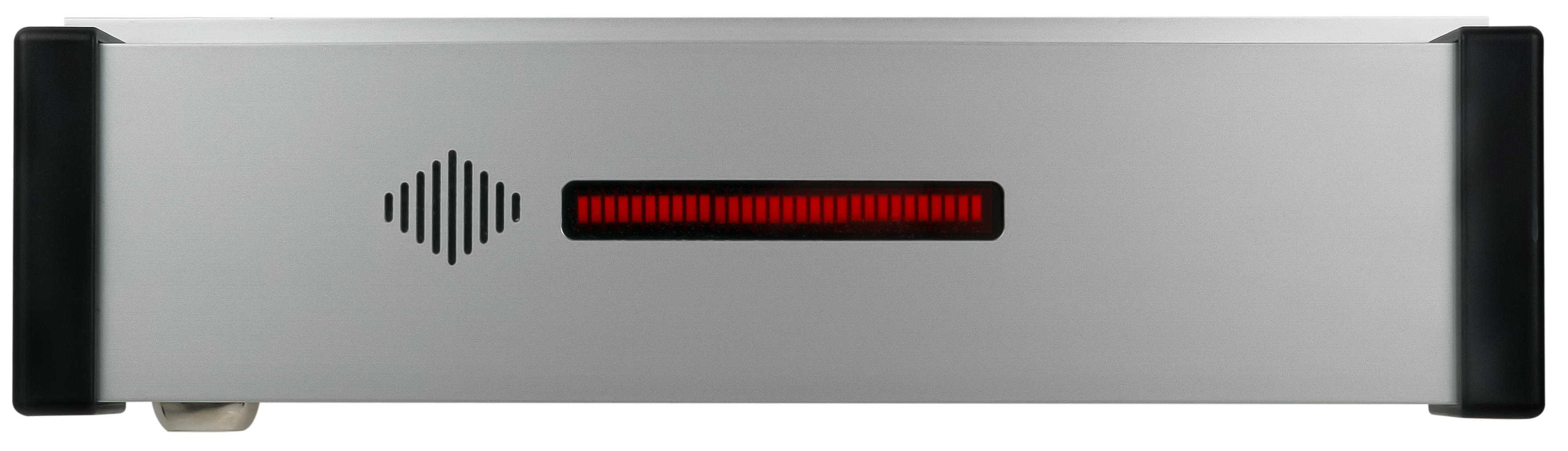

CX-DE1200-N1Single Door Delayed Egress Maglock
|
CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings. Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.
NEW ENHANCED AUDIO ON ALL CX-DE1200 DELAYED EGRESS MAGLOCKS - NOW OVER 75dB!
View our Retail and Healthcare (Assisted Living) Application Guides in our resources section below. |
|
|
|
|
|
|
| CX-DE1220 Double Door Maglock (Single & Tandem) |
|
|
|
|
Accessories:
Remote Key Switches, Sounders & Speakers |
|
|
|
|
Included with
CX-DE1200/1220: 4 signs
with delay options |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
Optional Features:
-
Door Position Status
-
Bond Status
-
Remote Reset and Bypass via Keyswitch
| Voltage: |
12/24 VDC +/- 10% (Auto-Sensing)
|
| Current Draw: |
600mA / 350mA
|
| DPS Rating: |
30 VDC, 0.1A (max.)
|
| ATS Rating: |
30 VAC / 42.4 VDC, 5A (max.)
|
| Lock Status Relay Rating: |
30 VDC, 2A (max.)
|
| Alarm Output Rating: |
30 VDC, 2A (max.)
|
| Bond Sensor Rating: |
CX-DE1200: 30 VDC, 2A (max.)
|
| Holding Force: |
Up to 1,200 lbs. (544 kg.)
|
| Temperature Range: |
32°F - 131°F (0°C to 55°C)
|
| Dimensions - Armature Plate: |
2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm)
|
| Dimensions - Lock: |
3"H x 11"W x 3"D (76mm x 280mm x 76mm)
|
5 Things you NEED to knowCX-DE1200
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Door
 click to expand section
|
|
Net Cost
|
|
CX-DE1200-N1
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454206947
Country of Origin:Malaysia
|
|
CX-DE1200-N2
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207265
Country of Origin:Malaysia
|
|
CX-DE1200-N3
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207289
Country of Origin:Malaysia
|
|
CX-DE1200-N4
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207296
Country of Origin:Malaysia
|
|
CX-DE1200-B1
15 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207302
Country of Origin:Malaysia
|
|
CX-DE1200-B2
30 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207319
Country of Origin:Malaysia
|
|
|
CX-DE1200-B3
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207326
Country of Origin:Malaysia
|
| |
|
Double Door (Single & Tandem)
click to expand section
|
|
Net Cost
|
|
CX-DE1220-N1
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207197
Country of Origin:Malaysia
|
|
|
CX-DE1220-N2
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207203
Country of Origin:Malaysia
|
|
|
CX-DE1220-N3
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207210
Country of Origin:Malaysia
|
|
|
CX-DE1220-N4
15 Second Fixed Exit Device
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Device
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207227
Country of Origin:Malaysia
|
|
CX-DE1220-B1
15 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207234
Country of Origin:Malaysia
|
|
|
CX-DE1220-B2
30 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207241
Country of Origin:Malaysia
|
|
|
CX-DE1220-B3
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207258
Country of Origin:Malaysia
|
| |
|
Mounting Accessories
click to expand section
|
|
Net Cost
|
|

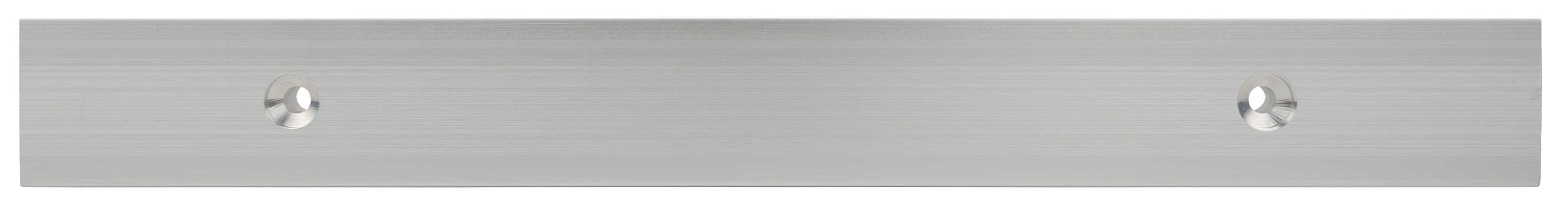

CX-DE1214-38
3/8" Filler Plate
EDI DATA, APPROVALS
|
|
3/8" Filler Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.5lbs.
UPC:670454207333
Country of Origin:Malaysia
|
|

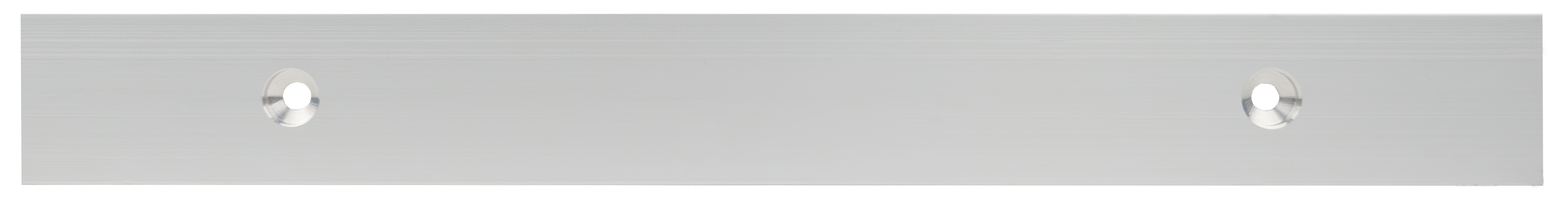

CX-DE1214-58
5/8" Filler Plate
EDI DATA, APPROVALS
|
|
5/8" Filler Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.6lbs.
UPC:670454207340
Country of Origin:Malaysia
|
|

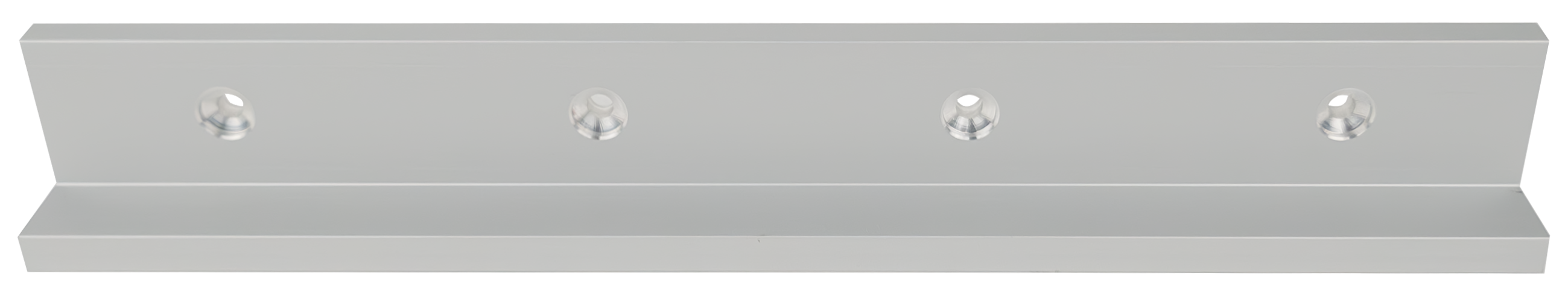

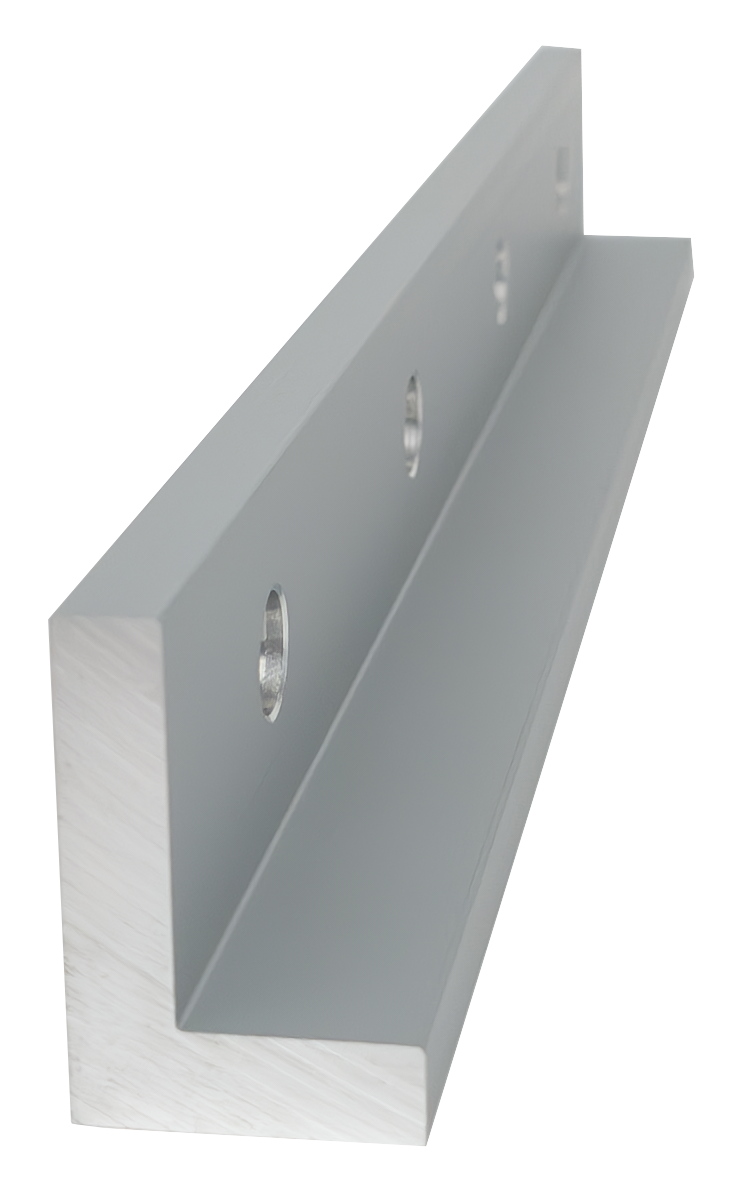

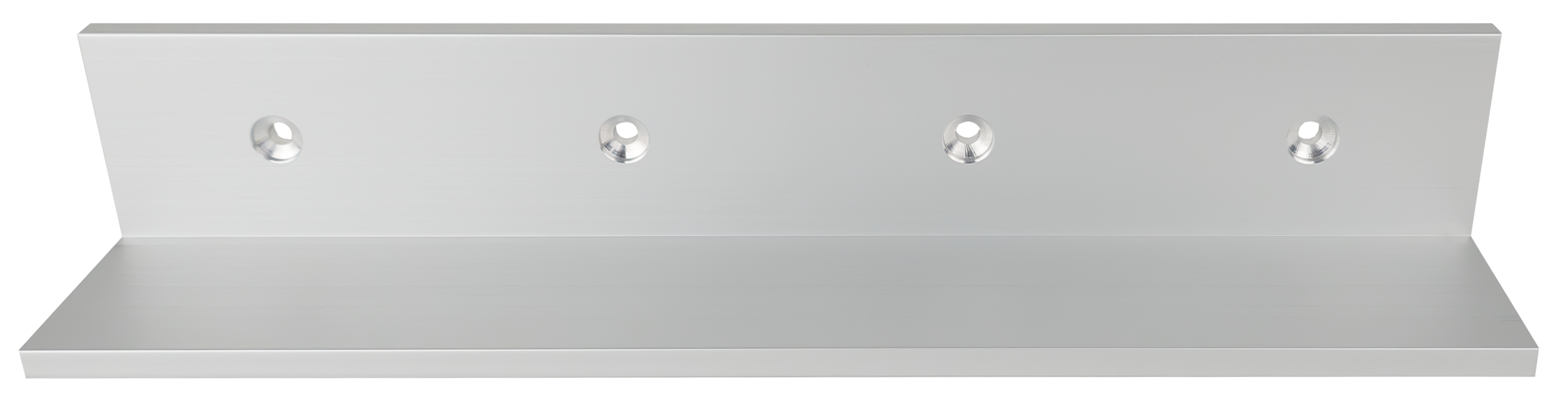

CX-DE1215
1 x 1.5" Angle Bracket
EDI DATA, APPROVALS
|
|
1 x 1.5" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.7lbs.
UPC:670454207357
Country of Origin:Malaysia
|
|

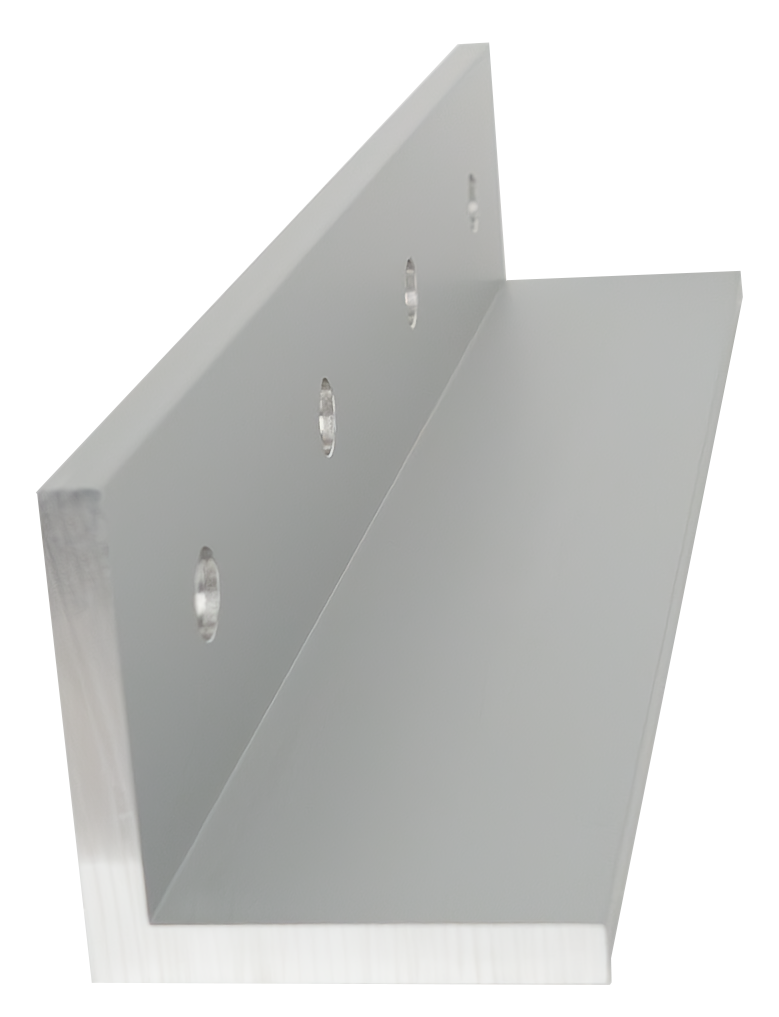

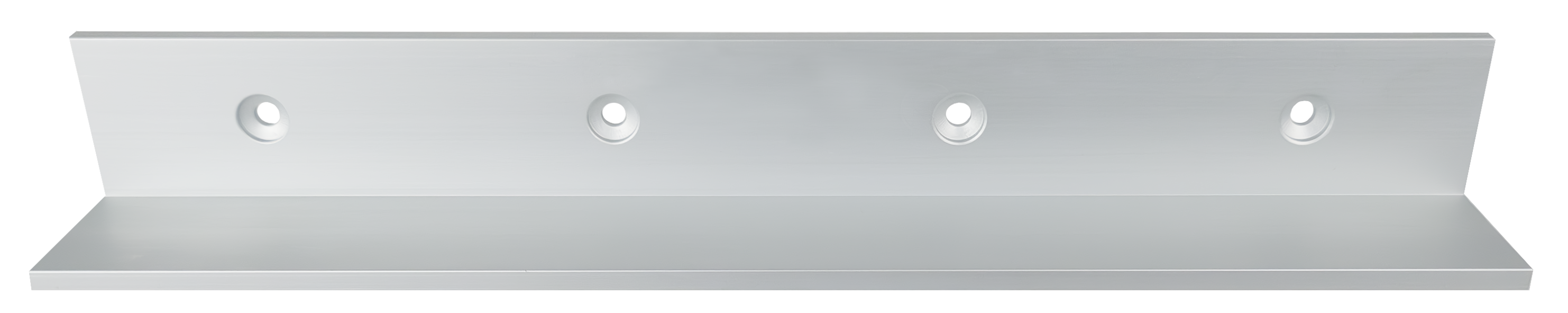

CX-DE1216
1.5" x 1.5" Angle Bracket
EDI DATA, APPROVALS
|
|
1.5" x 1.5" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.7lbs.
UPC:670454207364
Country of Origin:Malaysia
|
|

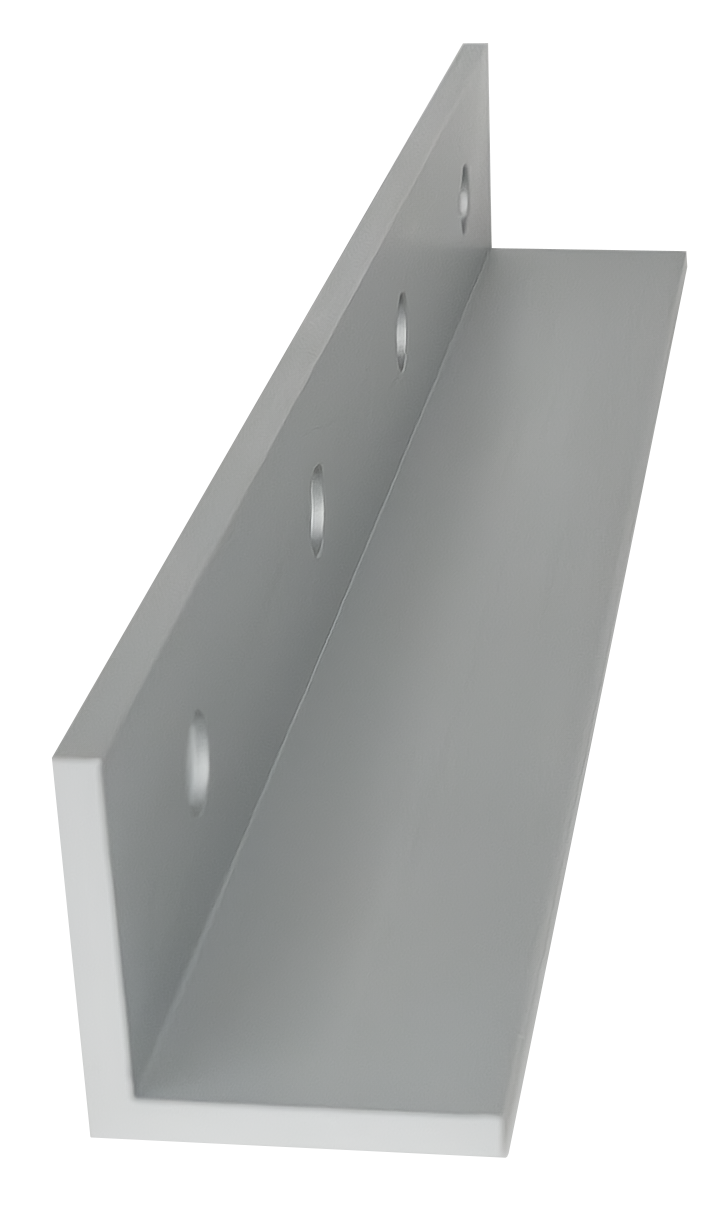

CX-DE1217
2" Angle Bracket
EDI DATA, APPROVALS
|
|
2" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.75lbs.
UPC:670454207371
Country of Origin:Malaysia
|
| |
|
System Accessories
click to expand section
|
|
Net Cost
|
|

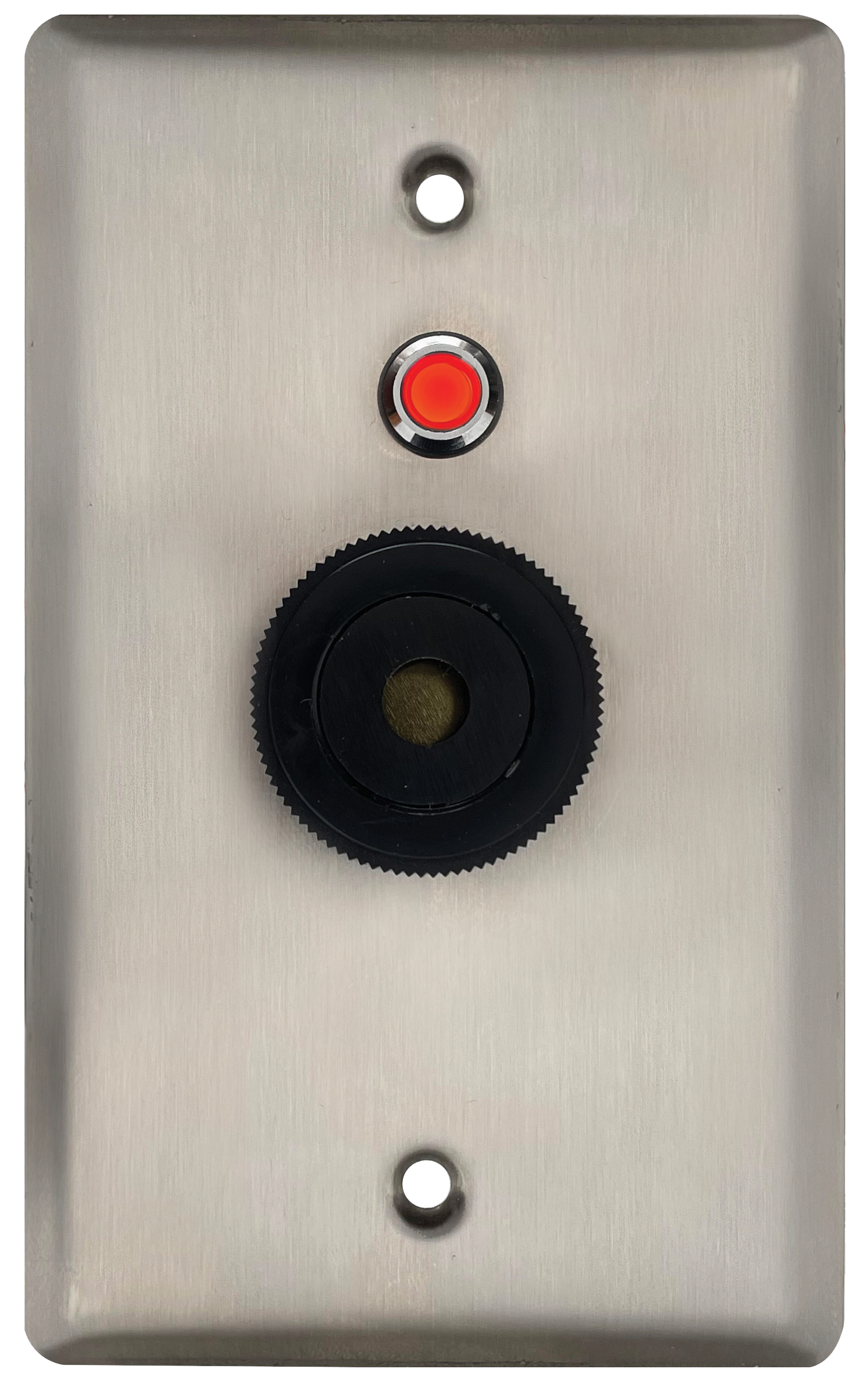

CX-DE502SO
Remote Annunciator for both audible and visual distinction. Stainless steel faceplate with a piezo and tri-color LED.
EDI DATA, APPROVALS
|
|
Remote Annunciator for both audible and visual distinction. Stainless steel faceplate with a piezo and tri-color LED.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.35lbs.
UPC:670454210944
Country of Origin:Canada
|
|

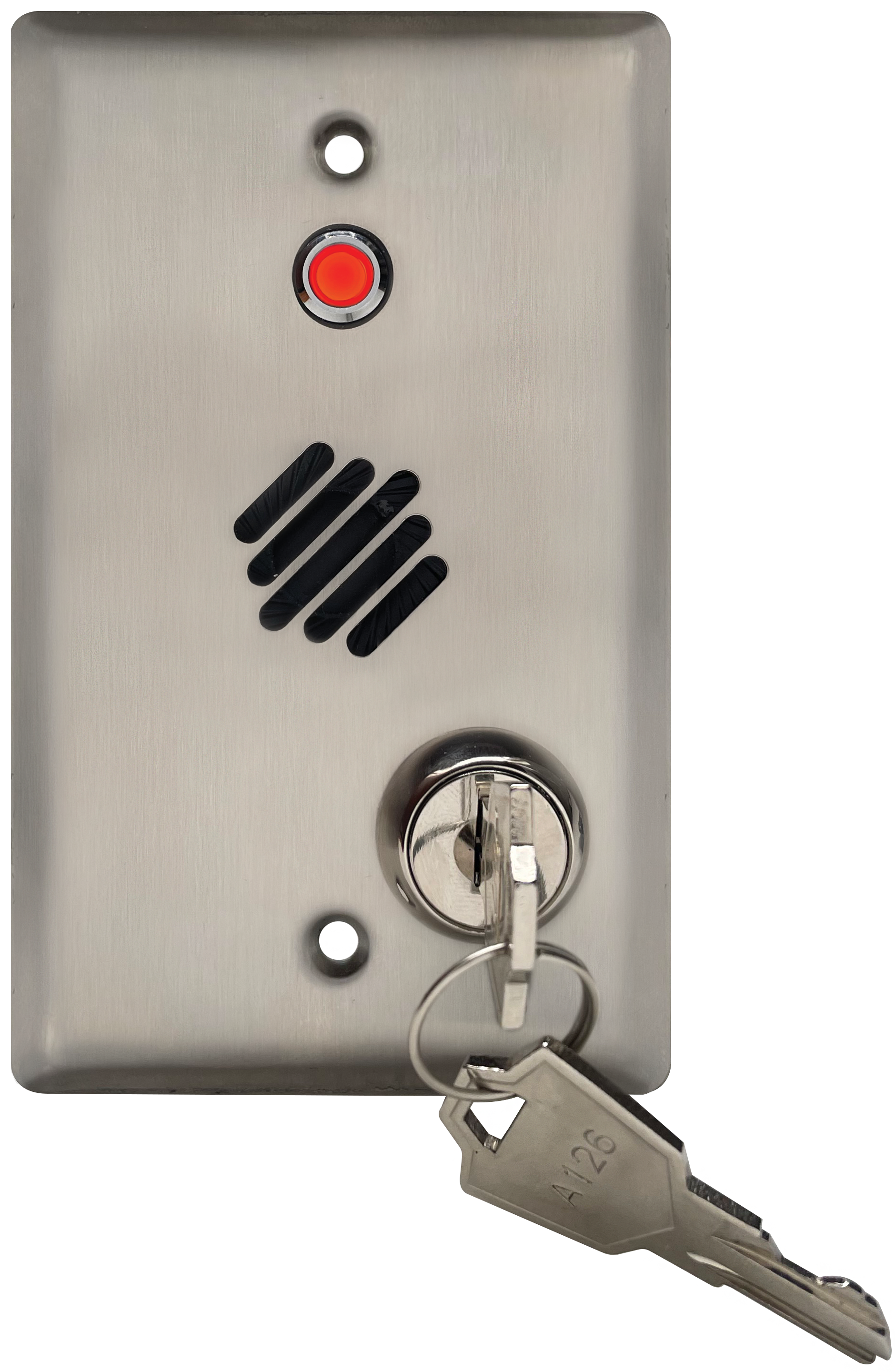

CX-DESPK
Remote Speaker Station with key for both audio and visual distinction. 3 LED color states and 8-ohm speaker for remote messaging.
EDI DATA, APPROVALS
|
|
Remote Speaker Station with key for both audio and visual distinction. 3 LED color states and 8-ohm speaker for remote messaging.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.75lbs.
UPC:670454207388
Country of Origin:Canada
|
|

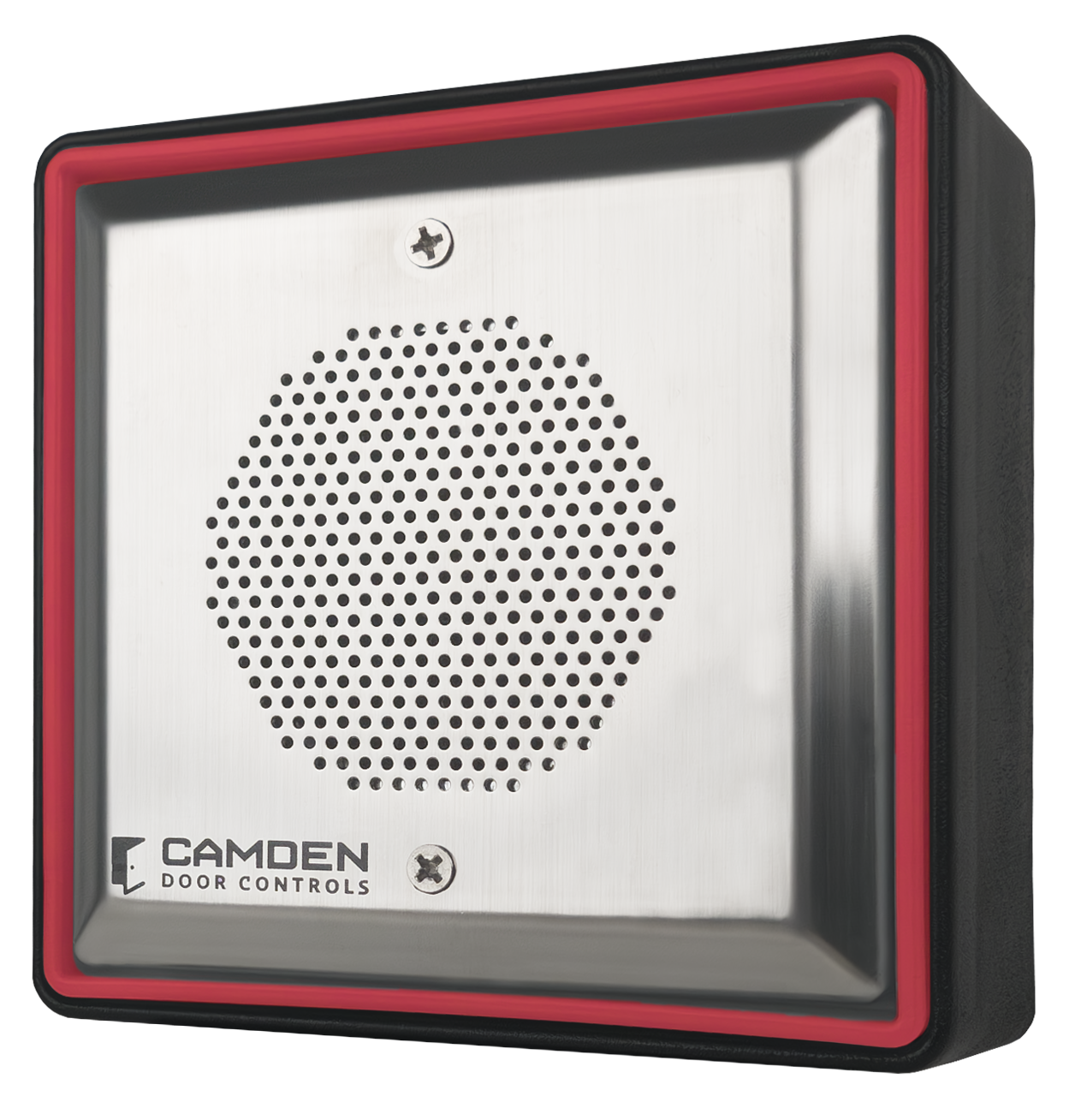

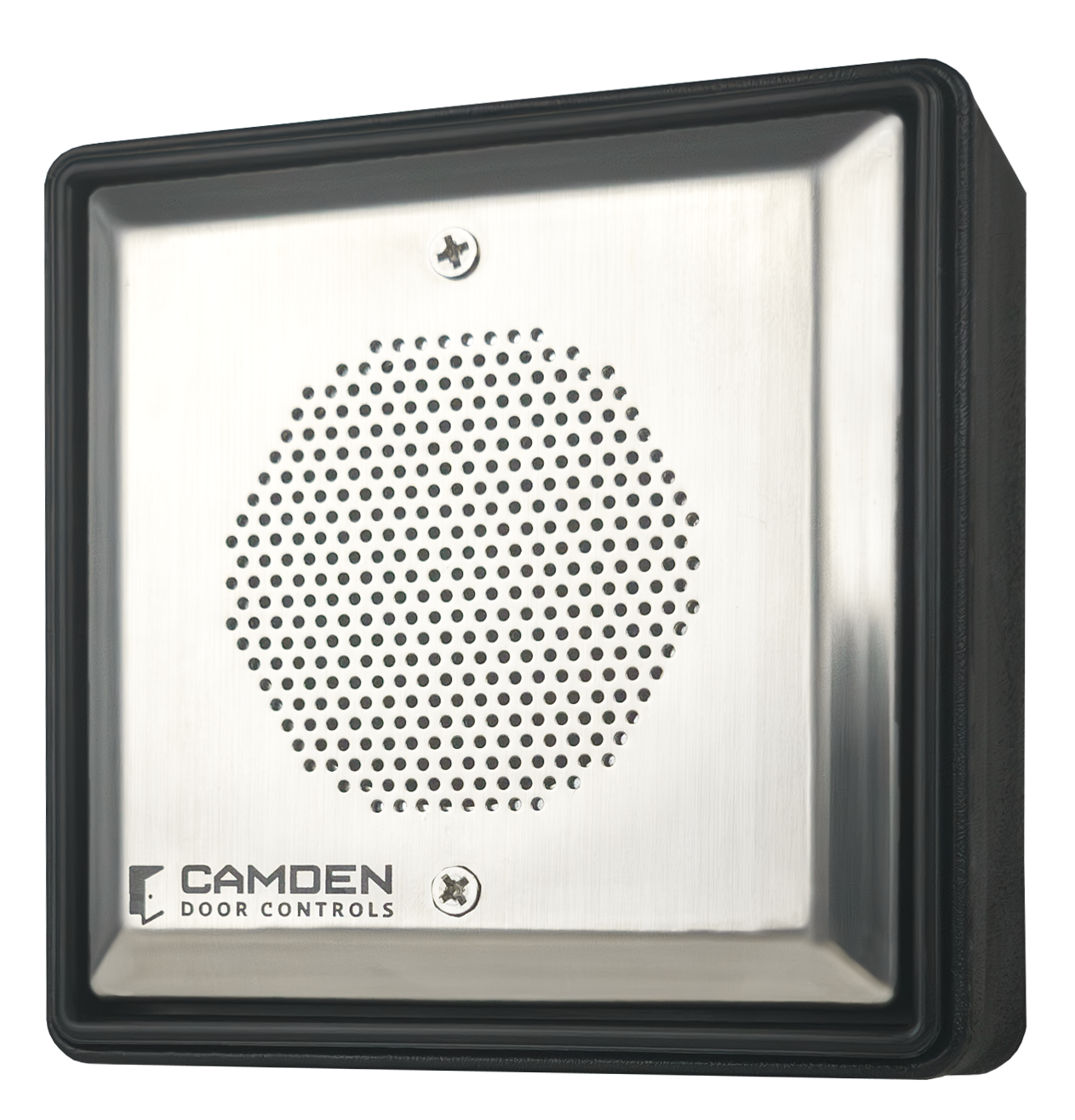

CX-DESPK15-54I
External 15-watt Audio Speaker Station - Surface Mount. Optional Aura PCB feature displays 3 colors for designated states.
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station - Surface Mount. Optional Aura PCB feature displays 3 colors for designated states.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212016
Country of Origin:Canada
|
|

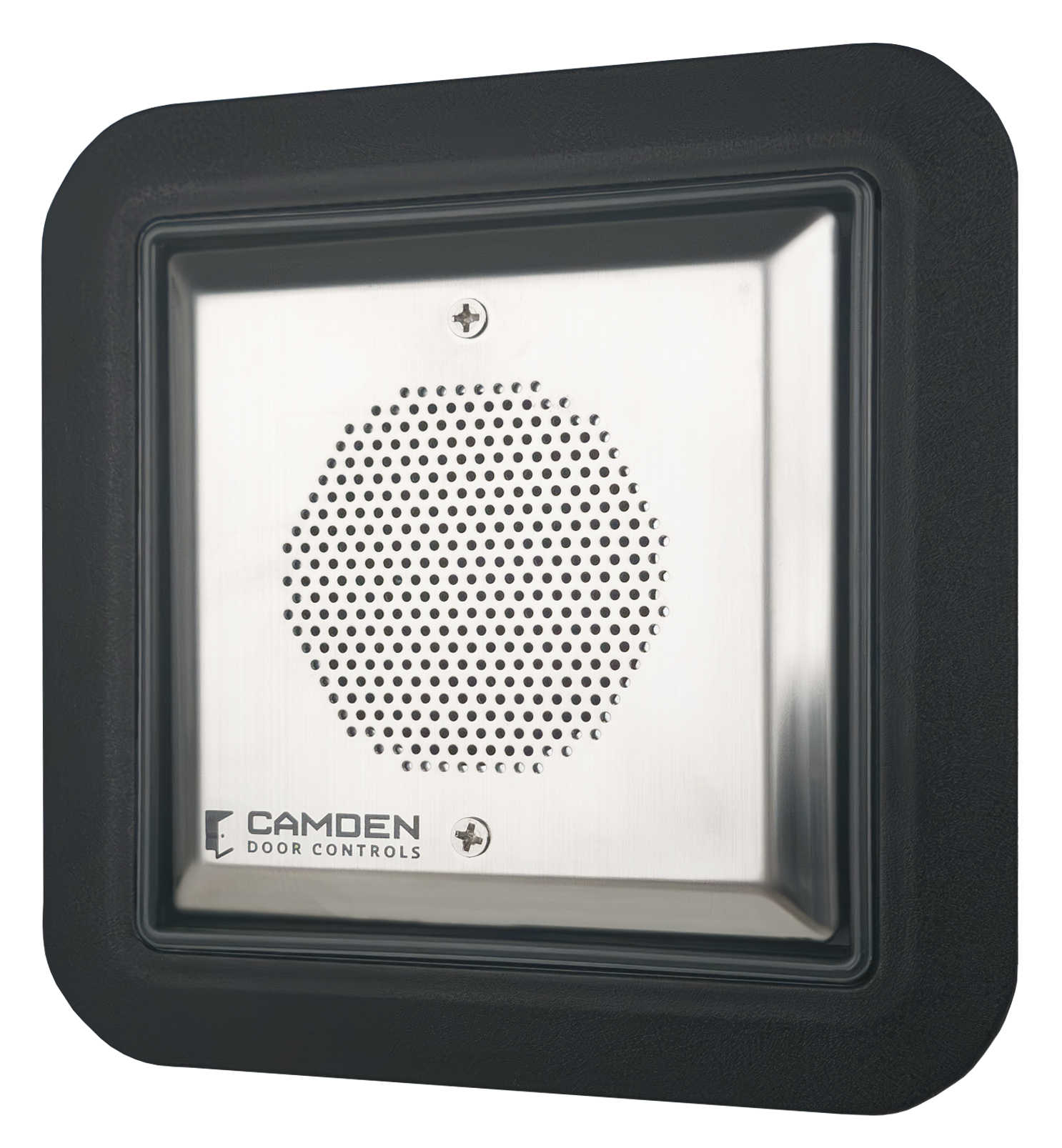

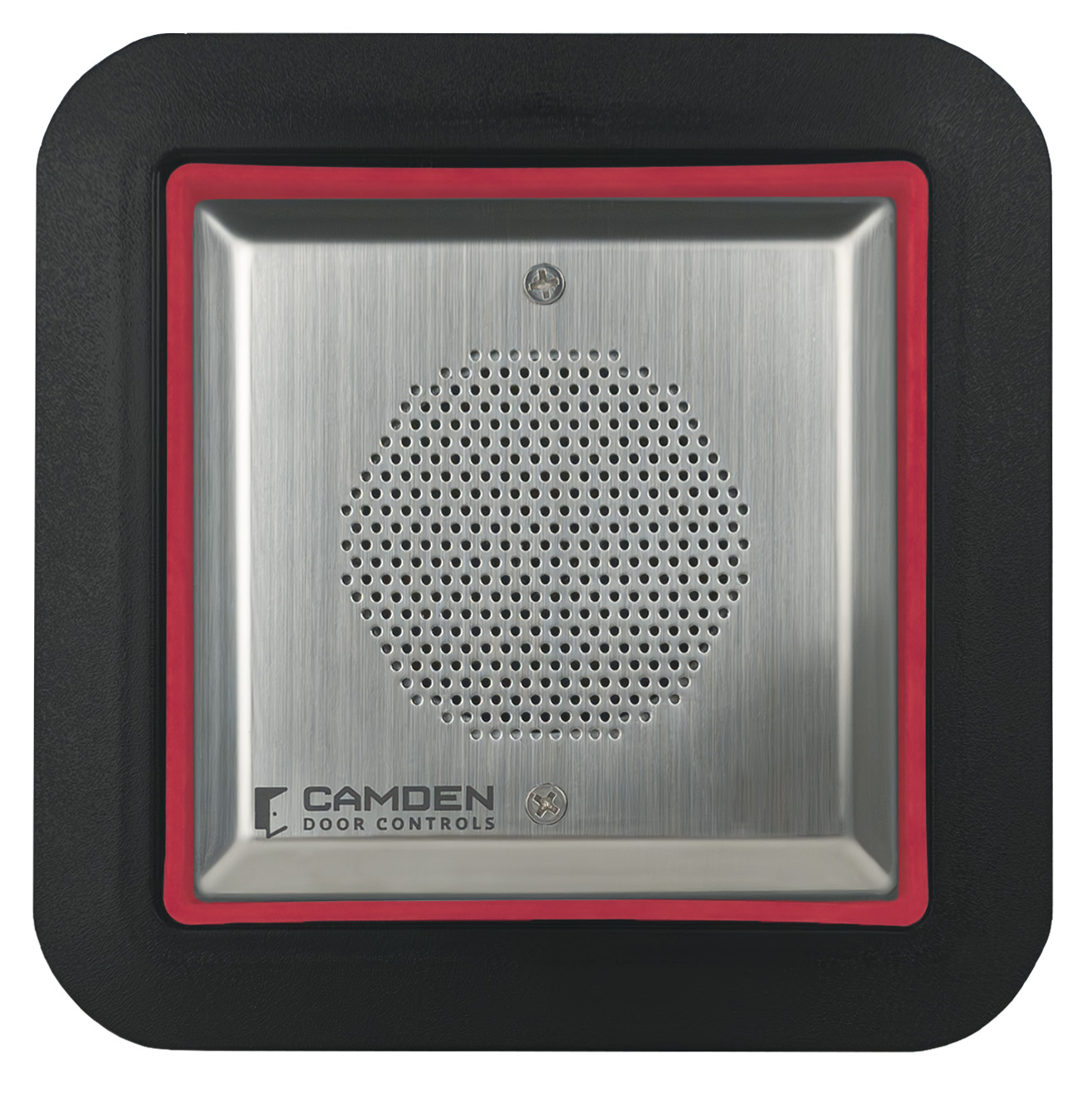

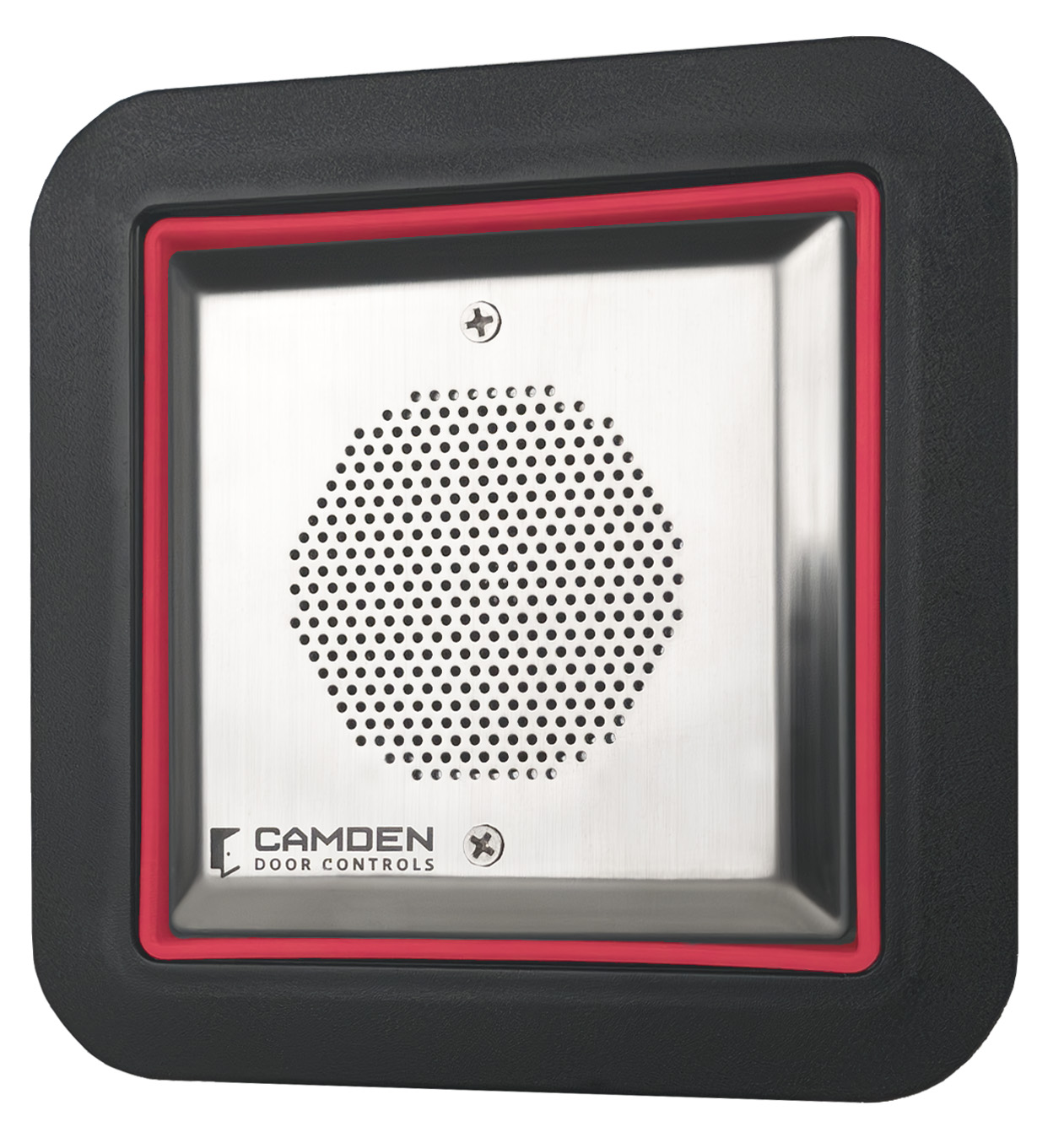

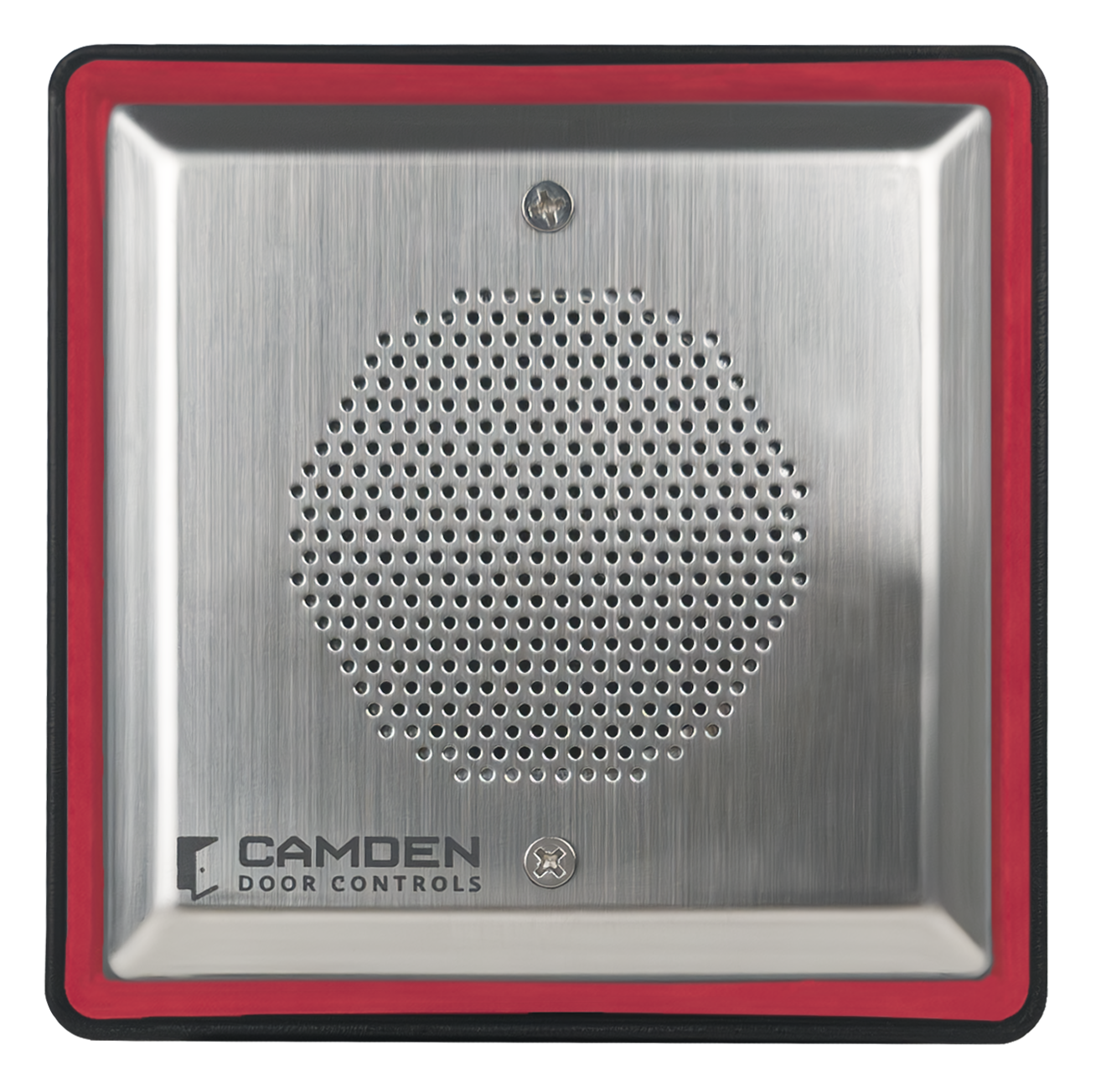

CX-DESPK15-55I
External 15-watt Audio Speaker Station - Flush Mount. Optional Aura PCB feature displays 3 colors for designated states.
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station - Flush Mount. Optional Aura PCB feature displays 3 colors for designated states.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212023
Country of Origin:Canada
|
|
CX-DESPK15SM
External 15-watt Audio Speaker Station
Surface Mount
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station
Surface Mount
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212009
Country of Origin:Canada
|
|

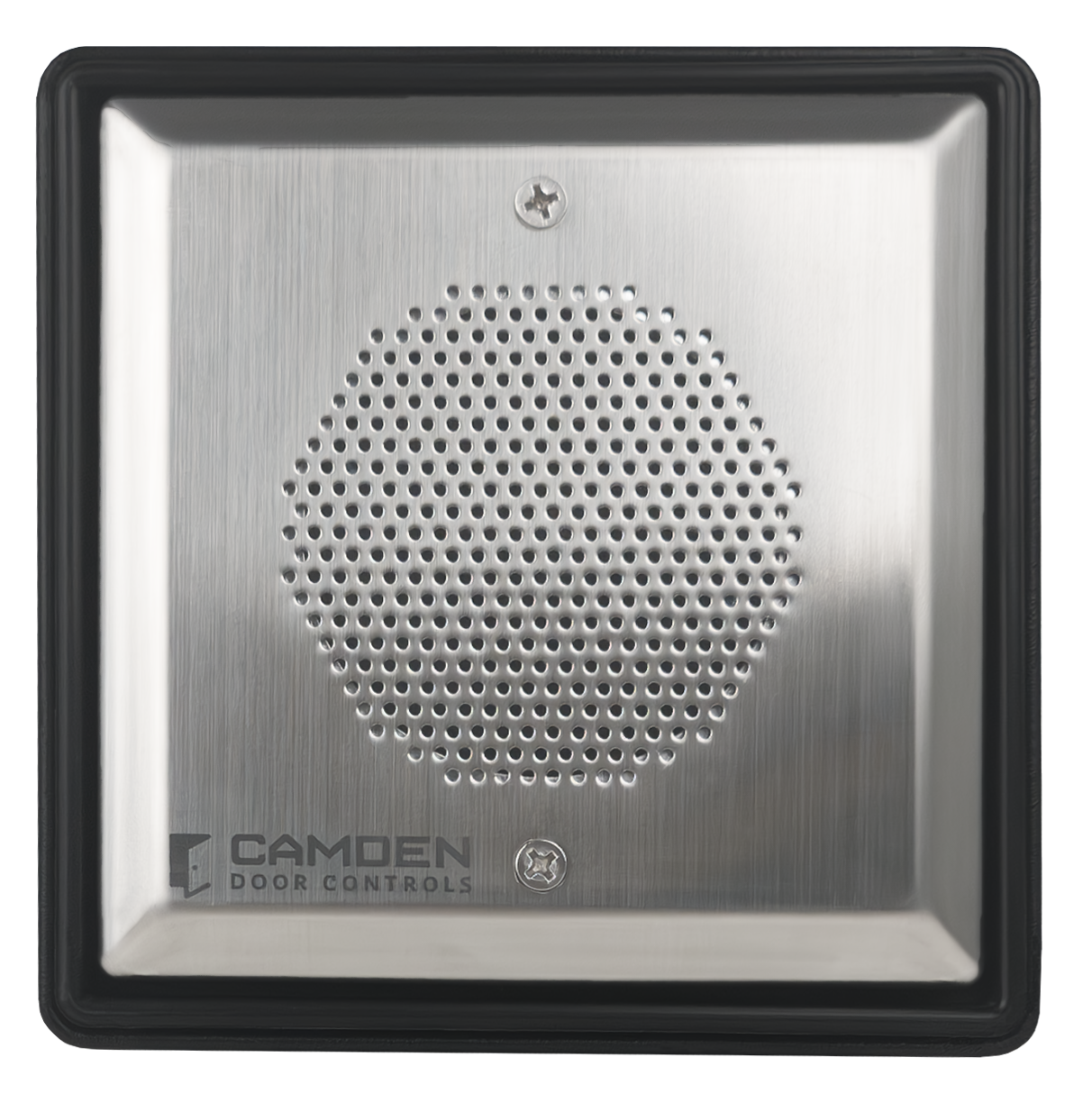

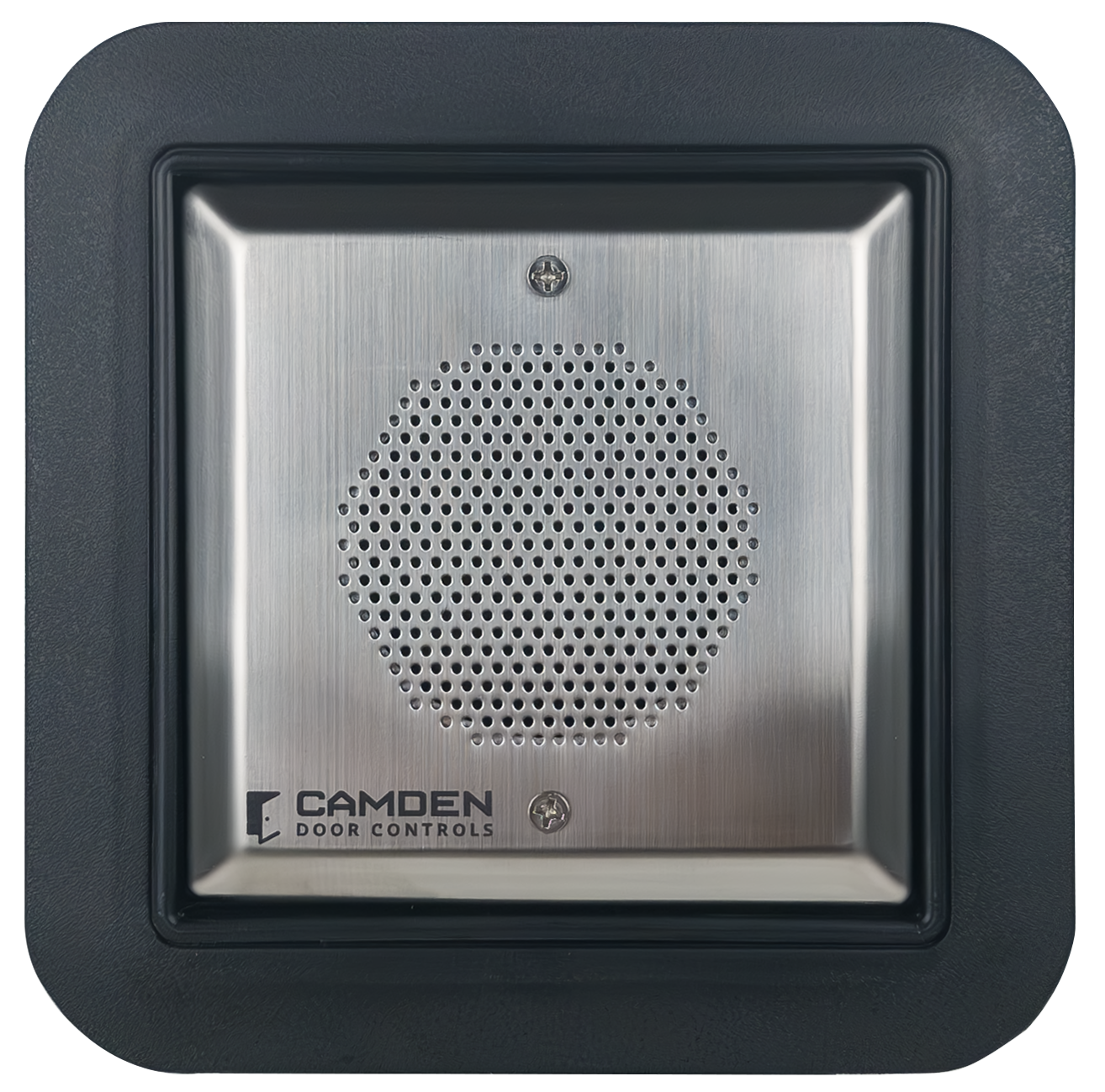

CX-DESPK15FM
External 15-watt Audio Speaker Station
Flush Mount
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station
Flush Mount
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454211996
Country of Origin:Canada
|
|
60-57A027
Red 12" x 12" Delayed Egress Sign
Raised lettering and braille written language for the visually impaired.
EDI DATA, APPROVALS
|
|
Red 12" x 12" Delayed Egress Sign
Raised lettering and braille written language for the visually impaired.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x 12"W x 12"H
Weight: lbs.
UPC:670456232678
Country of Origin:Canada
|
| |
|
|
OPTIONS
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| MAGNETIC LOCK & REMOTE RESET KEY SWITCH |
|
| Magnetic Lock & Remote Reset Key Switch |
|
Net Cost |
|
-KS
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics. Left Down Arrow 'OVERRIDE'. Right Down Arrow 'RESET'
|
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics. Left Down Arrow 'OVERRIDE'. Right Down Arrow 'RESET'
|
|
|
|
-KSF
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French. Left Down Arrow 'CONTOURNER'. Right Down Arrow 'RÉINITIALISER'
|
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French. Left Down Arrow 'CONTOURNER'. Right Down Arrow 'RÉINITIALISER'
|
|
|
|
-KSFE
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French & English. Left Down Arrow 'OVERRIDE CONTOURNER'. Right Down Arrow 'RESET RÉINITIALISER'
|
Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French & English. Left Down Arrow 'OVERRIDE CONTOURNER'. Right Down Arrow 'RESET RÉINITIALISER'
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
|
