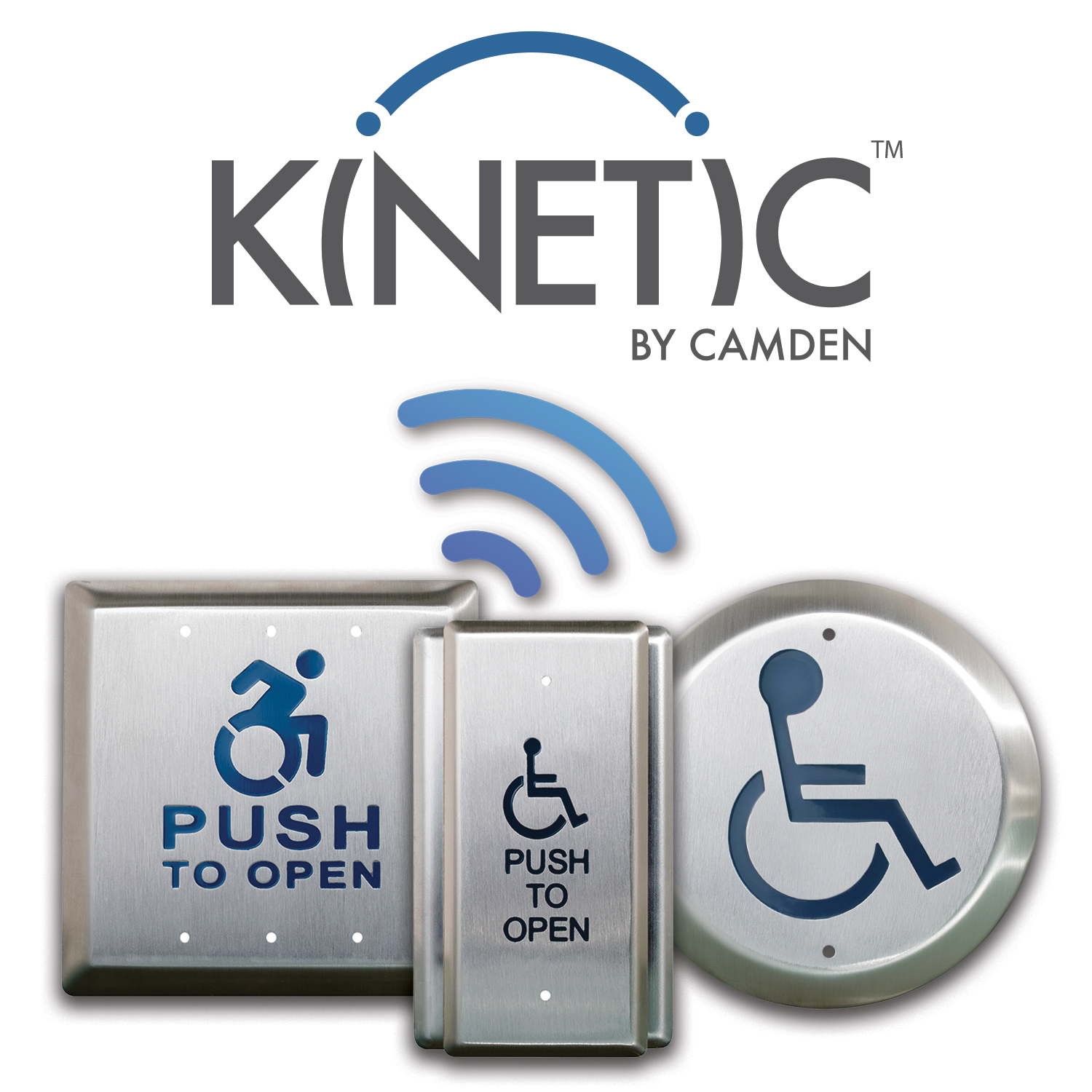

Kinetic by Camden™ is the only 'power harvesting' wireless
system to feature an ultra-compact receiver (easily installed in automatic door
operator cabinets), with field selectable momentary, delayed or latching relay
operation. The wireless system compatible
with all brands of automatic door operators and are designed to provide
reliable door activation in any commercial, industrial and institutional
application. Kinetic by Camden™ no-battery wireless systems are designed for
indoor or outdoor applications. For switches directly exposed to rain or snow,
a water tight switch option is recommended. Please note: Kinetic™ no-battery transmitters cannot be used with Lazerpoint RF™ spread spectrum wall switch, FOB, keypad or hands-free wireless transmitters.
|
|
|
|
Kinetic by Camden™ 2019 New Product of the Year Award! |
|
|
Kinetic™ System Introduction Video |
|
|
Kinetic 5 Things You Need to Know |
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Wireless range equal to line powered or battery powered wireless systems.
-
Battery-less switch operation avoids annual battery maintenance and eliminates the disposal of hazardous waste of batteries in landfill.
-
Battery-less wireless transmitter ordered as part of Camden CM-35, CM-40, CM-45, CM-46, & CM-60 Series push plate switches.
-
Smooth switch operation, ADA compliant activation, using 3.4lbs. force.
-
CM-RX-90:
-
Advance CM-RX90K wireless receiver is compatible with both Lazerpoint RF™ and Kinetic by Camden™ wireless systems, switch selectable.
-
Ultra compact receiver can be mounted in door operator cabinets.
Switch Models |
Wireless Frequency: |
900Mhz. fixed frequency
|
Transmitter Range: |
300ft (91.4m) line of sight
|
Temp Rating: |
-40F to 185F (-40C to +85C)
|
Water Tight Option: |
Yes
|
Dimensions: |
1-1/2" (38.1mm) Mounting Box Depth Required
|
|
Receiver |
Wireless Frequency Selection: |
CX-RX90v2 is field selectable Lazerpoint RF(tm) or Kinetic(tm) wireless
|
Transmitter Capacity: |
40 Transmitters
|
LEDs: |
Relay status, learn/erase mode, & time setting
|
Outputs: |
(1) SPDT Relay, 3 modes
|
Contact Rating: |
3 Amps @ 30 VDC
|
Delay Time: |
1 – 15 seconds
|
Operating Time: |
1 – 30 seconds
|
Temp Rating: |
-40F to 185F (-40C to +85C)
|
Dimensions: |
2-5/8" H x 1-1/2" W x 1" (89mm x 51mm x 25mm)
|
|
Application Guides
|
Automatic Doors - Single Door, KineticTM No Battery Wireless Activation |
pdf |
0.88 |
DOWNLOAD
OPEN
|
Spec Sheets
|
KINETIC Spec Sheet_R3 |
pdf |
2.81 |
DOWNLOAD
OPEN
|
KINETIC Spec Sheet_R3 - French |
pdf |
2.81 |
DOWNLOAD
OPEN
|
KINETIC Spec Sheet_R2 - Spanish |
pdf |
1.30 |
DOWNLOAD
OPEN
|
Installation Manuals
|
Lazerpoint-Kinetic_RX-90v2 Manual_R3 |
pdf |
0.61 |
DOWNLOAD
OPEN
|
Lazerpoint-Kinetic_RX-90v2 Manual_R3-fr |
pdf |
0.63 |
DOWNLOAD
OPEN
|
Addendum
|
US Kinetic Series Addendum 2024 - Page 76 |
pdf |
0.25 |
DOWNLOAD
OPEN
|
High Resolution Images
|
Kinetic by Camden™ Promotion Image |
jpeg |
0.73 |
DOWNLOAD
OPEN
|
Kinetic™ Switch IntroductionAn overview of this wireless system
Introducción al sistema Kinetic - EspañolUna descripción general de este sistema inalámbrico
Kinetic™ Switch TechnologyLearn about the transmitter & receiver
5 Things you NEED to knowKinetic by Camden
Wireless Door Activation - An Installers Guide
|
new option
|
Round Push Plate Switches
click to expand section
|
|
Net Cost
|
|
CM-40K
4-1/2" Stainless Steel Round Push Plate Switch
EDI DATA, APPROVALS
|
|
4-1/2" Stainless Steel Round Push Plate Switch
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-41K
4-1/2" Stainless Steel Round Push Plate Switchwith Square Back Plate
EDI DATA, APPROVALS
|
|
4-1/2" Stainless Steel Round Push Plate Switchwith Square Back Plate
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-60K
6" Stainless Steel Round Push Plate Switch
EDI DATA, APPROVALS
|
|
6" Stainless Steel Round Push Plate Switch
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
4-1/2" Square Push Plate Switches
click to expand section
|
|
Net Cost
|
|
CM-45K
4-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
|
CM-46K
4-1/2" Square Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
|
CM-46CBK
4-1/2" Square Push Plate Switch, Exposed Screws, blue paint finish w/ no-battery Kinetic wireless transmitter. /2 and /4 graphic options only,
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Exposed Screws, blue paint finish w/ no-battery Kinetic wireless transmitter. /2 and /4 graphic options only,
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
|
CM-75 Series Column(tm) Switches
click to expand section
|
|
Net Cost
|
|
CM-7536K
Aluminum Column(tm) Push Plate Switch
EDI DATA, APPROVALS
|
|
Aluminum Column(tm) Push Plate Switch
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-7536SSK
Stainless Steel Column(tm) Push Plate Switch
EDI DATA, APPROVALS
|
|
Stainless Steel Column(tm) Push Plate Switch
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CM-RX-90
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver
EDI DATA, APPROVALS
|
|
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.2lbs.
UPC:670454188847
|
|
|
|

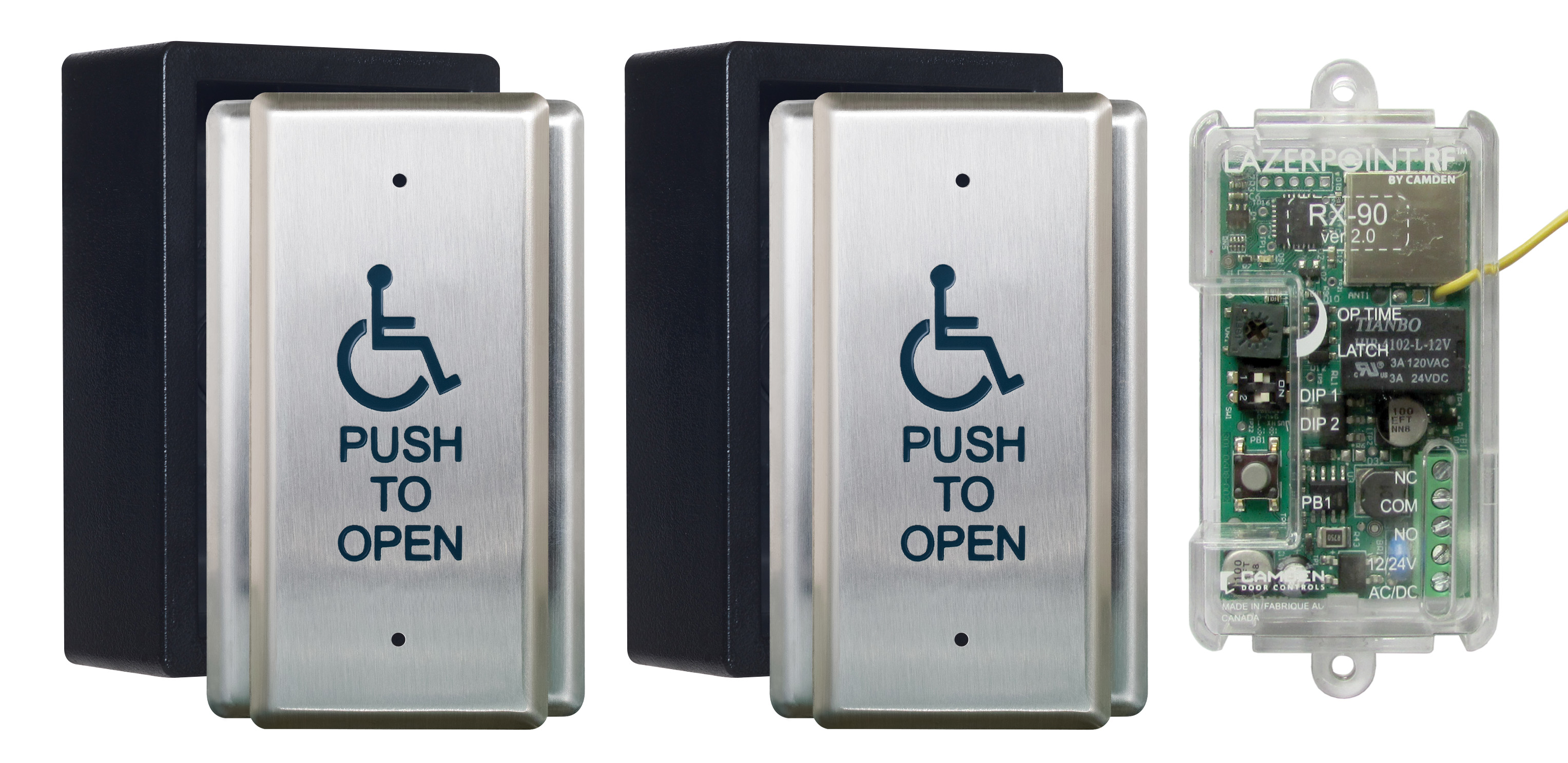

CM-35 2" Narrow, w/ Exposed Screws
click to expand section
|
|
Net Cost
|
|
CM-RFK354
EDI DATA, APPROVALS
|
|
CM-RFK354
(2)
2” Width Narrow push plate switch, single gang back plate brushed stainless steel finish;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth. Double wall;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
2x |
|
|
2x |
|
1x |
|
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454215826
|
|

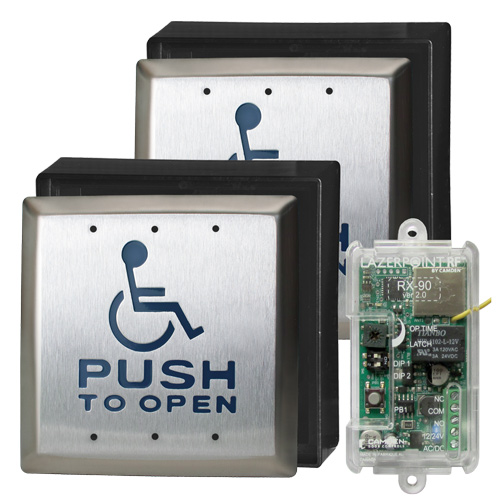

CM-45 4-1/2" Square w/ Concealed Screws
click to expand section
|
|
Net Cost
|
|
CM-RFK454
EDI DATA, APPROVALS
|
|
CM-RFK454
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
2x |
|
|
2x |
|
1x |
|
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201195
|
|
CM-46 4-1/2" Square w/ Exposed Screws
click to expand section
|
|
Net Cost
|
|
CM-RFK464
EDI DATA, APPROVALS
|
|
CM-RFK464
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
2x |
|
|
2x |
|
1x |
|
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201232
|
|
CM-46CB 4-1/2" Square, Blue, w/ Exposed Screws
click to expand section
|
|
Net Cost
|
|
CM-RFK46CB4
EDI DATA, APPROVALS
|
|
CM-RFK46CB4
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
2x |
|
|
2x |
|
1x |
|
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201263
|
|
|
|
