CM-25, CM-26CB, CM-35 and CM-35N Series all-active switches are heavy-duty, ADA-compliant door controls. CM-25 (1-5/8" x 4-1/2") and CM-26CB/CM-35 series (2" x 4-1/2") rectangular faceplates are stainless steel, aluminum or solid brass. The CM-25 is designed to mount directly on a metal door frame or narrow surface box. The CM-35 and CM-35N Series meets new OBC requirements for activation plate size and is designed for mounting on a single gang box.
Note: CM-35 and CM-25 Series push plate switches are not available with optional DPDT contact.
Architectural Finishes: CM-25 Series switches with architectural finish only available with /2 and /4 graphic options. CM-35 Series switches with architectural finish only available with /2 and /4 graphic options CM-26CB Series switches are only available with /1, /2, /A2, /4 or /A4 graphics, in white.
|
|
CM-26CB/4 Narrow |
|
|
CM-35/4 Single gang, OBC Compliant |
|
|
CM-35N/4 Narrow, OBC Compliant |
|
|
Blog Post | New Accessibility Symbol |
COMPETITIVE MODELS
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
Manufacturer |
Part Number |
Camden Part Number |
Alarm Controls
|
PN1-11
|
CM-25, CM-xxx/3
|
|
PN2-443
|
CM-26CB, CM-xxx/4
|
|
PS1-111
|
CM-35, CM-xxx/3
|
|
PT1-111
|
CM-35, CM-xxx/3
|
Dormakaba (RCI)
|
940-H6MOX32D
|
CM-35, CM-xxx/2
|
|
940-HP6MOX32D
|
CM-35, CM-xxx/4
|
|
940-P6MOX32D
|
CM-35, CM-xxx/3
|
|
941-HMOX32D
|
CM-35N, CM-xxx/2
|
|
941-HMOXBLU
|
CM-26CB, CM-xxx/2
|
|
941-HPMOX32D
|
CM-35N, CM-xxx/4
|
|
941-HPMOXBLU
|
CM-26CB, CM-xxx/4
|
|
941-PMOX32D
|
CM-35N, CM-xxx/3
|
MS Sedco
|
59J-2
|
CM-26CB, CM-xxx/2
|
|
59J-H
|
CM-26CB, CM-xxx/4
|
|
59J-HSS
|
CM-25, CM-xxx/4
|
|
59J-P
|
CM-25, CM-xxx/3
|
|
59J-WSS
|
CM-25, CM-xxx/2
|
Wikk
|
AA-1
|
CM-25, CM-xxx/1
|
|
AA-2
|
CM-25, CM-xxx/3
|
|
AA-3
|
CM-25, CM-xxx/4
|
|
AA-3AL
|
CM-25, CM-xxx/4AL
|
|
AA-3AR
|
CM-25, CM-xxx/4AR
|
|
AA-3H
|
CM-25H, CM-xxx/4
|
|
AA-5
|
CM-25, CM-xxx/2
|
|
|
|
CM-25, CM-26CB, CM-35 and CM-35N Series all-active switches are heavy-duty, ADA-compliant door controls. CM-25 (1-5/8" x 4-1/2") and CM-26CB/CM-35 series (2" x 4-1/2") rectangular faceplates are stainless steel, aluminum or solid brass. The CM-25 is designed to mount directly on a metal door frame or narrow surface box. The CM-35 and CM-35N Series meets new OBC requirements for activation plate size and is designed for mounting on a single gang box.
Note: CM-35 and CM-25 Series push plate switches are not available with optional DPDT contact.
Architectural Finishes: CM-25 Series switches with architectural finish only available with /2 and /4 graphic options. CM-35 Series switches with architectural finish only available with /2 and /4 graphic options CM-26CB Series switches are only available with /1, /2, /A2, /4 or /A4 graphics, in white.
|
|
|
|
CM-26CB/4 Narrow |
|
|
CM-35/4 Single gang, OBC Compliant |
|
|
CM-35N/4 Narrow, OBC Compliant |
|
|
Blog Post | New Accessibility Symbol |
|
COMPETITIVE MODELS
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
Manufacturer |
Part Number |
Camden Part Number |
Alarm Controls
|
PN1-11
|
CM-25, CM-xxx/3
|
|
PN2-443
|
CM-26CB, CM-xxx/4
|
|
PS1-111
|
CM-35, CM-xxx/3
|
|
PT1-111
|
CM-35, CM-xxx/3
|
Dormakaba (RCI)
|
940-H6MOX32D
|
CM-35, CM-xxx/2
|
|
940-HP6MOX32D
|
CM-35, CM-xxx/4
|
|
940-P6MOX32D
|
CM-35, CM-xxx/3
|
|
941-HMOX32D
|
CM-35N, CM-xxx/2
|
|
941-HMOXBLU
|
CM-26CB, CM-xxx/2
|
|
941-HPMOX32D
|
CM-35N, CM-xxx/4
|
|
941-HPMOXBLU
|
CM-26CB, CM-xxx/4
|
|
941-PMOX32D
|
CM-35N, CM-xxx/3
|
MS Sedco
|
59J-2
|
CM-26CB, CM-xxx/2
|
|
59J-H
|
CM-26CB, CM-xxx/4
|
|
59J-HSS
|
CM-25, CM-xxx/4
|
|
59J-P
|
CM-25, CM-xxx/3
|
|
59J-WSS
|
CM-25, CM-xxx/2
|
Wikk
|
AA-1
|
CM-25, CM-xxx/1
|
|
AA-2
|
CM-25, CM-xxx/3
|
|
AA-3
|
CM-25, CM-xxx/4
|
|
AA-3AL
|
CM-25, CM-xxx/4AL
|
|
AA-3AR
|
CM-25, CM-xxx/4AR
|
|
AA-3H
|
CM-25H, CM-xxx/4
|
|
AA-5
|
CM-25, CM-xxx/2
|
|
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Durable stainless steel construction
-
All-Active design requires minimal actuation force
-
ADA compliant
-
Ultra quiet operation
-
Permanent debossed or laser engraved graphics
-
3 year warranty
-
CM-25, CM-26CB:
Narrow switch with 1-3/4” wide activation plate mounts in aluminum jamb or in surface boxes
-
CM-35:
1 gang switch with narrow 2" wide activation plate, OBC-compliant
-
CM-35N:
Narrow switch with 2" wide activation plate, OBC-compliant
Voltage: |
12/24V AC/DC
|
Contact Type: |
N/O SPST
|
Switch Type: |
Momentary
|
Contact Rating: |
3 A @ 30 VDC
|
Temp Range: |
-40°F to 140°F (-40°C to +60°C)
|
Std. Finish: |
US32 / C32D
|
Dimensions: |
CM-25,
CM-26CB:
|
4-3/16" x 1-3/4" x 1-3/16" (113mm x 44mm x 30mm)
|
CM-35:
|
4-1/2"x 2-3/4" x 1-3/16" (114mm x 70mm x 30mm)
|
|
|
MODELS
|
Click to configure switch model
|
|
|
|
WIZARD
|
SELECT MODEL |
![](/pipelines/resource/468_WU5WBZNVXT3UDKBVGFEV.png) |
|
|
|
WIZARD
|
SELECT MODEL |
![](/pipelines/resource/468_WU5WBZNVXT3UDKBVGFEV.png) |
|
|
|
Narrow Jamb
click to expand section
|
|
Net Cost
|
|

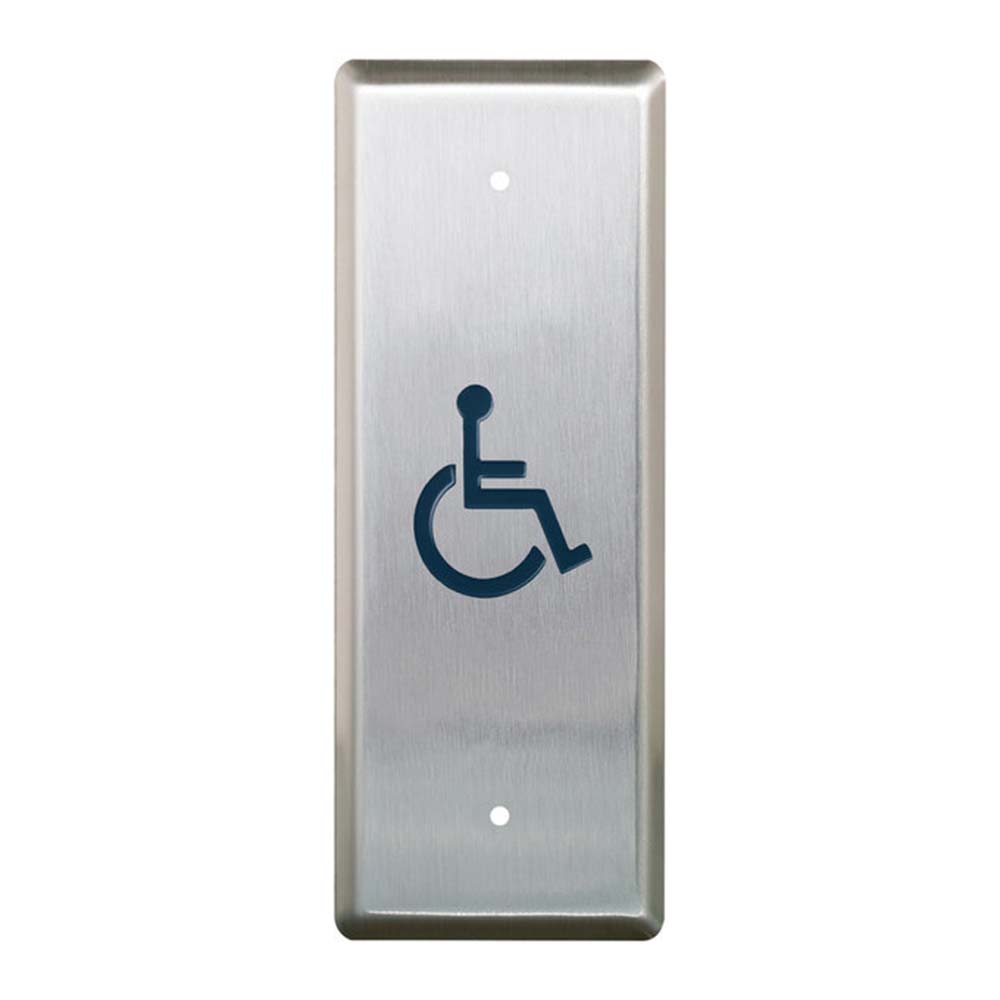

CM-25
Narrow push plate switch, vertical mounting 4-1/2" x 1-3/4" (114mm x 44mm)
EDI DATA, APPROVALS
|
|
Narrow push plate switch, vertical mounting 4-1/2" x 1-3/4" (114mm x 44mm)
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.50"L x 6.00"W x 2.25"H
Weight: 0.36lbs.
|
|

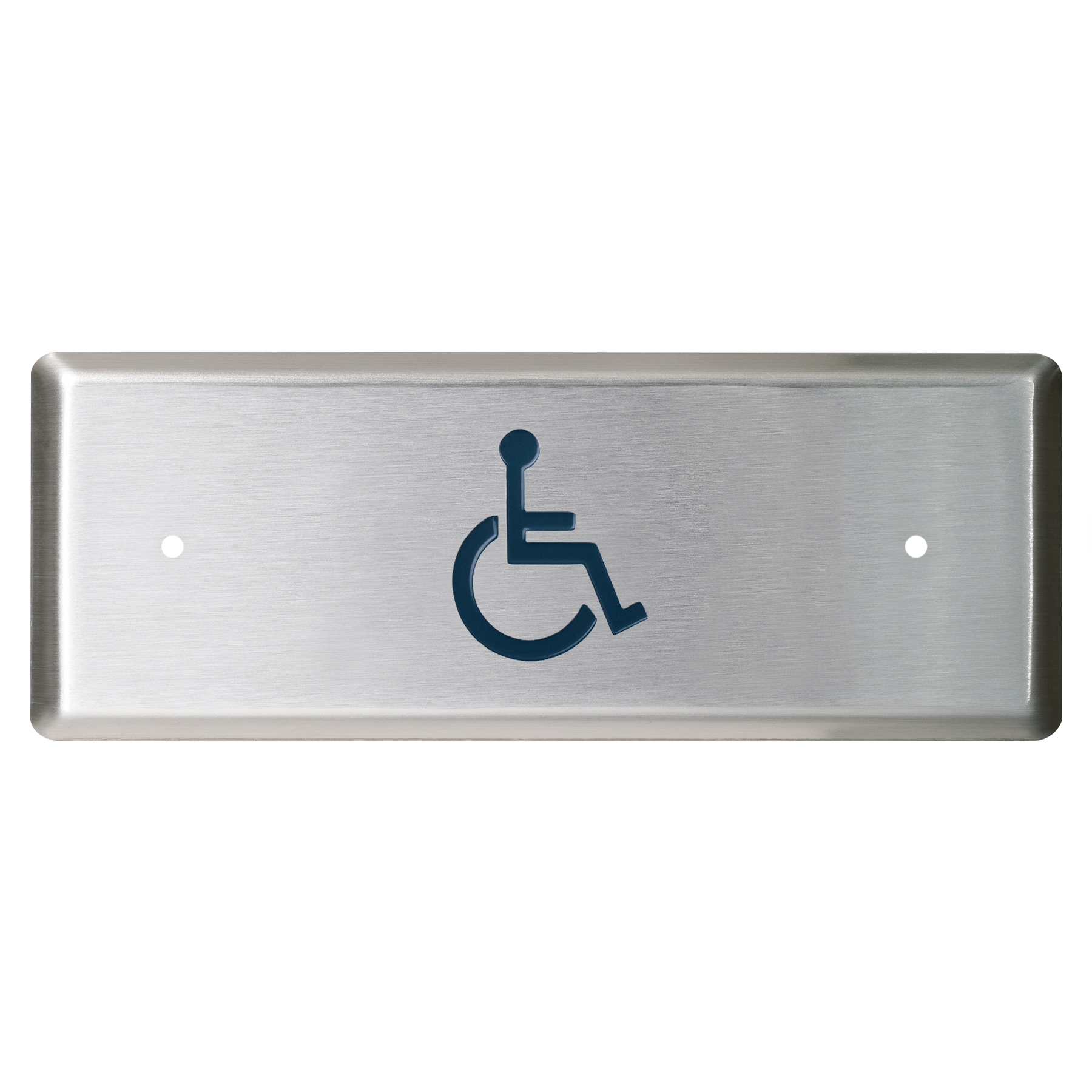

CM-25H
1-3/4" x 4-1/2" (44mm x 114mm) Narrow push plate switch, horizontal mounting. /2 Wheelchair graphic, blue. All other graphic options black only.
EDI DATA, APPROVALS
|
|
1-3/4" x 4-1/2" (44mm x 114mm) Narrow push plate switch, horizontal mounting. /2 Wheelchair graphic, blue. All other graphic options black only.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 0.36"L x 3.50"W x 6.00"H
Weight: 2.25lbs.
|
|
Narrow Blue Jamb
click to expand section
|
|
Net Cost
|
|

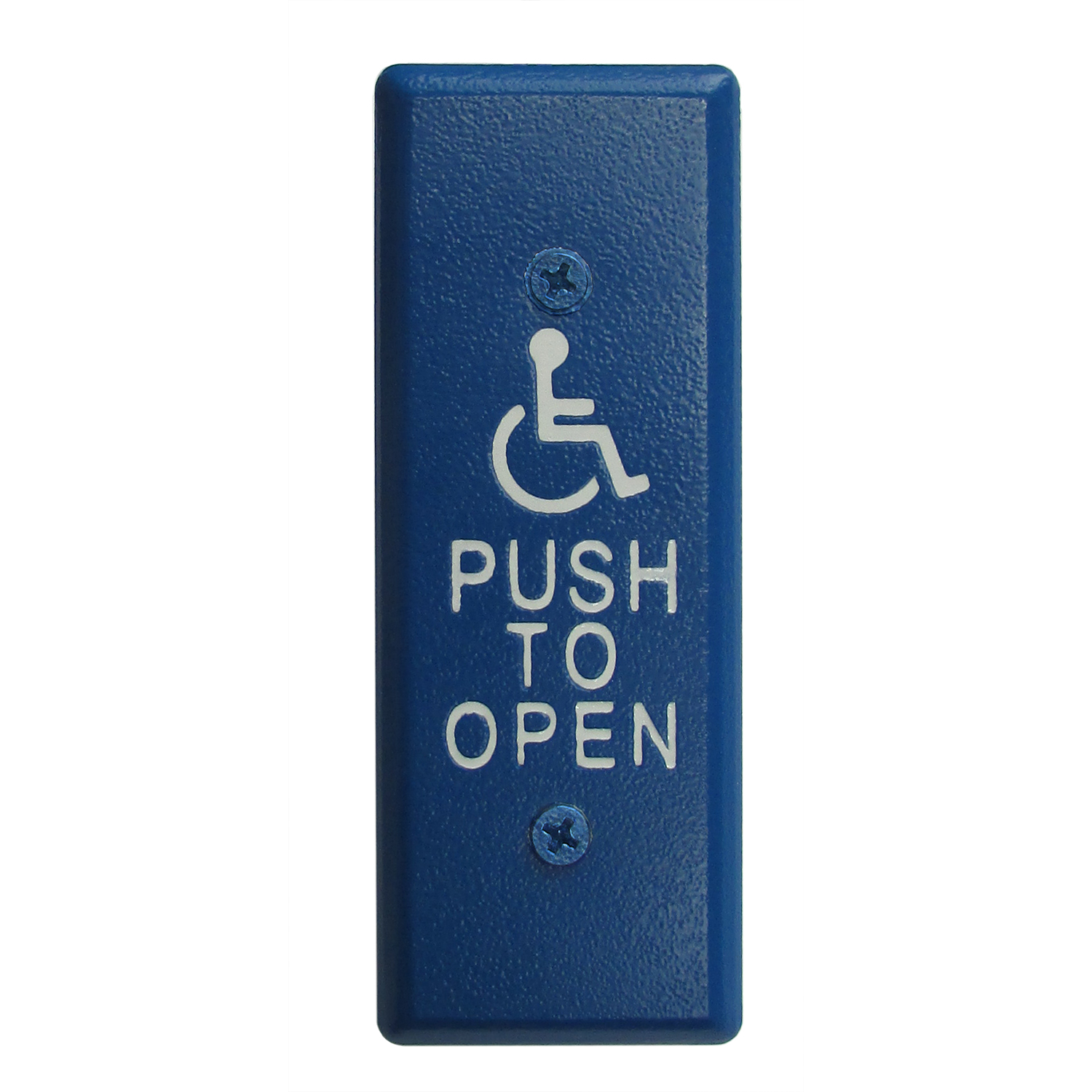

CM-26CB
Narrow Blue Push Plate Switch, White Graphics, Exposed Screws. 4-1/2" x 1-3/4" (114mm x 44mm) Graphic Options: '/2' (Wheelchair), '/4' (Wheelchair and Push to Open), & '/A4' (Active Wheelchair and Push to Open) only. No optional finishes.
EDI DATA, APPROVALS
|
|
Narrow Blue Push Plate Switch, White Graphics, Exposed Screws. 4-1/2" x 1-3/4" (114mm x 44mm) Graphic Options: '/2' (Wheelchair), '/4' (Wheelchair and Push to Open), & '/A4' (Active Wheelchair and Push to Open) only. No optional finishes.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.5"L x 6.0"W x 2.25"H
Weight: 0.36lbs.
|
|
Narrow, OBC Compliant
click to expand section
|
|
Net Cost
|
|

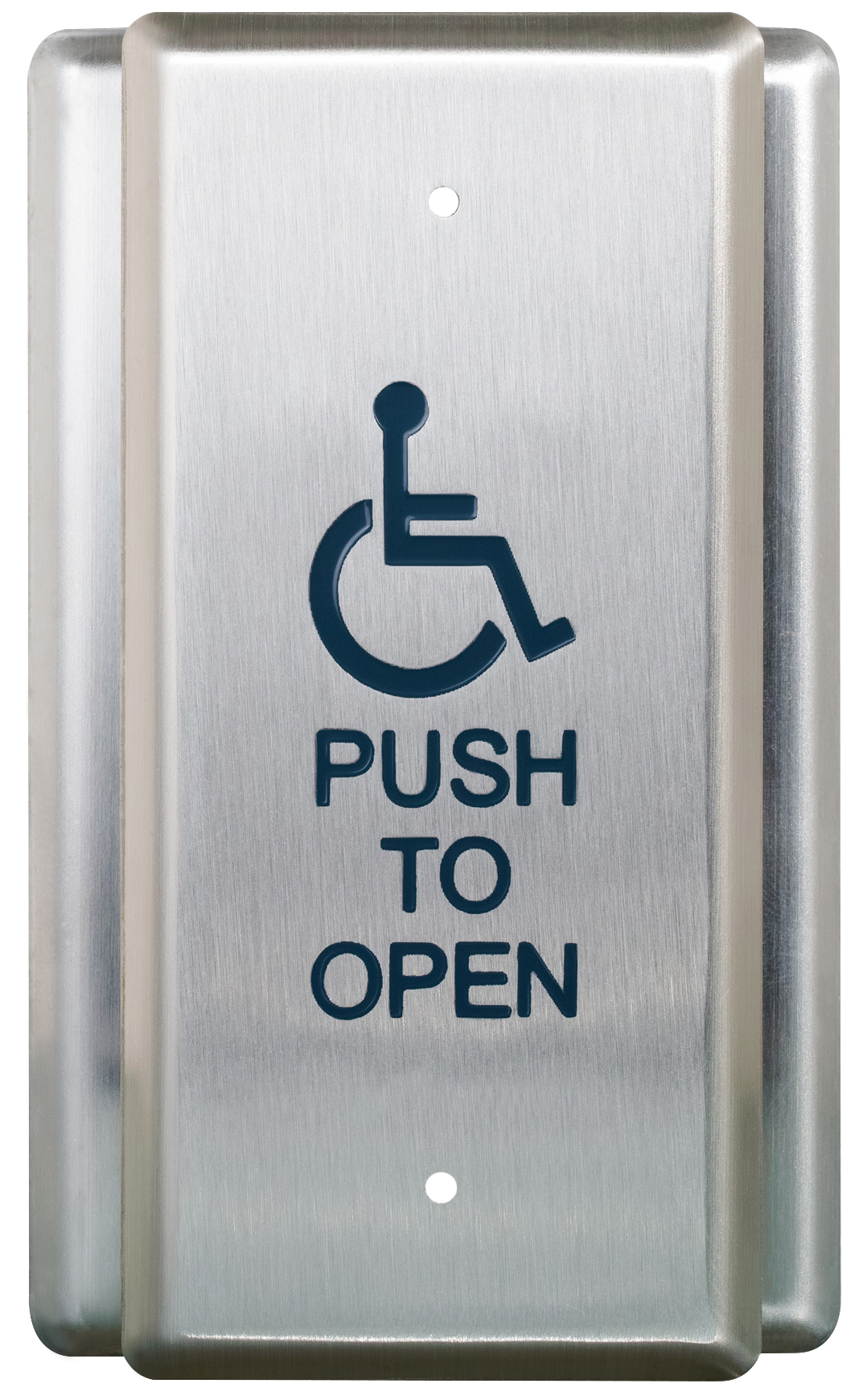

CM-35
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting
EDI DATA, APPROVALS
|
|
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.50"L x 6.00"W x 2.25"H
Weight: 0.36lbs.
|
|
CM-35N
4-1/2" x 2" (114mm x 50.8mm) single gang faceplate with jamb mount back plate
EDI DATA, APPROVALS
|
|
4-1/2" x 2" (114mm x 50.8mm) single gang faceplate with jamb mount back plate
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.5"L x 6.0"W x 2.5"H
Weight: 0.36lbs.
|
|
Narrow (jamb), Kinetic(tm) No Battery Wireless
click to expand section
|
|
Net Cost
|
|
CM-25HK
1-3/4” Width, Narrow push plate switch, horizontal mounting, brush stainless steel finish
EDI DATA, APPROVALS
|
|
1-3/4” Width, Narrow push plate switch, horizontal mounting, brush stainless steel finish
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-25K
1-3/4” Width, Narrow push plate switch, vertical mounting, brush stainless steel finish
EDI DATA, APPROVALS
|
|
1-3/4” Width, Narrow push plate switch, vertical mounting, brush stainless steel finish
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.5"L x 6.0"W x 2.25"H
Weight: 0.36lbs.
|
|
CM-26CBK
1-3/4” Width, Narrow push plate switch, blue with white graphics, exposed screws. Graphic Options: ‘/2’, ‘/4’, ‘/A4’ only. No optional finishes.
EDI DATA, APPROVALS
|
|
1-3/4” Width, Narrow push plate switch, blue with white graphics, exposed screws. Graphic Options: ‘/2’, ‘/4’, ‘/A4’ only. No optional finishes.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-35K
2” Width Narrow push plate switch, single gang back plate brushed stainless steel finish
EDI DATA, APPROVALS
|
|
2” Width Narrow push plate switch, single gang back plate brushed stainless steel finish
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 5"L x 4"W x 3"H
Weight: 0.85lbs.
|
|
CM-35NK
2” Width Narrow push plate switch, vertical mounting,brushed stainless steel finish
EDI DATA, APPROVALS
|
|
2” Width Narrow push plate switch, vertical mounting,brushed stainless steel finish
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.5"L x 6"W x 2.5"H
Weight: .36lbs.
|
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
WIZARD
|
SELECT OPTIONS |
![](/pipelines/resource/468_WU5WBZNVXT3UDKBVGFEV.png) |
|
|
|
WIZARD
|
SELECT OPTIONS
|
![](/pipelines/resource/468_WU5WBZNVXT3UDKBVGFEV.png) |
|
|
|
WIZARD
|
SELECT MODEL ABOVE |
![](/pipelines/resource/474_BH516VX33B8NACUP2A96.png) |
|
|
|
WIZARD
|
SELECT OPTIONS |
![](/pipelines/resource/468_WU5WBZNVXT3UDKBVGFEV.png) |
|
|
|
![Faceplate Graphic Options](/pipelines/resource/2526_0NHE4TPYJNOSLPELDAO0.png) |
FACEPLATE GRAPHIC OPTIONS |
![Architectural Finish Options](/pipelines/resource/2529_7DZFJ6A5G2V7UMWG8A43.png) |
ARCHITECTURAL FINISH OPTIONS |
![Weather Resistant Options](/pipelines/resource/2527_ADY22WJS6J7A9TC4DKTB.png) |
WEATHER RESISTANT OPTIONS |
|
Faceplate Graphic Options |
|
Net Cost |
|
CM-xxx/1
'BLANK' faceplate Add /1 to model #
|
'BLANK' faceplate Add /1 to model #
|
|
|
|
CM-xxx/2
'WHEELCHAIR' symbol, blue graphic Add /2 to model #
|
'WHEELCHAIR' symbol, blue graphic Add /2 to model #
|
|
|
|
CM-xxx/A2
'ACTIVE WHEELCHAIR' symbol, blue
|
'ACTIVE WHEELCHAIR' symbol, blue
|
|
|
|
CM-xxx/2AL
WHEELCHAIR symbol with ARROW left, blue graphics Add /2AL to model #
|
WHEELCHAIR symbol with ARROW left, blue graphics Add /2AL to model #
|
|
|
|
CM-xxx/2AR
WHEELCHAIR symbol with ARROW right, blue graphics Add /2AR to model #
|
WHEELCHAIR symbol with ARROW right, blue graphics Add /2AR to model #
|
|
|
|
CM-xxx/3
'PUSH TO OPEN', black graphics Add /3 to model #
|
'PUSH TO OPEN', black graphics Add /3 to model #
|
|
|
|
CM-xxx/3F
'POUSSEZ POUR OUVRIR', black graphics Add /3F to model #
|
'POUSSEZ POUR OUVRIR', black graphics Add /3F to model #
|
|
|
|
CM-xxx/4
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
|
|
|
CM-xxx/4AL
WHEELCHAIR symbol with ARROW left, blue graphics Add /4AL to model #
|
WHEELCHAIR symbol with ARROW left, blue graphics Add /4AL to model #
|
|
|
|
CM-xxx/4AR
WHEELCHAIR symbol with ARROW right, blue graphics Add /4AR to model #
|
WHEELCHAIR symbol with ARROW right, blue graphics Add /4AR to model #
|
|
|
|
CM-xxx/A4
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue
|
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue
|
|
|
|
CM-xxx/4F
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR' CM-25 blue graphics, CM-35 Black Graphics, Add /4F to model #
|
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR' CM-25 blue graphics, CM-35 Black Graphics, Add /4F to model #
|
|
|
|
CM-xxx/8
'PUSH TO LOCK', black text Add /8 to model #
|
'PUSH TO LOCK', black text Add /8 to model #
|
|
|
|
CM-xxx/8B
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic Add /8B to model #
|
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic Add /8B to model #
|
|
|
Architectural Finishes |
|
Net Cost |
|
CM-xxx-SB
Add 'SB' to product # for satin brass finish (US4 / 606). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
Add 'SB' to product # for satin brass finish (US4 / 606). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
|
|
|
CM-xxx-OB
Add 'OB' to product # for oil rub bronze finish (US10B / 613). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
Add 'OB' to product # for oil rub bronze finish (US10B / 613). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
|
|
|
CM-xxx-PB
Add 'PB' to product # for polished brass (US3 / 605). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
Add 'PB' to product # for polished brass (US3 / 605). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
|
|
|
CM-xxx-AB
Add 'AB' to product # for antique brass finish (US5 / 609). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
Add 'AB' to product # for antique brass finish (US5 / 609). Limited graphic options, CM-25 Series: /1 Blank, /2 (Wheelchair), /3 Push to Open text) /4 (Wheelchair w/ Push to Open text). CM-35 Series: Only /4 (Wheelchair w/ Push to Open text)
|
|
|
Weatherproof Options |
|
Net Cost |
|
CM-xxx-WT
boot and water tight coating Add 'WT' to product #
|
boot and water tight coating Add 'WT' to product #
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
![Mounting Boxes & Accessories](/pipelines/resource/2570_8TKEC21BUMZI5SGPE9YX.png) |
MOUNTING BOXES & ACCESSORIES |
|
Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
|
|
|
CM-23D
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
|
|
Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
|
|
|
CM-120G
Rubber gasket for any stainless steel single gang faceplate
|
Rubber gasket for any stainless steel single gang faceplate
|
|
|
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
