CM-2510 Series
Combo Plate/Key Switch |
CM-2510 Series
Combo Plate/Key Switch
|
|
CM-2510 and CM-2520 push plate switches have 4-1/2" x 4-1/2" rectangular faceplates designed for easy installation directly on a double gang electric box. The tubular switches provide virtually silent operation.
CM-2510 includes a SPST maintained switch. Mortise cylinder and keys are sold separately.
Architectural Finishes:CM-2510 Series switches with architectural finish only available with /2, /4, /8 graphic options
CM-2520 Series switches with architectural finish
only available with /48 graphic option
|
|
|
| Blog Post | New Accessibility Symbol |
|
|
|
| CM-2520 Series Vestibule Switch |
|
|
|
| CM-2520/48 'Push to Open' & 'Push to Lock' Restroom Control Switch |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
947-HPAMOX32D
|
CM-2520, CM-xxx/4
|
|
MS Sedco
|
59V-HSS
|
CM-2520, CM-xxx/4
|
|
|
59V-P
|
CM-2520, CM-xxx/3
|
|
Wikk
|
AA-3ALXAA-3AR
|
CM-2520, CM-xxx/4
|
|
|
CM-2510 Series
Combo Plate/Key Switch |
CM-2510 Series
Combo Plate/Key Switch
|
CM-2510 and CM-2520 push plate switches have 4-1/2" x 4-1/2" rectangular faceplates designed for easy installation directly on a double gang electric box. The tubular switches provide virtually silent operation.
CM-2510 includes a SPST maintained switch. Mortise cylinder and keys are sold separately.
Architectural Finishes:CM-2510 Series switches with architectural finish only available with /2, /4, /8 graphic options
CM-2520 Series switches with architectural finish
only available with /48 graphic option
|
|
|
|
|
|
|
| Blog Post | New Accessibility Symbol |
|
|
|
|
| CM-2520 Series Vestibule Switch |
|
|
|
|
| CM-2520/48 'Push to Open' & 'Push to Lock' Restroom Control Switch |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
947-HPAMOX32D
|
CM-2520, CM-xxx/4
|
|
MS Sedco
|
59V-HSS
|
CM-2520, CM-xxx/4
|
|
|
59V-P
|
CM-2520, CM-xxx/3
|
|
Wikk
|
AA-3ALXAA-3AR
|
CM-2520, CM-xxx/4
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Heavy Duty Stainless steel construction
-
ADA compliant
-
Minimal actuation force
-
3 year warranty with '2 for 1' replacement
| Voltage: |
12/24V AC/DC
|
| Std. Finish: |
US32 / C32D
|
| Temp Range: |
-40°F to 140°F (-40°C to +60°C)
|
| Dimensions: |
|
CM-2520:
|
4-1/2" x 4-1/2" x 1-3/16"
(114mm x 114mm x 30mm)
|
|
CM-2510:
|
4-1/2" x 4-1/2" x 1-3/4"
(114mm x 114mm x 44mm)
|
| |
| Push Plate |
| Contact Type: |
N/O SPST Momentary
|
| Contact Rating: |
3 A @ 30 VDC
|
| |
| Key Switch |
| Contact Type: |
N/O SPST Maintained
|
| Contact Rating: |
6 A @ 30 VDC
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|

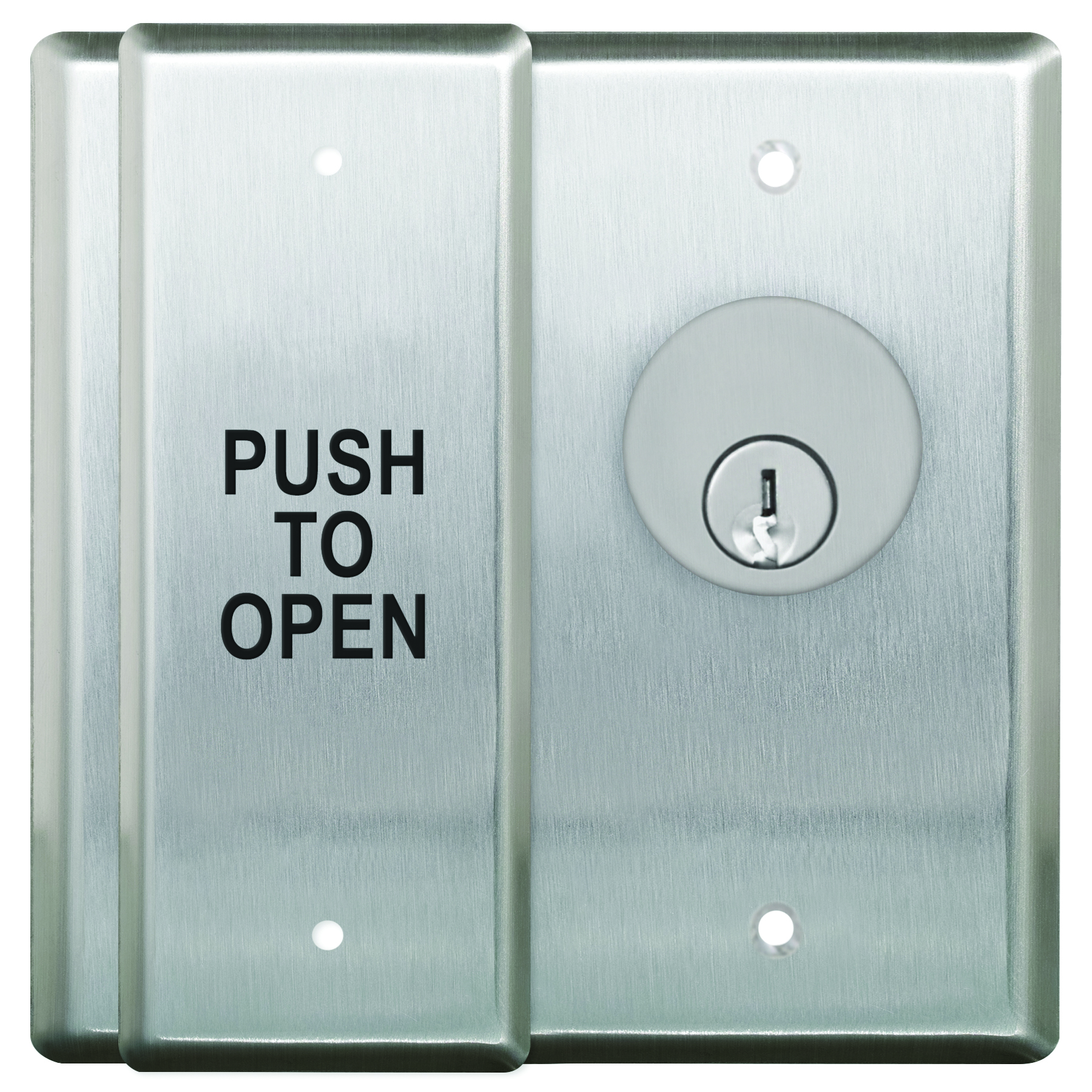

CM-2510
Double Gang Push Plate/Key Switch Not compatible with 4-1/2" Square AURA(tm) illuminated switch enclosurers
EDI DATA, APPROVALS
|
|
Double Gang Push Plate/Key Switch Not compatible with 4-1/2" Square AURA(tm) illuminated switch enclosurers
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 5.75"W x 3.25"H
Weight: 0.84lbs.
UPC:670454151353
|
|
CM-2520

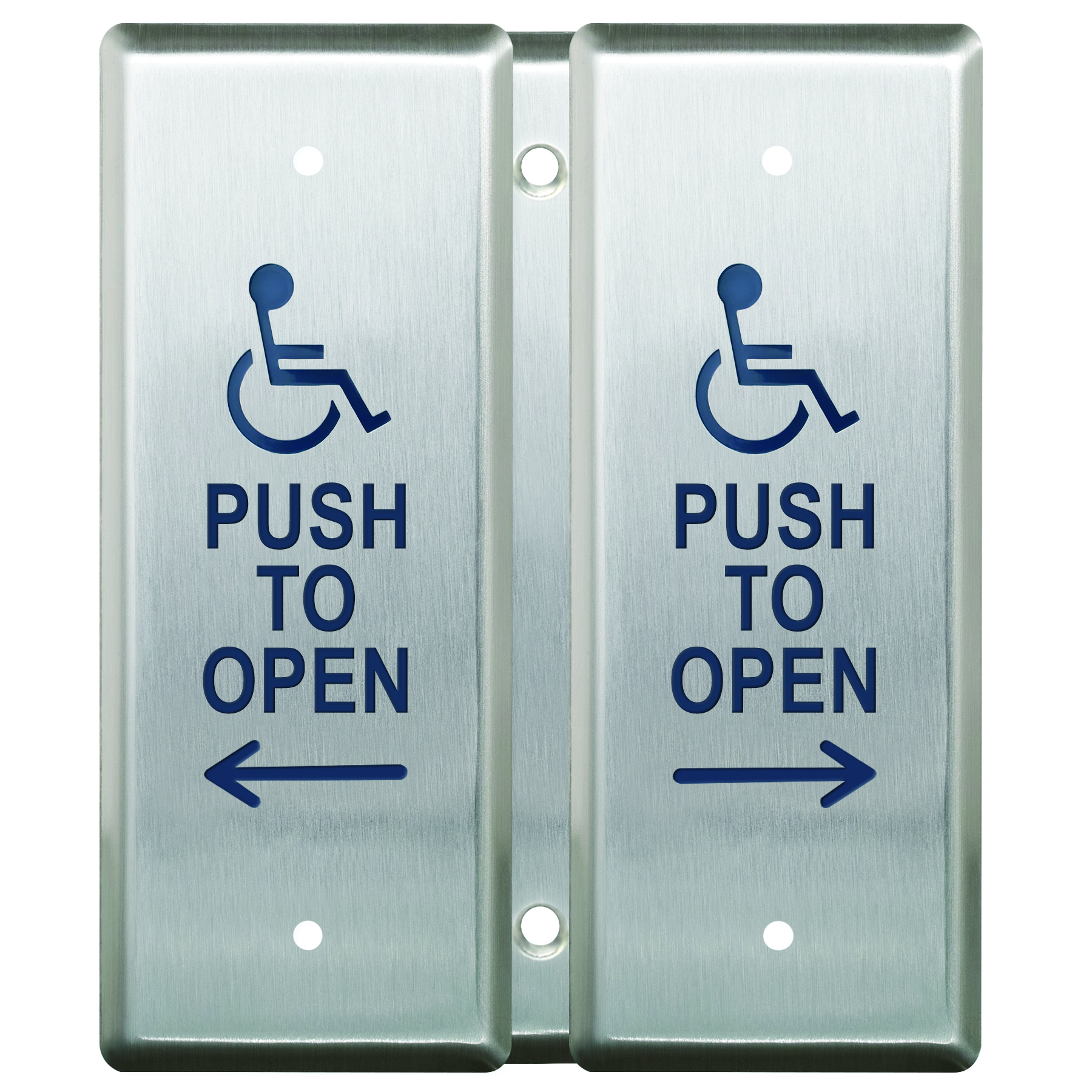

Double Gang Vestibule Push Plate Switch
EDI DATA, APPROVALS
|
|
Double Gang Vestibule Push Plate Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 5.75"W x 3.25"H
Weight: 0.84lbs.
UPC:NA
|
| |
Mortise Cylinders (Sold Separately)
click to expand section
|
|
Net Cost
|
|
CM-CYL60-KA
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed alike
EDI DATA, APPROVALS
|
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed alike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120243
|
|
CM-CYL60-KD
Mortise cylinder as above, keyed different
EDI DATA, APPROVALS
|
|
Mortise cylinder as above, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120250
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| MORTISE CYLINDERS |
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| WEATHER RESISTANT OPTIONS |
 |
| ARCHITECTURAL FINISH OPTIONS |
|
| Mortise Cylinder Options |
|
Net Cost |
|
-60KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
|
|
|
-60KD
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
CM-xxx/1
'BLANK' faceplate Add /1 to model #
|
'BLANK' faceplate Add /1 to model #
|
|
|
|
CM-xxx/2
'WHEELCHAIR' symbol, blue Add /2 to model #
|
'WHEELCHAIR' symbol, blue Add /2 to model #
|
|
|
|
CM-xxx/3
'Push to Open', black graphics Add /3 to model #
|
'Push to Open', black graphics Add /3 to model #
|
|
|
|
CM-xxx/3F
'POUSSEZ POUR OUVRIR', black text Add /3F to model #
|
'POUSSEZ POUR OUVRIR', black text Add /3F to model #
|
|
|
|
CM-xxx/4
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
|
|
|
CM-xxx/4F
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', black graphics Add /4F to model #
|
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', black graphics Add /4F to model #
|
|
|
|

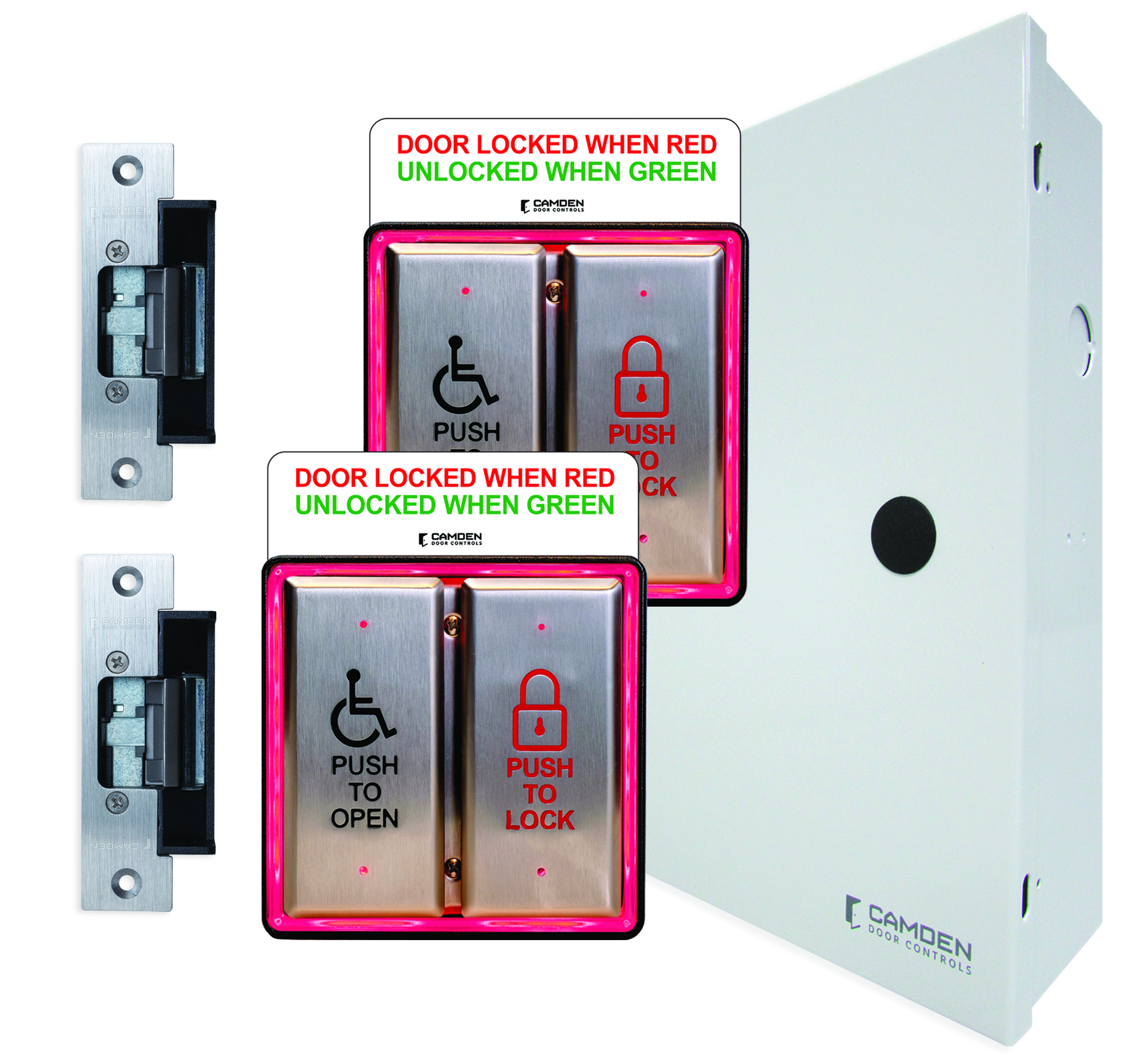

CM-xxx/48

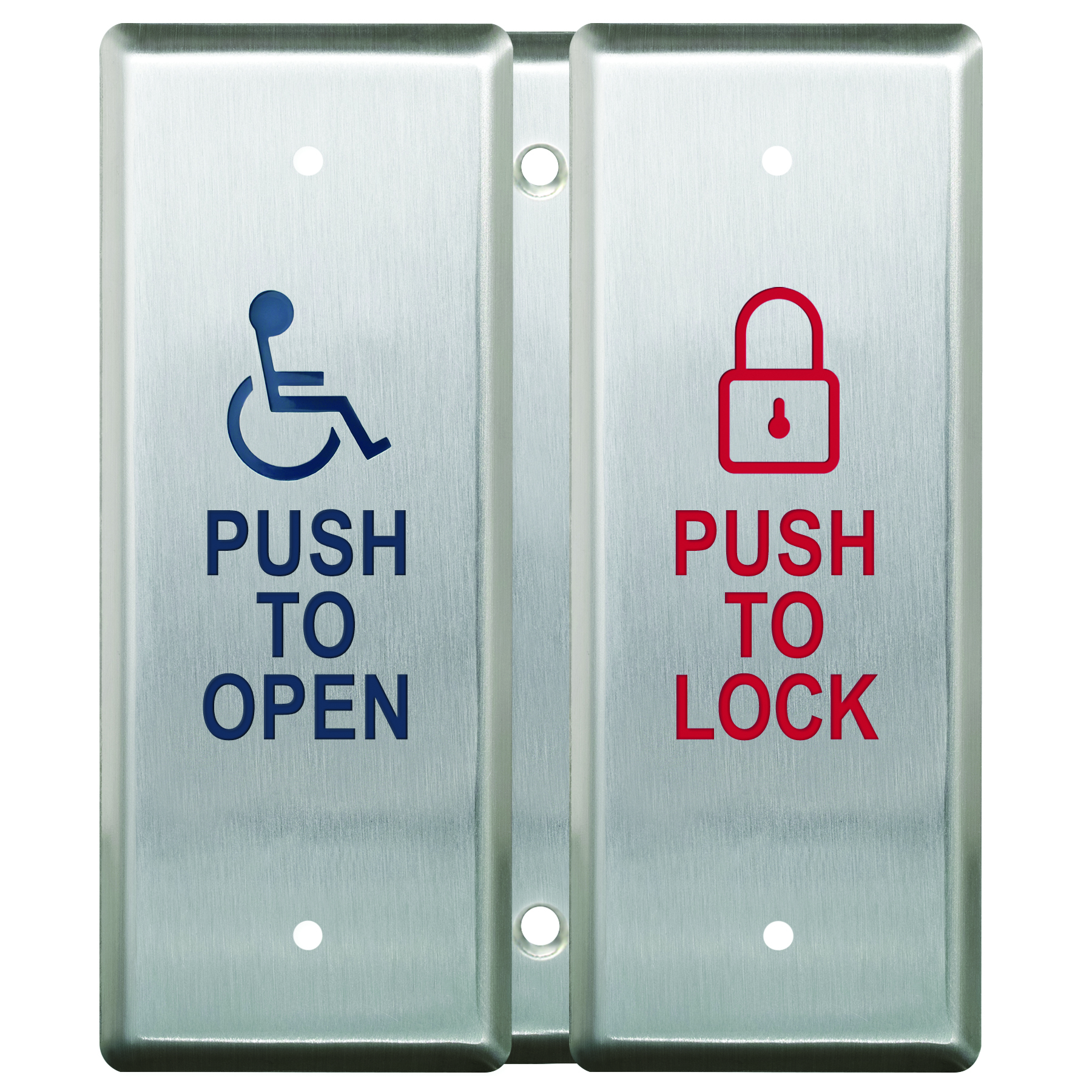

'WHEELCHAIR' SYMBOL & 'PUSH TO OPEN' AND 'PUSH TO LOCK' Add /48 to model #
|
'WHEELCHAIR' SYMBOL & 'PUSH TO OPEN' AND 'PUSH TO LOCK' Add /48 to model #
|
|
|
| Weatherproof Options |
|
Net Cost |
|
|
CM-xxx-WT
boot and water tight coating Add 'WT' to product #
|
boot and water tight coating Add 'WT' to product #
|
|
|
| Architectural Finishes (CM-2510 /2, /4, /8 and CM-2520/48) |
|
Net Cost |
|
CM-xxx-SB
Add 'SB' to product # for satin brass finish (US4 / 606)
|
Add 'SB' to product # for satin brass finish (US4 / 606)
|
|
|
|
CM-xxx-OB
Add 'OB' to product # for oil rub bronze finish (US10B / 613)
|
Add 'OB' to product # for oil rub bronze finish (US10B / 613)
|
|
|
|
CM-xxx-PB
Add 'PB' to product # for polished brass (US3 / 605)
|
Add 'PB' to product # for polished brass (US3 / 605)
|
|
|
|
CM-xxx-AB
Add 'AB' to product # for antique brass finish (US5 / 609)
|
Add 'AB' to product # for antique brass finish (US5 / 609)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Double Gang |
|
Net Cost |
|
CM-53

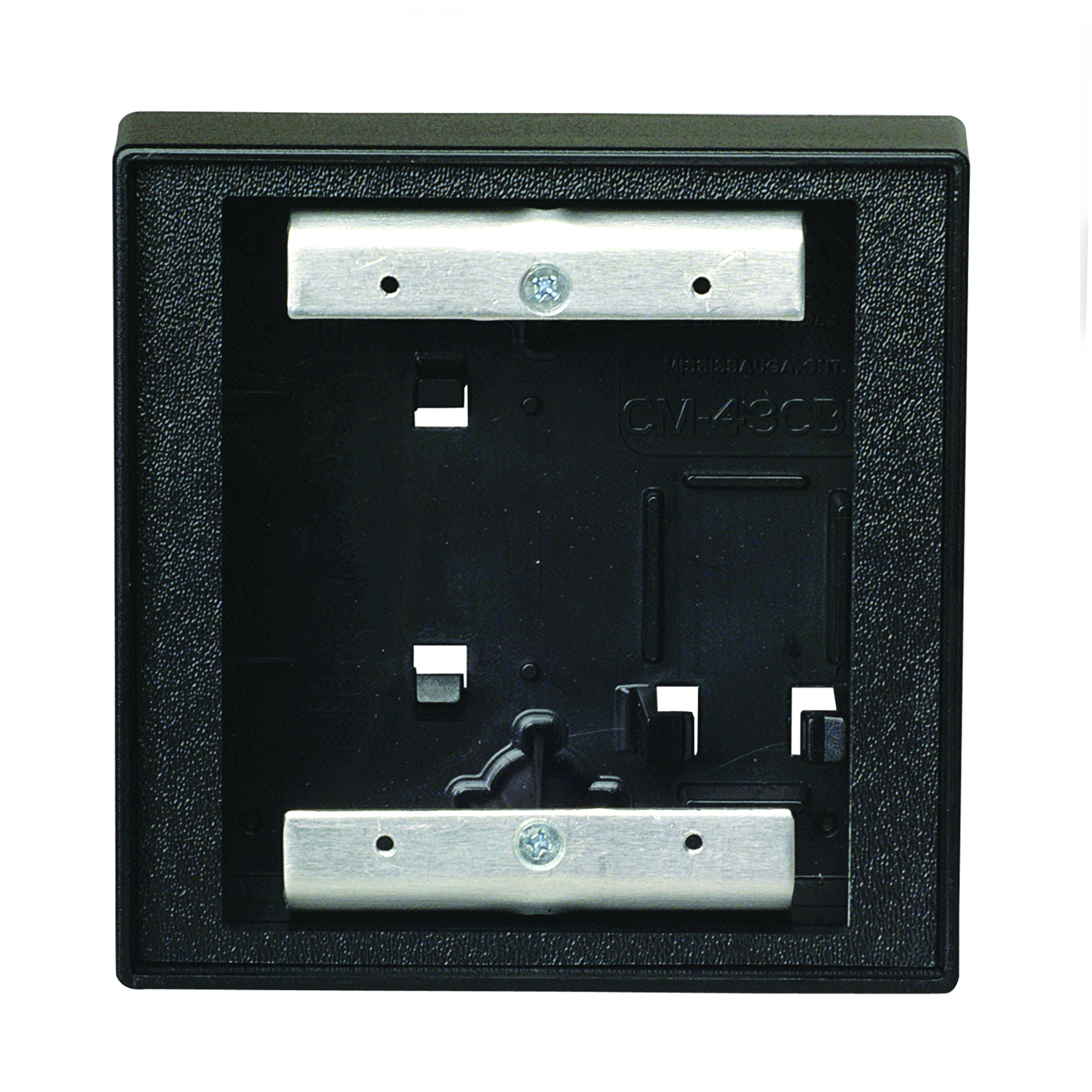

Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
|
|
|
CM-54i
Surface Box (Illuminated Red/Green/Blue) Standard Depth, flame/Impact resistant black polymer (ABS) 5-1/4"W x 5-1/4"H x 2"D
|
Surface Box (Illuminated Red/Green/Blue) Standard Depth, flame/Impact resistant black polymer (ABS) 5-1/4"W x 5-1/4"H x 2"D
|
|
|
|
CM-55i
Flush box (Illuminated Red/Green/Blue) Standard Depth, flame/Impact resistant black polymer (ABS) 6-1/2"W x 6-1/2"H x 2"D. For use with CM-45/46 Series
|
Flush box (Illuminated Red/Green/Blue) Standard Depth, flame/Impact resistant black polymer (ABS) 6-1/2"W x 6-1/2"H x 2"D. For use with CM-45/46 Series
|
|
|
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
