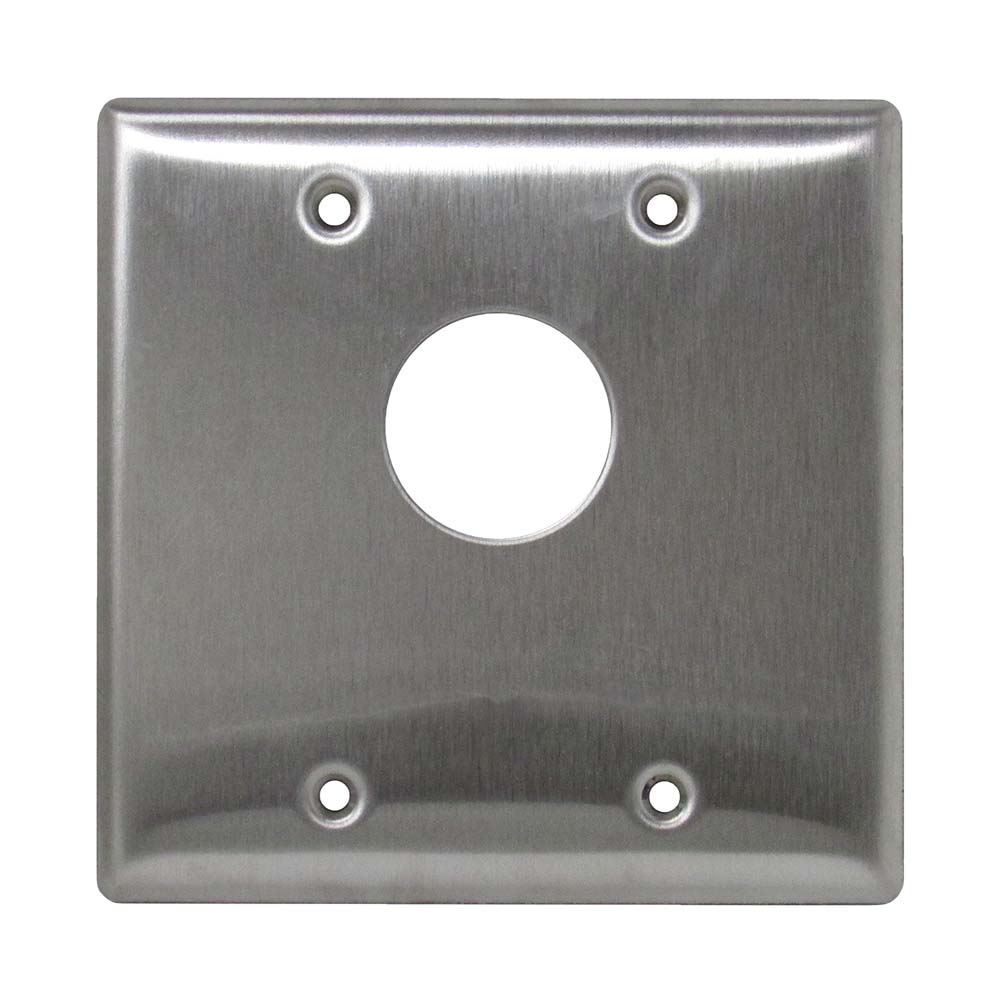

CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS |
CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS
|
|
'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam. Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Option/Finishes for the complete cylinder listing.
|
|
|

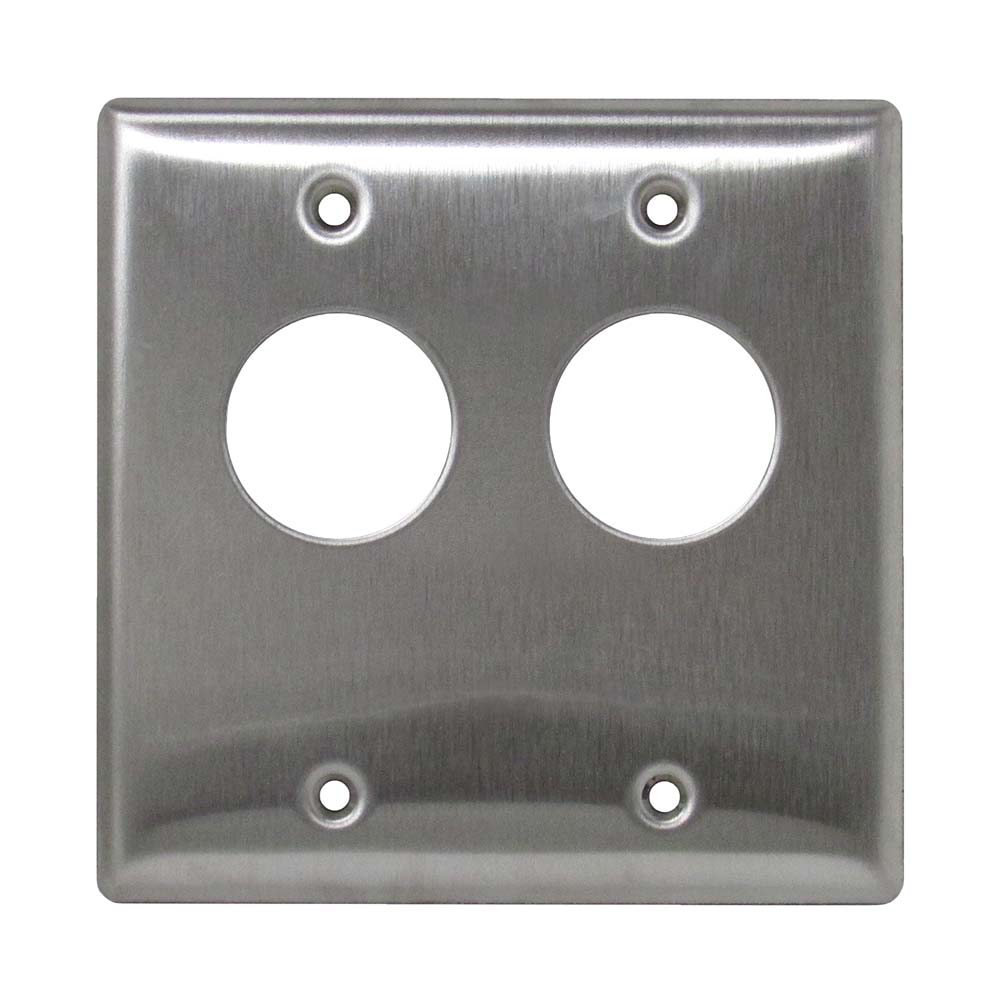

CM-3500 Double Gang
Dual Cylinder Key Switch |
|
CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS |
CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS
|
'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam. Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Option/Finishes for the complete cylinder listing. |
|
|
|
|
|
|
CM-3500 Double Gang
Dual Cylinder Key Switch |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Left and/or right operation
-
Accepts standard mortise cylinders, 1" - 1-1/4
-
Heavy duty double gang stainless steel faceplate
-
Locators prevent cylinders from spinning
-
Tamper proof screws and driver provided
-
Indoor and outdoor flush applications
-
Provision for up to 4 internal switches
-
Heat shrink protective sleeve over contacts
-
Color coded 18 AWG soldered leads
-
3 year warranty
| Contact Rating: |
6 A @ 30 VDC
|
| Switch Life: |
All: 100,000 cycles
|
| Temp Range: |
32°F to 85°F (0°C to +85°C)
|
| Std. Finish: |
US32 / C32D
|
| Dimensions: |
4-1/2" x 4-1/2" x 1-5/8"
(114mm x 114mm x 41mm)
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Double Gang One Cylinder Key Switch
 click to expand section
|
|
Net Cost
|
|
CM-3200
Key Switch, (1) SPST Momentary, N/O
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPST Momentary, N/O
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124319
|
|
|
CM-3205
Key Switch, (1) SPST Momentary, N/C
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPST Momentary, N/C
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124326
|
|
|
CM-3210
Key Switch, (1) SPST Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPST Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124333
|
|
|
CM-3220
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPDT N/O & N/C Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124340
|
|
|
CM-3230
Key Switch, (1) SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPDT N/O & N/C Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124357
|
|
|
CM-3250
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124364
|
|
|
CM-3260
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454167385
|
|
|
CM-3270
Key Switch, (2) SPDT Momentary and SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Momentary and SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454167392
|
|
|
CM-3280
Key Switch, (1) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (1) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124395
|
|
|
CM-3282
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454190949
|
|
|
CM-3290
Key Switch, (1) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (1) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.8lbs.
UPC:670454124418
|
|
|
CM-3292
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 6.00"W x 3.50"H
Weight: 0.8lbs.
UPC:670454196309
|
| |
|
Double Gang Dual Cylinder Key Switch
click to expand section
|
|
Net Cost
|
|
CM-3500
Key Switch, (2) SPST Momentary, N/O
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPST Momentary, N/O
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 5"W x 2"H
Weight: 0.65lbs.
UPC:670454153098
|
|
|
CM-3505
Key Switch, (2) SPST Momentary, N/C
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPST Momentary, N/C
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454167040
|
|
|
CM-3510
Key Switch, (2) SPST Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPST Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454151155
|
|
|
CM-3520
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (1) SPDT N/O & N/C Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454156006
|
|
|
CM-3530
Key Switch, (2) SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT N/O & N/C Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454156785
|
|
|
CM-3550
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454158116
|
|
|
CM-3560
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454161123
|
|
|
CM-3570
Key Switch, (2) SPDT Momentary and Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) SPDT Momentary and Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454151513
|
|
|
CM-3580
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454158987
|
|
|
CM-3582
Key Switch, (4) DPDT Momentary
EDI DATA, APPROVALS
|
|
Key Switch, (4) DPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454211231
|
|
|
CM-3590
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (2) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454157546
|
|
|
CM-3592
Key Switch, (4) DPDT Maintained
EDI DATA, APPROVALS
|
|
Key Switch, (4) DPDT Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6"W x 3.5"H
Weight: 0.65lbs.
UPC:670454165992
|
| |
|
Mortise Cylinders (Sold Separately)
click to expand section
|
|
Net Cost
|
|
CM-CYL60-KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA, APPROVALS
|
|
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120243
|
|
CM-CYL60-KD
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different
EDI DATA, APPROVALS
|
|
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120250
|
|
CM-307
Mortise cylinder housing for Best™ style IC core
EDI DATA, APPROVALS
|
|
Mortise cylinder housing for Best™ style IC core
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454156280
|
|
CM-308
Best™ style IC core, keyed different
EDI DATA, APPROVALS
|
|
Best™ style IC core, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454157966
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| MORTISE CYLINDERS |
 |
| LED OPTIONS |
|
| Mortise Cylinder Options |
|
Net Cost |
|
-60KA
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
|
|
|
-60KD
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
|
|
|
-307
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
|
|
|
-309
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
|
|
| LED Options |
|
Net Cost |
|
-7012
Red 12V LED mounted on faceplate
|
Red 12V LED mounted on faceplate
|
|
|
|
|
-70122
(2) Red 12V LED mounted on faceplate
|
(2) Red 12V LED mounted on faceplate
|
|
|
|
|
-7024
Red 24V LED mounted on faceplate
|
Red 24V LED mounted on faceplate
|
|
|
|
|
-70242
(2) Red 24V LED mounted on faceplate
|
(2) Red 24V LED mounted on faceplate
|
|
|
|
|
-7112
Green 12V LED mounted on faceplate
|
Green 12V LED mounted on faceplate
|
|
|
|
|
-71122
(2) Green 12V LED mounted on faceplate
|
(2) Green 12V LED mounted on faceplate
|
|
|
|
|
-7124
Green 24V LED mounted on faceplate
|
Green 24V LED mounted on faceplate
|
|
|
|
|
-71242
(2) Green 24V LED mounted on faceplate
|
(2) Green 24V LED mounted on faceplate
|
|
|
|
|
-7212
Red and Green 12V LEDs mounted on faceplate
|
Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
-72122
(2) Red and Green 12V LEDs mounted on faceplate
|
(2) Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
-7224
Red and Green 24V LEDs mounted on faceplate
|
Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
-72242
(2) Red and Green 24V LEDs mounted on faceplate
|
(2) Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
-7412
Amber 12V LED mounted on faceplate
|
Amber 12V LED mounted on faceplate
|
|
|
|
|
-74122
(2) Amber 12V LED mounted on faceplate
|
(2) Amber 12V LED mounted on faceplate
|
|
|
|
|
-7424
Amber 24V LED mounted on faceplate
|
Amber 24V LED mounted on faceplate
|
|
|
|
|
-74242
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-74242
(2) Amber 12V (3 Wire) LED mounted on faceplate
|
(2) Amber 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-7612
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-76122
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-7624
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
-76242
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Double Gang |
|
Net Cost |
|
CM-53
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) CM-3200
|
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) CM-3200
|
|
|
|
COMPATIBLE MOUNTING POSTS
|
|
|
Click to expand section
|
|
 |
| SWITCH BOLLARDS (POSTS) |
|
| Switch Bollards (Posts): Clear Aluminum |
|
Net Cost |
|
|
CM-42-CSU
42" Tall, No switch prep, 6"x6" CM-3200
|
42" Tall, No switch prep, 6"x6" CM-3200
|
|
|
|
CM-42-BSU
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3200
|
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3200
|
|
|
|
CM-48-BSU
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3200
|
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3200
|
|
|
|
|
CM-42-CSU
42" Tall, No switch prep, 6"x6" CM-3500
|
42" Tall, No switch prep, 6"x6" CM-3500
|
|
|
|
|
CM-48-BSU
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500
|
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500
|
|
|
|
|
CM-42-BSU
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500
|
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500
|
|
|
| Switch Bollards (Posts): Dark Bronze |
|
Net Cost |
|
|
CM-42-BSU
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500
|
42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500
|
|
|
|
|
CM-42-CSU
42" Tall, No switch prep, 6"x6" CM-3500
|
42" Tall, No switch prep, 6"x6" CM-3500
|
|
|
|
|
CM-48-BSU
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500
|
48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500
|
|
|
|
|
|
