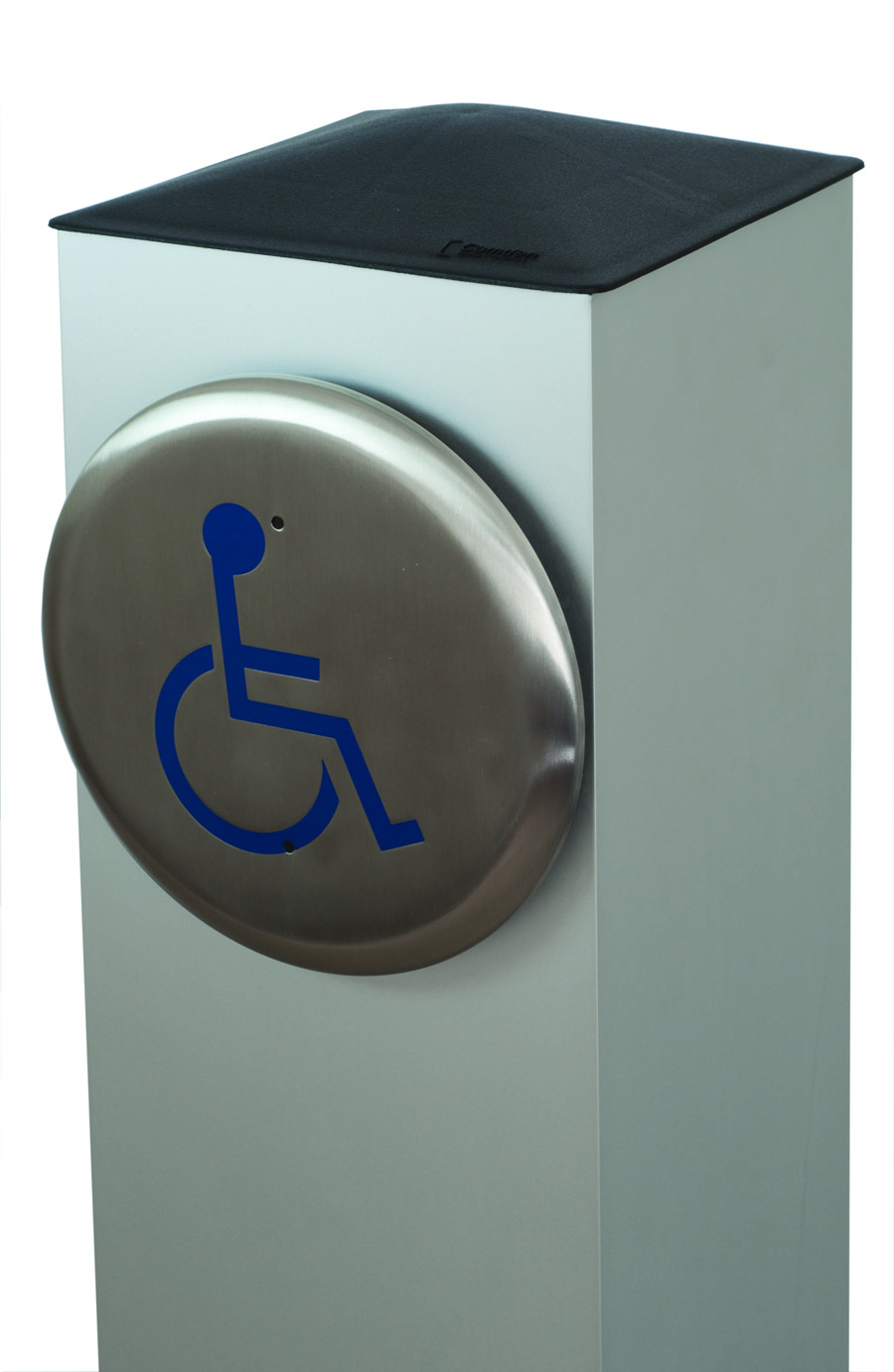

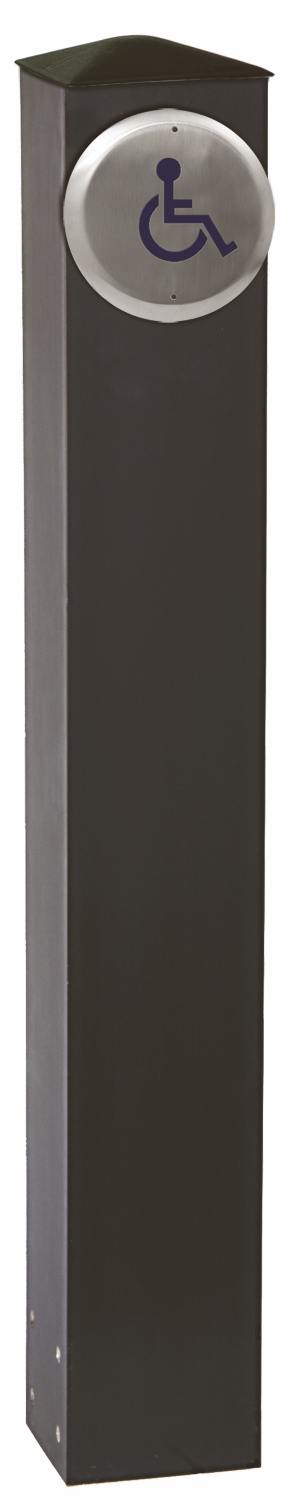

42" Post, Aluminum, Bronze Finish w/ CM-60/2 Push Plate Switch
|
|

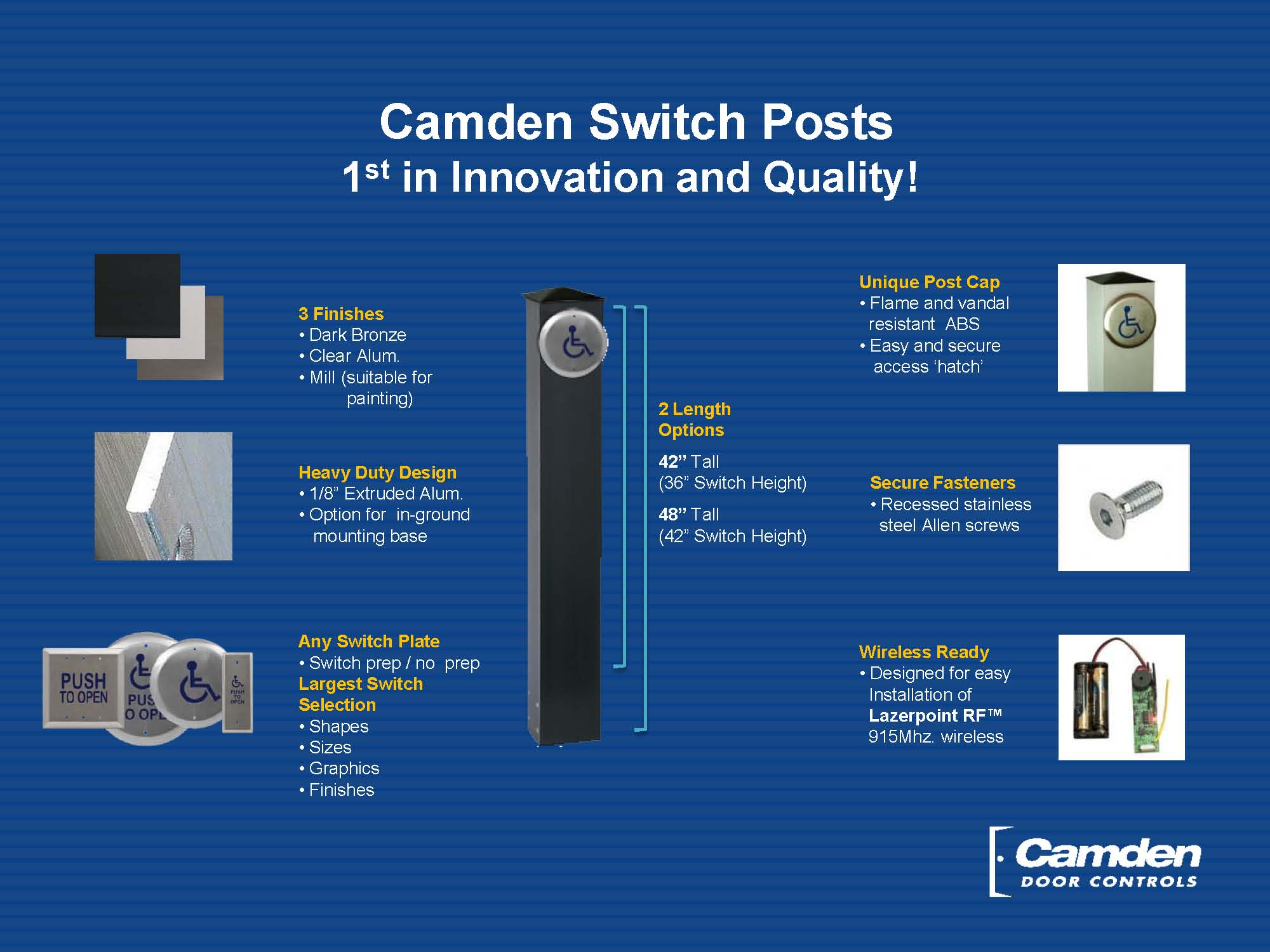

Mounting posts are available in 42" (36" switch height) and 48" (42" switch height) models with extruded aluminum or stainless steel. They feature heavy-duty, 1/8" thick construction. Stainless steel posts are brush-finished. Aluminum posts are available in clear aluminum (CLR), dark bronze (BRZ), black (BLK), and mill (MIL) finishes, which are suitable for painting finishes. They have a flame and vandal-resistant cap, heavy-duty steel surface mounting base, and stainless steel fasteners. An optional in-ground (concrete) mounting base is also available.
|
|
|
| NEW! 42" Post, Dual Prep, aluminum finish w/ (2) CM-45/4 push plate switches |
|
|
|

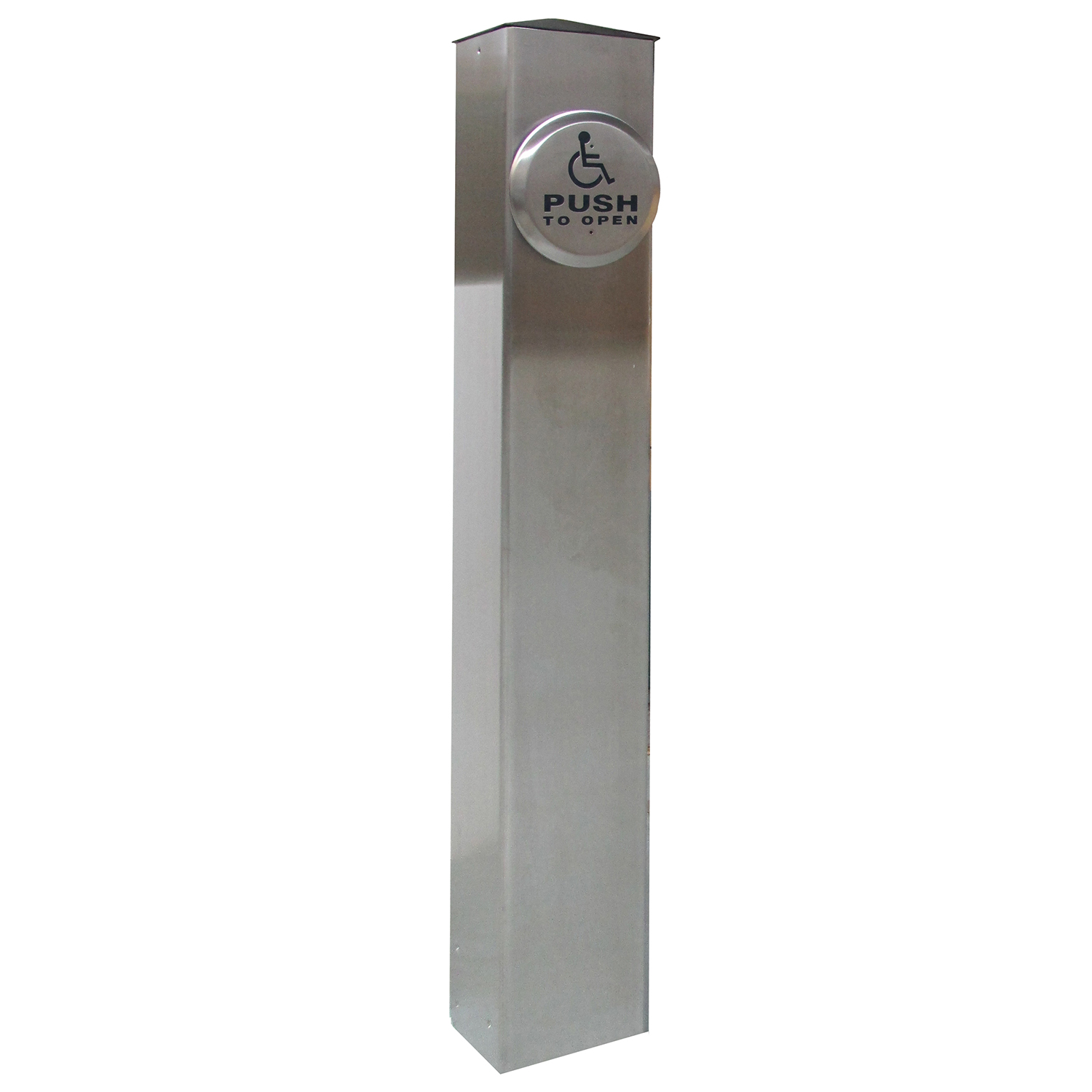

| 42" Post, Stainless Steel, w/ CM-60/4 Push Plate Switch |
|
| 42" Post, Aluminum, Bronze Finish w/ CM-60/2 Push Plate Switch |
42" Post, Aluminum, Bronze Finish w/ CM-60/2 Push Plate Switch
|
|
|
|
Mounting posts are available in 42" (36" switch height) and 48" (42" switch height) models with extruded aluminum or stainless steel. They feature heavy-duty, 1/8" thick construction. Stainless steel posts are brush-finished. Aluminum posts are available in clear aluminum (CLR), dark bronze (BRZ), black (BLK), and mill (MIL) finishes, which are suitable for painting finishes. They have a flame and vandal-resistant cap, heavy-duty steel surface mounting base, and stainless steel fasteners. An optional in-ground (concrete) mounting base is also available.
|
|
|
|
|
| NEW! 42" Post, Dual Prep, aluminum finish w/ (2) CM-45/4 push plate switches |
|
|
|
|
| 42" Post, Stainless Steel, w/ CM-60/4 Push Plate Switch |
|
-
Extruded Aluminum and Stainless Steel models
-
Easy installation and service of wireless transmitter batteries
-
Includes heavy-duty surface mounting base
-
Option for heavy-duty in-ground (concrete) mounting base
-
Custom cut-out preparations upon request
-
42" tall model with 36" switch height and 48" tall models with 42" switch height
-
Option for clear aluminum, dark bronze, and black anodized finishes
-
Option for mill finish, suitable for painting
|
|
|
Aluminum Bollards
 click to expand section
|
|
Net Cost
|
|
|

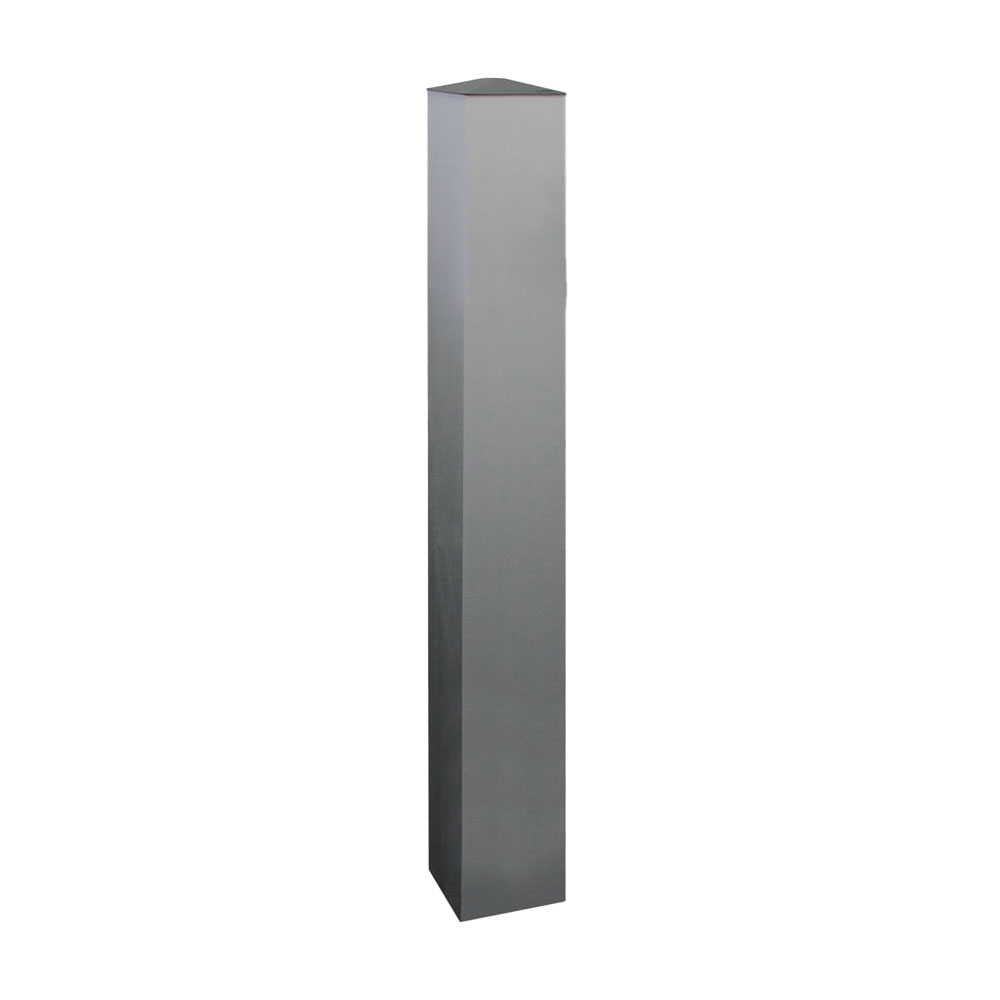

CM-42-CSU
42" Tall, No switch prep, 6"x6"
EDI DATA, APPROVALS
|
|
42" Tall, No switch prep, 6"x6"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
|
|

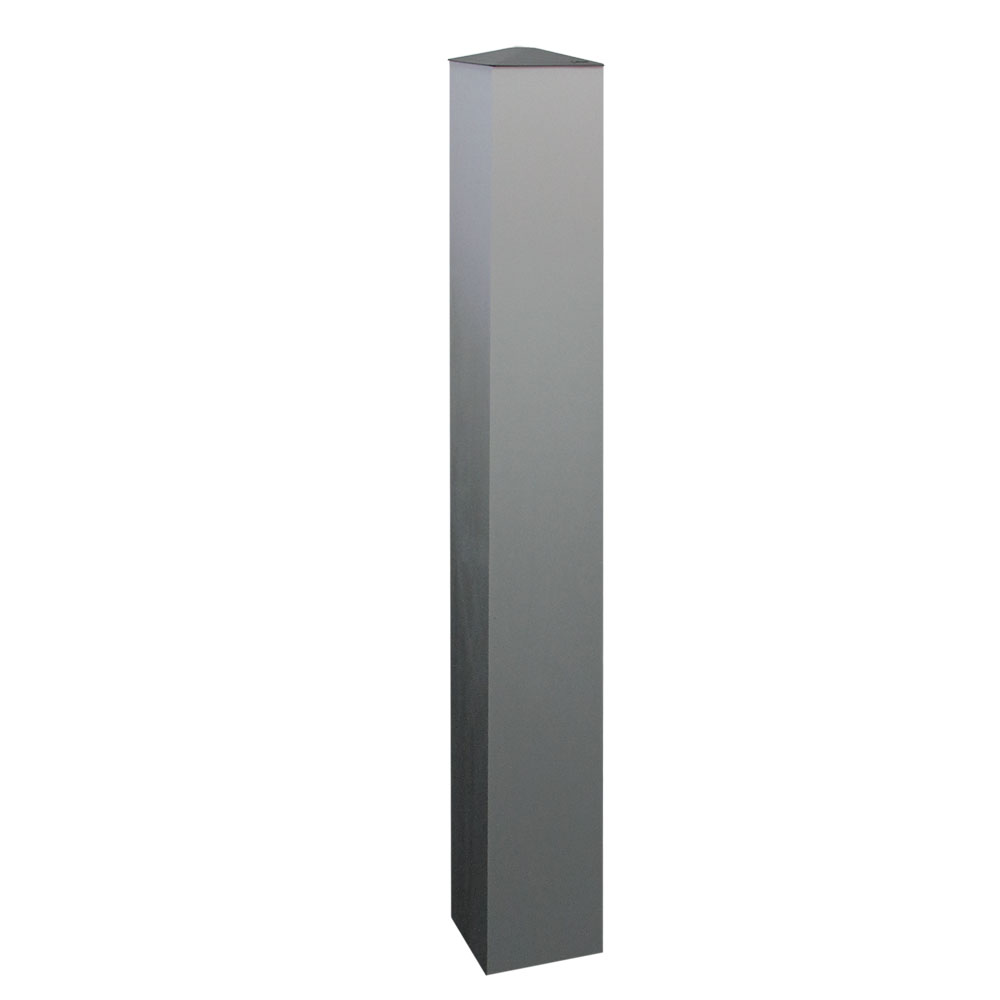

CM-42-BSU
42" Tall, (36" Switch Height) single gang prep, 6"x6"
EDI DATA, APPROVALS
|
|
42" Tall, (36" Switch Height) single gang prep, 6"x6"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
|
|
CM-42-DSU
42" Tall, prep for CM-7536/7436 Series Column™ switch, 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
EDI DATA, APPROVALS
|
|
42" Tall, prep for CM-7536/7436 Series Column™ switch, 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
|
|
|
CM-42-ESU
42" Tall, switch prep at 7-1/2" & 36" (c-to-c) height
EDI DATA, APPROVALS
|
|
42" Tall, switch prep at 7-1/2" & 36" (c-to-c) height
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5""H
Weight: 17.8lbs.
|
|
|
CM-48-CSU
48" Tall, No switch prep, 6" x 6"
EDI DATA, APPROVALS
|
|
48" Tall, No switch prep, 6" x 6"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
|
CM-48-BSU
48" Tall, (36” Switch Height) single gang prep, 6" x 6"
EDI DATA, APPROVALS
|
|
48" Tall, (36” Switch Height) single gang prep, 6" x 6"
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
|
|

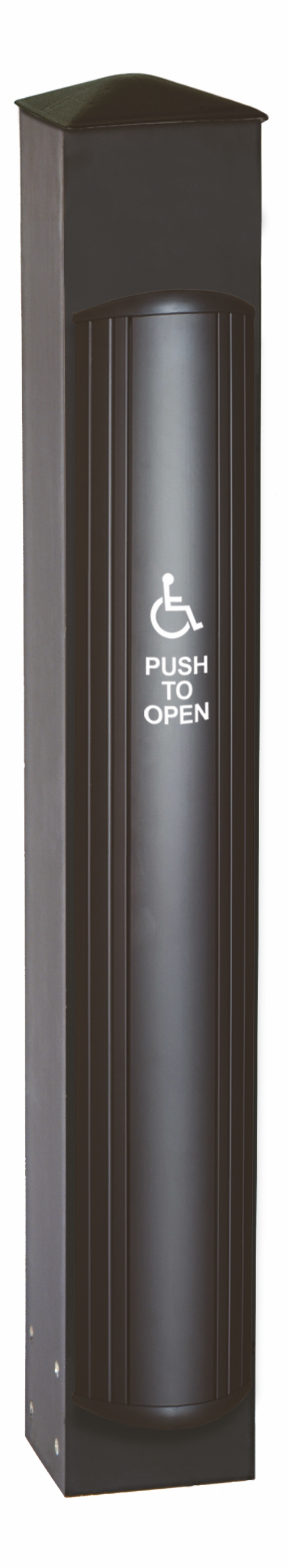

CM-48-DSU
48" Tall, prep for CM-7536/7436 Series Column™ switch, 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
EDI DATA, APPROVALS
|
|
48" Tall, prep for CM-7536/7436 Series Column™ switch, 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
|
|
CM-48-ESU
48" Tall, switch preps at 7-1/2" & 36" (c-to-c) height
EDI DATA, APPROVALS
|
|
48" Tall, switch preps at 7-1/2" & 36" (c-to-c) height
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
|
|
CM-48-GSU
48" Tall, switch preps at 42" & 36" (c-to-c) height, for card reader or pull station
EDI DATA, APPROVALS
|
|
48" Tall, switch preps at 42" & 36" (c-to-c) height, for card reader or pull station
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
| |
|
Stainless Steel Mounting Posts
click to expand section
|
|
Net Cost
|
|
CM-42-BSU-SS
42" Tall, stainless steel bollard with single gang switch prep
EDI DATA, APPROVALS
|
|
42" Tall, stainless steel bollard with single gang switch prep
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454181138
|
|
CM-42-DSU-SS
42” Tall, stainless steel bollard, prep for CM-7536/7436 Series Column™ switch 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
EDI DATA, APPROVALS
|
|
42” Tall, stainless steel bollard, prep for CM-7536/7436 Series Column™ switch 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454194541
|
|
|
CM-48-BSU-SS
48” Tall, Stainless Steel bollard with single gang switch prep, 6” x 6”
EDI DATA, APPROVALS
|
|
48” Tall, Stainless Steel bollard with single gang switch prep, 6” x 6”
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454181145
|
|
|
CM-48-DSU-SS
48" Tall, stainless steel bollard, prep for CM-7536/7436 Series Column™ switch 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
EDI DATA, APPROVALS
|
|
48" Tall, stainless steel bollard, prep for CM-7536/7436 Series Column™ switch 6" x 6" (Not compatible with CM-8536 and CM-8436 Series)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454192981
|
|
|
CM-48-GSU-SS
48" Tall, stainless steel bollard, switch prep at 7-1/2" & 36" (c-to-c) height, for card reader or pull station
EDI DATA, APPROVALS
|
|
48" Tall, stainless steel bollard, switch prep at 7-1/2" & 36" (c-to-c) height, for card reader or pull station
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
|
| |
|
|
OPTIONS
|
|
|
Click to expand section
|
|
|
 |
| ARCHITECTURAL FINISH OPTIONS |
 |
| IN-GROUND MOUNTING OPTIONS |
|
| Aluminum Bollards Finish Options |
|
Net Cost |
|
|

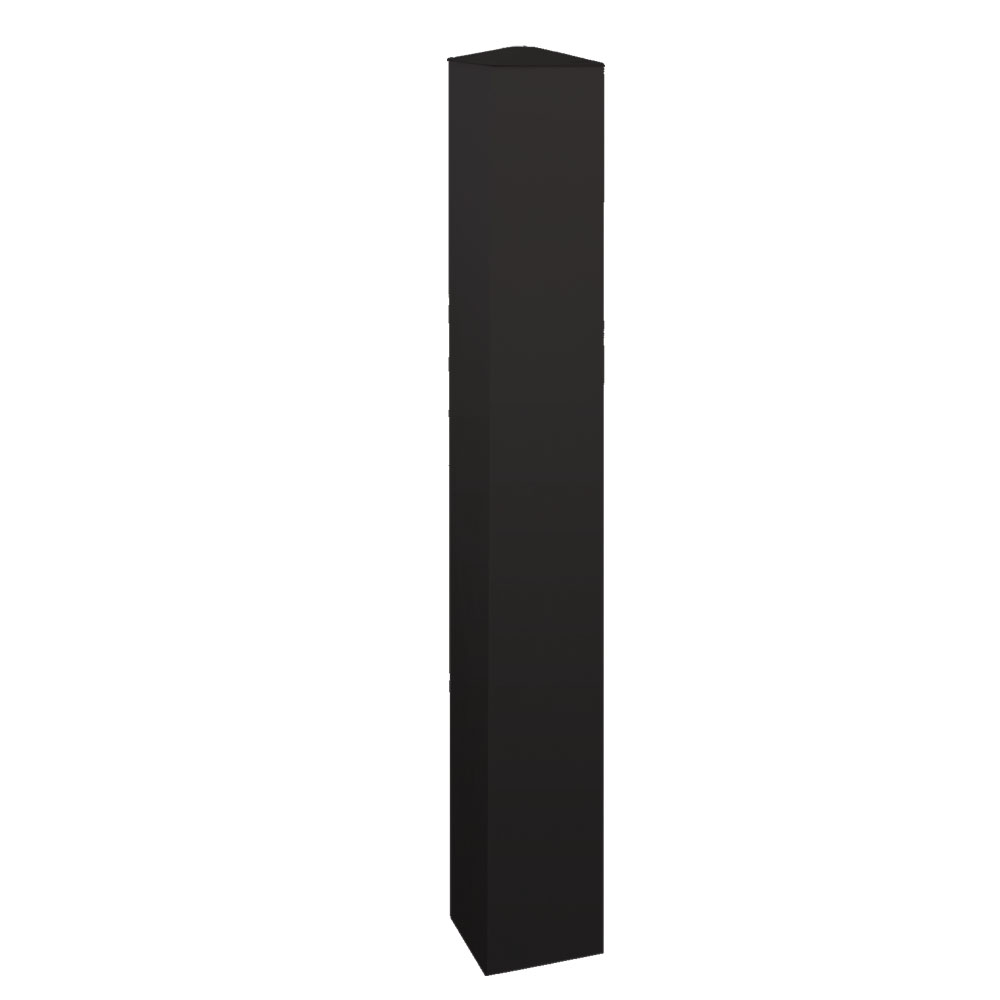

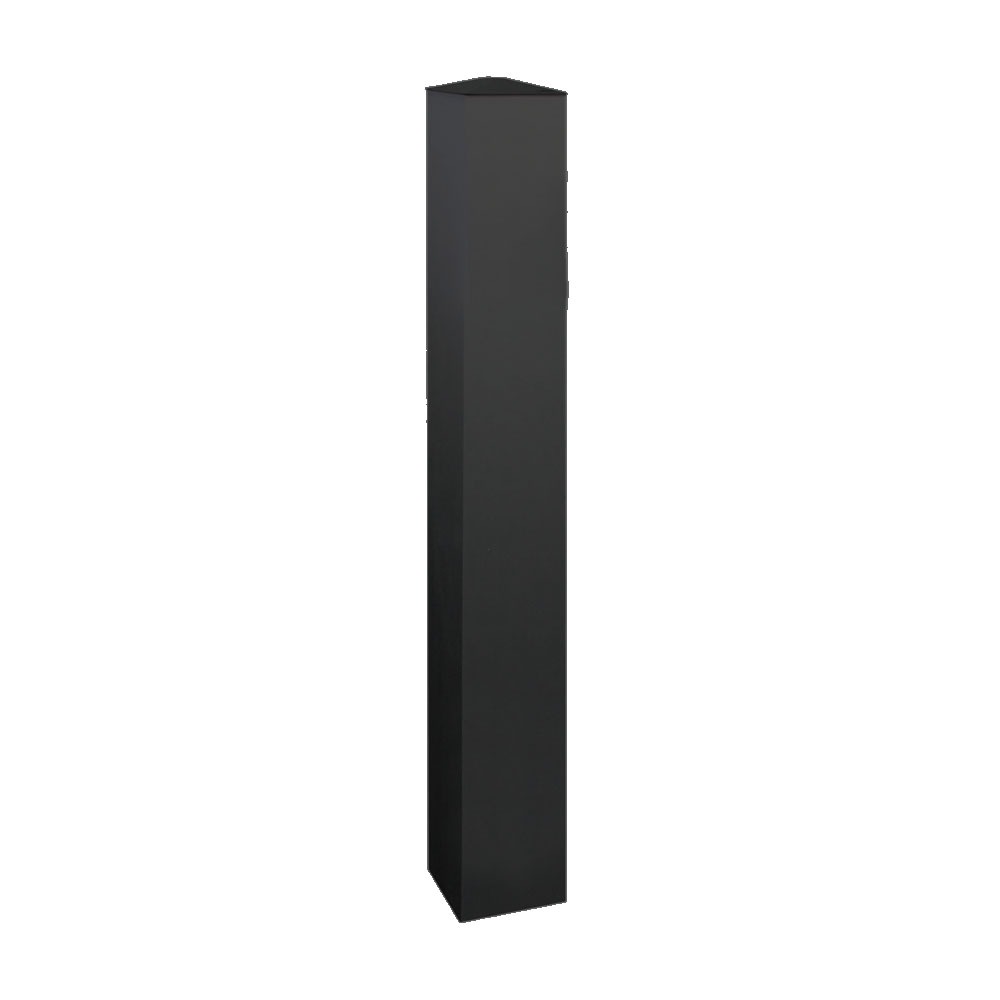

-BLK
Black finish (BHMA 711)
|
Black finish (BHMA 711)
|
|
|
|
|
-BRZ
Dark bronze finish (BHMA 710)
|
Dark bronze finish (BHMA 710)
|
|
|
|
|
-CLR
Clear aluminum finish (BHMA 628)
|
Clear aluminum finish (BHMA 628)
|
|
|
|
|
-MIL
Mill finish, suitable for painting
|
Mill finish, suitable for painting
|
|
|
| In-Ground Mounting Options |
|
Net Cost |
|
|
CM-42IG
Additional In-ground mounting base with rebar
|
Additional In-ground mounting base with rebar
|
|
|
|
|
-IG
Add suffix to model number for in-ground base instead of surface base
|
Add suffix to model number for in-ground base instead of surface base
|
|
|
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
