| CX-WEC10K2 Emergency Call System Kit w/ White Dome Light |
CX-WEC10K2 Emergency Call System Kit w/ White Dome Light
|
CLICK HERE for Project Specification Support
|
|
|
|
CX-WEC Series Emergency Call Systems KitsCamden CX-WEC Series is an equipment package designed to meet the latest building code requirements for universal restrooms. Emergency Call for Universal Restroom Kits may be installed in restrooms without an automatic door operator or with CX-WC Series barrier free restroom kits (with operator).
New CX-WEC10BK2 Emergency Call System Kit with CM-AF142SO multi-color dome light w/ sounder now available!
|
|
|
| CX-WEC10BK2 Emergency Call System Kit w/ Combo Push button & LED Annunciator and Multi-Color LED Dome Light |
|
| CX-WEC10K2 Emergency Call System Kit w/ White Dome Light |
CX-WEC10K2 Emergency Call System Kit w/ White Dome Light
|
CX-WEC Series Emergency Call Systems KitsCamden CX-WEC Series is an equipment package designed to meet the latest building code requirements for universal restrooms. Emergency Call for Universal Restroom Kits may be installed in restrooms without an automatic door operator or with CX-WC Series barrier free restroom kits (with operator).
New CX-WEC10BK2 Emergency Call System Kit with CM-AF142SO multi-color dome light w/ sounder now available!
|
|
|
|
|
|
|
| CX-WEC10BK2 Emergency Call System Kit w/ Combo Push button & LED Annunciator and Multi-Color LED Dome Light |
|
|
|
CLICK HERE for Project Specification Support
|
|
|
Emergency Call Kits
-
A complete emergency call system including a 'push for assistance' activation switch, LED annunciator and LED dome light w/ sounder
-
Ontario Building Code Compliant
-
3 year warranty
|
|
|
Emergency Call - Components: Maintained Switch Systems
 click to expand section
|
|
Net Cost
|
|
CM-450R/12
Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ Add suffix 'F' to model number for French language.
For additional contacts to connect additional notification devices or systems, order CM-4000/50N (N/O) or CM-4000/51N (N/C).
EDI DATA, APPROVALS
|
|
Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ Add suffix 'F' to model number for French language.
For additional contacts to connect additional notification devices or systems, order CM-4000/50N (N/O) or CM-4000/51N (N/C).
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 5"H
Weight: 0.6lbs.
UPC:670454178169
|
|
CM-450R/12FE
Bilingual Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ and Fr. language sign, laser etched with brushed stainless finish.
EDI DATA, APPROVALS
|
|
Bilingual Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ and Fr. language sign, laser etched with brushed stainless finish.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 7"H
Weight: 0.6lbs.
UPC:670454183330
|
|
CM-AF501SO
Single gang, LED annunciator with adjustable sounder, 'ASSISTANCE REQUESTED'. Add suffix 'F' to model number for French language. Add suffix 'FE' to model number for English & French Bilingual language
EDI DATA, APPROVALS
|
|
Single gang, LED annunciator with adjustable sounder, 'ASSISTANCE REQUESTED'. Add suffix 'F' to model number for French language. Add suffix 'FE' to model number for English & French Bilingual language
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: 0.35lbs.
UPC:670454165206
|
|
CM-AF540SO
Double gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested' Add suffix 'F' to model number for French language
EDI DATA, APPROVALS
|
|
Double gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested' Add suffix 'F' to model number for French language
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: lbs.
UPC:670454185396
|
|
CM-AF141SO
Single Gang LED Dome Light w/ adjustable sounder. Add suffix 'F' to model number for French language, 'FE' for bilingual
EDI DATA, APPROVALS
|
|
Single Gang LED Dome Light w/ adjustable sounder. Add suffix 'F' to model number for French language, 'FE' for bilingual
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.75"L x 4"W x 2.87"H
Weight: 0.35lbs.
UPC:670454186812
|
|
CM-AF142SO
Single Gang Multi-Color LED Dome Light w/ Sounder Selectable Red, Green, Blue or White
EDI DATA, APPROVALS
|
|
Single Gang Multi-Color LED Dome Light w/ Sounder Selectable Red, Green, Blue or White
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6"L x 4"W x 3"H
Weight: 0.35lbs.
UPC:670454201379
|
|
CM-AF142SOFE
Single Gang LED Dome Light w/ adjustable sounder FRENCH ENGLISH
EDI DATA, APPROVALS
|
|
Single Gang LED Dome Light w/ adjustable sounder FRENCH ENGLISH
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454186867
|
|
CM-SE21A
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’ (6” X 10 5/8” (152mm X 270mm)
EDI DATA, APPROVALS
|
|
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’ (6” X 10 5/8” (152mm X 270mm)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 1"W x 7"H
Weight: 1.2lbs.
UPC:670454170811
|
| |
|
Emergency Call - Components: Momentary Switch Systems
click to expand section
|
|
Net Cost
|
|
CX-LRS12
12V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches
EDI DATA, APPROVALS
|
|
12V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 0.25lbs.
UPC:670454182067
|
|
CX-LRS24
24V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches
EDI DATA, APPROVALS
|
|
24V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 0.25lbs.
UPC:670454182074
|
|
CM-8010/13
Vandal Resistant 1" Red Push Button, Single Gang Alum., N/C Momentary w/ 'Press To Reset' text
EDI DATA, APPROVALS
|
|
Vandal Resistant 1" Red Push Button, Single Gang Alum., N/C Momentary w/ 'Press To Reset' text
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.50lbs.
|
|
CM-1205/14-60KD
Key Switch, Single Gang SS, SPST Momentary, NC,w/ 'WC System Reset' text and CM-1000/60KD mortise cylinder, keyed different
EDI DATA, APPROVALS
|
|
Key Switch, Single Gang SS, SPST Momentary, NC,w/ 'WC System Reset' text and CM-1000/60KD mortise cylinder, keyed different
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.50lbs.
UPC:670454205087
|
| |
|
Emergency Call - Optional Signage
click to expand section
|
|
Net Cost
|
|
CM-SE21B
English sign, white self adhesive vinyl, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’ (6” X 10 5/8” (152mm X 270mm)
EDI DATA, APPROVALS
|
|
English sign, white self adhesive vinyl, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’ (6” X 10 5/8” (152mm X 270mm)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 1"W x 7"H
Weight: 0.2lbs.
UPC:670454177872
|
|
CM-SF20A
French, solid white sign, ‘DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘ (6” X 10 5/8” (152mm X 270mm)
EDI DATA, APPROVALS
|
|
French, solid white sign, ‘DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘ (6” X 10 5/8” (152mm X 270mm)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 1"W x 7"H
Weight: 0.2lbs.
UPC:670454177889
|
|
CM-SF20B
French, white self adhesive vinyl, DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘ (6” X 10 5/8” (152mm X 270mm)
EDI DATA, APPROVALS
|
|
French, white self adhesive vinyl, DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘ (6” X 10 5/8” (152mm X 270mm)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 1"W x 7"H
Weight: 0.2lbs.
UPC:670454177896
|
| |
|
new option
|
|
|
Kit
click to expand section
|
Description |
|
|
Net Cost
|
|
|

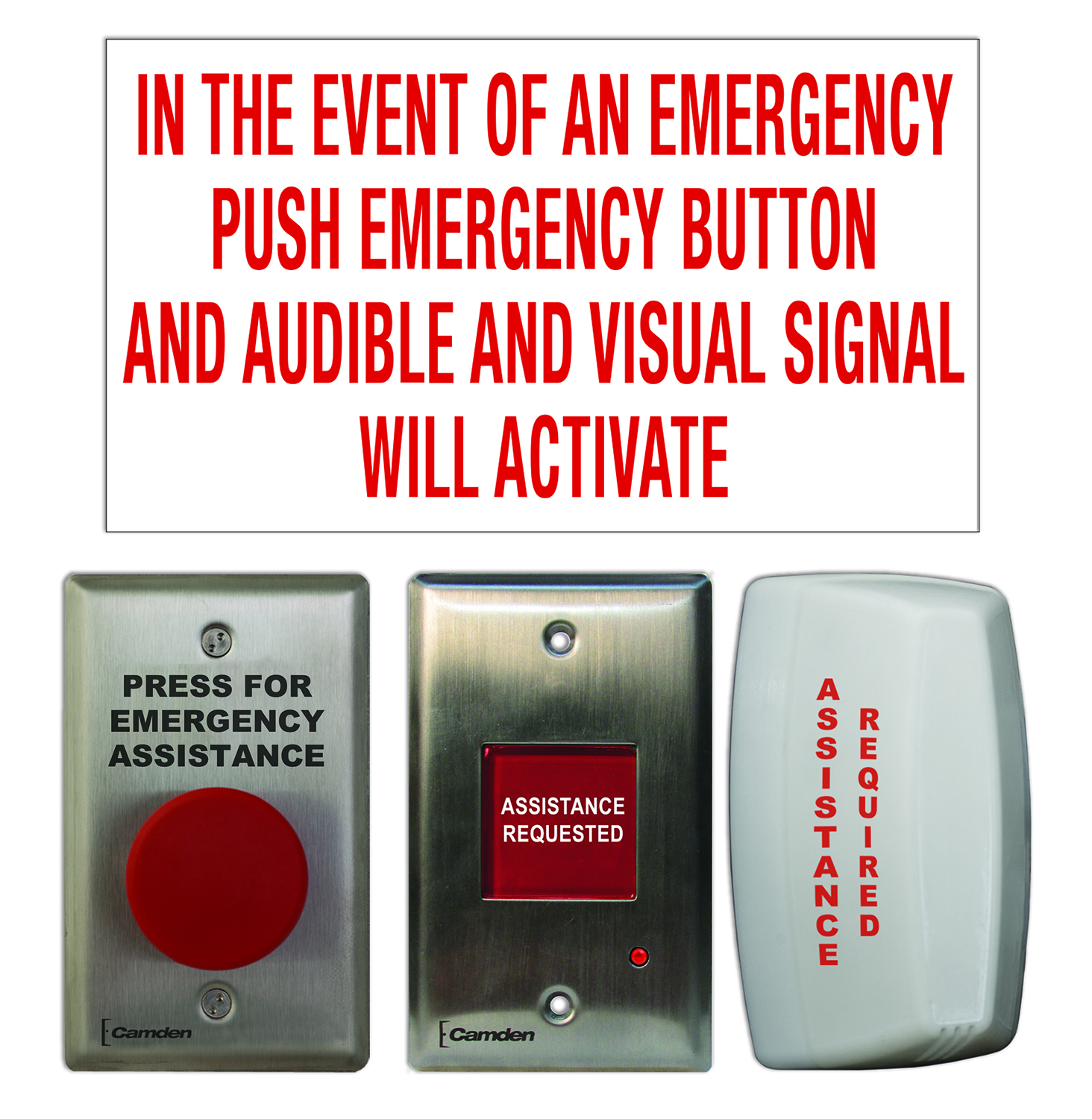

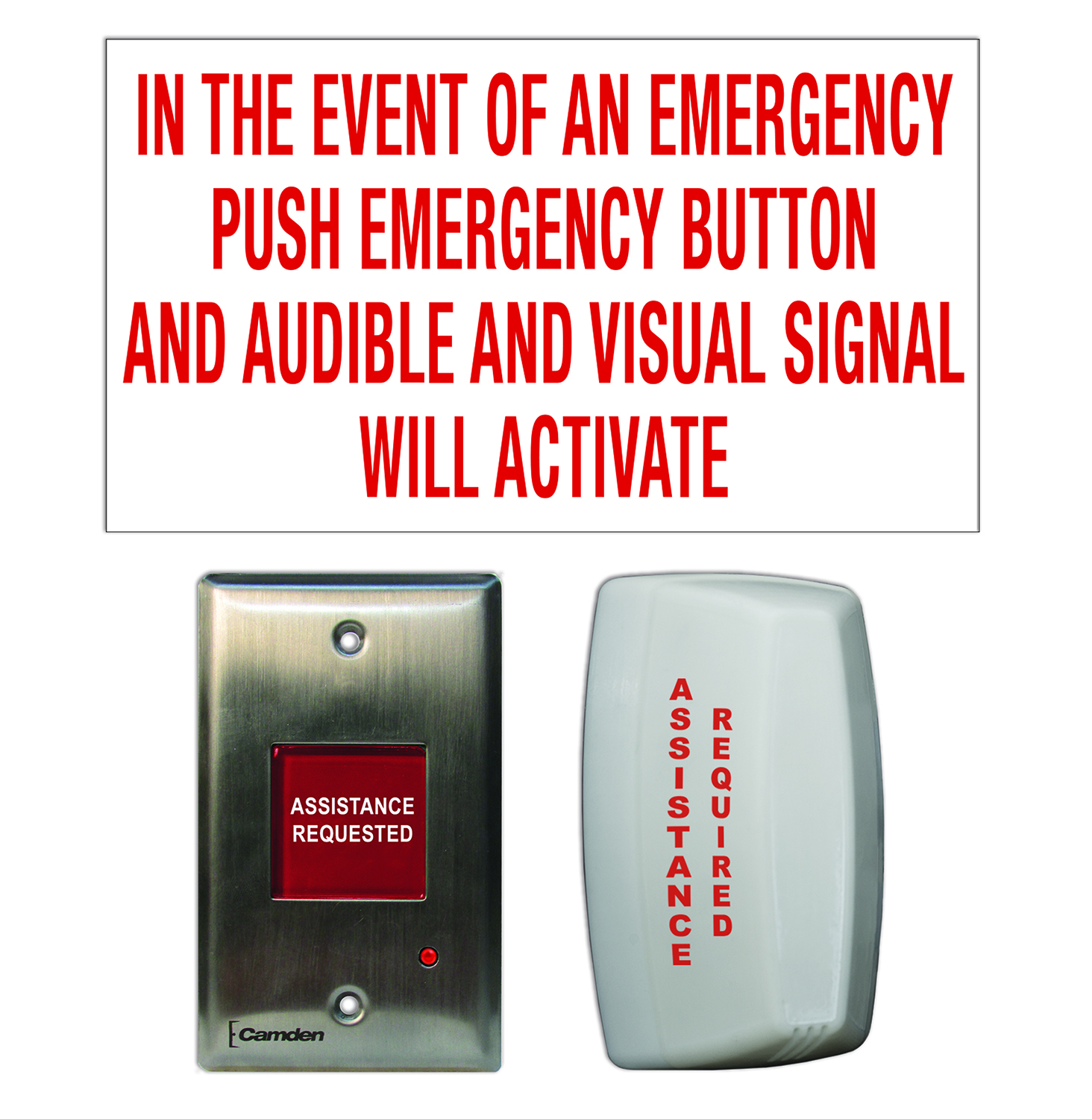

CX-WEC10K2
Universal Emergency Call System Kit, w/ White Dome Light
EDI DATA, APPROVALS
|
|
CX-WEC10K2
Universal Emergency Call System Kit, w/ White Dome Light
(1)
Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested';
(1)
Single Gang LED Dome Light, w/ Sounder.;
(1)
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 4"H
Weight: 1.8lbs.
UPC:670454186959
|
|

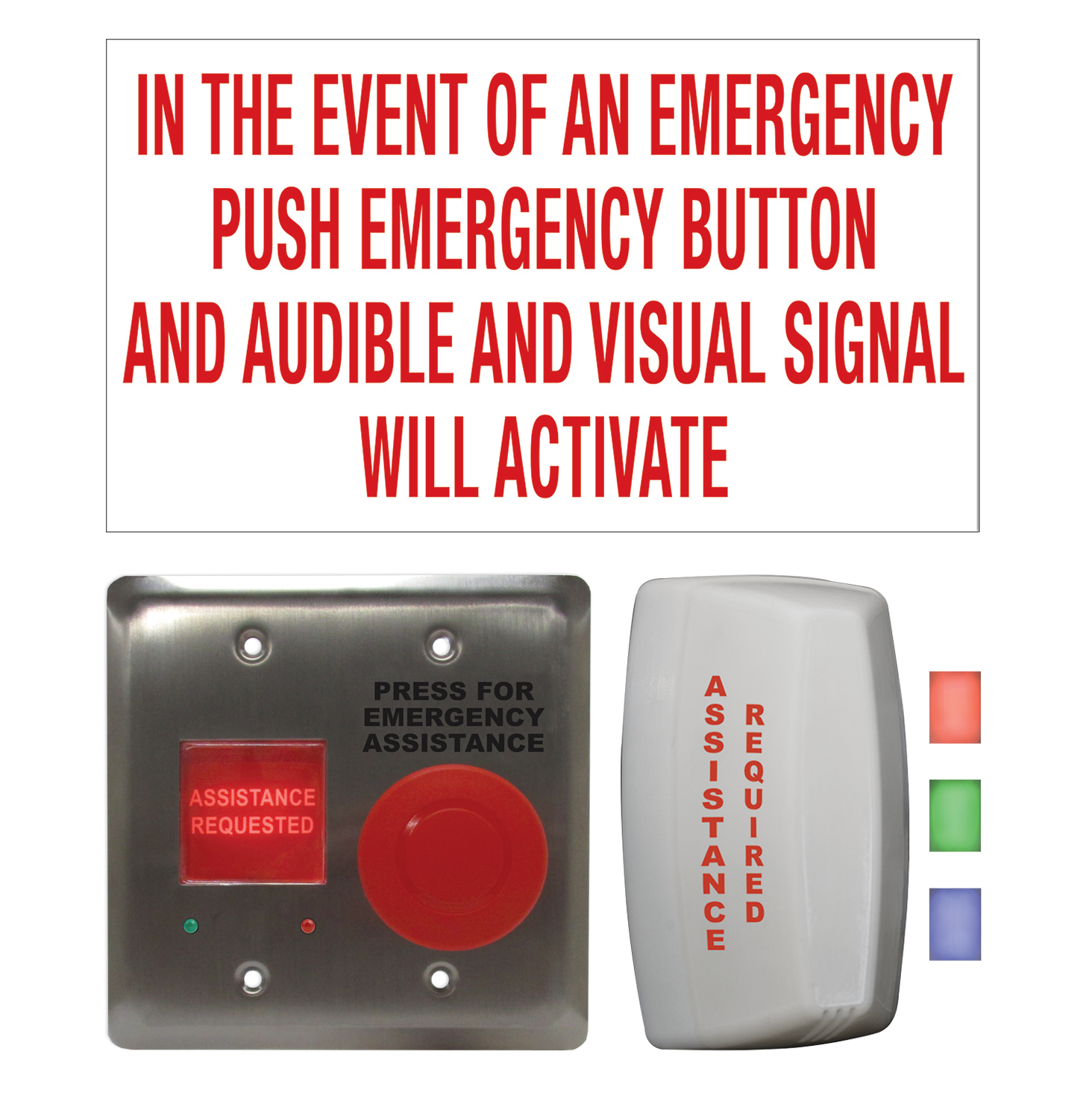

CX-WEC10BK2
Universal Emergency Call System Kit, w/ Multi-Color Dome Light
EDI DATA, APPROVALS
|
|
CX-WEC10BK2
Universal Emergency Call System Kit, w/ Multi-Color Dome Light
(1)
Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested';
(1)
Single Gang Multi-Color LED Dome Light w/ Sounder;
(1)
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
Manuals
Reference Guides
Kit Shot
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 4"H
Weight: 1.8lbs.
UPC:670454202017
|
|

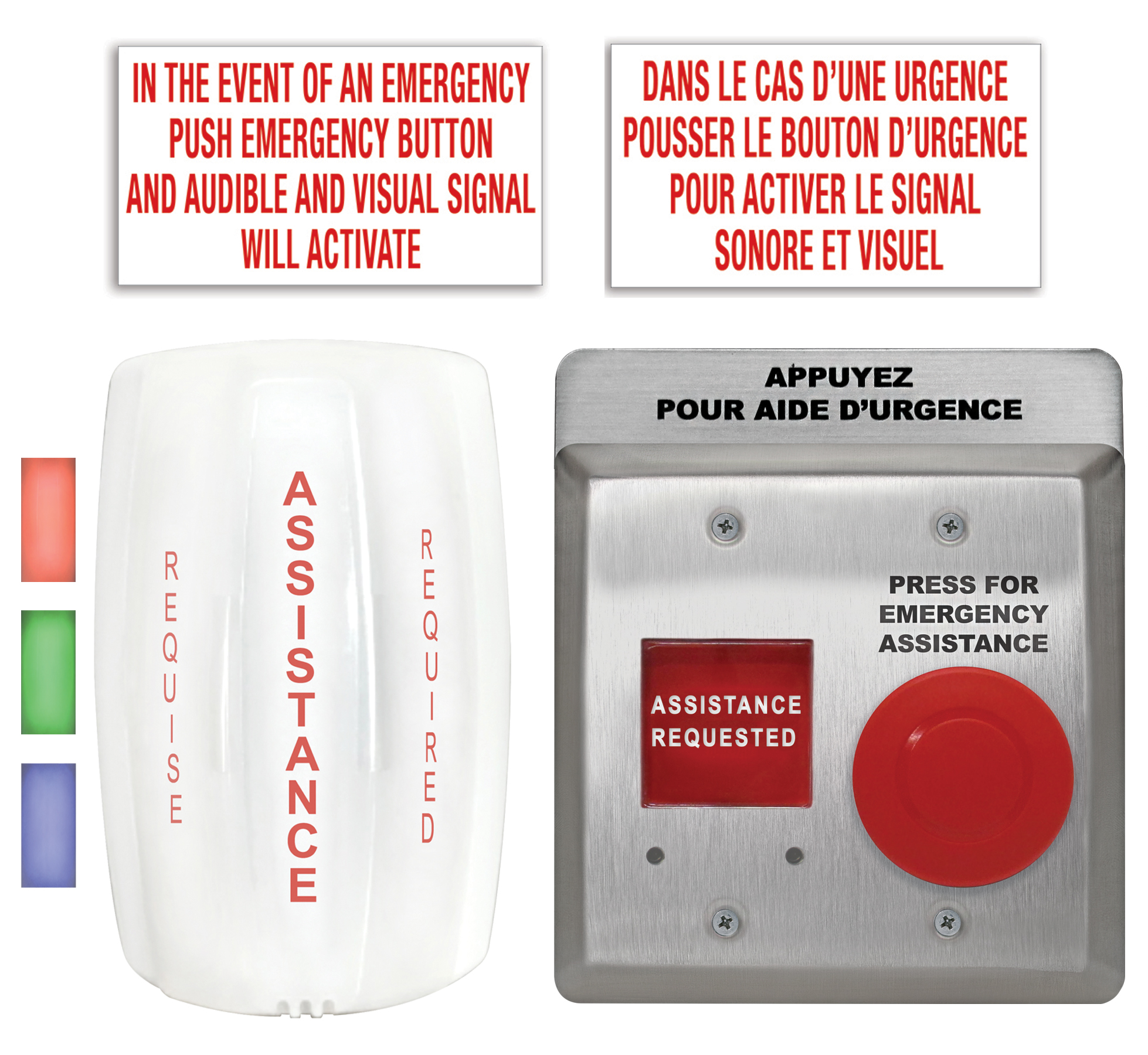

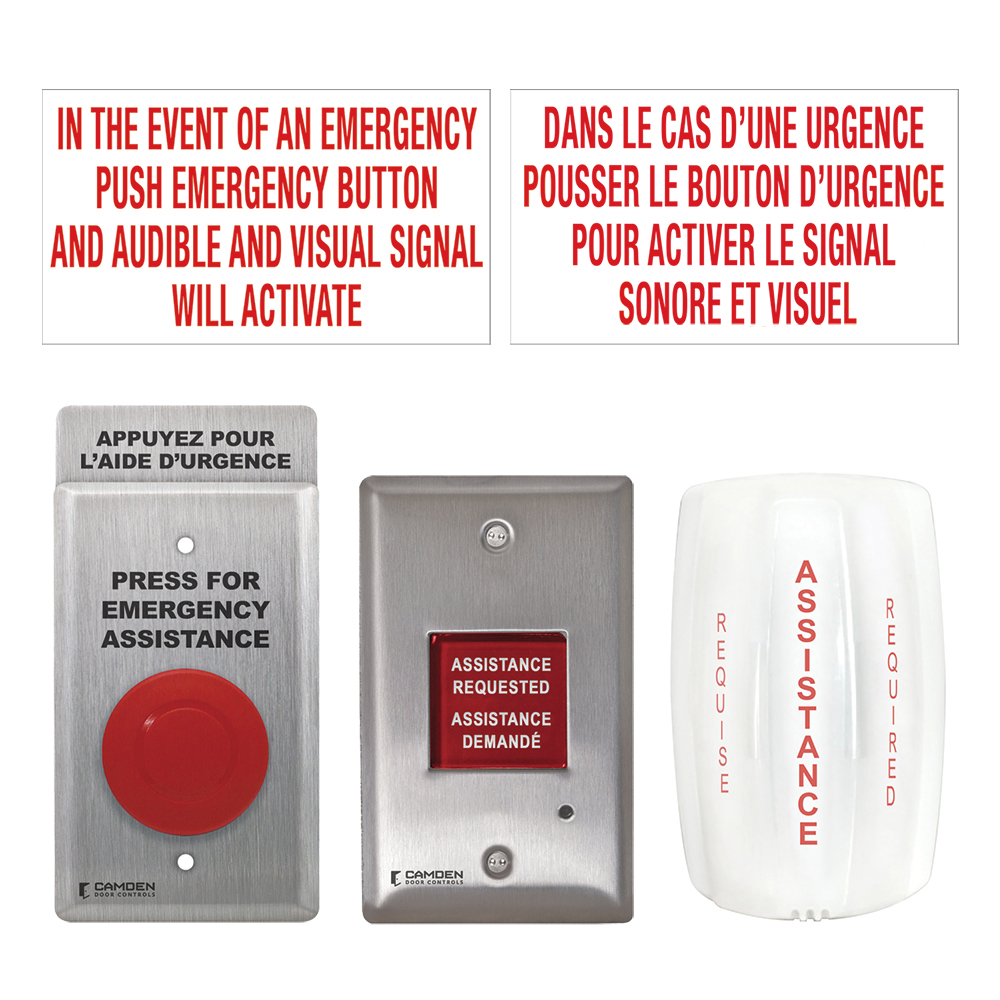

CX-WEC10BK2-FE
Universal Emergency Call System Kit, w/ Multi-Color Dome Light FRENCH ENGLISH
EDI DATA, APPROVALS
|
|
CX-WEC10BK2-FE
Universal Emergency Call System Kit, w/ Multi-Color Dome Light FRENCH ENGLISH
(1)
Double gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, FRENCH ENGLISH;
(1)
Single Gang LED Dome Light w/ adjustable sounder FRENCH ENGLISH;
(1)
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’;
(1)
French, solid white sign, ‘DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘.
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 4"H
Weight: 1.8lbs.
|
|
|
CX-WEC10CK2
Emergency Call System Kit For 2 Door Restrooms, w/ Multi-Color Dome Light
EDI DATA, APPROVALS
|
|
CX-WEC10CK2
Emergency Call System Kit For 2 Door Restrooms, w/ Multi-Color Dome Light
(1)
Double gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested';
(2)
Single Gang Multi-Color LED Dome Light w/ Sounder;
(1)
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’.
EDI DATA, APPROVALS
| 1x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 4"H
Weight: 2.0lbs.
UPC:670454203977
|
|
|

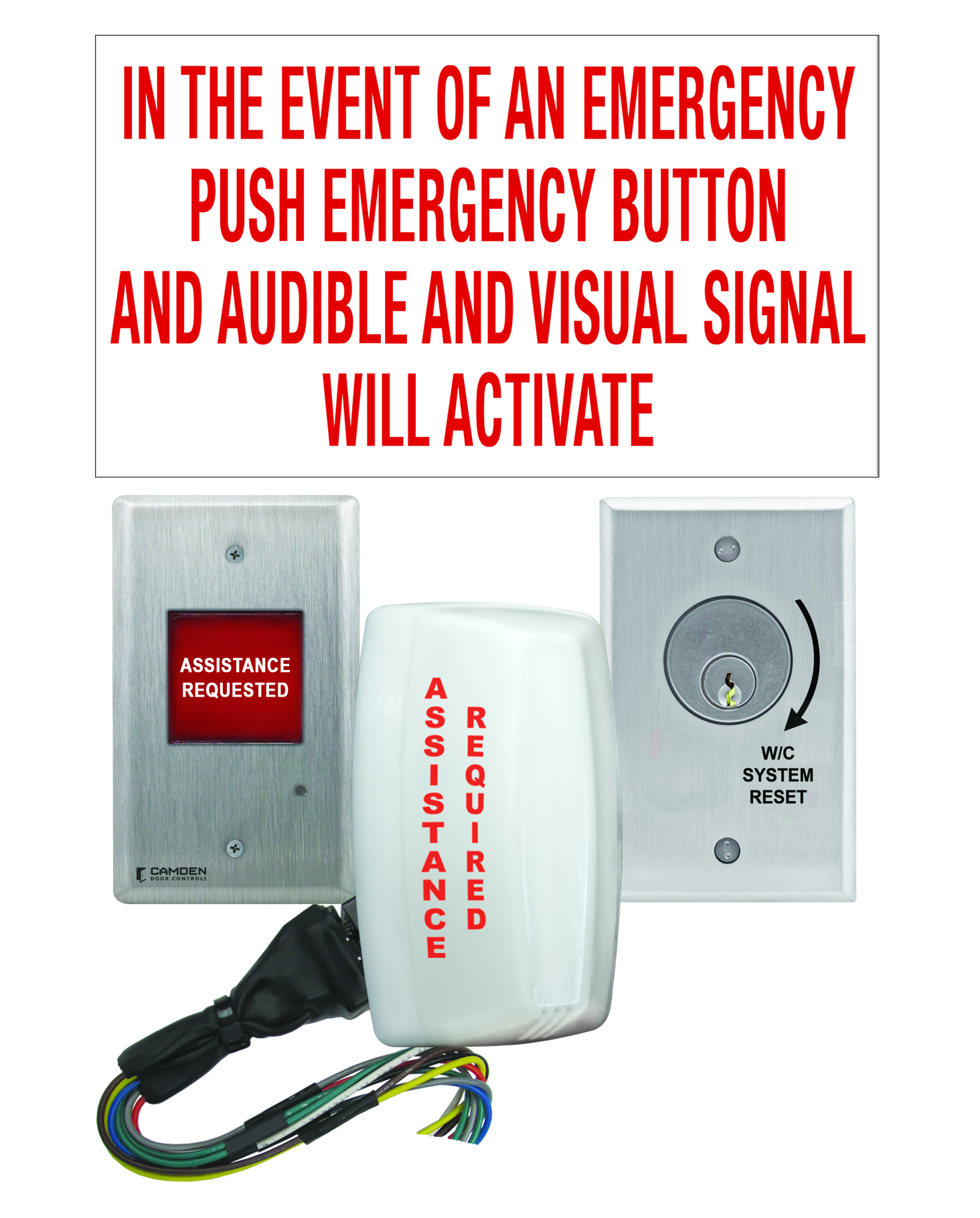

CX-WEC13
Universal Emergency Call Kit with key switch reset For use with momentary 'Press For Emergency Assistance' switches (extra)
EDI DATA, APPROVALS
|
|
CX-WEC13
Universal Emergency Call Kit with key switch reset
(1)
Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.;
(1)
Single Gang LED Dome Light, w/ Sounder.;
(1)
English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’;
(1)
24V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches;
(1)
Key Switch, Single Gang SS, SPST Momentary, NC,w/ 'WC System Reset' text and CM-1000/60KD mortise cylinder, keyed different;
For use with momentary 'Press For Emergency Assistance' switches (extra).
EDI DATA, APPROVALS
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 12"L x 9"W x 7"H
Weight: 4.5lbs.
UPC:670454182517
|
| |
|
|
|
