Camden CM-190 Series maintained toggle switches are specifically designed for control of automatic door operators and feature a choice of faceplates, for mounting on the door operator cabinet or wall.
|
|
|
| CM-195-31 |
|
|
|
|
Camden CM-190 Series maintained toggle switches are specifically designed for control of automatic door operators and feature a choice of faceplates, for mounting on the door operator cabinet or wall.
|
|
|
|
|
|
|
| CM-195-31 |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Heavy duty 6 Amp. contacts
-
Compatible with all automatic door operators
-
3 year warranty
| Voltage: |
12/24 VDC
|
| Contact Rating: |
6 A @ 30 VDC
|
| Switch Life: |
50,000 cycles
|
| Temp Range: |
4°F to 185°F (-20°C to 85°C)
|
| Dimensions: |
|
CM-190:
|
1-1/2" W x 2-5/16" H x 1-3/4" D
(38mm x 59mm x 44mm)
|
|
CM-195:
|
2-3/4" W x 4-1/2" H x 1-3/4" D
(51mm x 114mm x 44mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Toggle Switches
 click to expand section
|
|
Net Cost
|
|

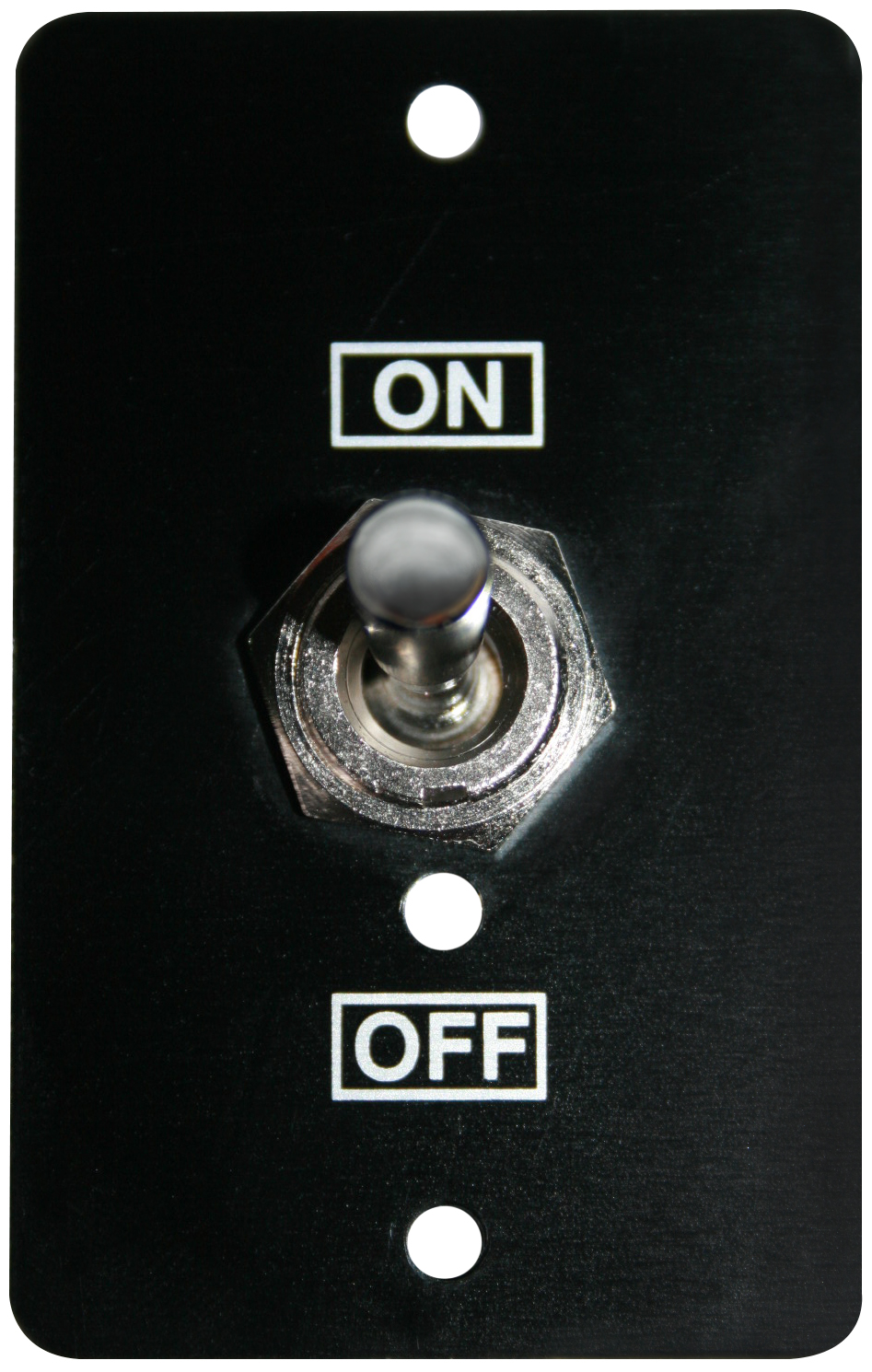

CM-190
Mini aluminum faceplate
EDI DATA, APPROVALS
|
|
Mini aluminum faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.50"L x 4.00"W x 1.00"H
Weight: 0.08lbs.
UPC:670454171474
|
|

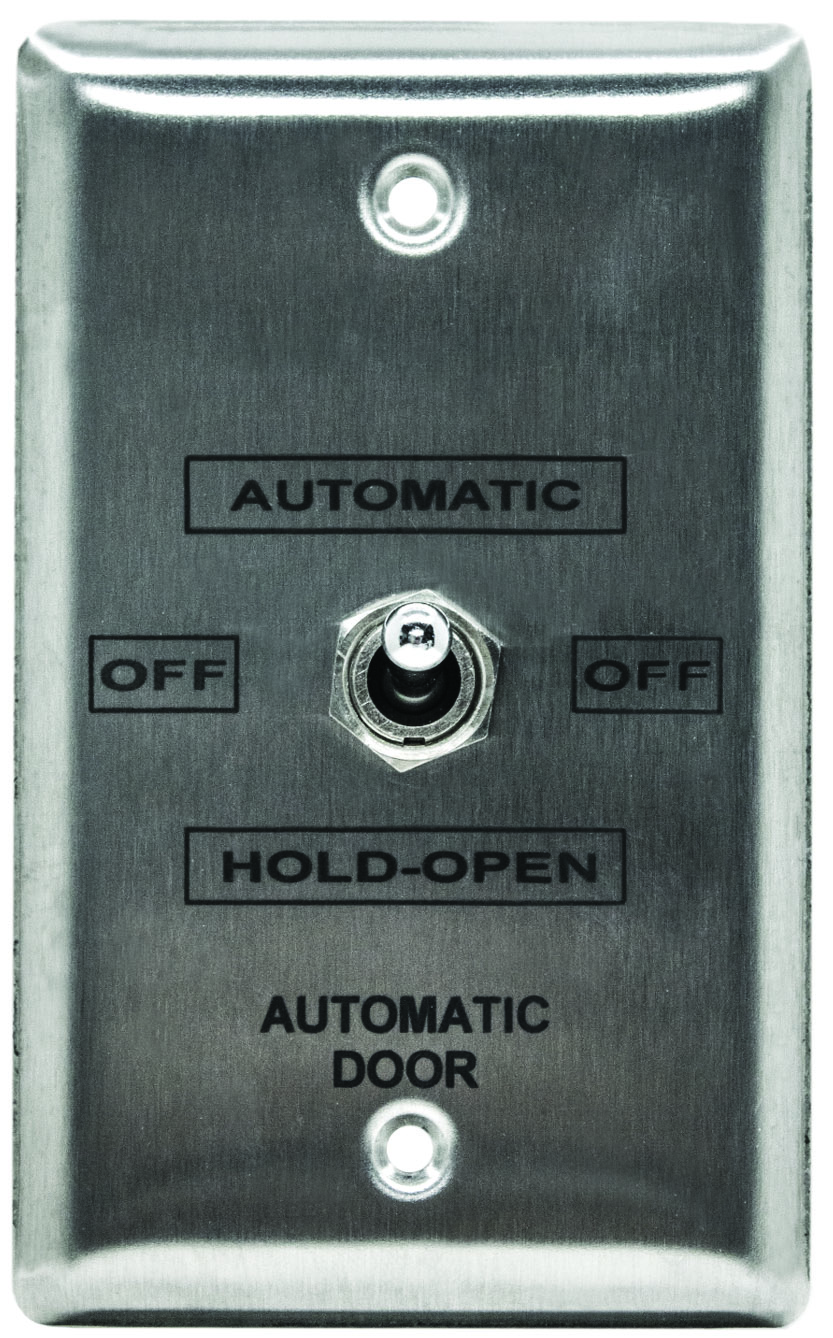

CM-195
Single gang stainless steel faceplate
EDI DATA, APPROVALS
|
|
Single gang stainless steel faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.50"L x 4.00"W x 1.00"H
Weight: 0.08lbs.
UPC:NA
|
| |
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
|
|
