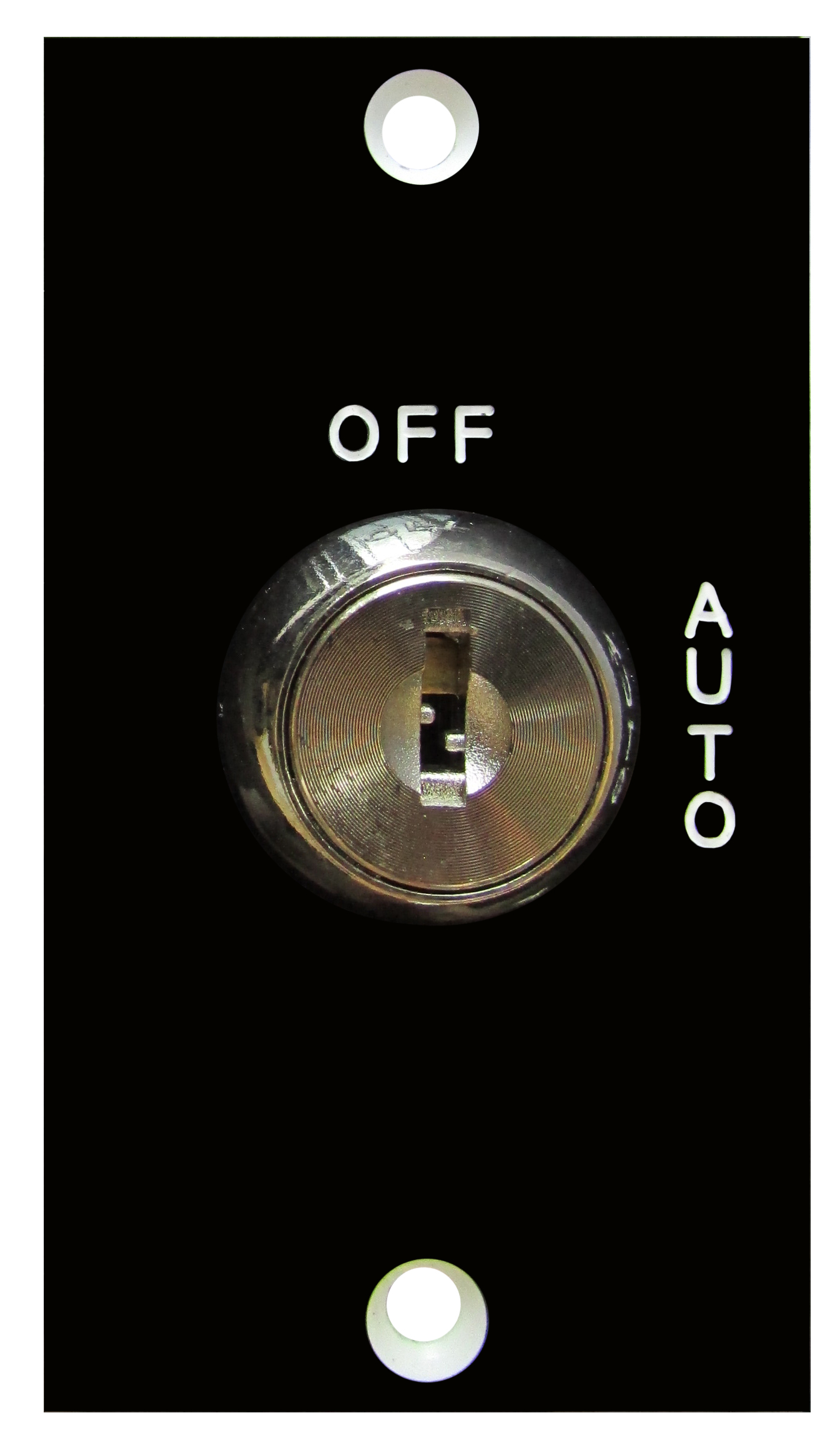

CM-160/21 Door Operator Control Key Switch
|
|
Camden key switches for automatic doors are designed for mounting on the door operator cabinet or door frame, and are available in a range of 2 or 3 position momentary or maintained models. Key cylinder and 2 keys included.
|
|
|
| CM-170/21 Door Operator Control Key Switch |
|
|
|
| CM-180/23 Door Operator Control Key Switch |
|
| CM-160/21 Door Operator Control Key Switch |
CM-160/21 Door Operator Control Key Switch
|
Camden key switches for automatic doors are designed for mounting on the door operator cabinet or door frame, and are available in a range of 2 or 3 position momentary or maintained models. Key cylinder and 2 keys included. |
|
|
|
|
|
|
| CM-170/21 Door Operator Control Key Switch |
|
|
|
|
| CM-180/23 Door Operator Control Key Switch |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
High-quality 'cam' key switch and faceplate
-
Compatible with all automatic door operators
-
Key removable in all maintained positions
-
2 keys provided. All auto operator control key switches are keyed alike
-
3 year warranty
| Voltage: |
24/24 VDC
|
| Contact Rating: |
4 Amps @ 28 VDC
|
| Switch Life: |
10,000 cycles
|
| Dimensions: |
|
CM-160:
|
3" x 1-11/16" x 1-3/8"
(76.2mm x 42.9mm x 35mm)
|
|
CM-170:
|
4-1/2" x 1-3/4" x 1-3/8"
(114mm x 44.4mm x 35mm)
|
|
CM-180:
|
4-1/2" x 2-3/4" x 1-3/8"
(114mm x 70mm x 35mm)
|
| |
|
Spec Sheets
|
| CM-160-170-180_Spec Sheet_R2 |
pdf |
0.50 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CM-160/170/180_20_Manual_R2 Typical Wiring Diagram - Automatic Swing Door |
pdf |
0.36 |
DOWNLOAD
OPEN
|
| CM-160/170/180_21_Manual_R2 Typical Wiring Diagram - Single Swing or Sliding Door |
pdf |
0.35 |
DOWNLOAD
OPEN
|
| CM-160/170/180_22_Manual_R2 Typical Wiring Diagram - Single Swing Door |
pdf |
0.37 |
DOWNLOAD
OPEN
|
| CM-160/170/180_23_Manual_R2 Typical Wiring Diagram - Single Swing Door |
pdf |
0.38 |
DOWNLOAD
OPEN
|
| CM-160/170/180_24_Manual_R2 Typical Wiring Diagram - Automatic Sliding Door with One-Way Feature |
pdf |
0.38 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CM-160/21 |
jpeg |
0.46 |
DOWNLOAD
OPEN
|

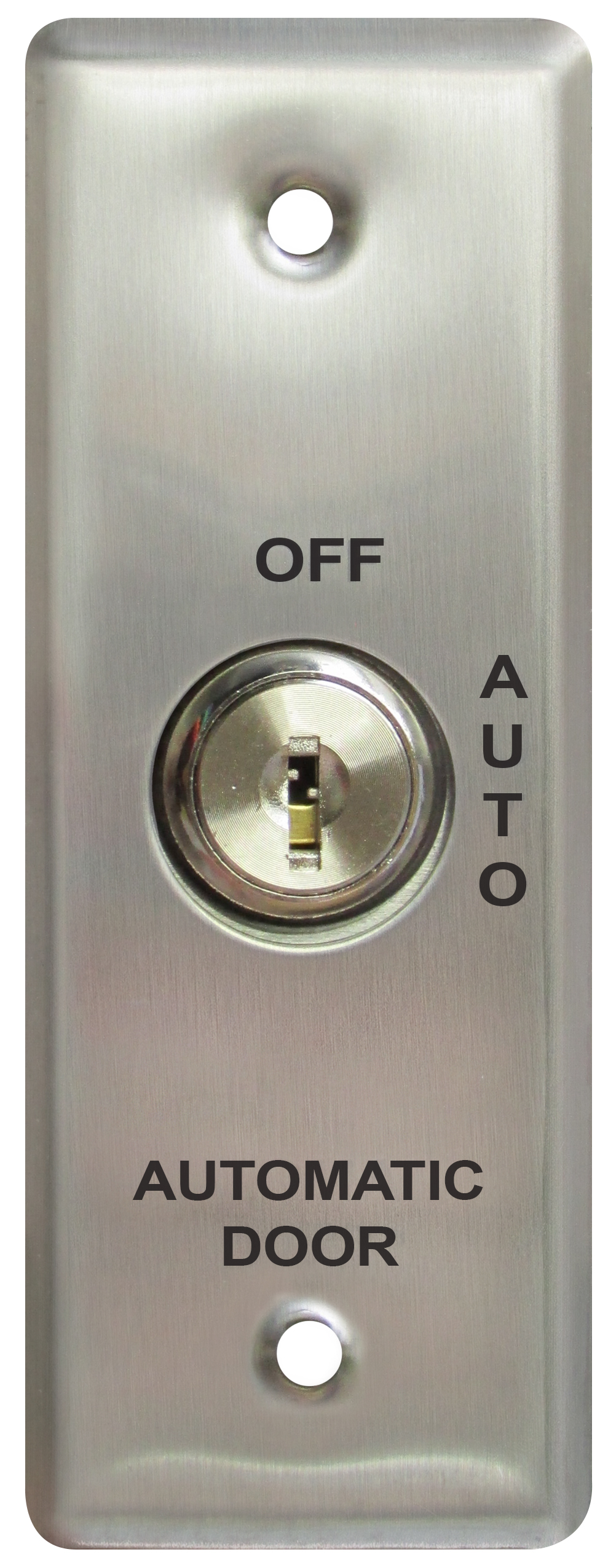

| CM-170/21 |
jpeg |
1.19 |
DOWNLOAD
OPEN
|

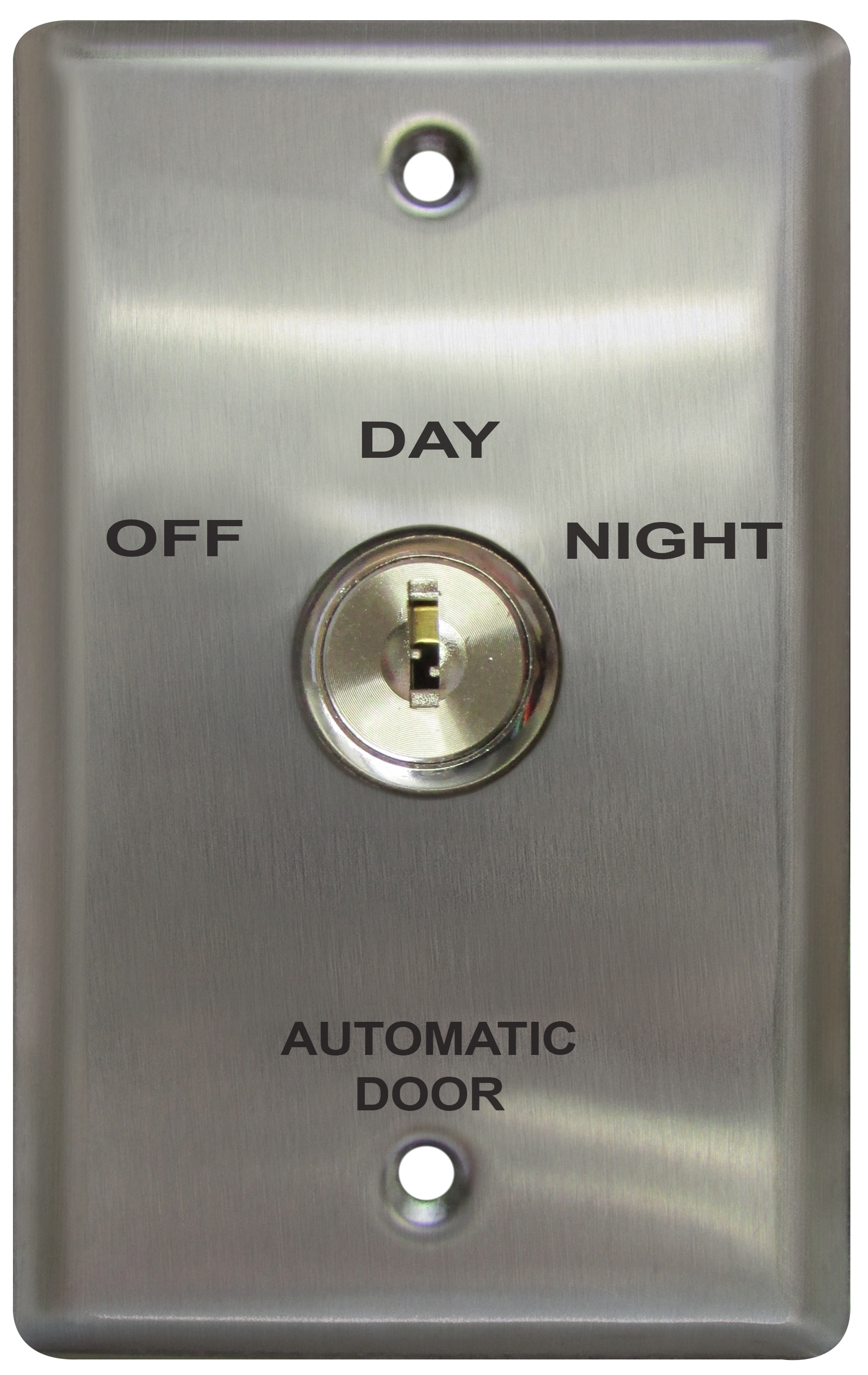

| CM-180/23 |
jpeg |
1.89 |
DOWNLOAD
OPEN
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CM-160
Key switch with plastic lamacoid (mini) faceplate
EDI DATA, APPROVALS
|
|
Key switch with plastic lamacoid (mini) faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.50"L x 4.00"W x 1.00"H
Weight: 0.18lbs.
UPC:NA
|
|
CM-170
Key switch with stainless steel (narrow stile) faceplate
EDI DATA, APPROVALS
|
|
Key switch with stainless steel (narrow stile) faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.50"L x 4.00"W x 1.00"H
Weight: 0.18lbs.
UPC:NA
|
|
CM-180
Key switch with stainless steel (single gang) faceplate
EDI DATA, APPROVALS
|
|
Key switch with stainless steel (single gang) faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.50"L x 4.00"W x 1.00"H
Weight: 0.18lbs.
UPC:NA
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE GRAPHIC OPTIONS |
|
| Switch/Graphic Options |
|
Net Cost |
|
|
CM-xxx/20
2 Position switch, Momentary, 'Off'/'Open'
|
2 Position switch, Momentary, 'Off'/'Open'
|
|
|
|
|
CM-xxx/21
2 Position switch, Maintained, 'Off'/'Auto'
|
2 Position switch, Maintained, 'Off'/'Auto'
|
|
|
|
|
CM-xxx/22
3 Positon switch, Maintained, 'Auto'/'Off'/'Hold Open'
|
3 Positon switch, Maintained, 'Auto'/'Off'/'Hold Open'
|
|
|
|
|
CM-xxx/23
3 Postion switch, Maintained, 'Off/'Day'/'Night'
|
3 Postion switch, Maintained, 'Off/'Day'/'Night'
|
|
|
|
|
CM-xxx/24
4 Position switch, Maintained, 'Off'/'Exit'/'Auto'/'Hold Open'
|
4 Position switch, Maintained, 'Off'/'Exit'/'Auto'/'Hold Open'
|
|
|
| Additional Keys |
|
Net Cost |
|
|
CM-A126
(2) additional keys for CM-160, CM-170 and CM-180 Series key switches
|
(2) additional keys for CM-160, CM-170 and CM-180 Series key switches
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
|
