| 2" Square Illuminated Push/Exit Switch, with electronic timer |
2" Square Illuminated Push/Exit Switch, with electronic timer
|
|

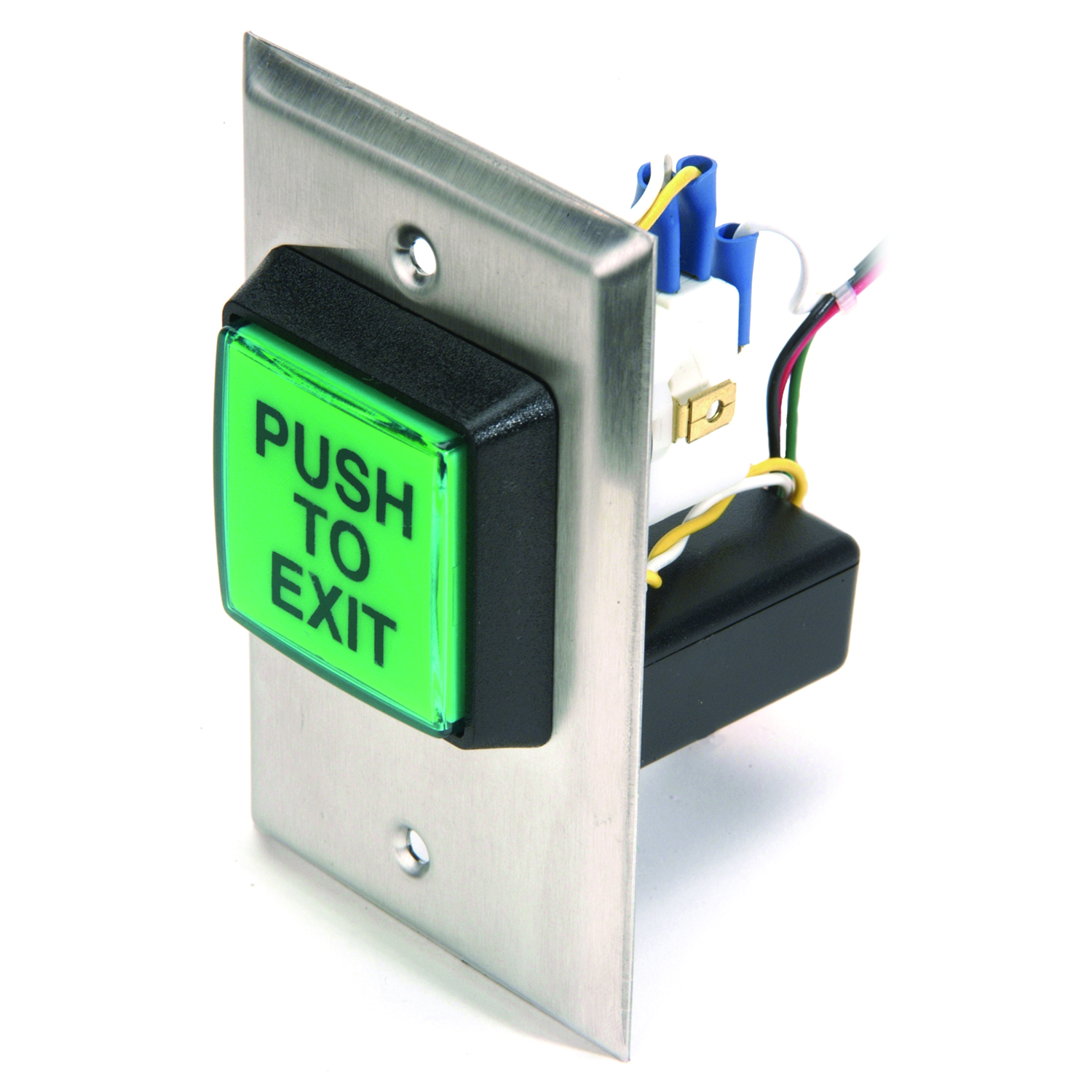

CM-30EE and CM-30AT LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws. CM-30EE is supplied with an integrated 30 second fixed timer. CM-30AT is supplied with an adjustable 30 second timer. Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included.
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-2T
|
CM-30EE
|
|
|
TS-40
|
CM-30EE
|
|
Securitron
|
EEB2
|
CM-30EE
|
|
|
| 2" Square Illuminated Push/Exit Switch, with electronic timer |
2" Square Illuminated Push/Exit Switch, with electronic timer
|
CM-30EE and CM-30AT LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws. CM-30EE is supplied with an integrated 30 second fixed timer. CM-30AT is supplied with an adjustable 30 second timer. Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included. |
|
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-2T
|
CM-30EE
|
|
|
TS-40
|
CM-30EE
|
|
Securitron
|
EEB2
|
CM-30EE
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Large 2" square LED illuminated button
-
Heavy duty stainless steel faceplate
-
In-wall back box included
-
12/24V with LED bulb
-
Tamper proof screws and driver included
-
3 year warranty
-
CM-30EE:
-
30 second fixed timer
-
Double break design for additional security
-
CM-30AT:
30 second adjustable timer
| Voltage: |
12/24 VDC
|
| Contact Type: |
SPDT Form 'C'
|
| Contact Rating: |
10 A @ 30 VDC
|
| Switch Type: |
Momentary
|
| Dimensions: |
4-1/2" x 2-3/4" x 2-1/2” (114.3mm x 69.85mm x 63.5mm)
|
| Std. Finish: |
US/C 32D
|
| Mounting: |
Single gang in-wall box included
|
Camden Tough Product Comparison
|
|
|
SWITCH WITH FIXED 30 SEC. TIMER
click to expand section
|
|
Net Cost
|
|
CM-30EE
2" LED Illuminated Green 'PUSH TO EXIT' button with fixed 30 second timer, in-wall mounting box included
EDI DATA, APPROVALS
|
|
2" LED Illuminated Green 'PUSH TO EXIT' button with fixed 30 second timer, in-wall mounting box included
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.45lbs.
UPC:670454123701
|
| |
|
SWITCH WITH ADJUSTABLE 30 SEC. TIMER
click to expand section
|
|
Net Cost
|
|
CM-30AT
2" LED Illuminated Green 'PUSH TO EXIT' button with adjustable 30 second timer, in-wall mounting box included
EDI DATA, APPROVALS
|
|
2" LED Illuminated Green 'PUSH TO EXIT' button with adjustable 30 second timer, in-wall mounting box included
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.45lbs.
UPC:670454173744
|
| |
|
