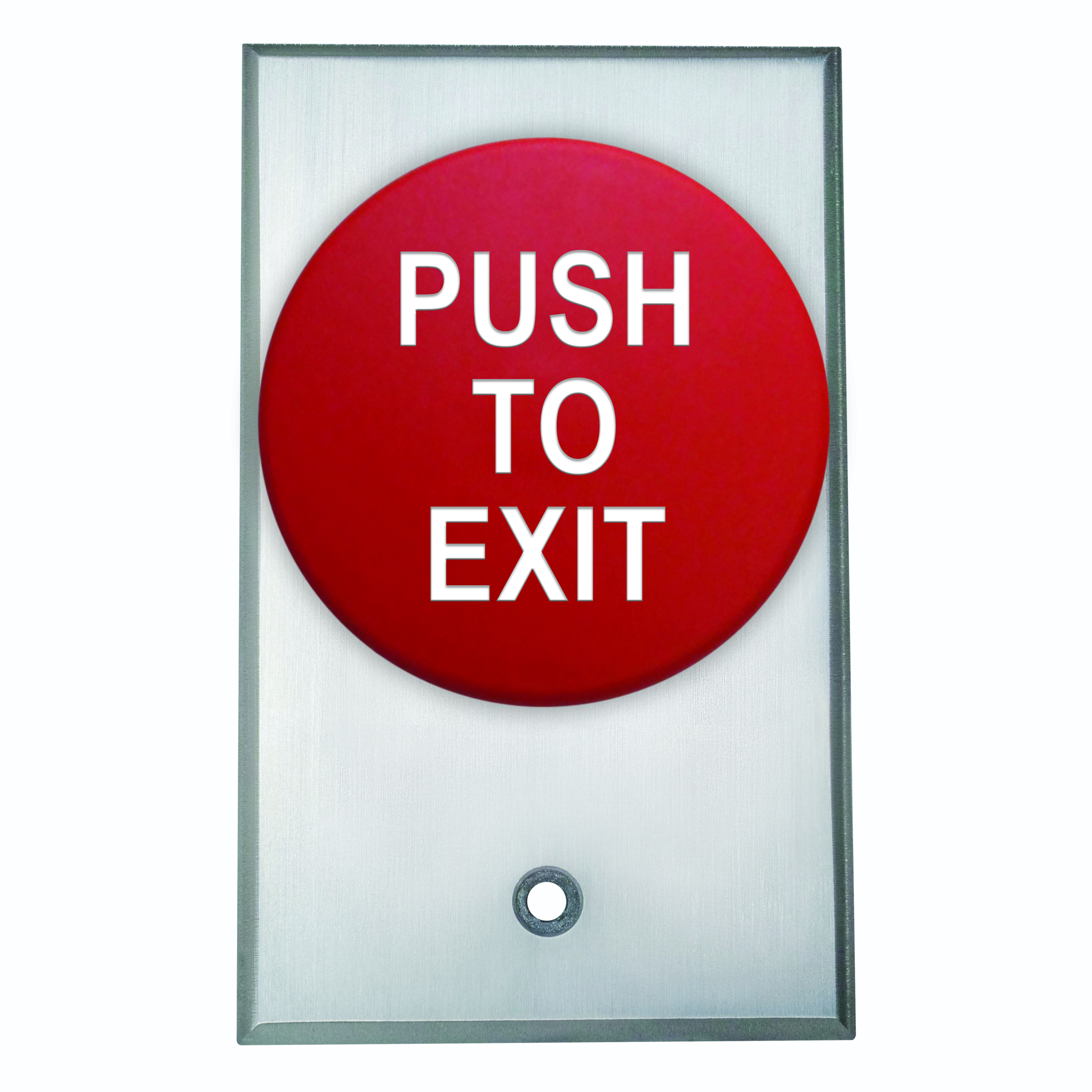

| CM-5085RPTESingle Gang, 2-3/8" Pneumatic MushroomPushbutton withAluminum Faceplate |
CM-5085RPTESingle Gang, 2-3/8" Pneumatic MushroomPushbutton withAluminum Faceplate
|
|
CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates. Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.
|
|
|

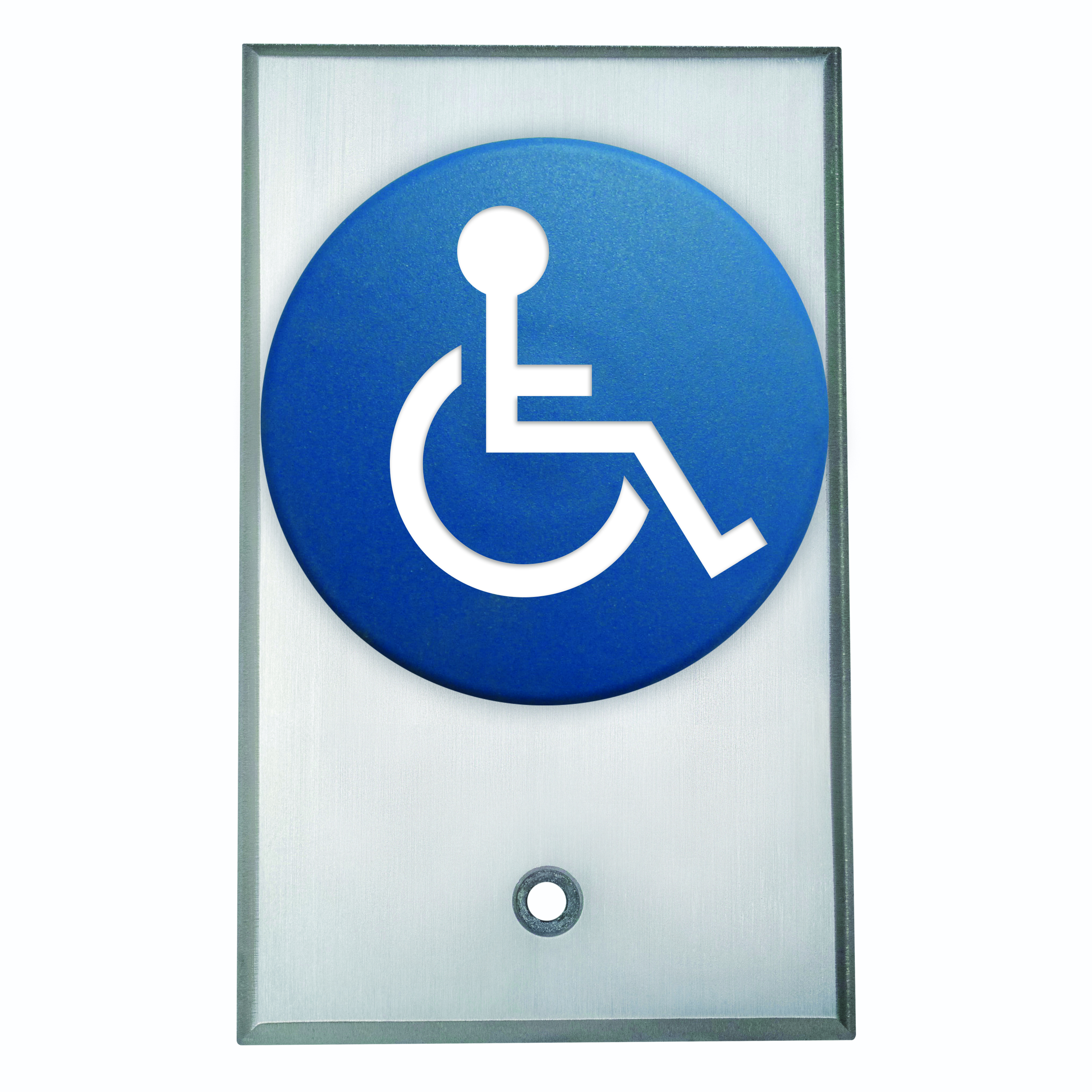

| CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this series |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-60
|
CM-5085RPTE
|
|
|
TS21-21RPN
|
CM-5085R/7
|
|
Dormakaba (RCI)
|
918-REM0X28
|
CM-5000, CM-xxxE, CM-xxxR
|
|
|
918-REM0X40
|
CM-5000, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-REMAX28
|
CM-5030, CM-xxxE, CM-xxxR
|
|
|
918-REMAX40
|
CM-5030, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-RETD28
|
CM-5085, CM-xxxE, CM-xxxR
|
|
|
918-RETD40
|
CM-5085, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
| CM-5085RPTESingle Gang, 2-3/8" Pneumatic MushroomPushbutton withAluminum Faceplate |
CM-5085RPTESingle Gang, 2-3/8" Pneumatic MushroomPushbutton withAluminum Faceplate
|
CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates. |
|
Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.
|
|
|
|
|
| CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this series |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-60
|
CM-5085RPTE
|
|
|
TS21-21RPN
|
CM-5085R/7
|
|
Dormakaba (RCI)
|
918-REM0X28
|
CM-5000, CM-xxxE, CM-xxxR
|
|
|
918-REM0X40
|
CM-5000, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-REMAX28
|
CM-5030, CM-xxxE, CM-xxxR
|
|
|
918-REMAX40
|
CM-5030, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-RETD28
|
CM-5085, CM-xxxE, CM-xxxR
|
|
|
918-RETD40
|
CM-5085, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
2-3/8" Large palm button
-
Vandal resistant 1/4" thick aluminum faceplate
-
Vandal and tamper resistant push button
-
Indoor or outdoor applications
-
3 year warranty
| Voltage: |
12/24 VDC
|
| Current Rating: |
6 A @ 30 VDC
|
| Contact Type: |
|
CM-5000:
|
SPDT
|
|
5085:
|
DPST
|
| |
| Temp Range: |
-13°F to 158°F (-25°C to 75°C)
|
| Switch Life: |
100,000 cycles
|
| Dimensions: |
4-1/2" x 2-3/4" x 1-3/4"
(114mm x 40mm x 44mm)
|
| Std. Finish: |
Brushed Aluminum
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-5000
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.64lbs.
UPC:670454127082
|
|
|
CM-5010
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.64lbs.
UPC:670454127310
|
|
|
CM-5020
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127389
|
|
|
CM-5085
Spring Return, DPST 1-60 sec Pneumatic Time Delay Request to Exit Switch
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay Request to Exit Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.77lbs.
UPC:670454127549
|
|
CM-5085RPTE
Spring Return, DPST 1-60 sec Pneumatic Time Delay, Red Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay, Red Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.77lbs.
UPC:670454162946
|
|

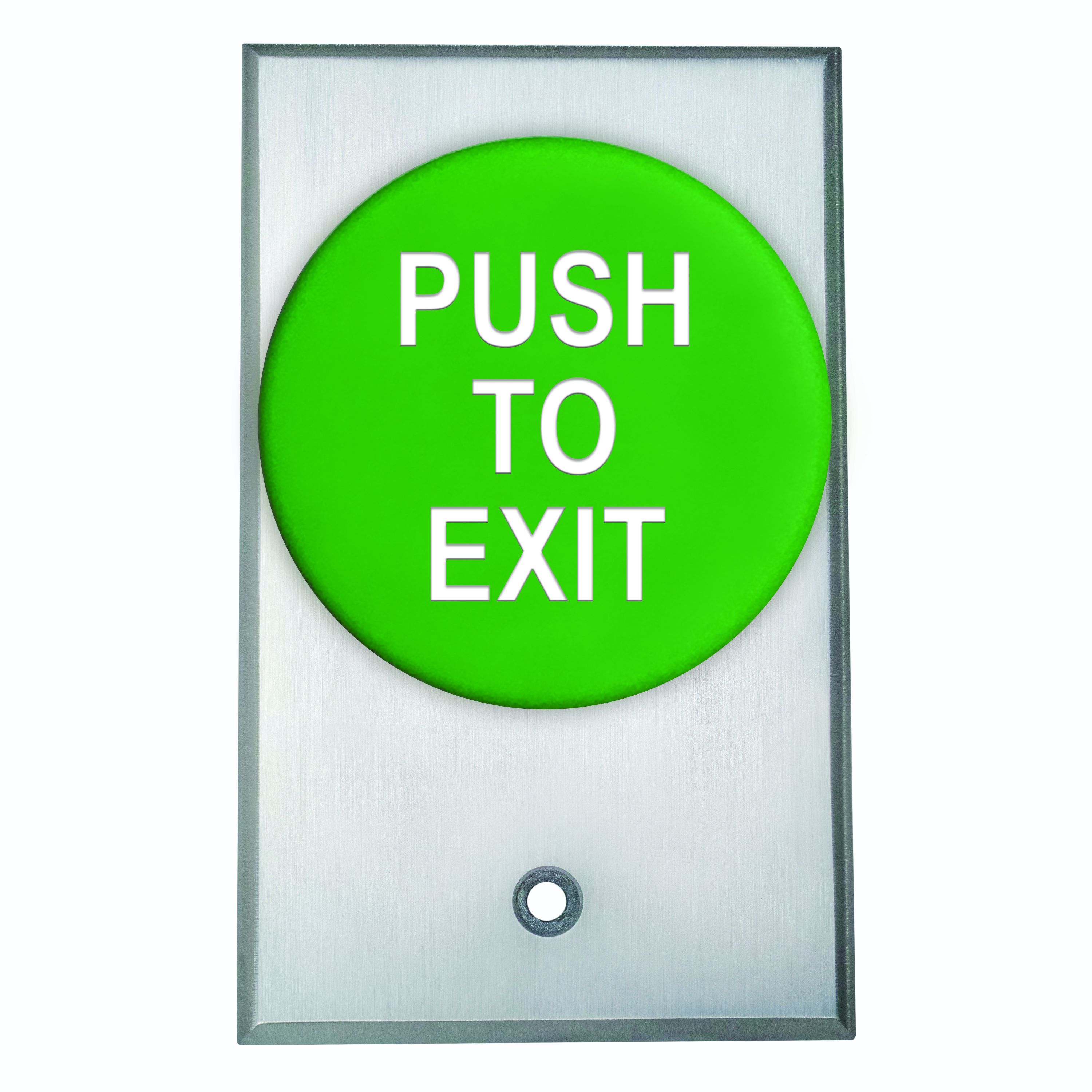

CM-5085GPTE
Spring Return, DPST 1-60 sec Pneumatic Time Delay Green Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay Green Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.77lbs.
UPC:670454163165
|
|
|
CM-5030
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127426
|
|
|
CM-5040
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127433
|
|
|
CM-5050
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O & N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127440
|
|
CM-5060
Push/Turn to Release, N/O, Maintained, Red Only CM-5060
EDI DATA, APPROVALS
|
|
Push/Turn to Release, N/O, Maintained, Red Only CM-5060
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127457
|
|
|
CM-5070
Push/Turn to Release, N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Turn to Release, N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.66lbs.
UPC:670454157133
|
|
|
CM-5080
Push/Turn to Release, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Turn to Release, N/O & N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.66lbs.
UPC:670454127471
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE OPTIONS |
 |
| BUTTON COLOR OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
|
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
|
|
CM-xxxB
add' B' to model # for Blue button
|
add' B' to model # for Blue button
|
|
|
| Button Engraved Graphic Options |
|
Net Cost |
|
|
CM-xxxE
Add E to product # for 'EXIT' engraved (in white)
|
Add E to product # for 'EXIT' engraved (in white)
|
|
|
|
|
CM-xxxES
Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
|
|
|
|
CM-xxxS
Add S to product # for SORTIE engraved (in white)
|
Add S to product # for SORTIE engraved (in white)
|
|
|
|
|
CM-xxxESA
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
|
|
|
|
CM-xxxH
Add H to product # for wheelchair symbol engraved (in white)
|
Add H to product # for wheelchair symbol engraved (in white)
|
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA engraved (in white)
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang (Deep) |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-5085 requires minimum 2" deep box
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-5085 requires minimum 2" deep box
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
|
|
|
