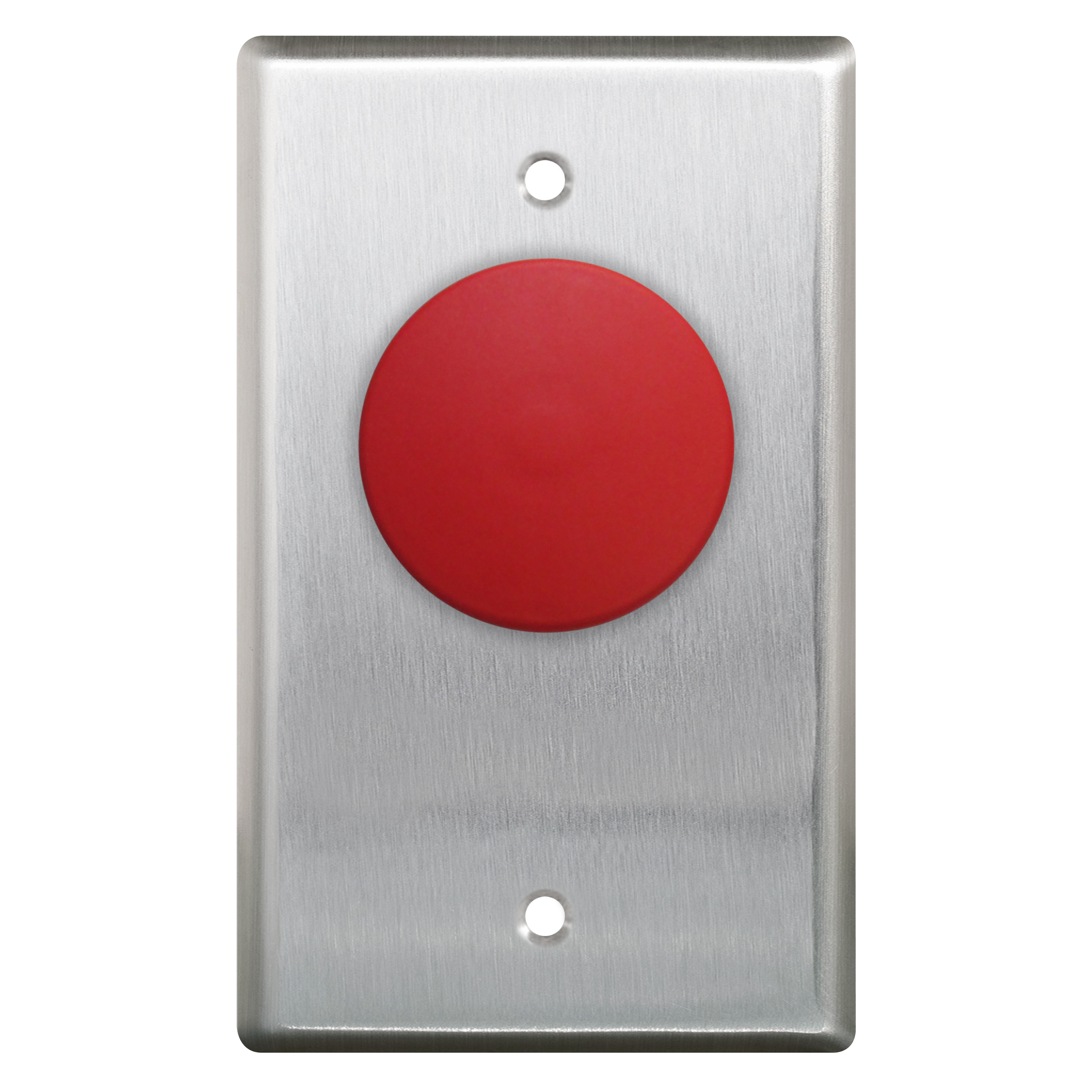

| CM-400R/8 Single Gang Mushroom Pushbutton with SS. Faceplate |
CM-400R/8 Single Gang Mushroom Pushbutton with SS. Faceplate
|
|
CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.
|
|
|

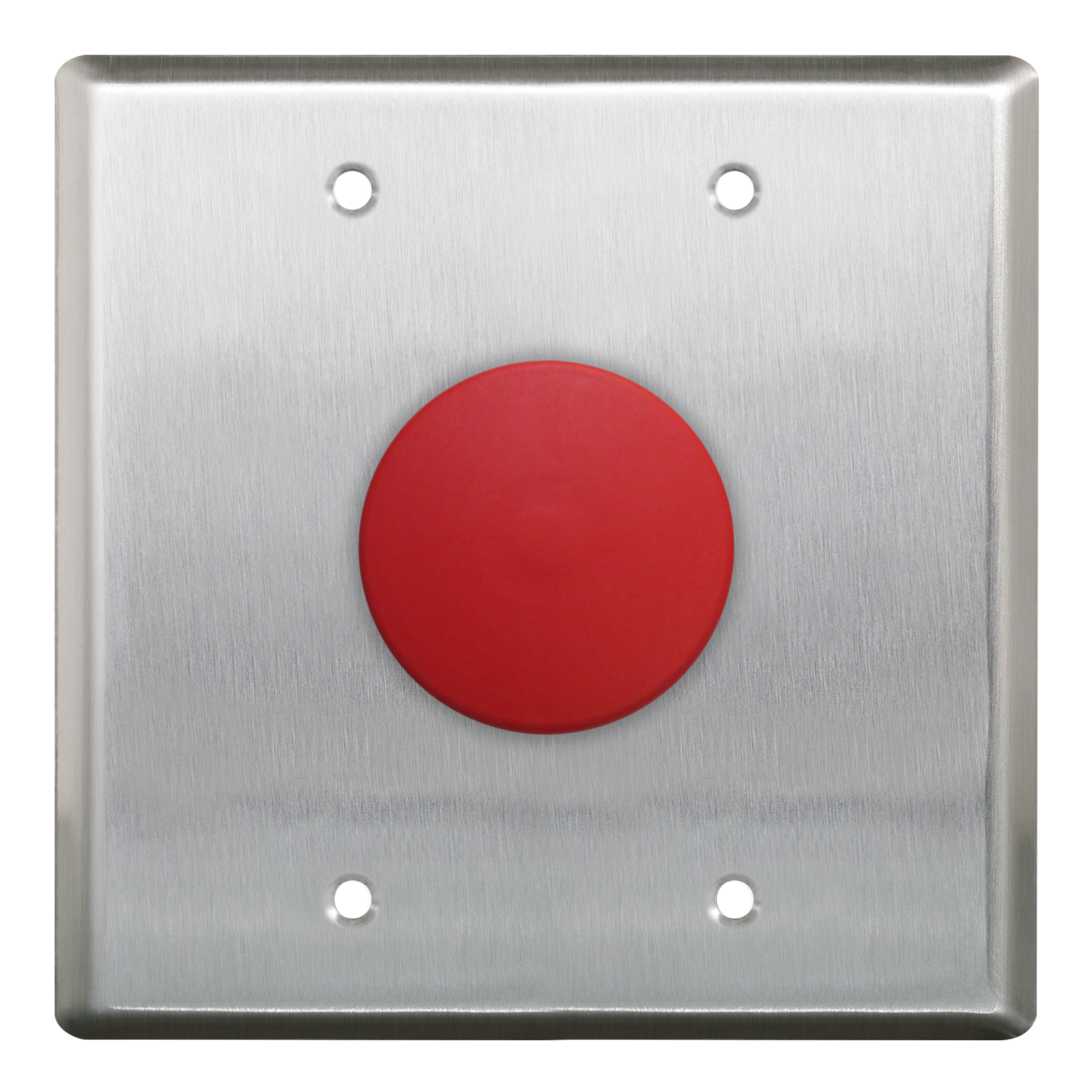

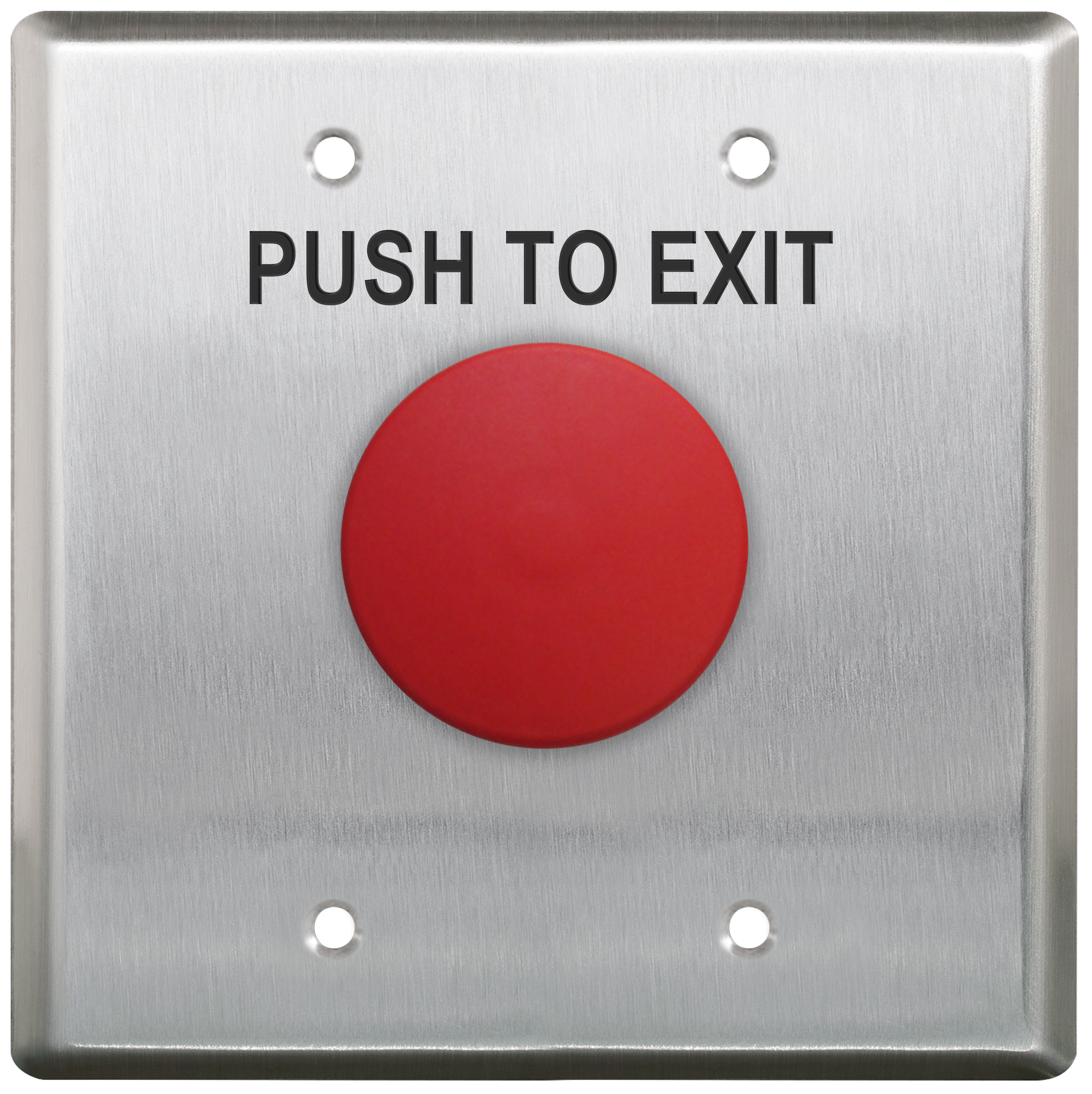

| CM-400WR/7, Double Gang Mushroom Pushbutton with SS Faceplate |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
EB-1-1
|
CM-400, CM-xxxE, CM-xxxR
|
|
|
PBM-1
|
CM-400, CM-xxx/12, CM-xxxR
|
|
|
TS-1
|
CM-400G/7-7224
|
|
Dormakaba (RCI)
|
906-BHMO32D
|
CM-400, CM-xxxH, CM-xxxB
|
|
|
908-REMO32D
|
CM-400, CM-xxxE, CM-xxxR
|
|
|
908-RFMO32D
|
CM-400, CM-xxxS, CM-xxxR
|
|
|
908-RSMO32D
|
CM-400, CM-xxxSA, CM-xxxR
|
|
|
| CM-400R/8 Single Gang Mushroom Pushbutton with SS. Faceplate |
CM-400R/8 Single Gang Mushroom Pushbutton with SS. Faceplate
|
CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate. |
|
|
|
|
|
|
| CM-400WR/7, Double Gang Mushroom Pushbutton with SS Faceplate |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
EB-1-1
|
CM-400, CM-xxxE, CM-xxxR
|
|
|
PBM-1
|
CM-400, CM-xxx/12, CM-xxxR
|
|
|
TS-1
|
CM-400G/7-7224
|
|
Dormakaba (RCI)
|
906-BHMO32D
|
CM-400, CM-xxxH, CM-xxxB
|
|
|
908-REMO32D
|
CM-400, CM-xxxE, CM-xxxR
|
|
|
908-RFMO32D
|
CM-400, CM-xxxS, CM-xxxR
|
|
|
908-RSMO32D
|
CM-400, CM-xxxSA, CM-xxxR
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1-5/8" (40mm) diameter button
-
Vandal resistant free-spinning button
-
Heavy duty 18 gauge stainless steel faceplate
-
3 year warranty
| Voltage: |
12/24 VDC
|
| Contact Rating: |
6 A @ 30 VDC
|
| Std. Finish: |
US32 / C32D
|
| Switch Type: |
Momentary
|
| Dimensions: |
|
CM-400:
|
4-1/2"H x 2-3/4"W x 1-3/4"D
(114mm x 70mm x 44mm)
|
|
CM-400N:
|
4-1/2"H x 1-3/4"W x 1-3/4"D
(114mm x 44mm x 44mm)
|
|
CM-400W:
|
4-1/2"H x 4-1/2"W x 1-3/4"D
(114mm x 114mm x 44mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-400
Single Gang, N/O contacts
EDI DATA, APPROVALS
|
|
Single Gang, N/O contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.57lbs.
UPC:670454125118
|
|
|
CM-410
Single gang, N/C contacts
EDI DATA, APPROVALS
|
|
Single gang, N/C contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.59lbs.
UPC:670454125811
|
|
|
CM-420
Single gang, N/O and N/C contacts
EDI DATA, APPROVALS
|
|
Single gang, N/O and N/C contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.56lbs.
UPC:670454126191
|
|
CM-450R
Single gang, Push/Pull, N/O & N/C Stainless steel faceplate, maintained. Red only button color. Optional graphics and finishes available (not shown in switch configuration wizard)
EDI DATA, APPROVALS
|
|
Single gang, Push/Pull, N/O & N/C Stainless steel faceplate, maintained. Red only button color. Optional graphics and finishes available (not shown in switch configuration wizard)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.56lbs.
UPC:670454182128
|
|
CM-420RPTE
Single gang, N/O and N/C contacts, Red button, 'Push to Exit' engraved on button. No options or finishes on this model
EDI DATA, APPROVALS
|
|
Single gang, N/O and N/C contacts, Red button, 'Push to Exit' engraved on button. No options or finishes on this model
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.56lbs.
UPC:670454163844
|
|

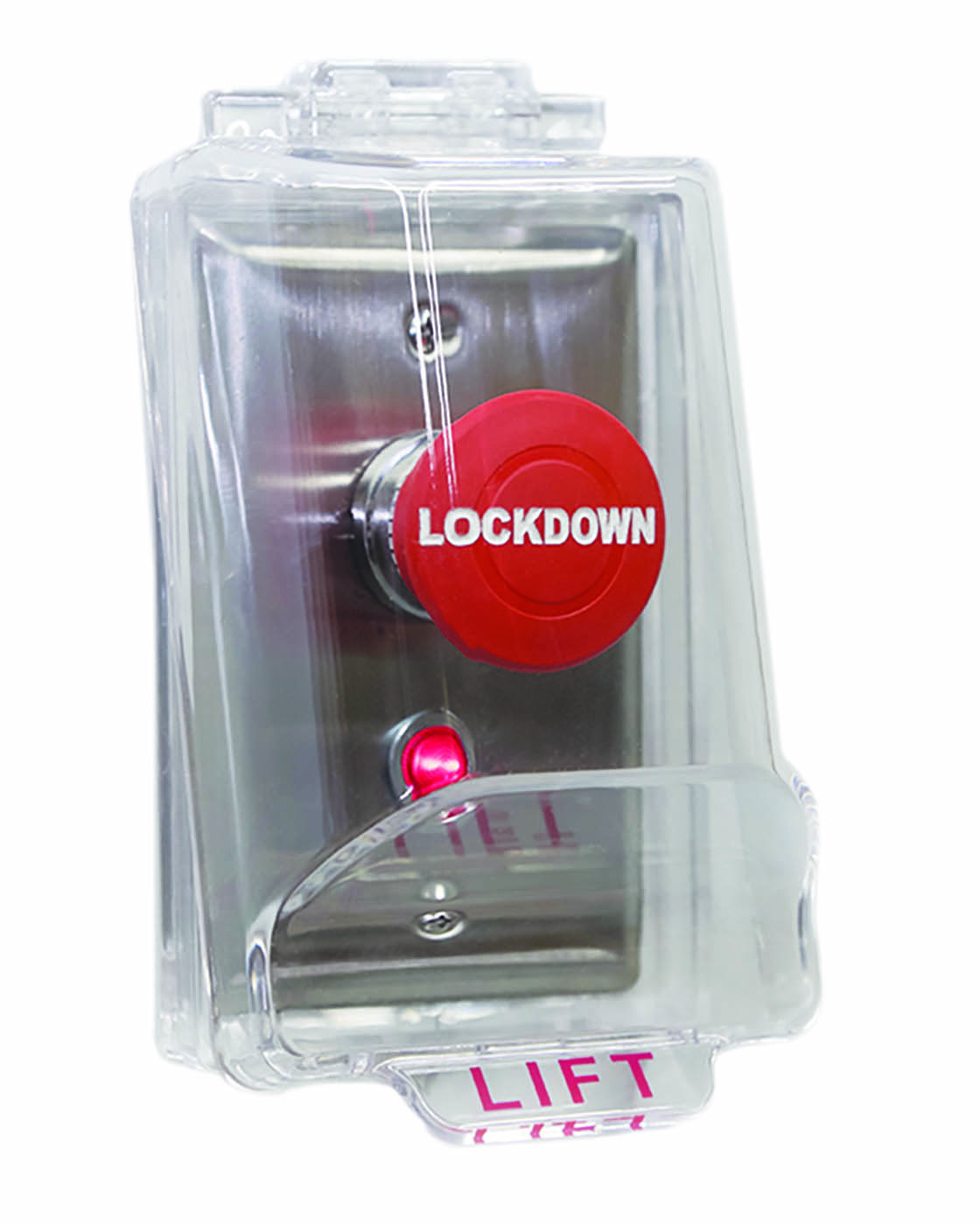

CM-450RL-7724-CPC
Single gang, Push/Pull N/O & N/C contacts heavy duty single gang stainless steel faceplate, red flashing 1/2” 24V LED and vandal resistant clear plastic lift cover
EDI DATA, APPROVALS
|
|
Single gang, Push/Pull N/O & N/C contacts heavy duty single gang stainless steel faceplate, red flashing 1/2” 24V LED and vandal resistant clear plastic lift cover
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454195661
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|

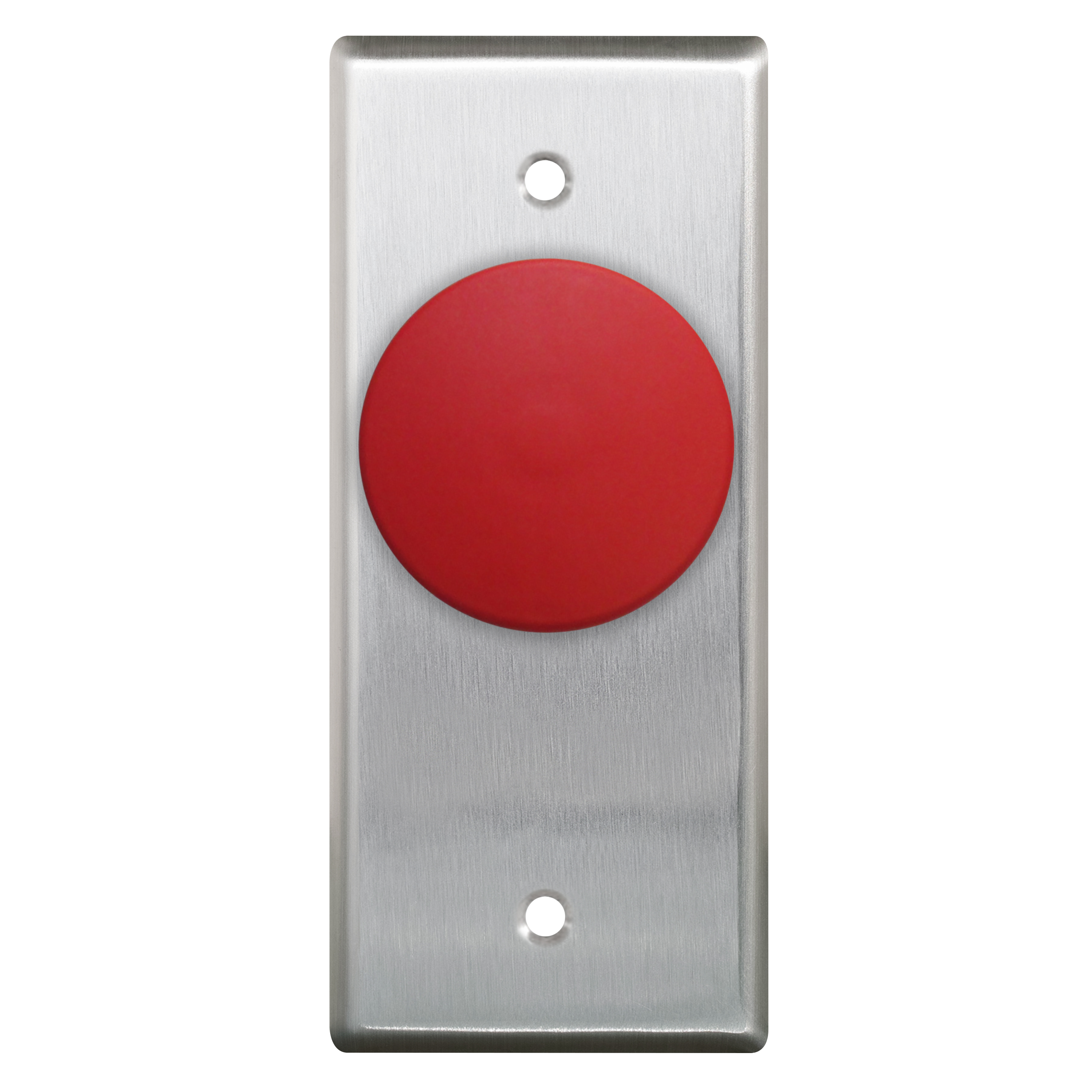

CM-400N
Narrow, N/O contacts
EDI DATA, APPROVALS
|
|
Narrow, N/O contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
|
CM-410N
Narrow, N/C contacts
EDI DATA, APPROVALS
|
|
Narrow, N/C contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
|
CM-420N
Narrow, N/O and N/C contacts
EDI DATA, APPROVALS
|
|
Narrow, N/O and N/C contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3.12"W x 4.75"H
Weight: 0.68lbs.
UPC:670454172198
|
| |
|
Double Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-400W
Double gang, N/O contact
EDI DATA, APPROVALS
|
|
Double gang, N/O contact
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.50"L x 6.00"W x 3.50"H
Weight: 0.75lbs.
|
|
|
CM-410W
Double gang, N/C contact
EDI DATA, APPROVALS
|
|
Double gang, N/C contact
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6.0"W x 3.5"H
Weight: 0.59lbs.
|
|
|
CM-420W
Double gang, N/O and N/C contacts
EDI DATA, APPROVALS
|
|
Double gang, N/O and N/C contacts
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 6.0"W x 3.5"H
Weight: 0.59lbs.
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| BUTTON COLOR OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
Red button
|
Red button
|
|
|
|
|
CM-xxxG
Green button
|
Green button
|
|
|
|
|
CM-xxxB
Blue button
|
Blue button
|
|
|
| Button Engraved Graphic Options |
|
Net Cost |
|
|

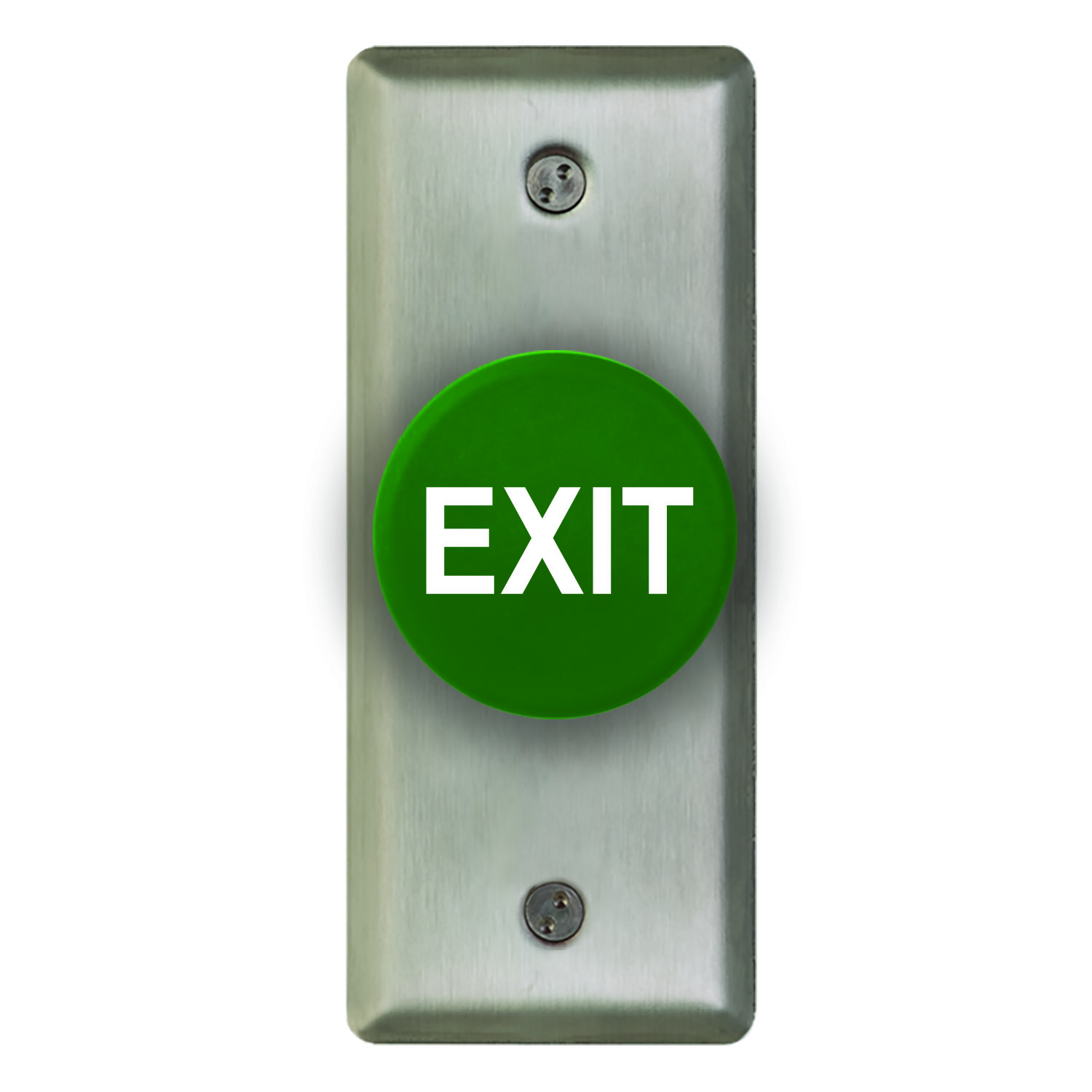

CM-xxxE
'EXIT' engraved (in white)
|
'EXIT' engraved (in white)
|
|
|
|
|
CM-xxxES
EXIT and SORTIE engraved (in white)
|
EXIT and SORTIE engraved (in white)
|
|
|
|
|
CM-xxxS
SORTIE engraved (in white)
|
SORTIE engraved (in white)
|
|
|
|
|
CM-xxxESA
EXIT and SALIDA engraved (in white)
|
EXIT and SALIDA engraved (in white)
|
|
|
|
|
CM-xxxH
wheelchair symbol engraved (in white)
|
wheelchair symbol engraved (in white)
|
|
|
|
|
CM-xxxSA
SALIDA engraved (in white)
|
SALIDA engraved (in white)
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/3
'PUSH TO OPEN', black text
|
'PUSH TO OPEN', black text
|
|
|
|
|
CM-xxx/3F
'POUSSEZ POUR OUVRIR', black text
|
'POUSSEZ POUR OUVRIR', black text
|
|
|
|
|
CM-xxx/3S
'EMPUJE PARA ABRIR', black
|
'EMPUJE PARA ABRIR', black
|
|
|
|
|
CM-xxx/7
'PUSH TO EXIT', black text
|
'PUSH TO EXIT', black text
|
|
|
|
|
CM-xxx/7F
'POUSSEZ POUR SORTIR', black
|
'POUSSEZ POUR SORTIR', black
|
|
|
|
|

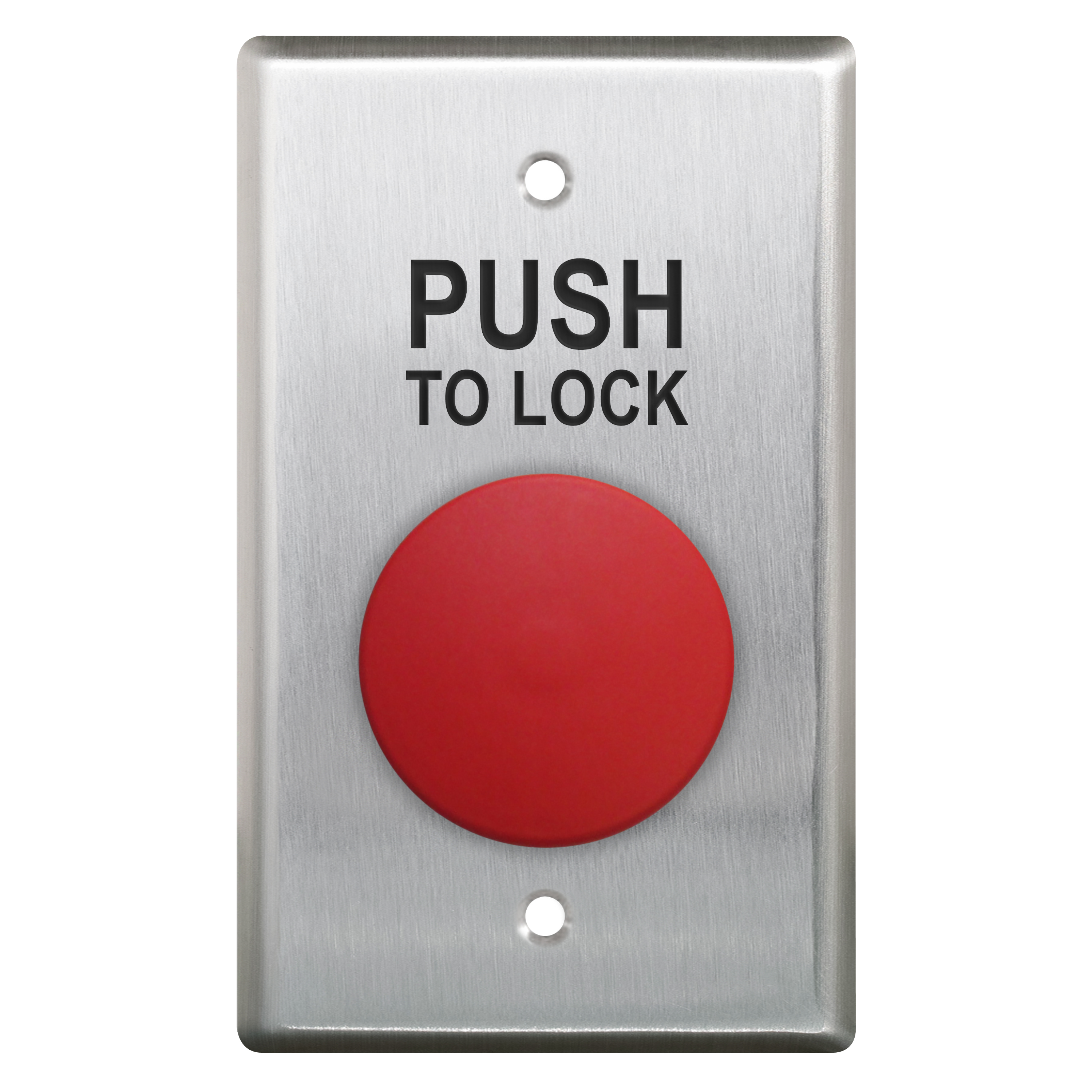

CM-xxx/8
'PUSH TO LOCK', black text
|
'PUSH TO LOCK', black text
|
|
|
|
|
CM-xxx/8F
‘POUSSEZ POUR VERROUILLER’, black text
|
‘POUSSEZ POUR VERROUILLER’, black text
|
|
|
|
|
CM-xxx/8FE
'PUSH TO LOCK' and ‘POUSSEZ POUR VERROUILLER’, on brushed SS finished sign, black
|
'PUSH TO LOCK' and ‘POUSSEZ POUR VERROUILLER’, on brushed SS finished sign, black
|
|
|
|
|
CM-xxx/12
'Press For Emergency Assistance', black
|
'Press For Emergency Assistance', black
|
|
|
|
|
CM-xxx/12F
‘APPUYEZ POUR AIDE D’URGENCE’
|
‘APPUYEZ POUR AIDE D’URGENCE’
|
|
|
|
|
CM-xxx/12FE
bilingual 'PRESS FOR EMERGENCY ASSISTANCE' and ‘APPUYEZ POUR AIDE D’URGENCE’, on brushed SS finished sign, black
|
bilingual 'PRESS FOR EMERGENCY ASSISTANCE' and ‘APPUYEZ POUR AIDE D’URGENCE’, on brushed SS finished sign, black
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
| Mounting Boxes & Accessories: Narrow |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
|
|
|
CM-23D
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
|
|
| Mounting Boxes & Accessories: Double Gang |
|
Net Cost |
|
CM-53
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
|
|
|
|
|
