CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate |
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate
|
|
CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.
Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.
|
|
|
| CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-14
|
CM-4085, CM-xxx/7, CM-xxxG
|
|
|
TS-14302
|
CM-4085, CM-xxx/7, CM-xxxG
|
|
|
TS-14N
|
CM-4185, CM-xxx/7, CM-xxxG
|
|
Dormakaba (RCI)
|
906-BHTD40
|
CM-4085, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHM0X28
|
CM-4000, CM-xxxH, CM-xxxB
|
|
|
916-BHM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHMAX28
|
CM-4030, CM-xxxH, CM-xxxB
|
|
|
916-BHMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHTD28
|
CM-4085, CM-xxxH, CM-xxxB
|
|
|
916N-BHM0X28
|
CM-4130, CM-xxxH, CM-xxxB
|
|
|
916N-BHM0X40
|
CM-4130, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHM0X28
|
CM-4000, CM-xxxH, CM-xxxB
|
|
|
918-BHM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHMAX28
|
CM-4030, CM-xxxH, CM-xxxB
|
|
|
918-BHMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHTD28
|
CM-4085, CM-xxxH, CM-xxxB
|
|
|
918-BHTD40
|
CM-4085, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-REM0X28
|
CM-4000, CM-xxxE, CM-xxxR
|
|
|
918-REM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-REMAX28
|
CM-4030, CM-xxxE, CM-xxxR
|
|
|
918-REMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-RETD28
|
CM-4085, CM-xxxE, CM-xxxR
|
|
|
918-RETD40
|
CM-4085, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918N-REM0X28
|
CM-4100, CM-xxxE, CM-xxxR
|
|
|
918N-REM0X40
|
CM-4100, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918N-REMAX28
|
CM-4130, CM-xxxE, CM-xxxR
|
|
|
918N-REMAX40
|
CM-4130, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate |
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate
|
CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.
Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.
|
|
|
|
|
|
|
| CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
TS-14
|
CM-4085, CM-xxx/7, CM-xxxG
|
|
|
TS-14302
|
CM-4085, CM-xxx/7, CM-xxxG
|
|
|
TS-14N
|
CM-4185, CM-xxx/7, CM-xxxG
|
|
Dormakaba (RCI)
|
906-BHTD40
|
CM-4085, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHM0X28
|
CM-4000, CM-xxxH, CM-xxxB
|
|
|
916-BHM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHMAX28
|
CM-4030, CM-xxxH, CM-xxxB
|
|
|
916-BHMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
916-BHTD28
|
CM-4085, CM-xxxH, CM-xxxB
|
|
|
916N-BHM0X28
|
CM-4130, CM-xxxH, CM-xxxB
|
|
|
916N-BHM0X40
|
CM-4130, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHM0X28
|
CM-4000, CM-xxxH, CM-xxxB
|
|
|
918-BHM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHMAX28
|
CM-4030, CM-xxxH, CM-xxxB
|
|
|
918-BHMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-BHTD28
|
CM-4085, CM-xxxH, CM-xxxB
|
|
|
918-BHTD40
|
CM-4085, CM-xxx-BZ, CM-xxxH, CM-xxxB
|
|
|
918-REM0X28
|
CM-4000, CM-xxxE, CM-xxxR
|
|
|
918-REM0X40
|
CM-4000, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-REMAX28
|
CM-4030, CM-xxxE, CM-xxxR
|
|
|
918-REMAX40
|
CM-4030, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918-RETD28
|
CM-4085, CM-xxxE, CM-xxxR
|
|
|
918-RETD40
|
CM-4085, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918N-REM0X28
|
CM-4100, CM-xxxE, CM-xxxR
|
|
|
918N-REM0X40
|
CM-4100, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
|
|
918N-REMAX28
|
CM-4130, CM-xxxE, CM-xxxR
|
|
|
918N-REMAX40
|
CM-4130, CM-xxx-BZ, CM-xxxE, CM-xxxR
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1-58" (40mm) diameter button
-
1/4" thick aluminum faceplate
-
Vandal and tamper-resistant free-spinning button
-
Indoor and outdoor applications
-
3 year warranty
| Voltage: |
12-24 VDC
|
| Current Rating: |
6 A @ 30 VDC
|
| Temp Range: |
-13°F to 158°F (-25°C to 75°C)
|
| Switch Life: |
100,000 cycles
|
| Std. Finish: |
Brushed Aluminum
|
| Dimensions: |
|
CM-4000:
|
4-1/2" x 2-3/4" x 1-3/4"
(114mm x 40mm x 44mm)
|
|
CM-4100:
|
4-1/2" x 1-3/4" x 1-3/4"
(114mm x 44mm x 44mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-4000
Spring Return, N/O, Momentary (ADA)
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary (ADA)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125095
|
|
|
CM-4010
Spring Return, N/C, Momentary (ADA)
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary (ADA)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125255
|
|
|
CM-4020
Spring Return, N/O & N/C, Momentary (ADA)
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary (ADA)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125361
|
|
|
CM-4085
Spring Return, DPST 1-60 sec Pneumatic Timer (ADA)
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Timer (ADA)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.50"L x 3.25"W x 5.75"H
Weight: 0.7lbs.
|
|
CM-4085RPTE

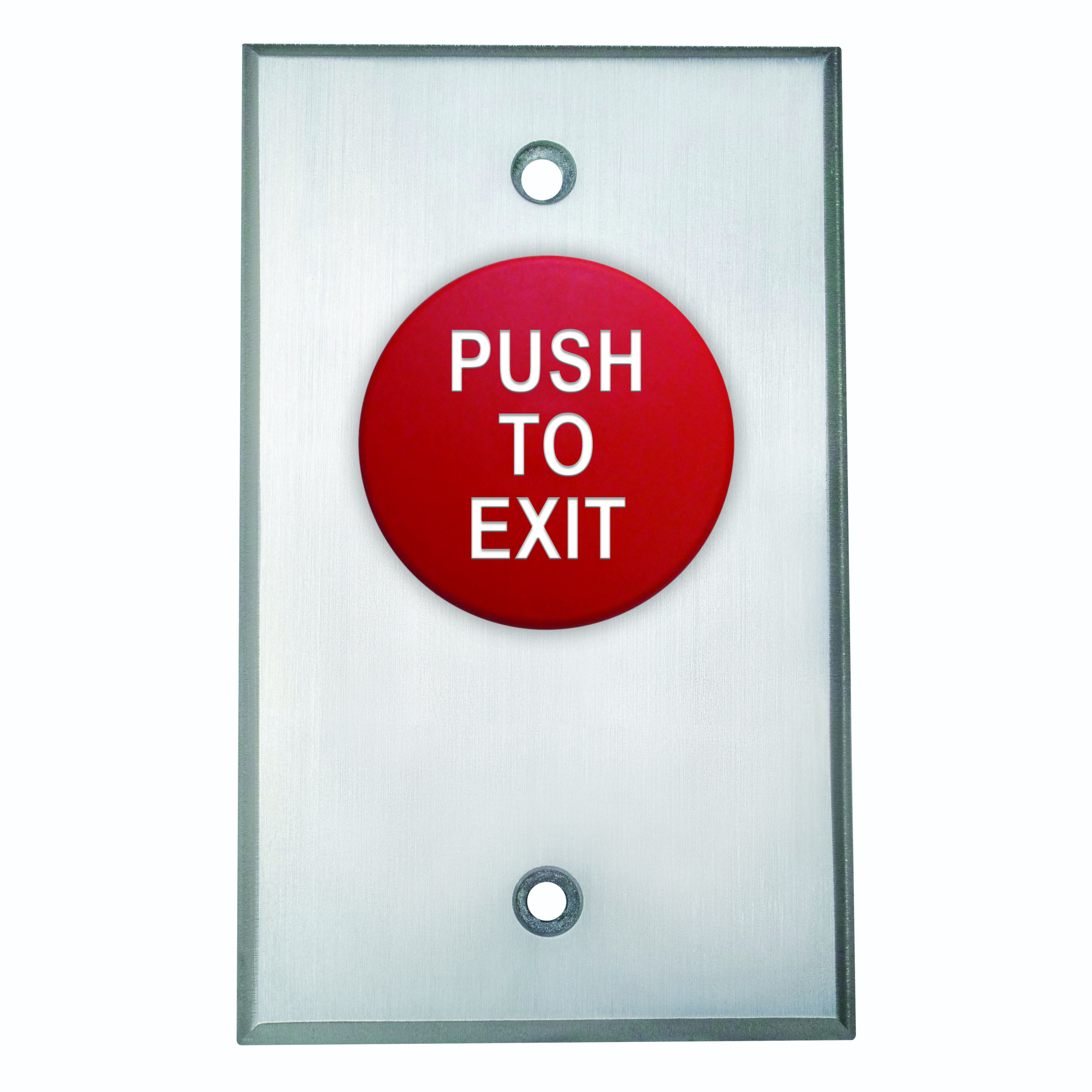

Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button, 'PUSH TO EXIT' Engraved on button. Complete model. No 'Options or Finishes' available for this model.
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button, 'PUSH TO EXIT' Engraved on button. Complete model. No 'Options or Finishes' available for this model.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 0.7lbs.
UPC:670454162953
|
|
|
CM-4030
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125477
|
|
|
CM-4040
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125545
|
|
|
CM-4050
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O & N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.62lbs.
UPC:670454125637
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-4100
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.24lbs.
UPC:670454125798
|
|
|
CM-4110
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.24lbs.
UPC:670454125941
|
|
|
CM-4120
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
|
|
Spring Return, N/O & N/C, Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.25lbs.
UPC:670454126023
|
|
|
CM-4185
Spring Return, DPST 1-60 sec Pneumatic Time Delay
EDI DATA, APPROVALS
|
|
Spring Return, DPST 1-60 sec Pneumatic Time Delay
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.5lbs.
UPC:670454126177
|
|
|
CM-4130
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.25lbs.
UPC:670454126061
|
|
|
CM-4140
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.25lbs.
UPC:670454126092
|
|
|
CM-4150
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
|
|
Push/Pull, N/O & N/C, Maintained, Red Only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.25lbs.
UPC:670454126115
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT BUTTON COLOR
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| BUTTON COLOR OPTIONS |
 |
| BUTTON GRAPHIC OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| FACEPLATE OPTIONS |
|
| Button Color Options: |
|
Net Cost |
|
|
CM-xxxR
add 'R' to model # for Red button
|
add 'R' to model # for Red button
|
|
|
|
|
CM-xxxG
add 'G' to model # for Green button
|
add 'G' to model # for Green button
|
|
|
|
|
CM-xxxB
add' B' to model # for Blue button
|
add' B' to model # for Blue button
|
|
|
| Button Engraved Graphic Options |
|
Net Cost |
|
|
CM-xxxE

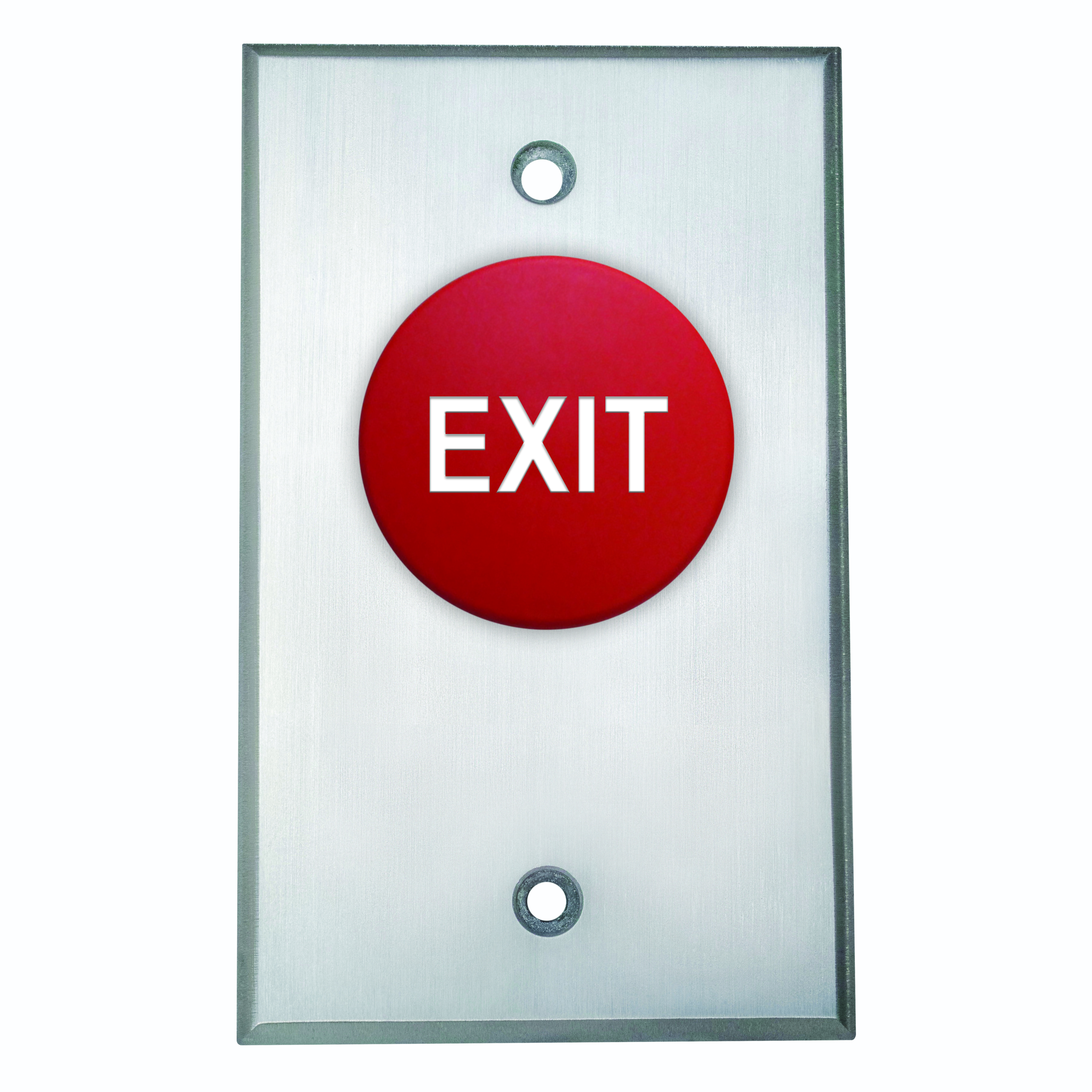

Add E to product # for 'EXIT' engraved (in white)
|
Add E to product # for 'EXIT' engraved (in white)
|
|
|
|
|
CM-xxxES

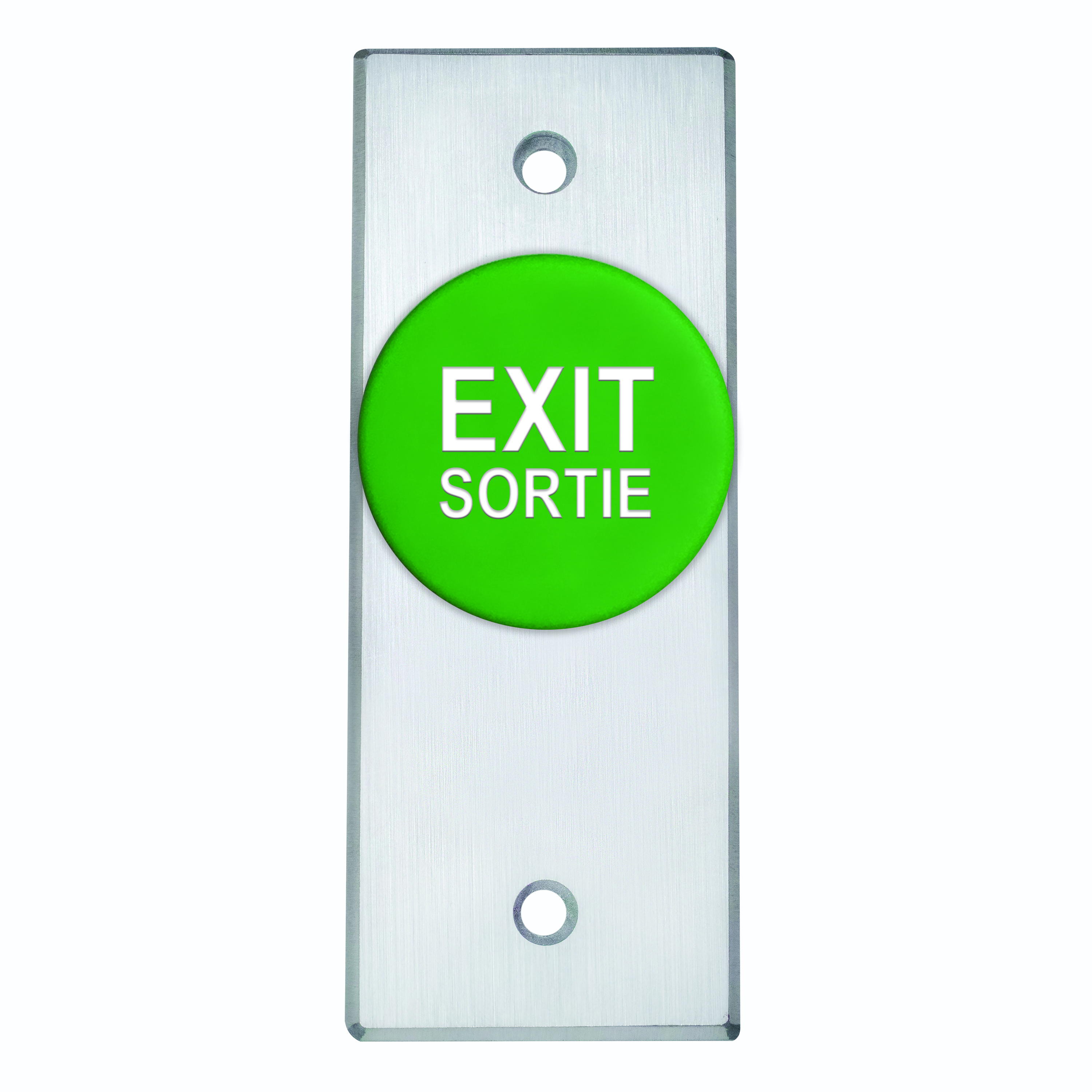

Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
|
|
|
|
CM-xxxS
Add S to product # for SORTIE engraved (in white)
|
Add S to product # for SORTIE engraved (in white)
|
|
|
|
|
CM-xxxESA
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
|
|
|
|
CM-xxxH
Add H to product # for wheelchair symbol engraved (in white)
|
Add H to product # for wheelchair symbol engraved (in white)
|
|
|
|
|
CM-xxxSA
Add SA to product # for SALIDA engraved (in white)
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT', black text
|
Add /7 to model # for 'PUSH TO EXIT', black text
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black text
|
Add /8 to model # for 'PUSH TO LOCK', black text
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
CM-xxx-BZ
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
MOUNTING BOXES
|
|
|
Click to expand section
|
|
|
|
| |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
|
|
|
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34BL

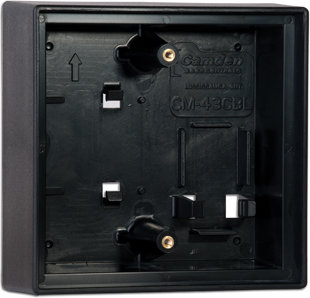

Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
|
|
|
|
CM-120G
Rubber gasket for any stainless steel single gang faceplate
|
Rubber gasket for any stainless steel single gang faceplate
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
| Mounting Boxes & Accessories: Narrow |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
|
|
|
|
CM-23D
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
|
|
|
|
|
