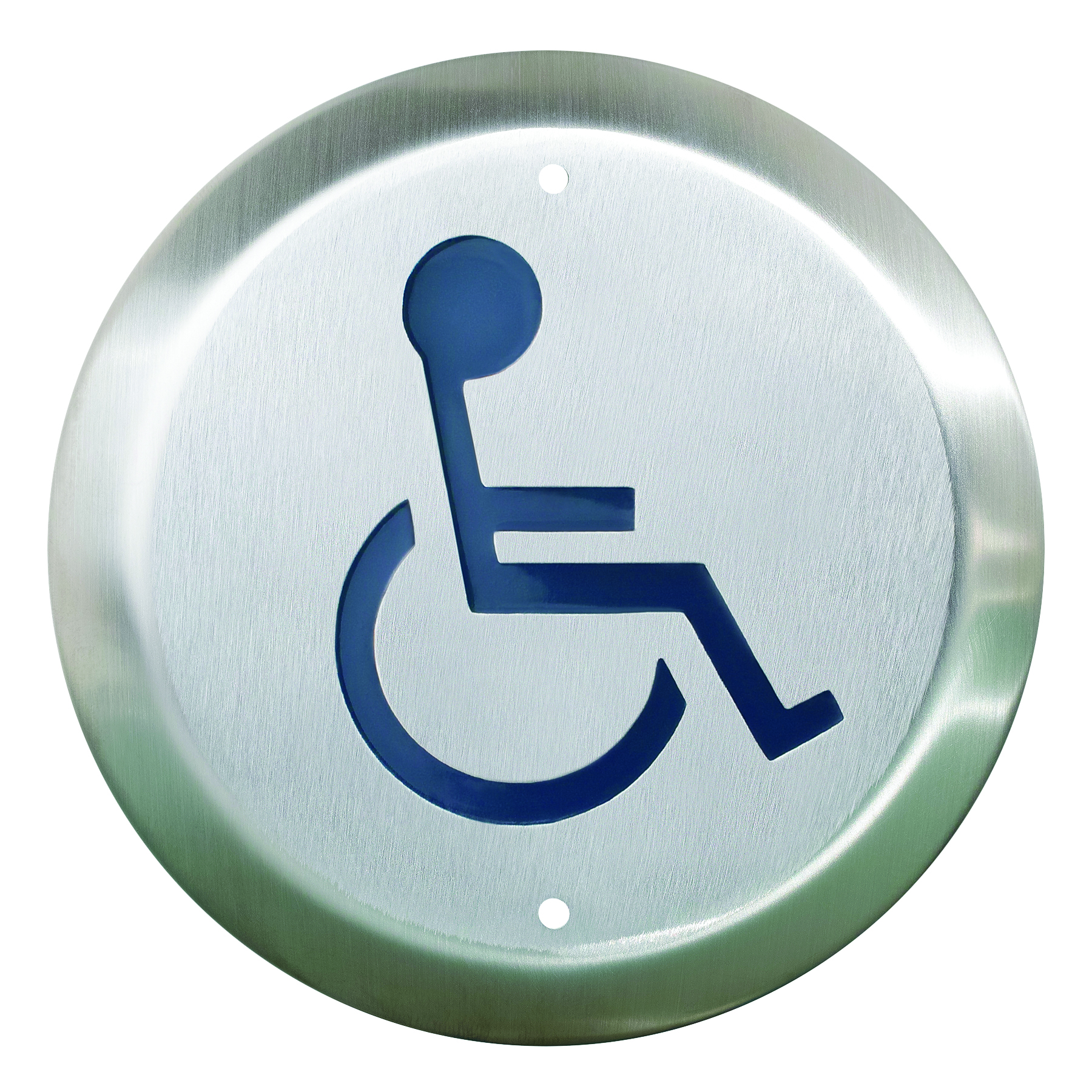

CM-40/4, 4-1/2" Round
4-1/2" Round Push Plate Switch
|
|
CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-41 4-1/2" square stainless steel backplate is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes. CAMDEN PUSH PLATE SWITCHES NOW INCLUDE 'WR' WATER RESISTANCE AS STANDARD! Note: Optional architectural finishes are special order. Purchase order cannot be cancelled following issue of order confirmation and product cannot be returned for credit. A min. of 14 business days is required for production.
Architectural Finishes:Switches with architectural finish only available with /1, /2, /3, /4 graphic options
|
|
|
| CM-41/3, 4-1/2" Round w/ Square Back Plate |
|
|
|
| CM-60/3, 6" Round |
|
|
|
| Blog Post | New Accessibility Symbol |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
950-H45MOX32D
|
CM-40, CM-xxx/2
|
|
|
950-H6MOX32D
|
CM-60, CM-xxx/2
|
|
|
950-HP45MOX32D
|
CM-40, CM-xxx/4
|
|
|
950-HP6MOX32D
|
CM-60, CM-xxx/4
|
|
|
950-P45MOX32D
|
CM-40, CM-xxx/3
|
|
|
950-P6MOX32D
|
CM-60, CM-xxx/3
|
|
MS Sedco
|
59R4-HSS
|
CM-40, CM-xxx/4
|
|
|
59R4-P
|
CM-40, CM-xxx/3
|
|
|
59R6-HSS
|
CM-60, CM-xxx/4
|
|
|
59R6-P
|
CM-60, CM-xxx/3
|
|
Wikk
|
4R-1
|
CM-40, CM-xxx/1
|
|
|
4R-11
|
CM-40, CM-xxx/7
|
|
|
4R-2
|
CM-40, CM-xxx/3
|
|
|
4R-3
|
CM-40, CM-xxx/4
|
|
|
4R-3AL
|
CM-40, CM-xxx/4AL
|
|
|
4R-3AR
|
CM-40, CM-xxx/4AR
|
|
|
4R-5
|
CM-40, CM-xxx/2
|
|
|
6R-1
|
CM-60, CM-xxx/1
|
|
|
6R-2
|
CM-60, CM-xxx/3
|
|
|
6R-3
|
CM-60, CM-xxx/4
|
|
|
6R-3AL
|
CM-60, CM-xxx/4AL
|
|
|
6R-3AR
|
CM-60, CM-xxx/4AR
|
|
|
6R-5
|
CM-60, CM-xxx/2
|
|
|
6R-8
|
CM-60, CM-xxx/3F
|
|
|
6R-9
|
CM-60, CM-xxx/4F
|
|
|
CM-40/4, 4-1/2" Round
4-1/2" Round Push Plate Switch
|
CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-41 4-1/2" square stainless steel backplate is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes. CAMDEN PUSH PLATE SWITCHES NOW INCLUDE 'WR' WATER RESISTANCE AS STANDARD! Note: Optional architectural finishes are special order. Purchase order cannot be cancelled following issue of order confirmation and product cannot be returned for credit. A min. of 14 business days is required for production.
Architectural Finishes:Switches with architectural finish only available with /1, /2, /3, /4 graphic options
|
|
|
|
|
|
|

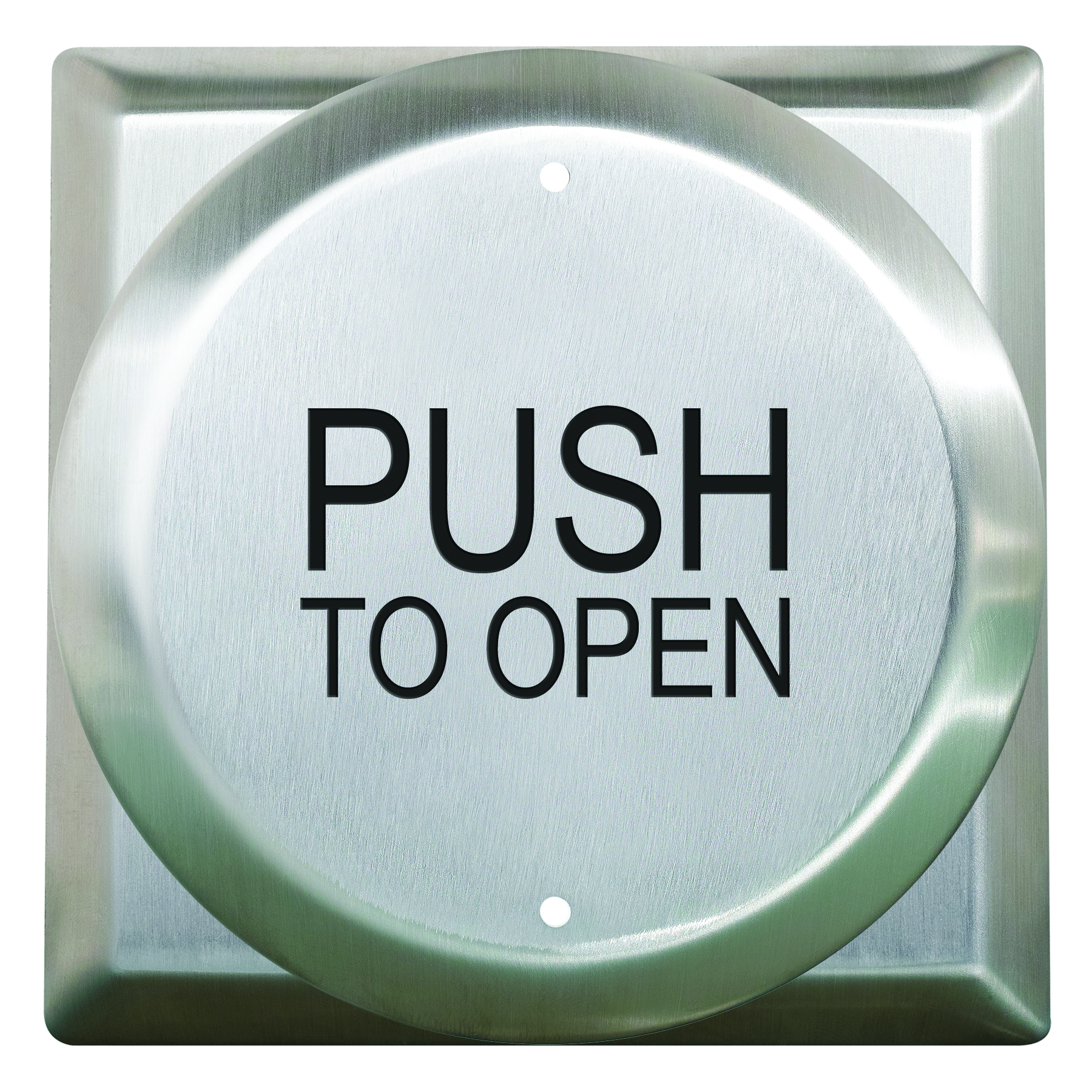

| CM-41/3, 4-1/2" Round w/ Square Back Plate |
|
|
|
|

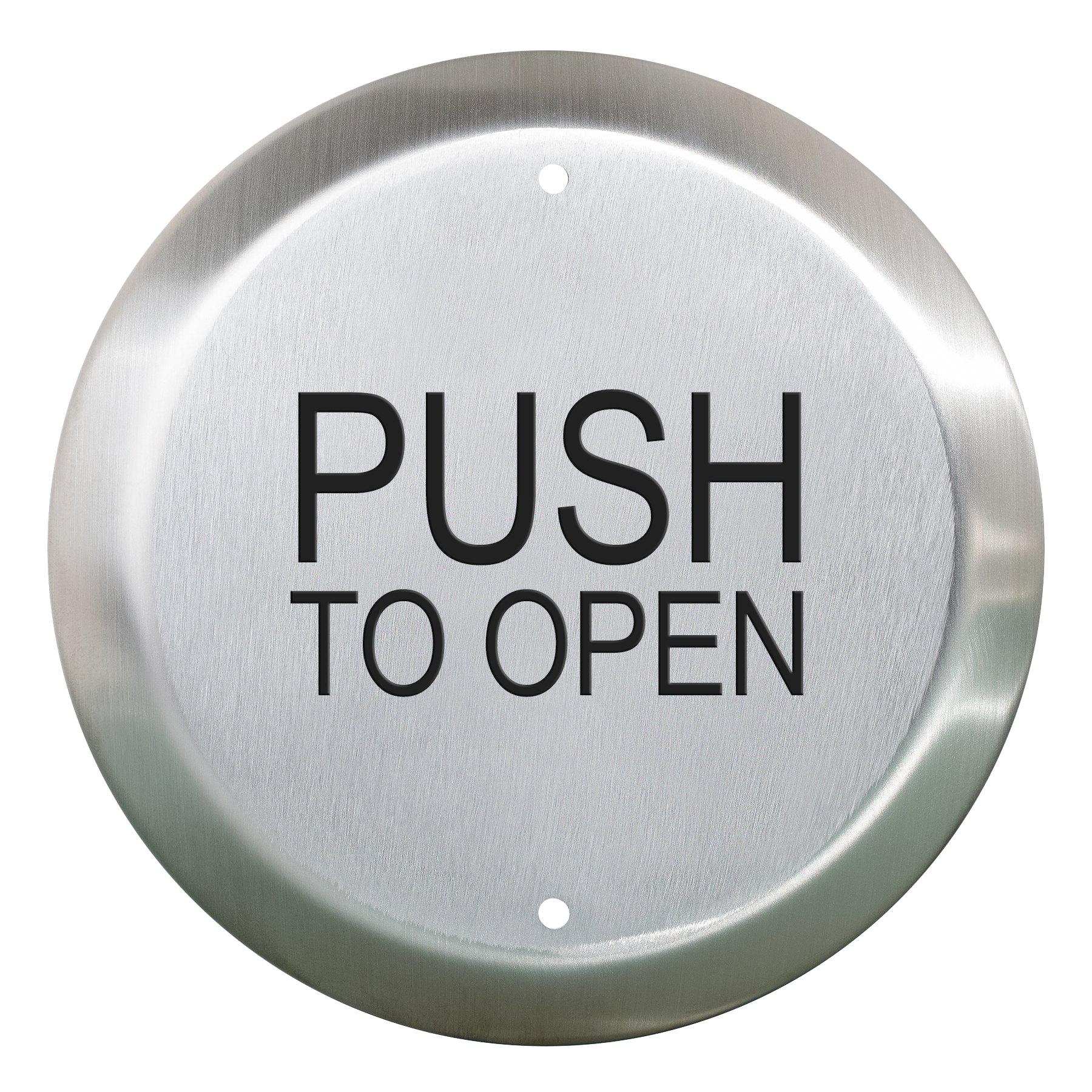

| CM-60/3, 6" Round |
|
|
|
|
| Blog Post | New Accessibility Symbol |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
950-H45MOX32D
|
CM-40, CM-xxx/2
|
|
|
950-H6MOX32D
|
CM-60, CM-xxx/2
|
|
|
950-HP45MOX32D
|
CM-40, CM-xxx/4
|
|
|
950-HP6MOX32D
|
CM-60, CM-xxx/4
|
|
|
950-P45MOX32D
|
CM-40, CM-xxx/3
|
|
|
950-P6MOX32D
|
CM-60, CM-xxx/3
|
|
MS Sedco
|
59R4-HSS
|
CM-40, CM-xxx/4
|
|
|
59R4-P
|
CM-40, CM-xxx/3
|
|
|
59R6-HSS
|
CM-60, CM-xxx/4
|
|
|
59R6-P
|
CM-60, CM-xxx/3
|
|
Wikk
|
4R-1
|
CM-40, CM-xxx/1
|
|
|
4R-11
|
CM-40, CM-xxx/7
|
|
|
4R-2
|
CM-40, CM-xxx/3
|
|
|
4R-3
|
CM-40, CM-xxx/4
|
|
|
4R-3AL
|
CM-40, CM-xxx/4AL
|
|
|
4R-3AR
|
CM-40, CM-xxx/4AR
|
|
|
4R-5
|
CM-40, CM-xxx/2
|
|
|
6R-1
|
CM-60, CM-xxx/1
|
|
|
6R-2
|
CM-60, CM-xxx/3
|
|
|
6R-3
|
CM-60, CM-xxx/4
|
|
|
6R-3AL
|
CM-60, CM-xxx/4AL
|
|
|
6R-3AR
|
CM-60, CM-xxx/4AR
|
|
|
6R-5
|
CM-60, CM-xxx/2
|
|
|
6R-8
|
CM-60, CM-xxx/3F
|
|
|
6R-9
|
CM-60, CM-xxx/4F
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
ADA Compliant
-
All-Active design requires minimal actuation force
-
4 stud switch design and rubber dampers for quieter operation
-
Durable stainless steel construction
-
3 year warranty
| Voltage: |
12/24V AC/DC
|
| Switch Type: |
Momentary
|
| Contact Type: |
SPDT Form 'C'
|
| Contact Rating: |
15 A @ 30 VDC
|
| Mounting: |
|
CM-40,
CM-41:
|
Single Gang
|
|
CM-60:
|
Single or Double Gang or 4 x 4
|
| |
| Std. Finish: |
US32 / 630
|
| Dimensions: |
|
CM-40:
|
4-1/2" x 1-3/4"
(114mm x 44mm)
|
|
CM-45:
|
4-1/2" x 4-1/2" x 1-3/4"
(114mm x 114mm x 44mm)
|
|
CM-60:
|
6" x 1-1/8"
(152mm x 28.6mm)
|
| |
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Round Push Plates
click to expand section
|
|
Net Cost
|
|
CM-40
4-1/2" Round Push Plate Switch
EDI DATA, APPROVALS
|
|
4-1/2" Round Push Plate Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.50"L x 6.25"W x 6.25"H
Weight: 0.62lbs.
UPC:NA
|
|
CM-41
4-1/2" Round Push Plate Switch with Square Back Plate
EDI DATA, APPROVALS
|
|
4-1/2" Round Push Plate Switch with Square Back Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.25"L x 6.25"W x 6.25"H
Weight: 0.76lbs.
UPC:NA
|
|
CM-60
6" Round Push Plate Switch
EDI DATA, APPROVALS
|
|
6" Round Push Plate Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.50"L x 6.25"W x 6.25"H
Weight: 0.93lbs.
UPC:NA
|
| |
|
Round Push Plates, Kinetic(tm) No Battery Wireless
click to expand section
|
|
Net Cost
|
|
CM-40K
4-1/2" Stainless Steel Round Push Plate Switch
EDI DATA, APPROVALS
|
|
4-1/2" Stainless Steel Round Push Plate Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-41K
4-1/2" Stainless Steel Round Push Plate Switch
with Square Back Plate
EDI DATA, APPROVALS
|
|
4-1/2" Stainless Steel Round Push Plate Switch
with Square Back Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CM-60K
6" Stainless Steel Round Push Plate Switch
EDI DATA, APPROVALS
|
|
6" Stainless Steel Round Push Plate Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| WEATHER RESISTANT OPTIONS |
 |
| CONTACT OPTIONS |
 |
| ARCHITECTURAL FINISH OPTIONS |
|
| Faceplate Graphic Options |
|
Net Cost |
|
CM-xxx/1
'BLANK' faceplate Add /1 to model #
|
'BLANK' faceplate Add /1 to model #
|
|
|
|
CM-xxx/2
'WHEELCHAIR' symbol, blue Add /2 to model #
|
'WHEELCHAIR' symbol, blue Add /2 to model #
|
|
|
|
CM-xxx/A2
'ACTIVE WHEELCHAIR' symbol, blue
|
'ACTIVE WHEELCHAIR' symbol, blue
|
|
|
|
CM-xxx/2AL
WHEELCHAIR symbol with ARROW left, blue graphics Add /2AL to model #
|
WHEELCHAIR symbol with ARROW left, blue graphics Add /2AL to model #
|
|
|
|
CM-xxx/2AR
WHEELCHAIR symbol with ARROW right, blue graphics Add /2AR to model #
|
WHEELCHAIR symbol with ARROW right, blue graphics Add /2AR to model #
|
|
|
|
CM-xxx/3
'PUSH TO OPEN', black graphics Add /3 to model #
|
'PUSH TO OPEN', black graphics Add /3 to model #
|
|
|
|
CM-xxx/3F
'POUSSEZ POUR OUVRIR', black graphics Add /3F to model #
|
'POUSSEZ POUR OUVRIR', black graphics Add /3F to model #
|
|
|
|
CM-xxx/4
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #
|
|
|
|
CM-xxx/A4
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue. Not available on stainless steel Column(tm) switches
|
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue. Not available on stainless steel Column(tm) switches
|
|
|
|
CM-xxx/4AL
WHEELCHAIR symbol with ARROW left, blue graphics Add /4AL to model #
|
WHEELCHAIR symbol with ARROW left, blue graphics Add /4AL to model #
|
|
|
|
CM-xxx/4AR
WHEELCHAIR symbol with ARROW right, blue graphics Add /4AR to model #
|
WHEELCHAIR symbol with ARROW right, blue graphics Add /4AR to model #
|
|
|
|
CM-xxx/4F
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', blue graphics Add /4F to model #
|
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', blue graphics Add /4F to model #
|
|
|
|
CM-xxx/8
'PUSH TO LOCK', black Add /8 to model #
|
'PUSH TO LOCK', black Add /8 to model #
|
|
|
|
CM-xxx/8B
'LOCK SYMBOL' and 'PUSH TO LOCK', Black text Add /8B to model #
|
'LOCK SYMBOL' and 'PUSH TO LOCK', Black text Add /8B to model #
|
|
|
|
CM-xxx/8D
'PUSH TO LOCK DOOR', black Add /8D to model #
|
'PUSH TO LOCK DOOR', black Add /8D to model #
|
|
|
|
CM-xxx/8F
'POUSSEZ POUR VERROUILLER', black text Add /8F to model #
|
'POUSSEZ POUR VERROUILLER', black text Add /8F to model #
|
|
|
| Weatherproof Options |
|
Net Cost |
|
|
CM-xxx-WT
boot and water tight coating Add 'WT' to product #
|
boot and water tight coating Add 'WT' to product #
|
|
|
| Contact Options |
|
Net Cost |
|
|
CM-xxx-DP
DPDT switch instead of SPDT switch Add 'DP' to the product #
|
DPDT switch instead of SPDT switch Add 'DP' to the product #
|
|
|
| Architectural Finishes (/1, /2, /3, /4) |
|
Net Cost |
|
CM-xxx-SB
satin brass finish (US4 / 606) Add 'SB' to product #
|
satin brass finish (US4 / 606) Add 'SB' to product #
|
|
|
|
CM-xxx-OB
oil rub bronze finish (US10B / 613) Add 'OB' to product #
|
oil rub bronze finish (US10B / 613) Add 'OB' to product #
|
|
|
|
CM-xxx-PB
polished brass (US3 / 605) Add 'PB' to product #
|
polished brass (US3 / 605) Add 'PB' to product #
|
|
|
|
CM-xxx-AB
antique brass finish (US5 / 609) Add 'AB' to product #
|
antique brass finish (US5 / 609) Add 'AB' to product #
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
 |
| ESCUTCHEONS |
 |
| SWITCH BOLLARDS (POSTS) |
|
| Mounting Boxes & Accessories: Double Gang |
|
Net Cost |
|
CM-43CBL
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS). Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D.
|
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS). Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D.
|
|
|
|
CM-540B
Surface Box, Shallow Depth. Flame and Impact resistant black polymer (ABS) 4-13/16" x 4-13/16" x 5/8"
|
Surface Box, Shallow Depth. Flame and Impact resistant black polymer (ABS) 4-13/16" x 4-13/16" x 5/8"
|
|
|
|
CM-660
6-1/2" Dress plate, Cover for double gang or 4" square flush box, Heavy gauge stainless steel
|
6-1/2" Dress plate, Cover for double gang or 4" square flush box, Heavy gauge stainless steel
|
|
|
|
CM-49C
Adapter plate for mounting on double gang or 4" Square box 4" x 1/16"
|
Adapter plate for mounting on double gang or 4" Square box 4" x 1/16"
|
|
|
|
|
CM-43G
Gasket for CM-43CBL and CM-63CBL Boxes
|
Gasket for CM-43CBL and CM-63CBL Boxes
|
|
|
| Mounting Boxes & Accessories: Round ABS Box |
|
Net Cost |
|
CM-47S
Surface, Round, Standard Depth, provision for wireless. black polymer (ABS) Flame and Impact resistant, 5" x 1-3/4"D
|
Surface, Round, Standard Depth, provision for wireless. black polymer (ABS) Flame and Impact resistant, 5" x 1-3/4"D
|
|
|
|
CM-47SER
Surface, Round, Extra Deep, for Kinetic(tm) CM-40K Series Push Plate Switches
|
Surface, Round, Extra Deep, for Kinetic(tm) CM-40K Series Push Plate Switches
|
|
|
|
CM-69S
Surface, Round Standard Depth, provision for wireless. black polymer (ABS) Flame and impact resistant, 6-1/2" x 1-3/4"D
|
Surface, Round Standard Depth, provision for wireless. black polymer (ABS) Flame and impact resistant, 6-1/2" x 1-3/4"D
|
|
|
|
CM-69SER
Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates
|
Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates
|
|
|
| Escutcheons: 2 Pc. ABS Escutcheons |
|
Net Cost |
|
CM-49
Surface/Flush mount kit includes CM-49A, CM49B, CM-49C and CM-49G. 8-3/4" x 2
|
Surface/Flush mount kit includes CM-49A, CM49B, CM-49C and CM-49G. 8-3/4" x 2
|
|
|
|
CM-79
Surface/Flush mount kit includes CM-79A, CM79B, CM-49C and CM-79G. 9-5/8" x 2"
|
Surface/Flush mount kit includes CM-79A, CM79B, CM-49C and CM-79G. 9-5/8" x 2"
|
|
|
| Escutcheons: Stainless Steel Escutcheons |
|
Net Cost |
|
CM-59S
Surface, Round, Standard Depth. Heavy gauge stainless steel 7-3/4" x 1-1/8"
|
Surface, Round, Standard Depth. Heavy gauge stainless steel 7-3/4" x 1-1/8"
|
|
|
|
CM-89S
Surface, Round Standard Depth. Heavy gauge stainless steel 9-5/8" x 1-1/2"
|
Surface, Round Standard Depth. Heavy gauge stainless steel 9-5/8" x 1-1/2"
|
|
|
| Switch Bollards (Posts): Clear Aluminum |
|
Net Cost |
|
|
CM-42-CSU-CLR
42" Tall, No switch prep, 6" x 6" clear aluminum
|
42" Tall, No switch prep, 6" x 6" clear aluminum
|
|
|
|
CM-42-BSU-CLR
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" clear aluminum
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" clear aluminum
|
|
|
|
CM-48-BSU-CLR
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" clear aluminum CM-48-BSU-CLR
|
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" clear aluminum CM-48-BSU-CLR
|
|
|
| Switch Bollards (Posts): Dark Bronze |
|
Net Cost |
|
|
CM-42-CSU-BRZ
42" Tall, No switch prep, 6" x 6" dark bronze finish
|
42" Tall, No switch prep, 6" x 6" dark bronze finish
|
|
|
|
CM-42-BSU-BRZ
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
|
|
|
|
CM-48-BSU-BRZ
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
|
|
| Switch Bollards (Posts): Mill Finish |
|
Net Cost |
|
|
CM-42-CSU-MIL
42" Tall, No switch prep, 6" x 6" mill finish
|
42" Tall, No switch prep, 6" x 6" mill finish
|
|
|
|
|
CM-42-BSU-MIL
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish
|
|
|
|
|
CM-48-BSU-MIL
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish
|
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish
|
|
|
| Switch Bollards (Posts): Stainless Steel |
|
Net Cost |
|
CM-42-BSU-SS
42” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
42” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
|
|
|
|
CM-48-BSU-SS
48” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
48” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
|
|
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
