CV-7400 AWID/HID Prox. Reader
|
|
Camden offers an extensive line of access control system readers. All readers are rated for indoor or outdoor use. A selection of prox. cards and tags are available.
|
| CV-7400 AWID/HID Prox. Reader |
CV-7400 AWID/HID Prox. Reader
|
|
Camden offers an extensive line of access control system readers. All readers are rated for indoor or outdoor use. A selection of prox. cards and tags are available.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
CV-7400, CV-7820:
-
Wiegand output, HID and AWID supported
-
Rugged weather-resistant design
-
Range up to 5” (127mm)
-
Electronics are sealed in tamper and weather resistant epoxy potting
-
Proximity 125MHz frequency
-
3 year warranty
| Interface:: |
|
CV-7400,
CV-7820:
|
Wiegand output, HID and AWID supported
|
| |
| Environment:: |
Rugged, weather-resistant design
|
| Access control:: |
Listed to UL294
|
| Energy:: |
75mA =5 – 16VDC (Max at 12VDC)
|
| Frequency & Range:: |
125kHz, up to 5” (127mm) (using CV-CSA proximity Card (Clamshell) with 12VDC at the reader)
|
|
|
|
HID/AWID Dual Format Reader
 click to expand section
|
|
Net Cost
|
|

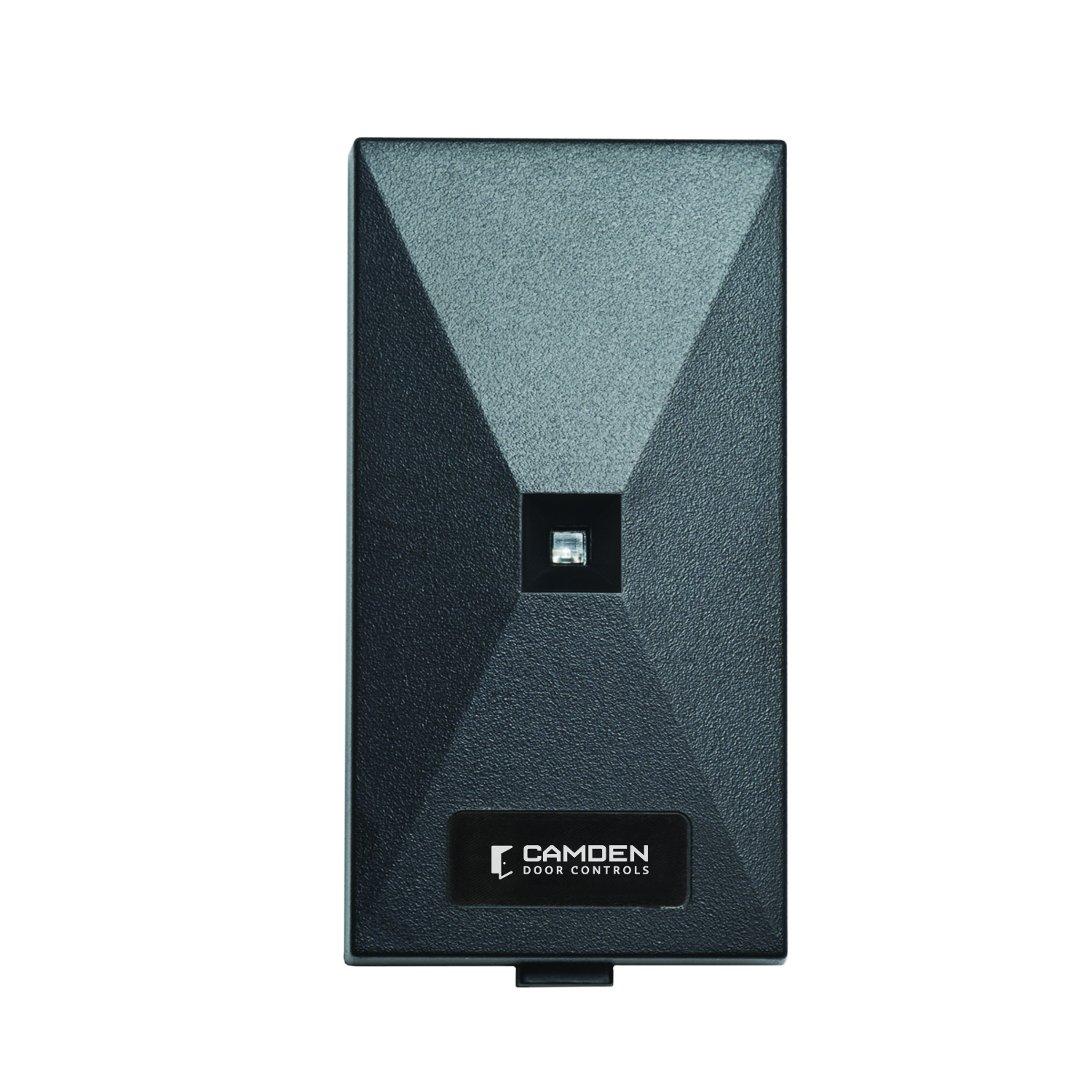

CV-7400
Narrow, compact, 4" - 5" read range
EDI DATA, APPROVALS
|
|
Narrow, compact, 4" - 5" read range
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: lbs.
UPC:670454156723
|
|

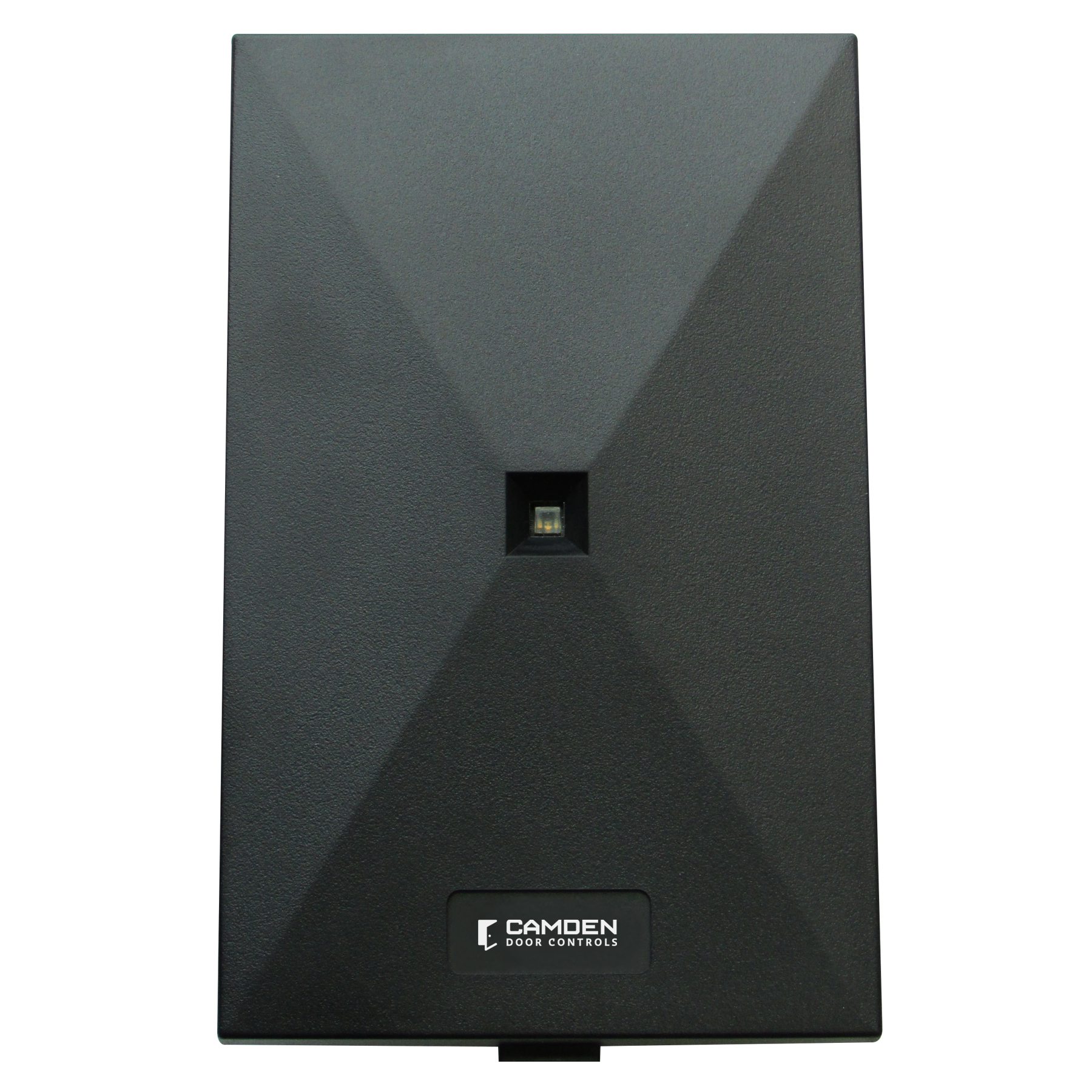

CV-7820
Single gang, up to 8" read range
EDI DATA, APPROVALS
|
|
Single gang, up to 8" read range
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: 0.33lbs.
UPC:670454157492
|
| |
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CV-CSA
AWID format prox. cards, clam shell style, package of 10
EDI DATA, APPROVALS
|
|
AWID format prox. cards, clam shell style, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140135
|
|
|
CV-CSA-B
AWID format prox. cards, clam shell style, package of 100
EDI DATA, APPROVALS
|
|
AWID format prox. cards, clam shell style, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454176639
|
|
|
CV-ISA
AWID format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
AWID format ISO prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:67055418091
|
|
|
CV-ISH
HID Format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:67045418093
|
|
|
CV-ISA-B
AWID format ISO prox. card, package of 100
EDI DATA, APPROVALS
|
|
AWID format ISO prox. card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183347
|
|
|
CV-ISH-B
HID Format ISO prox. card, package of 100
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183248
|
|

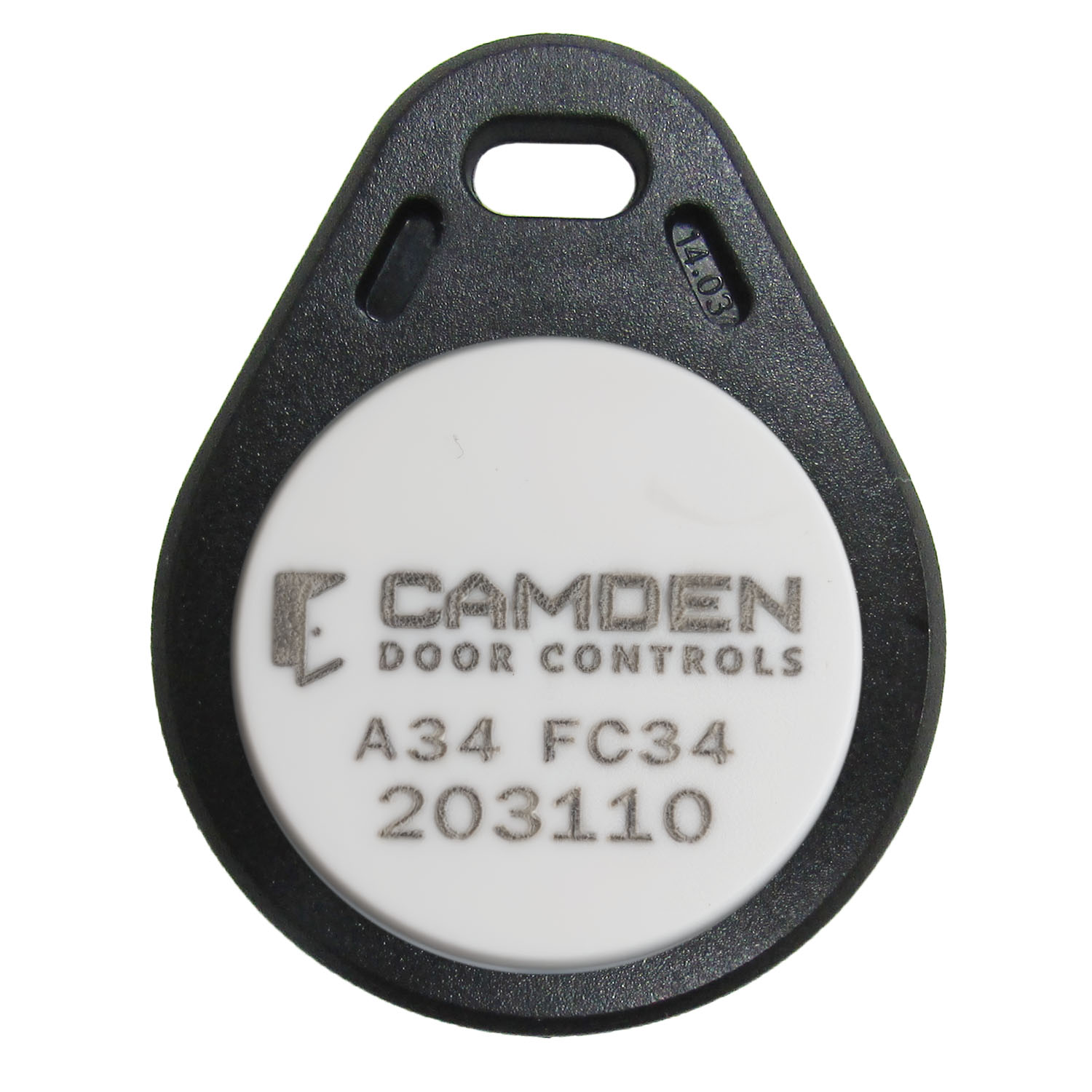

CV-KTA
AWID format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
AWID format prox. key tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454140197
|
|
CV-CSH
HID Format clam shell prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152985
|
|
|
CV-CSH-B
HID Format clam shell prox. card, package of 100
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454177964
|
|

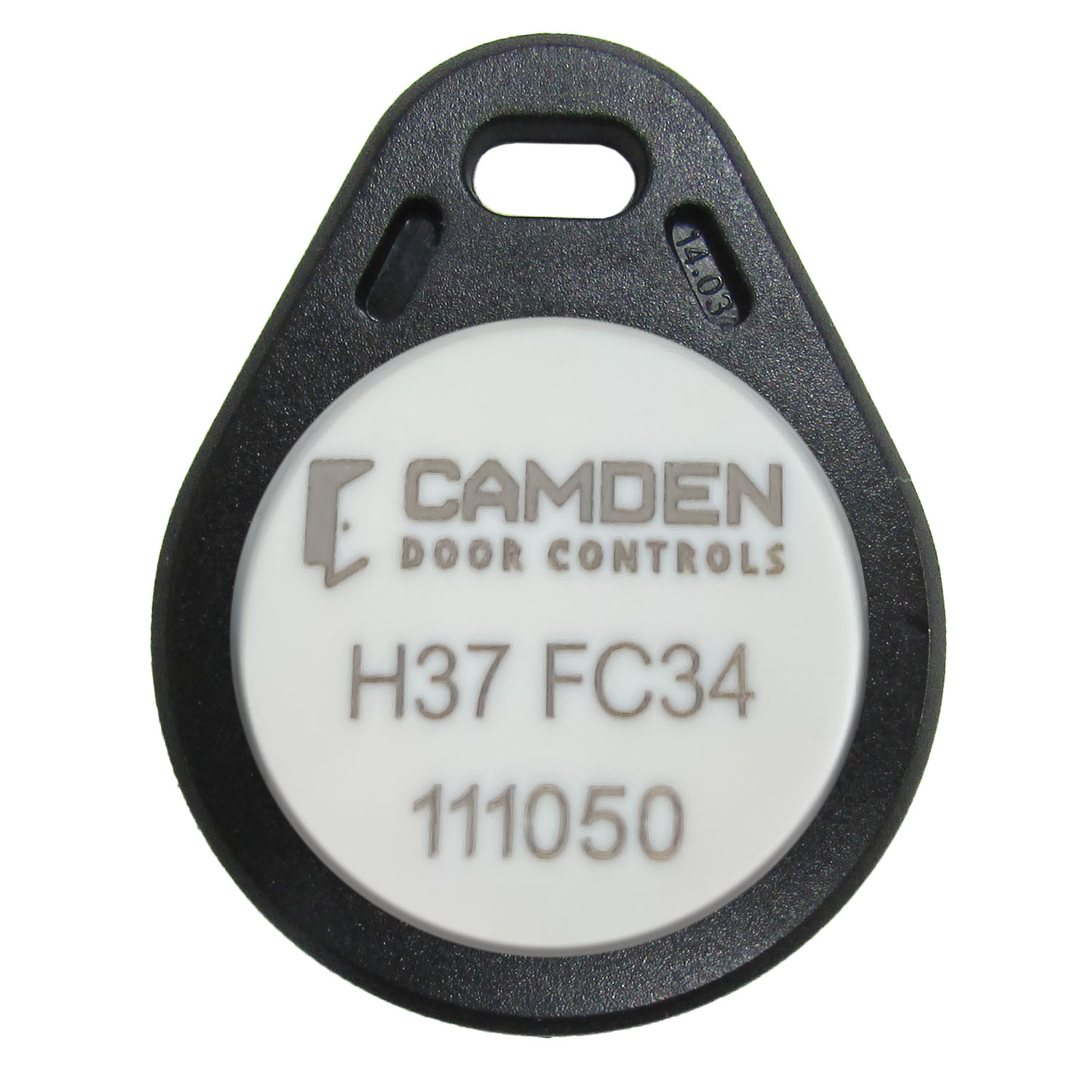

CV-KTH
HID Format prox. key tag, package of 25
EDI DATA, APPROVALS
|
|
HID Format prox. key tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152749
|
| |
|
