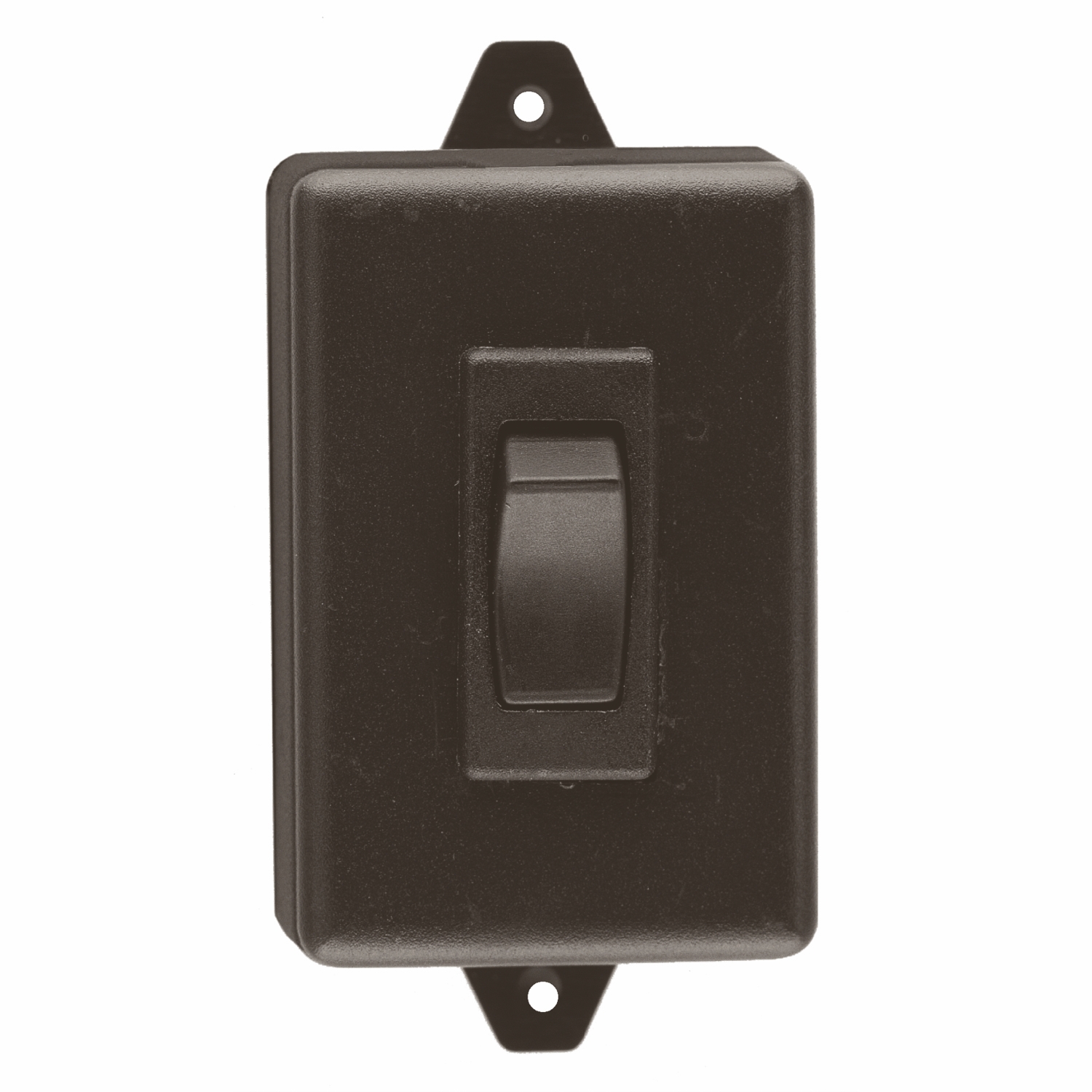

| CM-830, Rocker Switch, Black Plastic |
CM-830, Rocker Switch, Black Plastic
|
Camden's CM-800 Series remote door release (rocker) switches are made for surface mount applications. They are available in weather-resistant aluminum or low-profile plastic. Ideal for under desk or wall mounting in reception areas, these CM-800 series switches are designed for releasing maglocks or door strikes. |
|
|
|
|
|
| CM-850, Rocker Switch, Beige Plastic |
|
|
|

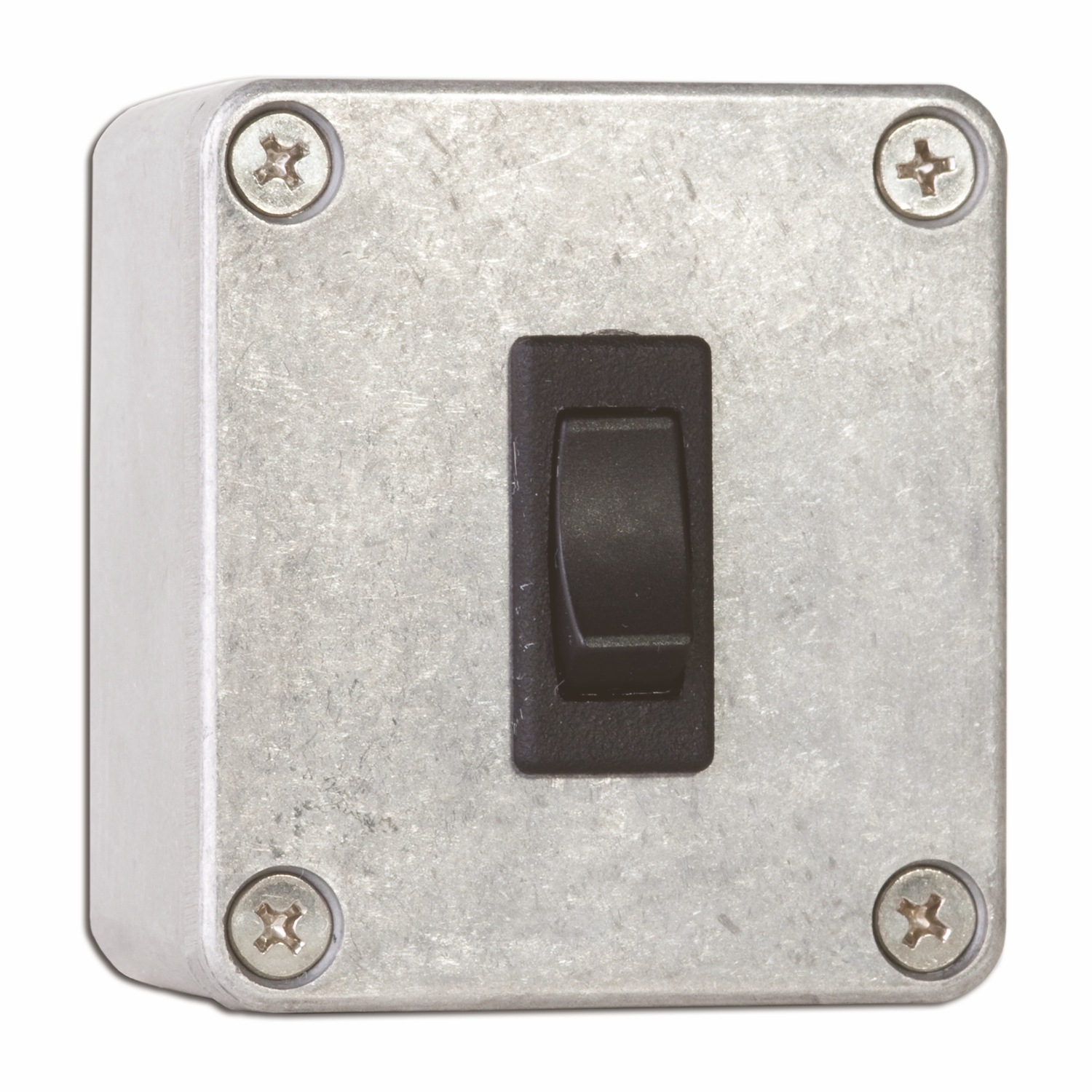

| CM-810, Rocker Switch, NEMA Enclosure |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
909S-MO
|
CM-850
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Economical control of a locked door or alert/alarm indicator
-
3 year warranty
-
CM-830, CM-840, CM-850:
Easily mounts under counters or desks
-
CM-810, CM-820:
Includes NEMA rated enclosure
| Voltage: |
12-24 VDC
|
| Switch Type: |
|
CM-810,
CM-830:
|
Momentary - SPDT (Common, N.C., N.O.)
|
|
CM-820,
CM-840:
|
Maintained - SPDT (Common, N.C., N.O.)
|
|
CM-850:
|
Momentary or Maintained SPDT (Common, N.C., N.O.)
|
| |
| Current Rating: |
|
CM-810,
CM-820,
CM-830,
CM-840:
|
20 Amps
|
|
CM-850:
|
10 Amps
|
| |
| Switch Life: |
100,000 cycles
|
| Dimensions: |
|
CM-810,
CM-820:
|
2-1/2" x 2-1/4" x 1-3/8"
(63mm x 57mm x 35mm)
|
|
CM-830,
CM-840:
|
2-7/8" x 1-1/2" x 3/4"
(73mm x 38mm x 19mm)
|
|
CM-850:
|
2-3/8" x 2-3/8" x 5/8"
(60mm x 60mm x 17mm)
|
| |
|
|
|
NEMA Enclosure
click to expand section
|
|
Net Cost
|
|
CM-810
SPDT Momentary
EDI DATA, APPROVALS
|
|
SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2"L x 3"W x 3"H
Weight: 0.34lbs.
UPC:670454129840
|
|
CM-820
SPST Mantained
EDI DATA, APPROVALS
|
|
SPST Mantained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2"L x 3"W x 3"H
Weight: 0.34lbs.
UPC:670454130129
|
| |
|
Black Plastic
click to expand section
|
|
Net Cost
|
|
CM-830
SPDT Momentary
EDI DATA, APPROVALS
|
|
SPDT Momentary
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 3"W x 1"H
Weight: 0.15lbs.
UPC:670454130150
|
|
CM-840
SPST Maintained
EDI DATA, APPROVALS
|
|
SPST Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2"L x 3"W x 3"H
Weight: 0.34lbs.
UPC:670454130181
|
| |
|
Beige Plastic
click to expand section
|
|
Net Cost
|
|
CM-850
Remote Door Release Switch SPDT Momentary or Maintained
EDI DATA, APPROVALS
|
|
Remote Door Release Switch SPDT Momentary or Maintained
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 3"W x 1"H
Weight: 0.15lbs.
UPC:670454157058
|
| |
|
