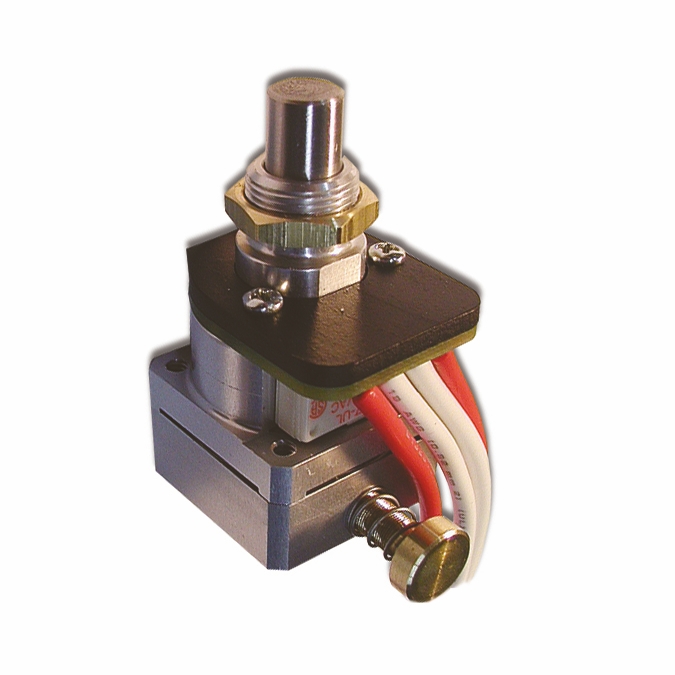

CX-1085M Pneumnatic Switch w/ CM-4000 Series Mushroom Pushbutton
|
|
Built tough for any indoor or outdoor application, CX-1085M pneumatic time delay switches provide mechanical control with easy 'thumb screw' time adjustments from 1 to 60 seconds. Pneumatic time delays are available for use with most Camden request to exit push buttons. Applications: As part of a push button or sold separately, these switches are ideal for use where fire/building codes mandate a non-electrical (mechanical) means of breaking power to the locking device.
|
| CX-1085M Pneumnatic Switch w/ CM-4000 Series Mushroom Pushbutton |
CX-1085M Pneumnatic Switch w/ CM-4000 Series Mushroom Pushbutton
|
Built tough for any indoor or outdoor application, CX-1085M pneumatic time delay switches provide mechanical control with easy 'thumb screw' time adjustments from 1 to 60 seconds. Pneumatic time delays are available for use with most Camden request to exit push buttons. Applications: As part of a push button or sold separately, these switches are ideal for use where fire/building codes mandate a non-electrical (mechanical) means of breaking power to the locking device.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
1 to 60 second timer
-
DPST contacts rated 1 amp @ 125 VDC
-
May be ordered separately, or factory installed on select exit button models
-
To view Exit Buttons with pneumatic timers, go to Express™ CM-4000, 5000, 7000 and 8000 series product pages
| Operating Force: |
8 oz Max
|
| Contact Rating: |
5 amps @ 30 VDC
|
| Time Delay: |
1 - 60 Seconds +/-15%
|
| Temp Range: |
15°F to 120°F (-9°C to 49°C)
|
| Endurance: |
1,000,000 Operations
|
| Dimensions: |
|
CX-1085:
|
1" x 1" x 1-1/2" (25mm x 25mm x 38mm)
|
|
CX-1085M:
|
1" x 1-3/8" x 2" (25mm x 35mm x 51mm)
|
| |
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-1085M
Pneumatic timer for push buttons Switch option for CM-4085, CM-4185, CM-5085, CM-7085, CM-7185, CM-8085 and CM-8185 Push Buttons.
EDI DATA, APPROVALS
|
|
Pneumatic timer for push buttons Switch option for CM-4085, CM-4185, CM-5085, CM-7085, CM-7185, CM-8085 and CM-8185 Push Buttons.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 2"W x 2.5"H
Weight: 0.15lbs.
UPC:670454166968
|
| |
|
